On the Structural Properties of Social Networks and their Measurement-calibrated Synthetic Counterparts

T0 review · 3 major / 7 minor · reviewed 2026-08-14 · deepseek-v4-flash

Pith's one-line read Calibrated 2K and stochastic block models reproduce the structural metrics of 120 real social networks more closely than clustering preferential-attachment and forest-fire models, but no tested model creates a network that is both…

desk verdict Honest, useful empirical benchmark of calibrated network models on 120 social networks, but the model ranking in Fig. 5 is partly circular because evaluation uses the same metric set and distance as calibration. read the letter →

arxiv 1908.08429 v1 pith:Y2QCACMC submitted 2019-08-22 cs.SI cs.DMphysics.data-anphysics.soc-ph

classification cs.SIcs.DMphysics.data-anphysics.soc-ph
keywords socialnetworkanalysisgraphmetricsmodelcalibration2Kstochasticblockclusteringcoefficientdiametercorrelation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper studies 120 large social networks from three domains—friendship, communication, and collaboration—and asks how well four standard generative models can imitate them after calibration to measured graph metrics. It claims that the 2K and stochastic block models are the most faithful imitators across all three domains, while clustering preferential-attachment and forest-fire models are less accurate on average. It also claims that the correlation profiles among structural metrics differ by domain, so a single universal description of social network topology would be misleading. The most pointed negative result is structural: none of the four models can generate graphs that combine a large normalized diameter with a high clustering coefficient, even though real social networks often have both.

What carries the argument

The argument is carried by a measurement-calibration pipeline rather than by a single identity. The key pieces are a selected vector of structural metrics—assortativity, average clustering coefficient, average degree, normalized pseudo-diameter, interval degree probabilities, and normalized maximum degree—chosen as a maximal independent set in the metric-correlation network; the Canberra distance between metric vectors as the goodness-of-fit measure; and grid-search parameter tuning for each of the four models against each real network. This machinery converts the abstract question of which model is more realistic into a numerical comparison of calibrated synthetic graphs with real graphs, and it is what allows the paper to localize which metric relationships models can and cannot reproduce.

What would settle it

Re-run the pipeline with a different metric basis, such as adding graphlet or spectral descriptors, or with a different redundancy threshold; if mean Canberra distances no longer put 2K and stochastic block models ahead of clustering preferential-attachment and forest-fire models in all three domains, the paper's ordering is not robust. The cannot-simultaneously claim can be tested directly by generating a large sample of calibrated 2K and stochastic block graphs while scanning parameter space for any point with normalized diameter and average clustering both above the real-network medians; one such graph would break the claim.

Watch

Extended reading notes

Core claim

The central discovery is an empirical comparison with a negative joint finding. Across the 120 networks, the authors compute 17 structural measurements, reduce them to a non-redundant, size-independent set using a Spearman-correlation network with a 0.65 threshold, and fit each model by grid search minimizing the Canberra distance between the metric vectors of the real and synthetic graphs. Domain-averaged Canberra distances show that the 2K model and the stochastic block model reproduce the selected structural metrics most closely in every domain, with communication networks the easiest and friendship networks the hardest to mimic. However, when the authors examine pairwise relationships, they find a structural limitation shared by all four models: they cannot produce graphs that simultaneously have a large diameter normalized by log size and a high average clustering coefficient, a combination that appears in all three real-world domains.

Load-bearing premise

The whole ordering of models depends on the assumption that the 17 computed metrics, after reduction at a 0.65 correlation threshold, still cover the descriptive space of network topology; if important structural information is missing from this basis, a model that looks faithful on these metrics could still be misleading.

Editorial extensions

If this is right

  • Privacy-preserving synthetic counterparts of social networks can be generated by calibrating a 2K or stochastic block model to the selected metrics, avoiding release of the original graph.
  • Simulations of processes that depend jointly on diameter and clustering should not rely on any of the four models, since that trait combination is outside their reach.
  • Model selection should be domain-aware: communication networks are the easiest to mimic and friendship networks the hardest.
  • Because 2K and stochastic block models match degree-related metrics exactly through their construction, synthetic graphs from these models can be trusted when degree-distribution fidelity is the only requirement.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper does not vary the 0.65 Spearman threshold; a natural stress test would be to rerun the entire selection-and-ranking pipeline at thresholds such as 0.5 or 0.8 to see whether the 2K and stochastic block model ordering is an artifact of that cutoff.
  • The claimed diameter-clustering gap concerns the four generative mechanisms; one can test whether adding a path-lengthening or triangle-adding postprocessing step to a 2K or stochastic block model reaches the missing corner of the metric space.
  • The authors suggest embedding-based comparison as a next step; a direct comparison of embedding distances with the Canberra metric on the selected basis would show whether the reduced metric set spans the information that modern graph representations extract.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. This paper analyzes 120 real social networks from three domains (friendship, communication, collaboration). For each network the authors compute 17 structural metrics, examine Spearman rank correlations between metrics across domains, and select a non-redundant subset using a maximal independent set on a correlation network thresholded at 0.65. They then calibrate four generative models (clustering Barabasi-Albert, stochastic block model, forest-fire, and 2K) by minimizing the Canberra distance between the selected metric vectors of the real and generated graphs, and compare the models by computing mean Canberra distances domain by domain. The main findings are that correlation patterns differ across domains, that 2K and stochastic block models mimic the selected metrics most closely, and that none of the models can generate graphs with simultaneously high diameter and high clustering coefficient.

Significance. The paper offers a useful large-scale empirical benchmark: 120 real networks and 480 calibrated synthetic graphs, with data and code made publicly available in a supplementary repository. The domain-specific correlation analysis of graph metrics is a valuable descriptive contribution, and the scatter-plot observation in Fig. 3 that no model reproduces the simultaneous combination of large normalized diameter and high clustering coefficient is an interesting, calibration-free falsifiable finding. However, the central comparative claim that 2K and SBM 'can be used to mimic social networks relatively efficiently' is weakened because the evaluation uses the same metric set and the same Canberra distance that were optimized during calibration. The independent content of the paper, especially the capacity limitations shown in Fig. 3, remains credible, but the model ranking in Fig. 5 needs a stronger, non-circular evaluation before the main conclusion is fully supported.

major comments (3)
  1. [Section IV, Fig. 5, Eq. (1)] The evaluation is circular with respect to the calibration objective. Equation (1) calibrates model parameters by minimizing the Canberra distance d(G_M(θ), G_T) over a vector of graph metrics f, and Section IV then ranks the models by computing the mean Canberra distance between original and generated graphs over exactly the same metric set listed in Table II. Consequently, Fig. 5 measures how well each model can minimize the training objective rather than how well it generalizes to structural properties not used in fitting. The authors should evaluate the models on held-out metrics that were not part of the calibration objective, or at least report per-metric distances to show which properties drive the ranking. This issue is load-bearing for the conclusion that 2K and SBM efficiently mimic social networks.
  2. [Section III, Fig. 2] The threshold of 0.65 for the domain-averaged absolute Spearman correlation and the maximal-independent-set selection rule are not justified and no sensitivity analysis is provided. The selected metric set determines the calibration objective and the subsequent evaluation, so a different threshold could change the metric set and possibly the model ranking. The authors should test a range of thresholds (for example 0.5, 0.6, 0.7, 0.8) and report whether the selected non-redundant set and the main conclusions are stable.
  3. [Fig. 5, Section IV] The domain-averaged Canberra distances are presented as point estimates without any uncertainty quantification. There are no error bars, standard deviations, or significance tests, and some of the reported differences are small (for example, in the communication domain the original-2K distance is 0.93 while the original-SBM distance is 1.08). Without knowing the distribution of distances across the 43 communication networks, the claim that SBM and 2K efficiently capture the structural properties cannot be assessed quantitatively. The authors should report per-network distances, confidence intervals, or a paired significance test between models.
minor comments (7)
  1. [Section II] The statement that the 17 graph measurements are 'chosen in such a way that together they measure every aspect of networks' is too strong; the paper should say that the metrics cover commonly studied aspects of degree distribution, shortest paths, centralities, and clustering.
  2. [Section III, Fig. 2 caption] The caption of Fig. 2 explains that correlations are domain-averaged absolute Spearman correlations, but this averaging is not described in the main text; it should be stated where the figure is referenced.
  3. [Table II] Table II lists 'domain' and 'category' as nominal variables, but the distance function in Eq. (1) is defined over real-valued metric functions; the role of these nominal variables in calibration and evaluation should be clarified.
  4. [Section IV] The text says that models 'could mimic the structural properties of real networks, especially SBM and 2K', and later states that SBM and 2K generate similar graphs, but no quantitative measure of similarity between the two models is given.
  5. [Conclusion] The conclusion refers to 'degree corrected stochastic block models' while Section II and Fig. 5 use 'stochastic block model (SBM)'; the authors should specify which variant was actually fitted, since the nonparametric microcanonical SBM of Peixoto can include degree correction but this is not stated in the methodology.
  6. [Section II] The calibration procedure is described only as grid search with details deferred to reference [12]; the parameter spaces and grid ranges for each model should be summarized in the main text to make the experiments reproducible without consulting the earlier paper.
  7. [Fig. 3 and Fig. 4] The scatter plots in Figs. 3 and 4 use overlapping dots of different sizes, which makes it difficult to see the density of points; transparency, jitter, or separate density panels would improve readability.

Circularity Check

1 steps flagged · score 6.0 of 10

Model ranking in Fig. 5 is computed on the same Canberra metric distance used as the calibration objective in Eq. (1), so the reported SBM/2K advantage is partly in-sample fit rather than independent prediction.

  1. fitted input called prediction [Eq. (1), Sec. II (Methodology); Sec. IV and Fig. 5]
    "θ∗ = arg min θ d(GM (θ), GT ). (1)... To quantify the distance between two graphs, we calculate the Canberra distance of vectors of a reasonably chosen selection of graph metrics ... After we calculated the graph metrics detailed in Table II of the newly generated graphs, we compare the synthetic and real networks through their graph metrics."

    The calibration objective in Eq. (1) is d(GM(θ), GT) = dCan(f(GM(θ)), f(GT)) over the selected metric vector f (Table II). The evaluation in Sec. IV/Fig. 5 then ranks models by the mean Canberra distance between original and generated graphs over the same Table II metrics and the same distance function. Therefore the Fig. 5 ranking measures how well each model minimized the very objective used to fit it, not how well the model generalizes to new structural properties. The SBM/2K advantage is partly a training-score artifact, and the statement that they 'can be used to mimic social networks relatively efficiently' is supported only by an in-sample comparison. The separate Fig.

full rationale

The central ranking claim is partially circular: the same Canberra distance over the same metric vector defines both the fitting criterion (Eq. 1) and the reported goodness-of-fit (Fig. 5). This does not make the whole paper circular. The metric-selection analysis (Sec. III) is descriptive, the correlation profiles across domains are independent empirical findings, and the Fig. 3 scatter plot exposes a model failure (large diameter plus high clustering simultaneously) that is visible regardless of the calibration objective. I therefore score the circularity as 6 rather than higher: one key 'prediction' (models mimic social networks efficiently, especially SBM/2K) reduces substantially to in-sample fit. Minor self-citation to the authors' earlier [12] for calibration stability is not load-bearing for the main empirical claims.

Assumptions & free parameters 5 free parameters · 3 assumptions · 0 invented entities

The paper contributes no new theoretical entities. Its model parameters are fitted per target network, and the metric-selection threshold is a manual choice. The central benchmark conclusions rest on the assumption that the selected 17 metrics span the descriptive space of network topology and that the 0.65 correlation threshold gives a meaningful non-redundant set.

free parameters (5)
  • CBA model parameters = grid-searched per target network
    Clustering Barabasi-Albert parameters are tuned to minimize Canberra distance to each real network.
  • SBM block partition and parameters = inferred per network
    Stochastic block model block structure and associated parameters are fitted; the largest connected component is used for comparison.
  • Forest-fire parameters = grid-searched per network
    Forward burning probability and other forest-fire parameters are fitted to each target network.
  • 2K joint degree matrix = empirical joint degree distribution of target
    The 2K model uses the target network's joint degree matrix, which makes degree-related metrics match by construction.
  • Spearman correlation threshold = 0.65
    Manual threshold used to build the correlation network and select a maximal independent set of metrics.
assumptions (3)
  • domain assumption The 17 selected metrics jointly measure every aspect of network structure.
    Stated in Sec. II; if the metric set is not representative, all downstream model comparisons are limited.
  • ad hoc to paper Spearman correlation threshold 0.65 and maximal independent set selection identify a non-redundant metric set with sufficient descriptive power.
    The threshold is chosen by the authors without sensitivity analysis.
  • domain assumption Networks collected from online repositories represent social networks across the three studied domains.
    Convenience samples from networkrepository, ICON, and KONECT may not generalize to all social networks.

how reviews work

0 comments
Cite this review

Pith. "Pith review of On the Structural Properties of Social Networks and their Measurement-calibrated Synthetic Counterparts." pith.science (2026). https://pith.science/paper/Y2QCACMC

@misc{pith2026190808429,
  author       = {Pith},
  title        = {Pith review of: On the Structural Properties of Social Networks and their Measurement-calibrated Synthetic Counterparts},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/Y2QCACMC}},
  note         = {Machine review of arXiv:1908.08429}
}
read the original abstract

Data-driven analysis of large social networks has attracted a great deal of research interest. In this paper, we investigate 120 real social networks and their measurement-calibrated synthetic counterparts generated by four well-known network models. We investigate the structural properties of the networks revealing the correlation profiles of graph metrics across various social domains (friendship networks, communication networks, and collaboration networks). We find that the correlation patterns differ across domains. We identify a non-redundant set of metrics to describe social networks. We study which topological characteristics of real networks the models can or cannot capture. We find that the goodness-of-fit of the network models depends on the domains. Furthermore, while 2K and stochastic block models lack the capability of generating graphs with large diameter and high clustering coefficient at the same time, they can still be used to mimic social networks relatively efficiently.

Figures

Figures reproduced from arXiv: 1908.08429 by the authors.

Figure 1
Figure 1. Scattering of the graph measurements of the real networks. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

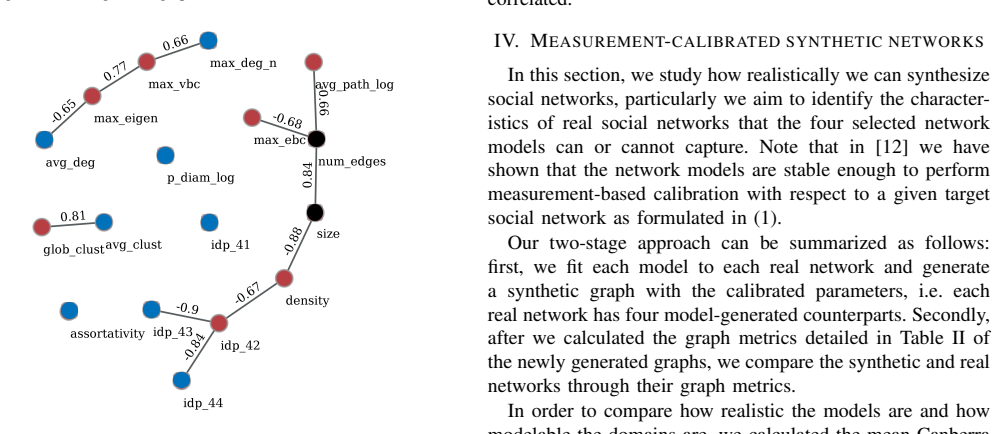

Figure 2. The correlation network of structural metrics. Two nodes are [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

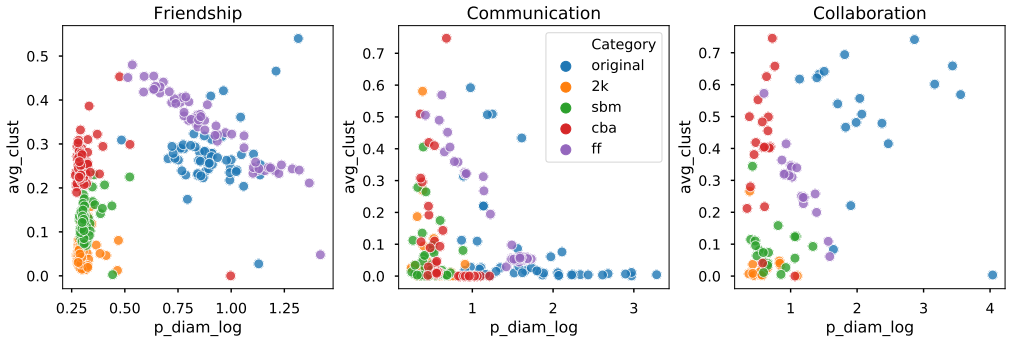

Figure 3. The structural properties of real networks that the models cannot capture efficiently. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: The structural properties of real networks that models can capture accurately. Different sized dots are used only to be able to see the overlaps more [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5

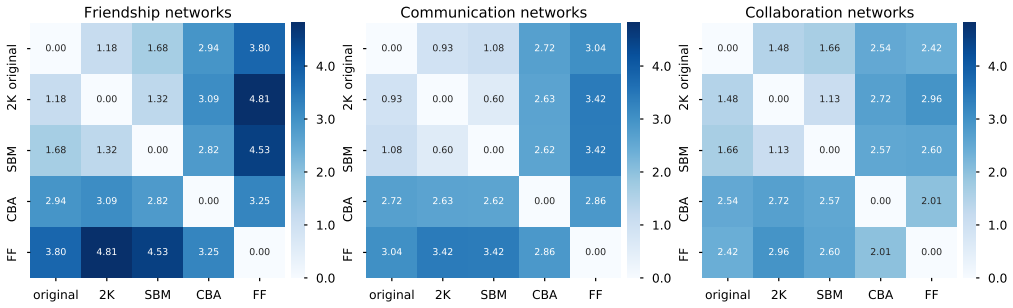

Figure 5. Figure 5: The mean Canberra distances between the original and the model-generated graphs across domains. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
