Predicting Animation Skeletons for 3D Articulated Models via Volumetric Nets

Evangelos Kalogerakis; Karan Singh; Yang Zhou; Zhan Xu

REVIEW 3 major objections 4 minor 76 references

Predicting Animation Skeletons for 3D Articulated Models via Volumetric Nets

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A neural network predicts animation skeletons for any 3D character from geometry alone, without templates or class labels.

desk verdict First learning-based, template-free animation skeleton prediction, solid on its own repository test, but the generic cross-category claim is untested due to single-source evaluation and a density-channel confound. read the letter →

arxiv 1908.08506 v1 pith:SRVSF234 submitted 2019-08-22 cs.CV cs.GR

Zhan Xu , Yang Zhou , Evangelos Kalogerakis , Karan Singh This is my paper · ORCID

classification cs.CVcs.GR

keywords animationskeletoncharacterriggingvolumetricnetworkhourglassprediction3Darticulatedmodelsminimumspanningtreesigneddistancefunction

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that animation skeletons—the joint-and-bone rigs that drive character animation—can be predicted automatically for arbitrary 3D articulated characters from geometry alone, without category labels or pre-defined templates. It trains a stack of 3D hourglass networks on thousands of artist-rigged models, feeding each model as a volumetric grid of signed distance plus surface curvature, local shape diameter, and mesh density. The network predicts joint and bone probability maps together, and a minimum spanning tree connects the detected joints into a skeleton. If correct, the method would give artists and automated pipelines a generic rigging step that beats both template fitting and geometric skeleton extraction in matching human-created skeletons.

What carries the argument

The load-bearing mechanism is a stack of four 3D hourglass modules—encoder-decoder blocks that downsample to a compact code, then upsample with skip connections to preserve local detail—operating on an $88\times 88\times 88$ volumetric grid with five channels: signed distance function, two principal surface curvatures, local shape diameter, and local vertex density. Each hourglass outputs a pair of probability maps, one for joints and one for bones, and each successive module refines the previous pair. Joint candidates are extracted by soft non-maximum suppression, then connected by Prim's minimum spanning tree using summed negative log bone probabilities as edge costs, which prefers short edges that run through predicted bone voxels and penalizes edges exiting the shape.

What would settle it

Take the same trained architecture and evaluate it on artist-rigged characters collected from a different source, or on procedurally generated characters with known ground-truth skeletons. If the joint Chamfer distance rises markedly above the reported 4.6% or the matching rate falls well below 62.1%, the paper's generalization claim is not as broad as stated.

Watch

Extended reading notes

Core claim

The paper's central claim is that a static 3D mesh of an articulated character contains enough cues to locate its animation joints and bones, and that these are best learned jointly rather than by fitting a fixed skeleton. The network outputs voxel-wise probabilities for joints and for bones; the bone map is not decorative, because the connectivity of the skeleton is obtained by a minimum spanning tree whose edge costs are sums of negative log bone probabilities, so predicted bones actively determine which joints get connected. On a test set of artist-rigged characters, the paper reports a symmetrized joint Chamfer distance of 4.6% of the shape's longest axis, compared with 5.7% for an L1-medial skeleton baseline and 7.4% for a template-fitting baseline, and a predicted-joint matching rate of 62.1% against 47.9% and 55.8%. The authors also claim a user-controllable level of detail: a single parameter conditions the network to include or omit small parts such as fingers.

Load-bearing premise

The method assumes the mined collection of artist-rigged characters is representative of animation skeletons in general, so that conventions in that collection carry over to unseen characters from other sources.

Editorial extensions

If this is right

A single trained model can rig humanoids, quadrupeds, birds, fish, robots, and fictional characters without class labels or per-category templates.
Changing one granularity parameter at test time yields a coarser or finer skeleton, so a rig can be adapted to whether small parts like fingers and ears matter.
The bone probability map is load-bearing for connectivity: the paper's ablation shows that replacing it with Euclidean edge costs lowers the predicted-joint matching rate from 62.1% to 57.8%.
Because skeleton extraction always returns a minimum spanning tree rooted near the shape centroid, the output is a tree-structured hierarchy suitable for animation pipelines.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Editorial inference: because the network learns from geometric cues rather than class labels, the same architecture may also predict usable skeletons for non-character articulated objects, such as mechanical assemblies, though the paper evaluates only characters.
Editorial inference: the vertex-density channel could act as a shortcut specific to the dataset's artist meshes, which tend to have denser tessellation near joints; testing on re-meshed or uniformly sampled inputs would reveal how much the method relies on that cue.
Editorial inference: the minimum spanning tree post-process is a likely next bottleneck; replacing it with a learned connectivity head could fix the incorrect shoulder connections the paper notes for its four-armed test character.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

First learning-based, template-free method for animation skeleton prediction across many character categories. That is the real deliverable, and it is a useful one for the graphics/animation community. The architecture is a sensible 3D hourglass stack with joint and bone probability heads, and the skeleton extraction via bone-probability-weighted MST is clean. The ablations in the supplement are real evidence: all four hourglass modules, the geometric features, the granularity conditioning, and the bone-probability cost each contribute to the reported numbers. On the new 3,193-character dataset, the method beats Pinocchio and L1-median on all four metrics, with margins large enough to matter.

The main soft spot is external validity, and the stress-test note is on target. Training and test come from the same single repository (Models Resource), so we are measuring fit to that repository's rigging conventions. The vertex-density channel is a particular concern: the paper itself says it won't help for re-meshed or reconstructed inputs, but no experiment drops that channel or tests on another source. Without that, the 'generic cross-category' claim is overstated. A second, smaller issue is that Table 1 reports only point estimates; no significance tests or per-category breakdowns are given for the 319 test models. The loss equations in Section 5 have a sign/parenthesis typo, easy to fix. And no code or data are released, which limits reproducibility.

None of this is a load-bearing error. The method likely works as described on game-like meshes, and the narrow claim of beating the baselines on this distribution is supported. The broader generality just hasn't been shown. I'd send this to peer review, with a request for an external evaluation or a density-channel ablation, error bars, and release of artifacts. It's a legitimate first step, and the right reviewers will push the authors to close the generalization gap. I would not desk-reject it.

Referee Report

3 major / 4 minor

Summary. The paper presents a supervised learning method that predicts animation skeletons for arbitrary 3D articulated characters. The input mesh is converted into an 88×88×88 volumetric grid with five channels (signed distance function, two principal curvatures, local shape diameter, and local vertex density), and a stack of four 3D hourglass modules outputs joint and bone probability maps. Skeletal joints are extracted by soft non-maximum suppression, and edges are connected by a minimum spanning tree whose edge costs are driven by the predicted bone probabilities; a scalar input parameter controls skeleton granularity. The authors also contribute a dataset of 3,193 artist-rigged characters from Models Resource, split into 80% training, 10% hold-out validation, and 10% testing, and evaluate the method against Pinocchio and L1-medial skeleton extraction using four metrics (CD-joint, CD-joint2bone, MR-pred, MR-ref). The method achieves the best value on all four metrics, and the appendix reports ablations on the number of hourglass modules, input feature channels, granularity control, and the MST cost.

Significance. The strengths of the paper are real: it formulates the problem as cross-category, variable-topology skeleton prediction rather than class-specific pose estimation, and the evaluation is carried out with four complementary metrics. The appendix ablations are a particular asset; they are run on the same split with the same tuning protocol and support the design choices of four hourglass modules, the geometric feature channels, the granularity control, and the bone-probability-driven connectivity. The reported margins over the two baselines are consistent across all four metrics, not just a single favorable measure. If the result holds up to additional scrutiny, the dataset and the volumetric method would be useful to the graphics and vision communities. The principal qualification is external validity: all quantitative evidence comes from a single repository of rigged characters, and the vertex-density channel, which the appendix shows to be an important contributor, is a signal specific to artist-created meshes.

major comments (3)

[Section 4 (Input Shape Representation); Appendix Table 3] The paper's own limitation statement in Section 4 says that for input meshes with near-uniform vertex density (e.g., reconstructed or re-meshed ones), the vertex-density channel 'is not expected to be useful.' Appendix Table 3 shows that this channel is nonetheless a substantial driver of the reported accuracy: going from SDF-only to all five channels changes MR-ref from 56.0% to 68.3% and CD-joint from 5.2% to 4.6%, and the SDF-only model's MR-ref (56.0%) falls below the L1-median baseline (63.2%). Because the abstract and the introduction claim a generic predictor of animation skeletons, the manuscript needs an experiment that removes or neutralizes the density channel at test time (e.g., re-meshing test characters to near-uniform vertex density, or dropping the channel and retraining), with the four metrics reported for that case. Without such an experiment, the central claim is not established for the reconstructed/re-meshed inputs that the paper itself identifies as a relevant scenario.
[Section 5 (Dataset, Splits); Section 6 (Table 1); Section 7 (Conclusion)] Training and test characters are both drawn from Models Resource, so the reference skeletons share that repository's rigging conventions, and the evaluation only tests generalization to held-out models from the same source. The conclusion (Section 7) lists the 88^3 resolution and the MST connectivity as limitations but does not mention this distribution shift, even though the paper frames the method as a 'generic, cross-category model' (Sections 1 and 7). To support the headline claim, the authors should evaluate on an external corpus of rigged characters (another repository or a small set of professionally rigged models) or at least run a leave-whole-category-out experiment. This is the single largest gap between the abstract's claim and the evidence in the paper.
[Section 6 (Quantitative evaluation, Table 1)] All four metrics are reported as point estimates averaged over the 319-model test split, with no confidence intervals, no significance tests, and no per-category breakdown. The claim that the output skeletons are 'much more similar' to human-created ones rests on margins such as CD-joint 4.6% vs. 5.7% and MR-pred 62.1% vs. 47.9%; the paper does not show that these margins are stable across categories (e.g., fish and robots, where Pinocchio's pre-defined templates are structurally disadvantaged) or across models with different joint counts. Please report per-category results and a paired significance test (e.g., Wilcoxon signed-rank) across test shapes for the main comparisons.

minor comments (4)

[Section 5 (Training objective)] The cross-entropy equations for joints and bones contain a typographical error: 'P̂j(v) log(Pj(v) − (1−P̂j(v)) log(1−Pj(v))' should presumably read 'P̂j(v) log Pj(v) + (1−P̂j(v)) log(1−Pj(v))'; the same issue appears in the bone loss Lb.
[Appendix, Table 4] The column header 'MR-pref' should be 'MR-ref'.
[Section 6 (Quantitative evaluation measures)] The sentence 'Ideally, both CD-joint2bone and CD-joint2bone should be low' repeats the same metric twice; the second occurrence should presumably be CD-joint. In the same section, 'the highest marching rates' should read 'the highest matching rates.'
[Section 4 (Skeleton extraction)] The justification of the sum-based edge cost states that 'the shorter edge will be preferred,' but since the sum grows with segment length, the preference for short edges holds only when the per-voxel bone probabilities along the two candidates are comparable; stating this explicitly would make the design rationale clearer.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the method is a supervised learning benchmark whose predictions are evaluated against held-out artist-created skeletons, with no fitted quantity renamed as a prediction.

full rationale

The paper's derivation chain is an empirical learning pipeline, not a mathematical derivation. The network is trained on artist-rigged characters with a cross-entropy loss against joint/bone heatmaps (Eq. 1) and evaluated on a disjoint 10% test split using Chamfer distances and matching rates against reference skeletons (Section 6). The target maps are generated from the reference skeletons, and the input channels (SDF, curvature, shape diameter, vertex density) are computed from geometry; no input channel is defined in terms of the target skeleton, so there is no self-definitional reduction. There are no load-bearing self-citations or imported uniqueness theorems. The paper itself states in Section 4 that for input meshes with near-uniform vertex density (e.g., reconstructed or re-meshed ones), the density channel is not expected to be useful; this is an admitted generalization/external-validity limitation, not circularity, because it does not make the test-time prediction equal to the training label by construction. Likewise, training and test data coming from the same online repository weakens cross-corpus generalization claims but does not reduce the reported comparison to a fit of the evaluation metric. Hence no enumerated circularity pattern is present.

Assumptions & free parameters 7 free parameters · 5 assumptions · 0 invented entities

The central result is an empirical method; it rests on a dataset of artist rigs as ground truth and on practical assumptions about input meshes, volumetric resolution, and tree-structured skeletons. No new physical or conceptual entities are introduced; the granularity parameter is an input, not an invented entity.

free parameters (7)

Soft-NMS decay sigma = 4.5 voxels
Tuned through grid search on the hold-out validation set; controls how aggressively nearby joint probability peaks are suppressed.
Soft-NMS probability threshold = 0.013
Tuned on validation; below this joint probability, no more joints are created.
Default granularity parameter = 0.02
Tuned on validation; used when the user does not specify a level of detail.
Vertex density kernel bandwidth = 10 times average mesh edge length
Estimated through grid search on the hold-out validation set.
Target heatmap variance for joints and bones = unit variance, tuned via grid search
The paper states the target maps use isotropic Gaussians with unit variance, and the Optimization paragraph says the variance is set through grid search.
Augmentation scaling range = 0.5 to 1.5 per axis
Chosen by hand to create training variants; anisotropic scaling is applied randomly.
Augmentation rotation range = 30 to 50 degrees
Chosen by hand to introduce pose variation while rejecting severe self-penetrations.

assumptions (5)

domain assumption Animation skeletons can be predicted from static geometry alone.
The method takes only the 3D mesh as input and has no textual or categorical information; if articulation is not recoverable from shape, the task is ill-posed. Stated in Section 3.
domain assumption Artist-created skeletons in the Models Resource dataset are valid ground truth for animation skeletons.
Training and evaluation treat these rigs as reference skeletons; there is no independent validation that they are the 'correct' skeleton for each character. Stated in Sections 5 and 6.
domain assumption The desired output skeleton is a tree rooted near the shape centroid.
The skeleton extraction enforces a tree via minimum spanning tree; non-tree rigs (for example, facial systems or multiple roots) are not supported. Stated in Section 4.
domain assumption Input meshes are consistently oriented and grounded.
The authors manually corrected about 30% of the models; a new input with inconsistent orientation would break the preprocessing. Stated in Section 5.
domain assumption A volumetric resolution of 88^3 is sufficient to capture the joints that matter.
The method misses small parts such as fingers; the authors acknowledge this as a limitation in Section 7.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Predicting Animation Skeletons for 3D Articulated Models via Volumetric Nets." pith.science (2026). https://pith.science/paper/SRVSF234

@misc{pith2026190808506,
  author       = {Pith},
  title        = {Pith review of: Predicting Animation Skeletons for 3D Articulated Models via Volumetric Nets},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SRVSF234}},
  note         = {Machine review of arXiv:1908.08506}
}

read the original abstract

We present a learning method for predicting animation skeletons for input 3D models of articulated characters. In contrast to previous approaches that fit pre-defined skeleton templates or predict fixed sets of joints, our method produces an animation skeleton tailored for the structure and geometry of the input 3D model. Our architecture is based on a stack of hourglass modules trained on a large dataset of 3D rigged characters mined from the web. It operates on the volumetric representation of the input 3D shapes augmented with geometric shape features that provide additional cues for joint and bone locations. Our method also enables intuitive user control of the level-of-detail for the output skeleton. Our evaluation demonstrates that our approach predicts animation skeletons that are much more similar to the ones created by humans compared to several alternatives and baselines.

Figures

Figures reproduced from arXiv: 1908.08506 by the authors.

**Figure 2.** Effect of increasing the user parameter that controls the [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Pipeline of our method and deep architecture. Given an input 3D shape, we first convert it into a set of geometric representations [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

Figures from the paper (5 more)

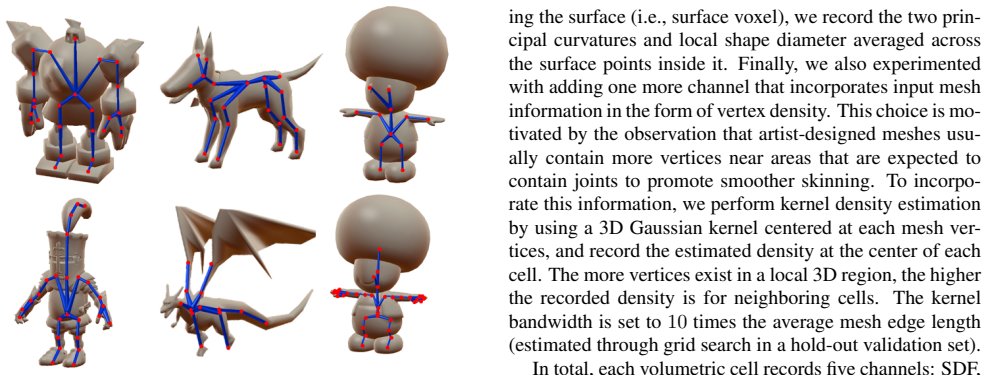

**Figure 4.** Figure 4: Artist-rigged 3D models from our training database. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]

**Figure 5.** Figure 5: Left: Joints detected by our method. Middle: Skeleton created with Prim’s algorithm using Euclidean distance as cost. Right: Skeleton created with Prim’s algorithm using the negative log of our output bone probabilities as cost. skeletal joints and bones. As shown in t…

**Figure 6.** Figure 6: Examples of augmentation of our training dataset. [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]

**Figure 7.** Figure 7: Comparisons of different methods for representative test characters. In each group, the green one indicates the artist-created [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]

**Figure 8.** Figure 8: Histogram over the number of joints across the models [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]
