Towards Unconstrained End-to-End Text Spotting

T0 review · 4 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read End-to-end OCR reads curved and straight text in a single forward pass, without rectification.

desk verdict RoI masking is a genuine, well-ablated idea and the public-only Total-Text result stands on its own, but the headline SOTA margins are confounded by 1M proprietary OCR labels and missing public-only ICDAR15 numbers. read the letter →

arxiv 1908.09231 v1 pith:UQ5SWGOY submitted 2019-08-24 cs.CV

Siyang Qin , Alessandro Bissacco , Michalis Raptis , Yasuhisa Fujii , Ying Xiao This is my paper · ORCID
classification cs.CV
keywords end-to-endtextspottingscenerecognitioncurvedarbitraryshapeMaskR-CNNattentiondecoderinstancesegmentationpartiallylabeleddata
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that an end-to-end trainable network can detect and recognize text of arbitrary shape, including curved text, in a single forward pass. The key move is to remove the feature rectification step used by previous end-to-end models, letting an attention decoder read directly from masked instance features. The authors report that the model surpasses previous state-of-the-art end-to-end recognition by 4.6% on the straight-text ICDAR15 benchmark and by more than 16% on the curved-text Total-Text benchmark. They also show that automatically labeled data from an existing multi-step OCR engine can be used as partially labeled training data, improving both detection and recognition. If true, this makes end-to-end text spotting practical for irregular text and simplifies the pipeline compared to cascaded OCR systems.

What carries the argument

The central mechanism is RoI masking: for each detected text region, features cropped from the image-level feature map are multiplied by the corresponding instance segmentation mask, suppressing neighboring text and background so the attention decoder sees only the target text instance. The recognizer is a Bahdanau-style seq2seq attention decoder that generates one character per step, with attention weights that shift along the text path. The training machinery also includes a partially labeled data branch: on machine-annotated images only the recognizer is trained, using outputs from an existing multi-step OCR engine as ground truth.

What would settle it

A controlled experiment that trains the same architecture on the same fully labeled data with and without the machine-label branch, but replaces the teacher's transcriptions on a random subset of the million images with human corrections; if end-to-end performance on benchmarks does not drop when teacher labels are replaced by corrected labels, the partially labeled data effect is robust. Conversely, if performance collapses when the teacher is swapped for a different OCR engine, the results depend on the specific teacher rather than the architecture.

Watch

Extended reading notes

Core claim

The central claim is that feature rectification is not required for end-to-end text recognition: an attention decoder can learn to follow arbitrary text paths when it is given cropped features multiplied by the predicted instance segmentation mask. The paper demonstrates this by building a model that uses Mask R-CNN for detection (predicting boxes and masks) and a sequence-to-sequence attention decoder for recognition, trained jointly on fully labeled data plus large-scale partially labeled machine-annotated data. The reported results show large gains over prior end-to-end systems on both straight and curved benchmarks, with the curved-text margin being especially large.

Load-bearing premise

The reported improvements from partially labeled data assume that the automatic OCR engine's outputs are accurate enough to serve as training ground truth for the recognizer, and that text regions labeled only with oriented rectangles, without instance masks, still provide a valid training signal through the RoI masking pipeline; if the teacher's errors are systematic and align with benchmark content, the gains could overstate the architecture's contribution.

Editorial extensions

If this is right

  • End-to-end text spotting architectures can be simplified by removing rectification modules while gaining the ability to read curved and arbitrarily shaped text.
  • Training the recognizer provides a learning signal that improves the shared feature extractor, which can boost detection performance even when detection is not directly trained on that branch.
  • Large-scale automatically labeled data from existing OCR engines can be used to train end-to-end models, reducing the need for fully annotated scene text images.
  • The same single-pass model works on both straight and curved text, suggesting a unified approach for diverse scene text reading applications.
  • Attention weight visualization gives a direct way to see and debug where the model is reading, which can help identify failure modes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • RoI masking may generalize to other tasks that attach a recognition head to an instance segmentation detector, such as reading labels on objects or reading text on irregular surfaces.
  • The success of unrectified attention decoding suggests that prior end-to-end models were held back mainly by rectification; adding a rectification module to this model would likely hurt performance, which would further support the claim.
  • The partially labeled data approach could be turned into a self-improving loop, where the model's own predictions regenerate labels for new images, though teacher bias would need to be monitored.
  • The reported failure on upside-down text suggests that explicit orientation augmentation or a rotation-aware decoder might be needed to handle rare reading directions.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes an end-to-end text spotting model based on Mask R-CNN as the detector and a seq2seq attention decoder as the recognizer. Instead of rectifying detected text regions before recognition, the model applies a proposed RoI masking step that multiplies cropped features by the predicted instance segmentation mask, allowing the attention decoder to attend to arbitrarily shaped text. To address the shortage of fully annotated training images, the authors add partially labeled data produced by the Google Cloud Vision API OCR engine on one million web images, training only the recognizer branch on such samples. The model is evaluated on ICDAR15 and Total-Text, where it reports state-of-the-art end-to-end F-scores (4.6% and 16.7% relative improvements over prior work, respectively). Ablations indicate consistent gains from RoI masking and from partial labels.

Significance. If the reported results hold, the paper makes a useful contribution to scene text spotting by showing that feature rectification can be avoided: RoI masking plus an attention decoder directly handles curved and rotated text. The internal ablations support the value of RoI masking and partially labeled data, and the public-data-only Inception-ResNet model still improves on previous Total-Text results, giving some independent evidence for the architecture. The main caveat is attribution: the headline benchmark claims rest on 30k private web images and one million machine-labeled images, so the reported margins may overstate the architectural contribution. Still, the paper is an important datapoint for the community, provided the data-dependence is clarified through additional experiments.

major comments (4)
  1. [Section 4.1, Tables 1 and 3] The headline ICDAR15 result (4.6% improvement over FOTS MS in Table 1) is reported for models trained with 30k private web images and one million machine-labeled images (Section 3.6), while the public-data-only comparison is given only for Total-Text in Table 2. Without a comparable public-only ICDAR15 number, the reported gain cannot be separated from the effect of additional training data. Please report the 'Inc-Res public' configuration on ICDAR15 under the same end-to-end metrics used in Table 1.
  2. [Section 3.5 and Eq. (5)] The partially labeled branch updates only the recognizer according to Eq. (5), yet the recognizer receives features produced by the RoI masking operation of Section 3.3, which requires per-instance segmentation masks. The machine labels are described as oriented rectangles in Section 3.6, and the paper does not specify how these rectangles are converted to masks for the RoI masking step. Please clarify whether masks are used for machine-labeled regions, and if so, how they are synthesized from oriented rectangles.
  3. [Section 3.5] The only quality control described for teacher labels is a vague 'increase the confidence threshold,' with no threshold value, no measurement of teacher accuracy, and no analysis of error modes. Given that Table 3 attributes large gains to partial labels (e.g., Inc-Res E2E AP from 53.1 to 58.7 when adding PD), the reported improvements could be an artifact of the teacher OCR engine's label distribution rather than a property of the architecture. Please provide a label-noise analysis, a sensitivity study over confidence thresholds, and a comparison against recognizer training on human labels for a held-out subset.
  4. [Section 3.6] The paper collects 30k manually labeled web images and one million automatically labeled web images but does not check whether any of these images overlap with the ICDAR15 or Total-Text test sets. Even a small number of duplicated or near-duplicate test images could inflate the benchmark numbers. Please report an overlap check (e.g., exact or near-duplicate image search) or explain why leakage is implausible.
minor comments (6)
  1. [Section 1] The phrase 'due to the short of fully annotated images' should be 'due to the shortage of fully annotated images.'
  2. [Section 3.1] The reference to 'the conv4 12 layer' should be written as 'the conv4_12 layer' (or 'the 12th convolutional block of stage conv4') for clarity.
  3. [Section 3.5] There is a missing space in 'label smoothing set to0.9'; it should read 'set to 0.9.'
  4. [Section 4.1] The citation '(Heet al.)' should read '(He et al.)' with a space after 'He.'
  5. [Section 3.3] The description of RoI masking says features are resized 'so that the shorter dimension is equal to 14 while maintaining the overall aspect ratio,' but the paper does not state the exact output tensor dimensions or how the mask is resampled; please give these details for reproducibility.
  6. [Figure 4 caption] The sentence 'In the bottom right image, prediction errors are shown in blue, some predictions are skipped for better visualization. All the skipped predictions are correctly predicted by our method' is confusing; please reword to explain why correct predictions are skipped.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claims are benchmarked externally and the partial-label branch is evaluated by ablation rather than derived from its own inputs.

full rationale

The paper's derivation chain is: (1) a Mask R-CNN detector plus an attention decoder with RoI masking and no rectification; (2) joint training on fully labeled and partially labeled data bootstrapped from an existing OCR engine; and (3) evaluation on ICDAR15 and Total-Text. Each load-bearing component is supported by independent evidence. RoI masking is defined as multiplying cropped features by the instance mask (Section 3.3) and its benefit is measured by direct ablation in Table 3, not assumed. The partially labeled data branch is grounded by the ablation rows in Table 3 showing AP gains when partial data is added, and the OCR engine used for labeling, PhotoOCR [4], is an external pre-existing system rather than the model being proposed; the fact that one of this paper's authors co-authored that engine is a self-citation, but it is not load-bearing because the paper does not rely on its authority to establish the result. The headline numbers are measured against public benchmarks with standard protocols, so they are not entailed by the model definitions. Reproducibility concerns about the 1M proprietary OCR-labeled images, teacher label noise, or missing mask details for machine-labeled rectangles are legitimate attribution/verification issues, but they are not circularity: no equation, metric, or prediction reduces by construction to a fitted parameter or to a self-citation. Under the stated review rule that self-citation becomes circularity only when the load-bearing argument reduces to it, this paper does not exhibit that pattern.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The ledger lists the manually chosen hyperparameters and the key domain assumptions. No new physical entities are introduced; the novel components (RoI masking, partially labeled training) are procedures, not entities.

free parameters (5)
  • Loss weights alpha, beta, gamma = 1.0, 1.0, 1.0
    Set to 1.0 in Eq. (5), no tuning or sensitivity analysis reported.
  • RoI feature resize dimension = 14x14
    Cropped features resized so the shorter side is 14 (Section 3.3); follows Mask R-CNN, not ablated.
  • Output feature stride = 8 with fusion of stride 4
    Chosen empirically, 'we find that fusing features with stride 8 and 4 leads to the best results' (Section 3.3).
  • Training iterations = 8M
    Training runs for 8M iterations on 15 V100 GPUs (Section 3.6), chosen for convergence, no early stopping criterion specified.
  • Learning rate schedule = 1e-3 (Inc-Res) / 3e-4 (ResNet-50), decay factor 3 every 2M iterations
    Manual schedule (Section 3.6), not swept.
assumptions (4)
  • domain assumption Mask R-CNN, as described in [20], provides reliable instance masks and boxes for text after fine-tuning.
    The detection branch is taken from Mask R-CNN without independent verification on text.
  • domain assumption The Google Cloud Vision API / PhotoOCR [4] produces bounding boxes and transcriptions accurate enough for recognizer training.
    Section 3.5 uses these as partially labeled ground truth; low-confidence outputs are filtered, but label noise is not analyzed.
  • ad hoc to paper An attention-based seq2seq decoder can learn to follow arbitrary text shapes from unrectified, masked features.
    Core hypothesis of the recognizer (Section 3.4); supported by ablations but not proven analytically.
  • domain assumption Public benchmark annotations for ICDAR15 and Total-Text are correct and used consistently with prior work.
    Evaluation relies on these annotations (Section 4).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Towards Unconstrained End-to-End Text Spotting." pith.science (2026). https://pith.science/paper/UQ5SWGOY

@misc{pith2026190809231,
  author       = {Pith},
  title        = {Pith review of: Towards Unconstrained End-to-End Text Spotting},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/UQ5SWGOY}},
  note         = {Machine review of arXiv:1908.09231}
}
read the original abstract

We propose an end-to-end trainable network that can simultaneously detect and recognize text of arbitrary shape, making substantial progress on the open problem of reading scene text of irregular shape. We formulate arbitrary shape text detection as an instance segmentation problem; an attention model is then used to decode the textual content of each irregularly shaped text region without rectification. To extract useful irregularly shaped text instance features from image scale features, we propose a simple yet effective RoI masking step. Additionally, we show that predictions from an existing multi-step OCR engine can be leveraged as partially labeled training data, which leads to significant improvements in both the detection and recognition accuracy of our model. Our method surpasses the state-of-the-art for end-to-end recognition tasks on the ICDAR15 (straight) benchmark by 4.6%, and on the Total-Text (curved) benchmark by more than 16%.

Figures

Figures reproduced from arXiv: 1908.09231 by the authors.

Figure 1
Figure 1. Our end-to-end model can predict the locations and tran [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

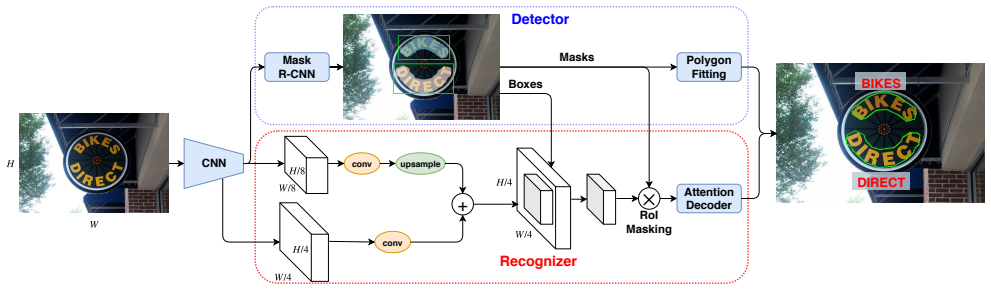

Figure 2. Overall architecture of our end-to-end OCR model. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Our seq2seq based recognizer. In multi-step OCR engines, each text instance is cropped out from the input image before being fed to the recognizer. In contrast, in end-to-end models, instead of cropping out the image patch, a more involved method is used to ex￾tract text instance features from the image level features output by the backbone CNN. For object detection mod￾els, axis-aligned bounding boxes are used to c… view at source ↗
Figures from the paper (2 more)
Figure 4

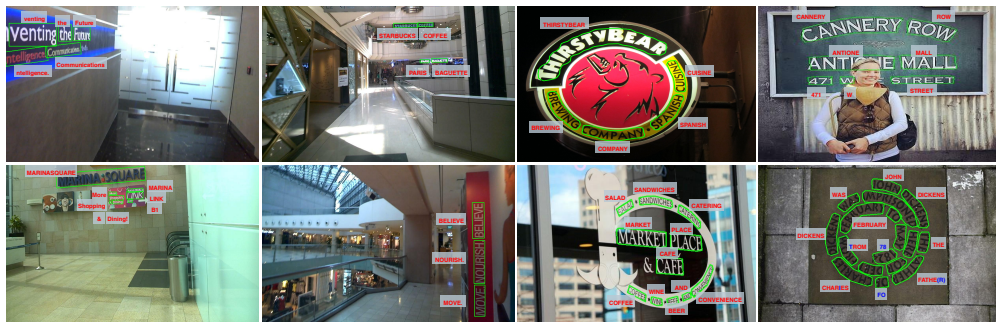

Figure 4. Figure 4: Qualitative results of our method on ICDAR15 (first two columns) and Total-Text (last two columns) datasets. In the bottom right [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Visualization of the attention weights. Some steps are skipped for better visualization. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
