Coulomb explosion of CD3I induced by single photon deep inner-shell ionisation

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A two-parameter charge build-up model ($\tau=7$ fs, $R=0.37$ fs$^{-1}$) reproduces the Coulomb explosion of CD3I for intermediate fragment charges, and efficiency-corrected data place the L1 ionisation charge distribution about two units…

desk verdict New L-subshell-resolved data worth knowing about, but the high-charge charge-state distributions are biased by using the failing model's own efficiency corrections. read the letter →

arxiv 1908.09351 v1 pith:I57L2TVJ submitted 2019-08-25 physics.atm-clus

M. Wallner , J.H.D. Eland , R.J. Squibb , J. Andersson , A. Hult Roos , R. Singh , O. Talaee , D. Koulentianos
show 3 more authors
M.N. Piancastelli M. Simon R. Feifel
This is my paper · ORCID
classification physics.atm-clus
keywords CoulombexplosionCD3Iinner-shellionisationAugercascadechargebuild-upmodelmulti-ioncoincidencetime-of-flightspectrometryL-shellphotoionisation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tests whether a two-parameter charge build-up model, originally written for multiphoton X-ray explosions, also describes what happens when a single hard X-ray photon creates a deep inner-shell vacancy in iodine within CD3I. It finds that the model, with charge build-up time $\tau = 7$ fs and transfer rate $R = 0.37$ fs$^{-1}$, reproduces the measured time-of-flight patterns for intermediate decay channels ($\mathrm{C}^{n+}$ with $n = 1$–$3$, $\mathrm{I}^{m+}$ with $m = 3$–$6$), whereas an instantaneous charge model overestimates the kinetic energy release. After correcting for the spectrometer's kinetic-energy-dependent detection efficiency using numerical simulations, the paper extracts the true molecular charge state distributions produced by L1, L2 and L3 ionisation of iodine. The L1 distribution peaks about two charge units higher than L2 and L3, attributed to a fast Coster–Kronig transition. If correct, the work extends a few-parameter model to single-photon deep inner-shell ionisation and gives a practical route to the charge distributions behind such explosions.

What carries the argument

The central object is the two-parameter charge build-up model with charge transfer (Eqs. 1–3): total charge grows exponentially at the iodine site as $Q_{\mathrm{tot}}(t) = (m+n+3)(1-e^{-t/\tau})$, while electrons move from the methyl group to the iodine at a rate $R$ proportional to the iodine charge. These two parameters, $\tau$ and $R$, generate time-dependent partial charges whose trajectories under mutual Coulomb repulsion are integrated and then fed through a numerical model of the spectrometer's fields and apertures to produce simulated coincidence patterns. The same instrument model supplies the channel-specific detection efficiencies used to correct the raw coincidence intensities. A second mechanism, the subtraction scheme (Eqs. 4–6), uses theoretical relative L-subshell photoionisation cross-sections with an $E^{-7/2}$-dominated energy dependence to isolate the charge distributions created by L1, L2 and L3 ionisation from four blended data sets.

What would settle it

Measure the relative L1, L2 and L3 photoionisation cross-sections of iodine at photon energies around 4.3–5.3 keV by an independent method; if the ratios differ from the fitted polynomial used in Eqs. (4)–(6), the extracted pure L1 distribution and its two-charge-unit shift are not established.

Watch

Extended reading notes

Core claim

The paper's central claim is that Coulomb explosion of CD3I after single-photon L-shell ionisation of iodine is governed by gradual charge build-up on the iodine atom with concurrent electron transfer from the methyl group, not by instantaneous deposition of the final charges. Using $Q_{\mathrm{tot}}(t) = (m+n+3)(1-e^{-t/\tau})$ and $dQ_{\mathrm{CD}_3}/dt = R\,Q_{\mathrm{I}}$, with $\tau = 7$ fs and $R = 0.37$ fs$^{-1}$, the simulated flight-time islets match experiment for intermediate charge states while the instantaneous model does not. Deviations at high carbon or iodine charges are interpreted as a need to include nuclear motion during the cascade. The second claim is that after correcting coincidence intensities with simulated collection efficiencies, the true molecular charge state distributions from pure L1, L2 and L3 ionisation can be recovered; L1 sits about two charge units higher than L2/L3, consistent with an L1-to-L3 Coster–Kronig transition that leaves an additional M-shell hole.

Load-bearing premise

The separation of the three iodine inner-shell contributions rests on theoretical ratios for how often each shell absorbs the X-ray; if those ratios are wrong, the extracted 'pure' L1, L2 and L3 charge distributions are wrong.

Editorial extensions

If this is right

  • The two-parameter charge build-up model, originally fitted to multiphoton X-ray free-electron laser data, applies to single-photon deep inner-shell ionisation, at least for intermediate charge states.
  • For high carbon or iodine charges the model systematically predicts too much kinetic energy release, so a complete description of Coulomb explosion must include nuclear motion during the Auger cascade and possibly neutral fragments.
  • The efficiency-corrected subtraction analysis yields pure L1, L2 and L3 molecular charge state distributions for CD3I, with L1 shifted about two charge units higher than L2 and L3.
  • For the lighter isotopologue CH3I, stronger deviations from the model's kinetic-energy predictions are expected because hydrogen's faster motion amplifies the nuclear-dynamics effect.
  • The simulation-based efficiency corrections offer a general way to recover true charge state abundances from multi-ion coincidence spectrometers whose collection efficiency depends on kinetic energy.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension the paper leaves implicit: applying the same $\tau$ and $R$ to other iodinated methyl compounds would show whether the charge build-up parameters are transferable or molecule-specific.
  • The roughly two-charge-unit gap between the L1 and L2/L3 distributions could serve as an experimental check on theoretical iodine L-subshell cross-section ratios, since any error in those ratios would shift this gap.
  • If the efficiency-correction scheme is robust, it could be used to reanalyse existing coincidence data from other spectrometers and extract true charge distributions that are currently biased toward low-kinetic-energy fragments.
  • A direct time-resolved X-ray pump-probe measurement of charge build-up in CD3I would test whether $\tau = 7$ fs and $R = 0.37$ fs$^{-1}$ are dynamical realities or simply effective fitting parameters, a question the paper leaves open.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper reports an experimental and numerical study of Coulomb explosion of CD3I after single-photon L-shell ionisation of iodine by hard X-rays, using multi-ion coincidence time-of-flight spectroscopy. The authors compare the measured ion time-of-flight patterns with numerical simulations based on a two-parameter charge build-up model introduced by Motomura et al. (Eqs. 1-3). They report best agreement for intermediate charge states (Cn+ with n=1-3 and Im+ with m=3-6) using tau=7 fs and R=0.37 fs^-1, whereas an instantaneous charge model overestimates kinetic energy release and higher charge states deviate from the model. The authors also use simulated collection efficiencies to correct raw coincidence intensities and then apply a subtraction method (Eqs. 4-6) to extract molecular charge state distributions produced by L1, L2 and L3 ionisation, concluding that L1 ionisation yields a distribution shifted about two charge units higher than L2 and L3.

Significance. If the results hold, the paper provides valuable evidence that a very simple parametric description of charge build-up and charge transfer can capture the main features of Coulomb explosion for intermediate charge states in single-photon deep inner-shell ionisation, not only in the multi-photon XFEL case for which it was originally proposed. The paper also offers a plausible interpretation of the L1 versus L2/L3 difference in terms of a fast Coster-Kronig transition. However, the quantitative charge-state distribution extraction rests on a circular use of the same model that the paper itself shows fails for high charge states; this compromises the main quantitative output (Fig. 4) and the associated comparison of L1, L2 and L3. The work is clearly presented and the numerical simulations are described in reproducible detail, but the central quantitative claim requires additional robustness checks.

major comments (3)
  1. [Numerical Methods; Fig. 4]
  2. [Model equations (Eqs. 1-3)]
  3. [Eqs. (4)-(6), Fig. 4]
minor comments (4)
  1. [Abstract and Introduction]
  2. [Fig. 2 and Fig. 3]
  3. [Experimental Methods]
  4. [Data Availability]

Circularity Check

2 steps flagged · score 6.0 of 10

The model is fitted to the experimental TOF data and then, with the same fitted parameters, supplies the efficiency corrections used to extract the 'true' charge-state distributions—although the paper itself says the model fails for high charge states.

  1. fitted input called prediction [Model comparison paragraph (after Eq. 3) and Figs. 2-3]
    "Using the model described above in comparison with our experimental results, starting from the parameters in [9], we find the best overall agreement with τ = 7 fs and R = 0.37 fs−1. ... The parameters are determined by comparing the experimental and numerical time-of-flight distributions from triple coincidence detections from different fragmentation channels D++Cn++Im+."

    The two model parameters are determined by fitting to the same triple-coincidence TOF data that Figs. 2 and 3 then display as evidence that the charge build-up model 'matches well' and is preferable to the instantaneous model. The agreement is therefore a goodness-of-fit property, not an independent confirmation; the conclusion that the model is 'applicable to the single photon case' is drawn from the very data used to set its parameters.

  2. fitted input called prediction [Numerical Methods section (final sentence), 'Detection efficiency corrections' paragraph, and Fig. 4]
    "Once the simulated data resemble the experimental data set sufficiently closely the initial charge state abundances can be extracted. Detection efficiency corrections from the simulations are used to determine the true distributions of molecular charge state produced by initial L1, L2 and L3 ionisation. Decay channels involving high carbon or iodine charge show a systematically lower kinetic energy release than predicted by the model."

    The collection efficiencies applied to the raw coincidence intensities come from a SIMION simulation whose explosion kinematics are generated by the same Motomura model with the same fitted τ and R. Aperture acceptance is set by kinetic energy, and the paper itself states that the model deviates for high carbon/iodine charge states ('lower kinetic energy release than predicted'), i.e., exactly the high-charge channels whose efficiencies the simulation must supply. The 'true' L1/L2/L3 abundances in Fig. 4 are therefore not independent measurements; they are outputs of a model already tuned to the same data and acknowledged to fail in the relevant regime, so the L1-versus-L2/L3 charge-shift conclusion is partly model-forced.

full rationale

The paper is self-contained and does not rely on a load-bearing self-citation chain or an imported uniqueness theorem; the Motomura model is cited as external prior work. However, the derivation chain has two related circular moments. First, τ and R are fitted to the experimental triple-coincidence TOF distributions, and the same distributions are then shown as evidence that the charge build-up model reproduces the data; this is calibration, not prediction. Second—and more important—the 'true' charge-state distributions of Fig. 4 are obtained by applying collection efficiencies simulated with that same fitted model, even though the paper reports that the model systematically deviates for high carbon and iodine charge states, which are precisely the high-kinetic-energy channels where the aperture acceptance correction is largest and most channel-dependent. The subtraction algebra in Eqs. (4)-(6) is not circular by itself—it depends on theoretical subshell cross-sections—but it can only be applied after the model-based efficiency corrections, so any model bias propagates into every extracted distribution and into the stated L1 vs L2/L3 difference. Score 6 reflects partial circularity: the model-comparison claim is fit-based, and the central quantitative result is model-corrected in the regime the authors themselves identify as invalid, while the paper still contains substantial independent experimental content.

Assumptions & free parameters 2 free parameters · 7 assumptions · 0 invented entities

The central results rest on a borrowed two-parameter model with parameters fitted to the data being explained, plus several modeling assumptions about geometry, charge apportioning, detector efficiency, and theoretical cross-sections. No new physical entities are introduced.

free parameters (2)
  • tau (charge build-up time) = 7 fs
    Fitted to the experimental triple-coincidence time-of-flight distributions; the central time constant in Eq. (1) controlling charge build-up.
  • R (charge transfer rate) = 0.37 fs^-1
    Fitted to the same experimental data; rate constant in Eq. (2) for charge transfer from the methyl group to iodine.
assumptions (7)
  • domain assumption The molecule starts at its nominal equilibrium geometry with exact C3v symmetry, making all deuterium atoms equivalent.
    Invoked in Numerical Methods; ignores zero-point motion and vibrational deformation, which the authors admit may affect deuterium equivalence and the explosion dynamics.
  • domain assumption Charge builds up sequentially at the iodine site according to Qtot(t) = (m+n+3)(1 - exp(-t/tau)).
    Eq. (1); an empirical parameterization adopted from Motomura et al., not derived from a full Auger cascade calculation.
  • domain assumption Charge transfer rate from the methyl group to iodine is dQ_CD3/dt = R * Q_I.
    Eq. (2); a linear rate law with a single rate constant, not derived from first principles.
  • ad hoc to paper Fractional charges are allowed during the build-up, with integer final charges; charges of at least 4+ on the methyl group are apportioned as three units to the three deuterium atoms and the residue to carbon.
    Described in the text; an ad hoc apportioning rule introduced to make the model tractable for comparison with the experiment.
  • domain assumption The total photoelectric cross-section for each L subshell declines with photon energy as a fitted polynomial with an E^-7/2 dominant term.
    Used to construct the subtraction equations (4)-(6); if inaccurate, the extracted pure L1, L2, and L3 distributions are biased.
  • domain assumption All three deuterium atoms become charged in the explosion, even if only one D+ is detected.
    Stated in the text: 'only one D+ ion is usually detected all three are assumed to become charged in the explosions and this assumption underlies all the derived distributions.'
  • domain assumption The detection efficiency of the apparatus is adequately modeled by SIMION with random deletion of half the ions at the detector surface.
    Numerical Methods; the efficiency corrections used to derive 'true' charge state abundances depend on this model.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Coulomb explosion of CD3I induced by single photon deep inner-shell ionisation." pith.science (2026). https://pith.science/paper/I57L2TVJ

@misc{pith2026190809351,
  author       = {Pith},
  title        = {Pith review of: Coulomb explosion of CD3I induced by single photon deep inner-shell ionisation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/I57L2TVJ}},
  note         = {Machine review of arXiv:1908.09351}
}
abstract

L-shell ionisation and subsequent Coulomb explosion of fully deuterated methyl iodide, CD$_3$I, irradiated with hard x-rays has been examined by a time-of-flight multi-ion coincidence technique. The core vacancies relax efficiently by Auger cascades, leading to charge states up to 16+. The dynamics of the Coulomb explosion process are investigated by calculating the ions' flight times numerically based on a geometric model of the experimental apparatus, for comparison with the experimental data. A parametric model of the explosion, previously introduced for multi-photon induced Coulomb explosion, is applied in numerical simulations, giving good agreement with the experimental results for medium charge states. Deviations for higher charges suggest the need to include nuclear motion in a putatively more complete model. Detection efficiency corrections from the simulations are used to determine the true distributions of molecular charge state produced by initial L1, L2 and L3 ionisation.

Figures

Figures reproduced from arXiv: 1908.09351 by the authors.

Figure 2

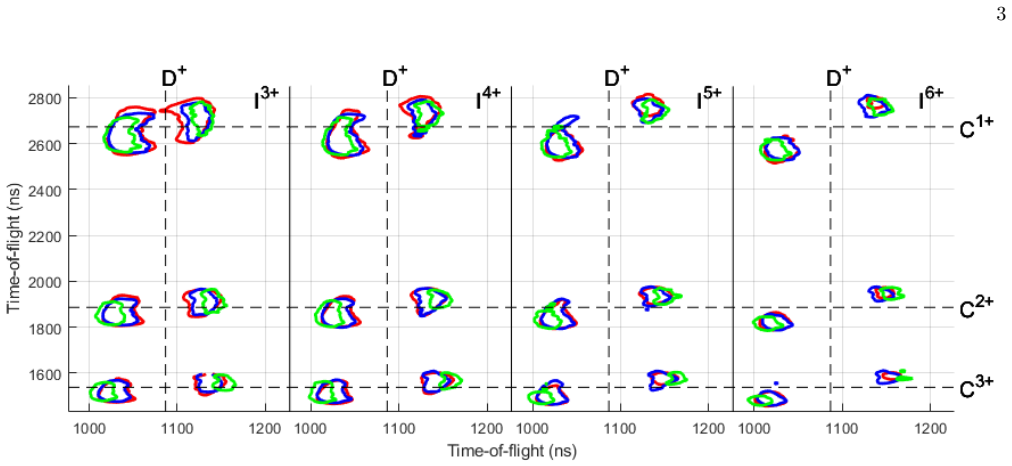

Figure 2. FIG. 2: Contours of deuterium-carbon ion pairs of charges 1+ and n+, respectively, correlated with different charges [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3: Comparison of the islet peak separation of the [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. FIG. 4: Relative charge state abundances estimated [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
