Pacer: Comprehensive Network Side-Channel Mitigation in the Cloud

T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Pacer reshapes traffic outside guest VMs so packet timing and sizes carry no secret-dependent signal, and proves it with a noninterference theorem.

desk verdict A serious systems paper with a real proof gap: the prototype's interrupt-handler timestamps violate the noninterference theorem's secrecy assumption. read the letter →

arxiv 1908.11568 v5 pith:V6J4JUI5 submitted 2019-08-30 cs.CR

Aastha Mehta , Mohamed Alzayat , Roberta de Viti , Björn B. Brandenburg , Peter Druschel , Deepak Garg This is my paper · ORCID
classification cs.CR
keywords networksidechannelstrafficshapingIaaScloudsecuritycloakedtunnelhypervisorparavirtualizationnoninterferencepacketpaddingandpacingCNNclassification
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Pacer is, by the paper's account, the first system to eliminate network side-channel leaks in public infrastructure-as-a-service clouds end-to-end. The core idea is to move traffic shaping outside the guest: a cloaked tunnel pads every packet to a fixed MTU and transmits on schedules chosen independently of secrets, sending dummy packets when no payload is ready, so packet timing, size, and count carry no secret-dependent signal. The design splits enforcement between a performance-isolated hypervisor component that masks its own delays and a guest kernel module that supplies flow-control and congestion state. The paper proves a noninterference theorem for this design and reports that a CNN classifier that identifies videos with over 99% accuracy on unshielded traffic drops to random guessing on Pacer-shaped traffic, at moderate bandwidth, latency, and CPU costs.

What carries the argument

The load-bearing mechanism is the cloaked tunnel, a schedule-driven shaping layer that wraps each flow outside the application and makes packet timing and size secret-independent by design. The security argument turns on HyPace's masking discipline: an event handler scheduled at $t_n - \delta_{\mathrm{xmit}}$ spins until $t_n$ and then writes the NIC doorbell, so any variability in handler execution is hidden as long as the observed worst-case delay $\delta_{\mathrm{xmit}}=35\,\mu\mathrm{s}$ is a true bound; batched, epoch-based transmission amortizes the cost of this masking. GPace enforces a second bound, $\delta_{\mathrm{delay}}=20\,\mathrm{ms}$, for the guest's processing of inbound packets and timers, so that causally related network events are never observably closer than the bound. Together these mechanisms ensure that each of the paper's properties S1–S5 — schedule choice, activation, updates, deviations, and transport responses — is either secret-independent or unobservable to a network adversary.

What would settle it

Run two Pacer-protected servers that differ only in their private guest state while a co-resident adversary generates heavy DMA, bus, and PCIe traffic, and record every NIC doorbell-write delay relative to the scheduled transmission time; if any delay exceeds $\delta_{\mathrm{xmit}}=35\,\mu\mathrm{s}$, or if a classifier trained on the packet traces identifies the private state better than random guessing, Theorem 3's premise is falsified.

Watch

Extended reading notes

Core claim

The paper's central claim is that network side-channel leaks can be removed by construction rather than by adding noise. Pacer wraps a tenant's flows in a cloaked tunnel whose shaping layer decides every transmission: packets are padded to MTU size, transmission follows a schedule anchored to public events such as a request arrival or a prechosen class, and a dummy packet is sent whenever the guest has not produced payload in time. HyPace, a small hypervisor component, enforces the schedule and masks any secret-dependent delay in its own execution by spinning until the scheduled time before writing the NIC doorbell, batching packets in epochs to keep line rate. GPace, a kernel module in the guest, pads payloads, shares per-flow congestion windows and sequence numbers, and masks processing delays between causally related network events. The formal appendix proves Theorem 3: from identical public states, runs with different private guest states produce observationally identical environment states, so an adversary observing traffic shape learns nothing about guest secrets.

Load-bearing premise

Security rests on the empirical bounds $\delta_{\mathrm{xmit}}=35\,\mu\mathrm{s}$ for the delay between a scheduled transmission and the NIC doorbell write and $\delta_{\mathrm{delay}}=20\,\mathrm{ms}$ for guest processing; the paper concedes that secret-dependent bus or PCIe contention on general-purpose hardware cannot be ruled out, so an adversary who can reliably trigger such delays could break the masking assumption.

Editorial extensions

If this is right

  • A tenant who rents a dedicated CPU socket and runs Pacer can expose its outbound traffic to colocated or on-path observers without leaking secret-dependent information through packet timing, sizes, or counts.
  • Workloads can be partitioned into public classes such as video resolution or document clusters; each class may use its own efficient schedule, and only the public class membership is revealed, not the specific object.
  • Because Pacer honors congestion signals, flow-control windows, and retransmissions, it can sustain elastic bandwidth sharing and TCP-friendliness, which fixed-rate dummy traffic cannot.
  • The quantitative costs are two hypervisor cores, modest memory, and bandwidth overhead that depends on how coarsely or finely the tenant clusters its content; the paper reports roughly 4x padding on videos and 142.8% on medical pages with the tested clusters.
  • If the proof and measurements hold, a CNN classifier that would identify shielded videos in the clear at over 99% accuracy is reduced to predictions no better than random on Pacer-shaped traffic.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If NICs ever expose a hardware 'transmit at this timestamp' primitive, Pacer's $\delta_{\mathrm{xmit}}$ bound could become a hardware guarantee instead of an empirical measurement, closing the residual bus- and PCIe-contention gap the paper explicitly leaves open.
  • The same tunnel abstraction can be mirrored at the client end, which the paper notes as a trivial extension; that would hide request timing and sizes as well as responses, at the cost of client-side GPace installation.
  • Pacer's guarantee is stated for a threat model that already excludes microarchitectural channels by dedicated-socket rental; combining it with CPU-cache and memory isolation would give a stronger end-to-end confidentiality claim for the whole server, not just the network path.
  • The 99th/90th-percentile schedule synthesis in ProfPace is tuned for web-style workloads; applying Pacer to interactive protocols such as VoIP or remote procedure calls would require re-measuring those percentiles, since the latency overhead of tail-shaped schedules may dominate for short exchanges.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper presents Pacer, a system aimed at eliminating network side channels (NSCs) in public IaaS clouds by shaping traffic outside the guest VM. The core abstraction is a cloaked tunnel that makes packet timing and size independent of secrets. Pacer is implemented as a paravirtualized extension: HyPace in the hypervisor handles transmission scheduling, encryption, padding, and dummy generation; GPace in the guest kernel shares network state and timestamps; ProfPace generates transmission schedules. The paper includes a formal noninterference model and proof in Appendix E, and an experimental evaluation on two web workloads showing moderate overhead and successful defense against a CNN classifier. The abstract claims that Pacer is the first system to eliminate NSC leaks end-to-end and that it provides provable security.

Significance. If the security claim holds, Pacer is a significant advance over prior NSC mitigations: it explicitly addresses host-level internal side channels (requirement R6), respects network flow control, congestion control, and loss recovery (R5), and provides a formal noninterference theorem. The formal model in Appendix E is a genuine proof with clearly stated assumptions, and the evaluation is thorough in its coverage of latency, throughput, and bandwidth overheads. The paper is also honest about several limitations, most notably the possibility of secret-dependent bus/PCIe interference. However, the significance of the contribution is conditional on closing a substantial gap between the assumptions of the formal model and the behavior of the implemented prototype, as detailed below.

major comments (2)
  1. [§4.2 and Appendix E (Figure 11, assumption (2))] The prototype violates the formal model's assumption that schedule effective times are secret-independent. GPace timestamps inbound packets in the vNIC interrupt handler, so the timestamp used to anchor a default schedule is taken after an interrupt-delivery delay d that may depend on the guest's secret-dependent computation (e.g., interrupts disabled while processing a secret). The schedule start time is thus T_arrival + d, and the first response is transmitted at T_arrival + d + δ, where δ = ε + δdelay. The request-to-response interval observed by a network adversary includes the secret-dependent component d; adding the constant δdelay after the timestamp shifts but does not cancel its variation. This violates assumption (2) of the formal model (Figure 11), which requires the effective time Tei to be secret-independent, so Theorem 3 does not apply to the implementation as described. The masking rule of §4.2 only hides guest processing that occurs after the timestamp is taken, not the delay before the timestamp, so the central claim that Pacer's prototype achieves noninterference is not supported.
  2. [§4.1 and Appendix E (assumption (7))] The claimed end-to-end guarantee is not established for the hardware transmission path. The paper states that delays between the doorbell write and the actual wire transmission caused by concurrent secret-dependent bus/PCIe transactions 'cannot be ruled out on general-purpose hardware' (§4.1). The formal model abstracts away the NIC and bus: assumption (7) concerns only Fo_H's logical output timing, not the physical time at which a packet appears on the wire. Consequently, Theorem 3 proves noninterference only up to the HyPace doorbell write, and the prototype's security on real hardware depends on the empirically measured bound δxmit = 35 µs, which the authors concede is an assumption rather than a guarantee. The abstract's unqualified claim that Pacer 'eliminates NSC leaks in public IaaS Clouds end-to-end' is therefore too strong for the current prototype; the security result is conditional on empirical delay bounds that the paper itself says may be violated by an adversary able to induce bus contention.
minor comments (5)
  1. [§4.2] The definition of δdelay as the 'empirical maximum inbound packet- and timer-processing time' is ambiguous about whether it includes the latency from packet arrival at the NIC to the entry of the vNIC interrupt handler; the paper should state precisely what was measured and whether the 20 ms bound covers that interval.
  2. [§6.3] The empirical security evaluation uses only four videos from a single cluster and reports that classifier probabilities are near 25% for each label; the paper should provide a confidence interval or error analysis and clarify that this is a sanity check rather than a validation of the noninterference guarantee.
  3. [§5] The statement that an inadequate schedule 'cannot leak secrets' should be justified for the case where an actual response exceeds the scheduled packet count, since excess payload may be dropped or deferred and could trigger secret-dependent retransmissions or connection timeouts that alter traffic shape.
  4. [Appendix E] There is a garbled line of characters immediately before Figure 8 in the provided text that appears to be a rendering artifact; the authors should ensure the final version contains no such corruption.
  5. [§2.1] The prototype assumptions state that client request traffic reveals no secrets through its shape; this is a strong assumption for the bidirectional case and should be highlighted earlier, since it limits the 'end-to-end' claim to server-side shaping only.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: Pacer's noninterference theorem is a conditional compositional proof with explicit component-level assumptions, not a fitted or self-citational derivation.

full rationale

Pacer's central security claim is Theorem 3 in Appendix E, which states a noninterference property for the composed system. The proof is a standard relational invariant argument: it assumes component-level conditions (e.g., assumption (1) that the environment's observable behavior is secret-independent, assumption (2) that profile update contents and effective times are secret-independent, assumption (6) that profile updates respect their effective times, and assumption (7) that HyPace's output function Fo_H emits same packet timings given same profiles regardless of packet queue contents) and derives the system-level conclusion. These assumptions are not introduced as predictions or as outputs of the derivation; they are explicit hypotheses of the model. In particular, assumption (7) is a formal abstraction of the §4.1 masking mechanism, not a restatement of Theorem 3, because it concerns only the low-level Fo_H step and still requires the proof (Lemma 2) to show that the profiles [sigma_H'] are equal across runs before it can be applied. The empirical bounds delta_xmit and delta_delay are presented as measured estimates with explicit caveats that hardware interference 'cannot be ruled out on general-purpose hardware'; they are not fitted parameters being relabeled as predictions. The CNN evaluation is an empirical sanity check, not a derivation from fitted values. No load-bearing self-citation or imported uniqueness theorem appears. Accordingly, no step in the paper's derivation chain is circular; the main caveats are unproven hardware assumptions, which are correctness and validation concerns rather than circularity.

Assumptions & free parameters 5 free parameters · 6 assumptions · 0 invented entities

The paper introduces no new physical entities. Its novel components, HyPace and GPace, are implemented software modules rather than postulated and unverified entities. The central claim rests mainly on empirical delay bounds, on the assumption that clients and guests do not leak through timing or profile choices, and on the modeling assumption that HyPace's internal packet generation is itself secret-independent. These are the most significant assumptions beyond standard network and hypervisor behavior.

free parameters (5)
  • δxmit (transmission masking delay bound) = 35 µs
    Empirically determined maximum delay between scheduled transmission time and HyPace's NIC doorbell write; used to start the timer early so the handler can spin until the scheduled time. If the true maximum exceeds this on real hardware, the security claim fails.
  • δdelay (guest processing delay bound) = 20 ms
    Empirical maximum inbound packet and timer processing time in the guest; used to anchor schedule activation and retransmission timing. If exceeded, secret-dependent processing delays may become observable.
  • Epoch length ε = 120 µs
    Chosen from microbenchmarks to balance batch preparation and line rate; affects whether scheduled transmissions are delayed to the end of an epoch. Performance parameter that interacts with the delay bounds.
  • Max batch size B = 38 packets per HyPace handler
    Empirically chosen so a single handler can prepare B packets within an epoch; used to sustain throughput. Performance parameter, not a security parameter.
  • Schedule percentile parameters = 99th percentile initial delay, 90th percentile inter-packet spacing, 100th percentile packet count +10%
    ProfPace uses these to construct transmit schedules; the paper states the choice is relevant for performance, not security, but it determines bandwidth and latency overheads.
assumptions (6)
  • domain assumption Clients do not leak secrets through request timing or payload-visible behavior (assumption (1), Figure 10).
    The model assumes the environment function FE produces timing-independent outputs when payloads and private client state differ. The prototype assumes client request traffic reveals no secrets through shape (§2.1). If clients are adversarial or compromised, the guarantee does not hold.
  • domain assumption The guest does not leak secrets through profile update effective times, only through queueing times (assumption (2), Figure 11).
    The proof allows Tui to be secret-dependent but requires Tei to be secret-independent. The paper claims this can be ensured by bucketizing secret-dependent delays into public buckets, but this is not formally verified.
  • domain assumption Propagation delays are respected: Tui ≤ Tei for all profile updates (assumption (3)).
    The guest is assumed to anchor effective times sufficiently far in the future to cover processing delays. If this fails, updates can become effective at secret-dependent times.
  • ad hoc to paper Event handler delays are bounded by the empirically measured δxmit and guest delays by δdelay.
    This is the load-bearing empirical bound in §4.1 and §6.1. The paper admits secret-dependent bus interference cannot be ruled out on general-purpose hardware.
  • ad hoc to paper HyPace's output function Fo_H itself does not leak secrets (assumption (7), Figure 13).
    The proof assumes that given equivalent profile prefixes, Fo_H emits timing-equivalent packet outputs. This is the core security property at the HyPace level, assumed rather than derived from hardware behavior.
  • domain assumption Chosen traffic shapes (schedules) are secret-independent (S1, §3.3).
    The security argument assumes all installed schedules, including custom profiles, are chosen without dependence on secrets. Tenants must follow this contract; the paper provides guidelines but no enforcement.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Pacer: Comprehensive Network Side-Channel Mitigation in the Cloud." pith.science (2026). https://pith.science/paper/V6J4JUI5

@misc{pith2026190811568,
  author       = {Pith},
  title        = {Pith review of: Pacer: Comprehensive Network Side-Channel Mitigation in the Cloud},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/V6J4JUI5}},
  note         = {Machine review of arXiv:1908.11568}
}
read the original abstract

Network side channels (NSCs) leak secrets through packet timing and packet sizes. They are of particular concern in public IaaS Clouds, where any tenant may be able to colocate and indirectly observe a victim's traffic shape. We present Pacer, the first system that eliminates NSC leaks in public IaaS Clouds end-to-end. It builds on the principled technique of shaping guest traffic outside the guest to make the traffic shape independent of secrets by design. However, Pacer also addresses important concerns that have not been considered in prior work -- it prevents internal side-channel leaks from affecting reshaped traffic, and it respects network flow control, congestion control and loss recovery signals. Pacer is implemented as a paravirtualizing extension to the host hypervisor, requiring modest changes to the hypervisor and the guest kernel, and only optional, minimal changes to applications. We present Pacer's key abstraction of a cloaked tunnel, describe its design and implementation, prove the security of important design aspects through a formal model, and show through an experimental evaluation that Pacer imposes moderate overheads on bandwidth, client latency, and server throughput, while thwarting attacks based on state-of-the-art CNN classifiers.

Figures

Figures reproduced from arXiv: 1908.11568 by the authors.

Figure 1
Figure 1. The adversary can (a) colocate VMs with victim’s VM [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

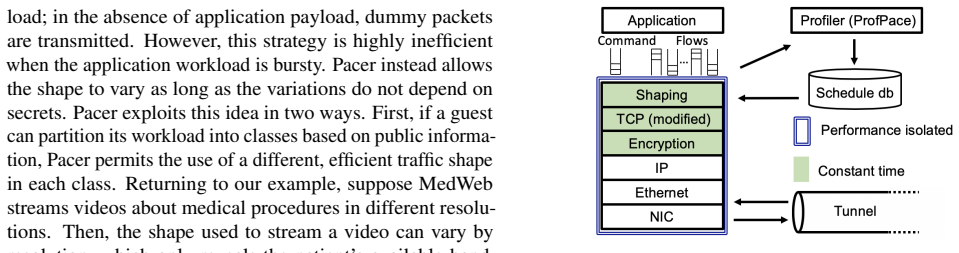

Figure 2. Cloaked tunnel (one endpoint) environment. Subsequently in §5, we sketch how Pacer auto￾matically generates efficient traffic shapes, thus completing Pacer’s design. 3.1. Desiderata A practical, secure cloaked tunnel must satisfy three high-level properties, mirroring requirements R1, R5 and R6 from §1. (i) Secret-independent traffic shape: Requires that transmis￾sions follow a schedule that does not depend on secre… view at source ↗
Figure 3

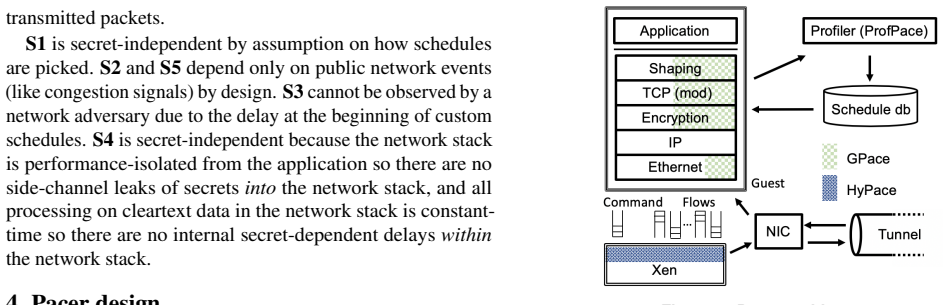

Figure 3. shows Pacer’s architecture. Unlike the strictly layered tunnel stack from §3, Pacer factors out a small set of functions that inherently require performance-isolation into the [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Medical service throughput vs latency subsequent segments sequentially whenever space is available in the buffer. We measure the impact of traffic shaping on (i) the initial delay until the video starts playing, (ii) the frequency and duration of any pauses (video skip…
Figure 5
Figure 5. Figure 5: CNN architecture. k denotes the number of features used. n denotes the number of elements of one time series, which is the total time of the time series divided by the window size (50ms). (ii) the victim traffic and rest of the traffic through the host. We configure th…
Figure 6
Figure 6. Figure 6: Relative padding overhead vs number of clusters [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]

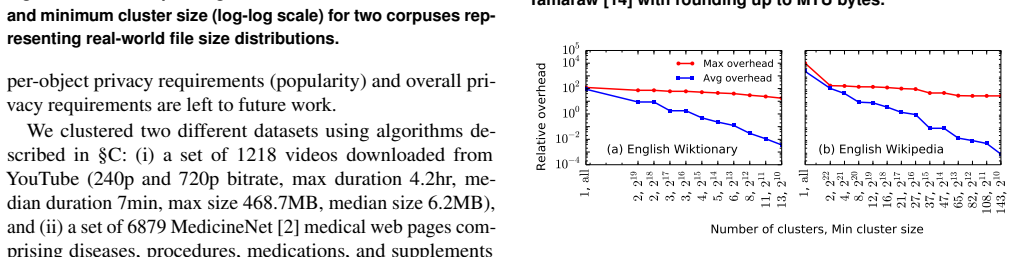

Figure 7
Figure 7. Figure 7: Relative padding overhead vs number of clusters [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 8
Figure 8. Figure 8: Download latency for a 10Mbps client for segments [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 9
Figure 9. Figure 9: Equivalence of states and queues Assumptions (1) QE1 ∼ QE2 and σE1 = σE2 and FE(QE1 ,σE1 ,Tg) = (QE 0 1 ,QG 00 1 ,σE 0 1 ) and FE(QE2 ,σE2 ,Tg) = (QE 0 2 ,QG 00 2 ,σE 0 2 ) ⇒ QE 0 1 ∼ QE 0 2 and QG 00 1 ∼ QG 00 2 and σE 0 1 ∼ σE 0 2 Transition FE(QE,σE,Tg) = (QE 0 ,QG …
Figure 10
Figure 10. Figure 10: Assumptions and transition of the environment [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
Figure 11
Figure 11. Figure 11: Assumptions and transition of the guest E.1.2. Guest acts The guest acts by consuming events from QG to update its internal state and to produce events in the queue QH (including both its subqueues Qu H and Q p H ). We model the environment as an abstract function FG.…
Figure 12
Figure 12. Figure 12: The functions update and update_prof that model HyPace’s profile update logic Assumptions (6) F u H (Φ,Eu,Te) = Φ0 and Te0 < Te ⇒ [Φ]Te0 = [Φ0 ]Te0 (7) s1 = s2 and F o H (Q p H1 ,s1) = (Q p H 0 1 ,QE 00 1 ) and F o H (Q p H2 ,s2) = (Q p H 0 2 ,QE 00 2 ) ⇒ QE 00 1 ∼ QE…
Figure 13
Figure 13. Figure 13: Assumptions and transition of HyPace (Non-modification of past outputs) FG should not output events in the past, i.e., Qu H 0 should only contain events with time￾stamps greater than Tg. (Non-consumption of future inputs) FG should not remove future events from its in…
Figure 14
Figure 14. Figure 14: Invariants of the transition system the system. Noninterference is usually proved by establishing invariants. We state and prove the relevant invariants of our model before stating and proving security. Our model has two kinds of relevant invariants: unary and relatio…

Discussion (0). Continue with ORCID to comment.
