Scattering of electronic waves in square and triangular lattice half-planes with monoatomic step

T0 review · 4 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A bulk electron wave scattered by a single monoatomic step on square and triangular lattice half-planes is solved exactly by a closed contour integral, with a far-field approximation that matches numerics.

desk verdict The square-lattice step solution is a credible, checkable extension of the author's Wiener-Hopf framework, but the triangular-lattice part has a load-bearing internal inconsistency in the energy ranges that undermines the advertised far-field comparison. read the letter →

arxiv 1909.00129 v1 pith:KULWYI23 submitted 2019-08-31 cond-mat.mes-hall

Basant Lal Sharma This is my paper · ORCID
classification cond-mat.mes-hall
keywords tight-bindingmodelWiener-Hopfmethodelectronscatteringmonoatomicsteplatticehalf-planefar-fieldasymptoticssurfacediffraction
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes that scattering of a bulk electron plane wave by a single monoatomic step on a square or triangular lattice half-plane has an exact solution in the nearest-neighbour tight-binding model. The model treats the surface as an infinitely high barrier, so the wavefunction is exactly zero at the step-adjacent sites. A standard complex-variable technique for half-plane difference equations, the discrete Wiener–Hopf method, reduces the scattered wave to a contour integral, and its far-field approximation to a saddle-point sum plus reflected waves; both are checked against a numerical simulation on a finite grid. If correct, the paper supplies an analytic foundation for computing how conduction electrons scatter off atomic steps, the microscopic input that phenomenological transport models compress into a single specularity parameter.

What carries the argument

The load-bearing object is the discrete Wiener–Hopf equation for the one-sided Fourier transform of the scattered field, with kernel $L(z)=\frac{1}{2}(1+rh/Q)$ for the square lattice and its analogue for the triangular lattice, where $Q$ carries the band structure, $h=\sqrt{Q-2}$, and $r=\sqrt{Q+2}$. The kernel is multiplicatively factorized as $L=L_+L_-$, splitting the equation into functions analytic inside and outside a common annulus; Liouville's theorem then fixes the unknown half-range transforms. The scattered field is recovered from the general modal solution $\psi_y^F=c_1\lambda^y+c_2\lambda^{-y}$ with $\lambda=(r-h)/(r+h)$, and the far field follows by stationary-phase analysis of the resulting diffraction integral. The same machinery handles both lattices, with the triangular case obtained by embedding two copies of the lattice into a rectangular grid.

What would settle it

An independent, high-resolution numerical solution of the Dirichlet lattice problem (1.6a)–(1.6b) with a different absorbing-boundary scheme can check the Wiener–Hopf formulas (3.1)–(3.2); a separate finite-barrier simulation, comparing $|\psi_{0,1}|$ versus $\Theta$ with Figs. 9–11, would test whether the infinite-barrier premise describes real surfaces.

Watch

Extended reading notes

Core claim

The paper's central claim is that the scattered wavefunction $\psi^s$ at any lattice site is given exactly by the contour integral (3.2), whose integrand is assembled from the factorized Wiener–Hopf kernel and two pole terms; with $\tau=0$ for the square lattice and $\tau=1$ for the triangular lattice, the same closed-form expression (3.1) covers both geometries. The far-field approximation (4.2) represents the result as the sum of saddle-point contributions, the diffracted cylindrical wave, plus two reflected plane-wave terms that switch on and off at a critical angle $\theta_r$, and this asymptotic formula is shown to match the numerical solution on a finite grid with absorbing boundaries. The paper maintains that the solution is exact within the tight-binding model, and that the only essential physical idealisation is the Dirichlet boundary condition at the step.

Load-bearing premise

The load-bearing premise is that the electron wavefunction vanishes exactly on the step-adjacent sites, modelling the surface as an infinitely high potential barrier; if a real surface has a finite barrier, the computed scattering amplitudes do not describe it.

Editorial extensions

If this is right

  • The exact contour-integral formula (3.2) gives the scattered wavefunction at every lattice site, so no uncontrolled truncation is needed for a single step under the Dirichlet condition.
  • The far-field formula (4.2) provides explicit angle- and energy-dependent scattering amplitudes, which can be inserted into convolution schemes for rough surfaces to replace the single specularity parameter $p$.
  • For low incident energies the kernel $L$ approaches 1, and the step effectively acts as a flat geometric mirror; the numerically observed deviations are attributed to imperfect absorbing boundaries rather than model error.
  • The same Wiener–Hopf construction extends to honeycomb lattices and to lattice waveguides with steps, as the paper states for future work.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The factorization of the solution into a lattice-dependent factor $K(z)$ and two pole terms suggests that a step-scattering amplitude could be defined as a measurable quantity, giving an angle- and energy-resolved specularity parameter that interpolates between $p=1$ and $p=0$.
  • A finite-barrier version of the problem would differ from this solution near the step; since the paper identifies the infinite barrier as essential, a perturbative expansion around the Dirichlet solution is the natural next test of how much the hard-wall idealisation matters.
  • For a periodic array of identical steps, the single-step scattering phase could be combined with Bloch conditions to predict coherent interference features, such as minigaps, in the surface conductance of vicinal surfaces.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper studies scattering of an electronic plane wave by a monoatomic step in a square lattice half-plane and a triangular lattice half-plane, using the nearest-neighbour tight-binding model with Dirichlet boundary conditions on the missing sites. The author formulates the problem as a discrete Wiener-Hopf equation, obtains an exact representation of the scattered wavefunction in (3.1)-(3.2), derives a far-field asymptotic approximation in (4.2), and presents graphical comparisons with a PML-based numerical solution in Figs. 13 and 15. The paper also gives explicit formulas for the step-site wavefunction ψ0,1 for the square lattice and ψ1,1 for the triangular lattice and discusses applications to surface scattering and STM interference patterns.

Significance. If the derivations are correct, the paper provides a useful exact integral-representation solution and a far-field formula for a textbook tight-binding scattering geometry, extending the author's prior Wiener-Hopf analyses of semi-infinite cracks and rigid constraints to the monoatomic step. The main strengths are that no parameter is fitted to the numerics, the numerical solution is an independent check rather than an input, and the unified treatment of square and triangular lattices through the τ parameter is economical. The exact step-site expression (3.3) is an explicit, easily testable result. However, two load-bearing parts of the validation are currently not fully checkable from the manuscript: the derivation of the pole-residue terms in the far-field formula is omitted, and the stated validity interval for that formula is internally contradictory. These issues do not obviously affect the exact integral representation, but they do affect the advertised far-field asymptotics and its numerical verification.

major comments (4)
  1. [§4, Eq. (4.1) and Appendix E.2] The validity interval for the far-field approximation in the triangular case is stated inconsistently. Equation (4.1) restricts the analysis to β⁻¹Eκ ∈ (−3, 7/3) ∪ (7/3, 3), while Appendix E.2 says the asymptotic analysis follows for β⁻¹Eκ ∈ (−3, 7/3) ∪ (16/3, 6). Since β⁻¹Eκ for the triangular band lies in (−3, 3), the second interval cannot be correct as written. If (16/3, 6) is a typo for (7/3, 3), the error should be corrected; if it is the interval claimed by the supporting analysis in [112], then (4.2) is unsupported in the upper-band interval used in Fig. 7(iv) and Fig. 15(iv), where β⁻¹Eκ = 2.52. Please reconcile the two statements and explicitly confirm that (4.2) is applied only where it is valid.
  2. [§4, footnote 3 and Eq. (4.2c)] The residue contribution ψ^s_{x,y}|_{Ps} is stated in footnote 3 to be 'obtained after several manipulations which are omitted,' and the functions ψrA_{x,y}, ψrB_{x,y}, and the angle θr in (4.2c) are not defined explicitly in the main text (Appendix C identifies ψ^s_{x,y}|_{Ps} with the geometric field ψg only indirectly). Because these terms are part of the total formula (4.2) used in the numerical comparisons in Figs. 13 and 15, the claim that the asymptotic formula matches the numerics cannot be verified from the manuscript. Please provide the derivation of the pole-residue terms, explicit expressions for ψrA, ψrB and θr, and a clear statement of how (4.2c) relates to the geometric solution (C.3).
  3. [§5, Figs. 13 and 15] The agreement between the numerical solution and the far-field asymptotic approximation is only documented graphically. No error norm, convergence with increasing contour radius R∞, or sensitivity to the PML parameters is reported. To substantiate the central claim of a validated far-field approximation, please include a quantitative error measure (for example, the relative L² or L∞ difference along the discrete contours) and show its behaviour with R∞ for at least the four parameter sets displayed in Figs. 13 and 15.
  4. [§3 and Appendix B, Eqs. (3.1), (B.1b)] The multiplicative factors L+(z) and L−(z) are defined only through contour integrals, so (3.1)-(3.2) is an exact integral representation whose practical evaluation still requires further computation. This is not a correctness defect, but the abstract's phrase 'exact solution' should be qualified, and the paper should either outline a numerical strategy for evaluating L± and the outer contour integral in (3.2) or state explicitly that the evaluation follows the procedures of [107,112] with the concrete details needed for reproducibility.
minor comments (5)
  1. [§1, Eq. (1.8)] The one-sided transform notation ψs_{1;−}, ψs_{0;+} is used in (1.8) before the definitions in (A.1) are recalled; consider introducing the notation earlier or adding a pointer.
  2. [§1 and Appendix D, Eqs. (1.10b), (1.11a), (D.1a)] The expressions 'e−e' and 'e+e' are confusing; they should be written as e^{-ε} and e^{+ε} throughout.
  3. [§1, Eq. (1.6a)] The Heaviside function H(x) in the boundary-condition discussion is first used without a definition; please specify the convention for H(0), e.g., H(0)=1 if the step site is included.
  4. [§2, after Eq. (2.1)] The sentence 'Because T•• and T••R are "uncoupled"' is ambiguous, since the replicated-lattice construction places the two sublattices on a common rectangular grid; please clarify in what sense the two triangular lattices are decoupled in the hopping model.
  5. [Appendix E, Eqs. (E.2)-(E.5)] The strip S is written in terms of ξ1 and ξ2 but these components are not defined; adding ξ = ξ1 + iξ2 with ξ1, ξ2 ∈ R would remove ambiguity.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; the Wiener-Hopf solution is derived from the stated lattice model and the numerical comparisons are independent checks.

full rationale

The paper's central derivation is self-contained: the tight-binding model (1.2)-(1.4), the boundary condition (1.6b), the Wiener-Hopf equations (1.11a) and (2.5), and the exact solution (3.1)-(3.2) are connected by explicit manipulations in Appendices A-D, with no fitted parameter inserted between them. The numerical results in Section 5 solve the same algebraic system (1.6a)-(1.6b)/(2.3) with PML and are used only as an independent comparison, not as an input to the Wiener-Hopf factorization. The author's self-citations to [107,108,112,113,116] supply the standard discrete Wiener-Hopf factorization, saddle-point analysis, and absence-of-surface-wave lemmas; these are prior mathematical techniques rather than a restatement of the step-scattering result. Footnote 3 admits omitted residue manipulations for the pole contributions, and the validity range for the triangular lattice stated in (4.1) differs from the range quoted in Appendix E.2; these are verification and correctness concerns, not circularity. No equation in the paper reduces by construction to a fitted quantity or to a definition of the target quantity, so no circular step can be exhibited.

Assumptions & free parameters 0 free parameters · 6 assumptions · 0 invented entities

The central derivation rests on the nearest-neighbor tight-binding Hamiltonian with constant hopping, Dirichlet boundary conditions at the step, the absence of localized surface waves (cited to prior work), and standard Wiener-Hopf factorization. No free parameters are fitted; beta is a model input, and the incident wave parameters are specified by the problem.

assumptions (6)
  • domain assumption Nearest-neighbor tight-binding model with a single hopping integral beta, ignoring lattice spacing and transfer integral modifications near the surface.
    Stated in Footnote 2 and used throughout; the Hamiltonian (1.2) and band structures (1.3), (2.2) depend on this.
  • domain assumption The electron wavefunction vanishes at the lattice sites adjacent to the step (Dirichlet boundary condition).
    Enforced in (1.6b) and discussed in Section 6 as an essential assumption.
  • domain assumption No localized surface waves exist on the semi-infinite square/triangular lattice with Dirichlet boundary.
    Stated in Section 1 (square) and Section 2 (triangular), cited to [97,115]. Used to justify that only bulk scattering need be considered.
  • standard math The Wiener-Hopf kernel L admits the multiplicative factorization L = L+ L- with the stated analyticity (L+ and L- have neither poles nor zeros in their half-planes).
    Appendix B; standard result for the Wiener-Hopf technique [84].
  • standard math Radiation condition via the limiting absorption principle E_kappa tending to E_kappa + i0 selects the outgoing (decaying) solution.
    Stated in Section 1; standard in scattering theory.
  • standard math The classical saddle-point method and Liouville's theorem apply to the integral representations.
    Used in Sections 4 and Appendices D and E.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Scattering of electronic waves in square and triangular lattice half-planes with monoatomic step." pith.science (2026). https://pith.science/paper/KULWYI23

@misc{pith2026190900129,
  author       = {Pith},
  title        = {Pith review of: Scattering of electronic waves in square and triangular lattice half-planes with monoatomic step},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KULWYI23}},
  note         = {Machine review of arXiv:1909.00129}
}
read the original abstract

Scattering of electronic waves in square and triangular lattice half-planes by a step on the surface is analyzed using the nearest-neighbour tight binding approximation. The changes in lattice spacing and the transfer integral between nearest-neighbor sites near the surface are ignored. A standard application of the discrete Wiener-Hopf method leads to an exact solution of the scattering problem associated with incidence from the `bulk'. A far-field approximation of electronic wavefunction, as well as its graphical comparison with a numerical solution, are also provided. Natural applications and possible extensions are based on the bulk Brillouin zone for two dimensional lattice planes as well as surface energy bands for fcc crystals.

Figures

Figures reproduced from arXiv: 1909.00129 by the authors.

Figure 1

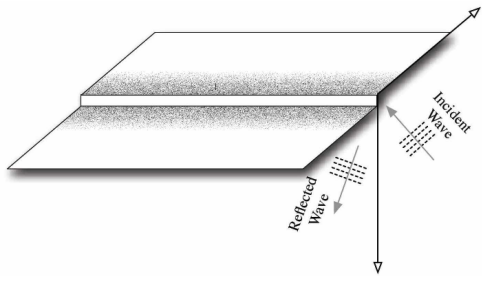

Figure 1. Semi-infinite half space with step. Incident bulk (conduction) electron [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Schematic of square and triangular lattice structures with [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Energy bands Eκ(κx, κy) in the bulk for (a) S•• and (b) T••. between neighboring sites in the potential and an on-site interaction term (assumed to be zero as it appears as an offset only). 4 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (13 more)
Figure 4
Figure 4. Figure 4: Semi-infinite square and triangular lattice structure with step (a) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: | ψ | 2 for S••. (i) β −1Eκ = −3.38, κ inc = 0.81, Θ = 65.8 deg, (ii) β −1Eκ = −2.56, κ inc = 1.27, Θ = 71.5 deg, (iii) β −1Eκ = 0.84, κ inc = 2.8, Θ = 50.7 deg, and (iv) β −1Eκ = 1.52, κ inc = 2.57, Θ = 54.33 deg. A = 1, E2 = 10−3 , Ngrid = 71, Npml = 58. Let a semi-i…
Figure 6
Figure 6. Figure 6: | ψ − ψ g | for S••. The details correspond to [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: | ψ | 2 for T••. (i) β −1Eκ = −2.75, κ inc = 0.5, Θ = 65.8 deg, (ii) β −1Eκ = −0.75, κ inc = 1.63, Θ = 72.6 deg, (iii) β −1Eκ = 1.84, κ inc = 2.88, Θ = 78.3 deg, and (iv) β −1Eκ = 2.52, κ inc = 3.4, Θ = 48.5 deg. A = 1, E2 = 10−3 , Ngrid = 101, Npml = 82 [PITH_FULL_IM…
Figure 8
Figure 8. Figure 8: | ψ − ψ g | for T••. The details correspond to [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
Figure 9
Figure 9. Figure 9: Re ψ0,1 (blue), Im ψ0,1 (red), and |ψ0,1 | (black) vs Θ ∈ (0, π) for four choices of β −1Eκ = (i) −3.38, (ii) −2.56, (iii) 0.84, (iv) 1.52. Ngrid = 71, Npml = 58 for S••. where C is a rectifiable, closed, counterclockwise contour in the annulus A . These expressions ca…
Figure 10
Figure 10. Figure 10: Re ψ1,1 (blue), Im ψ1,1 (red), and |ψ1,1 | (black) vs Θ ∈ (0, π) for four choices of β −1Eκ = (i) −2.75, (ii) −0.75, (iii) 1.84, (iv) 2.52. Ngrid = 101, Npml = 82 for T••. the author [107, 108, 112]. The benefit of this choice appears below, in the form of direct appl…
Figure 11
Figure 11. Figure 11: (a) Re ψ0,1 (blue), Im ψ0,1 (red), and |ψ0,1 | (black) vs β −1Eκ ∈ (−4, 4) for (left) given Θ (right) Θ on S••. The darker shades correspond to larger Θ ∈ {71.52, 65.79, 54.33, 50.73} (deg) on left and correspond to smaller Θ ∈ {108.48, 114.21, 125.67, 129.27} on righ…
Figure 12
Figure 12. Figure 12: Incident Reψinc (left), scattered |ψ s | (center), and Reψ (right) wave￾function for the semi-infinite square lattice structure with step S••. The details correspond to [PITH_FULL_IMAGE:figures/full_fig_p015_12.png]
Figure 13
Figure 13. Figure 13: | ψ s | and | ψ | (left) and arg ψ s and arg ψ (right) on a discrete semi￾circular contour as shown in [PITH_FULL_IMAGE:figures/full_fig_p016_13.png]
Figure 14
Figure 14. Figure 14: Incident Reψinc (left), scattered |ψ s | (center), and Reψ (right) wave￾function for the semi-infinite triangular lattice structure with step T••. ticipated to be crucial in a theoretical framework for rough surfaces containing either a random distribution of steps or…
Figure 15
Figure 15. Figure 15: | ψ s | and | ψ | (left) and arg ψ s and arg ψ (right) on a discrete semi-circular contour as shown in [PITH_FULL_IMAGE:figures/full_fig_p018_15.png]
Figure 16
Figure 16. Figure 16: Semi-infinite half space with step [124]. Incident surface state elec￾tron schematically shown. The evolution of wave packets across steps on surfaces also involves inher￾ently several challenges in a more general framework [78, 21]. For surface elec￾18 [PITH_FULL_IM…
