Kidney tumor segmentation using an ensembling multi-stage deep learning approach. A contribution to the KiTS19 challenge

Gianmarco Santini; Mathieu Rubeaux; No\'emie Moreau

REVIEW 4 major objections 5 minor 31 references

Kidney tumor segmentation using an ensembling multi-stage deep learning approach. A contribution to the KiTS19 challenge

T0 review · 4 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A three-stage deep-learning ensemble segments CT kidneys at 0.96 Dice and tumors at 0.74 on 90 unseen cases.

desk verdict A clean KiTS19 challenge write-up: externally measured Dice (0.96 kidney, 0.74 tumor) with a clear ablation, but the class-agnostic 5000-pixel post-processing filter could be silently removing small tumors and deserves sensitivity analysis. read the letter →

arxiv 1909.00735 v1 pith:EC2HTXA6 submitted 2019-09-02 eess.IV cs.CV

Gianmarco Santini , Noémie Moreau , Mathieu Rubeaux This is my paper · ORCID

classification eess.IVcs.CV

keywords kidneytumorsegmentationcomputedtomographydeeplearningResidualU-Net2.5DensembleDicescoreKiTS19challenge

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper sets out to show that a fully automatic multi-stage deep-learning pipeline can delineate kidneys and kidney tumors in contrast-enhanced CT scans well enough for the KiTS19 challenge. Its reported result is a mean Dice score—the standard overlap measure between prediction and ground truth—of 0.96 on kidneys and 0.74 on tumors across 90 unseen test cases. The authors' claim is that splitting the task into coarse localization, high-resolution segmentation of cropped regions, and final ensembling beats any single network in the pipeline. That matters because nephron-sparing surgery depends on knowing exactly which tissue must be removed, and automatic tools could move that assessment toward quantitative planning.

What carries the argument

The machinery is the multi-stage 2.5D cascade. Stage 1 is a Residual UNet with four encoding levels and pre-activated residual blocks; it receives five adjacent axial slices stacked as channels, subsampled to $256\times 256$, and predicts a single mask that merges kidney and tumor into one meta-class. That mask defines bounding boxes for each kidney. Stage 2 crops each box to $256\times 256$ at full resolution and runs two networks—the same Res-UNet and a Res-Net adapted from the authors' cited organ-at-risk segmentation work—trained with weighted categorical cross-entropy to separate kidney, tumor, and background. Stage 3 combines the two predictions, and a post-processing step keeps only connected components larger than 5000 pixels. The cascade concentrates the expensive full-resolution computation on relevant regions, while the ensembling reduces single-model variance, which the validation table supports.

What would settle it

Run the two stage-2 networks without stage-1 cropping, using full-resolution sliding windows over each CT volume, and compare tumor Dice on the same 90 test cases; if the uncropped version beats 0.74, the cascade is cutting off tumor tissue, whereas a similar score would place the deficit inside the high-resolution segmentation itself.

Watch

Extended reading notes

Core claim

On its own terms, the paper's central discovery is that a three-stage cascade built on Residual UNets—coarse kidney/tumor detection at half resolution, then two full-resolution networks working inside bounding boxes from the first stage, then an ensembling step—produces near-complete kidney segmentation and markedly weaker but useful tumor segmentation. The paper reports mean Dice scores of 0.96 for kidneys and 0.74 for tumors on the 90-case test set, and on its 20-case validation set the ensemble reaches 0.98 kidney Dice and 0.73 tumor Dice, improving over each individual stage-2 network. It also identifies the main failure mode: benign renal cysts are often labeled as tumors, which is consistent with the tumor score lagging the kidney score.

Load-bearing premise

The load-bearing premise is that the first-stage detector always finds and fully encloses every tumor region; if it misses or clips a tumor, the later stages never see that tissue, and the paper does not measure how often that happens.

Editorial extensions

If this is right

If the reported Dice scores hold, surgeons planning partial nephrectomy would get kidney contours that are nearly complete automatically, while tumor contours at 0.74 Dice would still require manual correction.
Because the ensemble outperforms each stage-2 network on the validation set, the accuracy gain is tied to combining models rather than to a single architecture.
The 2.5D input format makes volumetric context available at 2D memory cost, which is what allows the large batch size and residual networks used here.
The paper's own conclusion is that adding cyst-aware training data is the direct route to raising tumor Dice, since cysts are the dominant source of false positives.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The stage-1 bounding box is an unrecoverable bottleneck: any tumor tissue the first stage fails to enclose is invisible to both stage-2 networks, so the reported 0.74 tumor Dice may partly reflect cascade truncation rather than the limits of high-resolution segmentation.
The preprocessing choices (3 mm reslicing and the -30 to 300 HU window) are not ablated, so their contribution to the tumor deficit is untested; a reader should not attribute all of the 0.26 Dice gap to cysts alone.
A direct experiment would re-run the pipeline with a third class for benign cysts; if tumor Dice rises substantially, the paper's cyst diagnosis is confirmed, and if not, the bottleneck is likely elsewhere, such as small or low-contrast lesions.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The paper is a clean, honest KiTS19 challenge report. The new thing is not an architectural invention—Res-UNet plus a SegTHOR-style Res-Net, 2.5D slice inputs, ensembling—but the externally benchmarked result: 0.96 kidney Dice and 0.74 tumor Dice on 90 unseen test cases. That gives the central claim real weight, and the Table 2 ablation is useful: tumor Dice climbs from 0.52 with a single stage to 0.73 with the ensemble on validation, with standard deviations reported. The paper also does what a benchmark contribution should: it states preprocessing, loss weights, augmentation, batch balancing, and the ensembling scheme clearly enough to reproduce the general setup.

The main soft spot is the post-processing filter. Section 2.4 removes all connected components under 5000 pixels after both stages, class-agnostically. The paper says “pixels,” not “voxels,” and since predictions are per-slice 2.5D, the filter may be deleting small true tumors slice-by-slice. The authors never report the tumor size distribution, never stratify tumor Dice by size, and never test sensitivity to the threshold. So the Discussion’s claim that the tumor deficit is mainly cysts and hard-to-identify lesions is not established; some of the deficit could be this filter removing genuine small tumors. That is a real hole, but it does not invalidate the headline numbers—it tempers their interpretation.

Softer points: the 90-case test Dice are point estimates with no spread, there is no comparison to other KiTS19 entries, and no code or trained models are provided. These are common in challenge papers and not fatal, but they do limit how far the result can be trusted as a reproducible baseline.

Who gets value from this: people building kidney/tumor segmentation pipelines, especially those weighing multi-stage versus single-stage designs, and anyone wanting a sanity-checkable KiTS19 reference point. The paper deserves a serious referee. I would engage with it. Recommend peer review, with a request for sensitivity analysis on the 5000-pixel filter and size-stratified tumor Dice before the numbers are treated as a stable baseline.

Referee Report

4 major / 5 minor

Summary. The paper presents a multi-stage 2.5D convolutional neural network pipeline for segmenting kidneys and kidney tumors in contrast-enhanced CT, developed for the KiTS19 challenge. A stage-1 Residual-UNet localizes kidney/tumor regions, two stage-2 networks (a Res-UNet and a Res-Net) segment the extracted ROIs, and a final ensembling stage combines their predictions. Validation on 20 cases shows tumor Dice improving from 0.52 (stage-1 only) to 0.73 (ensemble), and on the 90 unseen test cases the authors report mean Dice scores of 0.96 for kidneys and 0.74 for tumors. The discussion attributes the modest tumor performance to false positives on renal cysts and false negatives on lesions that are difficult to identify on CT.

Significance. If the reported test-set performance holds, this is a solid and reproducible challenge contribution: the results are measured on an external benchmark that was not used for training or validation, the stage-by-stage ablation in Table 2 supports the value of the multi-stage design, validation scores are reported with standard deviations, and the training configurations are disclosed in reasonable detail. The main limitations are the absence of uncertainty quantification on the test-set Dice, an underspecified ensembling rule, and an unexamined post-processing step that could materially affect the interpretation of the tumor segmentation results.

major comments (4)

[Section 2.4 (Post-Processing)] The connected-component filter that removes all objects with fewer than 5000 pixels is class-agnostic and could delete genuine small tumors, yet the paper does not state whether the filter is applied in 2D or 3D, does not provide a sensitivity analysis of the threshold, and does not report the ground-truth tumor size distribution or Dice stratified by tumor size. Since the method predicts per-slice 2.5D masks, a 2D filter could split a moderately sized 3D tumor into per-slice components and discard each one; the ambiguity between 'pixels' and 'voxels' is therefore load-bearing. This issue should be resolved by clarifying the exact filtering operation, reporting threshold sensitivity, and providing size-stratified tumor Dice to substantiate the attribution of errors to cysts and difficult lesions.
[Section 2.3 (Stage 2) and Figure 1] The stage-2 networks only see ROIs derived from stage-1 kidney/tumor predictions, so any tumor tissue missed by stage-1 or truncated by the symmetric 256x256 bounding-box expansion cannot be recovered by the downstream stages. The paper does not quantify how often this cascade error occurs or how much it contributes to the tumor Dice deficit. An analysis of stage-1 tumor-region recall and the impact of ROI truncation on final predictions would make the central claim more robust.
[Section 3.2 (Evaluation results)] The test-set Dice scores (0.96 and 0.74) are reported as point estimates with no confidence intervals, despite validation tumor Dice standard deviations above 0.25. The ensembling improvement over the best single network on validation (0.73 vs. 0.72) is also not statistically tested. Bootstrapped confidence intervals for the 90 test cases and a paired statistical test for the ensemble versus individual models would support the stated conclusions.
[Section 2.3 (Stage 3)] The ensembling operation is described only as 'combines prediction masks' without specifying whether predictions are averaged as probabilities, combined by majority vote, or weighted in some other way, or whether all stage-2 networks contribute equally. This underspecification hinders reproducibility of the central claim and should be corrected with an exact description of the ensembling rule.

minor comments (5)

[Abstract] The word 'ensambling' should be 'ensembling'.
[Introduction] 'outmost importance' should read 'utmost importance'.
[Discussion] 'east to identify' should be 'easy to identify', and the sentence 'Furthermore, the we would like' should be 'Furthermore, we would like'.
[Section 2.2 (Preprocessing)] The choice of the HU window [-30, 300] is justified qualitatively; a brief sensitivity analysis or a reference to its use in the KiTS19 challenge would strengthen the presentation.
[Table 1] Please clarify that the data augmentation operations apply only to group KT images, and specify the central-crop and zoom parameters used in that augmentation.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claim is an empirical benchmark score measured against an external, unseen test set.

full rationale

The paper's central claim is the reported mean Dice score of 0.96 for kidneys and 0.74 for kidney tumors on 90 unseen KiTS19 test cases. This is an empirical evaluation against ground-truth masks that were not available to the authors during development, not a derivation from assumptions that already contain the result. The preprocessing, network architectures, training configuration, and post-processing (including the 5000-pixel connected-component filter) are method choices; they may affect the reported scores, but they are not inputs from which the Dice values are algebraically forced. No parameter is fitted to the test-set Dice and then renamed as a prediction. The paper contains no load-bearing self-citation: references to challenge data, network architectures, and ensemble methods are external and do not smuggle in the target conclusion. The only notable weaknesses are methodological (e.g., a class-agnostic size filter that could remove true small tumors, and cascade error from stage-1 bounding boxes), but these are correctness or generalization concerns, not circularity. Accordingly, the circularity score is 0.

Assumptions & free parameters 7 free parameters · 4 assumptions · 0 invented entities

All quantities in the pipeline are standard hyperparameters or hand-set constants, and no new physical or conceptual entities are introduced. The empirical claim is evaluated against an external benchmark, so no fitted constants are hidden inside the claim itself.

free parameters (7)

HU window lower and upper bounds = -30 to 300 HU
Hand-chosen preprocessing thresholds to suppress fat and highlight tumor borders; affects all input images.
Resampled slice thickness = 3 mm
Chosen as a compromise across dataset axial resolutions; all volumes are resliced to this thickness.
Stage-1 class loss weights = [0.3, 1.0, 3.0] for background, kidney, tumor
Manual weighting to emphasize tumor; reported in Table 1.
Stage-2 Res-Net class loss weights = [0.2, 0.25, 0.55]
Manual weighting for the Res-Net; reported in Table 1.
Post-processing minimum object size = 5000 pixels
Removes disconnected false-positive structures; could also remove small true structures.
Data augmentation probabilities = rotation p=1.0, horizontal flip p=0.5, central crop p=0.66
Applied on tumor-containing slices only; reported in Table 1.
Stage-1 input size and stage-2 ROI size = 256x256 pixels
Subsampled stage-1 input and expanded ROI bounding box; experimentally asserted to contain the structures of interest.

assumptions (4)

domain assumption KiTS19 ground truth labels are a valid reference standard for evaluating segmentation.
Section 2.1 states labels were manually created by medical students under expert clinician supervision; all Dice scores are computed against these labels.
domain assumption The 90-case test set is representative of the same distribution as the 210 training and validation cases.
The paper uses a random split and does not analyze domain shift; generalization of the reported Dice depends on this representativeness.
domain assumption Dice score on kidney and tumor is the appropriate metric for the clinical use case.
The challenge metric is adopted in Section 2.5; the clinical suitability of Dice as a surgical planning measure is not discussed.
ad hoc to paper Connected-component filtering with a 5000-pixel threshold does not remove genuine kidney or tumor tissue.
Section 2.4 assumes kidneys and tumors are the largest structures; small tumor fragments may be discarded.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Kidney tumor segmentation using an ensembling multi-stage deep learning approach. A contribution to the KiTS19 challenge." pith.science (2026). https://pith.science/paper/EC2HTXA6

@misc{pith2026190900735,
  author       = {Pith},
  title        = {Pith review of: Kidney tumor segmentation using an ensembling multi-stage deep learning approach. A contribution to the KiTS19 challenge},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/EC2HTXA6}},
  note         = {Machine review of arXiv:1909.00735}
}

read the original abstract

Precise characterization of the kidney and kidney tumor characteristics is of outmost importance in the context of kidney cancer treatment, especially for nephron sparing surgery which requires a precise localization of the tissues to be removed. The need for accurate and automatic delineation tools is at the origin of the KiTS19 challenge. It aims at accelerating the research and development in this field to aid prognosis and treatment planning by providing a characterized dataset of 300 CT scans to be segmented. To address the challenge, we proposed an automatic, multi-stage, 2.5D deep learning-based segmentation approach based on Residual UNet framework. An ensembling operation is added at the end to combine prediction results from previous stages reducing the variance between single models. Our neural network segmentation algorithm reaches a mean Dice score of 0.96 and 0.74 for kidney and kidney tumors, respectively on 90 unseen test cases. The results obtained are promising and could be improved by incorporating prior knowledge about the benign cysts that regularly lower the tumor segmentation results.

Figures

Figures reproduced from arXiv: 1909.00735 by the authors.

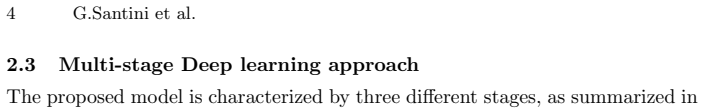

**Figure 1.** The first stage aims to roughly segment the region of interest (ROI) [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

**Figure 2.** Res-UNet architecture. On the picture left side, the residual block configurations. Marked in red the residual blocks where stride 2 convolutions are used. Upsampling layers precede the decoding res-blocks. Stage 1: The initial kidney identification was performed using a Residual-UNet (or Res-UNet) designed with a standard encoder-decoder structure of a UNet [19]. Particularly, we built it with four encoding level… view at source ↗

Figures from the paper (2 more)

**Figure 3.** Figure 3: Res-Net architecture. On top of each layer the number of kernels is specified. Stage 2: As presented above, this stage was used to perform the actual segmentation of both kidney and cancerous tissue. We employed two different convolutional neural network (CNN) archit…

**Figure 4.** Figure 4: Segmentation examples from four patients. On the top row the ground truth labels are reported (red for kidneys, green for tumors). The proposed model predictions are on the second row. Best viewed in color [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
