Dielectron production at low transverse momentum in Pb-Pb collisions at $ \sqrt{s_{\mathrm{NN}}}=5.02 $ TeV with ALICE
T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read Peripheral lead-lead collisions at 5.02 TeV show a low-momentum dielectron excess compatible with coherent photon-photon production.
desk verdict First LHC measurement of low-pT dielectrons in hadronic Pb-Pb shows a credible peripheral excess, but the excess rests on an unvalidated heavy-flavor cocktail shape. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The analysis rests on the transverse-momentum spectrum of dielectron pairs in the invariant-mass window $1.1$–$2.7~\mathrm{GeV}/c^2$, where hadronic sources reduce to semi-leptonic decays of correlated charm and beauty hadrons. Selecting pairs with $p_{\mathrm{T,ee}}$ below $0.1~\mathrm{GeV}/c$ isolates the photon-photon contribution from the hadronic background. The comparison uses a hadronic cocktail built from binary-scaled charm and beauty cross sections extrapolated from pp measurements with perturbative QCD and a Monte Carlo decay simulation, a thermal-radiation model, and three coherent photon-photon calculations; a boosted-decision-tree classifier suppresses photon-conversion tracks and like-sign subtraction removes residual combinatorial background. The distinction between signal and background therefore hinges on the accuracy of the cocktail normalization as much as on the photoproduction model shapes.
What would settle it
A decisive test would be a larger-sample measurement of the same $p_{\mathrm{T,ee}}$ spectrum with the photoproduction models folded through the detector resolution: if the excess vanishes when the cocktail is renormalised to a direct charm and beauty cross-section measurement at $\sqrt{s_{\mathrm{NN}}}=5.02$ TeV, the photon-photon interpretation would be falsified, whereas a resolution-corrected excess whose shape matches the photon-photon calculations would confirm it.
Extended reading notes
Core claim
The central claim is that coherent photon-photon interactions produce a measurable dielectron excess at low pair transverse momentum in peripheral Pb-Pb collisions at $\sqrt{s_{\mathrm{NN}}}=5.02$ TeV. In the 70–90% centrality class, in the invariant-mass interval $1.1$–$2.7~\mathrm{GeV}/c^2$, the data lie above the hadronic cocktail and thermal-radiation expectations for $p_{\mathrm{T,ee}}$ below $0.1~\mathrm{GeV}/c$, and the size of the excess agrees with all three photoproduction calculations compared. The measured peak sits at slightly higher $p_{\mathrm{T,ee}}$ than the models, which the paper reads as favouring calculations that include impact-parameter-dependent broadening. In the 0–40% central class, the spectrum agrees with the cocktail, consistent with the expectation that photo-production contributes only modestly there.
Load-bearing premise
The apparent excess stands or falls with the accuracy of the predicted background from charm and beauty hadron decays in peripheral collisions; if those cross sections are underestimated at $\sqrt{s_{\mathrm{NN}}}=5.02$ TeV, part of the excess could be artificial.
Editorial extensions
If this is right
- Peripheral Pb-Pb collisions at $\sqrt{s_{\mathrm{NN}}}=5.02$ TeV exhibit a resolvable low-$p_{\mathrm{T,ee}}$ dielectron excess in the $1.1$–$2.7~\mathrm{GeV}/c^2$ mass range that no hadronic or thermal source explains.
- The shape of the excess can discriminate among photoproduction models; the data currently favour calculations with impact-parameter-dependent $p_{\mathrm{T,ee}}$ broadening over a simple Woods-Saxon form-factor equivalent-photon-approximation shape.
- Central collisions remain consistent with the heavy-flavour cocktail alone, so no additional dielectron source is required in that centrality class within current precision.
- Doubling the peripheral data set with the 2018 run should confirm the excess and enable mass- and centrality-differential studies of the electromagnetic field in hadronic collisions.
Reading between the lines
- If the excess is confirmed with the larger sample, the $p_{\mathrm{T,ee}}$ spectrum could become a quantitative probe of the impact-parameter dependence of the electromagnetic field in collisions with hadronic overlap.
- The small shift of the measured peak relative to the model shapes is testable: folding detector-resolution effects into the photoproduction calculations would show whether the shift is a resolution artifact or a sign of initial-state broadening.
- The same low-$p_{\mathrm{T}}$ pair method could be extended to dimuon measurements in peripheral heavy-ion collisions, where centrality-dependent angular decorrelation has already been observed for two-photon-produced pairs.
- Extending the measurement below $1.1~\mathrm{GeV}/c^2$ would require a considerably richer cocktail including Dalitz decays and light-meson resonances; the chosen mass window is what keeps the present background estimate tractable.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This proceedings contribution reports preliminary ALICE measurements of inclusive dielectron production as a function of the pair transverse momentum pT,ee in the invariant-mass range 1.1–2.7 GeV/c^2 for Pb–Pb collisions at sqrt(s_NN)=5.02 TeV, in the centrality classes 0–40% and 70–90%. The measured spectra are compared to a hadronic cocktail from FONLL-based charm and beauty cross sections (binary scaled from pp) simulated with PYTHIA 6.4, plus thermal radiation and three models of coherent photon-photon production. In central collisions the data are consistent with the cocktail alone. In peripheral collisions the data show an excess at pT,ee < 0.1 GeV/c relative to the hadronic and thermal expectation, and the excess yield is stated to be compatible with photon-photon production calculations, although the peak position in data is slightly higher than in the models. The paper frames the result as an 'indication' rather than a definitive observation, and states that the full analysis with more statistics and differential studies is in preparation.
Significance. If the observed excess is confirmed, it would be the first measurement of coherent photon-photon dielectron production in Pb–Pb collisions with hadronic overlap at LHC energies, extending the STAR observation at RHIC. The paper has notable strengths: the analysis is restricted to a mass window free of vector-meson decays, the data are compared to independent external model calculations with no free parameters fitted to the dielectron spectra, and the central-collision agreement with the cocktail serves as an internal cross-check. The main limitations are the qualitative nature of the excess claim (no statistical significance quoted) and the lack of propagated cocktail uncertainties in the comparison. As a proceedings contribution, the level of detail is appropriate, but these omissions should be addressed in the text to make the claim reproducible and quantitative.
major comments (2)
- [Sec. 2, Fig. 2] The central claim of an excess at pT,ee < 0.1 GeV/c in the 70–90% centrality class rests on a single data point, but the paper gives no statistical significance of the excess relative to the cocktail plus thermal expectation, nor a quantitative goodness-of-fit for the compatibility with the photon-photon models. Please state the significance (including systematic uncertainties) and, if possible, provide a chi2/ndf or equivalent for the model comparisons. Without these numbers, the central conclusion remains qualitative and cannot be independently assessed.
- [Sec. 2] The hadronic cocktail in the 1.1–2.7 GeV/c^2 mass range is built exclusively from FONLL extrapolations of charm and beauty cross sections from 7 TeV pp measurements, with quoted uncertainties of about 15–20%. The paper does not propagate these uncertainties into the pT,ee spectrum or into the excess extraction, and it does not discuss the shape uncertainty of the unmodified PYTHIA reference. Because the excess is defined as the difference between data and this cocktail, a normalization or shape error in the cocktail could create or remove the excess. Please show the cocktail uncertainty band in Fig. 2 or explicitly argue how such uncertainties affect the conclusion; the central-collision agreement is a useful check but is not quantified either.
minor comments (5)
- [Sec. 2 and Acknowledgments] The text refers to 'Zhangbu et al.' for the gEPA and QED calculations, but Ref. [21] is by W. Zha et al. and Ref. [22] is a private communication from X. Zhangbu. Please align the in-text attribution with the corresponding references (e.g., 'Zha et al.') to avoid confusion.
- [Abstract and Sec. 1] There is a typographical error in 'momemtum' (should be 'momentum') in the introductory discussion of coherent photon-photon production.
- [Sec. 2 and Sec. 3] The paper states that the overall yield at pT,ee < 0.1 GeV/c is described well by all three photo-production models, while also noting that the data peak is at higher pT,ee than all models and that the Kłusek-Gawenda model has a more pronounced low-pT peak. These statements are not contradictory if the integrated yield over the bin matches, but the text should clarify whether the 'described well' refers to the integrated bin yield or to the shape, to avoid an apparent inconsistency.
- [Sec. 2] The reliance on private communications for the model calculations (Refs. [19], [20], [22]) limits reproducibility. For a proceedings this may be acceptable, but the authors should indicate whether published versions exist or will be provided in the forthcoming full paper.
- [Sec. 2] The phrase 'the centrality class 70–90% is more sensitive to photo-production than 0–40%' would benefit from a brief explanation that the hadronic and thermal backgrounds scale more strongly with centrality than the coherent photon flux, as claimed but not quantitatively justified in the text.
Circularity Check
No significant circularity: the dielectron spectra are measured and compared to externally provided cocktail and photo-production calculations, with no fit of dielectron data to the models.
full rationale
The paper's central claim is a data-versus-model comparison: measured pT,ee spectra in 0-40% and 70-90% Pb-Pb collisions are compared to a hadronic cocktail plus thermal and photon-photon model calculations. The cocktail's charm and beauty cross sections are taken from FONLL extrapolations of independent ALICE and LHCb pp measurements at 7 TeV, and the decays are simulated with PYTHIA 6.4; no dielectron spectrum point is fitted or used to renormalize the cocktail. The photon-photon calculations are provided by external groups (Klusek-Gawenda et al., Zhangbu et al., and refs. [1-3]) and are not derived from the data. The 'excess' is simply the measured yield minus the summed cocktail and thermal expectation in the lowest pT,ee bin, and the compatibility statement is an external comparison rather than a construction built from fitted parameters. The only self-citations are to ALICE detector, reconstruction, and prior pp/central-Pb-Pb measurement papers, which are normal references to independent public results and do not carry the argument by themselves. The main weakness, namely that the peripheral excess depends on the FONLL-based heavy-flavor cocktail shape and normalization, is an experimental-systematic or model-validation concern, not a circularity: a wrong charm/bottom background could create or remove the excess, but that is an accuracy issue rather than a case of the claimed result being equivalent to its own inputs by definition or by a fitted parameter renamed as a prediction. Accordingly, no circular step meeting the evidentiary standard of the review is identified.
Assumptions & free parameters
assumptions (5)
- domain assumption FONLL extrapolation of charm and beauty cross sections from pp at 7 TeV to Pb-Pb at 5.02 TeV, with binary scaling, gives the correct cocktail normalization in the 1.1-2.7 GeV/c^2 mass range.
- domain assumption PYTHIA 6.4 describes hadronization and semi-leptonic decays of charm and beauty hadrons into dielectrons.
- domain assumption Like-sign subtraction and BDT conversion rejection fully remove combinatorial background without biasing the dielectron yield.
- domain assumption The photo-production models of Kłusek-Gawenda et al. and Zhangbu et al. give valid predictions for the low-pT,ee dielectron yield.
- domain assumption Finite tracking resolution has negligible effect on the pT,ee shape comparison.
Cite this review
Pith. "Pith review of Dielectron production at low transverse momentum in Pb-Pb collisions at $ \sqrt{s_{\mathrm{NN}}}=5.02 $ TeV with ALICE." pith.science (2026). https://pith.science/paper/RXE43L5J
@misc{pith2026190902508,
author = {Pith},
title = {Pith review of: Dielectron production at low transverse momentum in Pb-Pb collisions at $ \sqrts_\mathrmNN=5.02 $ TeV with ALICE},
year = {2026},
howpublished = {\url{https://pith.science/paper/RXE43L5J}},
note = {Machine review of arXiv:1909.02508}
}
abstract
Dielectrons probe a wide range of phenomena in heavy-ion collisions. These include light- and heavy-flavour meson production, thermal radiation and coherent photo-production. The latter process is distinguished by dielectron production at low transverse-pair momentum ($ \it{p}_{\textrm{T,ee}}$). Transverse momentum spectra of dielectrons in central and peripheral Pb-Pb collisions are extracted and compared to the corresponding expectations. In central collisions the data fit the expected spectrum, which is dominated by semi-leptonic decays of correlated heavy-flavour hadrons. In peripheral collisions, the data exhibit an excess at low \ptee with respect to hadronic and thermal sources. The observed excess yield is compatible with calculations for dielectron production from coherent photon-photon interactions.

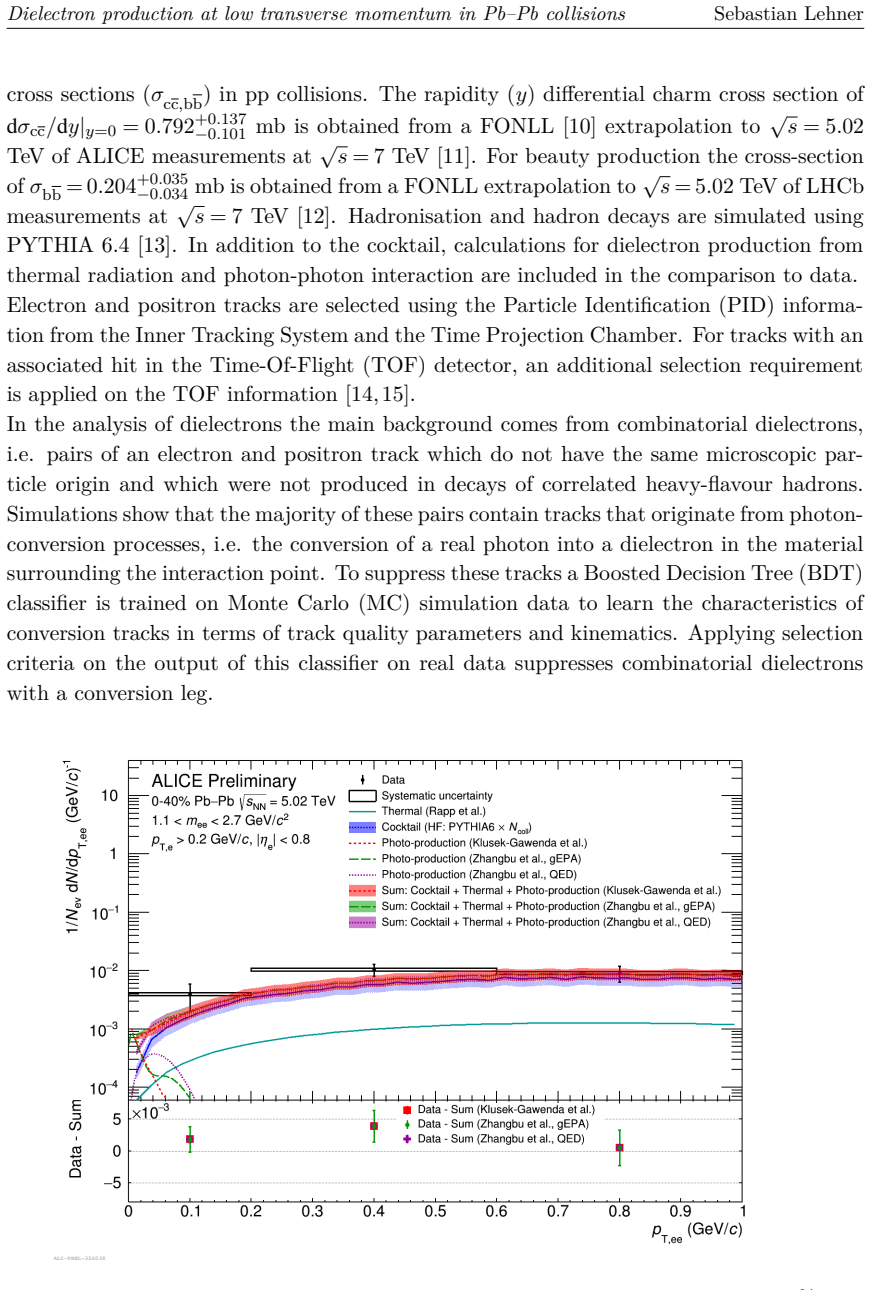

Figures
Reference graph
Works this paper leans on
-
[1]
Dilepton Radiation in Heavy-Ion Collisions at Small Transverse Momentum
M. Kłusek-Gawenda, R. Rapp, W. Schäfer and A. Szczurek,Dilepton radiation in heavy-ion collisions at small transverse momentum, Physics Letters B790 (2019) 339 [arXiv:1809.07049]
work page Pith review arXiv 2019
-
[2]
W. Zha, L. Ruan, Z. Tang, Z. Xu and S. Yang,Coherent lepton pair production in hadronic heavy ion collisions, Physics Letters B781 (2018) 182 [arXiv:1804.01813]. 4 Dielectron production at low transverse momentum in Pb–Pb collisions Sebastian Lehner
work page Pith review arXiv 2018
-
[3]
S. R. Klein,Two-photon production of dilepton pairs in peripheral heavy ion collisions, Phys. Rev. C 97 (2018) 054903[arXiv:1801.04320]
work page Pith review arXiv 2018
-
[4]
ALICE Collaboration,Measurement of an Excess in the Yield ofJ/ψat Very LowpT in Pb–Pb Collisions at√ sN N = 2.76 TeV, Phys. Rev. Lett.116 (2016) 222301 [arXiv:1509.08802]
arXiv 2016
-
[5]
STAR Collaboration,Observation of excessJ/ψyield at very low transverse momenta in Au+Au collisions at√ sNN = 200 GeV and U+U collisions at√ sNN = 193 GeV, arXiv:1904.11658
arXiv 1904
-
[6]
STAR Collaboration,Low-pT e+e− Pair Production inAu + Au Collisions at√ sN N = 200 GeV and U + U Collisions at √ sN N = 193 GeV at STAR, Phys. Rev. Lett. 121 (2018) 132301[arXiv:1806.02295]
arXiv 2018
-
[7]
T. Song, W. Cassing, P. Moreau and E. Bratkovskaya,Discrepancy in low transverse momentum dileptons from relativistic heavy-ion collisions, Phys. Rev. C 98 (2018) 041901 [arXiv:1806.09377]
work page Pith review arXiv 2018
-
[8]
ATLAScollaboration, Observation of centrality-dependent acoplanarity for muon pairs produced via two-photon scattering in Pb+Pb collisions at√ sNN = 5.02 TeV with the ATLAS detector, Phys. Rev. Lett.121 (2018) 212301[arXiv:1806.08708]
arXiv 2018
Show all 24 references
-
[9]
Klein, A
S. Klein, A. H. Mueller, B.-W. Xiao and F. Yuan,Acoplanarity of Lepton Pair to Probe the Electromagnetic Property of Quark Matter, arXiv:1811.05519
-
[10]
Cacciari, S
M. Cacciari, S. Frixione, N. Houdeau, M. L. Mangano, P. Nason and G. Ridolfi,Theoretical predictions for charm and bottom production at the LHC, JHEP 10 (2012) 137 [arXiv:1205.6344]
2012 arXiv
-
[11]
ALICE Collaboration,Measurement of D-meson production at mid-rapidity in pp collisions at √ s = 7 TeV, The European Physical Journal C77 (2017) 550[arXiv:1702.00766]
2017 arXiv
-
[12]
LHCb Collaboration,Measurement of J/Ψ production in pp collisions at√ s = 7 TeV, The European Physical Journal C71 (2011) 1645[arXiv:1103.0423]
2011 arXiv
-
[13]
Sjöstrand, S
T. Sjöstrand, S. Mrenna and P. Skands,PYTHIA 6.4 physics and manual, Journal of High Energy Physics 2006 (2006) 026[arXiv:0603175]
2006
-
[14]
ALICE Collaboration,The ALICE experiment at the CERN LHC, JINST 3 (2008) S08002
2008
-
[15]
ALICE Collaboration,Performance of the ALICE Experiment at the CERN LHC, Int. J. Mod. Phys. A29 (2014) 1430044[arXiv:1402.4476]
2014 arXiv
-
[16]
ALICE Collaboration,Measurement of dielectron production in central Pb-Pb collisions at√ sNN = 2.76 TeV, Phys. Rev. C 99 (2019) 024002[arXiv:1807.00923]
2019 arXiv
-
[17]
ALICE Collaboration,Centrality dependence of the charged-particle multiplicity density at midrapidity in Pb-Pb collisions at√ sNN = 5.02 TeV, Phys. Rev. Lett.116 (2016) 222302 [arXiv:1512.06104]
2016 arXiv
-
[18]
van Hees and R
H. van Hees and R. Rapp,Dilepton Radiation at the CERN Super Proton Synchrotron, Nucl. Phys. A806 (2008) 339[arXiv:0711.3444]
2008 arXiv
-
[19]
R. Rapp. Private communication (05.08.2019)
2019
-
[20]
Kłusek-Gawenda
M. Kłusek-Gawenda. Private communication (09.08.2019). 5 Dielectron production at low transverse momentum in Pb–Pb collisions Sebastian Lehner
2019
-
[21]
W. Zha, J. D. Brandenburg, Z. Tang and Z. Xu,Initial transverse-momentum broadening of Breit-Wheeler process in relativistic heavy-ion collisions, arXiv:1812.02820v2
-
[22]
X. Zhangbu. Private communication (06.08.2019)
2019
-
[23]
Y. J. Ye, Y. G. Ma, A. H. Tang and G. Wang,Effect of magnetic fields on pairs of oppositely charged particles in ultrarelativistic heavy-ion collisions, Phys. Rev. C 99 (2019) 044901 [arXiv:1810.04600]
2019 arXiv
-
[24]
G. Li, K. Zhou and B. Chen,Dilepton photoproduction measures the fluctuations of initial electromagnetic fields in nuclear collisions, arXiv:1806.06750. 6
