PaccMann$^{RL}$: Designing anticancer drugs from transcriptomic data via reinforcement learning

Ali Oskooei; Jannis Born; Joris Cadow; Karsten Borgwardt; Mar\'ia Rodr\'iguez Mart\'inez; Matteo Manica

REVIEW 3 major objections 5 minor 23 references

PaccMann$^{RL}$: Designing anticancer drugs from transcriptomic data via reinforcement learning

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A generative model conditions molecule design on a cancer cell's transcriptomic profile and uses reinforcement learning to bias generation toward compounds with high predicted potency, shifting the share of predicted-effective molecules…

desk verdict A well-built proof-of-concept for omics-conditioned drug generation whose efficacy gains are self-referential to the critic; peer-reviewable with a demand for external validation. read the letter →

arxiv 1909.05114 v4 pith:6XADCEVN submitted 2019-08-29 q-bio.BM cs.LGstat.ML

Jannis Born , Matteo Manica , Ali Oskooei , Joris Cadow , Karsten Borgwardt , María Rodríguez Martínez This is my paper · ORCID

classification q-bio.BMcs.LGstat.ML

keywords anticancerdrugdesignreinforcementlearningtranscriptomicprofilesvariationalautoencodersSMILESgenerationsensitivitypredictionIC50conditionalmolecule

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces a generative model that designs candidate anticancer molecules conditioned on the gene-expression profile of a cancer cell, rather than on a predefined protein target. The authors' central claim is that reinforcement learning, with a pretrained drug-sensitivity predictor as the reward, can shift the distribution of generated molecules toward compounds predicted to be potent against a given cell line or cancer site—even cell lines not seen during training. Across four cancer types, the share of generated molecules predicted to have $\mathrm{IC}_{50}$ below $1\,\mu\mathrm{M}$ rose from 1–4% in the unoptimized generator to 17–30% after optimization, while SMILES validity stayed above 86%. If the prediction model is trustworthy, this matters because it offers a route to lead discovery that uses the disease's own molecular state instead of a possibly incorrect target hypothesis.

What carries the argument

The central machinery is a fused latent space: a denoising VAE (called PVAE) maps a tumor's gene-expression profile to a 128-dimensional latent code, and a stack-augmented GRU VAE (called SVAE) maps SMILES strings of molecules to a same-dimensional latent space; the two codes are combined by addition, and the molecular decoder then generates a SMILES string conditioned on the profile. This conditional generator is treated as a reinforcement-learning agent whose actions are SMILES characters, and the reward is $f(\mathrm{IC}_{50}) = \exp(-\mathrm{IC}_{50}/5)$, where $\mathrm{IC}_{50}$ is the log-micromolar inhibitory concentration predicted by the PaccMann critic for the compound–profile pair. REINFORCE policy gradients update the generator's weights, with gradient clipping and pretraining preserving chemical syntax. The additive fusion is what lets a transcriptome, not a target protein, steer which region of chemical space is explored.

What would settle it

Synthesize a panel of the generated 'effective' compounds, for instance 100 per cancer site, and measure their actual $\mathrm{IC}_{50}$ against the corresponding cell lines in a viability assay. If the fraction with measured $\mathrm{IC}_{50}$ below $1\,\mu\mathrm{M}$ is comparable to the 1–4% baseline rate of random drug-like molecules rather than the claimed 17–30%, the central claim that RL optimization discovered genuinely potent compounds would be refuted.

Watch

Extended reading notes

Core claim

According to the paper, a conditional generator built from two pretrained variational autoencoders—one encoding transcriptomic profiles, one encoding SMILES strings—can be fine-tuned with policy gradients so that, starting from random points in chemical space, it produces molecules whose predicted cellular $\mathrm{IC}_{50}$ against a chosen cancer profile is markedly lower than those of an unbiased generator. The authors report 17–30% of optimized candidates receiving predicted $\mathrm{IC}_{50}$ below $1\,\mu\mathrm{M}$ across breast, lung, prostate, and autonomic-ganglia cancer profiles, versus 1–4% at baseline, with the top candidates showing high Tanimoto structural similarity to known drugs for those cancer types: Doxorubicin for breast, Embelin for lung, Vorapaxar for prostate, and Fulvestrant for neuroblastoma. They also report that these effects generalize to cell lines held out during optimization, and that the generated molecules retain comparable drug-likeness, solubility, and synthetic-accessibility scores. The paper is explicit that these potencies come from the critic's predictions, not from wet-lab assays, and notes the critic was trained only on known anticancer compounds.

Load-bearing premise

The pipeline's results stand or fall on the assumption that the PaccMann critic's predicted $\mathrm{IC}_{50}$ values are a valid proxy for real drug potency, even though the critic was trained only on known anticancer compounds and never saw clearly inactive molecules; if that predictive model is biased, the reinforcement learning would just optimize molecules to satisfy the bias.

Editorial extensions

If this is right

Molecule generation becomes conditionable by disease state rather than by a single protein target, so candidate libraries can be generated for an individual patient's expression profile.
Because the generator itself never sees anticancer drugs—only the critic does—the structural motifs it rediscovers for each cancer type are learned from the reward signal, suggesting the framework can propose novel scaffolds rather than merely tweak known drugs.
The same architecture can be extended by adding more latent codes, such as mutations, copy-number changes, or drug scaffolds, through the same permutation-invariant fusion operation.
If the critic's predictions hold in assays, the pipeline's yield of predicted-effective candidates (17–30%) is far above the baseline 1–4%, implying that in silico screening could substantially shrink the number of compounds needing experimental testing.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The strongest unstated test is wet-lab: synthesizing a few hundred of the generated compounds and measuring true $\mathrm{IC}_{50}$ on the target cell lines would settle whether the 17–30% 'effective' share is real potency or an artifact of critic bias.
If the critic is biased toward structural families already overrepresented among known anticancer drugs, the reinforcement learning would amplify those families regardless of true efficacy; a fair control would compare generated compounds against random ChEMBL-like molecules matched for Tanimoto similarity to known drugs.
The framework implicitly argues that target-free drug design from transcriptomes can bypass the failed target hypotheses documented for many clinical candidates; adding multi-objective rewards that penalize predicted toxicity or reward synthesizability is a natural next step the paper points to but does not test.
Because the two VAEs are trained independently and combined additively, the same recipe could condition generation on any measurable cellular state—proteomic, metabolomic, or epigenetic—whenever a critic can be trained for that context.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

First, the punchline: this is a genuinely new architecture and a well-executed proof of concept, but the main quantitative claim—that RL optimization yields more effective anticancer compounds—is not anchored to any independent measure of efficacy. The reward and the evaluation metric are the same critic, so the distribution shift mainly shows the generator learned to exploit that critic.

What is actually new: fusing a pretrained transcriptomic VAE with a pretrained SMILES VAE via additive latent codes, then fine-tuning with REINFORCE against a fixed drug-sensitivity predictor. Conditioning generation on a full transcriptomic profile is a meaningful step beyond protein-target or gene-signature conditioning, and the authors are right that Mendez-Lucio et al. is the closest prior work but uses a different mechanism. The code and pretrained models are public, the SMILES validity stays above 86%, and the baseline comparison is clearly described.

The paper does several things well. The appendix is candid: S7 admits the critic was trained only on anticancer compounds and lacks a negative training set, and the discussion explicitly says the generator is upper-bounded by the critic. The abstract even includes 'according to the critic.' The nearest-neighbor check is independent of the critic and gives some qualitative support, though it is based on four hand-picked compounds.

Now the soft spots, in proportion. The central numbers (17–30% vs 1–4% 'effective') are computed from PaccMann's predicted IC50, the same model that supplies the reward in Eq. 1. That is not a fatal flaw for a proof of concept, but it means the paper does not demonstrate that the generated molecules are potent in any biological sense. The S7 control—2.2% of ChEMBL molecules predicted effective versus 15.2% of GDSC drugs—shows the critic has some discrimination, but most GDSC drugs were seen during training, and ChEMBL molecules are not confirmed inactive. The absolute calibration near the 1 µM threshold is untested. The Tanimoto similarity to known drugs is suggestive but, as the authors themselves note, mechanism can be shared at low Tanimoto, so this is not strong evidence either.

Who is this for? Readers working on generative chemistry with biological context will get real value from the architecture, the honest limitations, and the reproducibility. It is a useful case study in how easy it is to create a self-referential evaluation loop.

My recommendation: send it to peer review. The work is substantial enough to deserve referee time, but the authors should be required to reframe the headline claim as critic optimization, add at least one independent check (docking, a small assay, or a critic trained on a broader dataset), and include a control conditioning on unrelated transcriptomic profiles.

Referee Report

3 major / 5 minor

Summary. The paper introduces PaccMannRL, a reinforcement-learning framework for de novo anticancer drug design conditioned on transcriptomic profiles. The conditional generator combines two pretrained variational autoencoders: one encoding gene expression profiles (PVAE) and one encoding SMILES strings (SVAE); their latent codes are summed, and the fused model is fine-tuned with REINFORCE using PaccMann, a multimodal drug-sensitivity predictor, as a fixed critic whose predicted IC50 provides the reward (Eq. 1). The authors report that optimized generation shifts the distribution of predicted IC50 toward lower values for four cancer types (breast, lung, prostate, autonomic ganglia), with 17–30% of generated molecules predicted effective (IC50 < 1 µM) versus 1–4% for the baseline SVAE, while maintaining 87–94% SMILES validity. They further show that site-specific generated compounds have nearest neighbors among known anticancer agents and that distributional properties such as QED, ESOL, and SCScore resemble those of real cancer drugs, despite not being explicitly optimized. The paper includes public code, pretrained models, and interactive visualizations.

Significance. If the central claims were externally validated, this would be a valuable demonstration of conditioning molecular generation on disease context rather than on a single protein target, and the open-source release of code and pretrained models is a clear strength. The methodological core—combining two pretrained VAEs with a fixed critic in an RL loop—is sound as an in silico optimization procedure, and the distribution-shift results genuinely show that the generator learns to exploit the critic. However, the significance as a drug-discovery contribution is presently bounded by the fact that the evaluation metric is the same critic that supplies the reward, and by the acknowledged absence of a negative training set for that critic. The nearest-neighbor analysis provides an independent, but only structural, plausibility check. The paper is best read as a proof-of-concept for profile-conditioned generative optimization in silico, and the claims should be re-scoped accordingly.

major comments (3)

[Section 2.1 and Eq. (1)] The central quantitative result is circular: the reward in Eq. (1) is R(sT) = f(C(CT, Xc)), a function of the critic's predicted IC50, and the effectiveness fractions in Figure 2 and the text are computed from that same critic output. The observed shift from 1–4% to 17–30% of compounds below the 1 µM threshold therefore demonstrates that REINFORCE successfully maximizes the training objective, but it does not by itself provide evidence about real cellular potency. Throughout the abstract and Section 2.1, 'effective' should be read as 'predicted effective by PaccMann'; the authors should either add an independent validation (e.g., an in vitro assay, an external sensitivity dataset, or docking against a relevant target) or explicitly re-scope the headline claims to predicted efficacy.
[Appendix S7] The critic lacks a negative training set, as the authors acknowledge. The control experiment—2.17% of 1000 ChEMBL molecules predicted effective versus 15.2% of GDSC drugs—shows some discrimination, but ChEMBL molecules are not confirmed inactive compounds, and most GDSC drugs were seen during critic training. Consequently, the control does not establish that the absolute IC50 predictions near the 1 µM threshold are calibrated. Because both the reward function and the main evaluation depend on this critic, the absolute 'effective' threshold used throughout Section 2.1 is not externally anchored. Please either validate the critic's absolute predictions against a dataset with confirmed inactive compounds or consistently qualify the results as predicted efficacy.
[Section 2.1, 'Investigation of nearest neighbors'] The nearest-neighbor analysis is independent of the critic, but structural similarity to a known anticancer drug is not evidence of efficacy, and the authors themselves note that drugs sharing a mechanism of action can have low Tanimoto similarity (e.g., Crizotinib and Erlotinib, τ = 0.11). The analysis should therefore be presented as a chemical-space plausibility check rather than as validation of anticancer activity. The sentence 'This result is remarkable...' and the related conclusions in the Discussion should be moderated accordingly.

minor comments (5)

[Section 2.1] In the text, 'some high structural similarity' should read 'share high structural similarity.'
[Figure 2] The column header 'Profile-specific Compunds' contains a typo: 'Compunds' should be 'Compounds.'
[Abstract and Introduction] The abstract's novelty claim ('the first generative model') should be reconciled with the description of Méndez-Lucio et al. (2020) in the Introduction, which also conditions de novo generation on gene expression signatures; please qualify the claim.
[Appendix S2] The sentence beginning 'A reward function f was used...' contains a stray double period ('(see Figure S2).. It is computed'); please correct the punctuation.
[Appendix S8, Figure S9 caption] The caption contains a spurious space: 'compound gen rated against nervous system cancer' should be 'compound generated against nervous system cancer.'

Circularity Check

1 steps flagged · score 6.0 of 10

Main efficacy result is circular: PaccMann's predicted IC50 is both the reward in Eq. (1) and the evaluation metric in Section 2.1, so the reported 17–30% 'effective' rates reflect the optimization objective rather than validated potency.

fitted input called prediction [Section 2.1 (evaluation), Fig. 1B caption, and Eq. (1) in the Methods]
"The IC50 eﬃcacy as predicted by the critic, is interpreted as reward and is subject to maximization during the RL based optimization. ... For the evaluation, all generated compounds with a predicted IC50 value below 1 µM were considered to be eﬀective. ... the reward R(sT ) = f(C(CT,Xc)) is the output of the critic C scaled by a reward function f. ... The weights of C are ﬁxed."

The reported 'effective' fractions (17–30% vs 1–4%) are computed by applying the fixed critic C to generated molecules, while Eq. (1) trains the generator to maximize R(sT)=f(C(CT,Xc)), the same predicted-IC50 output. A REINFORCE policy-gradient optimizer mechanically shifts samples toward regions where its fixed critic scores higher, so the distribution shift in Fig. 2 is the training objective itself, not an independent measurement of potency. Nothing in the main evaluation assays the molecules or compares C against real IC50 values for generated compounds; the independent checks are Tanimoto similarity to known drugs and in silico chemical scores, which do not establish efficacy. Thus the central 'effective anticancer compound' claim reduces by construction to the reward function.

full rationale

The paper's central quantitative result—that RL optimization raises the fraction of 'effective' generated compounds from 1–4% to 17–30%—is computed with the PaccMann critic, and the same critic's output is the reward in Eq. (1). Because the generator is trained by REINFORCE to maximize f(C(CT,Xc)), the observed distribution shift toward lower predicted IC50 is the objective being optimized; it would be surprising if it did not occur. This is a direct case of a prediction that is forced by construction: the evaluation metric is the training reward. Appendix S7 explicitly concedes that PaccMann 'lacks a negative training set which would help extending its generalization across the space of known anticancer compounds,' so the absolute calibration of the 1 µM effectiveness threshold is not established against confirmed inactive compounds; the reported 2.17% vs 15.2% control shows some separation but does not validate absolute IC50 values for novel molecules. The independent evidence—SMILES validity, Tanimoto nearest-neighbor matches to known anticancer drugs, and chemical property distributions—is real but does not establish cellular efficacy; the authors themselves note that high Tanimoto similarity is not necessary for efficacy. The critic is cited from the authors' prior work (Manica et al., 2019), but the circularity does not depend on the citation's provenance; it depends on the identity of the reward and the reported outcome. A score of 6 reflects partial circularity: the central prediction reduces by construction, while auxiliary validations remain independent.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The central result rests on the validity of the critic as an efficacy oracle, the transferability of TCGA-trained encoders to cell-line data, the additive latent fusion as a conditioning mechanism, and a weak structural-similarity-to-efficacy correlation. No new physical entities are introduced.

free parameters (2)

alpha (reward scaling) = 5
Introduced in the reward function f(IC50)=exp(-IC50/alpha) in Section 4 and Appendix S2. Chosen by hand; smaller alpha leads to greedier optimization. It affects the trade-off between efficacy and validity but is not fitted to external data.
Effective IC50 threshold = 1 µM
Compounds with predicted IC50 below 1 µM are considered 'effective' in Section 2.1. This is a definitional cutoff, chosen by hand, and it determines the reported percentages.

assumptions (4)

domain assumption The critic PaccMann's predicted IC50 is a valid proxy for the actual inhibitory effect of a compound on a cell line.
This is the load-bearing assumption for both the RL reward (Eq. 1) and the evaluation (Section 2.1, Figure 2). Appendix S7 attempts to validate it by comparing GDSC drugs vs ChEMBL molecules, but both sets are in-silico predictions without wet-lab confirmation.
domain assumption Transcriptomic profiles from TCGA human samples are compatible with cell line profiles from GDSC and CCLE for the purpose of transfer.
Invoked when the PVAE (pretrained on TCGA) is applied to GDSC/CCLE cell lines during RL. Appendix S3 compares marginal distributions of gene expression and finds similarity, but this is a distributional check, not a functional validation.
ad hoc to paper Adding the latent codes of the profile and the molecule (Zc + Zp) produces a valid conditioning for molecular generation.
The conditional generator fuses the two VAEs by addition because it is permutation-invariant (Section 4, Figure 5C). This is a design choice not derived from first principles.
domain assumption Structural similarity (Tanimoto on ECFP fingerprints) correlates with similarity in drug sensitivity patterns.
Used in the nearest-neighbor analysis in Section 2.1, citing Shivakumar and Krauthammer (2009). The paper also notes that some drugs for the same cancer have low Tanimoto similarity, so the correlation is weak.

how reviews work

0 comments

Cite this review

Pith. "Pith review of PaccMann$^{RL}$: Designing anticancer drugs from transcriptomic data via reinforcement learning." pith.science (2026). https://pith.science/paper/6XADCEVN

@misc{pith2026190905114,
  author       = {Pith},
  title        = {Pith review of: PaccMann$^RL$: Designing anticancer drugs from transcriptomic data via reinforcement learning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6XADCEVN}},
  note         = {Machine review of arXiv:1909.05114}
}

read the original abstract

With the advent of deep generative models in computational chemistry, in silico anticancer drug design has undergone an unprecedented transformation. While state-of-the-art deep learning approaches have shown potential in generating compounds with desired chemical properties, they disregard the genetic profile and properties of the target disease. Here, we introduce the first generative model capable of tailoring anticancer compounds for a specific biomolecular profile. Using a RL framework, the transcriptomic profiles of cancer cells are used as a context for the generation of candidate molecules. Our molecule generator combines two separately pretrained variational autoencoders (VAEs) - the first VAE encodes transcriptomic profiles into a smooth, latent space which in turn is used to condition a second VAE to generate novel molecular structures on the given transcriptomic profile. The generative process is optimized through PaccMann, a previously developed drug sensitivity prediction model to obtain effective anticancer compounds for the given context (i.e., transcriptomic profile). We demonstrate how the molecule generation can be biased towards compounds with high predicted inhibitory effect against individual cell lines or specific cancer sites. We verify our approach by investigating candidate drugs generated against specific cancer types and find the highest structural similarity to existing compounds with known efficacy against these cancer types. We envision our approach to transform in silico anticancer drug design by leveraging the biomolecular characteristics of the disease in order to increase success rates in lead compound discovery.

Figures

Figures reproduced from arXiv: 1909.05114 by the authors.

**Figure 1.** The proposed framework for anticancer compound design against specific cancer profiles. A) Conceptually, the model performs a guided walk through the chemical space in order to find effective compounds. Starting from an unbiased molecule generator (trained only on a dataset of bioactive compounds without any information about cancer), compounds are sampled and screened in-silico against the transcriptomic profiles o… view at source ↗

**Figure 2.** Sample results for profile-driven model optimization and anticancer compound generation. Each row illustrates the results of training the RL pipeline on cell lines from a specific cancer type: autonomic ganglia, breast, lung and prostate cancer. The first column compares the distributions of IC50 predictions given by the critic model for a set of n=500 drug candidates generated with RL optimization and without RL op… view at source ↗

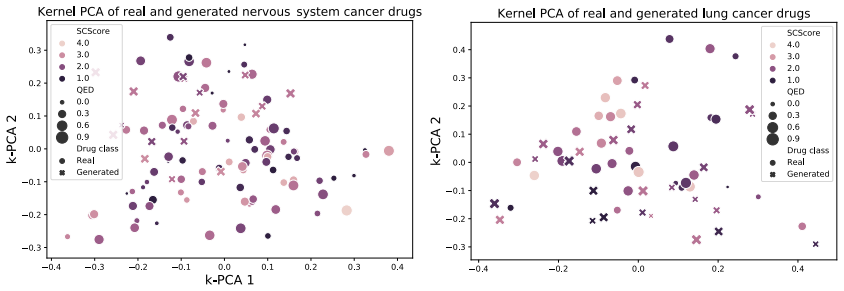

**Figure 3.** Visualization of generated and real anticancer drugs. A kernel PCA of real and generated molecules based on Tanimoto similarity. The size of the points is denoted the QED score while the coloring represents the synthetic complexity score (SCScore). Overall, both generated and existing molecules are heterogeneously distributed in the 2D projection and do not form clear clusters. Chemical properties of generated molec… view at source ↗

Figures from the paper (2 more)

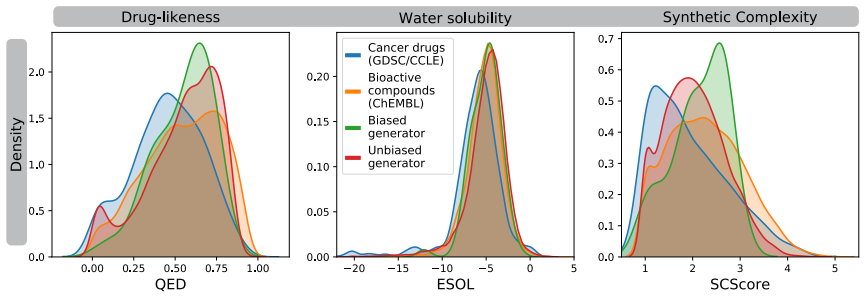

**Figure 4.** Figure 4: Comparison of chemical scores for real drugs in GDSC and CCLE database versus our generated compounds. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png]

**Figure 5.** Figure 5: Architectural details of the conditional drug generator. A) A biomolecular profile VAE (PVAE) was pretrained on RNA-Seq data from TCGA to encode a transcriptomic profile Xc into a latent code Zc, before attempting to decode Xc from it. B) Similarily, a sequential compo…
