Generalized hydrodynamic limit for the box-ball system

David A. Croydon , Makiko Sasada This is my paper

Pith reviewed 2026-05-24 14:37 UTC · model grok-4.3

classification 🧮 math-ph math.MPmath.PR
keywords box-ball systemhydrodynamic limitsoliton densitiesEuler scalingeffective distancepartial differential equation
0
0 comments X

The pith

The box-ball system admits a generalized hydrodynamic limit in which densities of solitons of different sizes evolve asymptotically under Euler scaling via effective speeds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a generalized hydrodynamic limit for the box-ball system that tracks how densities of solitons of each size change under Euler space-time scaling. It introduces a continuous state-space analogue that converts observed spatial densities into densities on an effective-distance scale where the motion is linear. For smooth initial data this limiting flow satisfies a system of PDEs whose velocities are the local effective speeds of each soliton size. The construction supplies an explicit macroscopic description of the transport that emerges from the microscopic soliton interactions.

Core claim

We deduce a generalized hydrodynamic limit for the box-ball system, which explains how the densities of solitons of different sizes evolve asymptotically under Euler space-time scaling. To describe the limiting soliton flow, we introduce a continuous state-space analogue of the soliton decomposition, namely we relate the densities of solitons of given sizes in space to corresponding densities on a scale of effective distances where the dynamics are linear. For smooth initial conditions, we further show that the resulting evolution of the soliton densities in space can alternatively be characterised by a partial differential equation, which naturally links the time-derivatives of the soliton

What carries the argument

The continuous state-space analogue of the soliton decomposition, which maps spatial densities of each soliton size to densities on an effective-distance scale where the dynamics become linear.

If this is right

  • The limiting densities of each soliton size are transported at their local effective speeds.
  • The continuous analogue converts the nonlinear microscopic interactions into linear motion on the effective scale.
  • For smooth data the density evolution is equivalently described by a closed system of first-order PDEs.
  • The limit holds under the standard Euler scaling of space and time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The effective-distance construction may extend to other soliton-bearing cellular automata that admit a similar decomposition.
  • The PDE characterisation could be used to compute macroscopic currents directly from initial density profiles without simulating individual particles.

Load-bearing premise

That the spatial densities of solitons of each size can be expressed in terms of densities on an effective-distance scale where the motion is linear.

What would settle it

Numerical evolution of the box-ball system from a smooth initial density profile whose measured densities at scaled times fail to satisfy the predicted PDE for the effective speeds.

Figures

Figures reproduced from arXiv: 2003.06526 by David A. Croydon, Makiko Sasada.

Figure 1

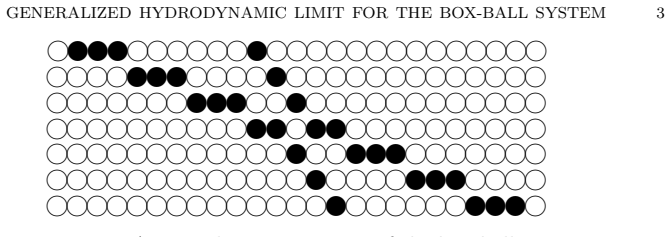

Figure 1. Figure 1: A two soliton interaction of the box-ball system. (Time runs from the top row to the bottom row.) at a constant speed (depending on their length) when in isolation, and ex￾periencing interactions when they meet. See [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

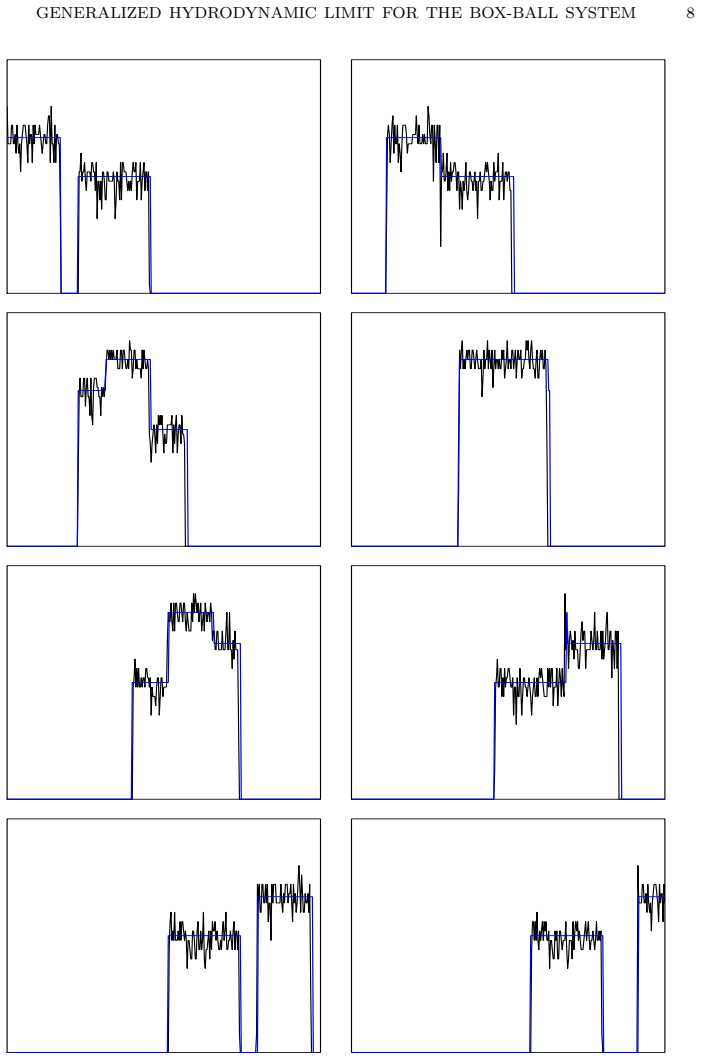

Figure 2. Figure 2: A region of size 2 solitons overtaking a region of size 1 solitons (with the initial condition being randomly gen￾erated from a Bernoulli measure on the ‘slot decomposition’ of the configuration, see Subsection 2.1). In each picture, the black line shows the particle density locally (each data point is the average of 50 sites in N), and the blue line shows the generalized hydrodynamic limit of the system, … view at source ↗
Figure 3

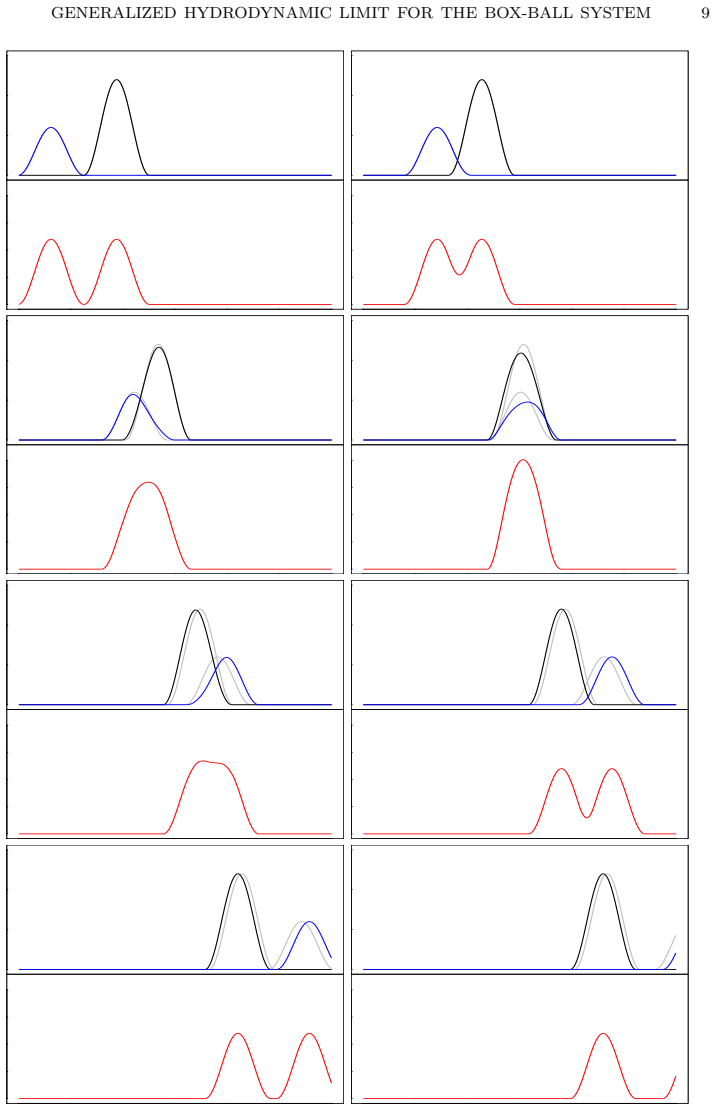

Figure 3. Figure 3: The black curve shows ρ1, the blue curve shows ρ2, with dynamics given by Theorem 1.5. The grey curves show how the soliton densities would evolve without any in￾teraction. By comparing with these, the deformation during the interaction and resulting phase shift are clear. The red curve shows the particle density, as studied in Corollary 1.4 [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

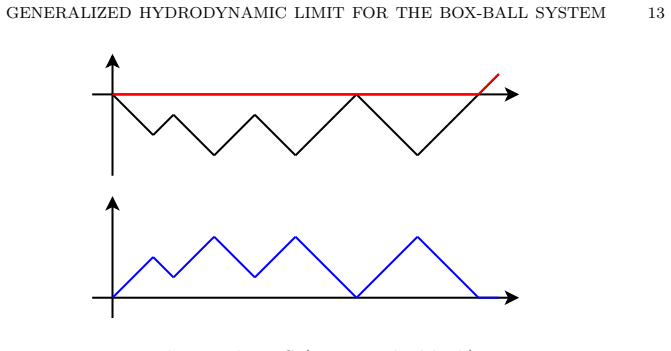

Figure 4. Figure 4: Path encoding S (top graph, black), past maxi￾mum M (top graph, red) and carrier process (bottom graph, blue), shown up to the first non-zero record. then we have that the carrier process (W(x))x∈Z+ , as introduced at (1.1), is given by (2.1) W(x) = M(x) − S(x), ∀x ∈ Z+, see [1, Lemma 2.1]. In the soliton decomposition, we will consider the ex￾cursions of W between the ‘records’ of S, where we say that x ∈… view at source ↗
Figure 5

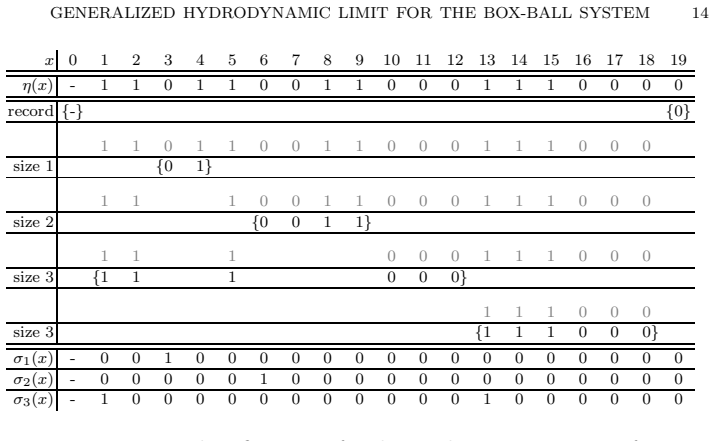

Figure 5. Figure 5: Identification of solitons between a pair of records. The elements shown in grey represent the parts of the configuration still being considered by the algorithm at the relevant stage. (In this example, the sizes of the identi￾fied solitons are non-decreasing, but this will not be the case in general.) Since there are an equal number of 0s and 1s in the original part of the configuration, this algorithm wi… view at source ↗
Figure 6

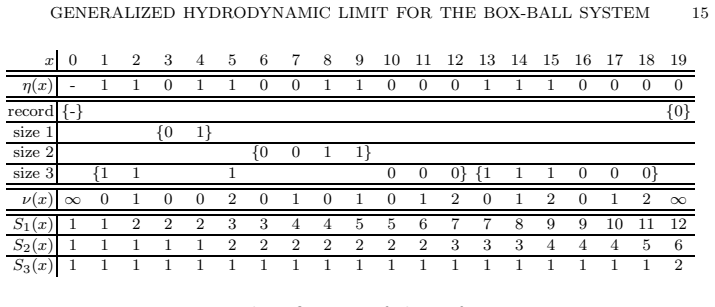

Figure 6. Figure 6: Identification of slots of given sizes. a record or at particular position within a finite soliton, by indexing sites as per the above diagram, the soliton decomposition enables us to define: (2.2) ν(x) := sup {j : x is a j-slot} . We also introduce (Si(x))i∈N,x∈Z by setting Si(x) := Xx x′=0 1{ν(x)≥i} , which gives the number of i-slots up to spatial location x. See [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7

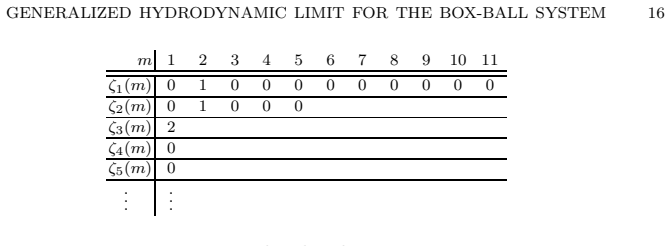

Figure 7. Figure 7: The slot decomposition. where for a given η ∈ Ω and k ∈ Z+, (ζi(m, k))i,m∈N is the slot decomposition of T kη. (NB. We note as part of Proposition 2.2 below that, for any k ∈ Z+, T k (Ω) ⊆ Ω, and so (ζi(m, k))i,m∈N is indeed well-defined.) As will motivate the definition of our continuous state-space analogue of the slot decomposition, for each fixed t, we have the following connection between ψ N i and ψ¯… view at source ↗
Figure 8

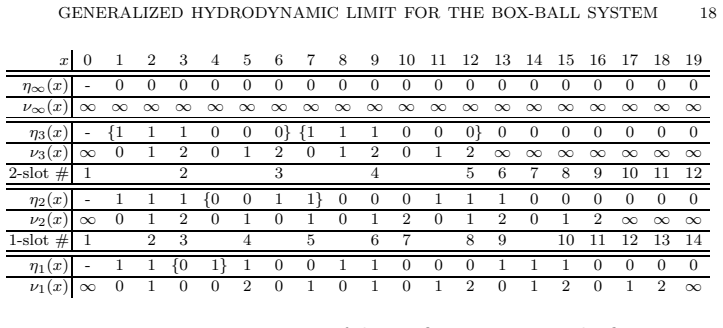

Figure 8. Figure 8: Reconstruction of the configuration up to the first non-zero record. m 1 2 3 4 5 6 7 8 9 10 11 ζ1(m) 0 1 0 0 0 0 0 0 0 0 0 ζ2(m) 0 1 0 0 0 ζ3(m) 2 ζ4(m) 0 ζ5(m) 0 . . . . . . ⇒ m 1 2 . . . ζ1(m) ζ1(12) ζ1(13) . . . ζ2(m) ζ2(6) ζ1(7) . . . ζ3(m) ζ3(2) ζ3(3) . . . ζ4(m) ζ4(2) ζ4(3) . . . ζ5(m) ζ5(2) ζ5(3) . . . . . . . . . . . [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9

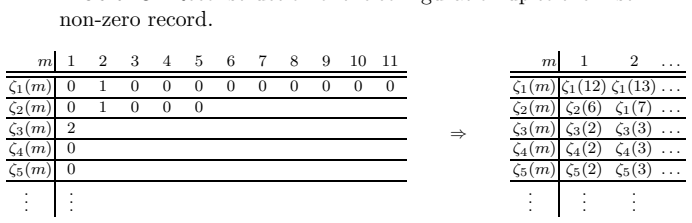

Figure 9. Figure 9: Removing slots considered up to the first non￾zero record. statement again appears below (see Proposition 4.1), but we sketch the basic idea here so that the continuous state-space construction is less mysterious. For the remainder of the subsection, we fix I ∈ N, and restrict our attention to configurations in ΩI (recall this set from (1.5)). Ignoring the entries in the slot decomposition for slots of siz… view at source ↗
read the original abstract

We deduce a generalized hydrodynamic limit for the box-ball system, which explains how the densities of solitons of different sizes evolve asymptotically under Euler space-time scaling. To describe the limiting soliton flow, we introduce a continuous state-space analogue of the soliton decomposition of Ferrari, Nguyen, Rolla and Wang (cf. the original work of Takahashi and Satsuma), namely we relate the densities of solitons of given sizes in space to corresponding densities on a scale of 'effective distances', where the dynamics are linear. For smooth initial conditions, we further show that the resulting evolution of the soliton densities in space can alternatively be characterised by a partial differential equation, which naturally links the time-derivatives of the soliton densities and the 'effective speeds' of solitons locally.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript deduces a generalized hydrodynamic limit for the box-ball system, explaining the asymptotic evolution of soliton densities of different sizes under Euler space-time scaling. It introduces a continuous state-space analogue of the soliton decomposition (building on Ferrari-Nguyen-Rolla-Wang and Takahashi-Satsuma), mapping spatial soliton densities to densities on an effective-distance scale where the dynamics become linear; from this it derives the limiting soliton flow. For smooth initial conditions the evolution is further characterized by a PDE relating the time derivatives of the spatial densities to the locally effective speeds.

Significance. If the central construction and limit hold, the work supplies a concrete hydrodynamic description for the box-ball system that links discrete soliton decompositions to a continuous effective dynamics, together with an equivalent PDE formulation. This adds a new explicit example to the literature on generalized hydrodynamics for soliton gases and integrable cellular automata.

minor comments (3)
  1. The definition of the effective-distance mapping (introduced after the soliton decomposition) should include an explicit formula or diagram showing how the spatial density ρ_k(x) is transformed to the effective density; without it the passage from linear effective dynamics back to spatial densities remains hard to follow.
  2. In the statement of the PDE characterization (presumably Theorem 2 or Section 4), the dependence of the effective speed on the local densities should be written out explicitly rather than left implicit, to make the link between the hydrodynamic limit and the PDE immediate.
  3. A short remark comparing the obtained PDE with the known hydrodynamic equations for the box-ball system in the literature (e.g., the works cited in the introduction) would help situate the result.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, including the summary of our results on the generalized hydrodynamic limit for the box-ball system, and for recommending minor revision. No specific major comments appear in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation introduces independent mapping and limit

full rationale

The paper's central step is the introduction of a new continuous state-space analogue that maps spatial soliton densities to effective-distance densities (where flow is linear), followed by derivation of the Euler-scale evolution and equivalent PDE for smooth data. This construction is presented as novel and does not reduce by definition or fitting to its inputs. The soliton decomposition is cited to external prior work (Ferrari et al. and Takahashi-Satsuma), which is independent and not a self-citation chain. No equations or steps are shown to be equivalent to inputs by construction, and the result is not forced by renaming or ansatz smuggling. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Ledger populated from abstract only; relies on prior soliton decomposition as background and introduces the effective-distance mapping as the core new construction.

axioms (1)
  • domain assumption Soliton decomposition of Ferrari, Nguyen, Rolla and Wang (and Takahashi-Satsuma)
    Invoked as the discrete foundation that the paper extends to a continuous analogue.
