arxiv: 2011.01882 · v2 · submitted 2020-11-03 · 💻 cs.RO · cs.GT

Secure Planning Against Stealthy Attacks via Model-Free Reinforcement Learning

Alper Kamil Bozkurt , Yu Wang , Miroslav Pajic This is my paper

Pith reviewed 2026-05-24 14:26 UTC · model grok-4.3

classification 💻 cs.RO cs.GT
keywords secure planningstealthy attacksmodel-free reinforcement learninglinear temporal logicstochastic gamerobotic planningunknown environmentactuator attacks
0
0 comments X

The pith

A combined LTL formula for task and stealthy-attack prevention in a stochastic game can be satisfied by model-free reinforcement learning without an environment model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to plan robot tasks securely in unknown stochastic environments when an attacker can manipulate control signals but must remain undetected by an intrusion-detection system. It models the interaction as a stochastic game between the controller and the attacker. The objectives of both parties are captured together in one linear temporal logic formula. This combined specification is then satisfied by model-free reinforcement learning, which learns a policy directly from interaction without any model of the environment. A sympathetic reader would care because many real robotic systems operate in unmapped spaces where actuator attacks are possible.

Core claim

We consider the problem of security-aware planning in an unknown stochastic environment, in the presence of attacks on control signals of the robot. We model the attacker as an agent who has the full knowledge of the controller as well as the employed intrusion-detection system and who wants to prevent the controller from performing tasks while staying stealthy. We formulate the problem as a stochastic game between the attacker and the controller and present an approach to express the objective of such an agent and the controller as a combined linear temporal logic (LTL) formula. We then show that the planning problem, described formally as the problem of satisfying an LTL formula in a stoch

What carries the argument

Combined LTL formula that encodes both task completion and stealthy-attack prevention inside a stochastic game between controller and attacker, solved via model-free RL.

If this is right

  • The planning problem can be solved without any model of the environment.
  • Model-free RL computes a policy that meets both task and security requirements expressed in the combined LTL formula.
  • The method applies to robotic systems facing actuator attacks that must remain stealthy.
  • The approach is evaluated on two robotic planning case studies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same combined-LTL plus model-free-RL pattern could be tried for other attack types whose goals are expressible in temporal logic.
  • It suggests that adversarial control problems might be handled without explicit environment models when objectives fit inside an LTL formula.
  • Scalability to high-dimensional state spaces or continuous dynamics would require further testing beyond the two case studies.

Load-bearing premise

The objectives of the attacker and the controller can be expressed together in one LTL formula that model-free reinforcement learning can satisfy in a completely unknown environment.

What would settle it

Apply model-free RL to a simulated robotic task with actuator attacks and an intrusion-detection system, then check whether the learned policy satisfies the combined LTL formula while completing the task and blocking stealthy attacks.

Figures

Figures reproduced from arXiv: 2011.01882 by Alper Kamil Bozkurt, Miroslav Pajic, Yu Wang.

Figure 1

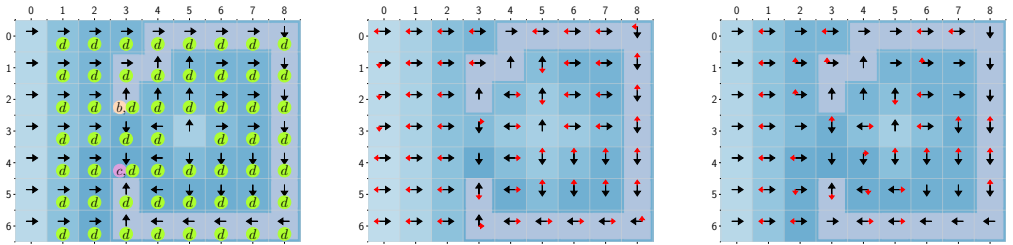

Figure 1. Figure 1: Surveillance scenario (from left to right): (a) The controller strategy from b to c and the cell labels; (b) The controller and attacker strategies from b to c before any anomaly occurs; (c) The controller and attacker strategies from b to c after one anomaly. 0 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6 0.79 0.78 b 0.70 0.53 0.32 0.32 0.31 0.31 c 0.31 0.80 0.76 0.60 0.27 0.16 0.22 0.31 0.31 0.31 0.81 0.69 0.27 0.14 0.… view at source ↗
Figure 2

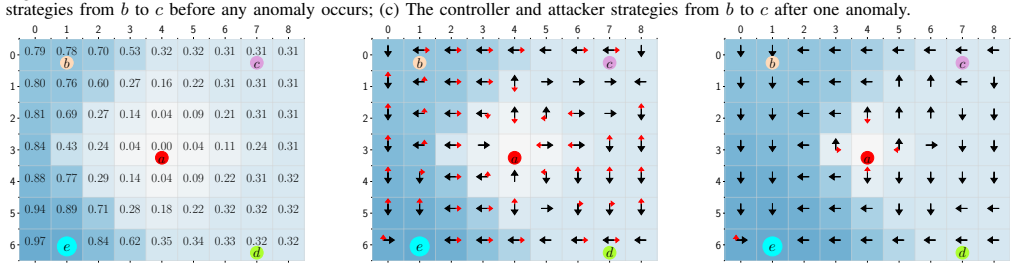

Figure 2. Figure 2: Task sequence scenario (from left to right): (a) The controller strategy from d to e and the cell labels; (b) The controller and attacker strategies from d to e right after an anomaly occurs; (c) The controller and attacker strategies from d to e right after an alarm. path from b to c, the learned controller strategy prefers a quite long path. There is only one cell between b and c, and this cell and all t… view at source ↗
read the original abstract

We consider the problem of security-aware planning in an unknown stochastic environment, in the presence of attacks on control signals (i.e., actuators) of the robot. We model the attacker as an agent who has the full knowledge of the controller as well as the employed intrusion-detection system and who wants to prevent the controller from performing tasks while staying stealthy. We formulate the problem as a stochastic game between the attacker and the controller and present an approach to express the objective of such an agent and the controller as a combined linear temporal logic (LTL) formula. We then show that the planning problem, described formally as the problem of satisfying an LTL formula in a stochastic game, can be solved via model-free reinforcement learning when the environment is completely unknown. Finally, we illustrate and evaluate our methods on two robotic planning case studies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper addresses security-aware planning for a robot in an unknown stochastic environment subject to stealthy attacks on its actuators. The attacker is modeled as having complete knowledge of the controller and intrusion-detection system and seeking to disrupt task completion while remaining undetected. The interaction is formulated as a stochastic game whose objectives (for both parties) are encoded as a single combined LTL formula; the resulting LTL-satisfaction problem on the unknown game is then solved by model-free reinforcement learning. The method is illustrated and evaluated on two robotic planning case studies.

Significance. If the reduction from the combined LTL formula to a model-free RL objective is shown to be sound and the learned policies are demonstrated to satisfy the specification with high probability, the work would provide a practical route to secure planning without an a-priori environment model. The explicit construction of a joint LTL formula that simultaneously encodes task satisfaction and stealth constraints is a clear technical contribution.

major comments (2)
  1. [Abstract] Abstract: the central claim that 'the planning problem … can be solved via model-free reinforcement learning when the environment is completely unknown' is stated without any indication of the reward construction, the handling of the two-player game structure inside the RL loop, or convergence arguments; these details are load-bearing for the claim and must be supplied with explicit equations or algorithms.
  2. [Abstract] The weakest assumption identified in the reader’s report (that a single LTL formula can be formed whose satisfaction corresponds to both task completion and stealthy-attack prevention, and that model-free RL can find a policy for it) is never discharged in the provided description; a concrete construction of the product automaton or the reward function on accepting states is required before the reduction can be accepted.
minor comments (1)
  1. [Evaluation] The two case studies should report quantitative metrics (success rate, attack success rate, number of episodes) together with the exact LTL formulas employed so that the empirical support for the method can be assessed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive suggestions. The comments focus on making the abstract self-contained with respect to the technical reduction. We will revise the abstract to include brief but explicit indications of the LTL-to-reward construction and the handling of the game inside the RL procedure, while preserving the manuscript's existing technical sections that already contain the full derivations.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'the planning problem … can be solved via model-free reinforcement learning when the environment is completely unknown' is stated without any indication of the reward construction, the handling of the two-player game structure inside the RL loop, or convergence arguments; these details are load-bearing for the claim and must be supplied with explicit equations or algorithms.

    Authors: We agree that the abstract would be strengthened by indicating these elements. The full manuscript already supplies them: the combined LTL formula is constructed in Section III, the product automaton and the reward function (r = 1 on accepting states, discounted sum otherwise) appear in Section IV, the two-player structure is handled by treating the attacker as part of the environment in the model-free Q-learning update, and convergence follows from standard results on RL for LTL satisfaction under the assumption of sufficient exploration. To address the referee's point directly, we will add one sentence to the abstract that references the reward construction from the accepting states of the product automaton and notes that standard model-free RL is applied to the resulting zero-sum game. revision: yes

  2. Referee: [Abstract] The weakest assumption identified in the reader’s report (that a single LTL formula can be formed whose satisfaction corresponds to both task completion and stealthy-attack prevention, and that model-free RL can find a policy for it) is never discharged in the provided description; a concrete construction of the product automaton or the reward function on accepting states is required before the reduction can be accepted.

    Authors: The concrete construction is given in the body of the paper (Sections III and IV): the task LTL φ_task and the stealth LTL φ_stealth are conjoined into a single formula φ = φ_task ∧ φ_stealth; the product automaton is formed in the standard way; and the reward function assigns positive reward precisely on the accepting states of this automaton, turning LTL satisfaction into an RL objective. Because the referee correctly notes that the abstract itself does not discharge this, we will revise the abstract to include a short clause stating that the objectives are encoded as a single LTL formula whose satisfaction is reduced to a reward-maximization problem on the product automaton. revision: yes

Circularity Check

0 steps flagged

No significant circularity; standard reduction to RL on LTL game

full rationale

The derivation reduces the security planning problem to a stochastic game whose objectives are encoded as a single LTL formula; satisfaction of that formula in an unknown environment is then solved by model-free RL. This is a conventional product-automaton construction followed by reward shaping on accepting states, with no self-definitional loops, no fitted parameters renamed as predictions, and no load-bearing self-citations that close the argument. The approach is externally falsifiable via simulation on the two robotic case studies and does not rely on any uniqueness theorem or ansatz imported from the authors' prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach relies on standard assumptions in game theory and formal methods for robotics security.

axioms (2)
  • domain assumption The problem can be modeled as a stochastic game between controller and attacker.
    Central to the formulation in the abstract.
  • domain assumption Objectives can be expressed as a combined LTL formula.
    Used to formalize the planning problem.
