Strain Induced Modulation of Local Transport of 2D Materials at the Nanoscale

Berkin Uluutku; Can Suer; Chandraman Patil; Md Abid Shahriar Rahman Saadi; Ongun Ozcelik; Rishi Maiti; Rubab Amin; Santiago Solares; Volker J. Sorger

arxiv: 2012.07715 · v1 · submitted 2020-12-14 · ❄️ cond-mat.mes-hall · physics.app-ph

Strain Induced Modulation of Local Transport of 2D Materials at the Nanoscale

Rishi Maiti , Md Abid Shahriar Rahman Saadi , Rubab Amin , Ongun Ozcelik , Berkin Uluutku , Chandraman Patil , Can Suer , Santiago Solares

show 1 more author

Volker J. Sorger

This is my paper

Pith reviewed 2026-05-24 14:24 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall physics.app-ph

keywords strain engineering2D materialsconductive atomic force microscopytransition metal dichalcogenideslocal conductivitySchottky barriermolecular dynamicsband structure tuning

0 comments

The pith

Strain from surface topography alters local conductivity in few-layer TMDs by changing effective mass 0.026 me per percent uniaxial strain and surface charge density 0.03e per percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures how non-uniform strain arising from surface topography in a few-layer transition-metal dichalcogenide modulates nanoscale conductivity using conductive atomic force microscopy. Conductivity maps are shown to follow the strain field predicted by molecular dynamics, yielding quantitative shifts in effective mass and carrier density together with a lowering of the conduction-band minimum that reduces the effective Schottky barrier. This establishes a direct electrical route to read out strain-induced band-structure changes at length scales where optical spectroscopy loses spatial resolution.

Core claim

Local conductivity variations parallel the strain deviations across the geometry predicted by molecular dynamics simulation. These results substantiate a variation of the effective mass and surface charge density by 0.026 me/% and 0.03e/% of uniaxial strain, respectively. A gradual reduction of the conduction band minima as a function of tensile strain explains the observed reduced effective Schottky barrier height.

What carries the argument

Conductive atomic force microscopy maps of current that are compared point-by-point with molecular-dynamics strain fields to extract strain-dependent effective mass, surface charge density, and Schottky-barrier height.

If this is right

Spatially textured conductivity can be engineered simply by patterning surface topography.
Schottky contacts can be locally tuned by choosing the sign and magnitude of tensile strain.
The same topography-to-strain mapping supplies a calibration standard for strain-optronic devices at the nanoscale.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same c-AFM method could be applied to other 2D materials whose strain response is still unknown, provided molecular-dynamics strain fields are first computed for their specific layer count and substrate.
If the extracted mass and density shifts prove material-independent within a given crystal family, the numbers could serve as universal design rules for flextronic circuits.
A next-step test would be to fabricate a device whose channel is deliberately placed on a region of known topography-induced strain and measure whether mobility or threshold voltage shifts match the reported percentages.

Load-bearing premise

Measured current variations arise predominantly from strain-induced changes in band structure and carrier density rather than from tip-sample contact artifacts, surface contamination, or thickness variations.

What would settle it

A control experiment in which identical topography is created on an unstrained reference sample or on a material whose band structure is strain-insensitive, yet the conductivity contrast disappears.

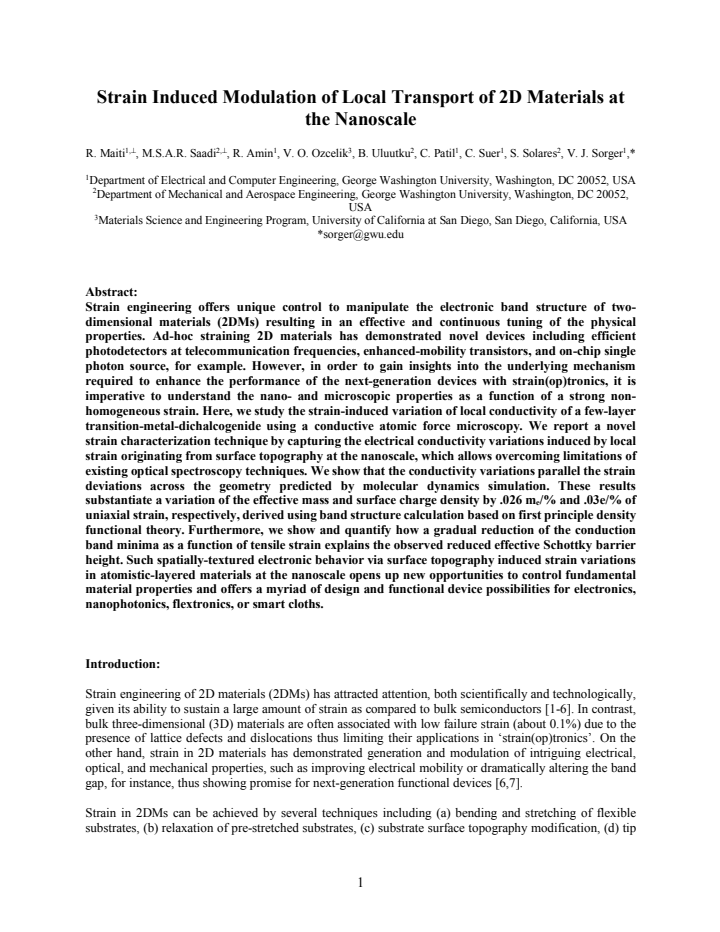

read the original abstract

Strain engineering offers unique control to manipulate the electronic band structure of two-dimensional materials (2DMs) resulting in an effective and continuous tuning of the physical properties. Ad-hoc straining 2D materials has demonstrated novel devices including efficient photodetectors at telecommunication frequencies, enhanced-mobility transistors, and on-chip single photon source, for example. However, in order to gain insights into the underlying mechanism required to enhance the performance of the next-generation devices with strain(op)tronics, it is imperative to understand the nano- and microscopic properties as a function of a strong non-homogeneous strain. Here, we study the strain-induced variation of local conductivity of a few-layer transition-metal-dichalcogenide using a conductive atomic force microscopy. We report a novel strain characterization technique by capturing the electrical conductivity variations induced by local strain originating from surface topography at the nanoscale, which allows overcoming limitations of existing optical spectroscopy techniques. We show that the conductivity variations parallel the strain deviations across the geometry predicted by molecular dynamics simulation. These results substantiate a variation of the effective mass and surface charge density by .026 me/% and .03e/% of uniaxial strain, respectively. Furthermore, we show and quantify how a gradual reduction of the conduction band minima as a function of tensile strain explains the observed reduced effective Schottky barrier height. Such spatially-textured electronic behavior via surface topography induced strain variations in atomistic-layered materials at the nanoscale opens up new opportunities to control fundamental material properties and offers a myriad of design and functional device possibilities for electronics, nanophotonics, flextronics, or smart cloths.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows c-AFM conductivity maps on few-layer TMDs that track MD-predicted strain from topography and extracts small coefficients for effective mass and charge density shifts, but the attribution to band-structure changes lacks controls for contact or thickness artifacts.

read the letter

The punchline is that the authors use conductive atomic force microscopy to map conductivity variations in few-layer transition metal dichalcogenides caused by local strain from surface topography, compare those maps to molecular dynamics predictions of the strain field, and extract coefficients for how effective mass and surface charge density change with uniaxial strain while also explaining a reduction in Schottky barrier height. What the paper does well is introduce a local probe that captures these effects at the nanoscale without relying on optical spectroscopy, which has its own resolution limits. The direct parallel between the measured conductivity pattern and the simulated strain geometry is a concrete result, and tying it to changes in the conduction band minimum provides a physical picture for the observed barrier lowering. This kind of work supports the broader goal of strain engineering in 2D materials for better devices. The soft spots center on the interpretation of the current data. The claims about specific variations of 0.026 me per percent strain in effective mass and 0.03e per percent in charge density depend on the assumption that the c-AFM current primarily tracks the strain-induced band structure and carrier density changes. Alternative explanations such as variations in tip contact area, surface contamination, or local thickness could produce similar spatial patterns, and the abstract does not provide controls or quantitative estimates to bound those contributions. Without error bars or details on the fitting process, the numbers feel like they rest on unverified steps. This paper is for researchers focused on nanoelectronics, straintronics, and characterization methods for atomically thin materials. Someone looking for new ways to probe local electronic properties under strain could pick up useful ideas here. It deserves a serious referee because the technique has potential even if the current evidence for the quantitative links needs strengthening through additional checks on artifacts.

Referee Report

2 major / 1 minor

Summary. The manuscript reports a c-AFM study of local conductivity in few-layer TMDs, claiming that measured current maps parallel strain fields predicted by molecular dynamics simulations of topography-induced strain. It extracts quantitative strain coefficients for effective mass (0.026 me/%) and surface charge density (0.03 e/%) and attributes a reduced effective Schottky barrier to a strain-dependent downward shift of the conduction-band minimum.

Significance. If the central attribution of c-AFM current to strain-induced band-structure changes can be substantiated, the work would supply nanoscale experimental input for strain engineering of 2D transport and a practical route to characterize inhomogeneous strain without optical spectroscopy. The MD benchmark is a positive element, but the absence of error bars, raw data, and explicit artifact controls currently limits the strength of the quantitative claims.

major comments (2)

[Abstract] Abstract: the direct mapping of c-AFM current variations to strain-induced changes in effective mass and surface charge density presupposes that tip-sample contact resistance, local thickness variations, and contamination do not produce the observed spatial pattern; no quantitative bounds or control experiments are described that would exclude these topography-correlated artifacts.
[Abstract] Abstract: the numerical coefficients 0.026 me/% and 0.03 e/% are stated without reference to the fitting procedure, data set, or uncertainty; the central claim that these values substantiate the strain-conductivity correlation therefore rests on unshown post-processing steps.

minor comments (1)

[Abstract] Abstract: notation “.026 me/%” should be written as “0.026 m_e/%” for clarity and consistency with standard effective-mass units.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments correctly identify areas where additional detail on artifact controls and data analysis would strengthen the presentation. We address each major comment below and indicate the revisions planned for the next version of the manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: the direct mapping of c-AFM current variations to strain-induced changes in effective mass and surface charge density presupposes that tip-sample contact resistance, local thickness variations, and contamination do not produce the observed spatial pattern; no quantitative bounds or control experiments are described that would exclude these topography-correlated artifacts.

Authors: We agree that explicit discussion of potential artifacts is necessary to support the central attribution. The current manuscript correlates current maps with MD-predicted strain and notes consistency with topography, but does not provide dedicated control experiments or quantitative bounds. In the revised manuscript we will add a dedicated paragraph (and supplementary figures) presenting control c-AFM scans on flat, unstrained regions of the same flakes, repeated measurements with different tip radii, and estimates of the maximum possible contribution from contact resistance and thickness variations. These additions will supply the requested bounds. revision: yes
Referee: [Abstract] Abstract: the numerical coefficients 0.026 me/% and 0.03 e/% are stated without reference to the fitting procedure, data set, or uncertainty; the central claim that these values substantiate the strain-conductivity correlation therefore rests on unshown post-processing steps.

Authors: The coefficients were obtained by linear regression of local conductivity versus local uniaxial strain extracted from multiple c-AFM/MD-correlated regions. We acknowledge that the abstract and main text do not describe the fitting details, the number of data points, or uncertainties. The revised manuscript will expand the methods section with the exact fitting procedure, list the datasets (now to be deposited as supplementary raw data), and report the coefficients together with their standard errors derived from the regression. Error bars will also be added to the relevant figures. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental mapping to external MD benchmark is independent

full rationale

The paper is an experimental study that measures local conductivity via c-AFM on few-layer TMDs, compares spatial patterns to strain fields obtained from separate molecular dynamics simulations, and extracts numerical coefficients for effective-mass and surface-charge-density variation by fitting the observed current variations. No load-bearing equation, parameter, or central claim is shown to reduce by construction to a quantity defined inside the same paper or to a self-citation chain; the MD geometry and the band-structure interpretation are treated as external inputs. The reported percentages therefore constitute data-driven extractions rather than tautological re-statements of the authors' own prior results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields limited visibility into modeling assumptions; the reported percentages are presented as measured outcomes rather than fitted free parameters, and no new particles or forces are introduced.
