Single-beam all-optical non-zero field magnetometric sensor for magnetoencephalography applications

M.V. Petrenko , A.S. Pazgalev , A.K. Vershovskii This is my paper

Pith reviewed 2026-05-24 13:31 UTC · model grok-4.3

classification ⚛️ physics.optics physics.atom-phphysics.med-phquant-ph
keywords magnetoencephalographyoptical magnetometryBell-Bloom schemesingle-beam sensormodulated ellipticityall-optical magnetometerhyperfine pumpingZeeman resonance
0
0 comments X

The pith

A single laser beam with time-modulated ellipticity performs hyperfine and Zeeman pumping plus magnetic resonance excitation and detection without radio-frequency fields.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a single laser beam whose ellipticity is varied over time can carry out the full sequence of optical pumping, resonance driving, and signal readout that previously required separate beams or radio-frequency fields in the Bell-Bloom magnetometer. This unification is shown to preserve the sensitivity level of the established scheme while removing the RF component. Removing RF fields is presented as essential for building dense arrays of sensors. Laboratory experiments confirm that the modulated-ellipticity beam produces usable magnetic-resonance signals. The authors indicate that the resulting simplification opens the route to practical magnetoencephalography arrays.

Core claim

Hyperfine and Zeeman optical pumping, excitation and detection of magnetic resonance can all be achieved with one laser beam whose ellipticity is modulated in time, thereby simplifying the Bell-Bloom scheme, retaining its sensitivity, and eliminating the need for radio-frequency fields.

What carries the argument

Single laser beam with time-modulated ellipticity that simultaneously handles optical pumping, resonance excitation, and fluorescence detection.

If this is right

  • Sensor arrays for magnetoencephalography become simpler to build because radio-frequency fields are no longer required.
  • The sensitivity level of the original Bell-Bloom scheme is retained under the new single-beam arrangement.
  • The method is positioned for use in the most demanding magnetoencephalographic measurements.
  • Absence of radio-frequency drive reduces electromagnetic interference between neighboring sensors in an array.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The single-beam geometry may allow tighter packing of sensors than RF-based designs permit.
  • Integration with fiber delivery or on-chip optics could become more straightforward once RF coils are removed.
  • The approach might extend to other atomic species or field regimes if the ellipticity modulation parameters are re-optimized.

Load-bearing premise

Results obtained with the modulated-ellipticity beam in a controlled laboratory setting will translate to usable performance when measuring the weak, noisy fields produced by a human brain inside a real magnetoencephalography recording environment.

What would settle it

Demonstration that the single-beam sensor cannot resolve typical brain magnetic signals (tens of femtotesla) above noise in a shielded MEG chamber would falsify the claim of practical applicability.

Figures

Figures reproduced from arXiv: 2103.00967 by A.K. Vershovskii, A.S. Pazgalev, M.V. Petrenko.

Figure 1

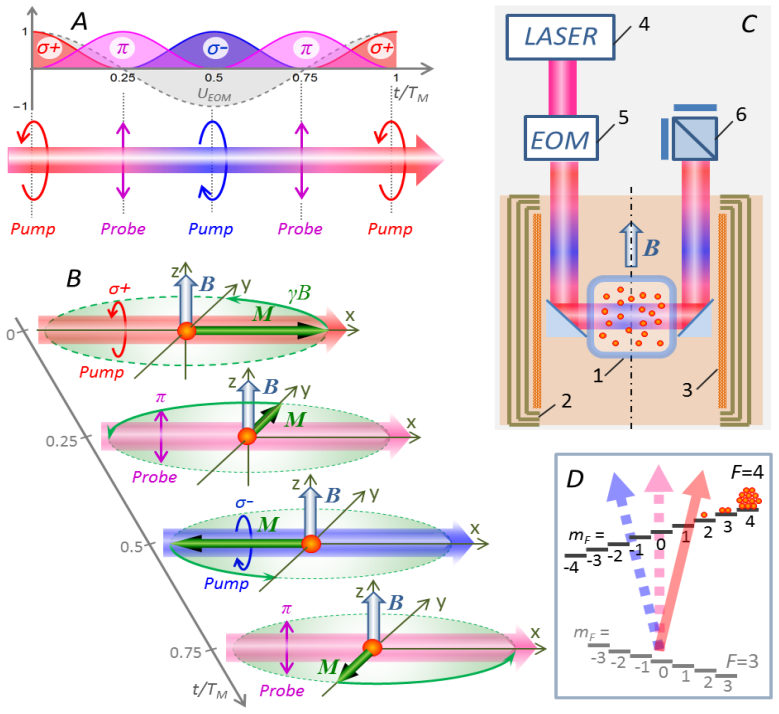

Figure 1. Figure 1: FIG. 1. (Color online) (A) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

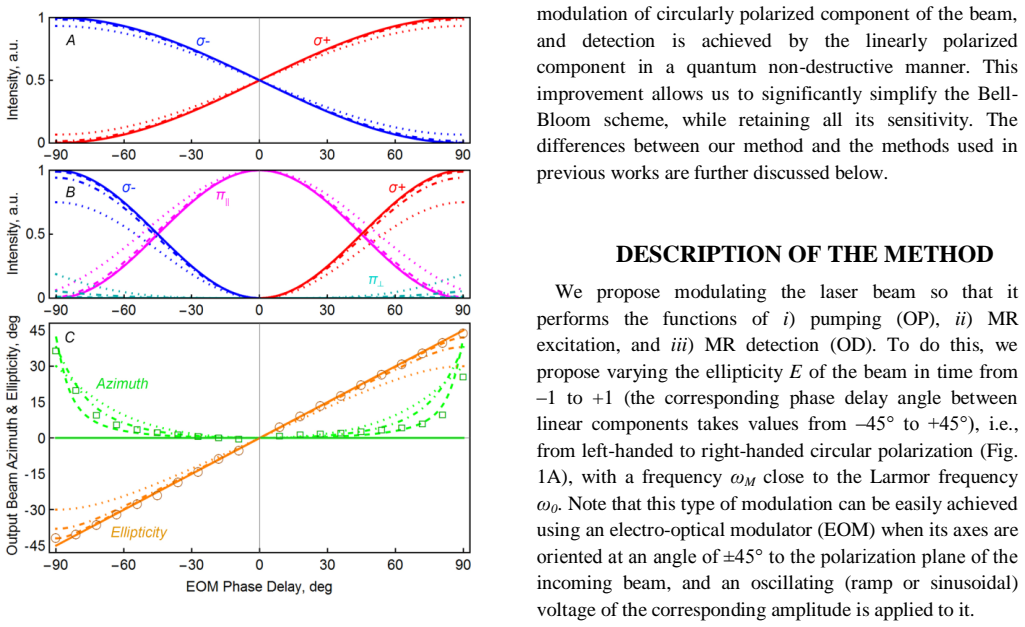

Figure 2. Figure 2: FIG. 2. (Color online) (A) Light [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

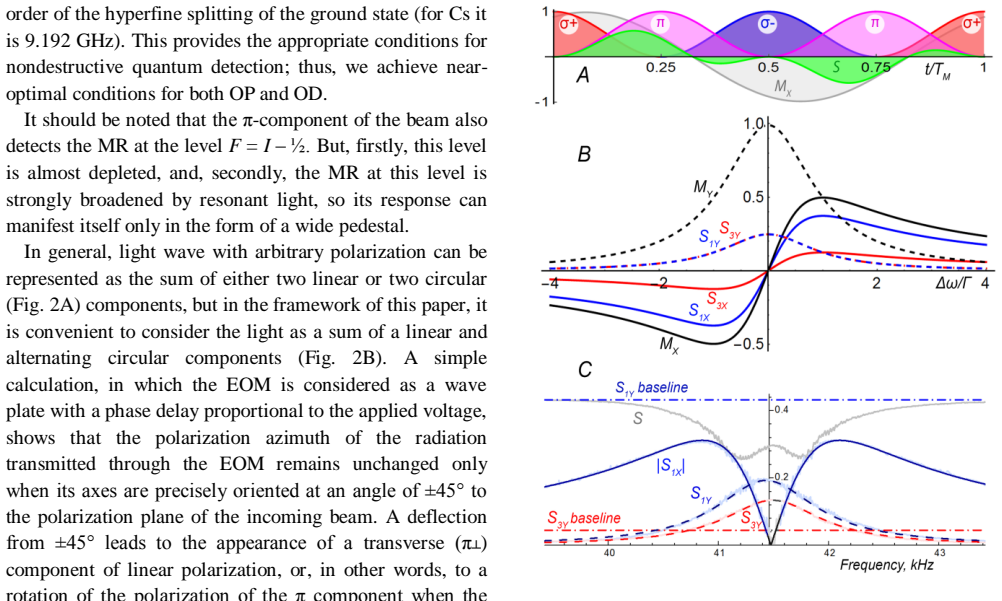

Figure 3. Figure 3: FIG. 3. (Color online) (A) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

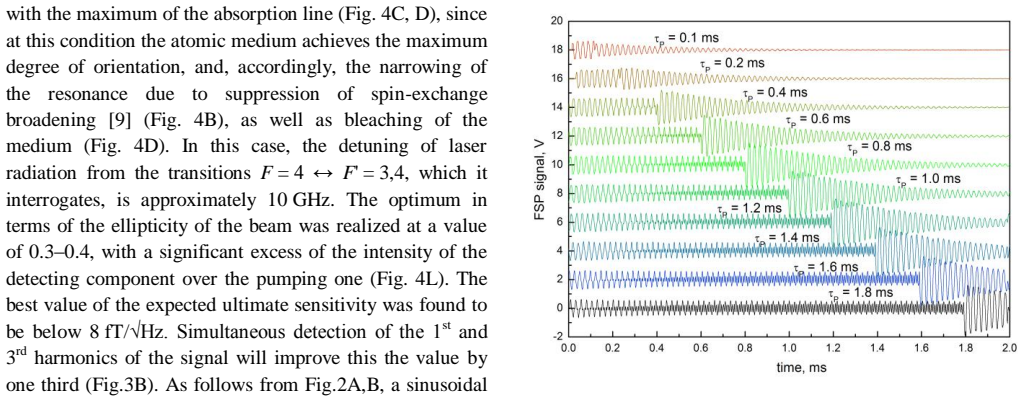

Figure 5. Figure 5: FIG. 5. (Color online) [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

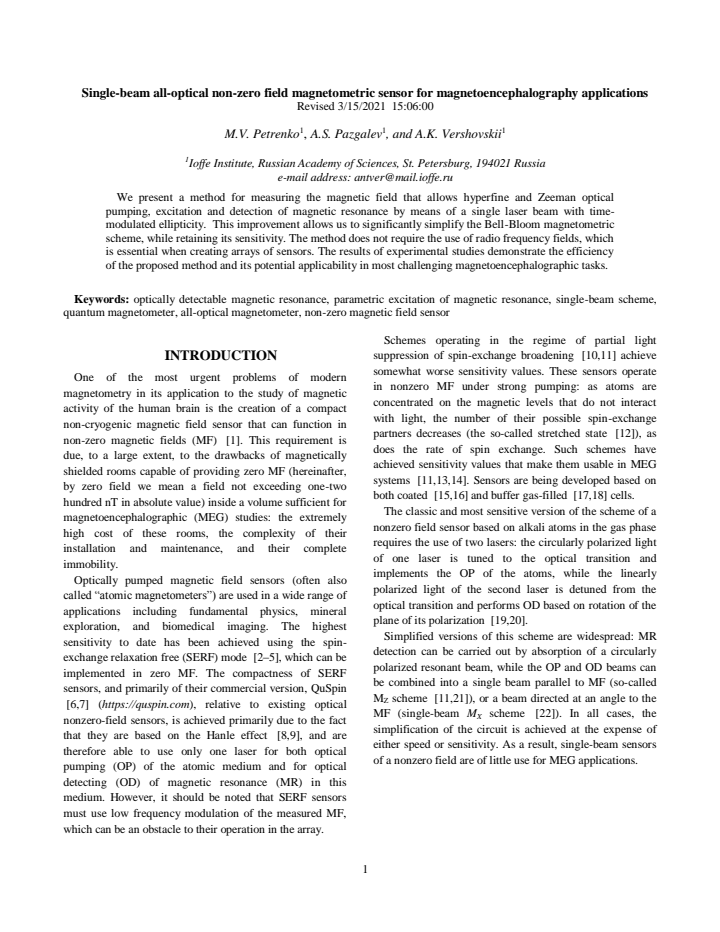

We present a method for measuring the magnetic field that allows hyperfine and Zeeman optical pumping, excitation and detection of magnetic resonance by means of a single laser beam with time-modulated ellipticity. This improvement allows us to significantly simplify the Bell-Bloom magnetometric scheme, while retaining its sensitivity. The method does not require the use of radio frequency fields, which is essential when creating arrays of sensors. The results of experimental studies demonstrate the efficiency of the proposed method and its potential applicability in most challenging magnetoencephalographic tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper claims a single-beam all-optical magnetometer using a laser beam with time-modulated ellipticity to simultaneously perform hyperfine and Zeeman optical pumping, excite and detect magnetic resonance. This simplifies the Bell-Bloom scheme by eliminating radio-frequency fields, enabling sensor arrays, while retaining sensitivity; experimental studies are stated to demonstrate efficiency and potential applicability to challenging magnetoencephalography (MEG) tasks.

Significance. If validated under relevant conditions, the approach would enable simplified, RF-free optical magnetometer arrays suitable for MEG, reducing technical complexity and crosstalk while preserving the sensitivity advantages of optical pumping methods.

major comments (1)
  1. [Experimental studies / abstract] The central claim of applicability to 'most challenging magnetoencephalographic tasks' (abstract) requires that the modulated-ellipticity scheme preserve signal-to-noise and stability at B ~ fT, ~100 Hz bandwidth, and brain/environment-dominated noise. However, the experimental studies section provides no quantitative data, error bars, noise-floor measurements, or direct comparison to prior Bell-Bloom performance under shielded-room MEG conditions, leaving the extrapolation from lab demonstrations unverified and load-bearing for the applicability assertion.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and constructive comment on the scope of our experimental validation. We address the major comment below and propose targeted revisions to the manuscript.

read point-by-point responses

  1. Referee: [Experimental studies / abstract] The central claim of applicability to 'most challenging magnetoencephalographic tasks' (abstract) requires that the modulated-ellipticity scheme preserve signal-to-noise and stability at B ~ fT, ~100 Hz bandwidth, and brain/environment-dominated noise. However, the experimental studies section provides no quantitative data, error bars, noise-floor measurements, or direct comparison to prior Bell-Bloom performance under shielded-room MEG conditions, leaving the extrapolation from lab demonstrations unverified and load-bearing for the applicability assertion.

    Authors: We agree that the experimental section presents laboratory demonstrations of the modulated-ellipticity scheme at accessible field strengths and does not include direct fT-level noise-floor measurements or shielded-room MEG comparisons. The abstract describes 'potential applicability' rather than demonstrated performance at MEG conditions; this potential is argued from the retention of the Bell-Bloom resonance mechanism (now RF-free) together with the well-documented sensitivity of optical pumping magnetometers in the literature. To address the concern we will (i) revise the abstract to emphasize the proof-of-principle character of the results and (ii) add a short discussion paragraph that explicitly states the current experimental regime and the extrapolation assumptions drawn from prior Bell-Bloom MEG work. These changes will be made without altering the technical claims of the method itself. revision: partial

Circularity Check

0 steps flagged

No derivation chain; claims rest on experimental demonstration

full rationale

The paper presents an experimental method for single-beam magnetometry using time-modulated ellipticity, claiming simplification of the Bell-Bloom scheme while retaining sensitivity and avoiding RF fields. No mathematical derivation, prediction, or first-principles result is claimed that could reduce to inputs by construction. Central assertions are supported by referenced experimental studies (abstract), with no self-citation load-bearing steps, fitted inputs renamed as predictions, or ansatz smuggling. This matches the default expectation of no significant circularity for an experimental optics paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Paper is an experimental optics demonstration; no free parameters, new axioms, or invented entities are introduced in the provided abstract.
