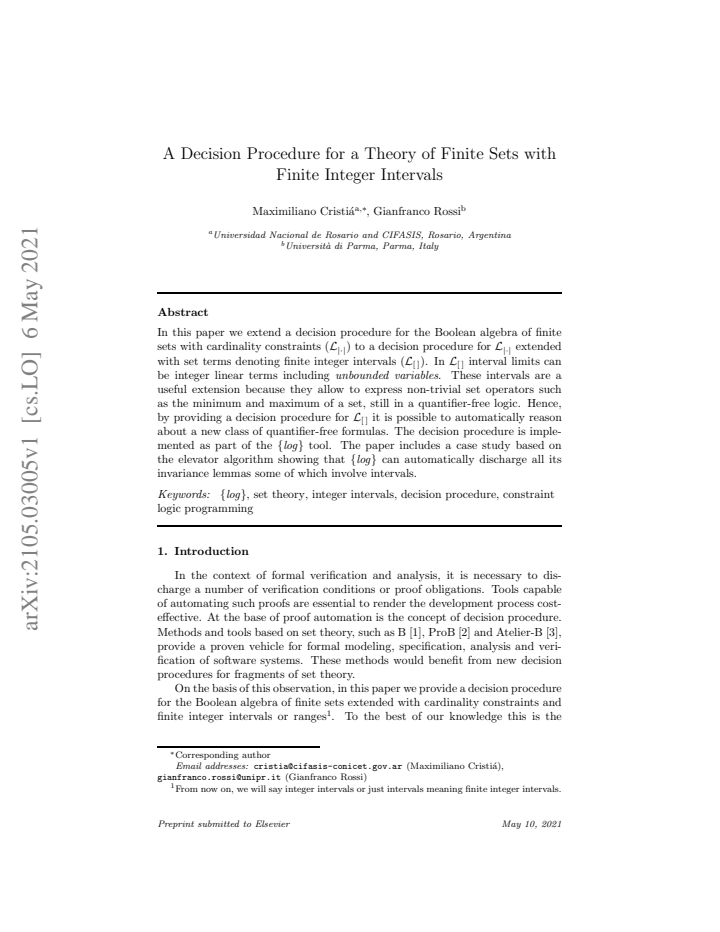

A Decision Procedure for a Theory of Finite Sets with Finite Integer Intervals

Maximiliano Cristi\'a , Gianfranco Rossi This is my paper

Pith reviewed 2026-05-24 12:46 UTC · model grok-4.3

classification 💻 cs.LO cs.SE
keywords decision procedurefinite setscardinality constraintsinteger intervalsquantifier-free logicset minimum maximumautomated reasoninginvariance lemmas
0
0 comments X

The pith

A decision procedure extends to finite sets with integer intervals whose bounds can involve unbounded variables.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends a decision procedure for the Boolean algebra of finite sets with cardinality constraints to handle finite integer intervals. Interval limits are allowed to be integer linear terms that include unbounded variables. This change makes it possible to represent operators such as the minimum and maximum of a set inside quantifier-free formulas. The resulting procedure therefore decides a wider class of formulas than before. It is implemented inside the {log} tool and shown to discharge all invariance lemmas in an elevator algorithm case study.

Core claim

The authors extend the decision procedure for L_|.| to L_[ ] by adding support for set terms that denote finite integer intervals whose limits are integer linear terms possibly containing unbounded variables. The extension keeps the logic quantifier-free while allowing direct use of set minimum and maximum, and the procedure is shown to remain decidable and to succeed on the elevator invariance lemmas.

What carries the argument

The decision procedure for L_[ ] obtained by extending the base procedure for L_|.| to decide formulas containing finite integer interval terms with unbounded variable bounds.

If this is right

  • Quantifier-free formulas involving minimum and maximum of sets become decidable.
  • The {log} tool can automatically discharge invariance lemmas that mention intervals.
  • Set-based specifications that rely on bounded integer ranges can be verified without introducing quantifiers.
  • The same decision procedure applies when interval endpoints depend on free variables.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same extension technique might be reusable for other bounded numeric set operators beyond min and max.
  • Verification of algorithms that maintain ordered sets or ranges could be automated more readily.
  • The approach opens a route to combine the procedure with other SMT back-ends that already handle linear arithmetic.

Load-bearing premise

The extension of the base decision procedure to interval terms with unbounded variables preserves decidability and is correctly implemented.

What would settle it

A concrete formula using min or max of a set that the implemented procedure classifies as satisfiable but is in fact unsatisfiable, or vice versa.

Figures

Figures reproduced from arXiv: 2105.03005 by Gianfranco Rossi, Maximiliano Cristi\'a.

Figure 1

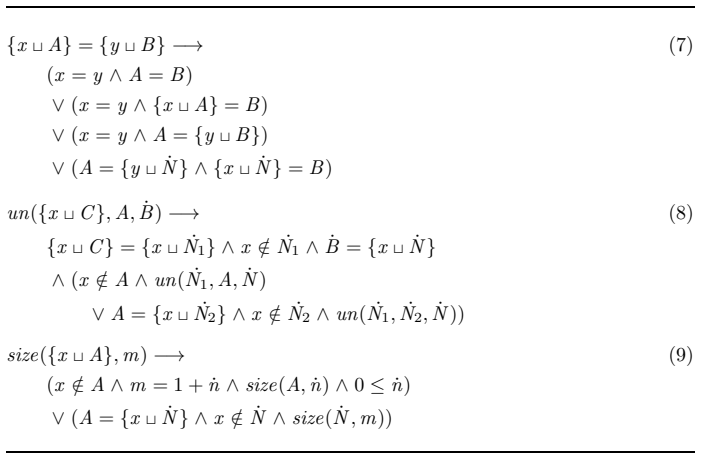

Figure 1. Figure 1: Some key rewrite rules inherited from CLP( [PITH_FULL_IMAGE:figures/full_fig_p013_1.png] view at source ↗
Figure 2

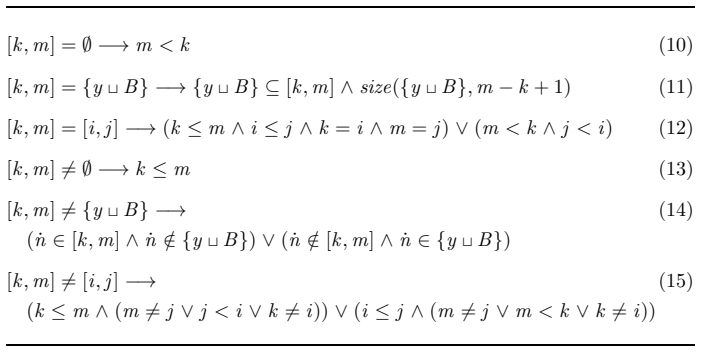

Figure 2. Figure 2: Rewrite rules for =-constraints involving interv [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3

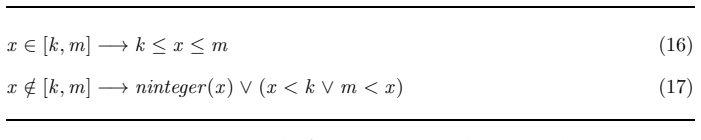

Figure 3. Figure 3: Rewrite rules for ∈-constraints involving intervals [k, m] k ∅ −→ true (18) If A is a set variable or an extensional set: (19) [k, m] k A −→ m < k ∨ (k ≤ m ∧ N˙ ⊆ [k, m] ∧ size(N˙ , m − k + 1) ∧ N˙ k A) [k, m] k [i, j] −→ m < k ∨ j < i ∨ (k ≤ m ∧ i ≤ j ∧ (m < i ∨ j < k)) (20) [k, m] 6k A −→ n˙ ∈ [k, m] ∧ n˙ ∈ A (21) [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

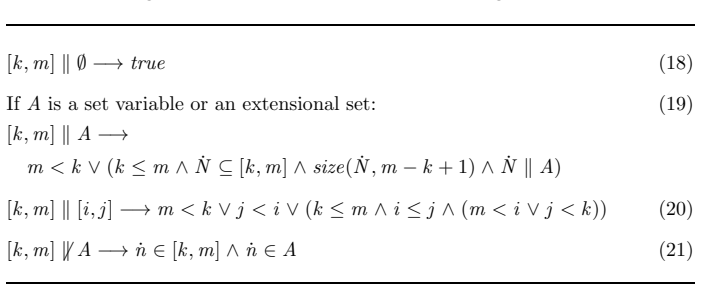

Figure 4. Figure 4: Rewrite rules for k-constraints involving intervals 4.4. Rules for ∈-constraints The rewrite rules for ∈-constraints are listed in [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5

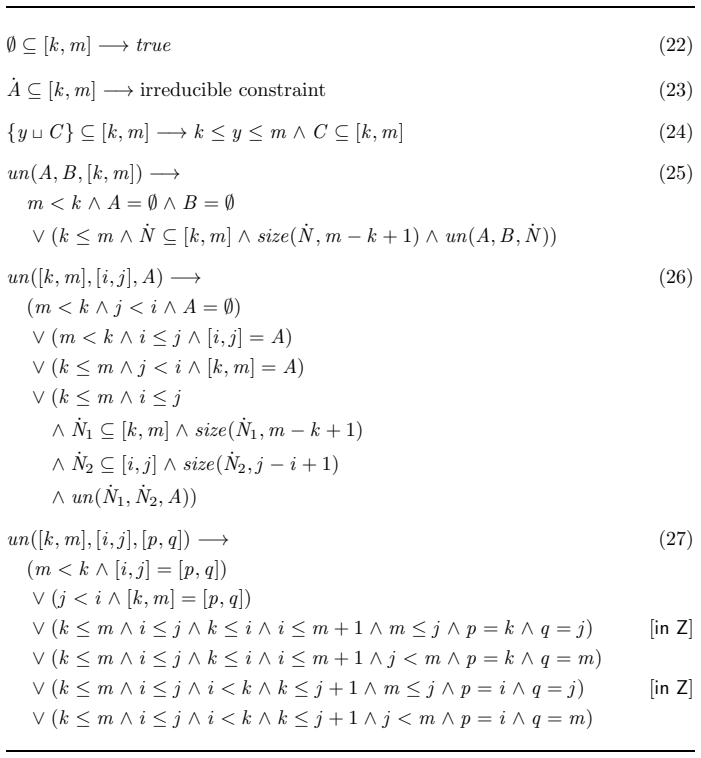

Figure 5. Figure 5: Rewrite rules for un-constraints involving intervals size([k, m], p) −→ (m < k ∧ p = 0) ∨ (k ≤ m ∧ p = m − k + 1) (28) nsize([k, m], p) −→ (m < k ∧ p 6= 0) ∨ (k ≤ m ∧ p 6= m − k + 1) (29) [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6

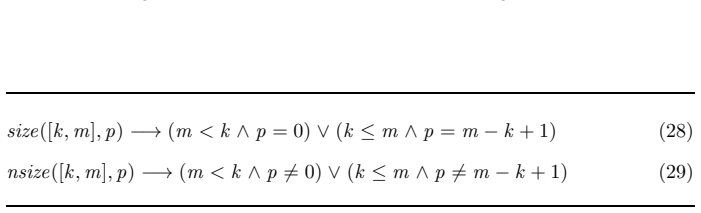

Figure 6. Figure 6: Rewrite rules for size-constraints involving intervals 17 [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7

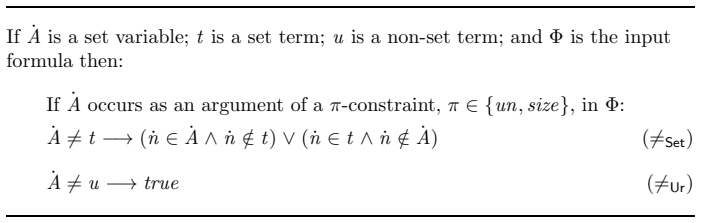

Figure 7. Figure 7: Rule scheme for 6=-constraint elimination rules Example 4 (Unsatisfiable formula returned by STEPS[ ]). The [ ]-formula: un(A, B, C) ∧ un(A, B, D) ∧ C 6= D (30) cannot be further rewritten by any of the rewrite rules of STEPS[ ]. Nevertheless, it is clearly unsatisfiable. In order to guarantee that SAT [ ] returns either false or satisfiable formulas (see Theorem 3), we still need to remove all inequalitie… view at source ↗
Figure 8

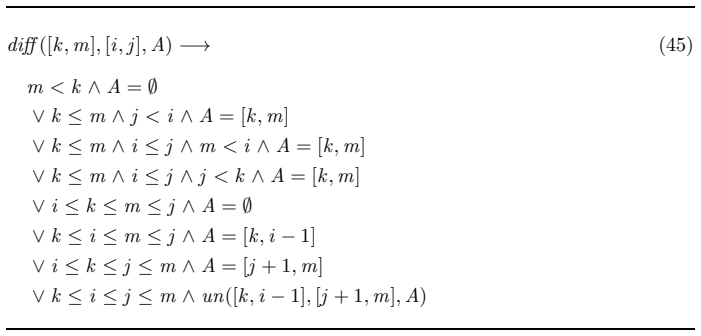

Figure 8. Figure 8: A rewrite rule for diff -constraints involving intervals Example 12. When the last alternative of rule (26) is applied to the following formula: un(int(K,M),int(I,J),A) & un(int(I,J),int(K,M),B) & A neq B the result is a formula such as: un(W,X,A) & un(Y,Z,B) & A neq B & K =< M & I =< J & subset(W,int(K,M)) & size(W,P1) & P1 is M - K + 1 & subset(X,int(I,J)) & size(X,P2) & P2 is J - I + 1 & subset(Y,int(I,… view at source ↗
Figure 9

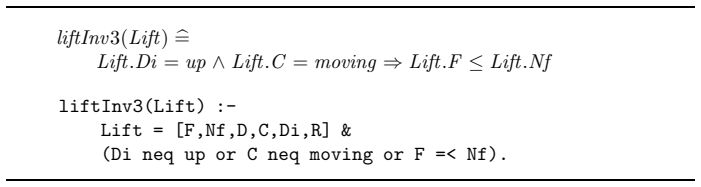

Figure 9. Figure 9: A typical state invariant 8.3. Automated proofs Being able to run simulations on the code is good to have a first idea on how the system works, but this cannot guarantee the program is correct. If we need stronger evidence on the correctness of the program we should try to prove some properties true of it. In this section we show that we can use the same representation of the control software and the same … view at source ↗
Figure 10

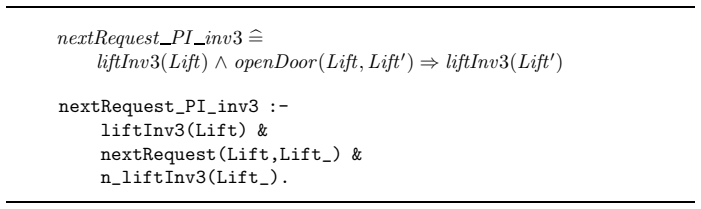

Figure 10. Figure 10: A typical invariance lemma passFloor(MinF,MaxF,Lift,Lift_) & Lift_ = [F_,Nf_,D_,C_,Di_,R_] & Di_ = up & C_ = moving & F_ >= Nf_. In this case {log} returns a counterexample stating that: F_ = Nf, Nf_ = Nf, Nf is F + 1 That is, initially, F < Nf but passFloor increments F in one and ‘assigns’ this value to F_ while leaving Nf unchanged. Then, after passFloor has executed the current floor can be equal to t… view at source ↗
read the original abstract

In this paper we extend a decision procedure for the Boolean algebra of finite sets with cardinality constraints ($\mathcal{L}_{\lvert\cdot\rvert}$) to a decision procedure for $\mathcal{L}_{\lvert\cdot\rvert}$ extended with set terms denoting finite integer intervals ($\mathcal{L}_{[\,]}$). In $\mathcal{L}_{[\,]}$ interval limits can be integer linear terms including \emph{unbounded variables}. These intervals are a useful extension because they allow to express non-trivial set operators such as the minimum and maximum of a set, still in a quantifier-free logic. Hence, by providing a decision procedure for $\mathcal{L}_{[\,]}$ it is possible to automatically reason about a new class of quantifier-free formulas. The decision procedure is implemented as part of the $\{log\}$ tool. The paper includes a case study based on the elevator algorithm showing that $\{log\}$ can automatically discharge all its invariance lemmas some of which involve intervals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper extends an existing decision procedure for the theory of finite sets with cardinality constraints (denoted L_|.|) to a new theory L_[ ] that incorporates finite integer interval terms. In L_[ ], the interval bounds may be integer linear expressions over unbounded variables. This allows quantifier-free expression of operators such as set minimum and maximum. The extended procedure is implemented in the {log} tool and is shown, via a case study on the elevator algorithm, to discharge all invariance lemmas, some of which involve intervals.

Significance. If the extension preserves decidability and soundness, the work enlarges the class of quantifier-free set formulas that can be decided automatically, directly supporting verification tasks that require extremal values or interval reasoning. The concrete elevator case study supplies a falsifiable demonstration of utility, and the {log} implementation supplies a reproducible artifact.

minor comments (2)
  1. [Abstract] Abstract: the claim that the procedure 'remains decidable' would be strengthened by a one-sentence pointer to the key reduction or termination argument used in the extension.
  2. The case-study section would benefit from an explicit statement of which formulas involve unbounded interval bounds and how many such formulas were discharged.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents an extension of a previously published decision procedure for L_|.| to the new theory L_[ ] that incorporates finite integer interval terms whose bounds may involve unbounded integer variables. The base procedure is treated as an external, independently developed component; the extension is described as preserving decidability through explicit algorithmic modifications, with correctness supported by implementation in {log} and empirical validation on the elevator invariance lemmas. No step reduces a claimed prediction or uniqueness result to a fitted parameter, self-citation chain, or definitional renaming; the central claim remains an independent algorithmic construction whose soundness is not forced by the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the correctness of the base L_|.| decision procedure together with standard properties of sets and integer arithmetic; no new free parameters or invented entities are introduced.

axioms (2)
  • domain assumption Decidability and correctness of the base theory L_|.|
    The extension presupposes that the prior procedure is sound.
  • standard math Standard axioms of Boolean algebra, finite sets, and linear integer arithmetic
    Invoked throughout the construction of the new decision procedure.
