A Julia Framework for Graph-Structured Nonlinear Optimization

David L Cole , Sungho Shin , Victor Zavala This is my paper

Pith reviewed 2026-05-24 11:23 UTC · model grok-4.3

classification 🧮 math.OC
keywords juliagraph optimizationnonlinear programmingplasmo.jlmadnlp.jlstochastic gas networklarge-scale optimization
0
0 comments X

The pith

A Julia framework integrates Plasmo.jl and MadNLP.jl to model and solve graph-structured nonlinear optimization problems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes a framework in Julia that combines the Plasmo.jl modeling package for assembling optimization components on graph nodes and edges with the MadNLP.jl solver designed to exploit that graph structure. The integration enables intuitive construction, manipulation, and efficient solution of nonlinear problems that have natural graph structure. Scalability is demonstrated on a stochastic gas network instance with more than 1.7 million variables. Readers interested in large-scale network optimization would care because the method turns graph representation into a computational advantage rather than just a modeling convenience.

Core claim

The framework integrates Plasmo.jl, which facilitates the construction and manipulation of graph models, and MadNLP.jl, which provides capabilities for exploiting graph structures to accelerate solution, with scalability shown on a stochastic gas network problem containing over 1.7 million variables.

What carries the argument

The integration between Plasmo.jl for graph-structured model construction and MadNLP.jl for graph-exploiting nonlinear optimization.

If this is right

  • Models are assembled by placing variables, constraints, and objectives on nodes and edges of a graph.
  • The graph representation allows the solver to accelerate nonlinear optimization.
  • The approach scales to problems with over 1.7 million variables as shown in the gas network case.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar graph exploitation could benefit optimization in other domains like power systems or logistics.
  • Future work might test the framework on problems with different graph densities to identify best use cases.
  • The method opens the door to hybrid modeling where some parts use graph structure and others do not.

Load-bearing premise

That MadNLP.jl can effectively use the graph structure from Plasmo.jl to speed up the solution of large nonlinear problems.

What would settle it

Running the stochastic gas network problem without graph exploitation in MadNLP.jl and finding no difference in solution time or ability to solve it.

Figures

Figures reproduced from arXiv: 2204.05264 by David L Cole, Sungho Shin, Victor Zavala.

Figure 1

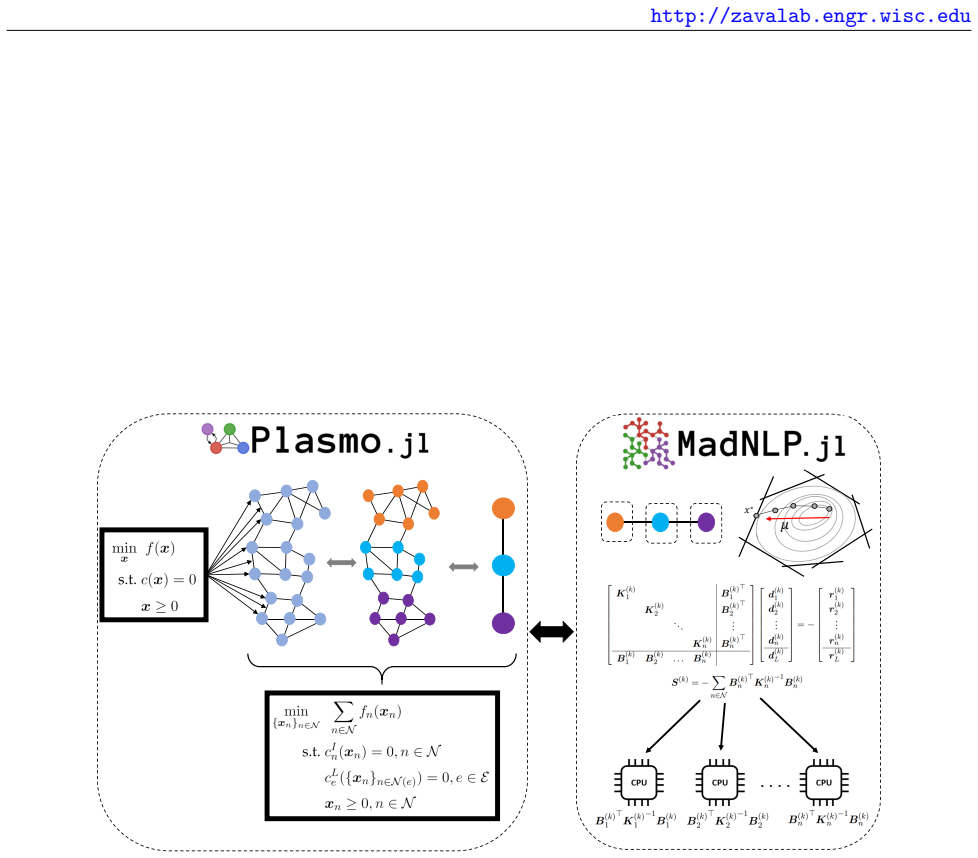

Figure 1. Figure 1: Visualization of the interaction of Plasmo.jl and MadNLP.jl. Plasmo.jl enables a generic optimization problem to be modeled as a graph-based model, which can then be partitioned and/or aggregated. The graph-based model from Plasmo.jl can be passed to the solver package MadNLP.jl. MadNLP.jl is an interior-point solver which exploits the problem structure that results from graph￾based modeling to parallelize… view at source ↗
Figure 2
Figure 2. Figure 2: Code Snippet setting parameters for the PID controller tuning problem [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Code Snippet defining a PID controller problem formulated in [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Code Snippet defining a PID controller problem formulated in [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Visualization of the PID controller problem partitioned by scenario. Adjacency matrix (left) [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Code Snippet for creating manual partition of an OptiGraph [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Visualization of the PID controller problem partitioned by time. Adjacency matrix (left) [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Visualization of a natural gas pipeline containing [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

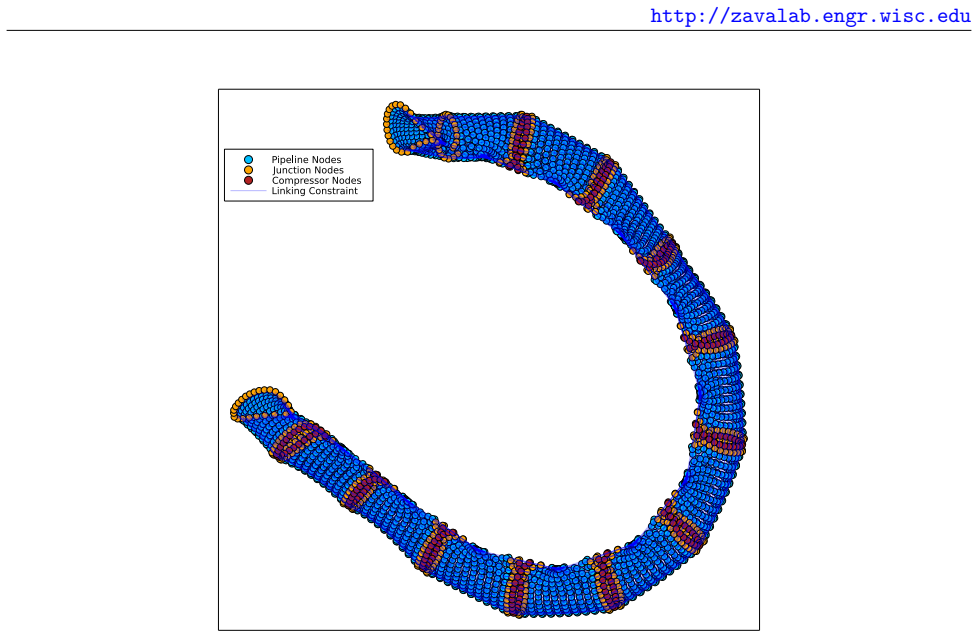

Figure 9. Figure 9: Visualization of a single scenario of the stochastic gas network OptiGraph [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10

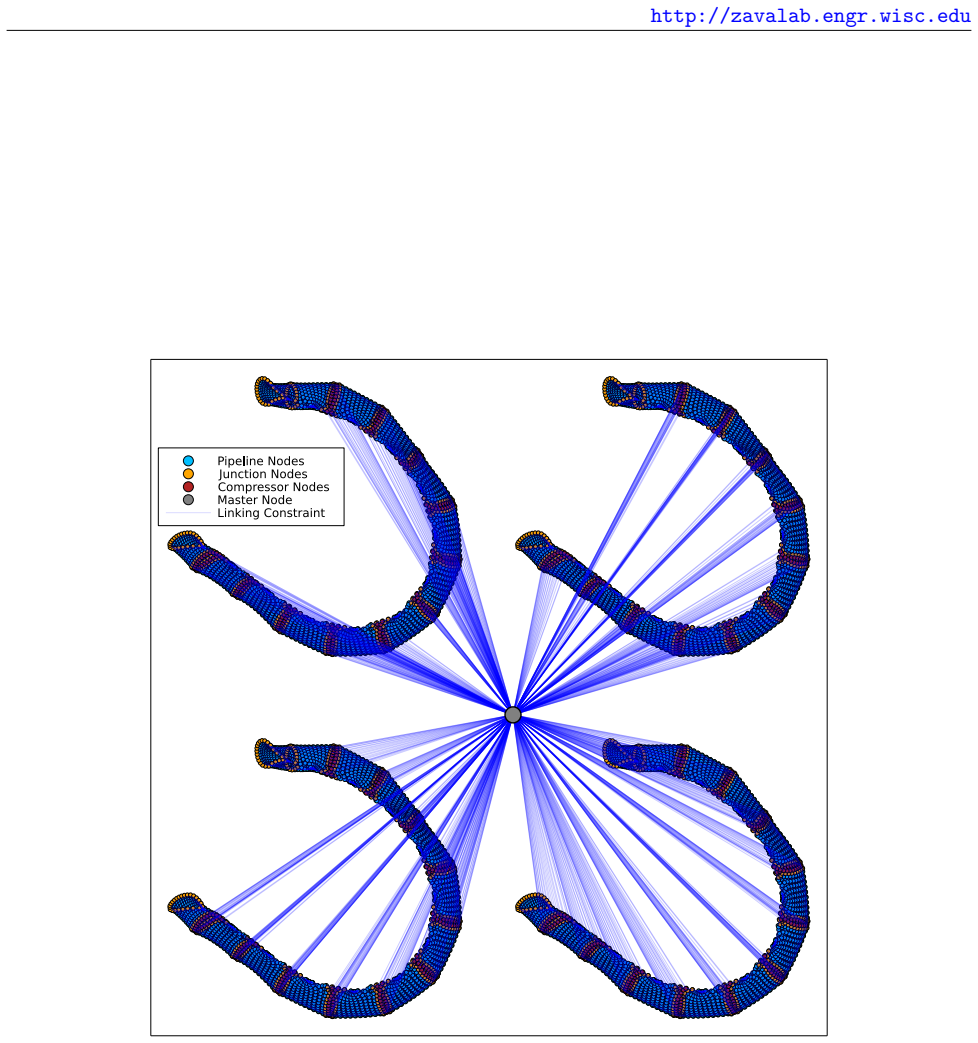

Figure 10. Figure 10: Visualization of a stochastic gas network OptiGraph with four scenarios. The first-stage [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Natural gas demand profiles in 10 different scenarios for a stochastic natural gas network [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Linepack change over time for a stochastic natural gas network problem containing 11 [PITH_FULL_IMAGE:figures/full_fig_p023_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Compressor power policy for a stochastic natural gas network problem. The network [PITH_FULL_IMAGE:figures/full_fig_p024_13.png] view at source ↗
Figure 14

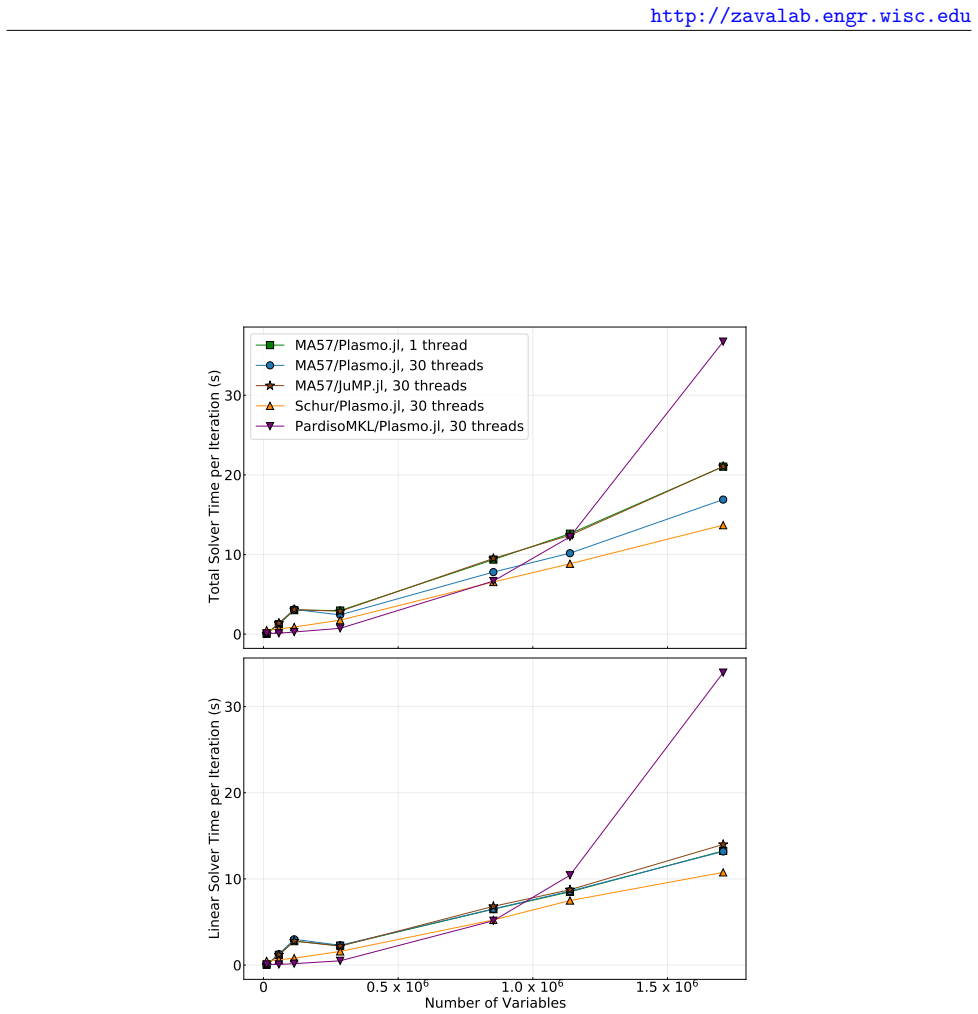

Figure 14. Figure 14: Total solution time per iteration (top) and linear solution time per iteration (bottom) with [PITH_FULL_IMAGE:figures/full_fig_p025_14.png] view at source ↗
