TetraSphere: A Neural Descriptor for O(3)-Invariant Point Cloud Analysis

Pavlo Melnyk , Andreas Robinson , Michael Felsberg , M{\aa}rten Wadenb\"ack This is my paper

Pith reviewed 2026-05-24 11:00 UTC · model grok-4.3

classification 💻 cs.CV
keywords point cloud analysisO(3) invariancesteerable spherical neuronsvector neuronsrotation equivarianceTetraSphere3D deep learning
0
0 comments X

The pith

TetraSphere embeds steerable 3D spherical neurons into 4D vector neurons to create an O(3)-equivariant descriptor for point cloud analysis.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces TetraSphere, a neural network component that produces features unchanged under 3D rotations and reflections. It builds a TetraTransform that maps input point clouds from 3D to 4D space using steerable spherical neurons, then feeds the result into a vector-neuron version of DGCNN. The added module increases the total parameter count by less than 0.0002 percent. On randomly rotated real scans from ScanObjectNN the method reaches new state-of-the-art classification accuracy; on rotated synthetic ModelNet40 and ShapeNet data it surpasses prior equivariant approaches. Readers care because many practical 3D scans arrive in unknown orientations, and this construction supplies invariance without heavy augmentation or large extra computation.

Core claim

By constructing the TetraTransform as an equivariant 3D-to-4D embedding from steerable 3D spherical neurons and inserting it into the VN-DGCNN architecture, the resulting TetraSphere network extracts deeper O(3)-equivariant features and attains superior performance on O(3)-invariant point-cloud classification and segmentation tasks while adding fewer than 0.0002 percent extra parameters.

What carries the argument

TetraTransform: an equivariant embedding of 3D point-cloud input into 4D constructed from steerable 3D spherical neurons that enables subsequent vector-neuron processing.

If this is right

  • TetraSphere sets a new state-of-the-art on classification of randomly rotated real-world object scans from the challenging subsets of ScanObjectNN.
  • TetraSphere outperforms all prior equivariant methods on classification of randomly rotated objects from ModelNet40.
  • TetraSphere outperforms all prior equivariant methods on part segmentation of randomly rotated shapes from ShapeNet.
  • The integration of the TetraTransform into VN-DGCNN increases the parameter count by less than 0.0002 percent.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The low parameter overhead suggests the same embedding could be inserted into other vector-neuron or equivariant backbones with little engineering cost.
  • If the spherical-neuron construction generalizes, similar low-cost embeddings might be derived for other symmetry groups such as SE(3) or for higher-dimensional inputs.
  • The reported stability on real-world rotated scans implies the method may reduce reliance on data-augmentation pipelines that multiply training time.

Load-bearing premise

The TetraTransform produces a faithful O(3)-equivariant embedding when placed inside the VN-DGCNN architecture without introducing representational loss or training instabilities.

What would settle it

Training TetraSphere on the rotated ScanObjectNN subsets and observing either lower accuracy than non-equivariant baselines that use rotation augmentation or repeated divergence during training would falsify the claim.

Figures

Figures reproduced from arXiv: 2211.14456 by Andreas Robinson, M{\aa}rten Wadenb\"ack, Michael Felsberg, Pavlo Melnyk.

Figure 1
Figure 1. Figure 1: Key component in our method (best viewed in color): a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

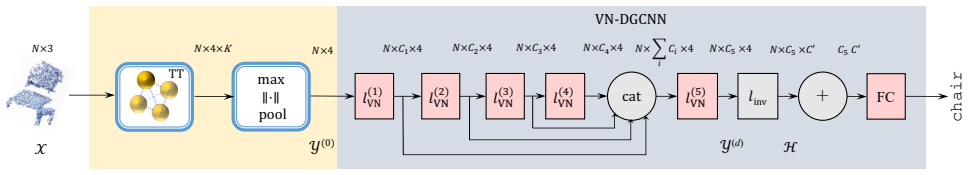

Figure 2. Figure 2: High-level architecture of TetraSphere (for classification): the equivariant TT layer ( [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Examples of the objects from the hardest subset of [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Learned γ parameters for TetraSphereK=8 trained on the OBJ_BG subset of ScanObjectNN (see [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Learned γ parameters for TetraSphereK=16 trained on the PB_T50_RS (see [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

In many practical applications, 3D point cloud analysis requires rotation invariance. In this paper, we present a learnable descriptor invariant under 3D rotations and reflections, i.e., the O(3) actions, utilizing the recently introduced steerable 3D spherical neurons and vector neurons. Specifically, we propose an embedding of the 3D spherical neurons into 4D vector neurons, which leverages end-to-end training of the model. In our approach, we perform TetraTransform--an equivariant embedding of the 3D input into 4D, constructed from the steerable neurons--and extract deeper O(3)-equivariant features using vector neurons. This integration of the TetraTransform into the VN-DGCNN framework, termed TetraSphere, negligibly increases the number of parameters by less than 0.0002%. TetraSphere sets a new state-of-the-art performance classifying randomly rotated real-world object scans of the challenging subsets of ScanObjectNN. Additionally, TetraSphere outperforms all equivariant methods on randomly rotated synthetic data: classifying objects from ModelNet40 and segmenting parts of the ShapeNet shapes. Thus, our results reveal the practical value of steerable 3D spherical neurons for learning in 3D Euclidean space. The code is available at https://github.com/pavlo-melnyk/tetrasphere.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes TetraSphere, which embeds steerable 3D spherical neurons into 4D vector neurons via a TetraTransform step to produce an O(3)-equivariant descriptor. This is inserted into the VN-DGCNN architecture, yielding negligible parameter overhead (<0.0002%). The method is evaluated on randomly rotated point clouds and claims new state-of-the-art classification accuracy on challenging subsets of ScanObjectNN, as well as outperforming prior equivariant methods on ModelNet40 classification and ShapeNet part segmentation.

Significance. If the empirical results are confirmed, the work demonstrates that steerable spherical neurons can be practically combined with vector neurons to achieve strong rotation-invariant performance on real-world 3D data with almost no added cost. The public code release supports reproducibility and allows direct verification of the reported numbers.

major comments (2)
  1. [Method description (TetraTransform integration)] The central empirical claims rest on the TetraTransform producing a faithful O(3)-equivariant embedding inside VN-DGCNN without representational loss or training instabilities. The manuscript provides no explicit verification of this property (e.g., measured equivariance error, bijectivity check, or controlled ablation isolating the embedding step), which directly undermines attribution of the reported gains to the claimed invariance.
  2. [Experiments] Experimental results section: SOTA claims on rotated ScanObjectNN, ModelNet40, and ShapeNet lack reported statistical significance, number of independent runs, variance across seeds, and precise baseline re-implementations or hyper-parameter details. Without these, the performance margins cannot be assessed as robust.
minor comments (1)
  1. [Abstract] The abstract states the parameter increase is 'less than 0.0002%'; this figure should be derived explicitly from the added layers in the TetraTransform and reported with the exact total parameter counts for each model variant.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Method description (TetraTransform integration)] The central empirical claims rest on the TetraTransform producing a faithful O(3)-equivariant embedding inside VN-DGCNN without representational loss or training instabilities. The manuscript provides no explicit verification of this property (e.g., measured equivariance error, bijectivity check, or controlled ablation isolating the embedding step), which directly undermines attribution of the reported gains to the claimed invariance.

    Authors: We agree that explicit numerical verification of the equivariance property would strengthen attribution of the gains. In the revised manuscript we will add an appendix containing (i) a controlled ablation that isolates the TetraTransform step, (ii) measured equivariance error on held-out point clouds under random O(3) transformations, and (iii) a brief discussion of representational properties. These additions will be supported by the publicly released code. revision: yes

  2. Referee: [Experiments] Experimental results section: SOTA claims on rotated ScanObjectNN, ModelNet40, and ShapeNet lack reported statistical significance, number of independent runs, variance across seeds, and precise baseline re-implementations or hyper-parameter details. Without these, the performance margins cannot be assessed as robust.

    Authors: We acknowledge the value of reporting variance and statistical details. The revised version will include results averaged over five independent runs with different random seeds, reporting mean and standard deviation for all main tables. We will also expand the supplementary material with full hyper-parameter tables and explicit notes on how the baselines were re-implemented (using the original authors' code where available). revision: yes

Circularity Check

0 steps flagged

No significant circularity; equivariance by construction, performance empirical on external benchmarks

full rationale

The derivation constructs TetraTransform explicitly as an equivariant embedding from steerable 3D spherical neurons into 4D vector neurons, then inserts it into the existing VN-DGCNN architecture. Equivariance holds by the algebraic properties of the chosen components rather than by any fitted parameter or self-referential definition. All performance claims (SOTA on rotated ScanObjectNN subsets, ModelNet40, ShapeNet) are measured against independent external datasets and baselines, not recovered from the inputs by construction. No load-bearing self-citation, uniqueness theorem, or ansatz reduction appears in the chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on the correctness of the O(3)-equivariant embedding produced by TetraTransform and its compatibility with vector-neuron layers; these are introduced without derivation from first principles and are validated only empirically.

axioms (1)
  • standard math O(3) group actions preserve the geometry of 3D Euclidean space
    Invariance under rotations and reflections is assumed as background group theory.
invented entities (2)
  • TetraTransform no independent evidence
    purpose: Equivariant embedding of 3D point clouds into 4D using steerable spherical neurons
    Newly proposed construction that maps 3D spherical neurons into 4D vector neurons.
  • TetraSphere no independent evidence
    purpose: Overall O(3)-invariant descriptor obtained by integrating TetraTransform into VN-DGCNN
    The named end-to-end model whose performance is claimed.
