arxiv: 2308.10795 · v1 · submitted 2023-08-21 · 💻 cs.HC

Visualizing Historical Book Trade Data: An Iterative Design Study with Close Collaboration with Domain Experts

Yiwen Xing , Cristina Dondi , Rita Borgo , Alfie Abdul-Rahman This is my paper

Pith reviewed 2026-05-24 07:01 UTC · model grok-4.3

classification 💻 cs.HC
keywords visual analyticsdesign studyhistorical book tradehumanities visualizationiterative designdomain expert collaborationbook circulation data
0
0 comments X

The pith

A visual analytics tool developed through expert collaboration helps historians explore book trade data from multiple perspectives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports an iterative design study that produced DanteExploreVis, a visual analytics tool meant to let historians examine how books moved across places and times. Text records of these movements hide geographical and chronological patterns, so the authors worked with domain experts using a variant of the Nine-Stage Framework to build an interface with coordinated panels. The study documents the design decisions for each panel and presents qualitative feedback from the experts on how the tool supports exploration, explanation, and presentation of the data. A sympathetic reader would care because better visualization could make large historical datasets more usable without requiring manual extraction of patterns from text.

Core claim

By following a variant of the Nine-Stage Framework in close collaboration with domain experts, the authors created DanteExploreVis, a visual analytics tool whose panels allow historians to explore, explain, and present book trade data from multiple perspectives, with qualitative evaluation confirming that the interface meets the stated domain requirements.

What carries the argument

DanteExploreVis, the visual analytics interface whose coordinated panels surface geographical, chronological, and relational features of book trade records.

If this is right

  • Historians gain the ability to surface buried geographical and chronological patterns in book circulation records.
  • The tool supports three distinct activities: exploration, explanation, and presentation of the data.
  • Design choices for each panel are tied directly to requirements gathered from domain experts.
  • Lessons from the process can guide similar visualization projects in the humanities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same iterative collaboration method could be tested on other historical datasets such as trade routes or migration records.
  • Future versions might add quantitative logging of user interactions to complement the qualitative evaluation.
  • The panels could be adapted for public-facing exhibits if the underlying data were made accessible through an online version.

Load-bearing premise

Close collaboration with domain experts via the design framework produces a tool whose value is shown adequately by qualitative feedback alone.

What would settle it

A side-by-side test in which domain experts complete pattern-identification tasks on the same book trade dataset using DanteExploreVis versus text records and show no measurable difference in speed or accuracy would challenge the central claim.

Figures

Figures reproduced from arXiv: 2308.10795 by Alfie Abdul-Rahman, Cristina Dondi, Rita Borgo, Yiwen Xing.

Figure 1

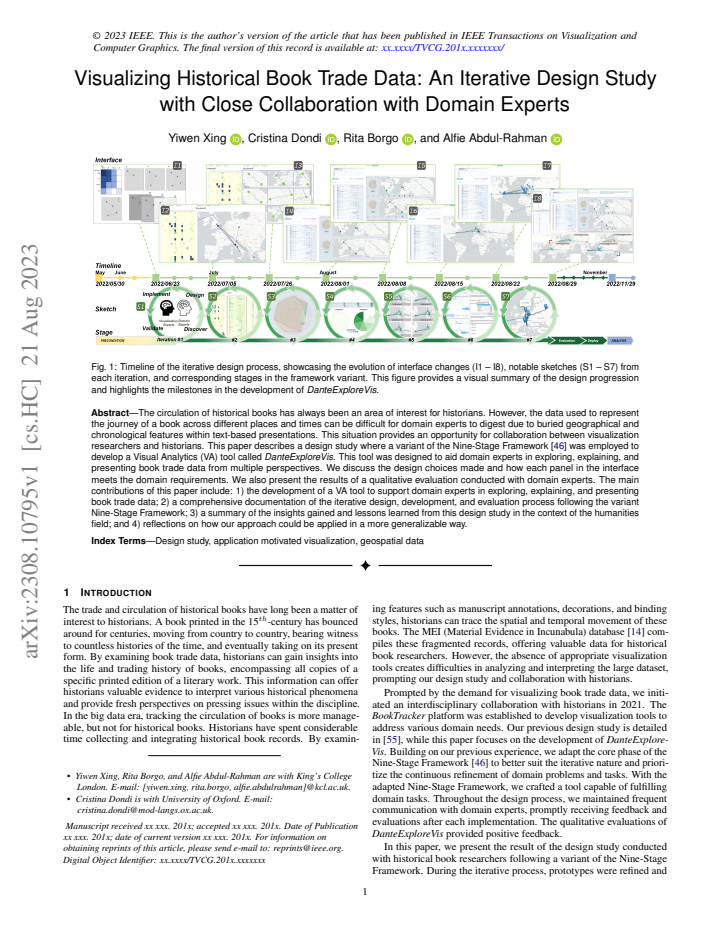

Figure 1. Figure 1: Timeline of the iterative design process, showcasing the evolution of interface changes (I1 – I8), notable sketches (S1 – S7) from [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

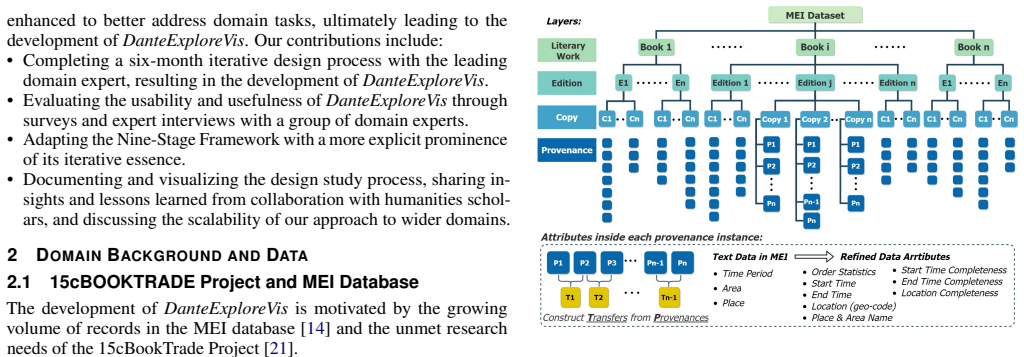

Figure 2. Figure 2: The hierarchical structure of MEI data (top) and the evolution of [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

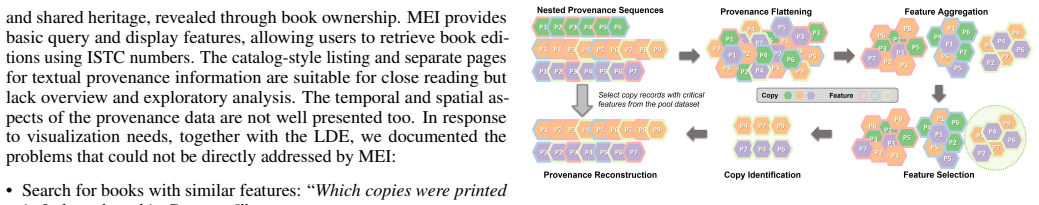

Figure 3. Figure 3: Encode the data to obtain the subset with critical features. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

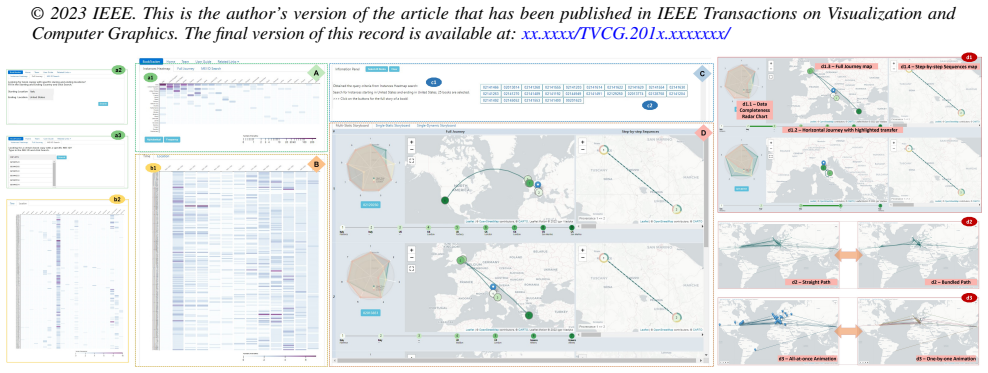

Figure 4. Figure 4: The interface of DanteExploreVis, highlighting its key components: (A) and (B) function as query panels, offering various querying methods [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

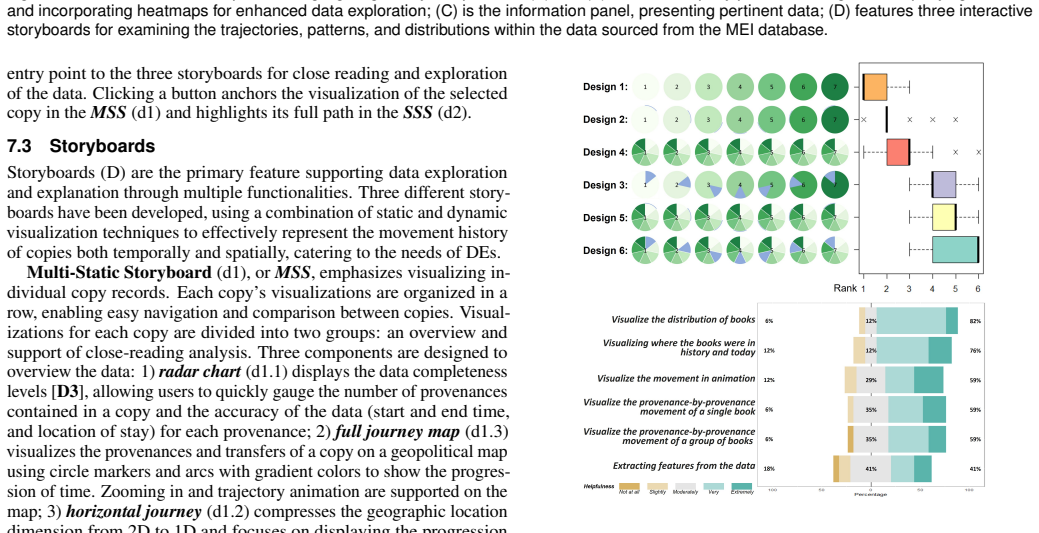

Figure 5. Figure 5: Results of participants’ ranking of the six glyph designs (top) and [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

The circulation of historical books has always been an area of interest for historians. However, the data used to represent the journey of a book across different places and times can be difficult for domain experts to digest due to buried geographical and chronological features within text-based presentations. This situation provides an opportunity for collaboration between visualization researchers and historians. This paper describes a design study where a variant of the Nine-Stage Framework was employed to develop a Visual Analytics (VA) tool called DanteExploreVis. This tool was designed to aid domain experts in exploring, explaining, and presenting book trade data from multiple perspectives. We discuss the design choices made and how each panel in the interface meets the domain requirements. We also present the results of a qualitative evaluation conducted with domain experts. The main contributions of this paper include: 1) the development of a VA tool to support domain experts in exploring, explaining, and presenting book trade data; 2) a comprehensive documentation of the iterative design, development, and evaluation process following the variant Nine-Stage Framework; 3) a summary of the insights gained and lessons learned from this design study in the context of the humanities field; and 4) reflections on how our approach could be applied in a more generalizable way.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims to have developed DanteExploreVis, a visual analytics tool for historians to explore, explain, and present historical book trade data from multiple perspectives, by following a variant of the Nine-Stage Framework in an iterative design study with domain experts. It documents the design process, interface panels and choices, qualitative evaluation results, insights and lessons learned in the humanities, and reflections on broader applicability. The four listed contributions center on the tool itself, the process documentation, humanities-specific insights, and generalizability reflections.

Significance. If the claims hold, the work adds a documented design-study case in the humanities to the visualization literature, where such examples remain relatively sparse. Explicit credit is due for the transparent documentation of the iterative process (including how domain requirements shaped panels) and the use of close expert collaboration rather than purely researcher-driven design. The paper correctly positions itself within the standard evidentiary norms of design studies by relying on qualitative feedback without claiming quantitative superiority or broad generalizability.

major comments (2)
  1. [§5] §5 (Evaluation): the qualitative results are summarized at a high level without reporting participant count, session protocol, or direct mappings from expert feedback to specific design changes or domain-requirement satisfaction; this leaves the central claim that the tool effectively supports exploration/explanation/presentation only moderately supported.
  2. [§4] §4 (DanteExploreVis description): while each panel is said to meet domain requirements, the text does not provide concrete examples of how particular visual encodings or interactions address the 'buried geographical and chronological features' mentioned in the abstract, weakening the ability to assess the design rationale.
minor comments (2)
  1. [Abstract] Abstract: the sentence on evaluation results could preview one or two concrete outcomes rather than stating only that an evaluation 'was conducted.'
  2. [§3] The variant of the Nine-Stage Framework is referenced repeatedly; a brief explicit list of the modifications (e.g., in §3) would improve traceability for readers unfamiliar with the original framework.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation of minor revision. The comments highlight opportunities to strengthen the evidentiary support in the evaluation and to make the design rationale more explicit. We address both points below and will incorporate the requested details in the revised manuscript.

read point-by-point responses

  1. Referee: [§5] §5 (Evaluation): the qualitative results are summarized at a high level without reporting participant count, session protocol, or direct mappings from expert feedback to specific design changes or domain-requirement satisfaction; this leaves the central claim that the tool effectively supports exploration/explanation/presentation only moderately supported.

    Authors: We agree that the current summary of the qualitative evaluation is high-level and would benefit from additional detail to more firmly support the claims. In the revised manuscript we will expand §5 to report the exact number of domain-expert participants, describe the session protocol (including duration, tasks, and interview format), and provide explicit mappings that link individual pieces of expert feedback to concrete design changes and to the satisfaction of the stated domain requirements. revision: yes

  2. Referee: [§4] §4 (DanteExploreVis description): while each panel is said to meet domain requirements, the text does not provide concrete examples of how particular visual encodings or interactions address the 'buried geographical and chronological features' mentioned in the abstract, weakening the ability to assess the design rationale.

    Authors: We will revise §4 to supply concrete examples that directly connect specific visual encodings and interactions to the buried geographical and chronological features highlighted in the abstract. For each relevant panel we will illustrate, with reference to the data, how the chosen encodings surface patterns that remain hidden in the original text-based records, thereby clarifying the design rationale. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper is a standard visualization design study documenting an iterative process (variant of Nine-Stage Framework) and qualitative expert feedback for the DanteExploreVis tool. No equations, fitted parameters, predictions, or self-referential definitions appear. Claims rest on described collaboration and external domain-expert input rather than any reduction to the paper's own inputs by construction. The Nine-Stage Framework is an external reference, not a self-citation chain. This matches the expected evidentiary standard for such papers with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper rests on the established Nine-Stage Framework as a domain-standard method and on the assumption that qualitative expert feedback is a sufficient validation mechanism for visualization tools in the humanities.

axioms (2)
  • domain assumption The Nine-Stage Framework (or a close variant) is an appropriate and effective structure for iterative visualization design studies involving domain experts.
    Invoked as the methodological backbone for tool development and evaluation.
  • domain assumption Qualitative evaluation with domain experts provides reliable evidence that a visualization tool meets requirements for exploring, explaining, and presenting data.
    Used to support the claim that the tool is useful.
