pith. sign in

arxiv: 2309.09588 · v2 · submitted 2023-09-18 · ❄️ cond-mat.mtrl-sci

Mixing I and Br in Inorganic Perovskites: Atomistic Insights from Reactive Molecular Dynamics Simulations

Mike Pols , Adri C. T. van Duin , Sof\'ia Calero , Shuxia Tao This is my paper

Pith reviewed 2026-05-24 06:57 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords mixed halide perovskitesCsPb(Br_x I_{1-x})3ReaxFFmolecular dynamicslattice strainphase stabilityoctahedra dynamicsall-inorganic perovskites
0
0 comments X

The pith

Substituting Br for I in CsPb(Br_x I_{1-x})3 creates lattice strain that alters octahedra dynamics and propagates up to 2 nm, stabilizing the perovskite phase even at low Br levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends a ReaxFF reactive force field from prior CsPbI3 work to handle CsPbBr3 and mixed CsPb(Br_x I_{1-x})3 compositions, then runs large-scale molecular dynamics simulations of phase transitions and ion motion. It reports that raising the Br fraction lowers the temperature at which the structure becomes cubic. The smaller Br radius produces local strain that modifies the tilting and rotation of the lead-halide octahedra, and this distortion travels through the lattice over distances reaching 2 nm. The long-range reach explains why Br fractions as small as x = 1/4 already suppress the unwanted transition to the photoinactive yellow phase. A reader would care because the result supplies a concrete atomistic reason that small anion mixing can protect the useful black perovskite structure in all-inorganic materials intended for solar cells or LEDs.

Core claim

By extending the ReaxFF force field to mixed CsPb(Br_x I_{1-x})3 systems and performing molecular dynamics simulations, the authors find that Br substitution induces strain due to its smaller ionic radius, which changes the internal dynamics of the octahedra. This strain propagates through the perovskite lattice up to 2 nm, explaining the significant impact of small Br concentrations (x ≤ 1/4) on the phase stability of the mixed halide perovskites.

What carries the argument

The extended ReaxFF reactive force field, applied in large-scale molecular dynamics to track phase transitions and the long-range propagation of Br-induced strain in the mixed-halide lattice.

If this is right

  • Raising Br content lowers the temperature needed to reach the cubic perovskite structure.
  • The strain alters the internal tilting and rotation of PbX6 octahedra across the crystal.
  • Br fractions up to 25 percent suffice to block the transition to the non-perovskite yellow phase.
  • The stabilization arises from strain that travels as far as 2 nm rather than from strictly local chemistry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same strain-propagation mechanism might operate in other mixed-anion perovskites and could be used to tune phase stability by design.
  • Composition maps generated from such simulations could identify optimal Br-I ratios that balance stability against any loss in optoelectronic performance.
  • If the 2 nm range holds, it suggests that even dilute defects or substitutions can reorganize dynamics over many unit cells in soft ionic lattices.

Load-bearing premise

The ReaxFF force field, extended from earlier CsPbI3 parameters, correctly reproduces interatomic potentials, transition temperatures, and long-range strain effects in the mixed Br-I compositions.

What would settle it

An X-ray or neutron scattering experiment on single-crystal CsPb(Br_x I_{1-x})3 that shows the Br-induced change in octahedra tilting or Pb-X bond lengths does not extend beyond roughly 0.5 nm.

Figures

Figures reproduced from arXiv: 2309.09588 by Adri C. T. van Duin, Mike Pols, Shuxia Tao, Sof\'ia Calero.

Figure 1
Figure 1. Figure 1: Equations of state of various perovskite and non-perovskite phases of CsPbI [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The full details of the creation of the model systems and the simulations can be [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 2
Figure 2. Figure 2: Pseudocubic lattice vectors and unit cell volumes of CsPb(Br [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: a) Phase diagrams of CsPb(BrxI1–x)3 perovskites with varying compositions ob￾tained during the gradual heating of the inorganic compounds. Snapshots of mixed halide perovskites with x = 0, x = 1/2 and x = 1 compositions are shown in b) 200 K and c) 500 K. The yellow bars indicate the temperature at which the cubic phase is initially observed. The pseudocubic lattice vectors a, b and c are shown in all figu… view at source ↗
Figure 4
Figure 4. Figure 4: a) Angles θx, θy and θz used to determine the orientation of the PbX6 octahedra. Temperature evolution of the octahedral orientation θz for CsPb(BrxI1–x)3 perovskites with compositions b) x = 0, c) x = 1/2 and d) x = 1. e) Temperature evolution of the average tilting angle ⟨θz⟩ for different mixed halide perovskite compositions. The temperature evolution of θz is shown in Figure 4b-d for various compositio… view at source ↗
Figure 5
Figure 5. Figure 5: Tilting distributions of PbX6 octahedra. a) Two Br substitutions at the axial position with b-d) showing the distributions of θx, θy and θz. e) Two Br substitutions at the equatorial position with f-h) showing the distributions of θx, θy and θz. The tilting distributions of the substituted octahedra are shown in gray, those for the pure compounds CsPbI3 and CsPbBr3 are shown in blue and red, respectively. … view at source ↗
Figure 6

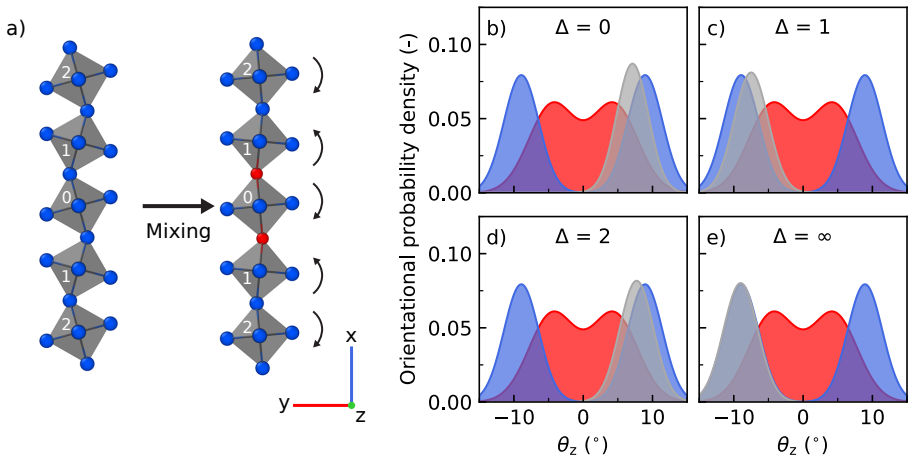

Figure 6. Figure 6: a) Non-substituted and double Br-substituted chains of PbX [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
read the original abstract

All-inorganic halide perovskites have received a lot of attention as attractive alternatives to overcome the stability issues of hybrid halide perovskites that are commonly associated with organic cations. To find a compromise between the optoelectronic properties of CsPbI$_{3}$ and CsPbBr$_{3}$, perovskites with CsPb(Br$_{\rm{x}}$I$_{\rm{1-x}}$)$_{3}$ mixed compositions are commonly used. An additional benefit is that, without sacrificing the optoelectronic properties for applications such as solar cells or LEDs, small amounts of Br in CsPbI$_{3}$ can prevent the inorganic perovskite from degrading to a photoinactive nonperovskite yellow phase. Despite indications that strain in the perovskite lattice plays a role in the stabilization of the material, a full understanding of such strain is lacking. Here we develop a reactive force field (ReaxFF) for perovskites starting from our previous work for CsPbI$_{3}$, we extend this force field to CsPbBr$_{3}$ and mixed CsPb(Br$_{\rm{x}}$I$_{\rm{1-x}}$)$_{3}$ compounds. This force field is used in large-scale molecular dynamics simulations to study perovskite phase transitions and the internal ion dynamics associated with the phase transitions. We find that an increase of the Br content lowers the temperature at which the perovskite reaches a cubic structure. Specifically, by substituting Br for I, the smaller ionic radius of Br induces a strain in the lattice that changes the internal dynamics of the octahedra. Importantly, this effect propagates through the perovskite lattice ranging up to distances of 2 nm, explaining why small concentrations of Br in CsPb(Br$_{\rm{x}}$I$_{\rm{1-x}}$)$_{3}$ (x $\leq$ 1/4) have a significant impact on the phase stability of mixed halide perovskites.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper extends a prior ReaxFF force field from CsPbI3 to CsPbBr3 and mixed CsPb(Br_x I_{1-x})3 compositions, then employs large-scale reactive MD simulations to examine perovskite phase transitions and octahedra dynamics. The central claim is that Br substitution (smaller ionic radius) induces lattice strain that alters internal octahedra dynamics, with this effect propagating through the lattice up to ~2 nm; this is invoked to explain why low Br concentrations (x ≤ 1/4) substantially shift the cubic-phase transition temperature and stabilize the perovskite structure.

Significance. If the force-field extension is shown to be reliable, the work supplies an atomistic mechanism for long-range strain propagation in mixed-halide perovskites and a rationale for the experimentally observed stabilization by dilute Br doping. The reactive MD approach enables system sizes and timescales inaccessible to DFT, offering a potentially useful route to connect local ion dynamics to macroscopic phase behavior.

major comments (2)
  1. [Methods] Methods (force-field development paragraph): The ReaxFF is stated to be extended from the authors' prior CsPbI3 parameterization by adding Br-Pb, Br-Cs, and Br-I terms, yet no quantitative validation (lattice constants, elastic moduli, or experimental/DFT phase-transition temperatures) is reported for any mixed composition with x > 0. Because the 2 nm strain-propagation distance and the reported shift in transition temperature are direct outputs of the dynamics, the absence of such benchmarks makes the central claim dependent on an untested parameterization.
  2. [Results] Results (strain-propagation analysis): The abstract asserts that the Br-induced strain effect 'propagates through the perovskite lattice ranging up to distances of 2 nm,' but the manuscript does not specify the precise observable or correlation function used to extract this length scale (e.g., decay of local octahedral tilt correlations, radial strain profile, or Fourier analysis). Without this definition and without a control calculation on a pure CsPbI3 reference, it is impossible to judge whether the reported distance is robust or an artifact of the force-field cutoff or fitting.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'ranging up to distances of 2 nm' is repeated in the significance statement but never quantified with error bars or system-size dependence; a brief statement of how the distance was determined would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major point below and will revise the manuscript to strengthen the presentation of the force-field validation and the strain-propagation analysis.

read point-by-point responses

  1. Referee: [Methods] Methods (force-field development paragraph): The ReaxFF is stated to be extended from the authors' prior CsPbI3 parameterization by adding Br-Pb, Br-Cs, and Br-I terms, yet no quantitative validation (lattice constants, elastic moduli, or experimental/DFT phase-transition temperatures) is reported for any mixed composition with x > 0. Because the 2 nm strain-propagation distance and the reported shift in transition temperature are direct outputs of the dynamics, the absence of such benchmarks makes the central claim dependent on an untested parameterization.

    Authors: We acknowledge that explicit quantitative benchmarks for mixed compositions (x > 0) were not presented. The original parameterization focused on the pure CsPbI3 and CsPbBr3 endpoints, with mixed systems treated via the newly added cross terms. We will add a validation subsection (or supplementary table) reporting lattice constants, elastic moduli, and available experimental/DFT comparisons for representative mixed compositions. This will directly address the concern that the dynamical results rest on an untested extension. revision: yes

  2. Referee: [Results] Results (strain-propagation analysis): The abstract asserts that the Br-induced strain effect 'propagates through the perovskite lattice ranging up to distances of 2 nm,' but the manuscript does not specify the precise observable or correlation function used to extract this length scale (e.g., decay of local octahedral tilt correlations, radial strain profile, or Fourier analysis). Without this definition and without a control calculation on a pure CsPbI3 reference, it is impossible to judge whether the reported distance is robust or an artifact of the force-field cutoff or fitting.

    Authors: We agree that the extraction of the 2 nm length scale must be defined unambiguously. In the revised manuscript we will state the precise observable (the distance-dependent decay of the correlation between local octahedral tilt angles centered on Br-substituted sites) and include the corresponding correlation function. We will also add a control simulation of pure CsPbI3 under identical conditions to demonstrate that the reported propagation length is attributable to Br substitution rather than simulation artifacts or force-field cutoffs. revision: yes

Circularity Check

0 steps flagged

No significant circularity; central claims emerge from MD dynamics

full rationale

The paper extends a ReaxFF force field from prior CsPbI3 work and runs large-scale MD to observe Br-induced lattice strain, altered octahedra dynamics, and ~2 nm propagation. These outcomes are simulation results, not reductions of the reported effect to fitted parameters or self-citations by construction. The force-field extension supplies the model inputs; the distance scale and phase-stability impact are measured outputs of the dynamics. No self-definitional loop, fitted-input-as-prediction, or load-bearing self-citation chain is present in the derivation. The work is self-contained against external benchmarks once the force field is accepted as given.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the transferability of the ReaxFF parameterization to mixed Br/I systems and on the assumption that classical MD with that force field captures the relevant many-body strain effects at nanometer scales.

free parameters (1)
  • ReaxFF parameters for Br-Pb, Br-Cs, and Br-I interactions
    New parameters required to extend the force field from pure CsPbI3 to CsPbBr3 and mixed compositions; their values are not reported in the abstract.
axioms (1)
  • domain assumption ReaxFF reactive force field can faithfully reproduce the chemistry, lattice dynamics, and phase behavior of CsPb(Br_x I_{1-x})3 perovskites
    The entire simulation campaign and the interpretation of strain propagation rest on this modeling assumption.

pith-pipeline@v0.9.0 · 5899 in / 1472 out tokens · 29470 ms · 2026-05-24T06:57:56.058930+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

74 extracted references · 74 canonical work pages

  1. [1]

    A.; Ho-Baillie , A.; Snaith, H

    Green, M. A.; Ho-Baillie , A.; Snaith, H. J. The Emergence of Perovskite Solar Cells. Nat. Photonics 2014, 8, 506--514

    work page 2014

  2. [2]

    H.; Gao, F

    Liu, X.-K.; Xu, W.; Bai, S.; Jin, Y.; Wang, J.; Friend, R. H.; Gao, F. Metal Halide Perovskites for Light-Emitting Diodes. Nat. Mater. 2021, 20, 10--21

    work page 2021

  3. [3]

    Low- Dimensional Metal Halide Perovskite Photodetectors

    Wang, H.-P.; Li, S.; Liu, X.; Shi, Z.; Fang, X.; He, J.-H. Low- Dimensional Metal Halide Perovskite Photodetectors . Adv. Mater. 2021, 33, 2003309

    work page 2021

  4. [4]

    Wu, S.; Chen, Z.; Yip, H.-L.; Jen, A. K. Y. The Evolution and Future of Metal Halide Perovskite-Based Optoelectronic Devices. Matter 2021, 4, 3814--3834

    work page 2021

  5. [5]

    K.; Moore, D

    Nayak, P. K.; Moore, D. T.; Wenger, B.; Nayak, S.; Haghighirad, A. A.; Fineberg, A.; Noel, N. K.; Reid, O. G.; Rumbles, G.; Kukura, P. et al. Mechanism for Rapid Growth of Organic Inorganic Halide Perovskite Crystals. Nat. Commun. 2016, 7, 13303

    work page 2016

  6. [6]

    P.; Wang, Z.; Rehman, W.; Pulvirenti, F.; Patel, J

    McMeekin, D. P.; Wang, Z.; Rehman, W.; Pulvirenti, F.; Patel, J. B.; Noel, N. K.; Johnston, M. B.; Marder, S. R.; Herz, L. M.; Snaith, H. J. Crystallization Kinetics and Morphology Control of Formamidinium Cesium Mixed-Cation Lead Mixed-Halide Perovskite via Tunability of the Colloidal Precursor Solution . Adv. Mater. 2017, 29, 1607039

    work page 2017

  7. [7]

    J.; Correa-Baena , J.-P.; Pazoki, M.; Saliba, M.; Schenk, K.; Gr \"a tzel, M.; Hagfeldt, A

    Jacobsson, T. J.; Correa-Baena , J.-P.; Pazoki, M.; Saliba, M.; Schenk, K.; Gr \"a tzel, M.; Hagfeldt, A. Exploration of the Compositional Space for Mixed Lead Halogen Perovskites for High Efficiency Solar Cells. Energy Environ. Sci. 2016, 9, 1706--1724

    work page 2016

  8. [8]

    K.; Zakeeruddin, S

    Saliba, M.; Matsui, T.; Seo, J.-Y.; Domanski, K.; Correa-Baena , J.-P.; Nazeeruddin, M. K.; Zakeeruddin, S. M.; Tress, W.; Abate, A.; Hagfeldt, A. et al. Cesium-Containing Triple Cation Perovskite Solar Cells: Improved Stability, Reproducibility and High Efficiency. Energy Environ. Sci. 2016, 9, 1989--1997

    work page 2016

  9. [9]

    Metal Halide Perovskites: Stability and Sensing-Ability

    Zhu, Z.; Sun, Q.; Zhang, Z.; Dai, J.; Xing, G.; Li, S.; Huang, X.; Huang, W. Metal Halide Perovskites: Stability and Sensing-Ability. J. Mater. Chem. C 2018, 6, 10121--10137

    work page 2018

  10. [10]

    Kundu, S.; Kelly, T. L. In Situ Studies of the Degradation Mechanisms of Perovskite Solar Cells. EcoMat 2020, 2, e12025

    work page 2020

  11. [11]

    Conings, B.; Drijkoningen, J.; Gauquelin, N.; Babayigit, A.; D'Haen, J.; D'Olieslaeger, L.; Ethirajan, A.; Verbeeck, J.; Manca, J.; Mosconi, E. et al. Intrinsic Thermal Instability of Methylammonium Lead Trihalide Perovskite . Adv. Energy Mater. 2015, 5, 1500477

    work page 2015

  12. [12]

    D.; Liu, D.; Kelly, T

    Yang, J.; Siempelkamp, B. D.; Liu, D.; Kelly, T. L. Investigation of CH3NH3PbI3 Degradation Rates and Mechanisms in Controlled Humidity Environments Using in Situ Techniques . ACS Nano 2015, 9, 1955--1963

    work page 2015

  13. [13]

    J.; Ono, L

    Juarez-Perez , E. J.; Ono, L. K.; Qi, Y. Thermal Degradation of Formamidinium Based Lead Halide Perovskites into Sym-Triazine and Hydrogen Cyanide Observed by Coupled Thermogravimetry-Mass Spectrometry Analysis. J. Mater. Chem. A 2019, 7, 16912--16919

    work page 2019

  14. [14]

    F.; Tress, W

    Xiang, W.; Liu, S. F.; Tress, W. A Review on the Stability of Inorganic Metal Halide Perovskites: Challenges and Opportunities for Stable Solar Cells. Energy Environ. Sci. 2021, 14, 2090--2113

    work page 2021

  15. [15]

    E.; Patern \`o , G

    Eperon, G. E.; Patern \`o , G. M.; Sutton, R. J.; Zampetti, A.; Haghighirad, A. A.; Cacialli, F.; Snaith, H. J. Inorganic Caesium Lead Iodide Perovskite Solar Cells. J. Mater. Chem. A 2015, 3, 19688--19695

    work page 2015

  16. [16]

    Phase- Pure - CsPbI3 for Efficient Inorganic Perovskite Solar Cells

    Duan, L.; Zhang, H.; Liu, M.; Gr \"a tzel, M.; Luo, J. Phase- Pure - CsPbI3 for Efficient Inorganic Perovskite Solar Cells . ACS Energy Lett. 2022, 7, 2911--2918

    work page 2022

  17. [17]

    K.; Li, C.-H

    Chen, D.; Ko, P. K.; Li, C.-H. A.; Zou, B.; Geng, P.; Guo, L.; Halpert, J. E. Amino Acid-Passivated Pure Red CsPbI3 Quantum Dot LEDs . ACS Energy Lett. 2023, 8, 410--416

    work page 2023

  18. [18]

    Temperature- Dependent Optical Band Gap in CsPbBr3 , MAPbBr3 , and FAPbBr3 Single Crystals

    Mannino, G.; Deretzis, I.; Smecca, E.; La Magna, A.; Alberti, A.; Ceratti, D.; Cahen, D. Temperature- Dependent Optical Band Gap in CsPbBr3 , MAPbBr3 , and FAPbBr3 Single Crystals . J. Phys. Chem. Lett. 2020, 11, 2490--2496

    work page 2020

  19. [19]

    All- Inorganic CsPbBr3 Perovskite Solar Cells with 10.45\

    Li, X.; Tan, Y.; Lai, H.; Li, S.; Chen, Y.; Li, S.; Xu, P.; Yang, J. All- Inorganic CsPbBr3 Perovskite Solar Cells with 10.45\

    work page

  20. [20]

    Wang, H.; Zhang, X.; Wu, Q.; Cao, F.; Yang, D.; Shang, Y.; Ning, Z.; Zhang, W.; Zheng, W.; Yan, Y. et al. Trifluoroacetate Induced Small-Grained CsPbBr3 Perovskite Films Result in Efficient and Stable Light-Emitting Devices. Nat. Commun. 2019, 10, 665

    work page 2019

  21. [21]

    C.; Malliakas, C

    Stoumpos, C. C.; Malliakas, C. D.; Peters, J. A.; Liu, Z.; Sebastian, M.; Im, J.; Chasapis, T. C.; Wibowo, A. C.; Chung, D. Y.; Freeman, A. J. et al. Crystal Growth of the Perovskite Semiconductor CsPbBr3 : A New Material for High-Energy Radiation Detection . Cryst. Growth Des. 2013, 13, 2722--2727

    work page 2013

  22. [22]

    I.; Krieg, F.; Caputo, R.; Hendon, C

    Protesescu, L.; Yakunin, S.; Bodnarchuk, M. I.; Krieg, F.; Caputo, R.; Hendon, C. H.; Yang, R. X.; Walsh, A.; Kovalenko, M. V. Nanocrystals of Cesium Lead Halide Perovskites ( CsPbX3 , X = Cl , Br , and I ): Novel Optoelectronic Materials Showing Bright Emission with Wide Color Gamut . Nano Lett. 2015, 15, 3692--3696

    work page 2015

  23. [23]

    C.; Kanatzidis, M

    Stoumpos, C. C.; Kanatzidis, M. G. The Renaissance of Halide Perovskites and Their Evolution as Emerging Semiconductors . Acc. Chem. Res. 2015, 48, 2791--2802

    work page 2015

  24. [24]

    C.; Kanatzidis, M

    Marronnier, A.; Roma, G.; Boyer-Richard , S.; Pedesseau, L.; Jancu, J.-M.; Bonnassieux, Y.; Katan, C.; Stoumpos, C. C.; Kanatzidis, M. G.; Even, J. Anharmonicity and Disorder in the Black Phases of Cesium Lead Iodide Used for Stable Inorganic Perovskite Solar Cells . ACS Nano 2018, 12, 3477--3486

    work page 2018

  25. [25]

    Goldschmidt, V. M. Die Gesetze der Krystallochemie . Naturwissenschaften 1926, 14, 477--485

    work page 1926

  26. [26]

    Shannon, R. D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. A. 1976, 32, 751--767

    work page 1976

  27. [27]

    B.; Guo, S.; Abeykoon, A

    Straus, D. B.; Guo, S.; Abeykoon, A. M.; Cava, R. J. Understanding the Instability of the Halide Perovskite CsPbI3 through Temperature-Dependent Structural Analysis . Adv. Mater. 2020, 32, 2001069

    work page 2020

  28. [28]

    E.; Slotcavage, D

    Beal, R. E.; Slotcavage, D. J.; Leijtens, T.; Bowring, A. R.; Belisle, R. A.; Nguyen, W. H.; Burkhard, G. F.; Hoke, E. T.; McGehee, M. D. Cesium Lead Halide Perovskites with Improved Stability for Tandem Solar Cells . J. Phys. Chem. Lett. 2016, 7, 746--751

    work page 2016

  29. [29]

    J.; Eperon, G

    Sutton, R. J.; Eperon, G. E.; Miranda, L.; Parrott, E. S.; Kamino, B. A.; Patel, J. B.; H \"o rantner, M. T.; Johnston, M. B.; Haghighirad, A. A.; Moore, D. T. et al. Bandgap- Tunable Cesium Lead Halide Perovskites with High Thermal Stability for Efficient Solar Cells . Adv. Energy Mater. 2016, 6, 1502458

    work page 2016

  30. [30]

    Y.; Chaudhary, D

    Ghosh, D.; Ali, M. Y.; Chaudhary, D. K.; Bhattacharyya, S. Dependence of Halide Composition on the Stability of Highly Efficient All-Inorganic Cesium Lead Halide Perovskite Quantum Dot Solar Cells. Sol. Energy Mater. Sol. Cells 2018, 185, 28--35

    work page 2018

  31. [31]

    All- Vacuum-Deposited Stoichiometrically Balanced Inorganic Cesium Lead Halide Perovskite Solar Cells with Stabilized Efficiency Exceeding 11\

    Chen, C.-Y.; Lin, H.-Y.; Chiang, K.-M.; Tsai, W.-L.; Huang, Y.-C.; Tsao, C.-S.; Lin, H.-W. All- Vacuum-Deposited Stoichiometrically Balanced Inorganic Cesium Lead Halide Perovskite Solar Cells with Stabilized Efficiency Exceeding 11\

    work page

  32. [32]

    CsBr-Induced Stable CsPbI_ 3-x Br_ x (x < 1) Perovskite Films at Low Temperature for Highly Efficient Planar Heterojunction Solar Cells

    Li, Z.; Xu, J.; Zhou, S.; Zhang, B.; Liu, X.; Dai, S.; Yao, J. CsBr-Induced Stable CsPbI_ 3-x Br_ x (x < 1) Perovskite Films at Low Temperature for Highly Efficient Planar Heterojunction Solar Cells . ACS Appl. Mater. Interfaces 2018, 10, 38183--38192

    work page 2018

  33. [33]

    S.; Chen, H.; Peng, F.; Sun, J.; Lu, D.; Hawks, S

    Lin, J.; Lai, M.; Dou, L.; Kley, C. S.; Chen, H.; Peng, F.; Sun, J.; Lu, D.; Hawks, S. A.; Xie, C. et al. Thermochromic Halide Perovskite Solar Cells. Nat. Mater. 2018, 17, 261--267

    work page 2018

  34. [34]

    CsPbI3 Perovskite Quantum Dot Solar Cells with Both High Efficiency and Phase Stability Enabled by Br Doping

    Liu, Y.; Li, Q.; Zhang, W.; Yang, Z.; Zhao, S.; Chen, W. CsPbI3 Perovskite Quantum Dot Solar Cells with Both High Efficiency and Phase Stability Enabled by Br Doping . ACS Appl. Energy Mater. 2021, 4, 6688--6696

    work page 2021

  35. [35]

    a sstr \

    N \"a sstr \"o m, H.; Becker, P.; M \'a rquez, J. A.; Shargaieva, O.; Mainz, R.; Unger, E.; Unold, T. Dependence of Phase Transitions on Halide Ratio in Inorganic CsPb(Br_ x I_ 1-x )3 Perovskite Thin Films Obtained from High-Throughput Experimentation. J. Mater. Chem. A 2020, 8, 22626--22631

    work page 2020

  36. [36]

    M.; Filot, I.; van Duin , A

    Pols, M.; Vicent-Luna , J. M.; Filot, I.; van Duin , A. C. T.; Tao, S. Atomistic Insights Into the Degradation of Inorganic Halide Perovskite CsPbI3 : A Reactive Force Field Molecular Dynamics Study . J. Phys. Chem. Lett. 2021, 12, 5519--5525

    work page 2021

  37. [37]

    A.; van Duin , A

    Pols, M.; Hilpert, T.; Filot, I. A.; van Duin , A. C.; Calero, S.; Tao, S. What Happens at Surfaces and Grain Boundaries of Halide Perovskites : Insights from Reactive Molecular Dynamics Simulations of CsPbI3 . ACS Appl. Mater. Interfaces 2022, 14, 40841--40850

    work page 2022

  38. [38]

    Ab Initio Molecular-Dynamics Simulation of the Liquid-Metal--Amorphous-Semiconductor Transition in Germanium

    Kresse, G.; Hafner, J. Ab Initio Molecular-Dynamics Simulation of the Liquid-Metal--Amorphous-Semiconductor Transition in Germanium. Phys. Rev. B 1994, 49, 14251--14269

    work page 1994

  39. [39]

    Efficiency of Ab-Initio Total Energy Calculations for Metals and Semiconductors Using a Plane-Wave Basis Set

    Kresse, G.; Furthm \"u ller, J. Efficiency of Ab-Initio Total Energy Calculations for Metals and Semiconductors Using a Plane-Wave Basis Set. Comput. Mater. Sci. 1996, 6, 15--50

    work page 1996

  40. [40]

    Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-Wave Basis Set

    Kresse, G.; Furthm \"u ller, J. Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-Wave Basis Set. Phys. Rev. B 1996, 54, 11169--11186

    work page 1996

  41. [41]

    G.; te Velde , G.; Baerends, E

    Fonseca Guerra, C.; Snijders, J. G.; te Velde , G.; Baerends, E. J. Towards an Order- N DFT Method. Theor. Chem. Acc. 1998, 99, 391--403

    work page 1998

  42. [42]

    M.; Baerends, E

    te Velde , G.; Bickelhaupt, F. M.; Baerends, E. J.; Fonseca Guerra, C.; van Gisbergen , S. J. A.; Snijders, J. G.; Ziegler, T. Chemistry with ADF . J. Comput. Chem. 2001, 22, 931--967

    work page 2001

  43. [43]

    P.; Burke, K.; Ernzerhof, M

    Perdew, J. P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple . Phys. Rev. Lett. 1996, 77, 3865--3868

    work page 1996

  44. [44]

    Effect of the Damping Function in Dispersion Corrected Density Functional Theory

    Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the Damping Function in Dispersion Corrected Density Functional Theory. J. Comput. Chem. 2011, 32, 1456--1465

    work page 2011

  45. [45]

    Completely Derandomized Self-Adaptation in Evolution Strategies

    Hansen, N.; Ostermeier, A. Completely Derandomized Self-Adaptation in Evolution Strategies . Evol. Comput. 2001, 9, 159--195

    work page 2001

  46. [46]

    u ger, R.; Hellstr \

    Komissarov, L.; R \"u ger, R.; Hellstr \"o m, M.; Verstraelen, T. ParAMS : Parameter Optimization for Atomistic and Molecular Simulations . J. Chem. Inf. Model. 2021, 61, 3737--3743

    work page 2021

  47. [47]

    , AMS 2022, SCM, Theoretical Chemistry, Vrije Universiteit, Amsterdam, The Netherlands , 2022

    Rüger, R.; Franchini, M.; Trnka, T.; Yakovlev, A.; Philipsen, P.; van Vuren, T., Klumpers, B., Soini, T. , AMS 2022, SCM, Theoretical Chemistry, Vrije Universiteit, Amsterdam, The Netherlands , 2022

    work page 2022

  48. [48]

    Kinetic Pathway of -to- Phase Transition in CsPbI3

    Chen, G.-Y.; Guo, Z.-D.; Gong, X.-G.; Yin, W.-J. Kinetic Pathway of -to- Phase Transition in CsPbI3 . Chem 2022, 8, 3120--3129

    work page 2022

  49. [49]

    X.; Skelton, J

    Yang, R. X.; Skelton, J. M.; da Silva , E. L.; Frost, J. M.; Walsh, A. Spontaneous Octahedral Tilting in the Cubic Inorganic Cesium Halide Perovskites CsSnX3 and CsPbX3 ( X = F , Cl , Br , I ). J. Phys. Chem. Lett. 2017, 8, 4720--4726

    work page 2017

  50. [50]

    Phase Transitions of Hybrid Perovskites Simulated by Machine-Learning Force Fields Trained on the Fly with Bayesian Inference

    Jinnouchi, R.; Lahnsteiner, J.; Karsai, F.; Kresse, G.; Bokdam, M. Phase Transitions of Hybrid Perovskites Simulated by Machine-Learning Force Fields Trained on the Fly with Bayesian Inference . Phys. Rev. Lett. 2019, 122, 225701

    work page 2019

  51. [51]

    Phase Transitions in Inorganic Halide Perovskites from Machine-Learned Potentials

    Fransson, E.; Wiktor, J.; Erhart, P. Phase Transitions in Inorganic Halide Perovskites from Machine-Learned Potentials . J. Phys. Chem. C 2023, 127, 13773--13781

    work page 2023

  52. [52]

    Phase Diagrams of Quasibinary Systems of the Type : ABX3 -- A'BX3 ; ABX3 -- AB'X3 ; ABX3 -- ABX'3 ; X = Halogen

    Sharma, S.; Weiden, N.; Weiss, A. Phase Diagrams of Quasibinary Systems of the Type : ABX3 -- A'BX3 ; ABX3 -- AB'X3 ; ABX3 -- ABX'3 ; X = Halogen . Z. Phys. Chem. 1992, 175, 63--80

    work page 1992

  53. [53]

    a sstr \

    Wiktor, J.; Fransson, E.; Kubicki, D.; Erhart, P. Quantifying Dynamic Tilting in Halide Perovskites : Chemical Trends and Local Correlations . Chem. Mater. 2023, 35, 6737--6744 mcitethebibliography ms.bib0000664000000000000000000030320414625726117010670 0ustar rootroot @article greenEmergencePerovskiteSolar2014, title = The Emergence of Perovskite Solar C...

    work page doi:10.1038/nphoton.2014.134 2023

  54. [54]

    Bl \"o chl, P. E. Projector Augmented-Wave Method. Phys. Rev. B 1994, 50, 17953--17979

    work page 1994

  55. [55]

    From Ultrasoft Pseudopotentials to the Projector Augmented-Wave Method

    Kresse, G.; Joubert, D. From Ultrasoft Pseudopotentials to the Projector Augmented-Wave Method. Phys. Rev. B 1999, 59, 1758--1775

    work page 1999

  56. [56]

    J.; Pack, J

    Monkhorst, H. J.; Pack, J. D. Special Points for Brillouin-zone Integrations. Phys. Rev. B 1976, 13, 5188--5192

    work page 1976

  57. [57]

    A.; Limas, N

    Manz, T. A.; Limas, N. G. Introducing DDEC6 Atomic Population Analysis: Part 1. Charge Partitioning Theory and Methodology. RSC Adv. 2016, 6, 47771--47801

    work page 2016

  58. [58]

    Manz, T. A. Introducing DDEC6 Atomic Population Analysis: Part 3. Comprehensive Method to Compute Bond Orders. RSC Adv. 2017, 7, 45552--45581

    work page 2017

  59. [59]

    Improved Tangent Estimate in the Nudged Elastic Band Method for Finding Minimum Energy Paths and Saddle Points

    Henkelman, G.; J \'o nsson, H. Improved Tangent Estimate in the Nudged Elastic Band Method for Finding Minimum Energy Paths and Saddle Points. J. Chem. Phys. 2000, 113, 9978--9985

    work page 2000

  60. [60]

    P.; J \'o nsson, H

    Henkelman, G.; Uberuaga, B. P.; J \'o nsson, H. A Climbing Image Nudged Elastic Band Method for Finding Saddle Points and Minimum Energy Paths. J. Chem. Phys. 2000, 113, 9901--9904

    work page 2000

  61. [61]

    Sun, J.; Ruzsinszky, A.; Perdew, J. P. Strongly Constrained and Appropriately Normed Semilocal Density Functional . Phys. Rev. Lett. 2015, 115, 036402

    work page 2015

  62. [62]

    van Lenthe, E.; Baerends, E. J. Optimized Slater-type Basis Sets for the Elements 1 118. J. Comput. Chem. 2003, 24, 1142--1156

    work page 2003

  63. [63]

    J.; Snijders, J

    van Lenthe, E.; Baerends, E. J.; Snijders, J. G. Relativistic Regular Two-component Hamiltonians . J. Chem. Phys. 1993, 99, 4597--4610

    work page 1993

  64. [64]

    J.; Ghosh, S

    Mortier, W. J.; Ghosh, S. K.; Shankar, S. Electronegativity-Equalization Method for the Calculation of Atomic Charges in Molecules. J. Am. Chem. Soc. 1986, 108, 4315--4320

    work page 1986

  65. [65]

    Chen, Z.; Brocks, G.; Tao, S.; Bobbert, P. A. Unified Theory for Light-Induced Halide Segregation in Mixed Halide Perovskites. Nat. Commun. 2021, 12, 2687

    work page 2021

  66. [66]

    u ter, I. Ch .; Schl \

    Schl \"u ter, I. Ch .; Schl \"u ter, M. Electronic Structure and Optical Properties of PbI2 . Phys. Rev. B 1974, 9, 1652--1663

    work page 1974

  67. [67]

    S.; Zhang, X.; Oakley, M

    Karmakar, A.; Dodd, M. S.; Zhang, X.; Oakley, M. S.; Klobukowski, M.; Michaelis, V. K. Mechanochemical Synthesis of 0D and 3D Cesium Lead Mixed Halide Perovskites. Chem. Commun. 2019, 55, 5079--5082

    work page 2019

  68. [68]

    Berendsen, H. J. C.; Postma, J. P. M.; van Gunsteren , W. F.; DiNola, A.; Haak, J. R. Molecular Dynamics with Coupling to an External Bath. J. Chem. Phys. 1984, 81, 3684--3690

    work page 1984

  69. [69]

    J.; Klein, M

    Martyna, G. J.; Klein, M. L.; Tuckerman, M. Nos\'e Hoover Chains: The Canonical Ensemble via Continuous Dynamics. J. Chem. Phys. 1992, 97, 2635--2643

    work page 1992

  70. [70]

    J.; Tobias, D

    Martyna, G. J.; Tobias, D. J.; Klein, M. L. Constant Pressure Molecular Dynamics Algorithms. J. Chem. Phys. 1994, 101, 4177--4189

    work page 1994

  71. [71]

    M.; Schmidt, S.; Schi tz, J

    Larsen, P. M.; Schmidt, S.; Schi tz, J. Robust Structural Identification via Polyhedral Template Matching. Model. Simul. Mater. Sci. Eng. 2016, 24, 055007

    work page 2016

  72. [72]

    Visualization and Analysis of Atomistic Simulation Data with OVITO - The Open Visualization Tool

    Stukowski, A. Visualization and Analysis of Atomistic Simulation Data with OVITO - The Open Visualization Tool. Model. Simul. Mater. Sci. Eng. 2009, 18, 015012

    work page 2009

  73. [73]

    Quantifying Dynamic Tilting in Halide Perovskites : Chemical Trends and Local Correlations

    Wiktor, J.; Fransson, E.; Kubicki, D.; Erhart, P. Quantifying Dynamic Tilting in Halide Perovskites : Chemical Trends and Local Correlations . Chem. Mater. 2023, 35, 6737--6744

    work page 2023

  74. [74]

    u ger, Robert and Hellstr \

    Shannon, R. D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. A. 1976, 32, 751--767 mcitethebibliography supporting.bib0000664000000000000000000014605614625726117012475 0ustar rootroot @misc AMS2022, title = Rüger, R.; Franchini, M.; Trnka, T.; Yakovlev, A.; Philipsen, P.; van ...

    work page doi:10.1162/106365601750190398 1976
