Adaptive Spatio-temporal Estimation on the Graph Edges via Line Graph Transformation

Yi Yan , Ercan Engin Kuruoglu This is my paper

Pith reviewed 2026-05-24 05:34 UTC · model grok-4.3

classification 📡 eess.SP cs.LG
keywords line graphgraph signal processingadaptive filtersleast mean squareedge signalsspatio-temporal estimationonline predictiontime-varying signals
0
0 comments X

The pith

Line graph transformation embeds edge signals as nodes so standard adaptive filters can estimate time-varying edge signals directly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the Line Graph Least Mean Square algorithm that applies the line graph transform to convert signals on graph edges into equivalent signals on the nodes of a derived graph. This step lets existing node-based graph signal processing methods, including classical adaptive filters, operate on edge data without creating separate edge-specific algorithms. Experiments on transportation and meteorological graphs demonstrate that the resulting online estimator continues to track time-varying signals even when observations contain noise or missing entries. A reader would care because the approach removes the need to reinvent filtering techniques for every new edge-signal task.

Core claim

The Line Graph Least Mean Square (LGLMS) algorithm unifies the Line Graph transformation with classical adaptive filters, reinterpreting online estimation techniques for time-varying signals on graph edges. LGLMS leverages the full power of existing GSP techniques on signals on edges by embedding edge signals into node representations, eliminating the necessity of redefining edge-specific techniques. Experimenting with transportation graphs and meteorological graphs, with the signal observations having noisy and missing values, we confirmed that LGLMS is suitable for the online prediction of time-varying edge signals.

What carries the argument

Line graph transformation that maps each edge of the original graph to a node in a new graph, allowing node-based adaptive filters to act on what were originally edge signals.

If this is right

  • Standard least-mean-square updates become applicable to edge signals after a single graph transformation step.
  • No new theory is required to handle missing or noisy observations on edges once the line-graph embedding is performed.
  • The same transformed representation works for both transportation networks and meteorological measurement graphs.
  • Online prediction of time-varying edge quantities can reuse existing node-signal code libraries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same embedding step could be applied to other adaptive algorithms such as recursive least squares or Kalman filters without redesign.
  • Implementation effort drops because node-based GSP toolboxes can be used unchanged once the line graph is built.
  • If the original graph is directed or weighted, the line-graph construction may need to be checked for whether it retains the same prediction accuracy.
  • A direct comparison of runtime between LGLMS and any future native edge filter would quantify the practical saving.

Load-bearing premise

The line graph transformation preserves the structural relationships among edge signals so that node-based filters produce correct results without extra correction terms.

What would settle it

Running LGLMS and a direct edge-based adaptive filter on the same transportation graph with identical noisy observations and finding that the line-graph version yields consistently higher prediction error would falsify the claim.

Figures

Figures reproduced from arXiv: 2311.00656 by Ercan Engin Kuruoglu, Yi Yan.

Figure 1
Figure 1. Figure 1: A graph with time-varying wind speed on the edges. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

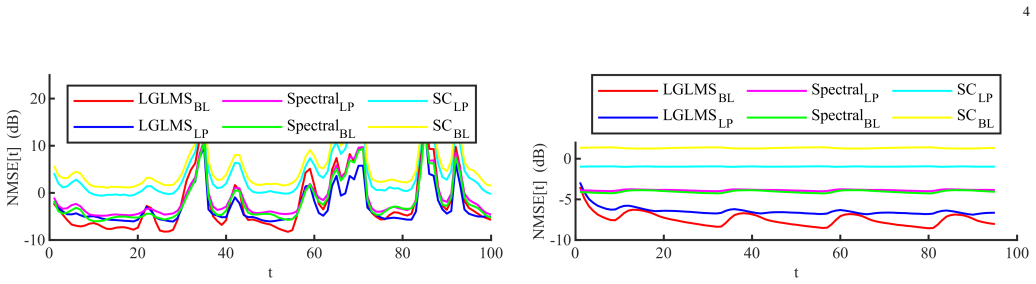

Figure 2. Figure 2: The NMSE on the Sioux Falls Network using low-pass [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: The NMSE on the wind speed prediction using random [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
read the original abstract

Spatial-temporal estimation of signals on graph edges is challenging because most conventional Graph Signal Processing techniques are defined on the graph nodes. Leveraging the Line Graph transform, the Line Graph Least Mean Square (LGLMS) algorithm unifies the Line Graph transformation with classical adaptive filters, reinterpreting online estimation techniques for time-varying signals on graph edges. LGLMS leverages the full power of existing GSP techniques on signals on edges by embedding edge signals into node representations, eliminating the necessity of redefining edge-specific techniques. Experimenting with transportation graphs and meteorological graphs, with the signal observations having noisy and missing values, we confirmed that LGLMS is suitable for the online prediction of time-varying edge signals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes the Line Graph Least Mean Square (LGLMS) algorithm, which applies the line-graph transformation to embed signals defined on graph edges into node signals on the line graph L(G). This allows direct use of classical node-based adaptive filters such as LMS for online spatio-temporal estimation of time-varying edge signals, without the need to derive new edge-specific techniques. The abstract states that experiments on transportation and meteorological graphs with noisy and missing observations confirm the method's suitability for prediction.

Significance. If the embedding preserves the necessary signal and observation structure so that standard LMS remains valid without modification, the method would offer a practical unification that extends existing GSP adaptive-filtering tools to edge signals. This could simplify implementation in domains such as traffic or sensor networks. The absence of any derivation, convergence bounds, or quantitative experimental results in the supplied text, however, prevents assessment of whether the claimed unification holds.

major comments (2)
  1. [Abstract] Abstract (central claim paragraph): the assertion that the line-graph embedding 'eliminates the necessity of redefining edge-specific techniques' and permits direct application of node-based LMS 'without loss of information or additional edge-specific adjustments' is load-bearing for the contribution. The incidence-matrix construction that defines the line-graph shift maps the original edge observation model (noisy/missing entries) into a transformed node observation model on L(G); the effective noise covariance and missing-data mask become functions of the incidence structure. No re-derivation of the LMS update or step-size bound for the new statistics is supplied, leaving the 'no additional adjustments' claim unsupported.
  2. [Abstract] Abstract (experimental statement): the claim that 'experiments on transportation and meteorological graphs with noisy and missing values confirm suitability' is presented without any quantitative results, error bars, convergence plots, data-exclusion rules, or description of how the missing-data pattern is handled after the linear embedding. This renders the empirical support uninspectable and insufficient to substantiate the central claim.
minor comments (1)
  1. [Abstract] The abstract would benefit from a one-sentence definition or reference to the precise line-graph shift operator employed, to clarify the embedding used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed review and the opportunity to clarify the contributions of our work on the LGLMS algorithm. We address the major comments below.

read point-by-point responses

  1. Referee: [Abstract] Abstract (central claim paragraph): the assertion that the line-graph embedding 'eliminates the necessity of redefining edge-specific techniques' and permits direct application of node-based LMS 'without loss of information or additional edge-specific adjustments' is load-bearing for the contribution. The incidence-matrix construction that defines the line-graph shift maps the original edge observation model (noisy/missing entries) into a transformed node observation model on L(G); the effective noise covariance and missing-data mask become functions of the incidence structure. No re-derivation of the LMS update or step-size bound for the new statistics is supplied, leaving the 'no additional adjustments' claim unsupported.

    Authors: The core idea of LGLMS is to perform the line-graph transformation once, after which the problem is reduced to standard node-based adaptive filtering on L(G). The incidence matrix defines the line-graph adjacency, and the observation model is transformed accordingly; however, because the LMS algorithm operates on the signals defined on the nodes of L(G) using its shift operator, the standard LMS update equation and the associated step-size bounds (derived from the eigenvalues of the line-graph Laplacian or shift) apply directly without any edge-specific modifications. The transformation preserves the information in the sense that edge signals are faithfully represented as node signals on L(G). To address the concern, we will add a paragraph in the revised manuscript explaining the transformed observation model and explicitly stating that no re-derivation is needed because the algorithm is applied in the new domain. revision: yes

  2. Referee: [Abstract] Abstract (experimental statement): the claim that 'experiments on transportation and meteorological graphs with noisy and missing values confirm suitability' is presented without any quantitative results, error bars, convergence plots, data-exclusion rules, or description of how the missing-data pattern is handled after the linear embedding. This renders the empirical support uninspectable and insufficient to substantiate the central claim.

    Authors: The full manuscript contains a dedicated experimental section with quantitative results, including MSE values, convergence curves, and details on how missing data is handled through the embedding (by applying the incidence matrix to the partial observations). The abstract summarizes these findings concisely. In the revision, we will enhance the abstract with specific quantitative highlights from the experiments and ensure the handling of missing data is described in the abstract as well if space permits, or refer explicitly to the relevant sections. revision: partial

Circularity Check

0 steps flagged

No significant circularity; unification of line graph and LMS is a standard combination without self-referential reduction

full rationale

The paper defines LGLMS explicitly as the application of classical LMS after line-graph embedding of edge signals. No equation or step reduces the claimed performance or optimality to a fitted parameter renamed as prediction, nor to a self-citation chain. The abstract and method description treat the line-graph transform and LMS as independent, pre-existing tools whose combination is presented as the contribution. The observation model transformation is acknowledged as a modeling choice but does not create a definitional loop. This is a normal algorithmic proposal whose validity rests on external verification against standard GSP and adaptive-filter benchmarks rather than internal tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no equations, parameter lists, or background assumptions are supplied, so the ledger cannot be populated with specific entries.

pith-pipeline@v0.9.0 · 5643 in / 1120 out tokens · 30996 ms · 2026-05-24T05:34:10.115633+00:00 · methodology
