arxiv: 2312.15676 · v2 · submitted 2023-12-25 · 📡 eess.IV · cs.CV

3DGR-CT: Sparse-View CT Reconstruction with a 3D Gaussian Representation

Yingtai Li , Xueming Fu , Han Li , Shang Zhao , Ruiyang Jin , S. Kevin Zhou This is my paper

Pith reviewed 2026-05-24 05:51 UTC · model grok-4.3

classification 📡 eess.IV cs.CV
keywords sparse-view CT3D Gaussian representationdifferentiable CT projectorFBP initializationlow-dose imagingvolume reconstructionGaussian splatting
0
0 comments X

The pith

A 3D Gaussian representation reconstructs sparse-view CT volumes more accurately and with faster convergence than implicit neural methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Sparse-view CT lowers radiation dose by using fewer X-ray projections but creates noise and artifacts that are hard to remove. The paper replaces implicit neural representations with an explicit 3D Gaussian representation, initialized from filtered back-projection images and optimized through a differentiable CT projector. This change yields higher reconstruction accuracy and quicker optimization on multiple datasets. The same representation also supports real-time physical simulation, a task that remains difficult for neural alternatives. The core result is that the Gaussian approach can serve as a practical, efficient substitute for neural volume representations in low-dose CT imaging.

Core claim

We introduce 3DGR-CT, which represents a CT volume as a set of 3D Gaussians. These Gaussians are initialized using FBP images and then refined by direct differentiation through a CT projector, delivering higher reconstruction accuracy, faster convergence, and the ability to run real-time physical simulations that implicit neural representations struggle to support.

What carries the argument

3D Gaussian representation equipped with FBP-image-guided initialization and integration into a differentiable CT projector.

If this is right

  • Higher reconstruction accuracy than state-of-the-art methods across diverse datasets.
  • Faster convergence during the optimization process.
  • Support for real-time physical simulation that is clinically relevant.
  • A practical alternative to implicit neural representations for low-dose CT.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same initialization and projector strategy could be tested on other limited-data tomography problems such as limited-angle CT or tomosynthesis.
  • Real-time simulation capability might allow on-the-fly dose estimation during interventional procedures.
  • Because the representation is explicit, it may be easier to combine with hardware-accelerated rendering pipelines than neural fields.

Load-bearing premise

That 3D Gaussian splatting, once initialized from FBP images and coupled to a CT projector, will reliably outperform implicit neural representations on sparse-view CT tasks.

What would settle it

A head-to-head test on a new clinical sparse-view CT dataset in which reconstruction error or optimization time is equal to or worse than the leading neural baseline.

Figures

Figures reproduced from arXiv: 2312.15676 by Han Li, Ruiyang Jin, Shang Zhao, S. Kevin Zhou, Xueming Fu, Yingtai Li.

Figure 1
Figure 1. Figure 1: Comparison of 3D Gaussian Representation (3DGR) and Implicit Neural Representation (INR). (a) Prior-Informed Initialization: Our FBP-image guided initialization technique effectively avoids placing Gaussians in void regions and allocates their density (corresponds to modeling capacity) according to region complexity. Computations for each voxel only involve nearby Gaussians. In contrast, INR need to comput… view at source ↗
Figure 2

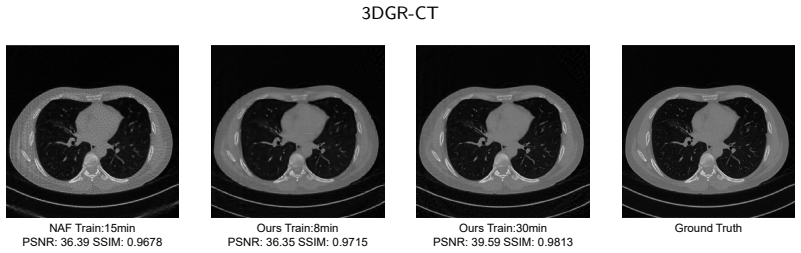

Figure 2. Figure 2: Our method achieves similar quantitative performance with state-of-the-art INR based method with only half of its time, and continue to arrive at a much better visual and quantitative result given more time. 2.2. Related Work Basis Functions in CT Reconstruction Basis functions play a fundamental role in computerized tomography reconstruction (Herman, 2009). The choice and properties of basis functions sig… view at source ↗
Figure 3

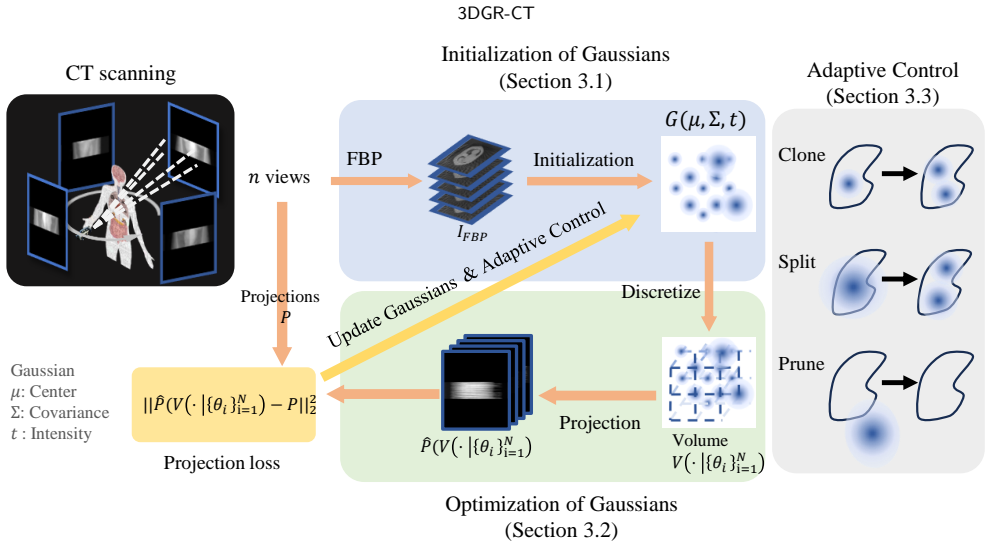

Figure 3. Figure 3: Overview of pipeline: Initially, projection data is acquired from various viewpoints and subsequently processed using Filtered Back Projection (FBP) to yield the FBP-reconstructed image. This reconstructed image is then utilized as a prior for initializing the 3D Gaussians. During the training phase, these 3D Gaussians are discretized into a volumetric image, which then undergoes a forward projection proce… view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of reconstructed images. The window level and width are optimized for visualizing brain tissue, while other anatomical structures are displayed using standard CT value ranges. Observe that NeRP, without prior information, generates blurry reconstructions lacking intricate details. NAF, on the other hand, is prone to introducing additional noise and artifacts. Compared to INRs, our proposed 3D… view at source ↗
Figure 5

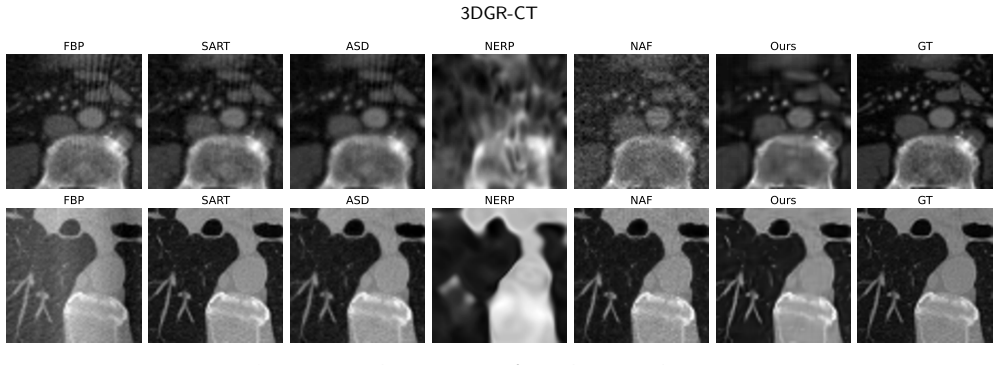

Figure 5. Figure 5: Zoomed-in comparison of critical anatomical structures. optimizer, with (𝛽1 , 𝛽2 ) = (0.9, 0.999), the learning rate for 𝜇 starts from 2e-3, with an exponential decay to 2e-6 by the end of the training process. We employ constant learning rates of 0.05, 0.005, and 0.001 for intensity 𝑡, scaling 𝑠, and rotation 𝑞 respectively. All models are trained for 15,000 iterations on an Nvidia 3090 GPU. Reconstructed… view at source ↗
Figure 7

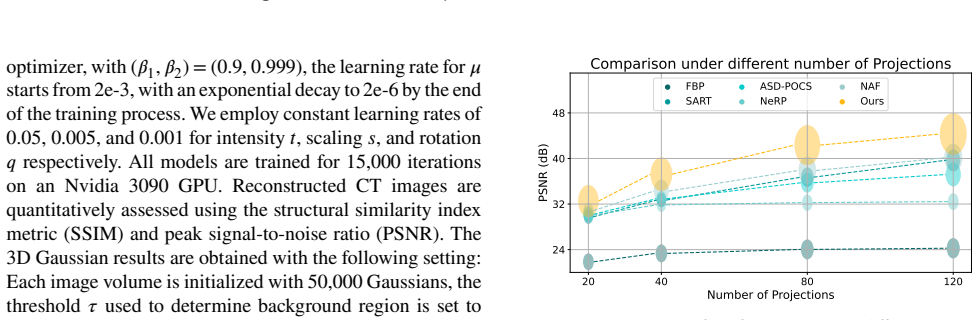

Figure 7. Figure 7: Comparison of performance under different number of projections. The radius represents standard deviation. 4.2. Main Results We compare the proposed 3D Gaussian representation with INR based methods, such as NeRP without prior (Shen et al., 2022) and NAF (Zha et al., 2022). NeRP represents im￾ages using a multi-layer perceptron with a Fourier encoder, and NAF (Zha et al., 2022) replace Fourier encoder with… view at source ↗
Figure 6

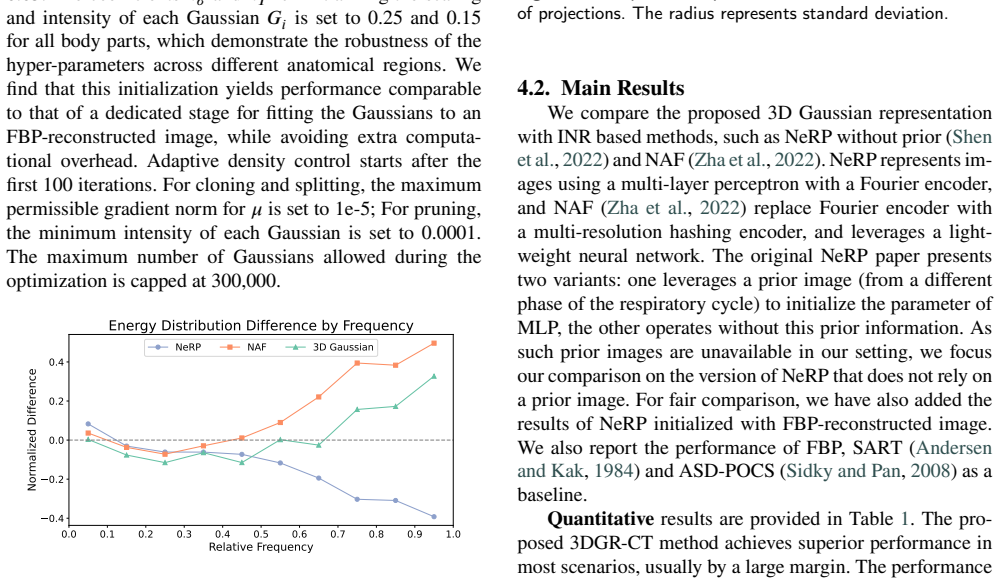

Figure 6. Figure 6: Comparison on energy distribution difference. 20 40 80 120 Number of Projections 24 32 40 48 PSNR (dB) Comparison under different number of Projections FBP SART ASD-POCS NeRP NAF Ours [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Demonstration of physical simulation with 3D Guassian representation. We use a blue arrow to represent the applied point and direction of the transient implusive force. The second right columns display the maximum deformation of the coronary artery. The last columns show the state at the time point when the coronary artery first begins to return to its initial position. 4.3. Demonstration of Physical Simul… view at source ↗
Figure 9
Figure 9. Figure 9: compares our proposed FBP-image-guided initial￾ization strategy with a uniform initialization approach. For uniform initialization, we use the same threshold 𝜏 to filter the air regions and initialize Gaussians uniformly across the foreground. All Gaussisans are initialized with the same covariance and intensity. The results clearly demonstrate that initializing Gaussians from FBP reconstructions consisten… view at source ↗
Figure 10
Figure 10. Figure 10: Ablation on number of Gaussians and adaptive density control. 4.4.3. Number of Gaussian Functions. To understand the number of Gaussian functions and the reconstruction quality, we experiment with a range of Gaussian counts from 5,000 to 500,000. These experiments are conducted without employing adaptive density control to avoid the perturbation on Gaussian numbers. As shown in [PITH_FULL_IMAGE:figures/f… view at source ↗
Figure 12
Figure 12. Figure 12: Ablation on activation function for intensity and scaling. performance compared to using the sigmoid function. For scaling, we experiment with both sigmoid and exponential activation functions. We observe that both choices result in comparable performance, while the exponential activation function generally performs slightly better. 4.4.7. Adaptive Density Control Thresholds We conduct an ablation study t… view at source ↗
Figure 11
Figure 11. Figure 11: Ablation on learning rate for scaling. 4.4.5. Learning Rate for Gaussian Scale [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: Reconstruction of real-world data. (a) Example of raw projection data. (b), (c), (d) are the reconstruction results from different views. 5.2. Comparison of interpoltation ability of Gaussian representation with INRs We compare the interpolation ability of Gaussian rep￾resentations with INRs through following experiments: we directly fitting a low resolution image (which is obtained through downsampling t… view at source ↗
read the original abstract

Sparse-view computed tomography (CT) reduces radiation exposure by acquiring fewer projections, making it a valuable tool in clinical scenarios where low-dose radiation is essential. However, this often results in increased noise and artifacts due to limited data. In this paper we propose a novel 3D Gaussian representation (3DGR) based method for sparse-view CT reconstruction. Inspired by recent success in novel view synthesis driven by 3D Gaussian splatting, we leverage the efficiency and expressiveness of 3D Gaussian representation as an alternative to implicit neural representation. To unleash the potential of 3DGR for CT imaging scenario, we propose two key innovations: (i) FBP-image-guided Guassian initialization and (ii) efficient integration with a differentiable CT projector. Extensive experiments and ablations on diverse datasets demonstrate the proposed 3DGR-CT consistently outperforms state-of-the-art counterpart methods, achieving higher reconstruction accuracy with faster convergence. Furthermore, we showcase the potential of 3DGR-CT for real-time physical simulation, which holds important clinical applications while challenging for implicit neural representations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper proposes 3DGR-CT, a sparse-view CT reconstruction method that replaces implicit neural representations with an explicit 3D Gaussian representation. It introduces two adaptations—FBP-image-guided Gaussian initialization and integration with a differentiable CT projector—and claims that extensive experiments and ablations on diverse datasets show consistent outperformance over state-of-the-art methods in reconstruction accuracy and convergence speed, plus potential for real-time physical simulation with clinical value.

Significance. If the empirical performance claims hold, the work could be significant by demonstrating that explicit 3D Gaussian representations can serve as a faster-converging, more efficient alternative to implicit methods for low-dose CT, with added benefits for real-time simulation applications that are difficult for NeRF-style approaches.

minor comments (1)
  1. [Abstract] Abstract: the claim of outperformance, higher accuracy, and faster convergence is stated without any quantitative metrics, dataset names, baseline methods, or ablation summaries, which weakens the abstract's ability to convey the central empirical result.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the constructive summary and positive recommendation of minor revision. We are pleased that the potential significance of explicit 3D Gaussian representations for sparse-view CT is recognized. Since no specific major comments were raised, we will focus on addressing any minor issues identified during the revision process.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents an empirical method for sparse-view CT reconstruction using 3D Gaussian splatting with two proposed adaptations (FBP-guided initialization and differentiable projector integration). The central claim is that these adaptations yield superior accuracy and convergence on tested datasets, validated via experiments and ablations. No derivation chain, fitted parameter renamed as prediction, or self-citation load-bearing the result is present; the argument rests on direct experimental comparison rather than reducing to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; no details on optimization hyperparameters or modeling assumptions are stated.
