arxiv: 2407.10851 · v2 · submitted 2024-07-15 · ⚛️ physics.atm-clus

Electronic State Chromatography of Lutetium Cations

Biswajit Jana , EunKang Kim , Aayush Arya , Elisa Romero Romero , Elisabeth Rickert , Harry Ramanantoanina , Sebastian Raeder , Michael Block
show 1 more author
Mustapha Laatiaoui
This is my paper

Pith reviewed 2026-05-23 23:10 UTC · model grok-4.3

classification ⚛️ physics.atm-clus
keywords electronic state chromatographylutetium cationsion mobility spectrometryrelativistic effectsdrift tubemetastable stateshelium buffer gasheavy element ions
0
0 comments X

The pith

Lutetium cations exhibit distinct low-field reduced mobilities in helium for their ground and lowest metastable electronic states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work builds and characterizes an ion mobility spectrometer using a cryogenic drift tube and helium buffer gas to measure how heavy-element ions drift under low electric fields. Systematic measurements on Lu+ ions reveal two separate mobility peaks that the authors assign to the ground state and the lowest metastable state. This separation occurs because ion-neutral interactions depend on the ion's electronic configuration, which is strongly shaped by relativistic effects in the heaviest elements. The study also tracks how the metastable population changes and quenches as the reduced electric field varies.

Core claim

The electronic state chromatography of Lu+ has been demonstrated. The low-field reduced ion mobility for the ground and lowest meta-stable state of Lu+ have been examined. In addition, the variation of both states' reduced mobility and the quenching of meta-stable population has been investigated under different reduced electric fields (E/n0).

What carries the argument

Cryogenic drift tube operated with helium buffer gas at 298 K that performs electronic state chromatography by separating ions according to configuration-dependent ion-neutral interaction strengths.

If this is right

  • The same apparatus and method can be applied to other lanthanide and actinide cations to map relativistic effects on their ion-neutral interactions.
  • Reduced mobility values for specific electronic states supply data for modeling ion drift and collision processes in noble gases.
  • Observation of metastable quenching with increasing E/n0 provides a way to study state-changing collisions under controlled conditions.
  • State-selective mobility offers a route to prepare or detect ions in particular electronic configurations without optical access.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could extend to superheavy elements where optical spectroscopy is impractical, using mobility differences as a proxy for electronic structure.
  • If mobility peaks remain distinct at lower temperatures, the technique might enable state-resolved studies of chemical reactivity in cold ion traps.
  • Combining the drift tube with mass spectrometry could allow separation and identification of isobaric heavy ions that differ only in electronic state.

Load-bearing premise

The two observed mobility peaks arise from the ground and lowest metastable states of Lu+ rather than from contaminants, other species, or instrumental effects.

What would settle it

A measurement that independently identifies the electronic state of ions collected at each mobility peak, such as through resonant laser excitation or precise theoretical mobility calculations, would confirm or refute the state assignments.

Figures

Figures reproduced from arXiv: 2407.10851 by Aayush Arya, Biswajit Jana, Elisabeth Rickert, Elisa Romero Romero, EunKang Kim, Harry Ramanantoanina, Michael Block, Mustapha Laatiaoui, Sebastian Raeder.

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic overview of the developed ion mobility spectrometer. Typical pressure ranges are indicated for each pumping [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

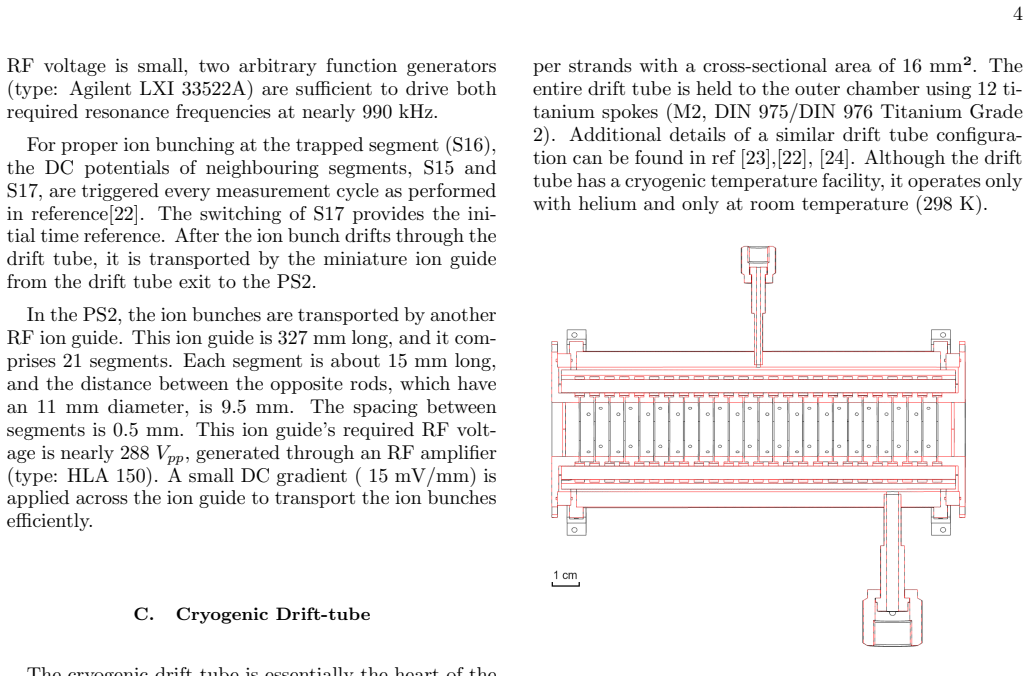

Figure 2. Figure 2: FIG. 2: Cross-sectional view of Cryogenic drift cell in Ion [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Mass spectra obtained by laser ablation from a metal [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Arrival time distribution of Lu [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Optimization of count rate with amplitude of RF [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: Arrival time distributions of Lu [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Time resolution of developed ion mobility mass spec [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Comparison between measured reduced ion mobility [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10: Deactivation of Lu [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
read the original abstract

Relativistic effects strongly influence the electronic structures of the heaviest elements, thereby shaping their chemical and physical properties. Studying ion mobility within a noble gas environment reveals how the ion-neutral interactions depend on the ion's electronic configurations, thus providing an avenue for exploring these effects. An ion mobility spectrometer with a cryogenic drift tube was developed to precisely measure the low-field reduced mobility of heavy lanthanide and actinide cations. The apparatus was characterized by optimizing the bunching operation of ions with a miniature RF coulomb buncher and evaluating the chromatography performance of the drift tube operated with helium buffer gas at a temperature of 298K. Systematic ion mobility measurements of lutetium cations (Lu$^{+}$) drifting in helium gas were carried out as a case study. The electronic state chromatography of Lu$^{+}$ has been demonstrated. The low-field reduced ion mobility for the ground and lowest meta-stable state of Lu$^{+}$ have been examined. In addition, the variation of both states' reduced mobility and the quenching of meta-stable population has been investigated under different reduced electric fields ($E/n_0$), the ratio of an electric field to neutral gas number density.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript describes development of a cryogenic drift tube ion mobility spectrometer for measuring low-field reduced mobilities of heavy lanthanide/actinide cations in He. Apparatus characterization includes buncher optimization and chromatography performance at 298 K. As a case study, Lu+ measurements are presented claiming demonstration of electronic state chromatography via two distinct mobility peaks assigned to the ground and lowest metastable states, with E/n0 dependence and quenching behavior examined.

Significance. The apparatus development and characterization represent a technical contribution for heavy-element ion mobility studies, potentially enabling exploration of relativistic effects via state-specific interactions. However, the significance of the Lu+ results is limited by the absence of independent validation for the state assignments, reducing the impact of the central claim.

major comments (1)
  1. [Abstract] Abstract: The claim that electronic state chromatography of Lu+ has been demonstrated depends on assigning the two observed mobility peaks to the ground and lowest metastable states. No ab initio calculations of state-specific Lu+-He interaction potentials or mobilities, nor control experiments (e.g., state-selective preparation or impurity checks), are described to support this assignment over alternatives such as contaminants or artifacts.
minor comments (1)
  1. [Abstract] Abstract: Grammatical issue in 'The low-field reduced ion mobility for the ground and lowest meta-stable state of Lu+ have been examined' (subject-verb agreement).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and constructive comments on our manuscript. We respond to the major comment as follows.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that electronic state chromatography of Lu+ has been demonstrated depends on assigning the two observed mobility peaks to the ground and lowest metastable states. No ab initio calculations of state-specific Lu+-He interaction potentials or mobilities, nor control experiments (e.g., state-selective preparation or impurity checks), are described to support this assignment over alternatives such as contaminants or artifacts.

    Authors: The assignment of the observed mobility peaks rests on the well-documented electronic structure of Lu+, specifically the ground ^3D state and the lowest metastable ^1S state, together with the measured E/n0 dependence and collisional quenching of the higher-mobility population. These behaviors match expectations from prior work on state-specific ion-neutral interactions. Apparatus characterization included mass selection, background measurements, and buncher performance tests that constrain the contribution of contaminants or instrumental artifacts. Although state-selective preparation and ab initio Lu+-He potentials are not reported, the experimental separation of two populations whose relative intensities and field dependence are internally consistent provides the basis for the demonstration. We therefore maintain the abstract wording and do not plan revisions on this point. revision: no

Circularity Check

0 steps flagged

No circularity: experimental measurement report

full rationale

The paper describes construction and characterization of an ion mobility spectrometer, followed by direct measurements of Lu+ reduced mobility in He at 298 K. Two observed peaks are assigned to ground and metastable electronic states based on separation, E/n0 dependence, and quenching behavior. No equations, predictions, or first-principles results are derived; the work contains no fitted parameters renamed as predictions, no self-citation load-bearing on uniqueness theorems, and no ansatzes or renamings of known results. The central claims rest on experimental data and apparatus performance, which are independently verifiable outside any internal definitions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are required; the work is a direct experimental measurement whose central claim rests on the correctness of the apparatus calibration and peak assignment rather than on any theoretical ledger.
