arxiv: 2407.16176 · v2 · submitted 2024-07-23 · 🪐 quant-ph

Quantum memory based on concatenating surface codes and quantum Hamming codes

Menglong Fang , Daiqin Su This is my paper

Pith reviewed 2026-05-23 22:36 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum error correctionsurface codequantum Hamming codeconcatenated codesfault toleranceerror thresholdquantum memorylogical error rate
0
0 comments X

The pith

Concatenating surface codes with quantum Hamming codes suppresses logical errors more effectively than surface codes at comparable resource levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors investigate a quantum memory constructed by concatenating surface codes with quantum Hamming codes. They find that this hybrid code maintains a high error threshold close to that of the surface code while achieving lower logical error rates than pure surface codes when the physical qubit overhead is similar. The improvement becomes noticeable at intermediate sizes of the quantum memory. This setup is evaluated for threshold, overhead, and decoding time, positioning it as a practical step toward fault-tolerant quantum computation.

Core claim

The concatenation of surface codes and quantum Hamming codes as a quantum memory achieves a high error threshold that can be pushed up to the surface code threshold. Under comparable resource overhead, the concatenated codes suppress logical errors to a much lower level than the surface codes, with the advantage appearing at intermediate scales.

What carries the argument

The specific concatenation scheme that layers quantum Hamming codes over surface code patches to combine their error-correcting properties.

If this is right

  • The error threshold remains high and can approach the surface code threshold.
  • Logical error suppression exceeds that of surface codes at similar qubit counts.
  • The benefit emerges for intermediate-scale quantum memories.
  • It enables small-scale fault-tolerant circuits with reduced resources.
  • Decoding efficiency is preserved due to the code structures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This could allow near-term quantum hardware to reach useful logical error rates with fewer physical qubits.
  • Other code combinations might be explored to further optimize the threshold-overhead tradeoff.
  • If implemented, it would bridge the gap between current noisy devices and large-scale fault tolerance.
  • The decoding time estimates suggest feasibility for real-time error correction in algorithms.

Load-bearing premise

The specific way of concatenating the two codes preserves the surface code's error threshold without new dominant failure modes or excessive decoding complexity.

What would settle it

Numerical Monte Carlo simulations of the concatenated code's logical error rate versus physical error rate for memory sizes around 100-1000 qubits, compared directly to equivalent surface code sizes, to check if the logical error is lower.

Figures

Figures reproduced from arXiv: 2407.16176 by Daiqin Su, Menglong Fang.

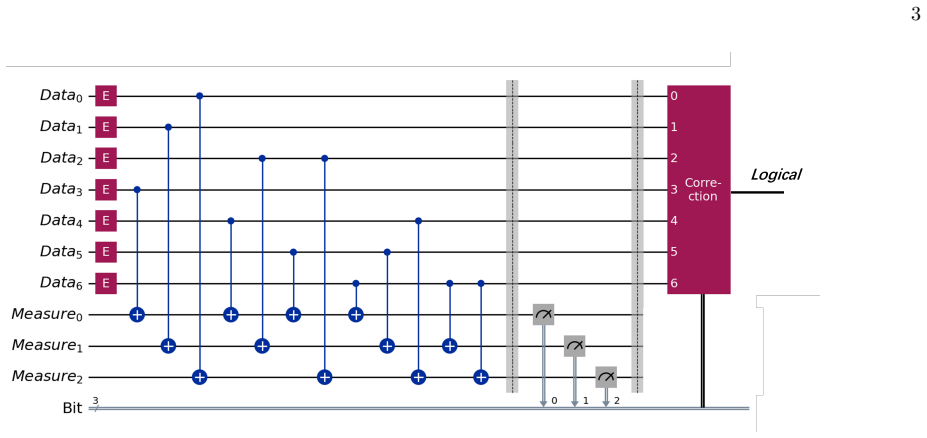

Figure 1
Figure 1. Figure 1: FIG. 1: Error correction circuit for a block of the [[7 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Correlation coefficients for pairs of logical qubits for [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Logical error rate of concatenated quantum Hamming [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Error thresholds for surface-Hamming codes. The code distance [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Comparison of logical error rates between surface-Hamming codes and surface codes without concatenation, given a [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

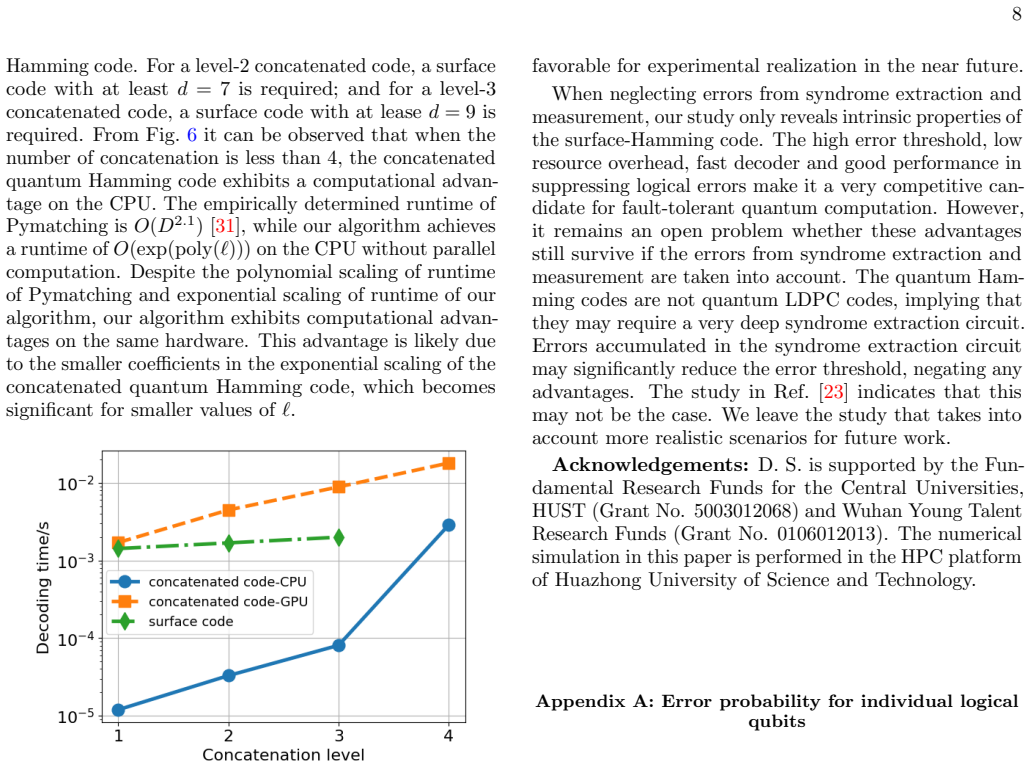

Figure 6
Figure 6. Figure 6: FIG. 6: Comparison of decoding time for concatenated quan [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: Estimated error probability of different logical qubits [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Error probability for different number of failure [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Correlation coefficients for a set of logical qubits and individual logical qubits. These sets are (a) 2-qubit sets, (b) [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗

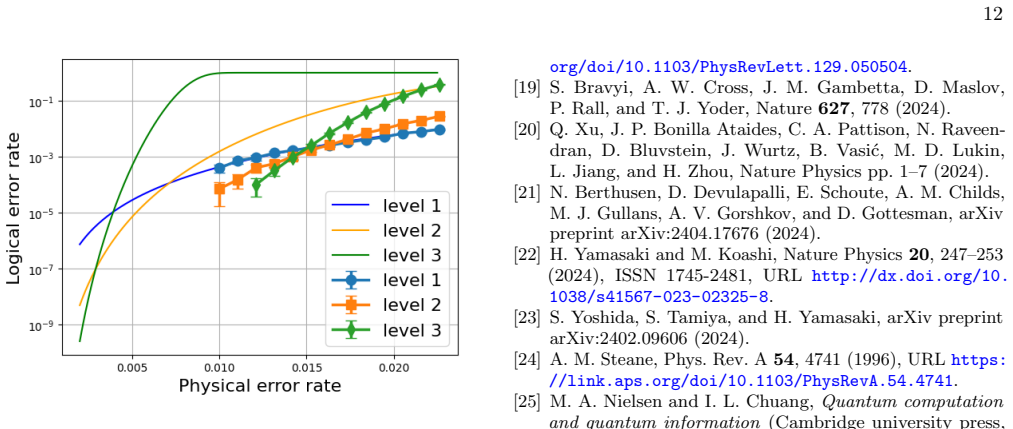

Figure 10
Figure 10. Figure 10: FIG. 10: Logical error rate for concatenated quantum Ham [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
read the original abstract

Designing quantum error correcting codes that promise a high error threshold, low resource overhead and efficient decoding algorithms is crucial to achieve large-scale fault-tolerant quantum computation. The concatenated quantum Hamming code is one of the potential candidates that allows for constant space overhead and efficient decoding. We study the concatenation of surface codes with quantum Hamming codes as a quantum memory, and estimate its error threshold, resource overhead and decoding time. A high error threshold is achieved, which can in principle be pushed up to the threshold of the surface code. Furthermore, the concatenated codes can suppress logical errors to a much lower level than the surface codes, under the assumption of comparable amount of resource overhead. The advantage in suppressing errors starts to show for a quantum memory of intermediate scale. Concatenating surface codes with quantum Hamming codes therefore provides a promising avenue to demonstrate small-scale fault-tolerant quantum circuits in the near future, and also paves a way for large-scale fault-tolerant quantum computation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript studies the concatenation of surface codes with quantum Hamming codes as a quantum memory. It estimates the error threshold, resource overhead, and decoding time of the resulting code, claiming a high threshold that can in principle reach the surface-code value, substantially lower logical error rates than standalone surface codes at comparable overhead, and that the error-suppression advantage appears already at intermediate scales.

Significance. If the threshold preservation and overhead claims are borne out by the underlying calculations, the construction would supply a concrete route to improved logical-error suppression without a prohibitive increase in physical resources, potentially useful for near-term fault-tolerant demonstrations and as a stepping stone toward larger-scale fault tolerance.

major comments (2)
  1. [threshold estimation section] The central claim that the concatenated threshold can be pushed up to the surface-code threshold (abstract and threshold-estimation section) rests on the unshown assertion that the outer Hamming layer does not introduce inter-layer correlated errors or decoder incompatibilities that would lower the effective threshold; an explicit check that the surface-code stabilizers remain intact after the concatenation map and that the joint decoder fails only at rates below the inner-code protection is required.
  2. [resource-overhead section] The statement that logical-error suppression is superior “under the assumption of comparable amount of resource overhead” (abstract and resource-overhead section) is load-bearing for the intermediate-scale advantage claim; a concrete qubit-count or gate-count comparison at fixed logical-qubit number (e.g., for distance-5 or distance-7 surface codes plus Hamming layer) must be supplied to substantiate that the overhead remains comparable rather than growing faster than the surface-code baseline.
minor comments (2)
  1. [decoding-time subsection] The decoding-time estimate should specify whether the reported figure includes the cost of the outer Hamming decoder or only the inner surface-code decoder; the distinction affects the practicality claim.
  2. [figures] Figure captions for the threshold and overhead plots should state the precise error model (depolarizing, circuit-level, etc.) and the number of Monte-Carlo shots used, to allow direct comparison with existing surface-code literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive suggestions. The two major comments identify points where additional explicit verification would strengthen the presentation; we address each below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [threshold estimation section] The central claim that the concatenated threshold can be pushed up to the surface-code threshold (abstract and threshold-estimation section) rests on the unshown assertion that the outer Hamming layer does not introduce inter-layer correlated errors or decoder incompatibilities that would lower the effective threshold; an explicit check that the surface-code stabilizers remain intact after the concatenation map and that the joint decoder fails only at rates below the inner-code protection is required.

    Authors: We agree that an explicit verification of stabilizer preservation and decoder compatibility is needed to support the threshold claim. In the revised manuscript we will add a short subsection that (i) shows the surface-code stabilizers are unchanged by the concatenation map and (ii) derives the condition under which the joint decoder’s logical failure rate is governed solely by the inner surface-code protection, thereby confirming that the outer Hamming layer does not introduce a lower threshold. revision: yes

  2. Referee: [resource-overhead section] The statement that logical-error suppression is superior “under the assumption of comparable amount of resource overhead” (abstract and resource-overhead section) is load-bearing for the intermediate-scale advantage claim; a concrete qubit-count or gate-count comparison at fixed logical-qubit number (e.g., for distance-5 or distance-7 surface codes plus Hamming layer) must be supplied to substantiate that the overhead remains comparable rather than growing faster than the surface-code baseline.

    Authors: We concur that a direct, quantitative comparison is required. The revised resource-overhead section will contain a table (and accompanying text) that reports total physical-qubit counts for a fixed number of logical qubits, comparing the concatenated construction (distance-5 surface code plus Hamming layer) against standalone surface codes of distances chosen to achieve comparable logical error rates. This will make the “comparable overhead” assumption concrete and allow readers to assess the claimed advantage. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation relies on standard code concatenation and threshold estimation without self-referential reduction

full rationale

The abstract and available text describe a study of concatenating surface codes with quantum Hamming codes, estimating threshold, overhead, and decoding time via standard methods. No equations, fitting procedures, or self-citations are shown that reduce a claimed prediction or threshold result to an input by construction. The central claims (high threshold approachable to surface-code value, lower logical errors at comparable overhead) are presented as outcomes of the concatenation scheme rather than definitions or renamings of inputs. No load-bearing uniqueness theorems or ansatzes imported from prior author work are visible. This is the normal case of a self-contained numerical/simulation study whose results stand or fall on external verification rather than internal redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no visible free parameters, axioms, or invented entities; all such details are absent from the provided text.
