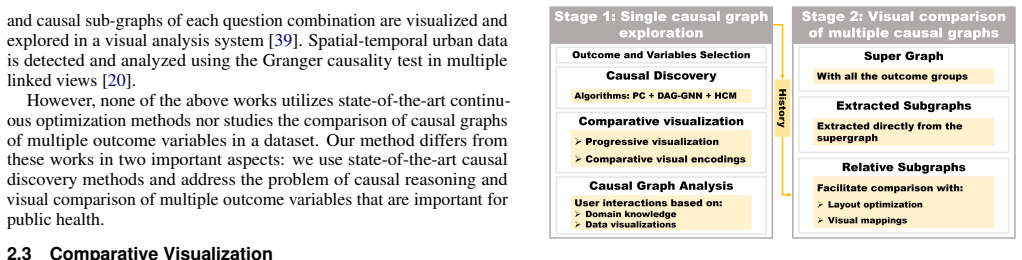

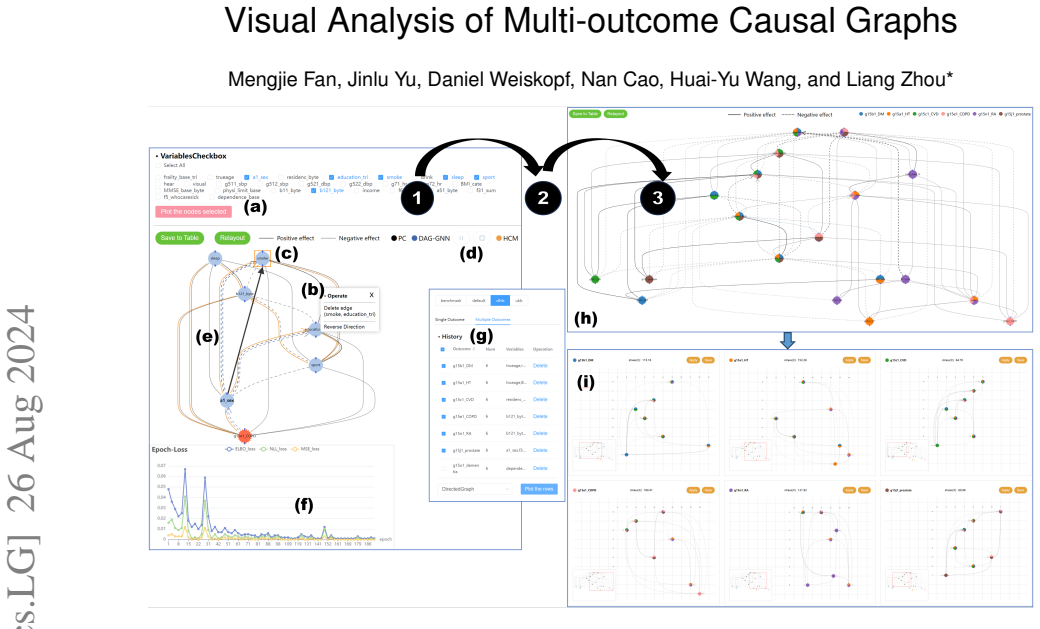

Figure 2. Figure 2: The workflow of our visual analysis method. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

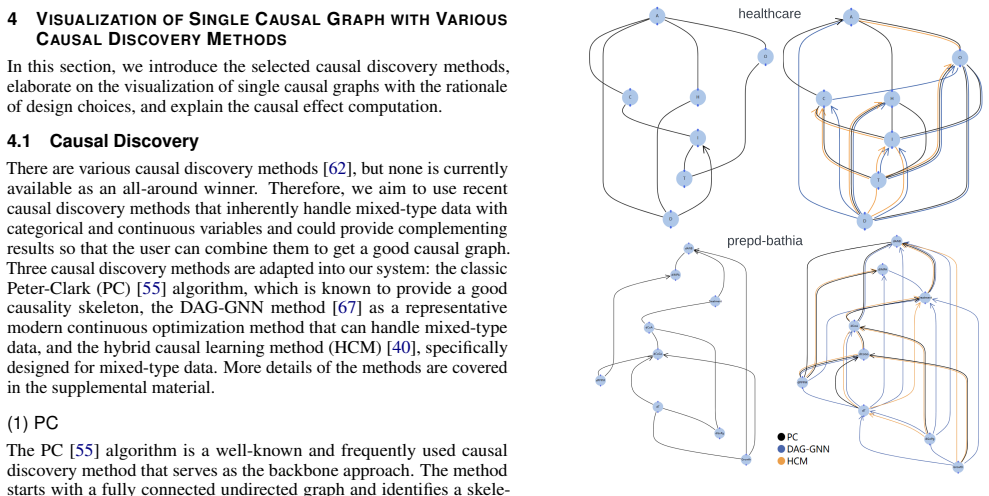

Figure 3. Figure 3: Visualization of the true causal graphs (left column) and results of [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

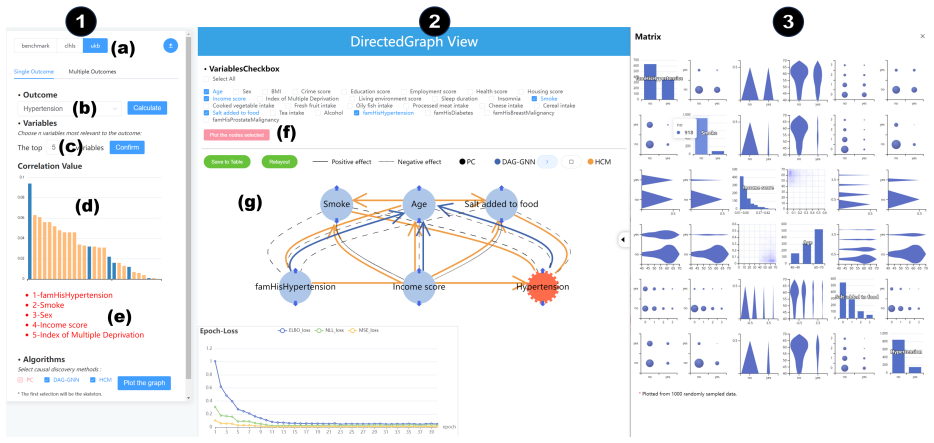

Figure 4. Figure 4: The user interface of our visual analysis system for single outcome graphs consists of three views: (1) Dataset and Variables Selection View [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

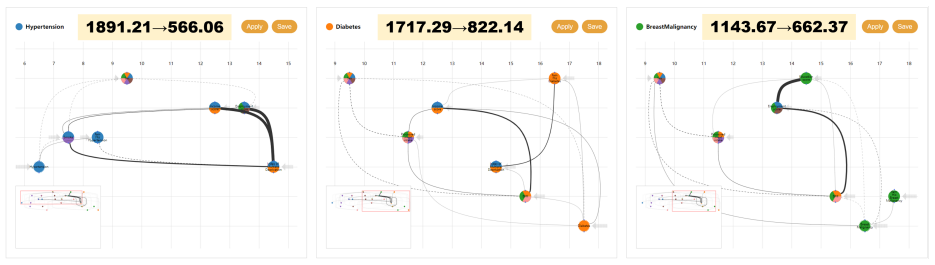

Figure 5. Figure 5: Visualization of multi-outcome causal graphs with our new layout and visual mappings. Numbers on top of each subgraph are the horizontal [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

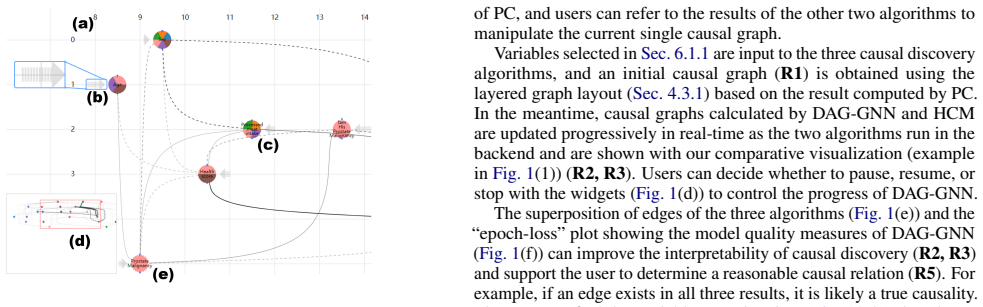

Figure 6. Figure 6: Visual mappings for comparison of multi-outcome causal graphs. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

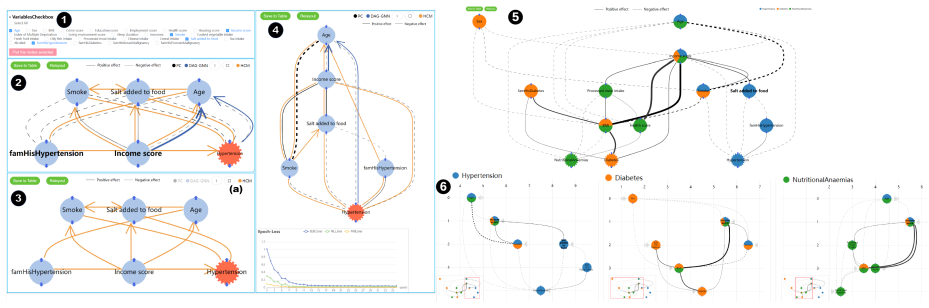

Figure 7. Figure 7: The case study of UKB data with a medical expert. Single causal graph analysis (1–4) and multi-outcome causal graphs comparison (5, 6). [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Visualization of multi-outcome causal graphs with (a) subgraphs extracted directly from the supergraph and (b) our new comparable graph layout. [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

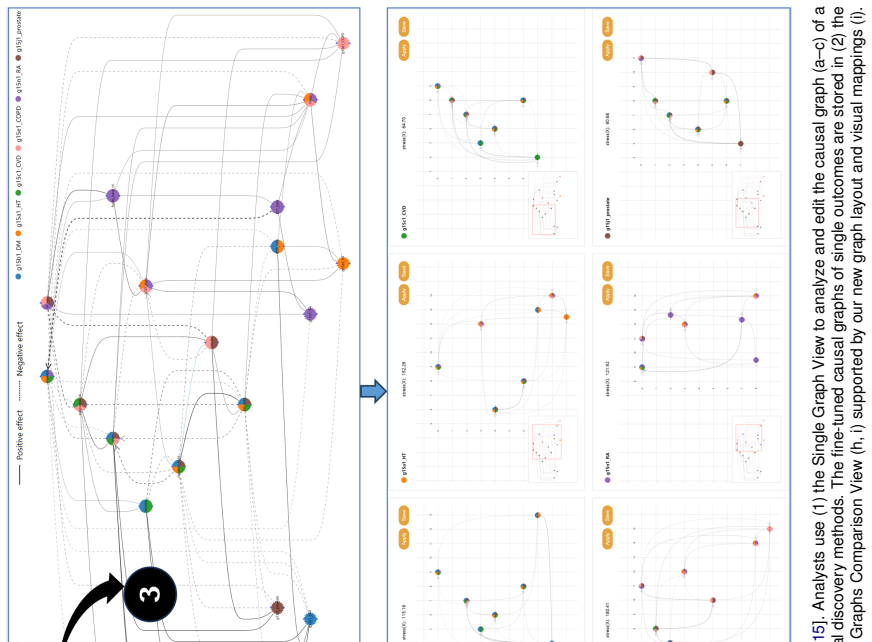

Figure 9. Figure 9: The overall process of the visual analysis of multi-outcome causal graphs of a health research data [ [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: The case study of UKB data with a medical expert. Single causal graph analysis (1–4) and multi-outcome causal graphs comparison (5, 6). [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗

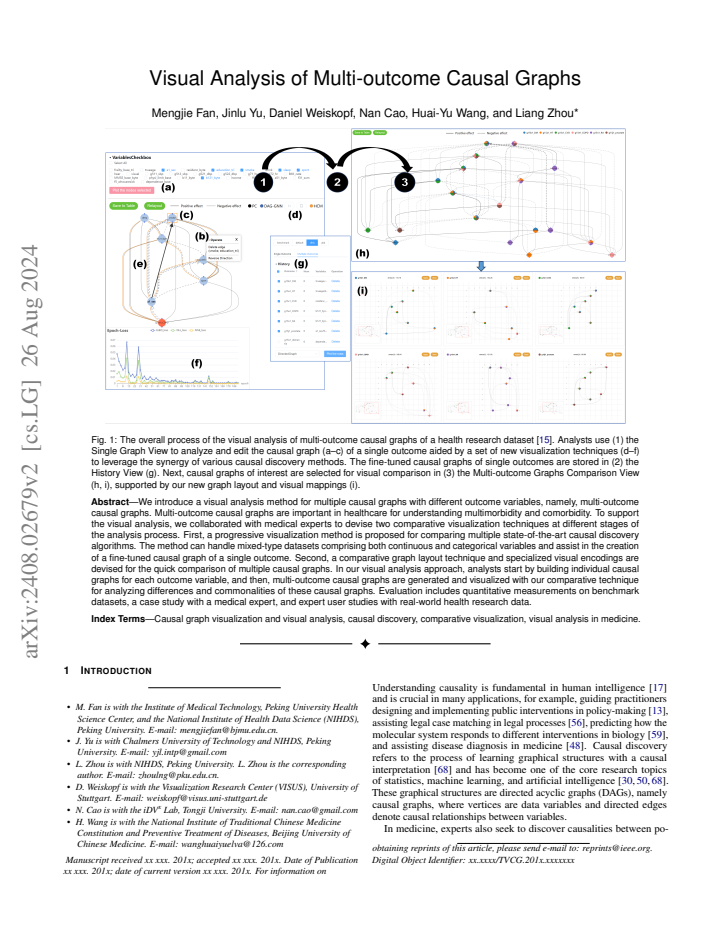

read the original abstract

We introduce a visual analysis method for multiple causal graphs with different outcome variables, namely, multi-outcome causal graphs. Multi-outcome causal graphs are important in healthcare for understanding multimorbidity and comorbidity. To support the visual analysis, we collaborated with medical experts to devise two comparative visualization techniques at different stages of the analysis process. First, a progressive visualization method is proposed for comparing multiple state-of-the-art causal discovery algorithms. The method can handle mixed-type datasets comprising both continuous and categorical variables and assist in the creation of a fine-tuned causal graph of a single outcome. Second, a comparative graph layout technique and specialized visual encodings are devised for the quick comparison of multiple causal graphs. In our visual analysis approach, analysts start by building individual causal graphs for each outcome variable, and then, multi-outcome causal graphs are generated and visualized with our comparative technique for analyzing differences and commonalities of these causal graphs. Evaluation includes quantitative measurements on benchmark datasets, a case study with a medical expert, and expert user studies with real-world health research data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces a visual analysis method for multi-outcome causal graphs, with emphasis on healthcare applications such as multimorbidity and comorbidity. It presents two expert-collaborated comparative visualization techniques: (1) a progressive visualization method for comparing multiple causal discovery algorithms on mixed-type (continuous/categorical) datasets to produce a fine-tuned single-outcome graph, and (2) a comparative graph layout with specialized encodings to analyze differences and commonalities across graphs for different outcome variables. The workflow builds individual causal graphs per outcome then applies the comparative technique. Evaluation consists of quantitative measurements on benchmark datasets, one medical-expert case study, and expert user studies on real-world health data.

Significance. If the visualizations are shown to be effective, the work could provide a useful applied contribution to visual analytics for causal graphs in medicine by addressing multi-outcome scenarios. Positive elements include the collaboration with domain experts and grounding in real-world health datasets. The significance is limited by the current evaluation's reliance on qualitative feedback rather than controlled performance data.

major comments (2)
  1. [Evaluation] Evaluation section: the paper states that quantitative measurements were performed on benchmark datasets and that expert user studies were conducted, yet supplies no specific performance numbers, error rates, or statistical comparisons to baseline layouts (e.g., side-by-side or matrix views). This leaves the central claim that the two comparative techniques 'effectively support quick comparison of differences and commonalities' without falsifiable support.
  2. [Abstract and Evaluation] Abstract and Evaluation: the assertions that the progressive algorithm comparison and specialized graph layout 'assist in the creation of a fine-tuned causal graph' and enable 'quick comparison' rest on qualitative expert feedback and case studies; no controlled experiments measuring task completion time, accuracy, or insight quality versus alternatives are described, making the effectiveness claim load-bearing but unsupported by the reported evidence.
minor comments (2)
  1. The abstract references 'quantitative measurements' without including any concrete results, tables, or figures; a brief summary of key metrics should be added for readers.
  2. Figure captions and axis labels in the comparative layout figures should explicitly indicate which encodings represent differences versus commonalities to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on the evaluation. We address each point below and will revise the manuscript to strengthen the reported evidence.

read point-by-point responses

  1. Referee: [Evaluation] Evaluation section: the paper states that quantitative measurements were performed on benchmark datasets and that expert user studies were conducted, yet supplies no specific performance numbers, error rates, or statistical comparisons to baseline layouts (e.g., side-by-side or matrix views). This leaves the central claim that the two comparative techniques 'effectively support quick comparison of differences and commonalities' without falsifiable support.

    Authors: We agree that specific numerical results from the benchmark datasets should be reported explicitly rather than only stated as having been performed. The quantitative measurements consist of standard causal discovery metrics (e.g., structural Hamming distance, precision, recall) computed against ground-truth graphs on mixed-type benchmark data. In the revision we will add tables or figures with these concrete values and any direct comparisons to baseline layouts that can be computed from the existing data. revision: yes

  2. Referee: [Abstract and Evaluation] Abstract and Evaluation: the assertions that the progressive algorithm comparison and specialized graph layout 'assist in the creation of a fine-tuned causal graph' and enable 'quick comparison' rest on qualitative expert feedback and case studies; no controlled experiments measuring task completion time, accuracy, or insight quality versus alternatives are described, making the effectiveness claim load-bearing but unsupported by the reported evidence.

    Authors: The current evaluation follows common practice in visual analytics by combining quantitative benchmark metrics with expert case studies and user studies on real health data. We acknowledge that controlled experiments with task time/accuracy measures versus baselines are absent. We will revise the abstract and evaluation section to moderate the wording of effectiveness claims, explicitly describe the evidence types used, and list the lack of controlled experiments as a limitation. revision: yes

Circularity Check

0 steps flagged

No circularity: applied visualization design with independent evaluations

full rationale

The paper introduces a visual analysis method and two comparative visualization techniques for multi-outcome causal graphs, developed through expert collaboration. It reports evaluations via quantitative measurements on benchmark datasets, a medical-expert case study, and expert user studies, without any mathematical derivations, predictions, fitted parameters, or first-principles results that could reduce to inputs by construction. No self-citation chains, uniqueness theorems, or ansatzes are invoked as load-bearing elements. The approach is self-contained as a design contribution in visualization, with no evidence of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The method rests on standard assumptions from causal discovery and information visualization literature plus the premise that expert-informed visual encodings will reveal meaningful graph differences.

axioms (2)
  • domain assumption Causal discovery algorithms produce comparable outputs on mixed continuous-categorical data that can be progressively visualized
    Underpins the first technique described in the abstract
  • domain assumption Specialized graph layouts and encodings can surface commonalities and differences across multiple outcome-specific causal graphs
    Underpins the second technique and overall workflow
