arxiv: 2408.11295 · v1 · submitted 2024-08-21 · 📡 eess.SP

Channel Modeling Framework for Both Communications and Bistatic Sensing Under 3GPP Standard

Chenhao Luo , Aimin Tang , Fei Gao , Jianguo Liu , Xudong Wang This is my paper

Pith reviewed 2026-05-23 21:52 UTC · model grok-4.3

classification 📡 eess.SP
keywords ISACbistatic sensingchannel modeling3GPPintegrated sensing and communicationsray tracingtarget modelspatial coherence
0
0 comments X

The pith

A bistatic ISAC channel modeling framework extends the 3GPP standard by adding weaker clusters and target reflection models while preserving full compatibility with communication models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a channel modeling framework for bistatic integrated sensing and communications that builds directly on the existing 3GPP standard. The framework adds support for sensing by generating more clusters with weaker power to represent potential targets, allowing either deterministic or statistical descriptions of those targets. For statistical targets it incorporates reflection models that preserve spatial coherence among rays. A sympathetic reader would care because accurate joint modeling of communication and sensing channels is required to design and evaluate future networks that combine both functions. The work validates the approach through ray-tracing simulations and real experiments while confirming compatibility with pure communication models.

Core claim

The proposed channel modeling framework extends the current 3GPP channel modeling framework and ensures the compatibility with the communication channel model. To support the bistatic sensing function, several key features for sensing are added. First, more clusters with weaker power are generated and retained to characterize the potential sensing targets. Second, the target model can be either deterministic or statistical, based on different sensing scenarios. Furthermore, for the statistical case, different reflection models are employed in the generation of rays, taking into account spatial coherence. The effectiveness of the proposed bistatic ISAC channel model framework is validated by,

What carries the argument

Extended 3GPP geometry-based stochastic channel model with added weak-power clusters, deterministic or statistical target models, and spatial-coherence reflection models for rays.

If this is right

  • The same simulation engine can now evaluate both communication link quality and bistatic sensing accuracy without separate model implementations.
  • Standard 3GPP communication traces and parameters remain directly usable, so existing network simulators require only incremental extensions.
  • Deterministic target models enable precise evaluation when object locations are known while statistical models support uncertain environments.
  • Spatial coherence in the reflection models produces correlated sensing observations at different receiver locations, matching physical bistatic geometry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could be applied to frequency bands or high-mobility scenarios beyond those used in the paper's ray-tracing and experiment validation.
  • The increase in retained weak clusters may raise the computational cost of large-scale network-level simulations.
  • A natural next step is to combine this bistatic extension with existing monostatic sensing models to produce a unified ISAC channel description.

Load-bearing premise

Generating and retaining additional weaker clusters plus employing specific reflection models for statistical targets will sufficiently and accurately characterize potential sensing targets in bistatic scenarios without introducing inconsistencies with the underlying 3GPP communication model.

What would settle it

A side-by-side comparison in which the extended model yields sensing performance metrics that differ from measurements obtained in a controlled bistatic experiment or that deviate from the output of an unmodified 3GPP communication simulation under identical geometry.

Figures

Figures reproduced from arXiv: 2408.11295 by Aimin Tang, Chenhao Luo, Fei Gao, Jianguo Liu, Xudong Wang.

Figure 1
Figure 1. Figure 1: Diagram of the two sensing modes in the ISAC system. based stochastic channel model at the frequency from 0.5 GHz to 100 GHz for 5G systems. These models are primarily designed for communication systems. When wireless sensing is further considered, new channel models are required for ISAC channels. Currently, ISAC has already been consid￾ered in 3GPP standard with feasibility study [6] and service requirem… view at source ↗
Figure 2
Figure 2. Figure 2: Framework of bistatic ISAC channel modeling. Other general parameters in step 1 are generated following the 3GPP procedure [5]. The following step 2 to step 4 can also directly follow the standard procedure in [5] to generate necessary general parameters. 2) Small Scale Parameters Generation: As is shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Three types of reflection model for sensing rays in a target cluster. target is the last scatter, we can extract the azimuth angle of arrival (AOA) and zenith angle of arrival (ZOA) information (or possible relative arrival velocity) from the sensing channel. However, if the sensing target is neither the first scatter nor the last scatter, we can hardly extract sensing information from the sensing channel.… view at source ↗
Figure 4
Figure 4. Figure 4: Ray tracing simulation in an indoor office. III. VERIFICATION OF THE BISTATIC ISAC CHANNEL MODEL A. Validation by Ray Tracing Simulations 1) Simulation setup: Ray tracing is a method of simulating the behavior of light or electromagnetic waves as they propa￾gate through a given environment by computing the Maxwell equations. Ray tracing can provide information regarding the propagation paths, attenuation, … view at source ↗
Figure 5
Figure 5. Figure 5: A slice of the ray tracing simulation of a person sitting-down. 3) Deterministic cluster modeling: In the second simulation, deterministic modeling for target cluster is studied. More specifically, two human behaviors, namely standing-up and sitting-down, are simulated by ray tracing method. In this simulation, the transmitter and receiver are separately placed and a human model is placed in front of the t… view at source ↗
Figure 7

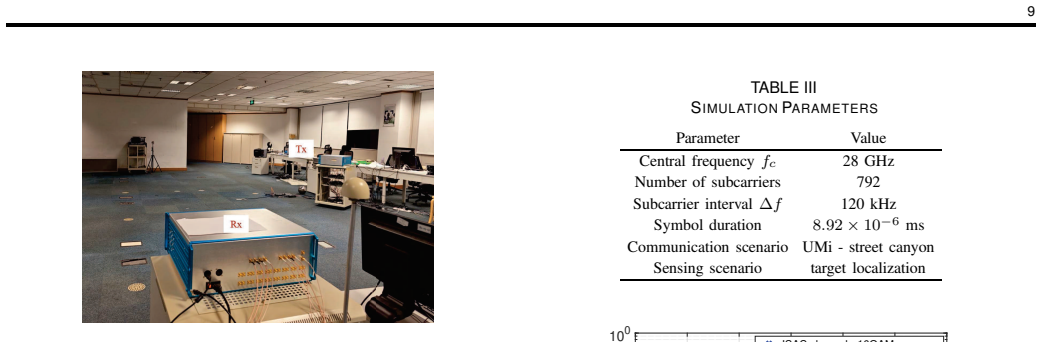

Figure 7. Figure 7: Experiment environment. 0 5 10 15 20 25 Range (m) 0 0.2 0.4 0.6 0.8 1 Normalized Amplitude 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 RD Spectrum Amplitude 10-4 Raw CIR Processed CIR Target location LoS range [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

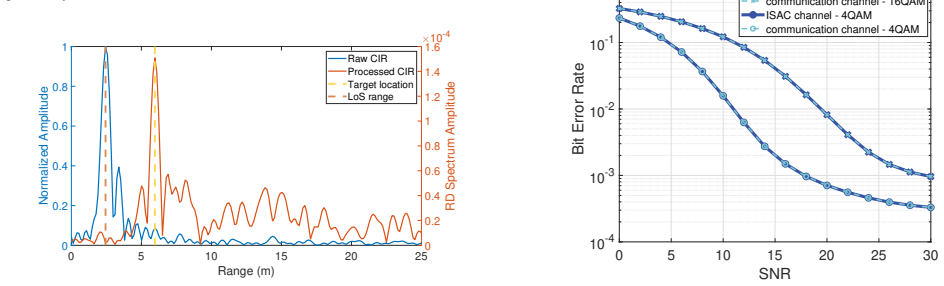

Figure 8. Figure 8: The raw CIR and radar processed CIR for the weak target. for the two cases are shown in [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Sensing evaluation study under statistic modeling: (a) detection probability, (b) range estimation error. adopted. The radar processing gain is about 30 dB. We change the total power of the ISAC channel, i.e., the channel SNR, and evaluate the sensing performance of detection rate and range estimation error. For a fixed SNR, we run 1000 times with random noise generation to collect the results. The simula… view at source ↗
read the original abstract

Integrated sensing and communications (ISAC) is considered a promising technology in the B5G/6G networks. The channel model is essential for an ISAC system to evaluate the communication and sensing performance. Most existing channel modeling studies focus on the monostatic ISAC channel. In this paper, the channel modeling framework for bistatic ISAC is considered. The proposed channel modeling framework extends the current 3GPP channel modeling framework and ensures the compatibility with the communication channel model. To support the bistatic sensing function, several key features for sensing are added. First, more clusters with weaker power are generated and retained to characterize the potential sensing targets. Second, the target model can be either deterministic or statistical, based on different sensing scenarios. Furthermore, for the statistical case, different reflection models are employed in the generation of rays, taking into account spatial coherence. The effectiveness of the proposed bistatic ISAC channel model framework is validated by both ray tracing simulations and experiment studies. The compatibility with the 3GPP communication channel model and how to use this framework for sensing evaluation are also demonstrated.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a channel modeling framework for bistatic integrated sensing and communications (ISAC) that extends the existing 3GPP channel model while claiming full compatibility with its communication statistics. Key extensions include generating and retaining additional clusters with weaker power to represent sensing targets, support for either deterministic or statistical target models, and reflection models that incorporate spatial coherence for the statistical case. Effectiveness is asserted via ray-tracing simulations and experiments, together with explicit demonstrations of 3GPP compatibility and sensing evaluation usage.

Significance. If the compatibility claim is substantiated by an explicit normalization procedure that leaves 3GPP power-delay profiles, delay spreads, and angular spreads unchanged, the framework would supply a practical, standards-aligned tool for joint communication-sensing performance evaluation in B5G/6G networks. The dual validation route (ray tracing plus measurements) and the reuse of an established standard are concrete strengths that would increase adoption potential.

major comments (2)
  1. [Abstract] Abstract: the central compatibility claim is load-bearing yet unsupported by any derivation or normalization step. Adding and retaining extra weaker clusters necessarily changes cluster count and power allocation; without an explicit procedure (e.g., re-normalization of cluster powers or conditional generation) that restores the original 3GPP delay-spread and angular-spread statistics exactly, communication-link evaluations become inconsistent with the standard.
  2. [Framework description] Framework description (cluster-generation procedure): the post-hoc retention of weaker clusters for sensing targets risks altering the underlying 3GPP cluster statistics. The manuscript must supply a quantitative check (e.g., Table comparing RMS delay spread, angular spread, and cluster power distribution before and after the sensing additions) to confirm that the communication model remains numerically identical.
minor comments (2)
  1. Clarify the precise mathematical definition of the reflection models used for statistical targets and how spatial coherence is enforced (e.g., correlation function or phase-screen parameters).
  2. Figure captions for the ray-tracing and measurement results should explicitly state which 3GPP parameters are held constant and which are modified by the sensing extensions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments highlighting the need to explicitly substantiate the compatibility claim. We agree that an explicit normalization procedure and quantitative validation are required to ensure the communication statistics remain unchanged, and we will incorporate these in the revised manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central compatibility claim is load-bearing yet unsupported by any derivation or normalization step. Adding and retaining extra weaker clusters necessarily changes cluster count and power allocation; without an explicit procedure (e.g., re-normalization of cluster powers or conditional generation) that restores the original 3GPP delay-spread and angular-spread statistics exactly, communication-link evaluations become inconsistent with the standard.

    Authors: We acknowledge that the compatibility claim in the abstract requires explicit support. In the revision, we will add a dedicated subsection detailing the normalization procedure: after generating and retaining the additional weaker clusters for sensing, the powers of all clusters (including the original 3GPP ones) are re-normalized such that the total power and the resulting power-delay profile, RMS delay spread, and angular spreads exactly match the original 3GPP statistics. This conditional generation approach ensures communication evaluations remain fully consistent with the standard. revision: yes

  2. Referee: [Framework description] Framework description (cluster-generation procedure): the post-hoc retention of weaker clusters for sensing targets risks altering the underlying 3GPP cluster statistics. The manuscript must supply a quantitative check (e.g., Table comparing RMS delay spread, angular spread, and cluster power distribution before and after the sensing additions) to confirm that the communication model remains numerically identical.

    Authors: We agree that a quantitative check is necessary. The revised manuscript will include a new table (and associated text) that reports the RMS delay spread, angular spread, and cluster power distribution computed from the standard 3GPP generation procedure versus the same procedure after adding and retaining the weaker sensing clusters (both before and after the normalization step). This will numerically confirm that the communication statistics are identical. revision: yes

Circularity Check

0 steps flagged

No circularity; extension of external 3GPP standard remains independent

full rationale

The paper describes an extension of the external 3GPP channel model by adding weaker clusters, deterministic/statistical target models, and reflection models with spatial coherence. No quoted equations or steps reduce any claimed prediction or compatibility result to a fitted parameter, self-citation chain, or input by construction. Validation relies on ray-tracing simulations and experiments external to the model generation procedure itself, so the central claim of compatibility does not collapse into the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the framework extends the existing 3GPP model without detailing new fitted quantities or postulates.
