Mechanical hysterons with tunable interactions of general sign

Joseph D. Paulsen This is my paper

Pith reviewed 2026-05-23 21:06 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.dis-nn
keywords mechanical hysterontunable interactionsrigid barslinear springsnon-reciprocal interactionshysteresiscollective behaviordesigned materials
0
0 comments X

The pith

A bar-and-spring mechanism forms a mechanical hysteron whose interactions can be tuned to any sign and made reciprocal or non-reciprocal.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a physical hysteron built from rigid bars and linear springs that exhibits controllable switching properties and fully tunable interactions between units. It supplies an explicit mapping from geometric parameters to the hysteron thresholds and interaction coefficients, including the choice of sign and reciprocity. This construction turns abstract models of interacting hysterons into a design platform where collective mechanical responses can be set by adjusting lengths and positions. A sympathetic reader would see it as a route to hardware that realizes targeted non-equilibrium behaviors under mechanical driving.

Core claim

The central claim is that a collection of rigid bars and linear springs can be arranged to function as an ideal mechanical hysteron whose individual properties and pairwise interactions are set by a derived mapping from the system parameters, allowing interactions of general sign that are either reciprocal or non-reciprocal and enabling collective behaviors to be targeted by on-the-fly geometric adjustments.

What carries the argument

The mapping from geometric parameters (bar lengths, pivot locations, spring constants) to hysteron switching thresholds and interaction strengths.

If this is right

  • Collective behaviors of multiple hysterons can be programmed by changing geometric parameters without rebuilding the devices.
  • Non-reciprocal interactions become available, producing directed or asymmetric mechanical responses.
  • The platform converts abstract hysteron models into physical designs for materials that sense and respond to mechanical inputs in specified ways.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same mapping could be used to create reconfigurable assemblies whose collective response is altered by external commands that shift a few pivot positions.
  • Scaling the design to three dimensions would let networks of these units perform simple mechanical computation under load.
  • Comparing the ideal mapping against measured prototypes would quantify how far real friction and compliance can be tolerated before the designed interactions deviate.

Load-bearing premise

The bar-and-spring assembly behaves exactly as an ideal hysteron, with no unmodeled effects from friction, gravity, or nonlinear deformations changing the intended properties or interactions.

What would settle it

Build a physical prototype according to the geometric parameters and measure its force-displacement response together with the interaction forces on a neighboring unit to check whether the observed thresholds and signs match the predicted mapping for both reciprocal and non-reciprocal cases.

Figures

Figures reproduced from arXiv: 2409.07726 by Joseph D. Paulsen.

Figure 1

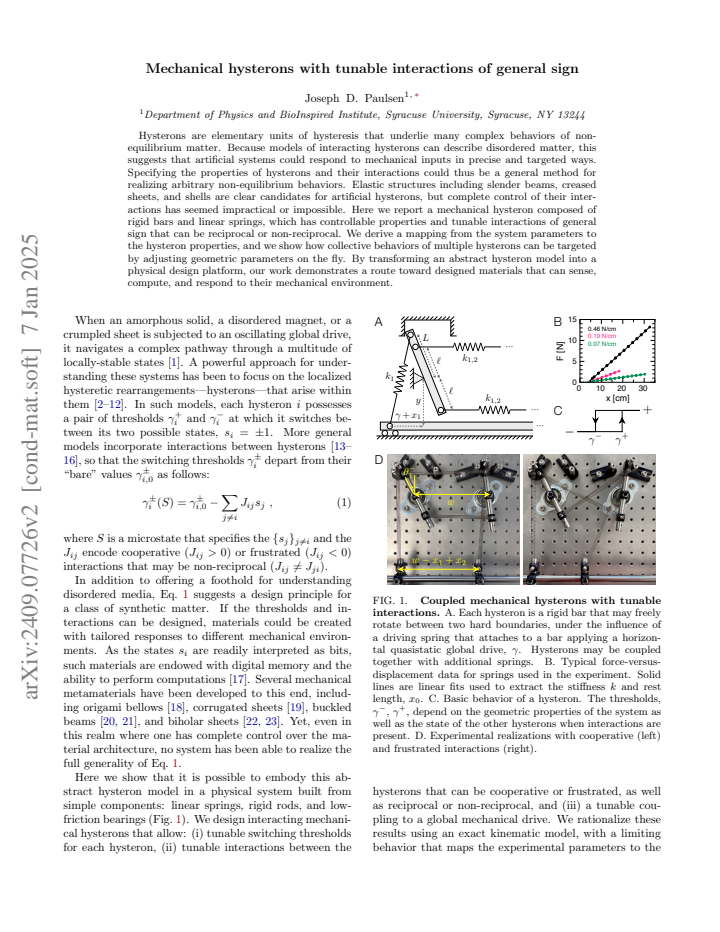

Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

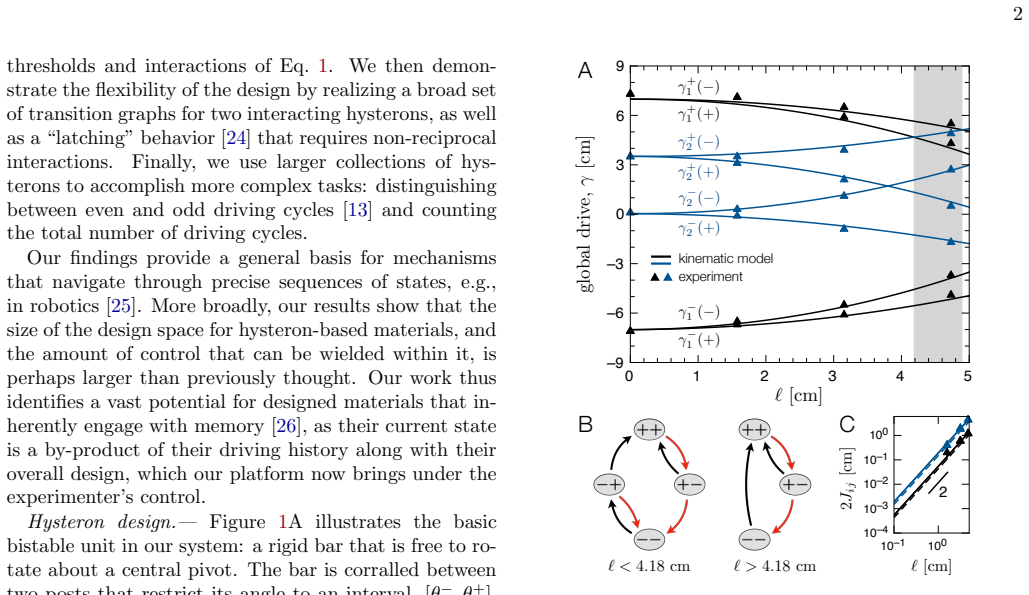

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

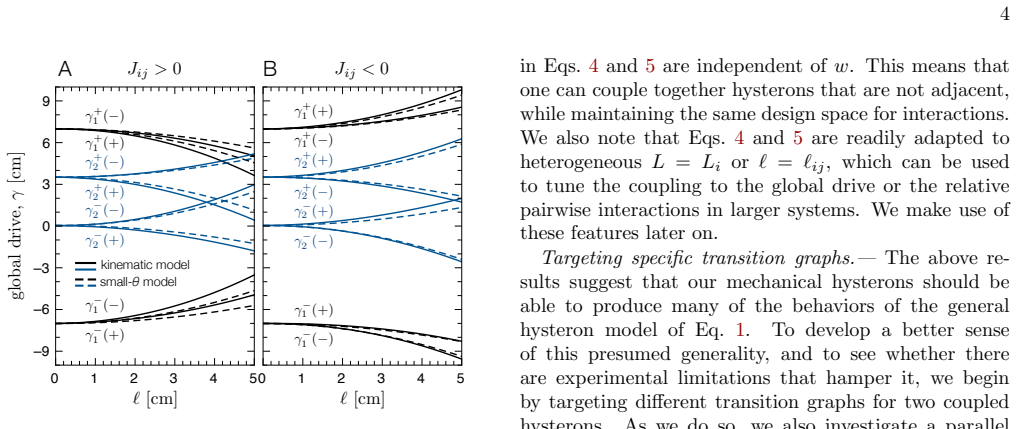

Figure 3. Figure 3: , as that rotor is bounded by larger angles. In gen￾eral, the pair γ + i,0 (±) and the pair γ − i,0 (±) shift in opposite directions, with the sign of the shift set by gij . Finally, we note that the thresholds and interactions in Eqs. 4 and 5 are independent of w. This means that one can couple together hysterons that are not adjacent, while maintaining the same design space for interactions. We also note… view at source ↗
Figure 4

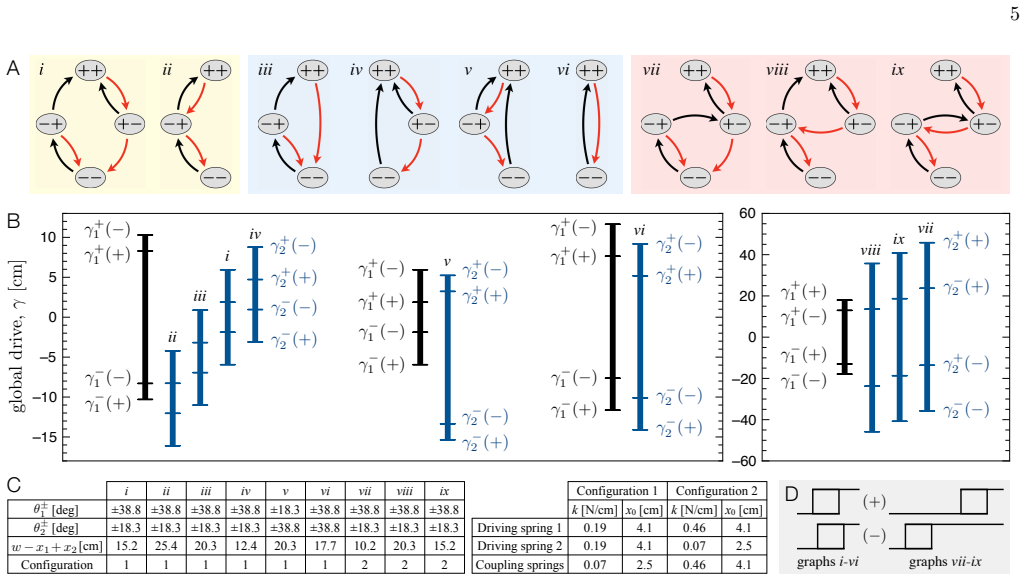

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

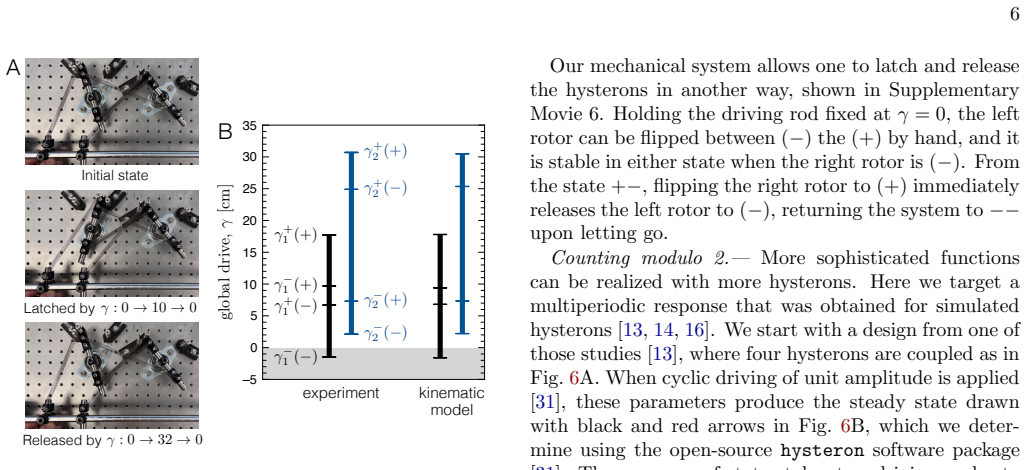

Figure 5. Figure 5: B shows the switching thresholds as measured in our experimental realization of latching, using the pa￾rameters in the caption. The ordering of thresholds in￾deed follow Eq. 6. Plugging the experimental parameters into the kinematic model, we obtain the second set of bars, which are in good agreement with the experiment and follow the same ordering. Our mechanical system allows one to latch and release the… view at source ↗
Figure 6

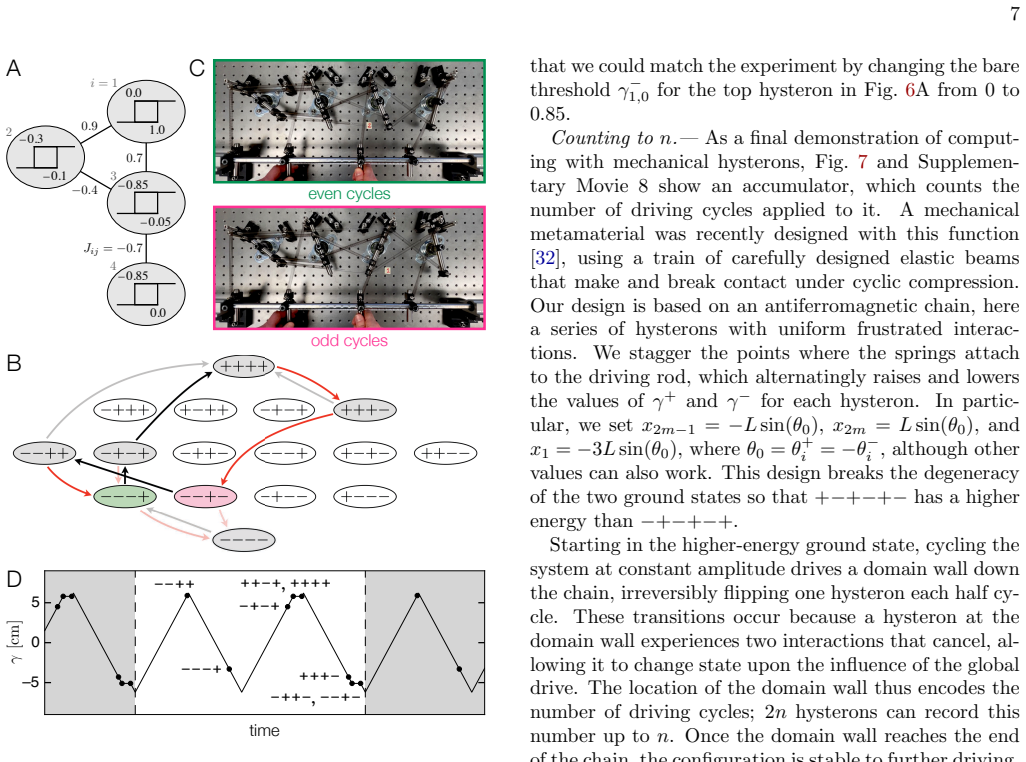

Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

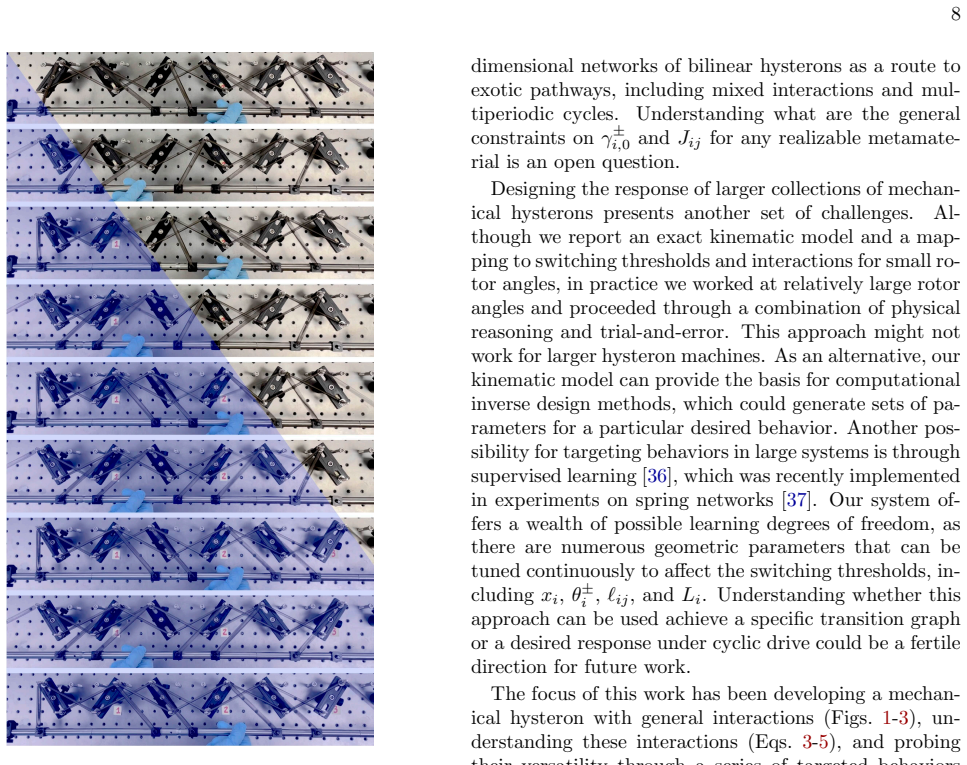

Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
