Hierarchical Reinforced Trader (HRT): A Bi-Level Approach for Optimizing Stock Selection and Execution

Pith reviewed 2026-05-23 19:24 UTC · model grok-4.3

classification 💱 q-fin.TR cs.CEcs.LG
keywords hierarchical reinforcement learningportfolio managementstock selectiontext-aware tradingbi-level optimizationreinforcement learning in financeNasdaq equity trading
0
0 comments X

The pith

A bi-level reinforcement learning system improves equity trading by separating directional stock selection from risk-aware execution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes HRT, a hierarchical reinforcement learning framework that splits trading into two levels to handle market and text signals in multi-asset portfolios. A high-level controller chooses sparse increase/reduce/hold directions for individual stocks, while a low-level controller translates those into weight changes while respecting turnover, drawdown, and text-risk penalties. Evaluated on a fixed 89-stock Nasdaq universe with training through 2018 and testing on 2020-2023, the full model reaches a Sharpe ratio of 1.24 and daily turnover of 0.090, beating flat RL and other baselines. This separation avoids the full joint action space and keeps decisions easier to inspect.

Core claim

HRT uses a factorized sparse High-Level Controller to select asset-level increase, reduce, or hold directions from compact market and text-derived signals, while a risk-aware Low-Level Controller converts these directions into feasible portfolio weight adjustments under turnover, drawdown, and text-risk penalties. This decomposition yields the strongest learning-based return-risk-cost trade-off across market-proxy, same-universe portfolio, alpha-only, flat-RL, and hierarchical ablation baselines, improving Sharpe from 1.06 to 1.24 and reducing turnover from 0.112 to 0.090 on the 2020-2023 out-of-sample period.

What carries the argument

The bi-level reinforcement learning structure with a High-Level Controller for sparse directional selection and a Low-Level Controller for constrained weight execution.

If this is right

  • Higher Sharpe ratio of 1.24 versus 1.06 for the base hierarchical model
  • Lower daily turnover of 0.090 versus 0.112
  • Robust performance when transaction costs increase
  • More inspectable decisions because selection and execution are handled separately

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The separation of selection from execution may reduce the sample complexity needed to learn stable policies in live trading environments
  • Text-risk penalties could be swapped for other sentiment sources without retraining the entire hierarchy
  • Factorized controllers might allow scaling the approach to universes larger than 89 stocks while keeping action spaces manageable

Load-bearing premise

That results on the fixed 89-stock Nasdaq universe and the 2013-2018 training plus 2020-2023 test split reflect generalizable performance without look-ahead bias or excessive tuning on the test horizon.

What would settle it

Retraining and testing the same HRT architecture on a different stock universe or on data after 2023 and finding no improvement in Sharpe or turnover over the flat-RL baseline.

Figures

Figures reproduced from arXiv: 2410.14927 by Roy E. Welsch, Zijie Zhao.

Figure 1

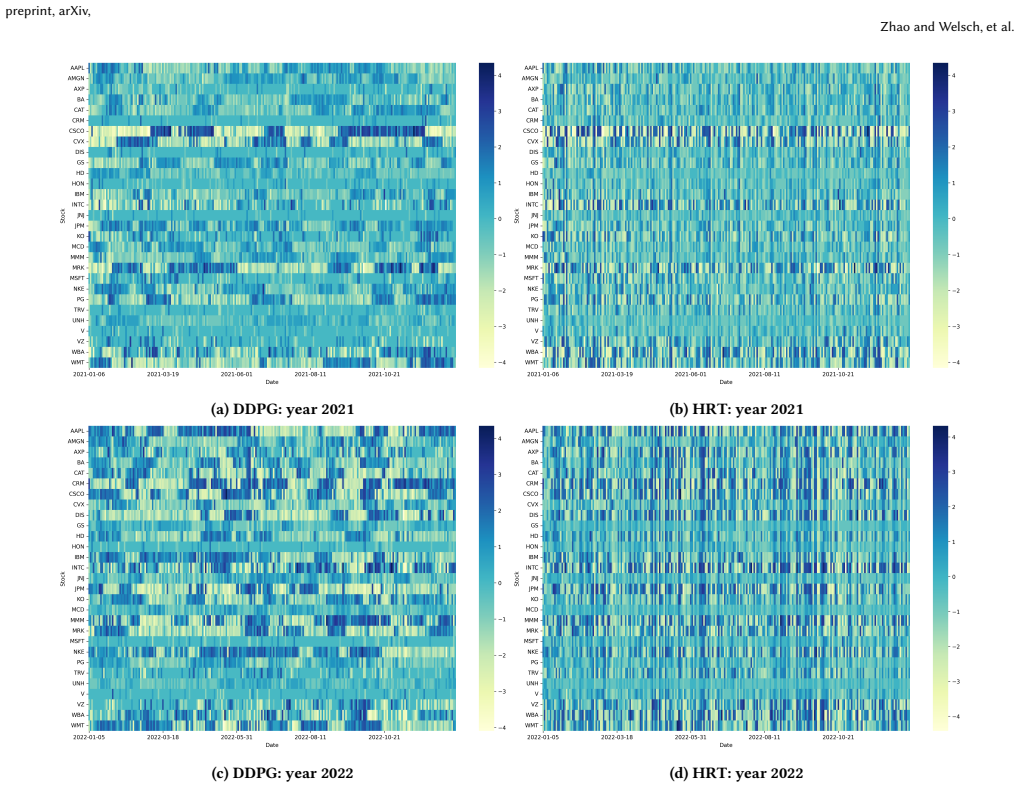

Figure 1. Figure 1: Trading operations heatmap on DJIA 30 stocks for 2021 and 2022. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

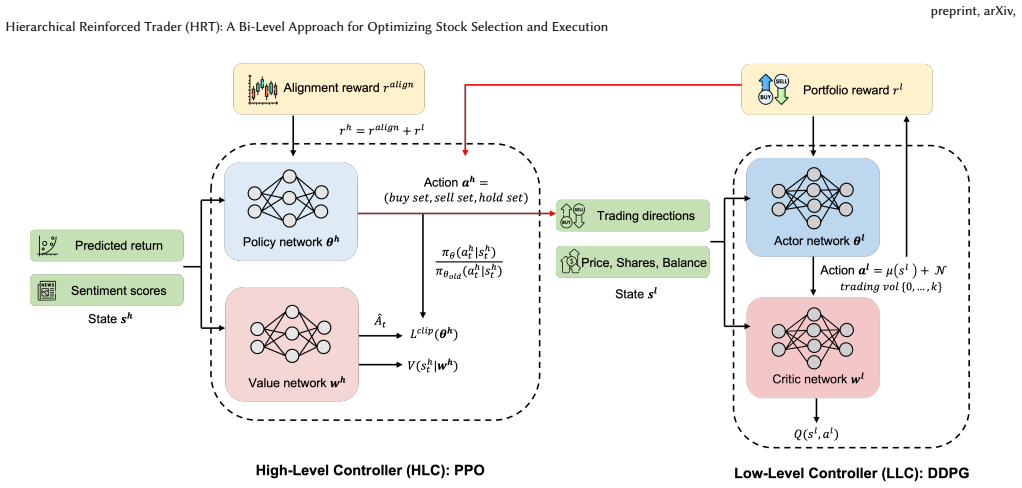

Figure 2. Figure 2: Overview of the Hierarchical Reinforced Trader (HRT) architecture. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

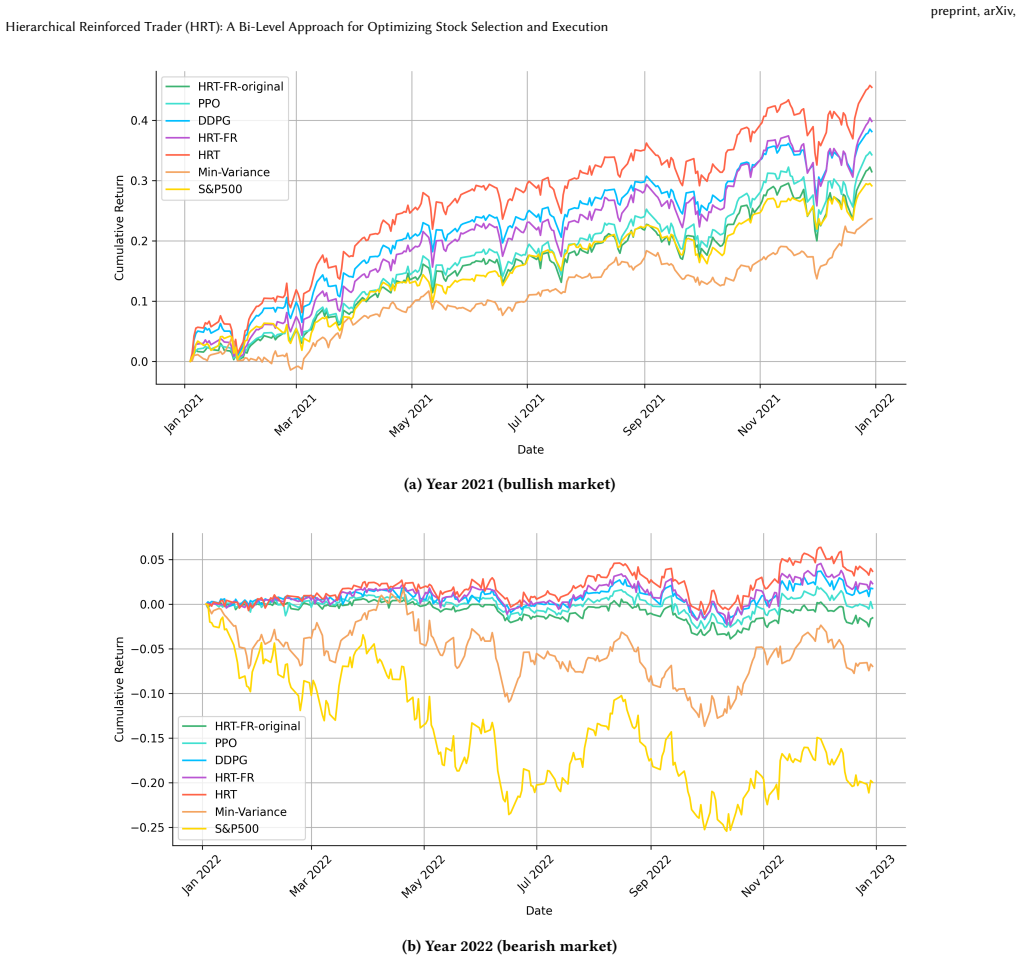

Figure 3. Figure 3: Cumulative return curves of different investment strategies and S&P 500. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

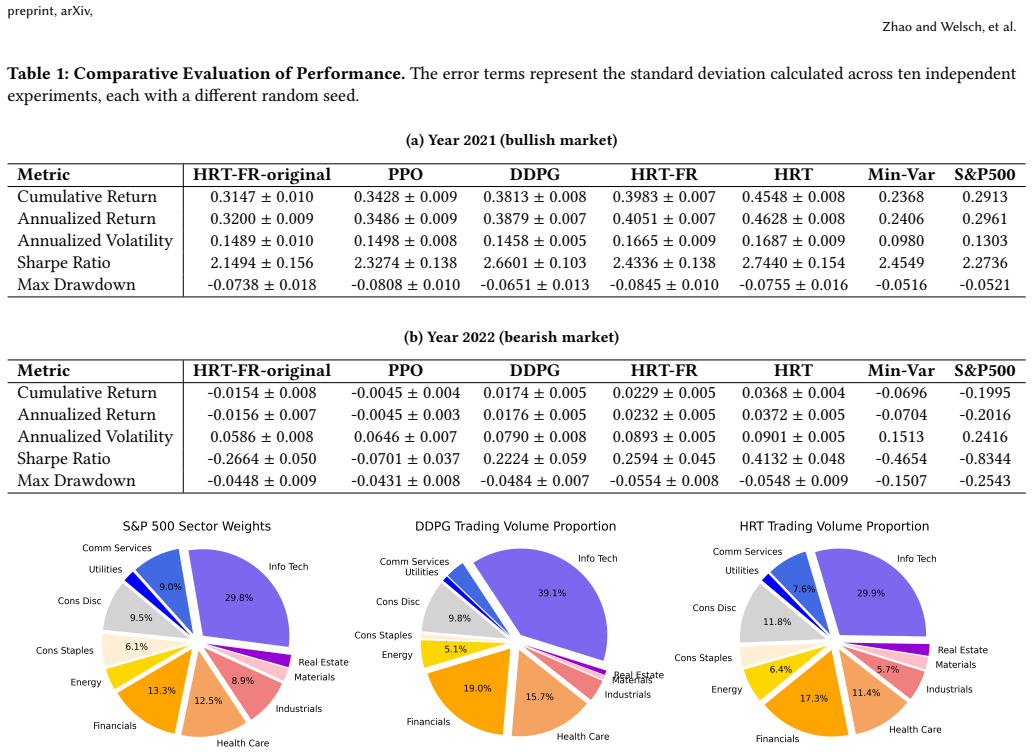

Figure 4. Figure 4: Comparison of Trading Volume Proportions: DDPG versus HRT. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Automated equity trading requires converting noisy market and news signals into executable portfolio decisions under risk, turnover, and transaction costs. We propose Hierarchical Reinforced Trader (HRT), a bi-level reinforcement learning framework for text-aware portfolio management in multi-asset equity markets. HRT separates trading into two coordinated decisions: a factorized sparse High-Level Controller (HLC) selects asset-level increase, reduce, or hold directions from compact market and text-derived signals, while a risk-aware Low-Level Controller (LLC) converts these directions into feasible portfolio weight adjustments under turnover, drawdown, and text-risk penalties. This decomposition avoids enumerating the full joint action space and makes selection and execution easier to inspect. We evaluate HRT on an open stock-news benchmark with a fixed 89-stock Nasdaq universe, using 2013--2018 for training, 2019 for validation, and 2020--2023 for final out-of-sample testing; the test horizon is restricted to 2020--2023 due to public benchmark data availability under the same timestamp-clean text-aware protocol. Across market-proxy, same-universe portfolio, alpha-only, flat-RL, and hierarchical ablation baselines, HRT delivers the strongest learning-based return--risk--cost trade-off. The full model improves Sharpe from 1.06 for HRT-Base to 1.24, reduces daily turnover from 0.112 to 0.090, and remains robust under transaction-cost stress. These results suggest that separating sparse directional selection from risk-aware execution is an effective way to incorporate market forecasts and text-derived risk signals into portfolio management.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes Hierarchical Reinforced Trader (HRT), a bi-level RL framework with a High-Level Controller (HLC) for sparse directional asset selection from market/text signals and a Low-Level Controller (LLC) for risk-aware execution under turnover/drawdown/text-risk penalties. It evaluates on a fixed 89-stock Nasdaq universe (2013-2018 train, 2019 val, 2020-2023 test) and claims HRT achieves the best return-risk-cost trade-off among market-proxy, same-universe, alpha-only, flat-RL, and ablation baselines, improving Sharpe from 1.06 (HRT-Base) to 1.24 and reducing daily turnover from 0.112 to 0.090 while remaining robust to transaction costs.

Significance. If the reported gains prove robust, the bi-level decomposition provides a practical method for scaling RL to high-dimensional portfolio actions while incorporating text-derived risk signals, addressing a key challenge in automated equity trading.

major comments (3)
  1. [Abstract] Abstract and results section: The central performance claims (Sharpe 1.24 vs. 1.06, turnover 0.090 vs. 0.112) are single point estimates with no reported standard errors, multi-seed averages, or statistical tests. In RL settings, policy-gradient variance routinely produces Sharpe fluctuations of 0.1-0.3 across seeds on identical data, so the 0.18 delta cannot be confidently attributed to the hierarchical design rather than training stochasticity.
  2. [Abstract] Evaluation protocol (described in abstract): Reliance on one fixed 2013-2018/2019/2020-2023 split on a static 89-stock universe without rolling windows, cross-validation, or regime-stratified tests leaves open whether gains are regime-specific to 2020-2023 or generalizable; this directly affects the claim of the 'strongest' trade-off.
  3. [Abstract] Abstract: The comparison to flat-RL and other baselines lacks detail on whether those baselines received identical reward-coefficient tuning, network architectures, or data-exclusion rules as HRT; without this, the superiority claim cannot be isolated to the bi-level structure.
minor comments (2)
  1. Clarify the precise functional form and coefficient values of the text-risk, drawdown, and turnover penalties in the LLC objective function.
  2. Specify the RL algorithm (e.g., PPO, SAC) and network dimensions used for HLC and LLC.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment point by point below, indicating planned revisions to strengthen the paper.

read point-by-point responses
  1. Referee: [Abstract] Abstract and results section: The central performance claims (Sharpe 1.24 vs. 1.06, turnover 0.090 vs. 0.112) are single point estimates with no reported standard errors, multi-seed averages, or statistical tests. In RL settings, policy-gradient variance routinely produces Sharpe fluctuations of 0.1-0.3 across seeds on identical data, so the 0.18 delta cannot be confidently attributed to the hierarchical design rather than training stochasticity.

    Authors: We agree that single-point estimates limit assessment of variability in RL training. In the revised manuscript we will report all key metrics as averages over multiple random seeds together with standard errors, allowing readers to evaluate whether the observed improvements exceed typical training stochasticity. revision: yes

  2. Referee: [Abstract] Evaluation protocol (described in abstract): Reliance on one fixed 2013-2018/2019/2020-2023 split on a static 89-stock universe without rolling windows, cross-validation, or regime-stratified tests leaves open whether gains are regime-specific to 2020-2023 or generalizable; this directly affects the claim of the 'strongest' trade-off.

    Authors: The fixed temporal split follows the public benchmark protocol whose timestamp-clean text data are only available for the 2020-2023 test window. We will add an explicit limitations paragraph discussing the absence of rolling-window or regime-stratified tests and the consequent possibility that results are influenced by 2020-2023 market conditions. Additional regime-stratified breakdowns will be included where they can be computed without violating the benchmark constraints. revision: partial

  3. Referee: [Abstract] Abstract: The comparison to flat-RL and other baselines lacks detail on whether those baselines received identical reward-coefficient tuning, network architectures, or data-exclusion rules as HRT; without this, the superiority claim cannot be isolated to the bi-level structure.

    Authors: We will expand the experimental-details section to document the hyperparameter search procedure, network architectures, reward-coefficient grids, and data-exclusion rules applied uniformly to HRT and all baselines. This will make the fairness of the comparison explicit and allow isolation of the bi-level contribution. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical RL evaluation on held-out test window

full rationale

The paper describes a bi-level RL agent trained on 2013-2018 data, validated on 2019, and evaluated on the separate 2020-2023 window using a fixed 89-stock universe. Reported Sharpe (1.24) and turnover (0.090) are out-of-sample metrics produced by running the trained policy on unseen future data; they are not obtained by re-fitting or re-using the training objective on the test set itself. No equations, self-citations, or uniqueness theorems are invoked in the abstract or description that would reduce the central claim to a definitional loop or fitted-input renaming. Standard train/test separation in RL portfolio papers is externally falsifiable and does not meet any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

3 free parameters · 2 axioms · 2 invented entities

The central claim rests on standard RL assumptions plus several free parameters in the reward function and the invented controllers; no machine-checked proofs or external benchmarks beyond the reported backtest are supplied.

free parameters (3)
  • turnover penalty coefficient
    Tuned to balance trading frequency against returns in the low-level controller.
  • drawdown and text-risk penalty weights
    Chosen to incorporate risk signals; directly affect the reported Sharpe and turnover.
  • RL learning rates and discount factors
    Standard hyperparameters fitted during training on 2013-2018 data.
axioms (2)
  • domain assumption A bi-level policy decomposition yields near-optimal joint actions without enumerating the full space
    Invoked to justify separating HLC and LLC rather than training a flat RL agent.
  • domain assumption Text-derived signals can be processed without look-ahead bias under the benchmark protocol
    Required for the out-of-sample claims on 2020-2023 data.
invented entities (2)
  • High-Level Controller (HLC) no independent evidence
    purpose: Produces sparse asset-level increase/reduce/hold decisions from compact signals
    New component introduced to factorize the action space.
  • Low-Level Controller (LLC) no independent evidence
    purpose: Converts directions into feasible weight adjustments under turnover and risk penalties
    New component introduced to handle execution constraints.
