RLInspect: An Interactive Visual Approach to Assess Reinforcement Learning Algorithm

T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Interactive visualization of state, action, agent architecture, and reward can reveal RL training problems, such as vanishing gradients and policy divergence, that reward curves alone miss.

desk verdict Useful modular RL visualization tool, but the central confidence metric is unjustified and the evaluation is anecdotal. read the letter →

arxiv 2411.08392 v1 pith:MJ56BH5X submitted 2024-11-13 cs.AI

Geetansh Kalra , Divye Singh , Justin Jose This is my paper · ORCID
classification cs.AI
keywords reinforcementlearningvisualanalyticsmodelinterpretabilityactionconfidencepolicydivergencestate-spacevisualizationrewardvolatilitydeepQ-networks
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

RLInspect is an interactive visual analytics tool for diagnosing reinforcement learning training. Its central claim is that jointly inspecting state, action, agent architecture, and reward gives a truer picture of training health than the reward curve alone, and that specific visual signatures—falling action confidence, rising policy divergence, vanishing gradients, or spiking reward volatility—reveal when and why an agent's performance degrades. The paper presents a proof that action confidence, defined as $1 - \operatorname{entropy}(\pi(s))$, converges to one as TD-style training converges, and demonstrates the tool on the Cartpole environment, where a vanishing-gradient episode visible in the gradient view aligns with drops in confidence and rises in divergence and volatility. If the claim is right, RLInspect is a practical debugging companion for RL practitioners who currently monitor almost nothing but the reward curve.

What carries the argument

The load-bearing object is the action-confidence identity $\text{confidence}(s) = 1 - \operatorname{entropy}(\pi(s))$, which compresses the policy distribution into a scalar expected to approach 1 as training converges. The supporting machinery includes the softmax conversion of Q-values to a policy (Eq. 3), entropy normalized by the log of the action-space size (Eq. 4), the TD(0) update (Eq. 2) used in the proof that confidence grows monotonically, Euclidean and Jaccard distances for action convergence, Jensen-Shannon divergence with natural logarithm for policy divergence, incremental PCA for state embedding, and volatility with the coefficient of variation for rewards. These computations are organized as pluggable Analyzer modules that read data through a central DataHandler and emit interactive plots, which the ReportGenerator aggregates into a single HTML report.

What would settle it

Train a tabular agent on a simple two-choice problem where both actions have identical optimal Q-values, and use softmax action selection; because softmax maps equal values to a uniform distribution, the policy entropy stays at its maximum and RLInspect's action confidence remains near zero even though the agent is performing optimally. This directly contradicts the paper's claim that confidence converges to one for a well-behaved algorithm.

Watch

Extended reading notes

Core claim

On its own terms, the paper's discovery is a tool organization: RLInspect breaks RL training into four inspectable components. The State Module projects high-dimensional states into two dimensions with incremental PCA and plots state-space coverage, exploration-versus-exploitation splits, and training-versus-non-training states. The Action Module evaluates, over a fixed set of $k$ states, the action confidence of Eq. (1), the distance between action vectors of consecutive updates (Euclidean for continuous, Jaccard for discrete actions), and the Jensen-Shannon divergence between consecutive policy distributions. The Agent Architecture Module plots weight, bias, and gradient distributions to expose problems like vanishing gradients, and the Reward Module computes volatility and the coefficient of variation after removing outliers. The paper's Cartpole case study ties the modules together: from roughly episode 650 onward confidence drops, action convergence rises, policy divergence spikes, gradients nearly vanish during episodes 666–672, and reward volatility increases, and the paper reads this alignment as evidence that the tool identifies the cause of a performance decline.

Load-bearing premise

The paper assumes that for a well-behaved RL algorithm positive rewards on optimal actions monotonically increase action values and probabilities, so policy entropy falls and action confidence converges to one; this premise fails when the best policy is randomized or has several equally good actions, and the confidence signal's interpretation depends on it.

Editorial extensions

If this is right

  • Practitioners can localize a training failure to a specific episode window by aligning the action-confidence drop, policy-divergence spike, gradient collapse, and reward-volatility rise in the four module views.
  • When the learning rate is constant, a sudden policy-divergence spike can be attributed to a large temporal-difference error, giving a concrete diagnostic rule based on Eq. 6.
  • The paper's proof implies that monotone action confidence is a convergence indicator for tabular TD(0), Monte Carlo, TD($\lambda$), and policy iteration, so the tool can double as a convergence check for those algorithms.
  • Because the Analyzer base class can be extended and data handlers customized, users can add new analyses without reworking the core I/O or report generation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An implication the paper leaves implicit is that action confidence is a relative health signal, not an absolute certificate: the proof's assumption of a deterministic optimal policy fails for stochastic optimal policies or multiple equally good actions, where a well-trained agent can hold entropy above zero and confidence below one.
  • A testable extension would be to run RLInspect across multiple seeds on Atari or continuous-control benchmarks; if the alignment of confidence, divergence, gradient, and volatility signals reproduces across runs, the tool could serve as an early-warning system for vanishing gradients before the reward curve collapses.
  • Because incremental PCA is a linear projection, the visual clusters in the state-space scatter plots may not reflect true distances in the original high-dimensional space; comparing the tool's state-space view with a nonlinear embedding such as t-SNE would show whether the apparent coverage gaps are real or artifacts of the projection.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper presents RLInspect, a modular interactive visual analytics tool for assessing reinforcement learning training. The tool comprises four modules—state, action, agent architecture, and reward—each offering one or more interactive Plotly-based visualizations, and it aggregates outputs into an HTML report. The authors illustrate the tool on a Cartpole training run, interpreting state-space coverage, action confidence, action convergence, policy divergence, gradient distributions, and reward volatility as diagnostic signals for training issues. The paper claims that RLInspect provides a more comprehensive view of RL training than reward alone and that users can identify and potentially correct issues. The manuscript includes no quantitative evaluation, user study, baseline comparison, or statistical validation of the claimed diagnostic insights.

Significance. If the central claim were established, RLInspect would be a useful contribution: interactive, multi-component visualization of RL training is a plausible complement to reward-curve monitoring, and the modular, extendable architecture is a sensible design choice. The paper also makes a concrete, testable assertion that specific visual patterns (e.g., confidence drops, gradient vanishing, volatility spikes) correspond to identifiable training problems. However, the evidence presented is purely anecdotal—a single Cartpole example with screenshots—and the mathematical justification for the key action-confidence metric in Section 3.3 is not valid as stated. The value of the tool therefore rests on an unproven and partly incorrect interpretation of its metrics. The modular design and the explicit attempt to connect state, action, reward, and architecture signals are strengths that could form the basis of a solid systems paper if accompanied by rigorous evaluation and a corrected or appropriately hedged theoretical discussion.

major comments (3)
  1. [Section 3.3, Eq. (1)-(4)] The proof that action confidence converges to 1 is not valid as stated. The argument that a positive reward and an optimal action imply the TD(0) target exceeds the current action value, and hence that Q increases monotonically, is false: Q-learning can decrease Q when the current estimate exceeds the bootstrapped target, a common situation under overestimation, and convergence of Q is not guaranteed merely by positive rewards. Furthermore, the limiting policy is not a delta distribution in general; with multiple optimal actions or a stochastic optimal policy, the softmax policy remains uniform over optimal actions, and the base-|A| entropy of Eq. (4) is nonzero, so confidence does not approach 1. Finally, the continuous case is misstated: the differential entropy of a Dirac delta is −∞, not 0, so the claimed limit confidence → 1 does not follow from the given definition. Because the Episode 650 confidence drop in Cartpole is interpreted as an identified training issue, this proof is load-bearing for the paper's central claim and needs either a corrected derivation under explicitly stated assumptions or an empirical validation that confidence has the claimed semantics.
  2. [Sections 3.2–3.5 and Figure 6] The paper's central claim that RLInspect enables users to 'gain insights into the model's behaviour, identify issues during training, and potentially correct them effectively' is not supported by any evaluation. The demonstration consists solely of qualitative descriptions of Cartpole screenshots; there is no user study, no quantitative accuracy of issue detection, no comparison with reward-only monitoring or with existing tools such as DRLViz, and no ablation of the individual modules. Without such evidence, it is impossible to assess whether the tool's visual patterns reliably distinguish real training problems from benign stochasticity or from artifacts of the chosen metrics. The authors should either add an evaluation study or substantially narrow the claims to a descriptive presentation of the tool's features.
  3. [Section 3.3, Eqs. (5)-(6)] The interpretation of policy divergence and action convergence as diagnostic signals is not justified. The proof of convergence for these metrics again invokes the unproven premise that Q_{t+1} → Q_t, which is a restatement of convergence rather than a demonstration. Moreover, the claim that a sudden spike in divergence with constant learning rate is 'due to higher error' ignores other sources of divergence, including stochasticity in the reward signal, off-policy updates, target-network changes, and the effect of the softmax denominator over non-optimal actions. Since the paper uses this reasoning to attribute the Episode 650 behavior to error, the diagnostic interpretation should be validated empirically or, at minimum, stated as a heuristic with explicit caveats.
minor comments (6)
  1. [Section 3.3, Eq. (1)] The definition of confidence as 1 − entropy is not normalized for arbitrary entropy definitions; the claim that confidence lies in [0,1] holds for discrete entropy with base |A|, but for the continuous case mentioned in the proof the differential entropy is unbounded, so the formula does not define a meaningful confidence value. The authors should clarify the domain of validity of Eq. (1).
  2. [Section 3.2, Figures 3-5] The scatter plots lack axis labels, color legends, and descriptions of how the IPCA projection axes correspond to the original state variables; adding these would make the visualizations reproducible and interpretable.
  3. [Section 3.5, Eq. (7)-(8)] The reward module refers to an outlier-removal threshold and to exponential moving averages without specifying their values or the method used; these parameters affect volatility and risk-reward ratios and should be reported or exposed in the interface.
  4. [Section 3.3] The set of k predefined states used for action-module analyses is not described: how k is chosen, how the states are sampled, and whether the results are sensitive to k are all unspecified, which limits the reproducibility of the reported Cartpole observations.
  5. [Section 4] The limitations section acknowledges only the absence of continuous-space action confidence and the drawbacks of IPCA, but it does not mention that the action-confidence proof fails for stochastic optimal policies or overestimation; these are conceptually more serious limitations of the tool's interpretability and should be listed.
  6. [Section 5] There are several typographical errors, including 'intteractive' in the conclusion and 'conincides' in Section 3.3; a careful proofread is needed.

Circularity Check

1 steps flagged · score 6.0 of 10

Action-confidence proof in §3.3 reduces 'confidence→1' to the assumed delta-limit of the policy, which is the same statement by Eq. (1).

  1. self definitional [Section 3.3, Action Module, 'Action confidence' proof (Eqs. 1-4)]
    "For well behaved RL algorithm, the confidence of an action converges to one as the training converges. ... confidence(s) = 1− entropy(π(s)) (1) ... For the limiting case, lim_{t→∞} π_t(s) → δ(s) ... As entropy for a delta distribution is zero and given the definition of confidence in eq.1 lim_{t→∞} confidence_t(s) → 1"

    Eq. (1) defines confidence as 1 − entropy(π); with Eq. (4)'s base-|A| logarithm, confidence→1 iff entropy→0 iff the policy tends to a delta distribution. The target proposition is therefore exactly 'lim π_t is delta.' The proof never derives that limit from Eq. (2); it asserts it ('For the limiting case, lim_{t→∞} π_t(s) → δ(s)') and then reads off confidence→1. The derivation reduces to the conclusion restated as an assumption. The suggested mechanism (positive reward ⇒ target exceeds Q ⇒ monotone increase ⇒ delta limit) is also not implied by TD(0): overestimation can make target < Q, and optimal stochastic or multi-action policies have non-delta softmax limits. The Episode-650 confidence-drop interpretation relies on this equivalence.

full rationale

The paper's main contribution—an interactive visual tool with state, action, reward, and architecture modules—is largely self-contained: the state scatter/IPCA, reward volatility (Eq. 7), risk-reward ratio (Eq. 8), and gradient histograms are direct data summaries with no fitted parameters and no self-citation chain. The only circular step is in the Action Module. There, 'action confidence' is defined as 1−entropy(policy), so the claimed theorem 'confidence converges to one' is equivalent by definition to 'policy converges to a delta distribution.' The proof inserts this equivalence as its limiting-case assumption rather than deriving it from TD(0); the intermediate monotonicity argument is invalid in general (bootstrapped targets can fall below current Q estimates; optimal stochastic policies are not delta). Because the paper treats the Episode 650 confidence drop in Cartpole as evidence of a training issue, this definitional reduction affects the tool's advertised 'identify issues' capability. Action convergence and policy divergence proofs are tautological but harmless: they state that if Q stops changing, then policies stop changing, which is continuity, not circularity. No self-citations are load-bearing. Scoring reflects that one central diagnostic metric's proof reduces by construction to an assumption equivalent to the claim, while the tool itself retains independent content.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

No new physical or ontological entities are introduced; the tool's metrics (action confidence, action convergence, policy divergence, risk-reward ratio) are transformations of existing quantities (policy entropy, action distances, reward statistics). The central claims rest on domain assumptions about policy convergence and metric validity, plus two user-chosen parameters that are left unspecified.

free parameters (2)
  • k (number of predefined states in action module) = unspecified
    Section 3.3 says action analyses are carried out on 'a predefined set of k states' and averaged; the selection method and value of k are not described, which affects the representativeness of action-confidence and divergence measurements.
  • outlier-removal threshold in reward module = unspecified
    Section 3.5 says the module 'removes outliers from the data' without specifying the rule; the threshold affects volatility and moving-average calculations.
assumptions (4)
  • domain assumption The policy converges to a delta distribution (deterministic policy) in the limit of training.
    Used in the action-confidence proof (Section 3.3); false for stochastic optimal policies, so the claimed convergence of confidence to 1 is not general.
  • domain assumption TD(0) updates with positive reward and optimal action produce monotonic Q-value increases and monotonic entropy decreases.
    Underpins the confidence-convergence proof; does not hold when the current action is already optimal or in stochastic environments.
  • domain assumption The 2D incremental PCA embedding preserves the structure needed to assess state-space coverage and exploration-exploitation trade-offs.
    The state module relies on IPCA; the paper acknowledges dimensionality-reduction drawbacks in the Limitations section, so the embedding's fidelity is an unverified premise.
  • domain assumption Reward volatility (standard deviation) and the risk-reward ratio (coefficient of variation) are meaningful indicators of training stability and risk aversion.
    These metrics are presented in Section 3.5 without validation that they correlate with actual RL performance.

how reviews work

0 comments
Cite this review

Pith. "Pith review of RLInspect: An Interactive Visual Approach to Assess Reinforcement Learning Algorithm." pith.science (2026). https://pith.science/paper/MJ56BH5X

@misc{pith2026241108392,
  author       = {Pith},
  title        = {Pith review of: RLInspect: An Interactive Visual Approach to Assess Reinforcement Learning Algorithm},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MJ56BH5X}},
  note         = {Machine review of arXiv:2411.08392}
}
read the original abstract

Reinforcement Learning (RL) is a rapidly growing area of machine learning that finds its application in a broad range of domains, from finance and healthcare to robotics and gaming. Compared to other machine learning techniques, RL agents learn from their own experiences using trial and error, and improve their performance over time. However, assessing RL models can be challenging, which makes it difficult to interpret their behaviour. While reward is a widely used metric to evaluate RL models, it may not always provide an accurate measure of training performance. In some cases, the reward may seem increasing while the model's performance is actually decreasing, leading to misleading conclusions about the effectiveness of the training. To overcome this limitation, we have developed RLInspect - an interactive visual analytic tool, that takes into account different components of the RL model - state, action, agent architecture and reward, and provides a more comprehensive view of the RL training. By using RLInspect, users can gain insights into the model's behaviour, identify issues during training, and potentially correct them effectively, leading to a more robust and reliable RL system.

Figures

Figures reproduced from arXiv: 2411.08392 by the authors.

Figure 1
Figure 1. Architecture of RLInspect [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Sequence of data flow in RLInspect In the upcoming sections we will present an overview of each module of RLInspect and demonstrate how they provided insights for the RL agent trained on a Cartpole environment of OpenAI Gym [32]. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. State-space distribution in Cartpole. Exploration vs Exploitation Distribution: Exploration-exploitation trade-offs are critical in RL, as they dictate the agent’s behaviour in an uncertain and dynamic environment. Agents must balance the exploration of new state-action pairs with exploiting the current knowledge to achieve their goals. Identifying areas in the state-space where the model over or under explores, can… view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Exploration vs Exploitation in Cartpole. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5
Figure 5. Figure 5: Training vs Non-Training states in Cartpole. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Convergence, Divergence and Confidence of Actions in Cartpole. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 7
Figure 7. Figure 7: Gradient distribution for Cartpole. The red box in the figure shows the area where gradient [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8

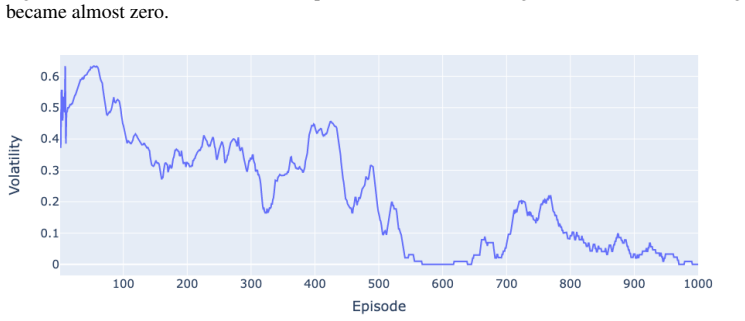

Figure 8. Figure 8: Volatility in rewards across episode for Cartpole. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
