ARM: Appearance Reconstruction Model for Relightable 3D Generation

T0 review · 3 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read By moving appearance reconstruction into UV texture space, ARM produces sharper, relightable 3D assets from sparse-view images than previous feed-forward methods.

desk verdict A competent but provisional feed-forward systems paper: the UV-space InstantAlbedo stage is the real new idea, and the evaluation protocol needs tightening before the 'outperforms' claim can be fully trusted. read the letter →

arxiv 2411.10825 v1 pith:XUTUMZSQ submitted 2024-11-16 cs.CV cs.GR

Xiang Feng , Chang Yu , Zoubin Bi , Yintong Shang , Feng Gao , Hongzhi Wu , Kun Zhou , Chenfanfu Jiang
show 1 more author
Yin Yang
This is my paper · ORCID
classification cs.CVcs.GR
keywords image-to-3DreconstructionrelightableappearanceUVtexturespacePhysically-BasedRenderingmapsmaterialdecompositionsparse-viewlargemodelprior
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

ARM is a feed-forward system that turns sparse-view images of an object into a ready-to-use 3D mesh with physically based appearance. Its central claim is that geometry and appearance should be handled by separate networks, and that appearance should be reconstructed directly in UV texture space rather than decoded from triplanes at fixed resolution. On that basis it back-projects the input views, masks, positions, view directions, and surface normals onto the texture atlas, fuses them with a global-receptive-field inpainting network, and adds a material-aware image prior to separate illumination from albedo. The paper reports that this yields sharper textures, spatially varying roughness and metalness, and better relighting than prior feed-forward models such as InstantMesh, MeshFormer, and SF3D, trained on 8 H100 GPUs in about five days. A sympathetic reader would take away that texture resolution and material disentanglement, not geometry, are the remaining bottleneck for practical single-image 3D generation.

What carries the argument

The load-bearing mechanism is the UV texture-space appearance stage, which ARM calls InstantAlbedo. Instead of querying a triplane with an MLP, ARM first unwraps the predicted mesh into atlas charts, then explicitly back-projects each input view and its auxiliary data (mask, position, texture coordinate, view direction, normal, and material-encoded features) onto the texture map. Six per-view U-Net feature maps are fused by max-pooling, and an FFC-Net with a global receptive field inpaints unseen texels and refines the result; a material prior from a material-aware image encoder is injected through the back-projection so the network can tell material boundaries apart from lighting gradients. This machinery is what lets ARM produce spatially varying albedo, roughness, and metalness at texture resolution without scaling up the triplane transformer.

What would settle it

One decisive test is to take a GeoRM mesh, unwrap it with two different atlas parameterizations, and run InstantAlbedo on both; if the predicted albedo and relit renders differ substantially in sharpness or show misaligned seams, the central assumption of transferable texel correspondence fails. A sharper test: at inference, replace the unwrapping code used to build the training atlas with an independent UV unwrapper, and check whether PSNR and LPIPS on relit renders degrade on GSO.

Watch

Extended reading notes

Core claim

On the paper's own terms, the discovery is that the blurriness and baked-in lighting that plague feed-forward image-to-3D models come from decoding appearance from triplanes, and that both problems disappear when appearance is processed in UV texture space. ARM's GeoRM predicts a density field and extracts a mesh with differentiable marching cubes; the mesh is unwrapped into atlas charts, and InstantAlbedo back-projects the six input views together with masks, positions, texture coordinates, view directions, and normals onto those charts. A per-view U-Net extracts features, max-pooling fuses the views, and an FFC-Net with a global receptive field inpaints unseen regions, producing both a lighting-baked color map and a decomposed diffuse albedo map. Roughness and metalness are predicted separately per vertex by GlossyRM, and a material-aware image encoder (a DINO ViT initialized on semantic material maps and fine-tuned jointly) is back-projected as a material prior so that strong lighting does not bake into the albedo. The authors report that this design outperforms LGM, CRM, InstantMesh, MeshFormer, and SF3D on GSO and OmniObject3D for both geometry and appearance, and beats SF3D on relit renders under novel lighting.

Load-bearing premise

The method assumes that the flattening of a newly predicted mesh onto a 2D texture atlas at inference matches the flattening that was used to prepare the pre-unwrapped training shapes; if those two unwrappings disagree, the image pixels and material features back-projected onto the texture land in the wrong spots, and the sharpness gains would not transfer.

Editorial extensions

If this is right

  • Single-image 3D generation can produce assets with true PBR maps, not just vertex colors, so downstream engines can relight them under arbitrary environments.
  • Texture sharpness no longer scales with triplane resolution, because appearance is resolved on the UV atlas where measurements are directly visible.
  • A learned material prior can separate illumination from albedo even with only six views, reducing the baked-in-lighting artifacts that inverse-rendering losses leave behind.
  • Geometry and appearance can be trained separately, which keeps the memory footprint low enough that triplane resolution can be raised to 256 and the whole system trained on 8 GPUs.
  • The reported gains on GSO, OmniObject3D, and the relighting dataset imply that the UV-space pipeline transfers across object categories outside the Objaverse training subset.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Pith inference: the UV-space stage is modular: any mesh with a consistent unwrapping could receive InstantAlbedo's texture refinement, so ARM's appearance gains may transfer to other geometry generators or to user-provided meshes.
  • Pith inference: the material prior's separation of albedo and lighting suggests a testable extension to unseen material categories or to in-the-wild photos with unknown lighting, where the prior would need to generalize beyond Objaverse's material distribution.
  • Pith inference: because the training atlas and the inference mesh are unwrapped by different code paths, the method's robustness to mesh perturbation and re-meshing is a risk worth measuring directly; a geometry generator that produces a slightly different triangulation could break texel correspondence.
  • Pith inference: pairing this texture-space pipeline with a video-based multi-view generator instead of Zero123++ could reduce the cross-view inconsistencies the paper names as its main limitation, since back-projection would then average over more consistent measurements.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes ARM, a feed-forward image-to-3D reconstruction system that separates geometry from appearance. GeoRM predicts a density field through an LRM-style triplane synthesizer and extracts a mesh with differentiable marching cubes; GlossyRM predicts per-vertex roughness and metalness; InstantAlbedo back-projects six multi-view images and auxiliary data into an atlas UV texture space and uses a U-Net plus an FFC-Net with global receptive field to predict lighting-baked color and decomposed diffuse albedo, aided by a material-aware image encoder. Training uses rendered Objaverse subsets, including 55K pre-unwrapped GeoRM meshes for InstantAlbedo. Experiments on GSO and OmniObject3D report improved geometry and appearance metrics over LGM, CRM, InstantMesh, SF3D, and MeshFormer, and ablations show benefits from the back-projected measurements, the material prior, and the FFC-Net. A supplementary relighting benchmark compares ARM with SF3D on 100 PBR objects.

Significance. Relightable appearance reconstruction from sparse views is an important and timely problem, and ARM's architecture is a credible engineering contribution: it moves appearance synthesis into UV texture space to circumvent triplane resolution limits, fuses multi-view information with max-pooling, inpaints unseen texture regions with a global-receptive-field network, and addresses material/lighting ambiguity with a learned material prior. The design choices are individually motivated and the ablations in Table 3 and Figure 6 support their contribution. Training on 8 H100 GPUs is also a practical strength. If the evaluation protocol is made fully rigorous, the method would be a solid addition to the feed-forward 3D generation literature, with concrete value for relighting applications.

major comments (3)
  1. [§7.2 and Supp. §14] The alignment protocol is load-bearing for the central 'outperforms' claim and is underspecified. Supp. §14 states that rotations and scales are sampled, refined with ICP, and that the authors 'select the alignment with the highest evaluation score,' but it does not state how many restarts are used, which evaluation score (F-Score, CD, PSNR, LPIPS, or a combination) governs the selection, or whether the same selected alignment is used for all reported metrics. The Table 1 margins over MeshFormer are small (e.g., GSO F-Score 0.968 vs 0.966; PSNR 21.692 vs 20.500; LPIPS 0.137 vs 0.141), so a per-metric or test-set-tuned alignment search can plausibly account for the reported gaps. Please specify the exact number of restarts, the selection criterion, and whether the chosen alignment is fixed across all geometry and appearance metrics; if possible, report results under a single pre-registered, metric-independent alignment.
  2. [§7.2 and Table 2] The relightable-appearance superiority claim rests on an author-created benchmark whose protocol is not independently checkable. The 100-object PBR set, the environment maps, the object selection criteria, and the rendering pipeline are not fully specified, only SF3D is used as a baseline, and no error bars or per-object distributions are reported. Moreover, Supp. Table 5 explicitly labels the PBR-map comparison as 'only indicative,' yet the main text uses these results to support strong conclusions about material decomposition. Please release the benchmark or evaluate on an existing public PBR dataset, add at least one additional relightable baseline, and provide variance information or significance tests for the metrics in Tables 1 and 2.
  3. [§5.2 and §6] The UV-space approach assumes that the atlas unwrapping used to pre-unwrap the 55K training shapes from GeoRM matches the unwrapping applied to a new GeoRM mesh at inference. The paper does not state whether the same unwrapping implementation, chart-cutting parameters, and texel sampling are used in both places. If the inference-time unwrapping differs, the back-projected image measurements, auxiliary maps, and learned inpainting cues are misaligned with the texel-to-surface correspondence seen in training, and the reported texture-quality gains would not transfer. Please state explicitly that the training and inference unwrappings are identical, or train InstantAlbedo with the same on-the-fly unwrapping used at test time.
minor comments (4)
  1. [Throughout] The manuscript contains several typographical errors (e.g., 'Conventionly' in the Introduction, 'illustred' in Section 4, 'latter processing' for 'later processing', and 'reflective properties' for 'reflectance properties'); a copyedit pass would improve readability.
  2. [§6 and §7.1] The relationship between the number of input views and the loss views is unclear: Section 6 says 'with 6 used as input' while Section 7.1 sets N = 10 for view selection, and Equations (2)–(4) sum over N views. Please clarify whether N refers to the number of supervision views, input views, or both, and how the six input views are chosen.
  3. [Supp. Table 5 and §7.2] Since the supplementary PBR-map comparison is explicitly described as 'only indicative,' the main text should carry this caveat when discussing material-decomposition quality in Section 7.2 and Figure 5, rather than presenting the comparison as a definitive quantitative result.
  4. [Fig. 2 caption] The caption lists 'Density ρ m Roughness & Metalness' as outputs of the same MLP, but the pipeline assigns density to GeoRM and roughness/metalness to GlossyRM; the caption should separate the two models to avoid confusion.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: ARM's reconstruction claims are empirically supervised and benchmarked against external datasets; no prediction reduces to its inputs by construction.

full rationale

ARM is an empirical feed-forward reconstruction system. Its geometry and appearance stages are trained with supervised losses on ground-truth renders (Eqs. 2-4) and evaluated on external GSO and OmniObject3D benchmarks, so the reported geometry and lighting-baked appearance numbers are not defined in terms of the method's own outputs. InstantAlbedo is trained on 55K shapes generated by GeoRM, but that matches its inference-time input distribution (Sec. 6) rather than fitting any evaluation target; the UV-space back-projection is a consistent training/evaluation convention, not a prediction equal to its input. The material prior is an encoder initialized from external weights [58] and fine-tuned against ground-truth materials; the FFC-Net and measurement back-projection contributions are supported by ablations (Tab. 3), so their role is empirical. Self-citations ([1], [88]) occur in related-work and dataset-similarity contexts and are not load-bearing for the central claim. The Supp. Sec. 14 alignment protocol ('We select the alignment with the highest evaluation score') is a legitimate benchmark-validity concern: metric-driven alignment search can inflate small margins in Tables 1-2, and the search details are unspecified. This is an evaluation-protocol risk, not a circular derivation, because the predicted meshes are produced without access to ground truth and the alignment is applied post-hoc to all methods. The paper's own caveats (multi-view inconsistencies in Sec. 8; 'indicative scores' for PBR maps in Supp. Tab. 5) further weaken the strength of some secondary claims but do not make any central result equivalent to its inputs by construction.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claim rests on a supervised training pipeline rather than a mathematical derivation. The main unverified premises are the stability of UV atlas correspondence between training and inference, the consistency of diffusion-generated multi-view inputs, and the transfer of the material prior. The hand-chosen loss weights and input view count are free parameters. No invented entities are introduced.

free parameters (3)
  • Loss balancing coefficients λz, λM, λn, λ1, λ2, λ3 = 0.5, 1.0, 0.2, 0.7, 0.3, 0.1
    Hand-chosen weights for geometry and material losses (Eqs. 2 to 4); no sensitivity study is reported, yet they determine the trained models that produce all benchmark numbers.
  • Input view count (6 views) = 6
    The pipeline uses six back-projected views for appearance; the choice is fixed by the Zero123++ setting and is not varied in ablations.
  • Evaluation alignment and metric thresholds = F-score threshold 0.1; 100,000 sampled points; scale range 0.7 to 1.4
    Hand-chosen evaluation settings. Alignment that maximizes the score is selected, which can inflate reported numbers.
assumptions (5)
  • domain assumption Appearance is described by a microfacet SVBRDF with GGX distribution (Eq. 1), with only diffuse albedo, roughness, and metalness.
    Section 3 and Eq. 1; no global illumination, interreflection, transmission, or subsurface effects are modeled, so the network can only encode what this model can express.
  • domain assumption The six input views produced by Zero123++ from a single image are sufficiently consistent for pixel-accurate back-projection.
    Sections 4 and 5.2. The authors themselves note in Section 8 that inconsistencies in upstream multi-view images introduce artifacts.
  • domain assumption The DINO-based material prior, pretrained on a semantic material dataset, transfers to in-the-wild images after fine-tuning on synthetic Objaverse renders.
    Section 5.3. The encoder's pretraining data and the synthetic training distribution may not cover all real-world materials, which affects albedo-lighting separation.
  • ad hoc to paper Offline pre-unwrapped atlas charts of GeoRM-output shapes have the same UV correspondence as atlas charts computed for new meshes at inference.
    Sections 5.2 and 6. 'Since unwrapping is time-consuming and impractical to perform during training, we synthesize a pre-unwrapped training dataset offline.' A mismatch between training and inference unwrapping would break texture back-projection.
  • standard math Differentiable marching cubes and rasterizer correctly extract and render the iso-surface from GeoRM's density grid.
    Section 5.1 relies on DiffMC [76] and a differentiable rasterizer [27]; these are established tools.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ARM: Appearance Reconstruction Model for Relightable 3D Generation." pith.science (2026). https://pith.science/paper/XUTUMZSQ

@misc{pith2026241110825,
  author       = {Pith},
  title        = {Pith review of: ARM: Appearance Reconstruction Model for Relightable 3D Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XUTUMZSQ}},
  note         = {Machine review of arXiv:2411.10825}
}
read the original abstract

Recent image-to-3D reconstruction models have greatly advanced geometry generation, but they still struggle to faithfully generate realistic appearance. To address this, we introduce ARM, a novel method that reconstructs high-quality 3D meshes and realistic appearance from sparse-view images. The core of ARM lies in decoupling geometry from appearance, processing appearance within the UV texture space. Unlike previous methods, ARM improves texture quality by explicitly back-projecting measurements onto the texture map and processing them in a UV space module with a global receptive field. To resolve ambiguities between material and illumination in input images, ARM introduces a material prior that encodes semantic appearance information, enhancing the robustness of appearance decomposition. Trained on just 8 H100 GPUs, ARM outperforms existing methods both quantitatively and qualitatively.

Figures

Figures reproduced from arXiv: 2411.10825 by the authors.

Figure 1
Figure 1. ARM generates high-quality, relightable 3D content from a single image input. This figure presents sample results generated from different input images, demonstrating ARM’s ability to reconstruct a variety of objects with spatially-varying appearance. Please refer to our supplementary video for results under dynamic view and lighting. Abstract Recent image-to-3D reconstruction models have greatly advanced geometry g… view at source ↗
Figure 2
Figure 2. Overview of our pipeline. (left) Starting from sparse-view input images generated by a diffusion model [59], ARM separates shape and appearance generation into two stages. In the geometry stage, ARM uses GeoRM to predict a 3D shape from the input images. In the appearance stage, ARM employs InstantAlbedo and GlossyRM to reconstruct PBR maps, enabling realistic relighting under varied lighting conditions. (right) Bot… view at source ↗
Figure 3
Figure 3. Overview of InstantAlbedo. InstantAlbedo operates in the texture UV space. This process begins by converting all necessary data to UV texture space. Given the unwrapped mesh from GeoRM, we back-project images, material encodings, and auxiliary data into UV texture space, resulting in six sets of inputs corresponding to the six input views. InstantAlbedo then processes these maps using a U-Net and an inpainting-speci… view at source ↗
Figures from the paper (6 more)
Figure 4
Figure 4. Figure 4: Qualitative comparison. We present examples of single-image 3D generation across different methods. While other methods exhibit blurriness, ARM reconstructs complex patterns with sharp details. Please zoom in to examine the texture quality. Full results, including comp…
Figure 5

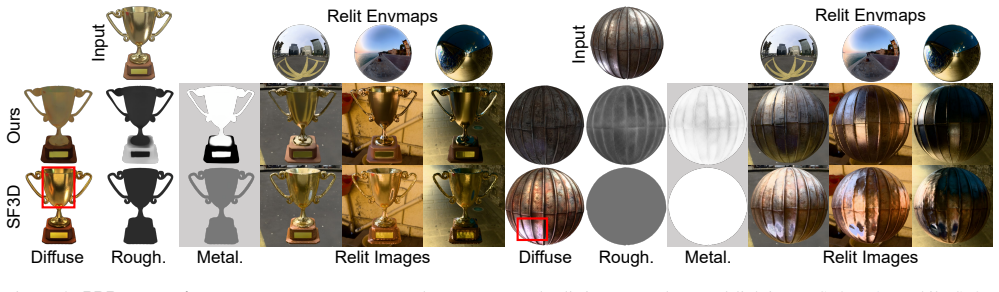

Figure 5. Figure 5: PBR comparison. We compare reconstructed PBR maps and relit images under novel lighting to SF3D [4]. While SF3D produces constant roughness and material with lighting baked into the diffuse color (highlighted in the figure), our method generates spatially-varying appea…
Figure 6
Figure 6. Figure 6: Ablation results for FFC-Net and material prior. FFC-Net aids in inpainting unseen regions (top), while the ma￾terial prior improves the diffuse decomposition (bottom), both for the InstantAlbedo stage. 7.4. Ablations We perform both visual and quantitative ablation ex…
Figure 7
Figure 7. Figure 7: Architecture of tri￾plane synthesizer. A pretrained ViT image encoder [6] converts multi￾view input images into im￾age tokens. To make the network aware of camera pose, we add AdaLN cam￾era pose modulation lay￾ers to the ViT encoder, fol￾lowing Instant3D [29], en￾ablin…
Figure 9
Figure 9. Figure 9: Qualitative comparison. We present examples of single-image 3D generation across different methods. While other methods exhibit blurriness, ARM reconstructs complex patterns with sharp details. Please zoom in to examine the texture quality. 15. Additional results In Ta…
Figure 10
Figure 10. Figure 10: PBR comparison. We compare reconstructed PBR maps and relit images under novel lighting to SF3D [4]. While SF3D produces constant roughness and material with lighting baked into the diffuse color (highlighted in the figure), our method generates spatially-varying appe…
