REVIEW 3 major objections 6 minor 39 references
Diffusion Product Quantization
T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash
Pith's one-line read Product quantization lets 1-bit diffusion models generate sharp images while cutting model size over 24 times.
desk verdict A useful, mostly sound adaptation of product quantization to DiT at extreme low bit-widths; the internal VQ comparison is convincing, but the external baselines are not size-matched and one derivation is stashed in a missing appendix. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is the product-quantization decomposition: the weight matrix is split into sub-vectors of dimension $d$, and for each subspace position there is a separate codebook $C \in \mathbb{R}^{N \times k \times d}$, so the effective number of representable vectors is $k^N$ while the codebook memory grows only linearly. Around that core sit two mechanisms the paper adds: a codebook pool (Eqs. 4-5) that ranks centroids by assignment frequency, merges any centroid within L2 distance $\tau_c = 0.05$ of a more important one, and stores the result in FP16 so the compressed codebook stays within the designed size budget; and a two-part calibration (Eqs. 7-8) that reassigns codewords in the forward pass using the activation-weighted error $\|Wx - W'x\|^2$ and updates codewords in the backward pass through the DDPM loss $L_{\mathrm{DDPM}}$.
What would settle it
Reproduce the 1-bit DiT-XL/2 experiment on ImageNet with two variants: the published DPQ pipeline, and the same pipeline with $\tau_c = 0$ (no centroid merging, with the bit budget held constant by reducing the subspace dimension $d$). If the unmerged variant's FID is substantially better than DPQ's reported 14.03, the codebook-pool merging step, not product quantization itself, is where generative quality is lost. Also verify the projection-storage calculation promised in the appendix, since the claimed size ratio depends on it.
Extended reading notes
Core claim
The central claim is that existing vector-quantization compression fails for diffusion models at low bit-widths not because quantization is wrong, but because a single shared codebook cannot represent high-dimensional sub-vectors precisely, and because errors compound over the iterative denoising steps. DPQ replaces the shared codebook with product quantization: each weight row is split into subspaces, each subspace has its own codebook, and the effective number of codewords grows exponentially while codebook storage grows only linearly. To stop the codebooks from canceling the compression gain, DPQ stores centroids in FP16 and merges similar, rarely used centroids into a codebook pool according to a distance threshold, keeping the codebook no more than a quarter of the assignment size. Finally, calibration updates the assignments in the forward pass by minimizing the activation-weighted reconstruction error $\|Wx - W'x\|^2$ and fine-tunes the codebooks in the backward pass with the DDPM noise-prediction loss. On DiT-XL/2 at 256x256, the method reports FID 6.84 at 2 bits and 14.03 at 1 bit, with size ratios of 12.08x and 24.57x respectively, consistently beating the vector-quantization and post-training-quantization baselines compared in the paper.
Load-bearing premise
The claimed 24x compression at 1 bit assumes that merging similar, rarely used codebook centroids with a fixed threshold $\tau_c = 0.05$ preserves generative quality, a heuristic the paper does not analyze for sensitivity.
Editorial extensions
If this is right
- At 1 bit, the DPQ-compressed DiT-XL/2 retains usable generation (FID 14.03, IS 110.23, precision 0.6863), where ordinary VQ collapses to FID 91.71.

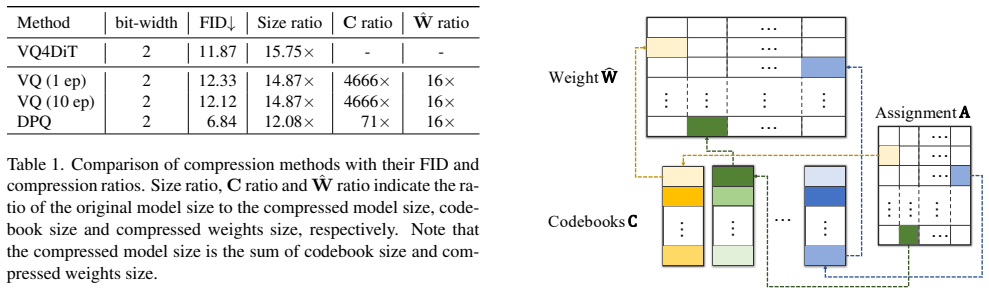

- At 2 bits, DPQ gives FID 6.84 and a 12.08x size reduction, beating GPTQ, Q-DiT, and VQ4DiT at 250, 100, and 50 sampling steps.
- The method transfers to U-Net diffusion models: on DDIM/CIFAR-10 it reaches FID 5.19 at 4 bits and 7.01 at 2 bits.
- Compressing the codebook itself is mandatory for PQ in this setting; keeping the codebook within one quarter of the assignment size is what preserves the overall size ratio.
- Calibrating with the DDPM loss outperforms block-wise distillation, and forward-pass codeword reassignment adds a further gain in the reported ablation.
Reading between the lines
- If the reported 1-bit result reproduces, product quantization should be tried on larger text-to-image DiTs, where per-subspace codebooks could absorb higher weight dimensionality without the exponential codebook blow-up that defeats ordinary VQ.
- The error-accumulation analysis suggests a testable extension: calibrating against a subset of denoising timesteps might cut the roughly 5-hour calibration cost while preserving the FID gains, since the paper shows saturation after 5 epochs.
- Because DPQ does not accelerate inference, a natural next step is combining DPQ with activation quantization or pruning; the codebook structure may also enable lookup-table-based fast inference.
- The codebook-pool merging rule is an importance-based pruning inside the codebook; a principled alternative would select centroids to merge by their contribution to reconstruction error on real activations rather than usage frequency alone.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes Diffusion Product Quantization (DPQ), a post-training compression method for diffusion transformers. It replaces a single vector quantizer with product quantization over weight rows, compresses the resulting PQ codebooks via a usage-weighted 'codebook pool' with a similarity threshold tau_c, and calibrates the assignments and codebooks using activation-weighted reassignment and the DDPM loss. Experiments on DiT-XL/2 at ImageNet 256x256 report FID 14.03 at 1-bit with a 24.57x model-size reduction, versus FID 91.71 for a VQ baseline at 28.65x, and favorable comparisons against GPTQ, Q-DiT, and VQ4DiT; an additional DDIM/CIFAR-10 experiment shows applicability to a U-Net diffusion model.
Significance. If the size-accounting and comparisons hold, DPQ is a useful step for extreme low-bit diffusion-model compression: it demonstrates that PQ's larger effective codebook capacity translates into much better generative quality than VQ at 1-2 bits, while the codebook pool keeps storage overhead under control. The paper is transparent about limitations (no inference speedup, costly calibration), and the VQ-versus-DPQ comparison under the same calibration pipeline is a clean internal control. The main caveats are the deferred projection-storage derivation and the need for size-matched external comparisons.
major comments (3)
- [§3.2, Tables 1-3] The headline size ratios are not verifiable as written. The derivation of the projection storage is explicitly deferred to a missing appendix ('see appendix'), and the text does not state whether the projection table is included in the 'Size ratio', 'C ratio', or 'codebook size' columns. Please provide the full per-layer calculation, including the number of projection entries ((n/d)*k), their integer width, and a comparison with the pool size for the actual DiT-XL/2 layer shapes, and state unambiguously whether all compressed components are counted in the reported size ratios. Without this, the 24.57x claim is not derivable from the equations in §3.2.
- [Table 3] The comparison against VQ4DiT and the other external baselines is confounded by effective model size. At 2-bit/250 steps, DPQ has a size ratio of 12.08x, whereas VQ4DiT reports 15.75x; at 3-bit, DPQ has 9.92x versus VQ4DiT 10.59x. In both cases DPQ is less compressed, so part of the FID gain may be attributable to a larger model rather than to the quantization method. The paper should either match baselines at equal compressed size, plot FID/sFID versus size ratio for all methods, or explicitly discuss this trade-off when claiming to 'consistently outperform' other PTQ methods.
- [§3.2, Eq. (4)-(5)] The codebook-compression heuristic is load-bearing, but no sensitivity analysis is reported. The threshold tau_c is fixed at 0.05 with no ablation, and the paper does not report how many centroids are merged per layer or how the pool size N' relates to the number of surviving centroids. Since the size/quality trade-off of the whole method depends on this heuristic, an ablation over tau_c (or over N') is needed to support the claim that redundancy can be removed without significant quality loss.
minor comments (6)
- [§4.2] The sentence 'While DPQ has a slightly larger size ratio due to the additional codebook size' contradicts Table 2, which shows DPQ with smaller size ratios (i.e., larger compressed models) at every bit-width; please correct the wording.
- [Table 5] The ablation table is under-specified: the three rows do not make clear which combination of PQ, DDPM loss, blockwise distillation, and codeword adjustment is being compared, and the text's claim that blockwise distillation is suboptimal is not backed by a displayed row.
- [Eq. (7)] The expression c_{j,p} x_j is ambiguous because c_{j,p} is a d-dimensional row vector and x_j is a matrix or vector; please specify the shapes and the dimension over which the norm is taken.
- [§4.1] The text says the listed bit-width does not represent actual bits per value, yet Tables 2 and 3 still label rows '1 bit', '2 bit', etc.; please add an effective-bits-per-value column or otherwise define the bit-width convention precisely.
- [Figures 2 and 4] Several annotations in Figures 2 and 4 are too small or undefined; in particular, the right panel of Figure 2 should define the x-axis (diffusion step?) and clarify which blocks are selected for the MSE comparison.
- [§4.1] The paper credits code from [21] and [25] but provides no repository URLs or version identifiers; please add reproducibility details for the quantization and calibration pipelines.
Circularity Check
No significant circularity: the reported compression ratios and FID values are measured against FP32 and external baselines, so the central claims are not equivalent to their inputs.
full rationale
The paper's load-bearing result (Table 2) compares the measured FID of the actually quantized DiT-XL/2 model against the FP32 model and external baselines such as VQ4DiT, GPTQ, and Q-DiT; none of these reported numbers is defined in terms of DPQ's own fitted parameters. The codebook-pool target N' = mn/(16d^2) in Section 3.2 is a storage-accounting design target: the paper first requires the codebook to be at most one-quarter the size of the assignments, and then halves that target to leave room for the projection mapping, whose size bound is deferred to an appendix. This is arithmetic and design choice, not a prediction that reduces to its own input. The merging threshold tau_c = 0.05 and the calibration epoch count are ordinary hyperparameters, and the paper provides an ablation for epochs while the lack of a tau_c sensitivity study is a completeness risk rather than circularity. The code reused from references [21] and [25] is acknowledged, and those citations are not used to justify the central empirical claim; the baselines are external. The missing appendix and the absent sensitivity analysis for tau_c should be weighed as correctness and completeness concerns, but they do not make the derivation circular.
Assumptions & free parameters
free parameters (2)
- tau_c (codebook merge threshold) =
0.05
- Calibration epochs =
5
assumptions (4)
- standard math Product quantization with N subspaces and k codewords per subspace yields k^N effective codewords at linear codebook cost.
- domain assumption Quantization error accumulates over diffusion timesteps and is the dominant cause of quality degradation.
- domain assumption The DDPM loss is a valid objective for fine-tuning compressed codebooks and restores generation quality.
- domain assumption The activations x_j used in assignment reassignment (Eq. 7) are representative of the quantized model's forward pass across timesteps.
Cite this review
Pith. "Pith review of Diffusion Product Quantization." pith.science (2026). https://pith.science/paper/SYDHQI43
@misc{pith2026241112306,
author = {Pith},
title = {Pith review of: Diffusion Product Quantization},
year = {2026},
howpublished = {\url{https://pith.science/paper/SYDHQI43}},
note = {Machine review of arXiv:2411.12306}
}
read the original abstract
In this work, we explore the quantization of diffusion models in extreme compression regimes to reduce model size while maintaining performance. We begin by investigating classical vector quantization but find that diffusion models are particularly susceptible to quantization error, with the codebook size limiting generation quality. To address this, we introduce product quantization, which offers improved reconstruction precision and larger capacity -- crucial for preserving the generative capabilities of diffusion models. Furthermore, we propose a method to compress the codebook by evaluating the importance of each vector and removing redundancy, ensuring the model size remaining within the desired range. We also introduce an end-to-end calibration approach that adjusts assignments during the forward pass and optimizes the codebook using the DDPM loss. By compressing the model to as low as 1 bit (resulting in over 24 times reduction in model size), we achieve a balance between compression and quality. We apply our compression method to the DiT model on ImageNet and consistently outperform other quantization approaches, demonstrating competitive generative performance.
