Pith's one-line read This paper claims an ECG question-answering model can be trained to genuinely use the ECG waveform by removing a confounder, so it fails when the real ECG is replaced by a random one.

desk verdict Useful ECG-LLM paper with a clever random ECG probe; causal story oversold and probe lacks a control, but the direction is sound and worth refereeing. read the letter →

arxiv 2411.14795 v1 pith:ZFFXWRMX submitted 2024-11-22 cs.CL

Haitao Li , Ziyu Li , Yiheng Mao , Ziyi Liu , Zhoujian Sun , Zhengxing Huang This is my paper · ORCID

classification cs.CL

keywords ECGquestionansweringmultimodallargelanguagemodelelectrocardiogramanalysisde-biasingbackdooradjustmentconfoundercontrastivelearningzero-shotclassification

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper sets out to build a multimodal large language model that answers questions about electrocardiograms (ECGs) by actually reading the ECG waveform, rather than by guessing from the question's wording alone. The authors argue that a hidden confounder — severity of illness — creates a spurious correlation between how specific a question is and whether the answer says 'abnormal,' so a naively trained model can ignore the ECG entirely and still look plausible. They design a de-biased pre-training scheme based on causal backdoor adjustment, and support it with a Random ECG Test: when the true ECG is replaced by a random one, their de-biased model's accuracy drops by 18.2 points, while a model trained without de-biasing drops only 2.0 points. That contrast is the paper's central evidence that the de-biased model genuinely conditions on the ECG signal. If this holds, it matters because ECG question-answering systems could be trusted to flag subtle waveform findings rather than parrot question-answer correlations.

What carries the argument

The load-bearing components are (1) an ECG encoder, a Vision-Transformer-style architecture pre-trained with multimodal contrastive learning on roughly 800,000 ECG–report pairs; (2) a linear projection layer that maps downsampled ECG encoder tokens into the token space of LLaMA2-7B-chat, with LoRA adapters keeping the LLM mostly frozen; and (3) the de-biased pre-training dataset, constructed by pairing each verify-type question with an ECG that answers 'yes' and an ECG that answers 'no,' intended to realize the backdoor adjustment formula and remove the severity-of-illness confounder. The mechanism that carries the argument is the Random ECG Test: replacing the input ECG with a random one and measuring the accuracy drop, which the paper uses as a probe for whether the model truly uses the ECG signal.

What would settle it

Measure a severity label (for example, number of abnormal leads or a clinical risk score) on the ECG-QA pairs, then check whether the de-biased model's accuracy varies across severity strata when the question wording is held fixed. If the model still answers correctly on 'yes' ECGs and incorrectly on 'no' ECGs in a way that tracks severity, the backdoor adjustment has not removed the confounder. A second falsifier: if a model trained with flipped yes/no pairing (or with pairs matched on severity) shows a similar Random ECG Test drop, the claimed necessity of the de-biasing scheme is called into question.

Watch

Extended reading notes

Core claim

The paper claims that the failure of ECG multimodal LLMs to use the input signal can be traced to a backdoor path $X \leftarrow C \rightarrow Y$, where $X$ is the (ECG, question) pair, $Y$ is the answer, and $C$ is the latent 'severity of illness.' Because sick patients ask more specific questions and get more 'abnormal' answers, the question text alone becomes a proxy for the answer. The authors implement the backdoor adjustment $P(Y \mid \mathrm{do}(X)) = \sum_c P(Y \mid X, c) P(c)$ by constructing a de-biased pre-training set: for every yes/no question, they pair one ECG that yields 'yes' with one that yields 'no,' balancing the strata. The result, they report, is a model that outperforms text-tagging baselines on the ECG-QA benchmark across single and dual-ECG question types, generalizes zero-shot to four external ECG datasets, and — the crucial test — loses 18.2 points of accuracy when the input ECG is replaced by a random recording, whereas the non-de-biased model loses only 2.0 points. The paper interprets this accuracy collapse as direct evidence that the de-biased model relies on the ECG content.

Load-bearing premise

The de-biased pre-training assumes that pairing each question with one ECG that yields 'yes' and one that yields 'no' actually implements the backdoor adjustment and removes the severity-of-illness confounder — but the paper never measures severity, so if the pairing does not balance the confounder, the causal claim collapses and the method is just a data re-balancing heuristic.

Editorial extensions

If this is right

If correct, ECG question-answering models can be built that condition on the raw waveform, preserving information that text-tag pipelines compress away.
The de-biasing recipe — per-question yes/no ECG pairing before fine-tuning — could become a standard pre-training step for medical MLLMs to break question–answer shortcuts.
The method extends naturally to dual-ECG comparison questions, so longitudinal 'have things changed?' queries can be answered by the same architecture.
The Random ECG Test offers a simple, model-agnostic diagnostic for whether any multimodal model is actually using its non-text input.
Zero-shot results on external ECG datasets suggest the de-biased model can screen for arrhythmias without task-specific fine-tuning.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The confounder argument likely transfers to other medical VQA settings where question specificity correlates with disease severity (for example, radiology reports); a severity-stratified question set would be a stronger test of genuine modality use than a random-input probe.
The Random ECG Test could be sharpened into a calibration metric: instead of a random ECG, use a matched ECG from a different patient with the same diagnosis, separating 'uses ECG content' from 'uses ECG identity.'
Because the paper never measures severity, the same de-biasing recipe could be tested with an explicit severity stratification (e.g., number of abnormal leads) to see whether the accuracy on the Random ECG Test further improves; this would convert the causal claim from assumption to measurement.
A fully matched design — pairing yes/no ECGs on patient severity, age, and sex — might eliminate residual confounding more cleanly than the current question-level pairing, and would offer a direct test of whether the 1:1 ratio is doing the causal work.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Short version: solid, useful engineering paper with a clever diagnostic probe; the causal framing is decorative and the random ECG test needs one control before the 'understanding' claim is fully priced, but the direction is right and worth refereeing.

New and good: the paper feeds raw ECG embeddings into a frozen LLM through a projection layer, which is the standard VLM move but new for ECG; it also handles two-ECG comparison, a real clinical scenario. The bias quantification in Table 1 is a concrete, reproducible observation: broad questions mostly come with normal ECGs and specific questions with abnormal ones, which gives real teeth to the spurious-correlation story. The random ECG test is a cheap, effective probe: the non-debiased model drops only 2 points average, the debiased model drops 18, so the debiased model is clearly conditioning on the ECG signal. Zero-shot AUC on PTB-XL, LUDB, Shaoxing, and CPSC supports that the learned representations carry clinical information.

Soft spots: the paper claims the paired yes/no pre-training realizes the backdoor adjustment in Eq. (6). It doesn't. Severity of illness is never measured, P(c) is never estimated, and the construction is a balanced-data heuristic, not a stratification on the confounder. The causal language is stronger than the evidence. The random ECG test lacks a control: a permuted or noise-corrupted ECG from the same patient would rule out low-level feature sensitivity. As is, the 18-point drop shows the model depends on the ECG; the zero-shot results, not the test alone, support 'understands.' Statistical rigor is thin: no error bars, no seeds, and the method is worse than M3AE and MedViLL on CC-Query and CI-Query. The paper says 'most subsets,' which is honest, but the headline 'consistently outperformed' appears in the text and should be softened.

Who this is for: anyone building medical MLLMs or working on ECG QA. It is a legitimate incremental advance. A serious referee should engage with it. My recommendation: send to peer review with the expectation of major revisions that add a permuted-ECG control, temper the causal claims, and report seed variance.

Referee Report

4 major / 5 minor

Summary. The paper proposes an ECG multimodal large language model (MLLM) that feeds ECG embeddings directly into LLaMA2-7B-chat through a learned projection, with LoRA adapters, rather than converting ECGs into text tags via an external classifier. The authors also present a causal analysis of ECG question-answering, arguing that a latent confounder, “severity of illness,” creates a spurious correlation between question text and answer, and they design a “de-biased” pre-training stage that pairs each yes/no question with one ECG yielding a yes answer and one yielding a no answer. The model is evaluated on the ECG-QA dataset under adversarial train/test splits, on zero-shot classification across four ECG datasets, and in an ablation study using a Random ECG Test. The main empirical findings are that the de-biased model outperforms baselines on most ECG-QA subsets, shows competitive zero-shot AUC, and exhibits a much larger accuracy drop than the non-de-biased model when the input ECG is replaced with a random ECG. The paper concludes that the model genuinely understands and utilizes the ECG signal.

Significance. If the causal interpretation and the Random ECG Test evidence were fully supported, this would be a valuable contribution to medical MLLMs: it would show both a practical architecture for ECG-grounded question answering and a method for reducing a model’s reliance on spurious question-answer correlations. The direct-embedding architecture, support for dual-ECG comparison, use of public benchmarks, and the demonstration that a model can be made more sensitive to the ECG input are all useful and credible components. However, the central causal claim is not backed by measurement of the confounder or a valid implementation of backdoor adjustment, and the Random ECG Test lacks controls for non-clinical sensitivity. As it stands, the paper is best read as an empirical engineering contribution with promising results, but the causal and interpretational conclusions outrun the evidence.

major comments (4)

[Method: De-biased Pre-training, Eq. (6) and Table 1] The construction in Table 1(Lower) does not implement the backdoor adjustment in Eq. (6). The paper never measures the confounder C (“severity of illness”), never estimates P(c), and never stratifies the paired examples by any severity label. Equalizing the number of yes and no ECGs per question changes the marginal P(Y|question), but it is not equivalent to summing P(Y|X,c)P(c) over strata of C. Moreover, X in Eq. (6) is a single variable, while here X includes both the ECG and the question; applying the formula without further justification is not straightforward. The claim that the model is “deconfounded” is therefore unsupported. At minimum, the authors should reframe the procedure as a dataset-rebalancing heuristic, or provide a measured severity proxy and show that the paired data are balanced within severity strata.
[Ablation Study with Random ECG Test, Table 5] The Random ECG Test does not, by itself, establish that the model “understands and utilizes” the ECG signal. The paper does not state how the random ECGs were generated (random patient recordings, noise, phase-randomized signals, or another source), nor does it include a control condition that preserves non-clinical statistics of the signal. Because the de-biased pre-training stage trains the projection and LoRA on paired yes/no ECGs for each question, the model may become sensitive to any ECG variation, including non-clinical artifacts, lead configurations, or amplitude calibration. A permuted-ECG control, a lead-shuffle control, or a noise-injection control is needed to distinguish clinical comprehension from brittle low-level sensitivity. The zero-shot results in Table 4 provide supporting evidence for clinically meaningful representations, but they are not integrated into the Random ECG Test comparison.
[Introduction and Table 1(Upper)] The evidence for the causal claim C → X is only correlational. Table 1(Upper) shows that questions mentioning specific abnormalities are associated with a lower proportion of normal ECGs, but this does not establish that “severity of illness” causes question wording. The text says “we will prove this quantitatively in Table 1(Upper),” which overstates what the table can show. The authors should either temper the causal language or provide a sensitivity analysis over plausible severity distributions, ideally with an objective severity measure such as the number of abnormal findings or a clinical diagnosis label.
[Experiments, ECG-QA Results, Table 3] The claim that the model “consistently outperformed both traditional and LLM-based methods” is too strong relative to the table. The model is worse than the best baseline on CC-Query (15.2 vs 22.0 for MedViLL) and CI-Query (3.2 vs 4.2), and no error bars, multiple seeds, or significance tests are reported. The central empirical claim would be strengthened by reporting variance across seeds and a statistical test, or at least by explicitly acknowledging the subsets where the method does not win and discussing why the de-biased pre-training may not transfer to query-type questions.

minor comments (5)

[Throughout] There are several typos and formatting issues, including “Feed Froward” in Eq. (3), “Alighment” in the heading, and inconsistent spacing in equations such as Eq. (5).
[Ablation Study with Random ECG Test, Table 5] The sentence “The de-biased model’s accuracy under the Random ECG Test is even lower than the non-de-biased model (about Random Guess)” is unclear: for binary verify questions, random guessing would be near 50%, but the reported values are near 65% and the random baseline for multi-class subsets is not defined. Please specify what “Random Guess” refers to.
[Method, Eq. (5)] The downsampling notation z[4i], z[4i+1], z[4i+2], z[4i+3] is ambiguous without stating whether indices are 0-based and how boundary tokens are handled; please clarify.
[Training] The de-biased pre-training stage uses only Verify questions, but the second stage adds Choose and Query questions. The paper should clarify how the de-biasing effect transfers to the other question types, since the Random ECG Test in Table 5 reports only Verify-type subsets.
[Experiments, Zero-Shot Ability, Table 4] The zero-shot results are reported without confidence intervals or significance tests. Given the small differences on several labels, a measure of variance would help assess whether the improvements are meaningful.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the core ECG-QA and zero-shot results are held-out evaluations, and the random-ECG probe is an empirical intervention rather than a fitted prediction or self-cited premise.

full rationale

The paper's main claimed derivation chain is an ECG encoder pretrained on MIMIC-ECG report pairs, a projection into LLaMA2-7B-chat, LoRA fine-tuning on the ECG-QA training split, and evaluation on the ECG-QA adversarial test split and on external zero-shot datasets (PTB-XL, LUDB, Shaoxing, CPSC). These evaluations are not fitted to the test data, and the reported gains are external to the training objective. The de-biased pretraining step constructs paired yes/no ECG examples for each question from the training split, which is a data-balancing intervention; calling it a backdoor adjustment (Eq. 6) is a causal interpretation that is not experimentally verified, but that is a validity gap rather than a circular reduction: the paper never defines 'de-biased' as equivalent to the outcome it later claims, and the random-ECG test is an additional probe rather than the training objective. The random-ECG test itself is an intervention that replaces the input ECG with a random one and measures accuracy change; while one may question whether the drop reflects clinical comprehension versus low-level sensitivity (no permuted-ECG or noise control is reported), this is a test-design validity concern, not an equation-to-equation identity or a fitted parameter renamed as a prediction. No load-bearing self-citation is present: the cited prior work on ECG-QA, MIMIC-ECG, and ECG encoders is external, and no 'uniqueness theorem' from the authors is invoked to force the architecture or the debiasing choice. Therefore, under the stated circularity criteria, the paper merits a score of 0.

Assumptions & free parameters 2 free parameters · 5 assumptions · 1 invented entities

The central empirical claims rest on standard deep learning components and on the assumption that the confounder model and the paired-data construction are valid. No new physical entities are introduced. The latent confounder C is a postulated variable with no independent measurement.

free parameters (2)

Yes/no pairing ratio in de-biased dataset = 1:1 chosen by hand
The de-biasing effect depends on balancing positive and negative examples for each question. The paper does not estimate the confounder distribution P(c) or justify the 1:1 ratio; it is a design choice rather than a fitted value.
ECG token downsampling factor = 4
Embedding tokens are concatenated in groups of four before projection (Eq. 5). This reduces sequence length and may discard ECG information; the choice is not varied or experimentally justified.

assumptions (5)

standard math Backdoor adjustment is a valid method for identifying P(Y|do(X)) in the specified SCM.
Pearl's backdoor adjustment is a standard causal inference result, invoked in the Training section around Eq. (6). The paper relies on this theorem to justify the de-biasing construction.
domain assumption Severity of illness is the only confounder affecting both question and answer in ECG QA.
The SCM in Figure 2(a) lists C as the confounder. Other unmeasured confounders (e.g., patient age, comorbidities, ECG quality) could also create spurious X-Y associations, and they are not accounted for.
domain assumption The ECG-QA adversarial split guarantees test questions are rephrased versions of training questions.
The paper relies on the dataset's claim of adversarial question construction (Datasets section). If some test questions overlap or are otherwise learnable, the conclusion that high accuracy implies ECG understanding is weakened.
domain assumption The MIMIC-ECG contrastive pre-training produces ECG embeddings that capture clinically relevant information for QA.
The ECG encoder is validated only indirectly through downstream QA performance and zero-shot AUC. No direct analysis of the learned representations is provided.
domain assumption Replacing an ECG with a random ECG from the same dataset is an adequate probe of ECG reliance.
The Random ECG Test assumes that a large accuracy drop under replacement can only be explained by genuine ECG usage. Other changes in the input distribution could also cause a drop.

invented entities (1)

Latent confounder 'severity of illness' (C)
purpose: Explains the spurious correlation between question and answer in ECG QA and motivates the de-biased pre-training design.
The paper infers this confounder from the observation that broad questions are associated with normal ECGs (Table 1 Upper), but it is never directly measured or tied to a clinical severity label. No independent falsifiable handle is provided.

how reviews work

0 comments

Cite this review

Pith. "Pith review of De-biased Multimodal Electrocardiogram Analysis." pith.science (2026). https://pith.science/paper/ZFFXWRMX

@misc{pith2026241114795,
  author       = {Pith},
  title        = {Pith review of: De-biased Multimodal Electrocardiogram Analysis},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ZFFXWRMX}},
  note         = {Machine review of arXiv:2411.14795}
}

read the original abstract

Multimodal large language models (MLLMs) are increasingly being applied in the medical field, particularly in medical imaging. However, developing MLLMs for ECG signals, which are crucial in clinical settings, has been a significant challenge beyond medical imaging. Previous studies have attempted to address this by converting ECGs into several text tags using an external classifier in a training-free manner. However, this approach significantly compresses the information in ECGs and underutilizes the reasoning capabilities of LLMs. In this work, we directly feed the embeddings of ECGs into the LLM through a projection layer, retaining more information about ECGs and better leveraging the reasoning abilities of LLMs. Our method can also effectively handle a common situation in clinical practice where it is necessary to compare two ECGs taken at different times. Recent studies found that MLLMs may rely solely on text input to provide answers, ignoring inputs from other modalities. We analyzed this phenomenon from a causal perspective in the context of ECG MLLMs and discovered that the confounder, severity of illness, introduces a spurious correlation between the question and answer, leading the model to rely on this spurious correlation and ignore the ECG input. Such models do not comprehend the ECG input and perform poorly in adversarial tests where different expressions of the same question are used in the training and testing sets. We designed a de-biased pre-training method to eliminate the confounder's effect according to the theory of backdoor adjustment. Our model performed well on the ECG-QA task under adversarial testing and demonstrated zero-shot capabilities. An interesting random ECG test further validated that our model effectively understands and utilizes the input ECG signal.

Figures

Figures reproduced from arXiv: 2411.14795 by the authors.

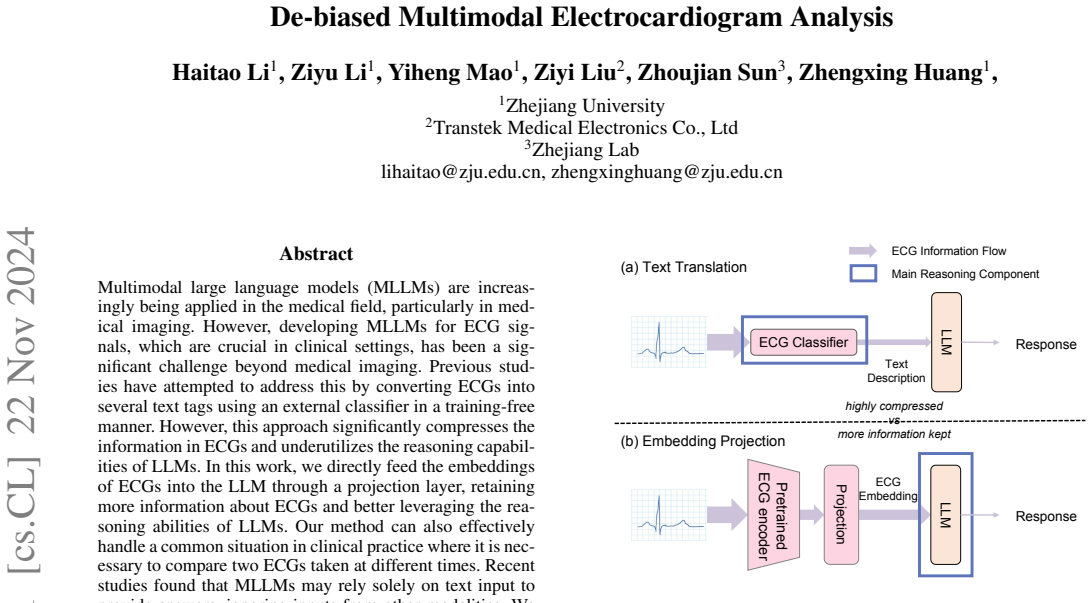

**Figure 1.** Comparison of two methods for constructing ECG multimodal LLMs. The ECG information fed into the LLM is highly compressed (text description) in the first approach compared to the second one (ECG embedding) and the first approach mainly reasons in external ECG classifiers while the second approach mainly reasons in the LLM. model be developed for electrocardiograms? Unlike the image domain, which benefits from sever… view at source ↗

**Figure 2.** (a) The Structural Causal Model of ECG Question-Answering. The confounder ‘severity of illness’ causes the spurious correlation X ← C → Y to mislead the model from the true objective X → Y. (b) Two examples illustrate this spurious correlation. Additionally, recent studies have found that MLLMs may rely solely on text input to generate answers, ignoring inputs from other modalities. We investigated this issue from… view at source ↗

**Figure 3.** The overview of our model. ECG encoder We employed a ViT (Dosovitskiy et al. 2020) modified for the characteristics of ECG signals, pre-trained on nearly 800,000 ECG-report pairs using multimodal contrastive learning (Radford et al. 2021), as our ECG encoder. Considering an ECG signal denoted as X ∈ RL×T with L leads and length T, we first performed min-max normalization on the signal for each lead to eliminate me… view at source ↗

Figures from the paper (1 more)

**Figure 4.** Figure 4: Case study the random ECG misled the model, causing the accuracy to drop. Conversely, minimal changes in accuracy would suggest that the model did not effectively use the ECG data, likely relying solely on the question to generate answers. We applied the Random ECG Te…
