Electronic correlations in epitaxial graphene: Mott states proximitized to a relativistic electron gas

T0 review · 3 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that a √3×√3 tin layer intercalated under epitaxial graphene on SiC(0001) is a strongly correlated Mott-Hubbard system whose pz electrons split into lower and upper Hubbard bands while graphene's Dirac cone survives.

desk verdict The Sn-√3 Mott layer under graphene is plausible and the STS/EELS/DMFT consistency is real, but the phase assignment is not element-specifically proven. read the letter →

arxiv 2412.01329 v1 pith:BLK6D5A7 submitted 2024-12-02 cond-mat.str-el cond-mat.mes-hall

Chitran Ghosal , Siheon Ryee , Zamin Mamiyev , Niklas Witt , Tim O. Wehling , Christoph Tegenkamp This is my paper · ORCID
classification cond-mat.str-elcond-mat.mes-hall PACS 71.27.+a73.22.Pr73.20.-r
keywords epitaxialgraphenetinintercalationMott-Hubbardbands√3×√3Snsuperstructuredynamicalmean-fieldtheoryscanningtunnelingspectroscopyelectronenergylossDiracelectrons
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper sets out to show that tin atoms intercalated beneath epitaxial graphene on SiC(0001) form a √3×√3 triangular lattice whose out-of-plane orbitals are so strongly correlated that they split into lower and upper Hubbard bands, while the graphene sheet above keeps its relativistic Dirac bands. The evidence is tunneling spectra with paired peaks near -0.5 V and +0.7 V (with L1/L2 and U1/U2 substructure), a non-dispersing 1.2 eV energy-loss peak, and dynamical mean-field calculations that produce the same Hubbard bands from a flat tin-derived band. If the assignment holds, the interface becomes a single epitaxial platform where Mott physics coexists with, and hybridizes to, a Dirac electron gas, with the tin registry (T4 versus H) and charge transfer as control knobs.

What carries the argument

The engine is an effective Hubbard-model Hamiltonian $H = H_0 + H_{\mathrm{int}}$ built from graphene and tin $p_z$ orbitals (the electron lobes sticking out of the layer): carbon and tin hopping terms, a single hybridization parameter $V_0$ between Sn and C, a crystal-field offset $\Delta = \epsilon_{\mathrm{Sn}} - \epsilon_{\mathrm{C}}$, and an on-site Hubbard interaction $U = 1.2$ eV on tin, solved by dynamical mean-field theory, a method that treats local quantum fluctuations beyond static mean field, using a continuous-time quantum Monte Carlo impurity solver. The flat Sn-$p_z$ band near the Fermi energy is the seed Mott state; the graphene Dirac bands act as the relativistic bath. A symmetry selection rule controls their coupling: at the graphene K point the Dirac states transform as the two-dimensional representations $E_1$ and $E_2$ under the sixfold symmetry of the hexagon, while the tin $p_z$ orbital transforms as the one-dimensional $A_1$ representation, so tin at the hexagon center (H) barely hybridizes with graphene, whereas tin below a carbon atom (T4) hybridizes strongly. The offset $\Delta$ governs charge transfer, and together $V_0$ and $\Delta$ determine whether the interface behaves as a Mott insulator or a doped correlated metal.

What would settle it

A spatial map of the √3 domains by element-specific core-level photoemission or Auger spectroscopy showing that tin coverage is far below one atom per √3 cell, or an angle-resolved photoemission spectrum showing no flat Sn-$p_z$ band with Hubbard satellites near -0.5 eV and +0.7 eV, would refute the central claim.

Watch

Extended reading notes

Core claim

The central claim is that a locally ordered Sn-√3×√3 phase at the graphene/SiC interface hosts Mott-Hubbard bands formed by Sn pz orbitals, directly in proximity to the Dirac cone of graphene. In STS, the occupied side shows split peaks L1/L2 near -0.43 and -0.68 eV and the unoccupied side shows U1/U2 near +0.7 eV; their separation matches the 1.2 eV non-dispersing EELS loss and the roughly 1 eV Mott gap obtained from DMFT. The calculations show that the flat Sn-pz band gives rise to robust lower and upper Hubbard bands for both T4 and H registries, while the T4 registry allows hybridization with graphene that broadens and splits the Hubbard bands and the H registry suppresses hybridization by symmetry, leaving sharper, atomic-limit-like bands. When charge transfer is increased, quasiparticle peaks appear near the Fermi level, matching the correlated-metal signatures seen close to zero bias.

Load-bearing premise

The load-bearing premise is that the repeated diffraction pattern and the bias-dependent microscope contrast come from a tin triangular lattice beneath the graphene, an assignment made from symmetry and imaging rather than from element-specific or momentum-resolved measurements; if those domains are instead silicon-carbide or buffer-layer reconstructions, or if the local tin coverage differs from one atom per repeat unit, the strong-correlation interpretation has no substrate.

Editorial extensions

If this is right

  • The 1.2 eV non-dispersing EELS loss and the roughly 1.2 eV separation between the L1/L2 and U1/U2 STS peaks are the same Mott-Hubbard gap, so the correlated state is visible in both tunnel and loss spectroscopy.
  • Because the flat Sn-$p_z$ band produces Hubbard bands for both T4 and H registries, the Mott state is robust to local stacking; the registry only controls how much hybridization broadens and splits the bands.
  • The electron doping found in the graphene sheet (about 7.8×10^12 cm^-2, Fermi level around 330 meV above the Dirac point) provides the charge reservoir that can drive the Sn layer from a Mott insulator toward a doped correlated metal with quasiparticle peaks near the Fermi energy.
  • In the H registry the doped system resembles a doped Mott insulator beside a charge reservoir, while in the T4 registry the doped Mott state hybridizes with Dirac electrons, a situation the paper compares to magic-angle twisted bilayer graphene.
  • Molecular doping of the graphene side (for example with F4-TCNQ) should tune the correlated state, since the paper identifies charge transfer, not only U and hybridization, as a control parameter.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An immediate test is angle-resolved photoemission of the √3 domains: it should resolve a nearly flat Sn-$p_z$ band split into Hubbard satellites near -0.5 eV and +0.7 eV, cleanly separating tin states from the graphene Dirac cone.
  • The registry-controlled hybridization suggests that other group-IV intercalants, such as Ge or Pb, might form the same proximitized Mott family on SiC(0001) with different spin-orbit coupling and Hubbard U.
  • Since the √3 phase is grown by partial de-intercalation of a full Sn monolayer, the domain boundaries are a natural place to look for one-dimensional correlated or metallic states not discussed in the paper.
  • If the Mott assignment is correct, the system offers a Kondo-like platform in epitaxial graphene: the flat Sn band plays the role of a correlated lattice and the Dirac cone the conduction bath, with the T4/H registry tuning the effective hybridization.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript reports a combined SPA-LEED, STM/STS, EELS, DFT, and DMFT study of Sn intercalated under epitaxial graphene on SiC(0001). After full Sn intercalation and partial de-intercalation, the authors observe √3×√3 LEED reflexes and a surface phase with 6×6/6√3 periodicities; STS shows peaks near -0.5 V and +0.7 V with L1/L2 and U1/U2 substructure, and EELS shows a non-dispersing 1.2 eV loss. DFT+DMFT with U=1.2 eV produces lower and upper Hubbard bands from Sn-pz orbitals for both T4 and H registries, with hybridization- and charge-transfer-dependent spectra. The paper interprets these observations as Mott-Hubbard bands of a Sn-√3 triangular lattice coexisting with Dirac electrons, and emphasizes T4/H hybridization selection rules and charge-transfer tunability.

Significance. If the structural identification is correct, the work is significant: it would extend Mott physics into an epitaxial graphene platform, with a correlated triangular Sn layer proximitized to Dirac electrons, and the T4/H selection-rule asymmetry is an elegant and falsifiable prediction. The experimental probes are mutually consistent (STS gap ≈1.2 eV, EELS loss ≈1.2 eV, DMFT Hubbard gap on the same scale), and the DFT data are stated to be deposited on NOMAD. The robustness of the Hubbard bands to T4/H stacking is a strength. However, the significance is conditional: the element-specific identification of the √3 phase as Sn is missing, and the agreement between experiment and theory is partly enforced by the choice U=1.2 eV. These limitations need to be addressed before the central claim can be taken as established.

major comments (3)
  1. [Structure of EG/Sn interface: SPA-LEED and STM (Figs. 2–4)] The load-bearing premise that the √3×√3 domains are an ordered Sn-pz triangular lattice is not established. The paper itself calls the phase 'nominally Sn-√3 phases' (Fig. 5 caption) and describes the STM area as 'contains locally Sn-√3 phases' (Fig. 3e caption); the √3 LEED pattern after de-intercalation is a superposition over a surface that contains Sn-(1×1) patches, disordered buffer regions, and the 6√3 graphene/SiC reconstruction (Fig. 3a). The Sn coverage is known only globally from a quartz microbalance, and the √3 distance in the pair-correlation function at -0.5 V and +1.0 V (Fig. 4d) is a symmetry analysis of tunneling contrast, not a chemical identification. Since a graphene √3 reconstruction from intervalley scattering is already observed on the Sn-(1×1) phase (Ref. 65), and SiC or buffer remnants can also produce √3 periodicities, the assignment of all subsequent 1.2 eV features to Sn-pz Mott bands requires element-specific confirmation (e.g., XPS/AES of the de-intercalated phase or element-specific STM/STS). Without it, the DMFT model in Eqs. (1)–(3), which assumes one Sn pz orbital per √3 cell, is not guaranteed to apply to the measured spectra.
  2. [DMFT calculations and Figs. 8–9] The claimed 'excellent agreement' between theory and experiment is partly by construction. U is set to 1.2 eV 'as a representative value considering the previous studies on Sn surface systems' (Methods), and the Sn hopping parameters are taken from Sn/Si(111) (Refs. 33, 54), while V0 is selected so that the noninteracting tight-binding bands fit the DFT bands (Figs. 8c,d). The DMFT Mott gap at half-filling is controlled by U, so the computed ~1.2 eV separation between lower and upper Hubbard bands in Fig. 9 is not an independent prediction of the measured 1.2 eV STS gap and EELS loss; it is largely a restatement of the input U. An independent estimate of U for this specific Sn/graphene/SiC interface (e.g., constrained RPA or GW) and a scan over U would be needed to claim that the energy scale is a falsifiable outcome. This is a major issue because the paper's conclusion that the system is in the Mott regime rests on this scale.
  3. [Electronic structure: EELS and STS (Figs. 5–6)] The assignment of the non-dispersing 1.2 eV EELS loss to Hubbard-band excitations is not uniquely supported by the data shown. The loss peak has FWHM=0.4 eV, no comparison with the disordered-buffer or Sn-(1×1) phases in the same loss range is presented, and the correlation with annealing (growth of √3 LEED intensity and loss intensity, Figs. 2e and 5) is also compatible with growth of an ordered non-Sn √3 phase. The paper does not calculate the EELS loss function or the joint density of states from the DMFT spectra, so the identification rests on energy coincidence with the chosen U. Given that the structural premise is also unproven, the 1.2 eV feature could also arise from SiC-related interface states or interband transitions. A momentum-resolved analysis or at least a computed loss function from the model would substantiate the assignment.
minor comments (5)
  1. [References] Reference 50 has an empty DOI ('DOI: .'), and the Data Availability statement is therefore incomplete; the NOMAD link/identifier should be supplied.
  2. [General] Typos and broken text should be corrected, including 'caclulations are availble' in Ref. 50 and the stray 'and' at the end of the section before 'Interplay of hybridization' ('agrees well our theoretical findings. and').
  3. [Fig. 7b] The number of spectra and the procedure used to obtain the averaged peak positions and the Mott-gap variation in the inset are not stated; please clarify whether error bars were evaluated.
  4. [Fig. 9 caption] The caption states that the color bar indicates spectral weight in the lowest-lying non-interacting band, but the figure panels show momentum-integrated A(ω); please reconcile the caption with the panels.
  5. [Methods] The Methods state that EELS-LEED provides a momentum resolution around 0.001 Å^-1, but no details of the primary energy and angle-mapping geometry used for the dispersion in Fig. 5c are given; please specify.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the DMFT Hubbard bands follow from externally grounded interaction and hopping parameters, and the experiment-theory comparison is not a self-referential reduction.

full rationale

The paper's derivation chain is not circular. The Hubbard U entering Eq. (3) is taken from an external prior study: 'We use U = 1.2 eV as a representative value considering the previous studies on Sn surface systems38.' The Sn hoppings are likewise external ab initio inputs: 'we set tSn1 = 27.3 meV used in Ref.38 and tSn2 = -0.3881 tSn1 and tSn3 = 0.1444 tSn1 for longer-range hopping by referring to the ab initio data for Sn-(√3×√3) on Si(111)33,54.' The hybridization V0 is the only free parameter and is calibrated to the paper's own DFT, not to the spectroscopic target: 'the tight-binding bands shown in Figs. 8c) and d) closely replicate the corresponding DFT bands around the Fermi level for each structure presented in Figs. 8a) and b). Thus, V0 = 0.7 and 1.3 eV should fall into a reasonable range of V0.' The LHB/UHB are consequences of applying this U to a half-filled flat band; the statement that 'the most notable and robust feature is the emergence of the upper Hubbard band (UHB) and the lower Hubbard band (LHB) from the flat Sn-pz derived band' is a model output, not a re-statement of the measured STS peaks. The comparison 'Mott gaps ... on the order of 1 eV fit to the loss energy in EELS and match the gap between the L1/L2 and U1/U2 states in STS' is an ex post agreement, not the construction of those features. The √3 phase assignment being based on LEED/STM contrast ('nominally Sn-√3 phases') is an evidentiary weakness, but it is not a circular reduction; nothing in the theory is defined by the experimental peak positions. The only author-overlapping in-preparation citation (Ref. 65) supports a secondary point about intervalley scattering on the Sn-(1×1) phase and is not load-bearing for the Mott-Hubbard claim. Hence no significant circularity.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The model is a low-energy Hubbard model with parameters imported from prior surface studies or calibrated to the paper's own DFT. The central 'agreement' is therefore a consistency check: the Mott gap scale follows from the chosen U, while the stacking-dependent broadening and quasiparticle-peak emergence are emergent outcomes of the DMFT calculation.

free parameters (3)
  • Hubbard interaction U on Sn pz = 1.2 eV (taken from prior Sn/SiC studies, Ref 38)
    The DMFT Hubbard gap is roughly set by U; choosing a different U would move the lower and upper Hubbard bands and change the claimed match to the 1.2 eV loss and the STS gap.
  • Hybridization strength V0 = 0.7 eV and 1.3 eV
    Two representative values chosen because the non-interacting tight-binding bands reproduce the paper's own DFT bands in Fig 8; not measured independently.
  • Crystal field Delta = epsilon_Sn - epsilon_C = 0 and 0.5 eV (control variable)
    Models charge transfer and is varied to produce either particle-hole symmetric Hubbard bands or a doped Mott state with quasiparticle peaks; the comparison to STS only places an upper bound |Delta| << 0.5 eV.
assumptions (5)
  • domain assumption The real 6√3×6√3 reconstruction of graphene on SiC can be approximated by a √3×√3 supercell with graphene stretched into a 2×2 registration, with the T4 and H placements bracketing the hybridization.
    Used in 'Electronic structure calculations' and Fig 1 to make DFT tractable; the actual strain and local registry of the full reconstruction are not computed.
  • ad hoc to paper The Hubbard interaction acts only on Sn pz orbitals, and the static Hartree term is assumed to be already contained in H0 through the occupation subtraction in Hint (Eq 3).
    Introduced in the Model Hamiltonian section; this prevents double counting with DFT but assumes the DFT mean field equals the static Hartree part of the model.
  • domain assumption The hybridization formula Eq (2) with decay length delta0=0.184 a and vertical spacing l_perp=3.45 Å is transferable from twisted bilayer graphene to the Sn/graphene interface.
    Taken from Refs 55,56 and the DFT-relaxed simplified cell; the shape of V_ij controls the relative coupling strength in T4 versus H positions.
  • domain assumption Sn hopping parameters tSn2 and tSn3 from Sn/√3 on Si(111) are transferable to Sn/√3 on SiC(0001).
    The model section uses tSn1 from Ref 38 and tSn2, tSn3 from Refs 33,54; substrate differences could modify the Sn band structure.
  • domain assumption DMFT is restricted to paramagnetic solutions without spatial symmetry breaking at T=0.005 eV.
    Stated in 'DMFT calculations'; magnetic or charge order, if present, would shift or split the calculated Hubbard bands and change the comparison to STS.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Electronic correlations in epitaxial graphene: Mott states proximitized to a relativistic electron gas." pith.science (2026). https://pith.science/paper/BLK6D5A7

@misc{pith2026241201329,
  author       = {Pith},
  title        = {Pith review of: Electronic correlations in epitaxial graphene: Mott states proximitized to a relativistic electron gas},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BLK6D5A7}},
  note         = {Machine review of arXiv:2412.01329}
}
abstract

Graphene, renowned for its exceptional electronic and optical properties as a robust 2D material, traditionally lacks electronic correlation effects. Proximity coupling offers a promising method to endow quantum materials with novel properties. In this study, we achieve such a proximity coupling by intercalating Sn between the buffer layer of graphene on SiC(0001), allowing us to explore the coupling between a correlated 2D electron gas and a Dirac metal. This results in the stabilization of Sn-$\sqrt{3}$ superlattice structures at the interface, which reveal Mott-Hubbard bands, in excellent agreement with both experimental observations and theoretical predictions. Additionally, we found signatures of quasiparticle peaks close to the Fermi energy, in detail depending on the hybridization strength and doping level.

Figures

Figures reproduced from arXiv: 2412.01329 by the authors.

Figure 1

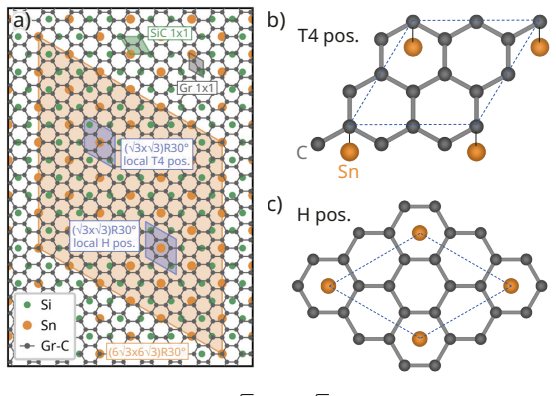

Figure 1. (a): Illustration of the full 6 √ 3 × 6 √ 3 supercell reconstruction of graphene on SiC(0001) and √ 3× √ 3 supercells capturing the Sn superstructure with different local align￾ments of approximate 2 × 2 graphene sheets with respect to SiC. The unit cells of graphene and SiC are also shown. For the SiC substrate, only the topmost Si atom is depicted. (b,c): Crystal structure of the approximate √ 3 × √ 3 cell model f… view at source ↗
Figure 2
Figure 2. (a) SPA-LEED image of the buffer layer (BL) before intercalation of Sn. (b) [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. (a) Large scale STM image (+2.0 V, 0.5 nA) showing three different phases, i.e., [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (6 more)
Figure 4
Figure 4. Figure 4: (a-c) The STM area phase of the green box in Fig. [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]
Figure 5
Figure 5. Figure 5: EEL spectra of the Sn-√ 3 phase after different steps of annealing. a) Loss spectra taken after the first appearance of √ 3-reflexes in LEED, showing the dispersing graphene sheet plasmon loss 40. b) Loss spectra after various heating cycles revealing besides the graph…
Figure 6
Figure 6. Figure 6: High resolution STS spectra taken along the unit cell of the [PITH_FULL_IMAGE:figures/full_fig_p014_6.png]
Figure 7
Figure 7. Figure 7: Evaluation of the STS spectra shown in Fig. [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]
Figure 8
Figure 8. Figure 8: (a,b): Electronic structure from DFT with flatband highlighting of the orbital [PITH_FULL_IMAGE:figures/full_fig_p017_8.png]
Figure 9
Figure 9. Figure 9: (a–c) The momentum-dependent spectral function [PITH_FULL_IMAGE:figures/full_fig_p018_9.png]
