MTVNet: Mapping using Transformers for Volumes -- Network for Super-Resolution with Long-Range Interactions

T0 review · 4 major / 7 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read MTVNet uses multi-scale carrier tokens to give 3D super-resolution transformers a long-range receptive field, beating prior volumetric SR methods on large CT data.

desk verdict Solid architecture paper with honest benchmarking, but the load-bearing claim that long-range context drives the FACTS gains is under-evidenced. read the letter →

arxiv 2412.03379 v2 pith:E2L5VICF submitted 2024-12-04 cs.CV eess.IV

August Leander H{o}eg , Sophia W. Bardenfleth , Hans Martin Kjer , Tim B. Dyrby , Vedrana Andersen Dahl , Anders Dahl This is my paper · ORCID
classification cs.CVeess.IV
keywords volumetricsuper-resolutiontransformerslong-rangeinteractionscarriertokenshierarchicalattentionmulti-scalenetworkmedicalimaging3DCT
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

MTVNet is a transformer architecture for volumetric super-resolution that aims to bring the long-range attention benefits of 2D transformers into 3D, where memory costs usually cap the receptive field. The paper claims that by processing a large context volume at several resolutions and carrying coarse feature summaries (carrier tokens) down to finer levels, the network can attend over larger regions than earlier volumetric transformers. On the high-resolution FACTS CT dataset the method outperforms six prior volumetric SR models by a clear margin at every tested scale, while on smaller brain MRI benchmarks it lands second, behind a CNN baseline. The authors read this as evidence that long-range context is the key resource for high-resolution 3D data rather than a universal booster.

What carries the argument

The load-bearing mechanism is the shifting volumetric hierarchical attention transformer (SVHAT) layer coupled with carrier tokens (CATs) and multi-context network levels. CATs are small learned summaries of each attention window that are attended to globally before being concatenated back with image tokens for windowed attention, letting information travel across distant windows. Multi-scale levels with larger patch sizes at coarser scales expand the receptive field while keeping token counts low, and cross-attention merges previous-level tokens into the next level.

What would settle it

Train MTVNet on FACTS-Synth with the multi-context levels replaced by a single-level network that has the same parameter count and sees the same context (e.g., large patches at one resolution), and compare PSNR at 4x upscaling. If the single-level variant matches or beats MTVNet, the long-range-context explanation is falsified.

Watch

Extended reading notes

Core claim

The central claim is that a coarse-to-fine, multi-contextual transformer with hierarchical attention makes long-range interactions practical for volumetric super-resolution. MTVNet processes three nested volumes (L3, L2, L1) with progressively smaller patch sizes, so the coarsest level covers the widest context with few tokens; attention is computed on compact carrier tokens that summarize each window, and the resulting features are fused into finer levels by cross-attention. With the prediction area fixed, adding contextual levels lets the model consume volumes up to $128^{3}$ on a single 80 GB GPU, far beyond what the compared architectures handle. In the FACTS-Synth task the method beats all six baselines at 3x and 4x upscaling, with PSNR gains of 0.44-1.11 dB over SuperFormer and 0.70-1.79 dB over RRDBNet3D; on four brain MRI datasets it is second-best, slightly behind RRDBNet3D.

Load-bearing premise

The paper's headline result depends on the assumption that the FACTS gains are caused by the larger receptive field from the multi-context levels, but the ablation showing that multi-context helps is run on BraTS 2023, where MTVNet is not the best method, leaving parameters, patch size, and context budget as untested confounders.

Editorial extensions

If this is right

  • Volumetric super-resolution can now be applied to very large 3D acquisitions such as synchrotron and whole-organ CT, where long-range structure matters.
  • Transformer-based SR becomes viable on a single GPU for input volumes up to roughly 128^3, whereas prior volumetric transformers were limited to smaller contexts.
  • The coarse-to-fine token-carrying scheme is a template for other volumetric tasks, e.g., segmentation, that need global context without global memory.
  • On small volumes, a pure CNN (RRDBNet3D) remains competitive, so the practical benefit of the method is tied to data scale and long-range dependencies.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's own LAM analysis shows no consistent correlation between how far a model looks and its reconstruction error; a testable extension would be to ablate the multi-context levels on FACTS itself to confirm that the gains come from the receptive field rather than from extra parameters.
  • Because the authors note CAT compression discards pixel-level detail, a hybrid that augments the transformer levels with a CNN detail path might improve fine-texture fidelity on FACTS-Real.
  • The multi-context idea transfers naturally to 4D or temporal volumetric data, where context across frames could be carried by coarse tokens at minimal cost.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 7 minor

Summary. MTVNet is a volumetric super-resolution network that processes multiple context scales with hierarchical transformers and carrier tokens. It takes a large surrounding volume at coarse resolution and progressively adds finer patches around the prediction region, using cross-attention to pass information across scales. The paper evaluates the model on four brain MRI datasets and the large-volume FACTS CT dataset against six volumetric SR baselines. MTVNet leads on FACTS-Synth (e.g., PSNR 31.57 vs 30.46 for SuperFormer at 4x) and is usually second on the smaller brain datasets, where the CNN baseline RRDBNet3D performs best. The authors attribute the FACTS gains to the enlarged receptive field enabled by the multi-context design, and they support this with ablations on BraTS 2023, memory footprint plots, and a LAM attribution study.

Significance. The paper addresses a real bottleneck in volumetric SR: the memory cost of 3D self-attention prevents transformer models from using large contexts. The proposed coarse-to-fine multi-context design is a plausible and practical way to extend the receptive field, and the reported memory footprint (Fig. 5) shows a clear advantage in processing larger inputs. The evaluation spans diverse public datasets and includes qualitative and attribution analyses, and code is released. However, the evidence for the central mechanistic claim is incomplete: the only multi-context ablation is on a dataset where the method is not the best, and the paper's own LAM analysis does not show a link between long-range input usage and performance. Statistical support for the FACTS result is also thin, with two test volumes and single runs. These issues prevent me from accepting the paper in its current form, but they are addressable with additional experiments.

major comments (4)
  1. [Section 4.5 / Table 2] The only ablation that isolates the multi-context component is run on BraTS 2023 at 4x upscaling, where adding multi-context to SW-MSA with CAT improves PSNR by only 0.11 dB (35.05 to 35.16). This is also a dataset on which the fully assembled MTVNet is not the best method, since RRDBNet3D reaches 35.20 PSNR in Table 1. Because the paper's headline result is the FACTS-Synth improvement (PSNR gains of 0.44-1.11 dB over SuperFormer), the causal attribution of these gains to the multi-context mechanism requires a multi-context ablation on FACTS-Synth or a comparably large-volume dataset. Without this, the connection between the architecture's long-range design and the reported FACTS margin is untested.
  2. [Supplementary Section 8 / Fig. 7] The paper's own Local Attribution Mapping results state that there is 'no consistent top-performing model in terms of DI' and 'no strong evidence correlating higher DI to higher PSNR/SSIM/NRMSE scores.' This is in direct tension with the abstract's claim that the method's advantage comes from attention over larger regions. The authors should either provide a more targeted attribution experiment that compares MTVNet with and without the multi-context levels on FACTS, or revise the mechanistic claim to acknowledge that the performance gains are not shown to be caused by the enlarged receptive field.
  3. [Section 4.1 / Evaluation and Table 1] The FACTS test set consists of only two volumes (f002 and f138), and all metrics in Table 1 are single-run point estimates without error bars, per-volume breakdowns, or repeated-seed statistics. Given that the 'significant margin' on FACTS-Synth is the central empirical claim of the paper, the authors should report variability estimates, such as standard deviations across seeds or per-volume scores, to demonstrate that the observed differences are not due to seed variance or the particular choice of the two test volumes.
  4. [Section 4.1 / Training] The MTVNet configuration uses input patch sizes of 64^3 and 128^3 for the L2 and L3 levels, while all competing models are trained with 32^3 patches. This means the comparison conflates the effect of the multi-context architecture with the effect of a larger input scope. To support the claim that the gains are due to long-range interactions rather than additional input voxels, the authors should include a control condition where a strong baseline such as RRDBNet3D or SuperFormer is trained with the same larger input patch size, or where MTVNet is evaluated with matched input sizes.
minor comments (7)
  1. [Title] On the first page, 'V olumes' should read 'Volumes'.
  2. [Section 4.3] The text says 'RDDBNet3D' but should say 'RRDBNet3D'.
  3. [Figure 5 caption] The garbled font-encoding sequences, such as '/uni00000014/uni00000019/...', need to be replaced with readable text in the camera-ready version.
  4. [Table 1] The layout makes it difficult to associate each group of numbers with its dataset and scale; please ensure clear per-dataset column headers in the final version.
  5. [Section 4.1] The phrase 'will be detailed' should be 'are detailed', since the supplementary material is part of the submission.
  6. [Supplementary Section 8] The abbreviation 'DI' (diffusion index) is not defined in the main text; please define it when it first appears or cite a reference.
  7. [Abstract] The statement that the method 'enables attention over larger regions than what has previously been possible' exceeds the evidence; consider softening it to 'than current volumetric transformer-based SR methods'.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: MTVNet is an empirical benchmark paper whose claims rest on external datasets, direct measurements, and independent baselines.

full rationale

This paper makes no first-principles derivation whose output is equivalent to its input by construction. The central claim is that MTVNet outperforms six volumetric super-resolution baselines on the FACTS dataset (Table 1), and this is a direct measurement on held-out test volumes using standard metrics (PSNR/SSIM/NRMSE), not a fitted quantity renamed as a prediction. The architecture components (CATs, cyclic shifting, multi-context levels) are defined structurally in Section 3 and their contributions are probed by ablations (Table 2) on an external dataset (BraTS 2023); they are not defined in terms of the evaluation metric. The only author-overlapping citation is the FACTS dataset reference [6], which is used as an external benchmark input, not as a load-bearing theorem or as a fitted model, so it does not constitute circularity. Importantly, the supplementary LAM analysis explicitly states that the paper finds no consistent top-performing model in DI and no strong evidence correlating higher DI to higher PSNR/SSIM/NRMSE; this admission weakens the causal attribution of the gains to long-range context, but that is an evidence/correctness concern, not a circular-reasoning concern. The paper is self-contained against external benchmarks and code is provided, so the honest finding is no significant circularity.

Assumptions & free parameters 4 free parameters · 4 assumptions · 1 invented entities

The central claim rests mainly on architectural hyperparameters chosen by hand and on domain assumptions about the realism of the degradation model, the fairness of baseline training, and the evaluation filter. No new physical or mathematical entities are introduced beyond the architecture itself.

free parameters (4)
  • Patch sizes per level (p3=8, p2=4, p1=2) = 8, 4, 2
    Chosen by hand to cover broad context at coarse levels; directly controls token count and effective receptive field.
  • Attention window M and CAT factor c = M=8, c=4
    Set once for all experiments; governs windowed attention size and the number of carrier tokens per window.
  • Network depth (DCHAT blocks per level and SVHAT layers) = L2: 2+3 blocks, 6 layers; L3 adds 1 block
    Architecture capacity was chosen without a dedicated ablation, so capacity differences could explain part of the FACTS gains.
  • Learning rate schedule = 2e-4, halved at 50k, 70k, 85k, 95k iterations
    Standard training choice applied to all models, but still a hand-selected hyperparameter that affects final performance.
assumptions (4)
  • domain assumption LR/HR pairs generated by volumetric blurring followed by linear interpolation downsampling are a valid proxy for real low-resolution acquisition.
    Used in training for all datasets except FACTS-Real (Section 4.1, Training). If this degradation model is unrealistic, benchmark gains may not transfer to clinical settings.
  • standard math Self-attention and shifted window attention behave in 3D as they do in 2D, with the described complexity savings.
    The paper relies on standard transformer machinery (MSA, SW-MSA, LayerNorm) without formal verification (Eqs. 1-5).
  • ad hoc to paper The compared baseline models were trained fairly with adequate hyperparameters.
    All models were trained from scratch for 100K iterations with a single schedule; baselines were not tuned per model (Section 4.1, Training), so observed gaps may partly reflect tuning rather than architecture.
  • domain assumption Foreground occupancy threshold of 25% for including slices in evaluation does not bias comparisons across methods.
    Evaluation filters slices where foreground occupies less than 25% of voxels (Section 4.1, Evaluation); this could differentially affect methods on different datasets.
invented entities (1)
  • Carrier tokens (CATs) in the 3D SVHAT layer
    purpose: Compact feature summaries of attention windows that enable global information flow between windows.
    Carrier tokens are borrowed from FasterViT [28], not invented in this paper. They are a design element, not a new physical or mathematical entity.

how reviews work

0 comments
Cite this review

Pith. "Pith review of MTVNet: Mapping using Transformers for Volumes -- Network for Super-Resolution with Long-Range Interactions." pith.science (2026). https://pith.science/paper/E2L5VICF

@misc{pith2026241203379,
  author       = {Pith},
  title        = {Pith review of: MTVNet: Mapping using Transformers for Volumes -- Network for Super-Resolution with Long-Range Interactions},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/E2L5VICF}},
  note         = {Machine review of arXiv:2412.03379}
}
read the original abstract

Until now, it has been difficult for volumetric super-resolution to utilize the recent advances in transformer-based models seen in 2D super-resolution. The memory required for self-attention in 3D volumes limits the receptive field. Therefore, long-range interactions are not used in 3D to the extent done in 2D and the strength of transformers is not realized. We propose a multi-scale transformer-based model based on hierarchical attention blocks combined with carrier tokens at multiple scales to overcome this. Here information from larger regions at coarse resolution is sequentially carried on to finer-resolution regions to predict the super-resolved image. Using transformer layers at each resolution, our coarse-to-fine modeling limits the number of tokens at each scale and enables attention over larger regions than what has previously been possible. We experimentally compare our method, MTVNet, against state-of-the-art volumetric super-resolution models on five 3D datasets demonstrating the advantage of an increased receptive field. This advantage is especially pronounced for images that are larger than what is seen in popularly used 3D datasets. Our code is available at https://github.com/AugustHoeg/MTVNet

Figures

Figures reproduced from arXiv: 2412.03379 by the authors.

Figure 1
Figure 1. Overview of MTVNet that is informed by a large contex [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

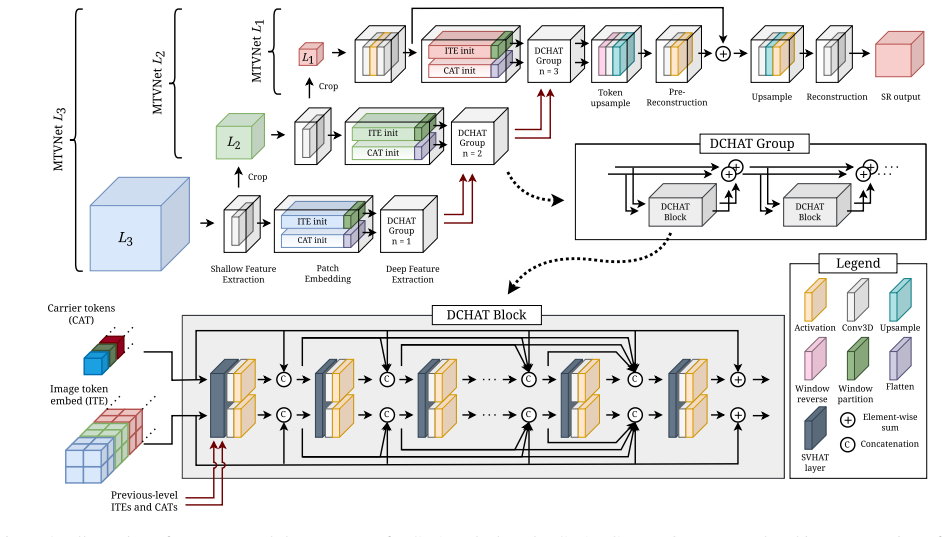

Figure 2. Illustration of MTVNet and the structure of DCHAT Block and DCHAT Group. Our proposed architecture consists of up to [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Illustration of volumetric attention mechanisms used in SVHAT: [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Visual comparisons of SR model outputs from the datasets HCP 1200, IXI, FACTS-Synth, and FACTS-Real using [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: GPU Memory usage of SuperFormer, RRDBNet3D, and [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Overview of SVHAT featuring attention branches for [PITH_FULL_IMAGE:figures/full_fig_p012_6.png]
Figure 7

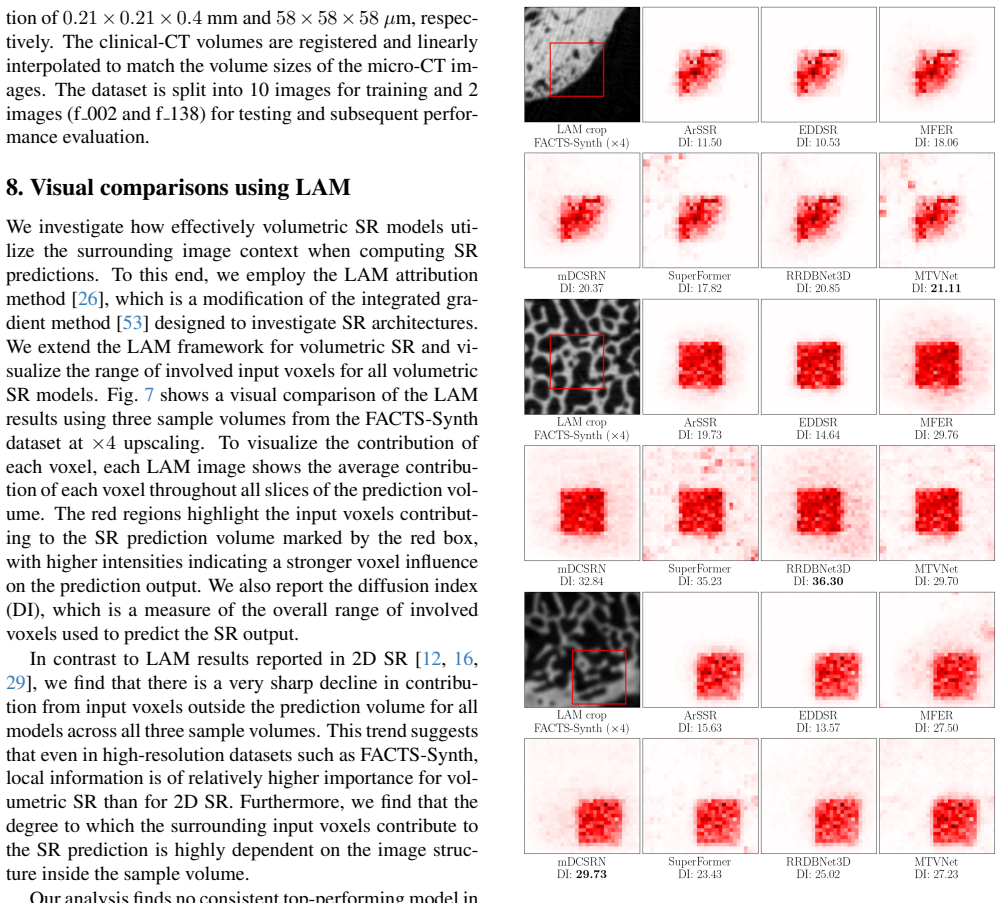

Figure 7. Figure 7: LAM comparisons of SR models using FACTS-Synth at [PITH_FULL_IMAGE:figures/full_fig_p013_7.png]
Figure 8
Figure 8. Figure 8: Visual comparisons of SR model outputs from the datasets HCP 1200, IXI, BraTS 2023, Kirby 21, FACTS-Synth, and FACTS [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
