Water Ice in the Edge-On Orion Silhouette Disk 114--426 from JWST NIRCam Images

T0 review · 2 major / 4 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read JWST images of the edge-on Orion disk 114–426 reveal a 3-micron water-ice absorption dip in both scattered light and silhouette, with ice-to-refractory ratios up to ~0.2 and 0.46 Earth masses of solids in the outer ansae.

desk verdict The 3 micron water ice detection is solid and the paper deserves a real referee; the quantitative abundance and mass numbers, however, rest on an unquantified pure-absorption assumption and should be treated as model-dependent until scattering is properly handled. read the letter →

arxiv 2412.04356 v2 pith:ISPXHY6N submitted 2024-12-05 astro-ph.EP

Nicholas P. Ballering , L. Ilsedore Cleeves , Ryan D. Boyden , Mark J. McCaughrean , Rachel E. Gross , Samuel G. Pearson This is my paper · ORCID
classification astro-ph.EP PACS 95.85.Hp
keywords watericeprotoplanetarydisksilhouetteOrionNebulaJWSTNIRCam3micronabsorptionfeaturegraingrowthphotodesorption
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports the detection of water ice in the outer parts of 114–426, a large edge-on protoplanetary disk in the Orion Nebula. Because the disk's outer edges are seen in silhouette against the bright nebula behind them, the authors can study planet-forming material at these radii in pure absorption, a geometry that sidesteps the scattering effects that usually complicate ice measurements in disks. JWST/NIRCam images in twelve bands from 1 to 5 μm show a dip at 3 μm, the spectral signature of water ice, in both the scattered-light lobes and the silhouette. Fitting the silhouette spectra with a model of refractory grains bearing ice mantles yields ice-to-refractory mass ratios up to ~0.2, maximum grain sizes of 0.25–5 μm, and a total of 0.46 Earth masses of ice and dust in the silhouette region. The result matters because water ice in disks is the reservoir from which planets draw their water, and this is direct evidence that ice survives in the moderately irradiated, cluster-like environment where most stars form.

What carries the argument

The load-bearing identity is the pure-absorption law $F_\nu/F_{\nu,\mathrm{bg}} = e^{-\kappa_{\mathrm{abs}}\Sigma_{\mathrm{dust}}}$ (Equation 1), which turns each pixel's measured dimming of the nebular background into a dust column density. The absorption opacity $\kappa_{\mathrm{abs}}$ is generated with a dust model of refractory cores bearing water-ice mantles, parametrized by the ice-to-refractory mass ratio, the maximum grain size (with a power-law size distribution of index $-3.5$ and a fixed minimum size of 0.005 μm), and the dust surface density $\Sigma_{\mathrm{dust}}$; a grid search minimizes $\chi^2$ over the eight uncontaminated bands. Two sets of bands are deliberately excluded from the fit: the Paschen α bands F182M and F187N, and the narrow bands F212N and F470N centered on molecular hydrogen transitions. The second mechanism in the paper is the survivability calculation: an equilibrium between photodesorption of ice by ultraviolet photons and re-adsorption of water vapor, solved for the ice fraction as a function of the external FUV field, gas density, and water and dust abundances, which the authors use to argue that the detected ice is consistent with the disk's radiation environment.

What would settle it

A spatially resolved spectrum at $R \gtrsim 1000$ across 2.5–3.6 μm would measure the true profile and depth of the 3 μm feature on the silhouette; if the water-ice column required to fit that spectrum disagreed with the band-derived abundances beyond the quoted uncertainties, or if the feature shape showed no water-ice structure, the photometric detection and its quantified ratios would fail. A separate test targets the survival argument: mapping the outer-disk gas density with resolved molecular-line observations, since the adsorption–photodesorption balance predicts that below $n_H \approx 10^8$ cm$^{-3}$ most water should be in vapor; a firmly low gas density with a persistent 3 μm dip would mean the icy grains are not steady-state residents of this disk.

Watch

Extended reading notes

Core claim

The paper's central claim is that the 3 μm dip in the disk's spectrum, present both in the scattered-light lobes and in the silhouette of the outer ansae against the Orion Nebula, is the vibrational absorption feature of water ice, and that the silhouette version can be quantified in terms of ice abundance. Each pixel's brightness relative to the nebular background is taken to obey $F_\nu/F_{\nu,\mathrm{bg}} = e^{-\kappa_{\mathrm{abs}}\Sigma_{\mathrm{dust}}}$, with scattering neglected because it is preferentially forward-directed. The opacity $\kappa_{\mathrm{abs}}$ comes from models of ice-mantled refractory grains (87% amorphous pyroxene and 13% amorphous carbon by mass), and a grid search over three free parameters, the ice-to-refractory mass ratio, the maximum grain size, and the dust surface density, fits eight of the twelve NIRCam bands at each pixel of the silhouette. The fits return ice-to-refractory mass ratios of 0 to 0.18, maximum grain sizes of 0.25 to 5 μm, and a total solid mass of 0.46 $M_\oplus$ in the two ansae, with the ice fraction and grain size declining with radius. The authors further report excess absorption in the two bands containing the Paschen α line, which they attribute to excited atomic hydrogen, and a wavelength-dependent brightness asymmetry between the scattered-light lobes that they interpret as evidence of a tilted inner disk. A separate equilibrium calculation between ultraviolet photodesorption and re-adsorption of water leads them to conclude that water ice can survive the external radiation field of this intermediate cluster environment.

Load-bearing premise

The load-bearing premise is that the dark outer edges of the disk dim the background nebula by absorption alone, with scattering so strongly forward that it does not push background photons out of our line of sight and with no light emitted by the disk itself or by material in front of it, so that all of the derived ice fractions, grain sizes, and masses rest on that single radiative assumption.

Editorial extensions

If this is right

  • If the 3 μm dip is water ice as modeled, ice makes up roughly a fifth of the solid mass relative to refractory material in the outer ansae, a direct compositional constraint for models of where planets get their water.
  • Grain sizes of 0.25–5 μm in the silhouette, together with the absence of millimeter grains there in ALMA data, show that outer-disk dust has grown past interstellar sizes without forming pebbles, implying stalled growth or inward drift of the largest grains.
  • The excess absorption in the Paschen α bands points to a reservoir of hydrogen in the n = 3 state, likely pumped by Lyβ photons, making the silhouette a probe of gas excitation as well as dust composition.
  • The wavelength-flipping lobe asymmetry and lateral offset of the scattered-light lobes imply a tilted inner disk, so the outer silhouette and the inner disk are not coplanar in this system.
  • Water ice that survives external ultraviolet fluxes near $10^2$–$10^4$ G$_0$ would establish that ice can persist in the typical clustered, intermediate-radiation environment of star formation, not only in quiescent regions.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Because the F300M filter cannot capture the full depth of the 3 μm feature, the derived ice-to-refractory ratios are arguably lower limits; a deeper or broader feature would raise them and would also explain the model's systematic tendency to overpredict the F335M band.
  • The same silhouette technique should transfer to other edge-on disks that project onto bright H II region backgrounds, where NIRCam's multi-band coverage could map ice abundance in absorption without the scattering complications of scattered-light measurements.
  • If the Paschen α absorption is confirmed spectroscopically, the disk's outer edge becomes a natural screen for mapping n = 3 hydrogen across a protoplanetary disk, a new tracer of ultraviolet-driven excitation that requires only narrowband imaging to exploit.
  • A radiative-transfer treatment that includes forward scattering on these same lines of sight would quantify the systematic bias in the derived grain sizes and ice fractions, and would show whether the pure-absorption assumption pushes the ice-to-refractory ratio toward its ceiling of 0.18.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper presents JWST/NIRCam observations of the edge-on silhouette disk 114–426 in 12 bands spanning 1–5 μm. The authors report a dip at 3 μm in both the scattered-light lobes and the outer silhouette ansae, which they attribute to water ice. They fit the silhouette absorption spectra with a pure-absorption model of icy grains (Eq. 1) to derive ice-to-refractory mass ratios up to 0.18, maximum grain sizes of 0.25–5 μm, and a total solid mass of 0.46 M⊕ in the silhouette. They further report excess absorption in the Paα bands, wavelength-dependent lobe asymmetries that suggest a tilted inner disk, and a photodesorption analysis arguing that water ice can survive in the external radiation field of the Orion Nebula.

Significance. If the quantitative results hold, this is a valuable addition to the small sample of edge-on disks with direct ice detections, and the silhouette geometry offers a rare opportunity to measure ice abundances in absorption rather than through scattering models. The detection of the 3 μm dip is well supported by consistent F300M decrements across multiple pixels in both the scattered-light and silhouette regions, and the paper is commendably transparent about the limitations of its model, including the exclusion of Paα-contaminated bands and the imperfect fit to the red edge of the ice feature. The use of public JWST data, a documented reduction pipeline, and a standard dust-opacity code (optool) makes the analysis reproducible in principle.

major comments (2)
  1. [§3.3, Eq. (1)] The quantitative results—ice-to-refractory ratios, grain sizes, and the integrated mass—rest entirely on the pure-absorption approximation F/F_bg = exp(−κ_abs Σ_dust), with scattering opacity set to zero. The justification that scattering is preferentially forward-directed is qualitative and, as argued in the text, most directly applies to a point source behind a slab. Here the background is an extended nebula filling the field, so forward-scattered photons from neighboring background directions can replace photons removed from a given line of sight; whether net attenuation survives depends on the grain albedo, the phase function, and the pixel geometry, all of which vary with wavelength and ice mantle thickness. The paper offers no quantitative estimate of the resulting bias in the derived ice-to-refractory ratio, grain size, or surface density. A scattering-inclusive test—even a simple slab calculation with a Henyey–Greenstein phase function—is needed before the quoted abundance and mass values can be taken at face value. The detection of the 3 μm dip itself is on firmer ground, but the model-dependent numbers are not.
  2. [§3.3 and §4.1] The model systematically overpredicts the F335M band, which is included in the fit (only F182M, F187N, F212N, and F470N are excluded). The paper acknowledges in §4.1 that the red edge of the water-ice feature is not reproduced by the adopted ice optical constants and grain shape, and suggests that more sophisticated modeling (additional ice species, discrete-dipole approximation, RADMC-3D) would be needed. Given that F335M is one of the few bands sampling the long-wavelength wing of the feature, the derived ice-to-refractory ratios and maximum grain sizes are partly constrained by a band that the model fails to fit. The authors should either restrict the fit to the bands the model describes (e.g., F277W, F300M, F360M, F444W) and state the resulting parameter ranges, or explicitly present the current best-fit values as provisional pending a better red-edge treatment.
minor comments (4)
  1. [§3.3] In Eq. (1), Σ_dust is described as the dust surface density, but the model includes the ice mantle as part of the solid mass; renaming this quantity or clarifying that it is the total solid (dust plus ice) surface density would avoid confusion, especially when the total mass is summed in §3.3.
  2. [Figure 6] The three panels of Figure 6 lack visible color-bar labels or units in the manuscript text; if they appear in the published figure, please ensure the units (e.g., g cm^−2 for surface density) are legible.
  3. [§4.4, Eq. (3)] The photodesorption balance assumes a single-angle incident FUV field, but the paper later notes that photons entering from varying angles are neglected (citing Cleeves et al. 2013). A brief sentence acknowledging that Eq. (3) shares this simplification would improve consistency.
  4. [General typos] There are a few minor typographical issues, such as a missing space in '1.875µm' (p. 4) and a missing period after 'v_H2O = 216 m s^−1' (p. 12); these should be corrected in the final version.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the ice detection and fitted abundances rest on independent NIRCam photometry and externally tabulated ice opacities.

full rationale

The central claims are (1) a 3 micron dip in scattered-light and silhouette spectra, and (2) a model fit to that dip yielding ice-to-refractory ratios, grain sizes, and surface density. The dip is measured directly from the ratio of on-disk pixel brightness to a fitted nebular background in Section 3.2.1, not defined by the model. The fitted parameters in Section 3.3 enter through the absorption opacity in Equation (1), with optical constants from Warren & Brandt (2008) and other external laboratory sources; no fitted parameter is used to construct the target it is then said to predict. The pure-absorption treatment in Equation (1) is an approximation justified by forward scattering; whether that approximation biases the derived abundances is a modeling-validity concern, not circularity, because scattering opacity is not fitted from the same data and then renamed as a prediction. The self-citations (Ballering et al. 2021; McCaughrean & Pearson 2023) are used for pipeline description and for consistency with prior radiative-transfer predictions; the detection and abundance derivation do not reduce to those citations. No uniqueness theorem or ansatz is imported from the authors' prior work to force the water-ice interpretation. I therefore find no circular step.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The abundance and grain size results are produced by fitting three free parameters (ice fraction, maximum grain size, dust surface density) to eight NIRCam bands at each pixel, after estimating the nebular background with a fitted plane. The model rests on several stated domain assumptions: a specific core-mantle dust composition and size distribution, neglect of scattering opacity, foreground geometry of the disk, and attribution of the 3 micron feature to water ice. No new physical entities are introduced.

free parameters (4)
  • ice_to_refractory_mass_ratio = 0 to 0.18
    Mass of water ice mantle divided by refractory core mass; free parameter fit per pixel to eight NIRCam bands (Section 3.3, Figure 6).
  • maximum_grain_size = 0.25 to 5 micron
    Upper cutoff of the power-law grain size distribution (index -3.5); free parameter in the fit, limited to <=5 micron because larger sizes are degenerate with surface density (Section 3.3, Figure 6).
  • dust_surface_density = 0.13 to 3.7 x 10^-4 g cm^-2
    Column density of solids along the line of sight; free parameter scaling the absorption spectrum (Section 3.3, Figure 6).
  • nebular_background_plane = fitted per image to an annular ellipse
    The background nebula brightness behind the disk is modeled as a plane fit to an annular ellipse; the absorption ratio F/F_back depends on this estimate (Section 2, Section 3.2).
assumptions (5)
  • domain assumption Dust grains in the silhouette are ice-mantled refractory particles with a power-law size distribution n(a) proportional to a^-3.5 from 0.005 micron to a fitted maximum, and core composition 87% amorphous pyroxene plus 13% amorphous carbon.
    Invoked in Section 3.3 to generate model opacity spectra with optool; derived grain sizes and ice fractions depend on this assumed dust model.
  • domain assumption Scattering opacity is negligible because scattering is preferentially forward-directed, so the transmitted fraction is exp(-kappa_abs Sigma_dust).
    Section 3.3, Equation 1. If non-forward scattering is significant, the derived column densities and ice abundances would be biased.
  • domain assumption The disk lies in the foreground of the Orion Nebula and no significant emission arises from the silhouette material or intervening material.
    Section 3.3; supported by prior studies (McCaughrean & O'Dell 1996; Miotello et al. 2012). Violation would invalidate the pure absorption interpretation.
  • domain assumption The 3 micron dip is attributed primarily to water ice; NH3 and CH3OH ices can also contribute to the 3 micron feature.
    Section 1 footnote and Section 3.2. The photometric dip is consistent with the water ice band but the wide filters cannot uniquely identify the carrier.
  • domain assumption The laboratory optical constants for water ice, pyroxene, and carbon used in the model are representative of the ice and dust in the disk.
    Section 3.3 notes ice optical constants vary by up to 15% with temperature and porosity (Rocha et al. 2024).

how reviews work

0 comments
Cite this review

Pith. "Pith review of Water Ice in the Edge-On Orion Silhouette Disk 114--426 from JWST NIRCam Images." pith.science (2026). https://pith.science/paper/ISPXHY6N

@misc{pith2026241204356,
  author       = {Pith},
  title        = {Pith review of: Water Ice in the Edge-On Orion Silhouette Disk 114--426 from JWST NIRCam Images},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ISPXHY6N}},
  note         = {Machine review of arXiv:2412.04356}
}
abstract

We examine images of the protoplanetary disk 114--426 with JWST/NIRCam in 12 bands. This large disk is oriented edge-on with a dark midplane flanked by lobes of scattered light. The outer edges of the midplane are seen in silhouette against the Orion Nebula, providing a unique opportunity to study planet-forming material in absorption. We discover a dip in the scattered light of the disk at 3\,$\micron$ -- compelling evidence for the presence of water ice. The 3\,$\micron$ dip is also seen in the silhouette of the disk, where we quantify the ice abundance with models of pure absorption and avoid the complications of disk scattering effects. We find grain ice-to-refractory mass ratios of up to $\sim$0.2, maximum grain sizes of 0.25 to 5\,$\micron$, and a total dust plus ice mass of 0.46\,$M_\oplus$ in the silhouette region. We also discover excess absorption in the NIRCam bands that include the Paschen $\alpha$ line, suggesting there may be excited atomic hydrogen in the disk. Examining the morphology of the scattered light lobes reveals that they are laterally offset from each other and exhibit a brightness asymmetry that flips with wavelength -- both evidence for a tilted inner disk in this system.

Figures

Figures reproduced from arXiv: 2412.04356 by the authors.

Figure 1
Figure 1. Left: color composite image of 114–426 using the F115W and F140M (both blue), F162M (green), F182M (yellow￾green), and F277W (red) bands. Each of the four SW channel images (F115W, F140M, F162M, and F182M) were interpolated onto a 3 × 3 pixel subgrid (i.e. roughly 10 mas pixel−1 ) to allow precise alignment, and the LW channel image (F277W) was resampled to match. Right: an image of 114–426 in the F187N band, again … view at source ↗
Figure 2
Figure 2. Images of 114–426 in the 12 NIRCam bands, ordered from shortest to longest wavelength. The SW channel images have been resampled onto the coarser pixel scale of the LW channel images. Each panel is 2. ′′7×2. ′′4 with north up and east left. The color bar shows the brightness in units of MJy sr−1 . 1256 (PI: McCaughrean). For a complete overview of these observations see McCaughrean & Pearson (2023). Twelve filters w… view at source ↗
Figure 3
Figure 3. Left: surface brightness cuts along major axis of the disk in a 0. ′′6 wide rectangular aperture. Right: surface brightness cuts along the minor axis of the disk in a 1. ′′1 wide rectangular aperture. The y-axis is the mean value of the pixels across the aperture. The cuts are extracted from the spatially oversampled images. in a rectangular aperture offset from the disk. For the unconvolved images, these noise leve… view at source ↗
Figures from the paper (9 more)

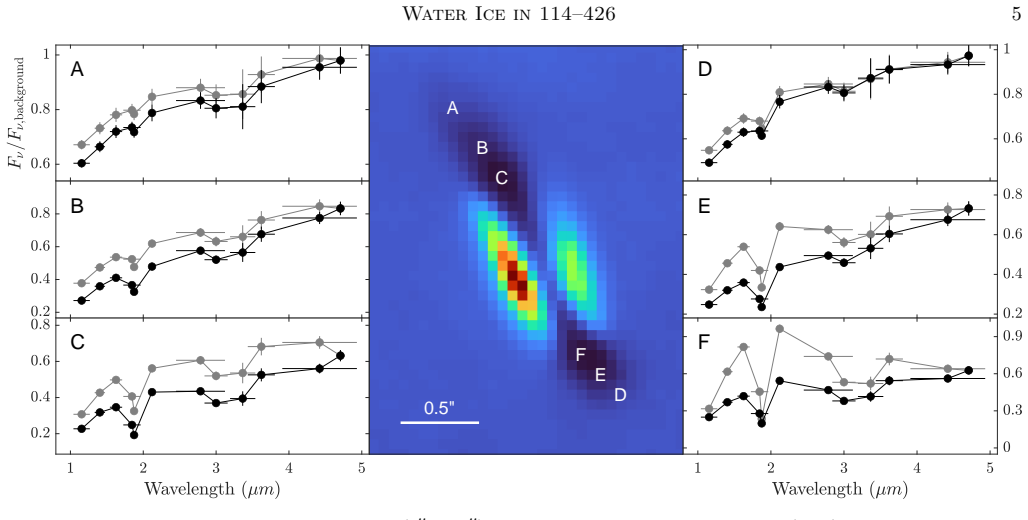

Figure 4
Figure 4. Figure 4: Image of the disk in the F300M filter (2. ′′6 × 2 ′′) with north up and east left. Letters (A–F) mark six pixels in the outer ansae of the disk seen purely in silhouette against the background nebula. Absorption spectra at each of these pixels are shown in the panels t…
Figure 5
Figure 5. Figure 5: Image of the disk in the F300M filter (2. ′′6 × 2 ′′) with north up and east left. Letters (U–Z) mark six pixels where the signal is dominated by the two lobes of scattered light and the dark lane between them. Spectra at each of these pixels are shown in the panels to…
Figure 6
Figure 6. Figure 6: Best-fit ice-to-refractory mass ratio (left), maximum grain size (center), and surface density (right) in each pixel of the silhouette of the disk. White contours shown the scattered light lobes of the disk in the F300M filter. We do not fit pixels in this region or in…
Figure 7
Figure 7. Figure 7: Model fits to the absorption spectra at three locations (A, B, and C) as noted in [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: Demonstration of how varying the ice-to-refractory mass ratio (left), maximum grain size (middle), and dust surface density (right) changes the model absorption spectrum. The black points are the measurements at point B from Figures 4 and 7. In each panel, the two mode…
Figure 9
Figure 9. Figure 9: FUV field strength in the disk calculated assum￾ing an incident field of 2×103 G0 and attenuation in the disk based on the dust properties and column density found by fitting the NIRCam data. White contours show the scattered light lobes of the disk in the F300M band. …
Figure 10
Figure 10. Figure 10: Left: predicted fraction of water remaining in the ice phase as a function of FUV field strength. The top panel shows the case with a fiducial total water abundance of χH2O = 1.8×10−4 and the bottom panel when the water abundance is reduced by an order of magnitude. T…
Figure 11
Figure 11. Figure 11: Similar to [PITH_FULL_IMAGE:figures/full_fig_p016_11.png]
Figure 12
Figure 12. Figure 12: Similar to [PITH_FULL_IMAGE:figures/full_fig_p017_12.png]
