Illusion3D: 3D Multiview Illusion with 2D Diffusion Priors

T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A single texture field can hide several pictures in one 3D object.

desk verdict Solid, honest methods paper that makes 3D multiview illusions from text prompts work in practice, but the central 'one distinct concept per view' claim is not directly measured and the prompt distribution is narrower than the abstract suggests. read the letter →

arxiv 2412.09625 v2 pith:QRLM6Z62 submitted 2024-12-12 cs.CV

Yue Feng , Vaibhav Sanjay , Spencer Lutz , Badour AlBahar , Songwei Ge , Jia-Bin Huang This is my paper · ORCID
classification cs.CV
keywords multiviewillusion3Dgenerationdiffusionpriorsscoredistillationneuraltexturefielddifferentiablerenderinghigh-resolution
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that one 3D object can carry several different, detailed pictures on its surface and reveal them one at a time as the viewer changes angle. The method assigns each camera viewpoint its own text prompt or reference image, then optimizes a shared neural texture field so that every rendered view matches its own prompt. The optimization uses a pre-trained text-to-image diffusion prior through Variational Score Distillation, and the paper's contribution is showing that three stabilizers—scheduled camera jitter, patch-wise denoising, and progressive resolution scaling—make this under-constrained process converge to clean, non-duplicated illusions. If it works, it turns illusion-making into a prompt-driven process that applies to cubes, spheres, soft shapes, and reflective mirrors at texture resolutions up to 2048x2048.

What carries the argument

The core machinery is Variational Score Distillation (VSD) applied through a multi-resolution hash-encoding MLP texture field (Instant-NGP style), rendered with differentiable rasterization and optimized against a pre-trained Stable Diffusion model. Three stabilization techniques carry the argument: scheduled camera jitter (adding growing Gaussian noise to rotation, translation, and field of view), patch-wise denoising (optimizing random 512x512 patches of a larger render so the low-resolution diffusion prior can guide high-resolution output), and progressive resolution scaling (ramping the render size from 512 up to 1024 or 2048 so the main object is centered and duplication is suppressed). Together they prevent the VSD loss from settling into local optima that duplicate or blend the per-view concepts.

What would settle it

Render a generated cube illusion and ask a judge (human or CLIP-based) to match each of its three views to its intended prompt; if a substantial fraction of views is not best matched to its own prompt, or if a single face shows duplicated content visible from two corners, the central claim of per-view fidelity fails. Concretely, run the released pipeline on 50 random prompt pairs and count views where the intended concept is not the top match.

Watch

Extended reading notes

Core claim

The central claim is that 3D multiview illusions can be generated by optimizing a single texture field on a given 3D shape with 2D diffusion priors, rather than by hand-crafting shadow, wire, or reflective art. Using the Variational Score Distillation gradient from ProlificDreamer, the method distills a separate Stable Diffusion prompt into each assigned viewpoint of a multi-resolution hash-encoding MLP texture field. The paper argues that naive VSD optimization gets stuck in local minima—duplicated concepts on one face, blended content across views, and VAE blind-spot artifacts—and that its three techniques fix these failures: linearly scheduled camera jitter that grows over training, random 512x512 patch denoising of a progressively enlarged render, and a sigmoid schedule for render resolution. Results are shown for cube, sphere, beanbag, Lego, reflective cylinder, and curved-mirror setups, with three to eight views per object, and the method also accepts an image input for one view via L2 supervision.

Load-bearing premise

Each viewpoint's diffusion loss can be satisfied simultaneously on one shared surface without one view's content leaking into another; if the optimization settles into a state where the same concept appears on multiple faces or a view blends two concepts, the claimed illusion is broken.

Editorial extensions

If this is right

  • A user can go from two text prompts to a physical 3D object whose front shows one concept and side shows another, with no manual image editing.
  • High-resolution texture output (1024x1024 and 2048x2048) means the illusions survive being printed, wrapped, or displayed at human scale rather than only on screen.
  • Reflective surfaces can host multiple simultaneous illusions, with the paper's two-cylinder and mirror setups giving three views, which traditional hand-crafted reflective art does not achieve.
  • Eight-view cube results show the approach can scale a single object with a sequence of looks, so a sculpture or product could encode a story as the viewer walks around it.
  • Image-conditioned views (the Waldo example) indicate the same pipeline can embed a specific picture into one view, enabling personalized objects that hide private content in plain sight.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The VAE blind-spot explanation for artifacts suggests that any latent-diffusion 3D optimization, not just illusions, could benefit from small amounts of scheduled camera jitter; this is a testable transfer to text-to-3D without illusion requirements.
  • The duplication and blending failures are likely inherent to optimizing a single texture field for multiple full-image objectives, so more principled fixes, such as spatially explicit view partition masks or equivariance constraints on the VAE encoder, might replace the heuristic schedules.
  • If the method extends beyond static textures to geometry optimization, then view-dependent shape changes could create even stronger illusions, since perspective distortion itself would contribute to hiding.
  • The paper's success with reflective surfaces suggests a broader recipe: any optical element that maps different rays to different image content, such as mirrors, lenses, or water surfaces, could serve as the canvas for a diffusion-guided illusion.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. Illusion3D proposes an optimization-based method for generating 3D multiview illusions from text prompts or reference images. A neural texture field (an InstantNGP hash-encoding MLP) on a fixed 3D shape (cube, sphere, beanbag, Lego, or reflective cylinders/mirrors) is optimized with Variational Score Distillation (VSD) using a pre-trained Stable Diffusion model, with each target viewpoint associated with a distinct prompt or, in the 'Waldo' case, an L2-supervised image view. Three techniques are introduced to stabilize the under-constrained optimization: scheduled camera jittering (Sec. 3.2), random-patch denoising, and progressive render-resolution scaling (Sec. 3.3). The evaluation uses 43 randomly constructed style+object prompt pairs (86 examples on cubes and spheres), comparisons against inverse projection, latent blending, and Burgert et al. [3], systematic ablations, a 40-participant user study, and demonstrations including reflective surfaces, 8-view cubes, and 2048x2048 texture maps.

Significance. The problem is timely and well motivated, and the paper is a credible step from 2D diffusion illusions toward full-color 3D multiview illusions, going beyond shadow/wire art in expressiveness. The method is clearly specified and reproducible: a single hyperparameter set is used for all experiments (Supp. A), prompt pairs are randomly constructed rather than cherry-picked, the three proposed techniques are each ablated, and the reported metrics move consistently with the qualitative story. The authors are also commendably candid about failure cases (Sec. 5, Fig. 10) and about the role of style constraints in prompt selection (Supp. D). The main deficiency is evidentiary rather than conceptual: the metrics do not measure the defining property of an illusion (each view containing its intended concept exactly once, with no duplication or blending), and the tested prompt distribution is narrower than the abstract claims. Both gaps are addressable with additional measurement and a modestly scoped claim, so the contribution is, in my assessment, defensible at the core.

major comments (3)
  1. [Sec. 4 (Tables 1-2), Sec. 5, Fig. 10] The central claim — that each viewpoint yields its intended concept without duplication or blending — is not measured by the reported quantitative evidence. CLIP score, aesthetic score, and the alignment/concealment scores are all insensitive to the failure modes the paper itself documents: a view containing two monkeys (Fig. 10, row 1) still produces a high CLIP score for the 'monkey' prompt, and a blended view still partially matches both prompt texts. The paper even concedes in Sec. 5 that 'the model can still cheat the optimization criteria,' and Supp. D notes the prompt distribution matters. The user study (Supp. E) asks only about visual appeal and prompt alignment, not about whether a view contains duplicate or mixed primary content. The stress-test concern therefore lands: the reported numbers are compatible with the acknowledged failures. I request (i) a per-view instance-count evaluation, e.g., open-vocabulary detection counting detections of the prompt's object noun per view, and (ii) a reported success rate over the 43 prompt pairs defined as 'no duplicate or blended content in any view.' These are measurement additions, not changes to the method.
  2. [Abstract, Sec. 1, Sec. 4, Supp. Sec. D] The abstract and introduction claim the method works from 'user-provided text prompts,' but the evaluation distribution is much narrower. All 43 prompt pairs in Sec. 4 are constructed as 'random painting style + primary object,' and Supp. Sec. D explicitly states that prompts without style constraints converge with lower success rates and that 'illusion on real prompts is hard to succeed.' As written, the evidence supports only style-constrained noun+style prompts, not arbitrary prompts. The authors should either restrict the claim to the tested distribution or evaluate on unconstrained or user-provided prompts and report the per-prompt success rate. This matters because the distinction determines whether the paper delivers what its title and abstract promise.
  3. [Sec. 4 (Tables 1-3), Fig. 12] All reported quantitative results are point estimates without error bars or significance tests. The 86 examples come from only 43 prompt pairs (Sec. 4), so the prompt pair is the natural sampling unit and per-prompt variance is computable; I request bootstrap confidence intervals or paired tests for the headline comparisons in Tables 1-2 and for the user-study preference percentages in Table 3. The importance is visible in the Table 2 margins (e.g., Ablation-C vs. Ablation-D: CLIP 0.155 vs 0.165) and in Table 3 (Ablation-C 29.50% vs Ablation-D 39.80%), which are small relative to the 40-participant, 24-comparison study described in Fig. 12. Without variance information, the claim of 'best among all the metrics' (Sec. 4.1) is not fully substantiated.
minor comments (5)
  1. [Sec. 3.1] The sentence 'we leverage 2D diffusion priors from a pre-trained Stable Diffusion model [42] via a Score Distillation Sampling [37] is a common method for utilizing 2D diffusion priors, it often produces over-smoothing and color over-saturation artifacts' is garbled and should be split into two correct sentences; the intended meaning (SDS is a common method, VSD is adopted instead) is clear but the current text reads as two sentences fused.
  2. [Fig. 2 caption] Subfigure (a) is cited as '2D flip illusion [42],' but reference [42] is the Stable Diffusion/LDM paper; the cited work for 2D diffusion illusions should be Burgert et al. [3] and/or Geng et al. [8] (which the text itself cites in Sec. 2 for this figure).
  3. [Abstract, Sec. 3, Supp. Sec. C] The abstract claims the method optimizes 'textures and geometry,' but Sec. 3 describes only texture-field optimization; the main experiments use fixed geometry, and the 3D-shape case (Fig. 8) is described only by a caption with no training procedure. Also, the 1024/2048 resolution claims: Eq. (6) specifies a final resolution of b=1024, while the abstract promises 2048x2048 outputs; please document the 2048 setting (schedule endpoints, patch size, budget) or align the claims with the described procedure.
  4. [Table 3 / Fig. 12] In the pairwise preference data, percentages for a pair do not sum to 100 (e.g., Ours 60.61% vs. Burgert et al. 10.14% in Table 3), so it is unclear whether ties were allowed or whether the normalization denominator varies per pairing; please state the exact question format, whether choice was forced, and the denominator used in Eq. (7).
  5. [General] Typos and formatting artifacts to clean up: Table 2 caption 'CLIP sore' should be 'CLIP score'; Sec. 4.1 'best among all the matrices' should be 'metrics'; Supp. Sec. A 'we set the training time step for 2000' should be 'to 2000'; Fig. 3 caption contains 'duplicate pattern issue issue'; and the reference list contains stray trailing numbers (e.g., refs [3], [14], [25], [43]) that appear to be leftover build artifacts.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular derivation: the illusion texture is optimized against external prompts and evaluated independently; only mild non-load-bearing self-citations and a shared diffusion-prior evaluation family appear.

full rationale

Illusion3D's claimed derivation chain is an optimization: a neural texture field is rendered from target viewpoints and updated with VSD gradients (Eq. 1) using a pre-trained Stable Diffusion model conditioned on user text prompts, with a LoRA module fit to current renderings (Eq. 2). The resulting multiview illusion is not defined as the minimizer of the evaluation metrics; CLIP scores, aesthetic scores, alignment/concealment scores, and user studies are external measurements applied after optimization. No equation in the paper defines a predicted quantity in terms of a fitted parameter of that same quantity, and no 'uniqueness theorem' is imported from the authors' prior work to force a choice. The paper's own Section 5 concedes that the optimization can 'cheat the optimization criteria' and Fig. 10 shows duplicate/blended failure cases, which is an honest admission of non-guarantee rather than a circular validation. The only self-referential elements are minor: [11] and [21] are self-citations in the related-work survey and are not load-bearing for the method, and the diffusion prior used for generation is from the same model family as some evaluation signals, but the evaluation also includes user preference and comparisons against external baselines. These do not amount to a self-definitional or fitted-input circularity, so the score is low.

Assumptions & free parameters 5 free parameters · 3 assumptions · 0 invented entities

The method rests on hand-tuned hyperparameters (Cmax, jitter standard deviations, resolution schedule, timestep annealing, learning rates) and on the unverified assumption that 2D diffusion priors can enforce 3D-consistent content through a shared texture field. No new physical or conceptual entities are introduced; the neural texture field and reflective rendering use existing representations.

free parameters (5)
  • Cmax (camera jitter max) = 0.3
    Chosen by hand; controls the maximum camera perturbation in Eq. 3, critical for the smoothness-versus-duplication tradeoff. No sensitivity analysis is provided.
  • Camera jitter standard deviations (sigma_R, sigma_T, sigma_FOV) = 1.0
    Set to 1 in Eq. 4; hand-chosen, no sensitivity analysis reported.
  • Render resolution schedule endpoints (a, b) = a=512, b=1024
    From Eq. 6; the progressive scaling curve is hand-chosen and the final resolution is a user decision.
  • VSD timestep distribution = U(0.02,0.98), annealed to U(0.02,0.5) after step 1000
    Hand-chosen schedule reported in Supplement A; affects the strength of the diffusion prior during optimization.
  • Learning rates = 1e-3 (VSD), 1e-4 (LoRA)
    Hand-chosen Adam settings from Supplement A; standard values for score distillation.
assumptions (3)
  • domain assumption VSD provides a valid gradient direction for optimizing a neural texture field toward the distribution of a pretrained 2D diffusion model.
    Invoked in Sec. 3.1, Eq. 1, following ProlificDreamer [50]. This is a known method but its validity for the specific multi-prompt, shared-texture setting is assumed.
  • domain assumption A 2D text-to-image diffusion model (SD v2-1-base) has enough multi-view knowledge of objects to guide 3D-consistent texture optimization.
    Motivated in the Introduction by citing [36] (the model has been trained on different regions and views of the same object) but not verified for the specific shapes and prompt pairs used.
  • ad hoc to paper Scheduled camera jitter, patch denoising, and progressive resolution scaling are sufficient to avoid the local minima that produce duplicate or partial content.
    This is the core empirical claim of the paper; the mechanisms are heuristic and the paper admits in Sec. 5 that the model can still cheat the optimization criteria.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Illusion3D: 3D Multiview Illusion with 2D Diffusion Priors." pith.science (2026). https://pith.science/paper/QRLM6Z62

@misc{pith2026241209625,
  author       = {Pith},
  title        = {Pith review of: Illusion3D: 3D Multiview Illusion with 2D Diffusion Priors},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QRLM6Z62}},
  note         = {Machine review of arXiv:2412.09625}
}
read the original abstract

Automatically generating multiview illusions is a compelling challenge, where a single piece of visual content offers distinct interpretations from different viewing perspectives. Traditional methods, such as shadow art and wire art, create interesting 3D illusions but are limited to simple visual outputs (i.e., figure-ground or line drawing), restricting their artistic expressiveness and practical versatility. Recent diffusion-based illusion generation methods can generate more intricate designs but are confined to 2D images. In this work, we present a simple yet effective approach for creating 3D multiview illusions based on user-provided text prompts or images. Our method leverages a pre-trained text-to-image diffusion model to optimize the textures and geometry of neural 3D representations through differentiable rendering. When viewed from multiple angles, this produces different interpretations. We develop several techniques to improve the quality of the generated 3D multiview illusions. We demonstrate the effectiveness of our approach through extensive experiments and showcase illusion generation with diverse 3D forms.

Figures

Figures reproduced from arXiv: 2412.09625 by the authors.

Figure 1

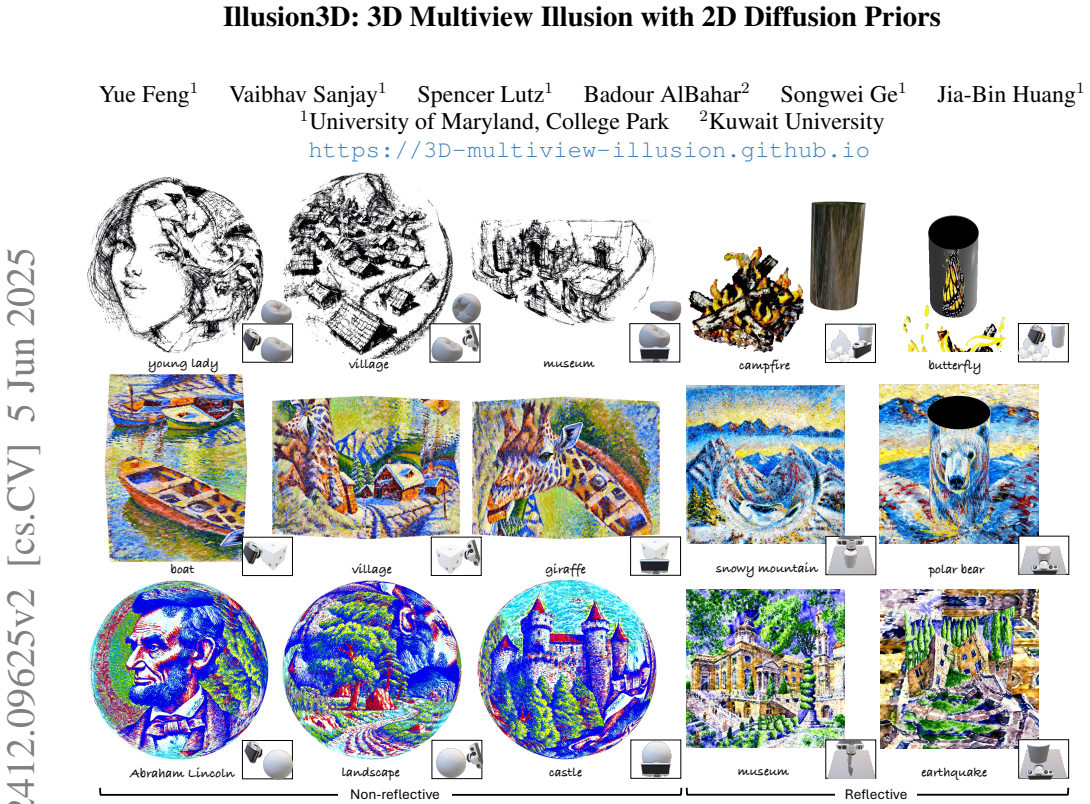

Figure 1. 3D Multiview Illusion. Our work expands the capability of existing multiview illusions (based on shadow, wire, or 2D plane) to 3D surfaces with perspective views. Distinct visual interpretations can be observed when rendering our generated illusion from different perspectives on a consistent texture map. We showcase our 3D multiview illusions with different setups with text prompt inputs, including cubes, spheres, b… view at source ↗
Figure 2
Figure 2. 2D and 3D Illusions. Each subfigure highlights different types of visual effects. (a) 2D flip illusion [42]. Existing 3D illusions typically form line drawings [11] (b) or figure-ground images like shadows [24] (c). In contrast, our work expands the capability to generate 2D color images from different viewpoints. (d) When placed on a textured surface, a reflective surface can reveal new content [31]. However, it ta… view at source ↗
Figure 3
Figure 3. Method overview. We illustrate the process of generating a 3D multiview illusion from a cube with three varying interpretations from different viewpoints (V1, V2, and V3) guided by text prompts (y1, y2, and y3). First, we render the cube from the target viewpoints Vi applying scheduled camera jitter C(k) and scheduled render size R(k) with respect to the gradient flow time k. Camera jitter improves generation qualit… view at source ↗
Figures from the paper (16 more)
Figure 4
Figure 4. Figure 4: Comparison with basic baselines. Inverse projection can blend the images but cannot generate an illusion. Blending in latent space also fails. Burget et al.’s [3] method can not generate an illusion of 3D shape. Our method can blend the primary content while generating…
Figure 5
Figure 5. Figure 5: Comparison of different design choices. Our proposed method achieves optimal primary content fusion while maintaining high visual quality. In contrast, the baseline method struggles with the null space of the VAE encoder without camera jitter. Random patch denoising en…
Figure 7
Figure 7. Figure 7: Personalized image illusion generation with reflective surfaces. Given an RGB image, we can supervise the generation of an image of one view by just using L2 loss and text to generate an image of another content. We reinvent the Finding Waldo game with a reflective cyl…
Figure 8
Figure 8. Figure 8: 3D shape illusion. A 3D shape generation model is trained with a view from the reflected cylinder. Columns 1 and 2 are different views of the generated 3D object. Column 3 is a view of the object from the reflective cylinder. w/o camera jitter with camera jitter [PITH…
Figure 11
Figure 11. Figure 11: Larger area overlapped by camera views on the sphere. We make the camera views from three orthogonal views to more compact camera view positions (shrink views) on the sphere case. Intermediate views are presented in the 2nd and 4th columns. prompt? ”. We compare the r…
Figure 12
Figure 12. Figure 12: User study: comparison with other design choices. We compare our method pairwise with alternative design choices in [PITH_FULL_IMAGE:figures/full_fig_p008_12.png]
Figure 13
Figure 13. Figure 13: 3D multiview illusion with reflective surfaces. We demonstrate illusion generation on a reflective cylinder (left) and a curved mirror (right) [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 14
Figure 14. Figure 14: Preview of User Study. The user study was distributed over Google Forms. The user is provided with some context and the relevant prompts, followed by three animated GIFs, one for each method. They are then prompted with two multiple choice questions to evaluate the qu…
Figure 15
Figure 15. Figure 15: Ablation: apply super-resolution model on texture map. Left: 512-resolution illusion generation on single-cylinder reflective case. Middle: rendered image after upcaling the texture map of baseline from 512×512 to 1024×1024. Right: our result on 1024 × 1024 texture ma…
Figure 16
Figure 16. Figure 16: Prompt variance. We added more descriptions to the input prompts on the bean bag example. Burgert et al. [3] Baseline Random patch w/o resolution scaling w/o resolution scaling w/o camera jitter Ours Camera jitter × × × random scheduled × scheduled Patch denoising × ×…
Figure 17
Figure 17. Figure 17: Comparison of different design choices on sphere case. Our method can have the best primary content fusion while obtaining visual quality. The baseline method suffers null space of VAE encoder without camera jitter. Random patch denoising can improve the resolution of…
Figure 18
Figure 18. Figure 18: Random samples on beanbag. We present more random examples on beanbag (concave mesh). Styles (left to right): pencil sketch, pencil sketch, sketch, pencil sketch, ink drawing, monogram, pencil sketch, pop art. 4 [PITH_FULL_IMAGE:figures/full_fig_p014_18.png]
Figure 19
Figure 19. Figure 19: Random samples of Lego toy. We present more random examples on a lego toy (convex surface). Styles (left to right): ink drawing, pencil sketch, painting, watercolor, oil painting(×4) [PITH_FULL_IMAGE:figures/full_fig_p015_19.png]
Figure 20
Figure 20. Figure 20: Ablation on more views. We extend the multiview illusion to 8 corners of a cube, each view containing three faces of a cube, and each adjacent corner has 180◦ flip viewing directions. We demonstrate our ability to generate illusions on more views on cube and sphere ca…
Figure 21
Figure 21. Figure 21: Random samples. We show random samples with the same prompt pairs on cube and sphere cases. 6 [PITH_FULL_IMAGE:figures/full_fig_p016_21.png]
Figure 22
Figure 22. Figure 22: Random samples. We present more random examples on sphere case. 7 [PITH_FULL_IMAGE:figures/full_fig_p017_22.png]
