The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper demonstrates a photon-pair source on a chip that does not need periodic poling, the step normally required to make a nonlinear waveguide phase-matched. It achieves this with modal phase matching: the 765 nm pump is sent into a higher-order mode ($TE_{01}$) whose effective refractive index matches that of the fundamental mode carrying the 1530 nm signal photons. The key trick is a dual-layer lithium-niobate waveguide, two 300 nm layers with opposite crystal orientations, which raises the modal overlap from 0.21 to 0.81 and boosts the expected conversion efficiency by about 16 times. As a result, the source produces pairs at 41.77 GHz/mW, a coincidence-to-accidental ratio up to 58298, and heralded single photons with $g^{(2)}_{H}(0)<0.2$ at raw rates above 100 kHz. These numbers put a poling-free source on par with periodically poled lithium-niobate devices.

What carries the argument

The central mechanism is modal phase matching in a dual-layer LNOI rib waveguide. In MPM, momentum conservation is satisfied by choosing the pump and signal to occupy different transverse modes with equal effective refractive indices—here $TE_{01}$ at 765 nm and $TE_{00}$ at 1530 nm—so no periodic poling is needed. The dual-layer structure of two oppositely oriented 300 nm LN films flips the sign of the normalized nonlinear susceptibility across the interface, lifting the modal overlap factor $\zeta$ from 0.21 (single-layer) to 0.81. This factor enters the pair-generation rate as $\mathrm{PGR} \propto L^2 P_p d_{\mathrm{eff}}^2 \zeta^2 / A_{\mathrm{eff}} \operatorname{sinc}^2(\Delta k L/2)$, so the roughly 16-fold increase in $\zeta^2$ accounts for the observed high brightness.

What would settle it

Measure the actual fiber-to-waveguide insertion loss for the 765 nm $TE_{01}$ pump mode by comparing transmitted power through a waveguide of known linear propagation loss with the incident power, then recompute the pair-generation rate; a measured loss different from the simulated 20.7 dB would rescale the reported 41.77 GHz/mW proportionally.

Watch

Extended reading notes

Core claim

On its own terms, the paper establishes that modal phase matching in a straight, unpoled waveguide fabricated on dual-layer lithium-niobate-on-insulator is a viable route to efficient spontaneous parametric down-conversion. The phase-matching design pairs the $TE_{01}$ pump mode at 765 nm with the $TE_{00}$ signal/idler modes near 1530 nm; the two oppositely oriented 300 nm LN layers flip the sign of the nonlinear susceptibility across the interface, increasing the overlap integral $\zeta$ from 0.21 to 0.81. The measured normalized SHG efficiency of 2976% per watt per square centimeter confirms the waveguide's nonlinearity, and the SPDC characterization yields a pair generation rate of 41.77 GHz/mW, a coincidence-to-accidental ratio of 58298$\pm$1297, and a heralded single-photon source with $g^{(2)}_{H}(0)=0.196$ at a raw rate of 104.8 kHz. The paper concludes that this performance is comparable to periodically poled LNOI sources while removing the fabrication sensitivity to poling uniformity.

Load-bearing premise

The headline brightness depends on an estimated, not measured, coupling loss of 20.7 dB between the lensed fiber and the $TE_{01}$ pump mode; if the true loss differs, the pair-generation rate scales inversely in proportion.

Editorial extensions

If this is right

  • A poling-free LNOI waveguide can produce photon-pair sources with brightness (41.77 GHz/mW) and noise (CAR 58298) comparable to periodically poled devices, simplifying fabrication.
  • Heralded single-photon generation with $g^{(2)}_{H}(0)<0.2$ at raw rates above 100 kHz makes the source directly usable in on-chip quantum information experiments.
  • The dual-layer bonding/stacking approach can be scaled to large wafers, promising for integrated photonics where poling uniformity is a bottleneck.
  • The same waveguide also supports efficient SHG (2976% per watt per square centimeter), so it is a general platform for three-wave mixing.
  • Because PGR scales with the square of the waveguide length in the phase-matched limit, longer dual-layer waveguides should yield still higher brightness.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The unmeasured $TE_{01}$ coupling loss is the main calibration uncertainty; a direct loss measurement would either confirm the headline brightness or shift it, while leaving the underlying mechanism and the CAR$\times$PGR$\approx$2.7 GHz invariant.
  • A natural next experiment is to tune the waveguide width and etch depth to move the phase-matching wavelength across the telecom C-band, enabling tunable or broadband pair generation with the same poling-free design.
  • The dual-layer geometry could be transferred to other ferroelectric thin films where poling is also difficult, potentially giving similar overlap enhancement.
  • If fabrication tolerances are the main cause of the gap between simulated and measured SHG efficiency, tighter process control should push both SHG and SPDC closer to the predicted values.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The manuscript reports a spontaneous parametric down-conversion (SPDC) source in a dual-layer lithium niobate nanowaveguide, using modal phase matching between the TE01 pump mode at 765 nm and the TE00 signal/idler mode at 1530 nm. The authors measure SHG efficiency, pair generation rate (PGR), coincidence-to-accidental ratio (CAR), and heralded second-order autocorrelation. They claim a PGR of 41.77 GHz/mW, CAR up to 58298±1297, and a heralded single-photon source with raw rate above 100 kHz and g_H^(2)(0)<0.2. The central idea is that an oppositely oriented dual-layer structure enhances the modal overlap and avoids the need for periodic poling.

Significance. If the quantitative brightness claim is correct, the work is significant: it demonstrates a poling-free route to efficient on-chip SPDC in LNOI, with performance comparable to periodically poled devices. The direct measurements of two-photon coincidence, CAR, and g^(2)(0) provide credible evidence of photon-pair generation and single-photon heralding, and the design insight of enhancing modal overlap with a dual-layer structure is useful. However, the absolute brightness figure rests on an unverified simulated coupling loss and on an internal inconsistency in the reported numbers, so the headline PGR is not presently established by the data as written.

major comments (3)
  1. [Experimental Results of SPDC (Fig. 3)] The reported data are internally inconsistent. The text states that 'the pump power here is the estimated power intensity coupled into TE01' and reports a PGR of 61±5 kHz at a pump power of 20.8 nW. If 20.8 nW is the on-chip TE01 power, the linear slope of 41.77 GHz/mW from Fig. 3(c) predicts 869 kHz; if 20.8 nW is the external power and the simulated 20.7 dB coupling loss is applied, the on-chip power is 0.177 nW and the predicted PGR is 7.4 kHz. Neither interpretation matches the quoted 61 kHz. This discrepancy must be reconciled from the raw data, including the pump-power calibration and the range of the linear fit.
  2. [Experimental Results of SPDC (Fig. 3(e))] The claimed relation CAR × PGR ≈ 2.7 GHz is not supported by the quoted numbers. With CAR = 58298 and PGR = 61 kHz, the product is 3.56 GHz, a 32% discrepancy from the stated 2.7 GHz. Moreover, for CW SPDC detected through a 50:50 fiber beam splitter with a 1 ns coincidence window, the product CAR × PGR should be of order 0.5–1 GHz depending on how accidental coincidences are defined. The authors should clarify the definition of Csi(∞), the effective coincidence window, and the exact values used in the product.
  3. [Experimental Results of SPDC (pump-power calibration)] The on-chip TE01 pump power is never directly measured. The authors measured a 6 dB coupling loss for the TE00 mode and then used a simulated 20.7 dB loss for the TE01 mode, with no direct check such as a transmitted-power measurement or an independent estimate from the SHG characterization. Because every PGR value and the headline slope of 41.77 GHz/mW scale inversely with this assumed loss, the absolute brightness has a systematic uncertainty that should be quantified and, if possible, removed by a direct calibration.
minor comments (6)
  1. [Introduction] The phrase 'two x-cut two 300 nm-thick thin-film LN' contains a duplicated 'two' and should be corrected.
  2. [Design and Simulation, Eq. (2)] In Eq. (2) the field product is written as E_TE00(x,z)* E_TE00(x,z)* E_TE01(x,z); the asterisks appear to be complex-conjugate marks, but the notation is confusing for real waveguide modes. Please clarify or simplify.
  3. [Fig. 1(c)] The electric-field profiles in Fig. 1(c) have no color scale or normalization label; adding a color bar or stating that the fields are normalized would improve reproducibility.
  4. [Fig. 3(c)] The x-axis is labeled 'Pump power(μW)' while the slope is quoted in GHz/mW; the conversion 1 GHz/mW = 1 MHz/μW should be stated explicitly to avoid confusion.
  5. [Table I] The comparison in Table I mixes spectral brightness (e.g., footnote c) with total PGR without a common filtering bandwidth; the authors should specify whether the entries are directly comparable or state the bandwidth used for each.
  6. [Experimental Results of SPDC] The text introducing the heralded single-photon result says the raw heralded rate is Csi1 + Csi2, but the figure caption and the text should define this quantity consistently, since the two detectors observe the two outputs of the same 50:50 beam splitter.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the central SPDC results are direct measurements, and the self-citations support fabrication and design but do not carry the main claim.

full rationale

The paper's central claims are the measured pair generation rate, coincidence-to-accidental ratio, and heralded g^(2)(0). These are obtained from photon-counting data using defined formulas (PGR = CiCs/2Csi, CAR from g^(2)_si(t), g^(2)_H(0) from triple coincidences), not from fitted parameters or from the cited prior work. The modal overlap factor ζ is computed with an independent Maxwell-solver simulation using Eq. 2, and the 16× enhancement estimate follows from that simulation; it is not a fit to the SPDC data. The phase-matching design (TE00 at 1530 nm and TE01 at 765 nm in a dual-layer waveguide) is also determined by simulation of effective refractive indices, with the fabricated device subsequently characterized by SHG before the SPDC measurement. The TE01 pump-power calibration does rely on a simulated 20.7 dB coupling loss, which is a load-bearing assumption for the absolute brightness value, but it is an input calibration, not a quantity derived from the claim being made; no equation in the paper reduces PGR or CAR to that simulation. The self-citations to prior work by the same groups (refs. 23, 24, 29, 30, 34, 38) support fabrication methods, SHG/SFG demonstrations, and a comparison table entry; none of them is invoked as a uniqueness theorem or as the source of the main SPDC result. The apparent internal inconsistency between the 41.77 GHz/mW slope and the 61 kHz PGR at 20.8 nW, noted in the skeptic analysis, is a correctness and calibration concern, not a circularity because it does not show that any derived quantity is equivalent to its own input by construction. Overall, the derivation is self-contained with respect to the measured claims, and no circular step meeting the required evidentiary standard is present; the score of 1 reflects only minor, non-load-bearing self-citation of platform work.

Assumptions & free parameters 1 free parameters · 4 assumptions · 0 invented entities

No new physical entities are proposed. The free-parameter ledger is dominated by calibration assumptions, especially the TE01 coupling loss. The physics model itself has no fitted constants.

free parameters (1)
  • Fiber-to-TE01 coupling loss = 20.7 dB (simulated, not measured)
    Used to convert measured pump power into on-chip TE01 power; PGR in GHz/mW scales inversely with this loss, so this single number controls the headline brightness.
assumptions (4)
  • domain assumption Two bonded 300-nm x-cut LN layers with opposite z directions realize dNor=+1/-1 and improve modal overlap from 0.21 to 0.81.
    This is the enabling design premise (Figure 1a, Eq. 2). It relies on the bonding and orientation being as described; the 16x efficiency boost is not directly tested against a single-layer control.
  • domain assumption Finite-element simulations of effective indices and mode profiles correctly predict MPM geometry (w approximately 1.43 um, h1=460 nm, pump 765 nm).
    Phase-matching design and the predicted enhancement depend on the numerical solver used for Figure 1b-d; the only partial check is the SHG tuning curve.
  • domain assumption The simulated coupling loss between lensed fiber and TE01 mode (20.7 dB) gives the true on-chip pump power.
    Used in the PGR calculation; no direct measurement of TE01 coupling is reported.
  • standard math Eqs. (1) and (2) from refs [31,32] correctly describe SPDC brightness and modal overlap in this waveguide.
    Standard undepleted-pump perturbation treatment; the factor 1/2 from the FBS is asserted without derivation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of High-efficiency On-chip Quantum Photon Source in Modal Phase-matched Lithium Niobate Nanowaveguide." pith.science (2026). https://pith.science/paper/AII5RUAJ

@misc{pith2026241211372,
  author       = {Pith},
  title        = {Pith review of: High-efficiency On-chip Quantum Photon Source in Modal Phase-matched Lithium Niobate Nanowaveguide},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/AII5RUAJ}},
  note         = {Machine review of arXiv:2412.11372}
}
abstract

Thin-film lithium niobate on insulator~(LNOI) emerges as a promising platform for integrated quantum photon source, enabling scalable on-chip quantum information processing. The most popular technique to overcome the phase mismatching between interacting waves in waveguide is periodic poling, which is intrinsically sensitive to poling uniformity. Here, we report an alternative strategy to offset the phase mismatching of spontaneous parametric down-conversion~(SPDC) process, so-called modal phase matching, in a straight waveguide fabricated on a dual-layer LNOI. The dual-layer LNOI consists of two 300~nm lithium niobates with opposite directions, which significantly enhances the spatial overlap between fundamental and high-order modes and thus enables efficient SPDC. This dual-layer waveguide generates photon pairs with pair generation rate of 41.77~GHz/mW, which exhibits excellent signal-to-noise performance with coincidence-to-accidental ratio up to 58298$\pm$1297. Moreover, we observe a heralded single-photon source with second-order autocorrelation $g_{H}^{(2)}(0)<0.2$ and heralded rate exceeding 100~kHz. Our results provide an experiment-friendly approach for efficient generation of quantum photon sources and benefit the on-chip quantum information processing based on LNOI.

Figures

Figures reproduced from arXiv: 2412.11372 by the authors.

Figure 1
Figure 1. FIG. 1. (a) The ridge waveguide is designed and fabricated on a 600 nm thick dual-layer [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. (a) The experimental setup to characterize the SHG [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

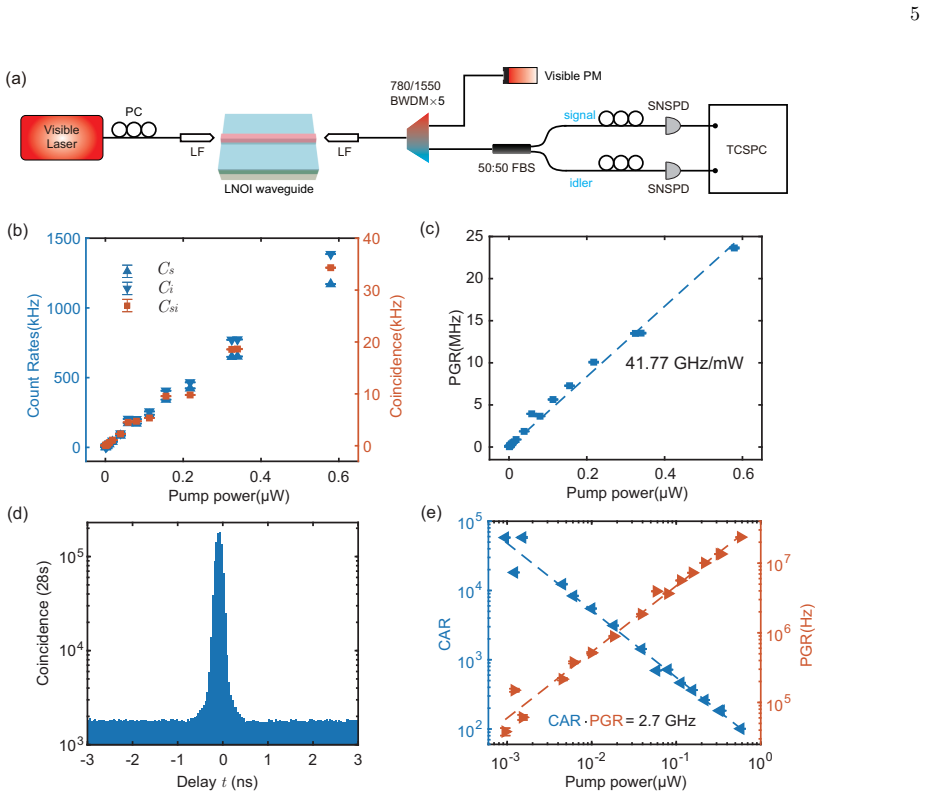

Figure 3. FIG. 3. (a) The experimental setup to characterize the generated photon pairs from LNOI waveguide. (b) The count rates of [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
