Recurrence-based Vanishing Point Detection

T0 review · 4 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Recurring patterns alone, without straight lines or training data, can locate vanishing points in images.

desk verdict Genuinely new unsupervised VPD idea and two useful datasets, but the benchmark leans on the method's own geometric prior and the significance claims need tighter statistics. read the letter →

arxiv 2412.20666 v2 pith:B72RWW4F submitted 2024-12-30 cs.CV

Skanda Bharadwaj , Robert Collins , Yanxi Liu This is my paper · ORCID
classification cs.CV
keywords recurrence-basedvanishingpointdetectionimplicitlinesSIFTfeaturecorrespondenceunsupervisedcomputervisionweightedRANSACperspectiveprojectionrecurringpatterndatasets
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Vanishing-point detection usually requires either visible straight edges or a large labeled training set. This paper argues that neither is necessary: recurring instances of the same visual pattern in a single image define implicit straight lines, and the intersection of those lines locates the vanishing point. The proposed R-VPD pipeline discovers corresponding SIFT keypoints across pattern instances, fits lines through them with a scale-based orientation pointing toward the vanishing point, and merges those implicit lines with explicit line segments through a weighted RANSAC vote. On the paper's new 3,200-image synthetic benchmark and its 1,400-image real-world benchmark, this unsupervised method beats classical line-based detectors, and on real recurring-pattern images it matches a supervised deep-learning network. The broader point a reader should take away is that perspective information is carried by texture repetition, so the bottleneck for vanishing-point detection is not only edges or labels but the ability to see what repeats.

What carries the argument

The load-bearing object is the implicit line: a straight line fit to corresponding SIFT keypoints that repeat across two or more instances of a recurring pattern, with direction fixed by keypoint scale so the vector runs from larger to smaller features, i.e., toward the vanishing point. These correspondences are obtained without labeled data by hierarchical clustering of 128-dimensional SIFT descriptors, forward feature selection using linearity, angle, and scale scores (composite $S_C = S_L \exp(S_A+S_S)/N^2$), and an optimization-inspired search over visual-word/instance groupings. The implicit lines are then fused with explicit lines in a weighted RANSAC where each line's weight starts at $w_i = \sum_{j\ne i} e^{-\theta_{ij}}$ for acute angle $\theta_{ij}$ and is updated by multiplying inliers by $\alpha=1.2$ and outliers by $\beta=0.8$; the winning intersection is refined by least squares and eigenvalue decomposition. This machinery is what lets a vanishing point emerge from texture repetition when no long straight edges exist.

What would settle it

Render a controlled set of images exactly like RPVP-Synthetic but with the repeated objects arranged along straight 3D lines that are parallel to the image plane, so their projected size does not decrease and the projected lines do not converge; if R-VPD still reports a finite, confident vanishing point on most of these images, the scale-and-collinearity prior is generating the VP rather than measuring one.

Watch

Extended reading notes

Core claim

The paper's central claim is that vanishing points can be recovered from recurring patterns without any supervised training and without requiring explicit straight lines. Corresponding SIFT features across instances of a recurring pattern define implicit lines; because pattern instances project smaller as they recede, the fitted line is oriented from larger-scale to smaller-scale features, pointing toward the vanishing point. R-VPD then combines these implicit lines with any explicit line segments and uses a weighted RANSAC to vote on the intersection, refining weights so near-parallel lines dominate the consensus. The paper reports that on RPVP-Synthetic (3,200 rendered images with known camera parameters) R-VPD outperforms all four compared methods; on RPVP-Real (1,400 human-annotated images) it outperforms the classical baselines; and on the 416-image RPVP-Real-Exclusive subset it is statistically on par with NeurVPS, a supervised deep-learning method, with p = 0.58. The intended scope is single-dominant-VP natural scenes, and the paper positions the result as evidence that perspective geometry is readable from things that recur rather than only from edges.

Load-bearing premise

Recurring pattern instances lie along straight 3D lines that project through the vanishing point, and the matched SIFT keypoints shrink monotonically in scale along those lines toward the VP, so "from larger to smaller scale" reliably orients the implicit lines toward the VP.

Editorial extensions

If this is right

  • Vanishing-point detection no longer needs scenes with long straight edges; images of periodic texture, facades, or repeated objects become usable inputs.
  • A no-training pipeline can reach the accuracy of a supervised deep network on real recurring-pattern imagery, so vanishing-point detection can be applied to new image domains without collecting labels.
  • The RPVP-Synthetic and RPVP-Real datasets give the community a benchmark where perspective information is carried by recurrence, isolating that cue from the explicit-line cue.
  • The recovered single vanishing point supports downstream affine rectification of one-point-perspective images, as demonstrated in the paper's frontal-view example.
  • Because the method's complexity is $O(n^2)$ in the number of SIFT features, scaling the descriptor extraction stage is the path to practical speed rather than dataset collection.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension the paper leaves implicit is multi-VP detection: running the same implicit-line voting in a multi-model RANSAC over implicit lines could recover Manhattan or Atlanta-world vanishing points from texture repetition alone.
  • The scale-orientation rule could be tested independently by ablating it: randomize the SIFT scales of matched keypoints while keeping their positions; if accuracy on RPVP-Real collapses, monotone scale decrease is the real carrier of the signal, not just collinearity.
  • Because the real-world ground truth is drawn as lines through recurring patterns rather than through long architectural edges, an independent comparison on a dataset whose ground truth comes from explicit straight lines would show whether recurrence-derived and edge-derived vanishing points agree in general scenes.
  • A practical derivative is a faster, feature-light variant: replace SIFT with a cheaper keypoint detector and descriptor while keeping the weighted-RANSAC fusion, which could bring the unsupervised advantage to real-time and memory-constrained platforms.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The manuscript proposes R-VPD, an unsupervised vanishing point detector that augments explicit line segments with implicit lines obtained from corresponding SIFT keypoints across recurring pattern instances. It contributes two benchmarks, RPVP-Synthetic (3,200 Blender-rendered images) and RPVP-Real (1,400 annotated images), and reports comparisons against LSD, J-Linkage, NeurVPS, and GPVPD using angle-accuracy AUC values and p-values. The central claims are that R-VPD outperforms all methods on synthetic images, outperforms classical methods and matches supervised deep learning methods on real-world images.

Significance. The core idea is original and potentially useful: detecting vanishing points from recurring patterns without training data and without relying on explicit straight lines. If the results generalize, the contribution is significant for scenes with repeated patterns and few line segments. The two RPVP datasets are a further contribution, and the authors state that code and data will be released. The stress test in Appendix D is a useful robustness check. However, the benchmark design and the statistical reporting currently leave the main generalization claim under-supported: the synthetic data are generated from exactly the geometric prior the method assumes, and the real-world ground truth is annotated by drawing lines through recurring patterns, which is the same construction R-VPD is designed to recover.

major comments (4)
  1. [Section 4.1.1 and Appendix B.1.1 versus Section 3.4] The synthetic benchmark is generated from the method's own prior. Objects are placed along L(t)=O+tD and oriented toward the vanishing point, so every recurring pattern instance forms a receding line with monotonically decreasing projected scale. This is exactly the assumption used in Section 3.4, where 'vectors from larger to smaller scale features' are regarded as pointing toward the vanishing point. Consequently, Table 1 demonstrates that R-VPD works when its prior is exactly satisfied, but it does not establish performance on images where recurring patterns do not recede to the VP, such as fronto-parallel brick or tile patterns. I request an evaluation on an independent benchmark, or on a constructed control set where repeated instances are arranged without a common vanishing line, with VP accuracy reported in both settings.
  2. [Section 5.1] The p-value test is under-specified. The manuscript does not state what test statistic is used, whether the comparison is paired across images, how the entire AUC curve is reduced to a single test, or how multiple comparisons across the eight methods are controlled. Without this information, statements such as 'p-value << 0.001' in Section 5.1 and the claim in Section 5.3 that p=0.003 (>0.001) means NeurVPS does not significantly outperform R-VPD are not verifiable. Please define the test, justify the 0.001 threshold, and report effect sizes or confidence intervals in addition to p-values.
  3. [Section 4.2] The angle accuracy metric uses an arbitrary nominal focal length f=(W+H)/4 for computing VP unit vectors. Since all angular errors depend on f, method rankings can change under different focal-length assumptions. Please provide a sensitivity analysis across plausible values of f, or use ground-truth camera intrinsics on RPVP-Synthetic where they are available, and state clearly whether any of the reported conclusions are robust to this choice.
  4. [Section 4.1.2 and Appendix B.2] The ground truth for RPVP-Real is computed as the intersection of lines that are manually drawn through recurring patterns. This is the same implicit-line construction that R-VPD is designed to recover, which makes the real-world benchmark partially self-confirming. I ask for an assessment of annotation variability, a comparison with an independent ground-truth source (for example, vanishing points derived from 3D structure or from line annotations not tied to recurrence), and a quantification of how strongly the reported rankings depend on the annotation convention.
minor comments (4)
  1. [Section 3.3] The composite score SC = SL × exp(SA + SS)/N^2 mixes quantities with different units (pixels, radians, and dimensionless values), and the paper does not explain why the exponential of the summed angle and scale scores is preferable to a weighted sum or product. A brief rationale or an ablation would clarify the design.
  2. [Table 5 and Appendix C] There are inconsistencies in the reported processing times: Appendix C states 0.86 and 0.48 seconds for NeurVPS and GPVPD on real-world images and 0.86 and 0.58 seconds on synthetic images, while Table 5 lists 0.86 and 0.52 seconds for RPVP-Real and 0.52 and 0.52 seconds for RPVP-Synth. Please correct these numbers.
  3. [Figure 17 caption] The caption labels two stages with the same letter, '(c) Line Fit' and '(c) Inliers', which makes the pipeline stages hard to follow. Please renumber the subfigures.
  4. [Section 2 and Section 4.2] The closest prior work on using repeated patterns for geometric rectification, namely the methods of Pritts et al. [34-36], is cited but not included as a baseline. A comparison with at least one such method would help position R-VPD relative to existing recurrence-based geometric estimation approaches.

Circularity Check

2 steps flagged · score 6.0 of 10

RPVP benchmarks are built from R-VPD's own implicit-line/scale-reduction prior, making the headline synthetic and real-world comparisons partially self-fulfilling; TMM17-Test is the only partly independent check.

  1. self definitional [Appendix B.1.1 and Section 3.4]
    ""the positioning of the objects is governed by the equation of a line in three-dimensional space, represented as L(t) = O + tD ... The objects are placed such that their distances from the observer increase incrementally, causing them to appear smaller and smaller due to the perspective effect" (App. B.1.1); "vectors from larger to smaller scale features regarded as pointing toward the vanishing point" (Sec. 3.4)."

    R-VPD's orientation model assumes corresponding SIFT features lie on receding lines and that scale decreases monotonically toward the VP. RPVP-Synthetic is generated by placing duplicated objects exactly along L(t)=O+tD, with perspective shrinking them along that line, and the GT VP is computed as the intersection of those constructed parallel lines (App. B.1.2). Every synthetic image is therefore built from the very prior the algorithm uses to vote for a VP; the benchmark measures the method's ability to invert its own data-generation model. The Table 1 'outperforms all methods' result is thus partly self-fulfilling, though TMM17-Test provides an independent countercheck.

  2. self definitional [Section 4.1.2 and Appendix B.2]
    ""The ground truth vanishing point is then calculated as the intersection of these annotated lines" (Sec. 4.1.2); "the vanishing point for these images is calculated by finding the intersection of lines that pass through the recurring patterns ... the two lines are drawn manually on the image over the recurring patterns" (App. B.2)."

    R-VPD's output is the weighted-RANSAC intersection of implicit lines fitted to recurring SIFT correspondences (Secs. 3.1 and 3.4). RPVP-Real's ground truth is defined as the intersection of human-drawn lines placed over recurring patterns. Thus the target and the prediction are instances of the same construction: lines through recurring pattern instances. Agreement on RPVP-Real and RPVP-Real-Exclusive (Tables 2 and 3) mostly shows that annotators and algorithm used the same cue, not that the cue has been validated on an independently defined VP for arbitrary scenes. The 'on par with supervised learning' claim rests mainly on this aligned benchmark.

full rationale

The paper's geometric derivation chain is internally consistent: SIFT correspondences are grouped, implicit lines are fitted, and a weighted RANSAC finds their intersection. No parameter is fitted to the RPVP ground-truth labels, so there is no classic fitted-input-called-prediction circularity, and the self-citations to GRASP [26] and RP discovery [44] are algorithm references, not load-bearing uniqueness claims. The circularity is at the evaluation-construction level: both RPVP datasets define the VP by lines through recurring patterns, which is exactly the cue R-VPD is designed to exploit, and RPVP-Synthetic is generated by arranging objects on L(t)=O+tD with monotonically shrinking scale. Consequently the headline outperformance on RPVP-Synthetic and the parity claim on RPVP-Real/RPVP-Real-Exclusive are partially forced by the benchmark's construction. The TMM17-Test result (Table 4), where R-VPD is second best rather than best, is the only substantially independent evidence and keeps the paper from being fully circular. The p=0.003 vs 0.001 threshold argument is a statistical judgment, not a circularity.

Assumptions & free parameters 4 free parameters · 3 assumptions · 0 invented entities

The central claims rest on hand-set constants (alpha, beta, composite score form), an arbitrary nominal focal length in the evaluation metric, and the geometric prior that recurring instances form receding straight lines. The datasets were constructed from that same prior, which supports the benchmarking of the method but weakens the independence of the evaluation. No new physical entities are introduced.

free parameters (4)
  • alpha (RANSAC inlier weight multiplier) = 1.2
    Hand-chosen in Section 3.4 to increment inlier line weights after each RANSAC iteration; no sensitivity analysis or fitting procedure is reported.
  • beta (RANSAC outlier weight multiplier) = 0.8
    Hand-chosen in Section 3.4 to decrement outlier line weights; no sensitivity analysis.
  • nominal focal length f for angle accuracy metric = (image width + image height)/4
    Chosen in Section 4.2 when true focal length is unknown; directly affects all AA/AUC values reported in Tables 1-4 and the comparisons against other methods.
  • Composite feature selection score form = SC = SL * exp(SA+SS) / N^2
    Hand-designed scoring in Section 3.3; the exponential coupling, N^2 normalization, and multiplication are not derived from data or theory.
assumptions (3)
  • domain assumption Recurring pattern instances lie along straight 3D lines that converge to the VP.
    The implicit lines in Section 3.1 are the projections of these 3D lines; the RPVP-Synthetic dataset is generated by placing objects on L(t)=O+tD (Appendix B.1.1), and RPVP-Real GT is defined by lines drawn through recurring patterns (Section 4.1.2).
  • domain assumption SIFT keypoint scale decreases monotonically toward the VP, so the direction from larger to smaller scale features indicates the VP.
    Section 3.4 uses this to orient implicit lines; not guaranteed for repeated patterns at constant depth or under rotation.
  • domain assumption The GRASP optimization and hierarchical clustering identify true corresponding visual words across RP instances without supervision.
    Sections 3.2-3.3 assume the discovered correspondences are geometrically meaningful for line fitting; the paper defers details to prior work [26,44].

how reviews work

0 comments
Cite this review

Pith. "Pith review of Recurrence-based Vanishing Point Detection." pith.science (2026). https://pith.science/paper/B72RWW4F

@misc{pith2026241220666,
  author       = {Pith},
  title        = {Pith review of: Recurrence-based Vanishing Point Detection},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/B72RWW4F}},
  note         = {Machine review of arXiv:2412.20666}
}
read the original abstract

Classical approaches to Vanishing Point Detection (VPD) rely solely on the presence of explicit straight lines in images, while recent supervised deep learning approaches need labeled datasets for training. We propose an alternative unsupervised approach: Recurrence-based Vanishing Point Detection (R-VPD) that uses implicit lines discovered from recurring correspondences in addition to explicit lines. Furthermore, we contribute two Recurring-Pattern-for-Vanishing-Point (RPVP) datasets: 1) a Synthetic Image dataset with 3,200 ground truth vanishing points and camera parameters, and 2) a Real-World Image dataset with 1,400 human annotated vanishing points. We compare our method with two classical methods and two state-of-the-art deep learning-based VPD methods. We demonstrate that our unsupervised approach outperforms all the methods on the synthetic images dataset, outperforms the classical methods, and is on par with the supervised learning approaches on real-world images.

Figures

Figures reproduced from arXiv: 2412.20666 by the authors.

Figure 1
Figure 1. Two images containing examples of “things that re￾cur” (Recurring Patterns). Top row: images with ground truth VP (×) indicated. Bottom row: VP prediction results from four VPD methods R-VPD (our method), NeurVPS [46], GPVPD [25] and J-Linkage [42] respectively, where VP predictions that are too far from the ground truth are not shown in the images ((a) 2 misses, (b) 3 misses). Due to a lack of explicit straight lin… view at source ↗
Figure 2
Figure 2. Recurrence-based Vanishing Point Detection: An overview of R-VPD is presented in the above image. SIFT features are extracted [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. A Unit Recurring Pattern (URP) is an RP with at least [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (15 more)
Figure 4
Figure 4. Figure 4: Sample images from RPVP-Synthetic image dataset [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 7
Figure 7. Figure 7: RPVP-Real dataset (1400 images): Success rate curves [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 6
Figure 6. Figure 6: RPVP-Synthetic dataset (3200 images): Success rate [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 8
Figure 8. Figure 8: Success Rate curves for the different methods on RPVP [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: Success rate curves for AA @ 10◦ for TMM17-Test set (275 images). Corresponding AUC is given in [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 10

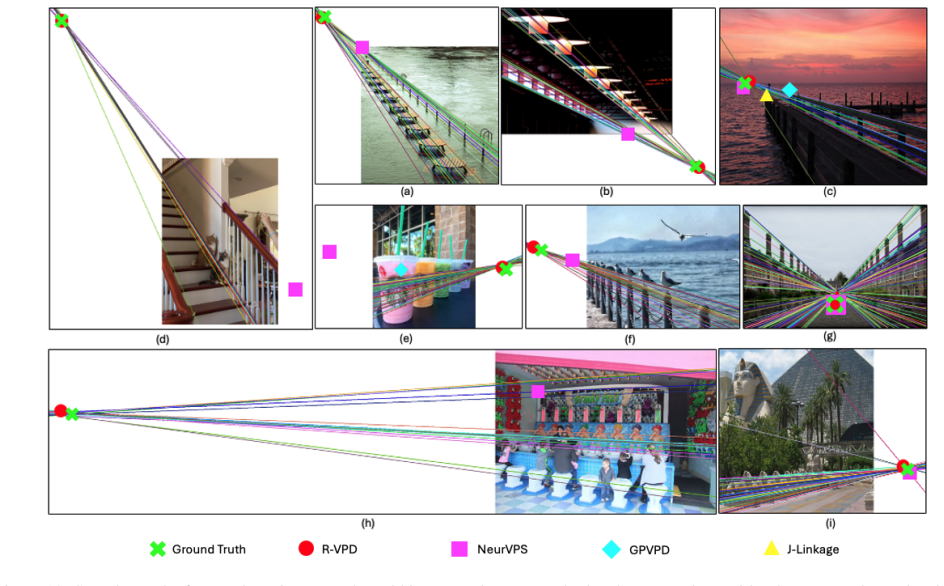

Figure 10. Figure 10: Sample results for VP detection on real-world images using our method and a comparison with other approaches. The absence [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 11
Figure 11. Figure 11: One application using a single discovered VP in one [PITH_FULL_IMAGE:figures/full_fig_p008_11.png]
Figure 12
Figure 12. Figure 12: The images in this figure represent stages of scene creation in Blender. (a) shows a screenshot of the [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: Images in Row 1 represent sample frames ( [PITH_FULL_IMAGE:figures/full_fig_p013_13.png]
Figure 14
Figure 14. Figure 14: Images in Row 1 represent screenshots from LabelMe. Row 2 represents sample VP annotated images where lines [PITH_FULL_IMAGE:figures/full_fig_p013_14.png]
Figure 15
Figure 15. Figure 15: Robustness of our vanishing point detection system [PITH_FULL_IMAGE:figures/full_fig_p014_15.png]
Figure 16
Figure 16. Figure 16: Top row: original image and scaled images that introduce density variation of SIFT features. Bottom row: zoomed-in image [PITH_FULL_IMAGE:figures/full_fig_p015_16.png]
Figure 17
Figure 17. Figure 17: Sample results from our R-VPD algorithm with images from intermediate stages. [PITH_FULL_IMAGE:figures/full_fig_p015_17.png]
Figure 18

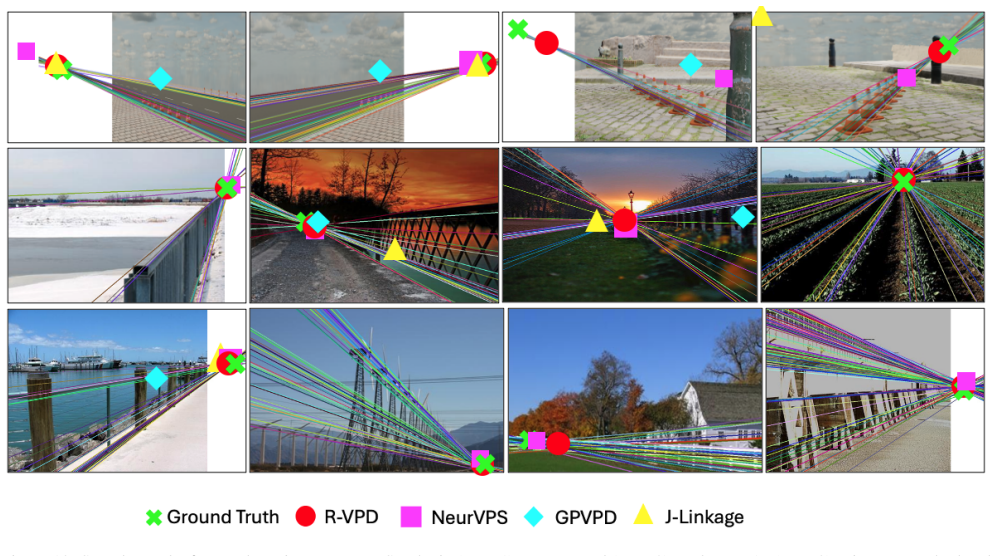

Figure 18. Figure 18: Sample results for VP detection on RPVP-Synthetic (Row 1), RPVP-Real (Row 2), and TMM17 (Row 3) using our method and [PITH_FULL_IMAGE:figures/full_fig_p016_18.png]
Figure 19
Figure 19. Figure 19: Failure cases of our method. The images are all from the TMM17-test dataset (Figure [PITH_FULL_IMAGE:figures/full_fig_p016_19.png]
