Optimal $L^p$-approximation of convex sets by convex subsets
T0 review · 2 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash
Pith's one-line read Optimal convex subsets in the plane have polygonal free boundaries, and the $L^p$ problem converges to Hausdorff as $p$ grows.
desk verdict Gamma-convergence part is solid, but the proof of the main regularity theorem fails for 1<p<2 due to a singular second derivative; the reader's Theorem 3 objection is mis-targeted. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The support function $h_\omega(\theta)=\sup_{y\in\omega}\langle \theta,y\rangle$ is the central object; it encodes a convex set analytically, turns inclusion into pointwise inequality $h_\omega\le h_\Omega$, expresses area as $\frac12\int_0^{2\pi}(h^2-h'^2)\,d\theta$, and converts the geometric approximation problem into minimizing $\int_{\mathbb{S}^{n-1}}|h_\Omega-h_\omega|^p\,d\mathcal{H}^{n-1}$ subject to convexity $h_\omega''+h_\omega\ge0$. The load-bearing mechanism is the reduction captured by Theorem 3: it shows that, under the stated hypotheses, minimizing $J$ at fixed $F=x$, minimizing $J$ under $F\le x$, and minimizing $F$ at fixed $J=f(x)$ are all equivalent. That equivalence turns the measure constraint into a distance constraint and brings the planar problem into reach of a regularity theorem for optimal convex shapes, which forces the free boundary to consist of straight segments.
What would settle it
Compute $f(c)$ numerically on a fine grid for a simple container such as a triangle or disk, with a fixed $p$; if $f$ shows a strict local minimum at any interior value of $c$, the monotonicity behind Proposition 6 fails and the proof of the polygonal-boundary theorem loses its foundation.
Extended reading notes
Core claim
The central claim is Theorem 2: in two dimensions, if $\omega^*$ solves $(P_p)$, then the free part of its boundary, $\partial\omega^*\setminus\partial\Omega$, is a union of polygonal lines; in particular, a polygonal container forces a polygonal optimizer. The proof route is Theorem 3, a general statement about two continuous shape functionals $J$ and $F$ on a compact class: under local perturbation hypotheses and a no-local-minimum condition, the value function $f(x)=\min\{J(\omega):F(\omega)=x\}$ is continuous and strictly decreasing, and the fixed-constraint problem is equivalent to the one-sided constraint problem. Applied with $F=|\cdot|$ and $J=\mathcal{J}_p$, this replaces the area constraint by a constraint on $\mathcal{J}_p$, an equivalence that lets the authors invoke a known planar regularity theory for optimal convex shapes and conclude that the free boundary is polygonal. The paper also establishes existence of minimizers and $\Gamma$-convergence to the Hausdorff problem in any dimension.
Load-bearing premise
The load-bearing premise is that the minimal approximation error $f(c)=\min\{\mathcal{J}_p(\omega):|\omega|=c\}$ is strictly decreasing in $c$; the proof of Theorem 3 derives this monotonicity from the absence of local minima, an inference that is not generally valid, and Proposition 6 uses the monotonicity to replace the measure constraint with a distance constraint.
Editorial extensions
If this is right
- Every problem $(P_p)$ has a solution: for any convex body $\Omega\subset\mathbb{R}^n$, any $p\in[1,\infty)$, and any $c\in[0,|\Omega|]$, there is a convex $\omega\subset\Omega$ with $|\omega|=c$ attaining the infimum of $\mathcal{J}_p$.
- As $p\to\infty$, the minimal values $\sigma_p$ converge to $\sigma_\infty$, and every Hausdorff accumulation point of $L^p$-optimal shapes solves the Hausdorff-distance problem; the $L^p$ problems are thus approximations of the limiting problem.
- In the plane, the free part of any optimal boundary is a union of polygonal lines, and if the container is a polygon the optimizer is a polygon too.
- At $p=1$, the problem is exactly a reverse isoperimetric problem: maximizing perimeter among convex subsets of $\Omega$ with area $c$, and every optimizer touches $\partial\Omega$ in at least two points and has straight free boundary components.

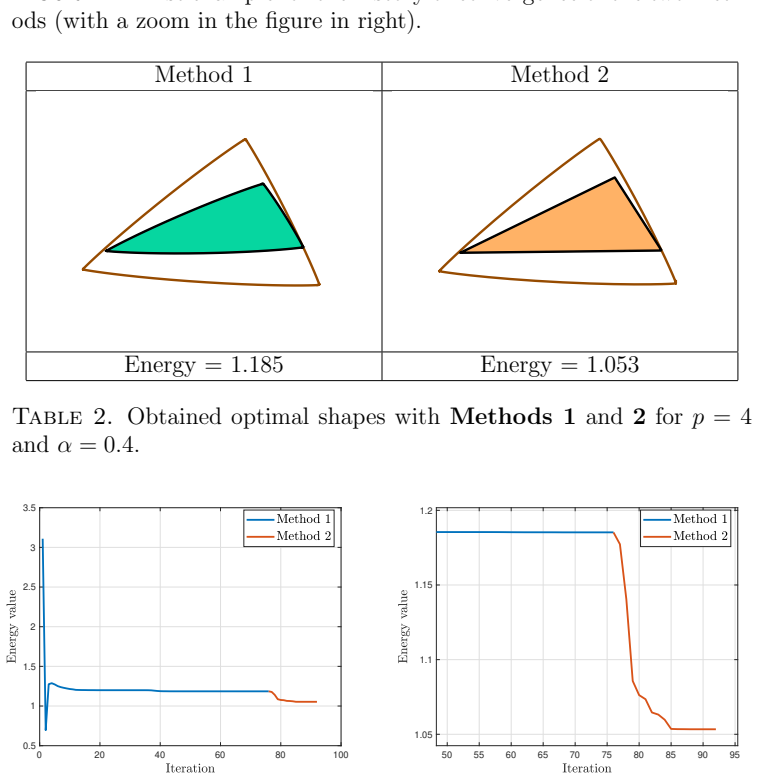

- The numerical experiments show that the Fourier-coefficient method alone misses segments and overshoots the energy, while combining it with the discrete convexity parametrization yields lower-energy shapes with flat edges.
Reading between the lines
- A direct numerical test of the planar theorem would run the proposed scheme on a disk container and check whether every converged optimizer contains at least one straight boundary segment; the theory predicts flat pieces for every finite $p$.
- If the general reduction theorem is correct, the same equivalence pattern should hold for other pairs of geometric functionals, such as perimeter and area, giving a reusable template for turning constrained shape problems into one-sided ones.
- The $\Gamma$-convergence result suggests the polygonal-boundary phenomenon is stable as $p$ grows; one could track the number and length of flat segments along a sequence of optimizers for increasing $p$.
- In higher dimensions the natural analogue would be polyhedral free boundaries, but the paper explicitly notes the needed regularity theory is unavailable there, leaving open whether flat facets appear in $\mathbb{R}^3$ or new singularities emerge.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper studies the shape optimization problem of finding a convex subset ω of a fixed convex container Ω, with prescribed measure, that minimizes the L^p distance between the support functions of ω and Ω. The main claims are: existence of minimizers and Γ-convergence to the Hausdorff-distance problem as p→∞ (Theorem 1); in the plane, the free part of any optimal boundary is a union of polygonal lines (Theorem 2); and an abstract equivalence theorem (Theorem 3) that is used to replace the measure constraint by a distance constraint in the proof of Theorem 2. The paper also proposes a numerical scheme combining Fourier parametrization with a convexity-preserving discretization.
Significance. The Γ-convergence result and the numerical method are useful contributions, and the polygonal-regularity statement is natural and would be significant if proven. However, the central structural result (Theorem 2) rests on an abstract theorem (Theorem 3) that is false as stated, and on a second-order estimate that fails for 1<p<2. These are load-bearing gaps, not presentation issues, so the paper's main theoretical claims are not established.
major comments (2)
- [Section 3.3, Proposition 11] Theorem 3 is false as stated. The proof of Proposition 11 only shows that f has no local minimum in the interior of I, and then concludes that f is strictly decreasing. This inference is invalid: a continuous function on an interval with no interior local minima may have local maxima or be increasing. A concrete counterexample satisfying hypotheses (A)-(D) is C = {[0,t] : t∈[0,1]} with the Hausdorff distance, F([0,t])=t, J([0,t])=t, and Ψ_{[0,t]}(x)=[0,x]. Then I=[0,1], all hypotheses hold, and f(t)=t is strictly increasing, contradicting the asserted conclusion. Consequently, Proposition 6, which relies on Theorem 3, is not proven, and the derivation of the equivalent formulation used in the proof of Theorem 2 is unsupported.
- [Section 3.2, proof of Theorem 7] The estimate ||m''(h)(v,v)||_{L^2} ≤ β||v||^2_{L^2} is false for 1<p<2. With m(h)=∫(hΩ-h)^p dθ, the second derivative is m''(h)(v,v)=p(p-1)∫(hΩ-h)^{p-2}v^2 dθ. When p<2, the weight (hΩ-h)^{p-2} is unbounded near the contact set {h=hΩ}. For a sequence v_n supported on an interval of length 1/n near a contact point with ||v_n||_{L^2}=1, the integral grows like n^{2-p}, so the L^2 bound fails. Since Theorem 2 is claimed for all p∈[1,∞), the application of [20, Theorem 2.9] is not justified for 1<p<2. The separate treatment of p=1 in Proposition 13 invokes Theorem 2 and therefore inherits this gap.
minor comments (4)
- [Section 3.2, equation (8)] The constraint in problem (8) is written as ∫(hΩ-h)^p dθ = f(c), but since J_p is defined as the p-th root of the integral, the correct constraint should involve f(c)^p (or a renamed constant). This is a notational inconsistency that should be fixed.
- [Section 3.3, proof of Proposition 11] In the inferior-limit part of the continuity proof, the line 'F(Ω∗)=x' should read 'F(Ω∗)=x0', since the limit point is x0.
- [Section 4, Conjecture 1] The angle notation '[CAB ≥ [CBA' is garbled; it should be written as ∠CAB ≥ ∠CBA.
- [Section 1, introduction] There is a typo 'on an other note' which should be 'on another note'.
Circularity Check
No circular reasoning found; the main weakness is an incorrect L2 bound in the proof of Theorem 2 for 1<p<2, which is a correctness gap rather than a circular reduction.
full rationale
The derivation chain is not circular. Theorem 1 is a standard compactness plus Gamma-convergence argument, self-contained. Theorem 2 relies on the external regularity theorem [20, Theorem 2.9] after Proposition 6 establishes, via the internally proved Theorem 3, an equivalence between (P_p) and a volume-minimization problem with fixed p-distance. Theorem 3 is proved in the paper (Propositions 9-12); although the monotonicity step in Proposition 11 is written too quickly (absence of local minima does not by itself imply strict monotonicity), that is a logical gap, not a circular definition or fitted-input disguised as a prediction. The only self-citations are to [17] (Ftouhi-Zuazua) for the p=infinity Hausdorff problem, and these are peripheral: the p=infinity equivalence is also recoverable from the paper's own Proposition 6, and the planar regularity proof uses [20], which is external and parameter-free. The serious mathematical issue flagged by the skeptic is in the proof of Theorem 2 for 1<p<2: the asserted bound ||m''(h)(v,v)|| <= beta ||v||^2_{L2} is false when (h_Omega-h)^{p-2} is unbounded near the contact set. This affects the correctness of Theorem 2, but it is not an instance of the paper's output being equivalent to its input by construction. No parameter is fitted and then renamed as a prediction, and no uniqueness conclusion is imported solely from the authors' own prior work. Accordingly, the circularity score is 0.
Assumptions & free parameters
assumptions (7)
- standard math Blaschke selection theorem provides compactness of the class of convex subsets of a bounded container
- standard math Continuity of area and J_p with respect to Hausdorff distance
- domain assumption For every set in C there is a continuous path Psi with F(Psi(t))=t (Hypothesis (C))
- domain assumption The perturbation (1-epsilon)omega+epsilon Omega strictly decreases J_p, giving Hypothesis (D)
- ad hoc to paper The implication 'no local minima implies strictly decreasing' for continuous functions on an interval
- domain assumption Regularity theorem [20, Theorem 2.9] for optimal convex shapes
- domain assumption Uniform convexity condition h_Omega'' + h_Omega >= d0 in Proposition 15
Cite this review
Pith. "Pith review of Optimal $L^p$-approximation of convex sets by convex subsets." pith.science (2026). https://pith.science/paper/NM76Y7MQ
@misc{pith2026250100928,
author = {Pith},
title = {Pith review of: Optimal $L^p$-approximation of convex sets by convex subsets},
year = {2026},
howpublished = {\url{https://pith.science/paper/NM76Y7MQ}},
note = {Machine review of arXiv:2501.00928}
}
abstract
Given a convex set $\Omega$ of $\mathbb{R}^n$, we consider the shape optimization problem of finding a convex subset $\omega\subset \Omega$, of a given measure, minimizing the $p$-distance functional $$\mathcal{J}_p(\omega) := \left(\int_{\mathbb{S}^{n-1}} |h_\Omega-h_\omega|^p d\mathcal{H}^{n-1}\right)^{\frac{1}{p}},$$ where $1 \le p <\infty$ and $h_\omega$ and $h_\Omega$ are the support functions of $\omega$ and the fixed container $\Omega$, respectively. We prove the existence of solutions and show that this minimization problem $\Gamma$-converges, when $p$ tends to $+\infty$, towards the problem of finding a convex subset $\omega\subset \Omega$, of a given measure, minimizing the Hausdorff distance to the convex $\Omega$. In the planar case, we show that the free parts of the boundary of the optimal shapes, i.e., those that are in the interior of $\Omega$, are given by polygonal lines. Still in the $2-d$ setting, from a computational perspective, the classical method based on optimizing Fourier coefficients of support functions is not efficient, as it is unable to efficiently capture the presence of segments on the boundary of optimal shapes. We subsequently propose a method combining Fourier analysis and a recent numerical scheme, allowing to obtain accurate results, as demonstrated through numerical experiments.
