Demonstration of Ultra-Sensitive KIDs for Future THz Space Borne Polarimeters

T0 review · 3 major / 6 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A lens-antenna coupled KID at 1.5 THz achieves an integrated cross-polarization ratio of -21.5 dB, meeting the -20 dB requirement for the PRIMA polarimetric imager and removing the need for a polarization modulator.

desk verdict A careful, genuinely new measurement of KID cross-polarization at 1.5 THz, but the headline number rests on an unquantified +4 dB model correction that needs an uncertainty budget before the mission claim is fully settled. read the letter →

arxiv 2501.03827 v2 pith:FAKEXWJY submitted 2025-01-07 astro-ph.IM

Stephen J. C. Yates , Alejandro Pascual Laguna , Willem Jellema , Edgar Castillo-Dominguez , Lorenza Ferrari , Bram Lap , Vignesh Murugesan , Jose R. G. Silva
show 3 more authors
David Thoen Ian Veenendaal Jochem J. A. Baselmans
This is my paper · ORCID
classification astro-ph.IM
keywords kineticinductancedetectorsTHzpolarimetrycross-polarizationleaky-waveantennacomplexbeampatternphotomixerPRIMAnoiseequivalentpower
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Ultra-sensitive microwave kinetic inductance detectors (KIDs) are candidates for future space-borne far-infrared polarimeters, but their polarization purity had not been measured in a realistic wide-field camera. This paper measures a lens-antenna coupled KID at 1.5 THz and finds an integrated cross-polarization ratio of $-21.5$ dB when integrated over the effective pupil corresponding to $1\,f\lambda$ spatial sampling, with a maximum of $-20$ dB. Combined with a noise equivalent power of $5\text{--}7\times10^{-20}\ \mathrm{W/\sqrt{Hz}}$, the detector meets the roughly $-20$ dB cross-polarization level assumed for the PRIMA polarimetric imager. That supports a flight design with static single-polarization detectors at three angles and no rotating half-wave plate, simplifying the instrument. The work also extends phase- and amplitude-beam-pattern testing to 1.5 THz in a low-background cryogenic camera.

What carries the argument

The central object is the leaky lens-antenna coupled KID: a superconducting quarter-wavelength resonator whose radiation-sensitive part is a narrow aluminum CPW on a silicon-nitride membrane, fed by an ultra-wideband leaky-wave antenna behind an extended hemispherical silicon lens. The argument is carried by a quasi-homodyne complex beam-pattern measurement at 1.5 THz, where two phase-locked photomixers record amplitude and phase and a plane-wave spectrum propagates the near field to the far field, plus a hybrid simulation chain that computes the antenna feed in transmission, propagates the lens fields with Fourier optics, and simulates the CPW-fed antenna in reception to recover the CPW radiation contribution. Integrating the measured far-field over the effective pupil matching $1\,f\lambda$ sampling gives the headline $-21.5$ dB.

What would settle it

Independently measure the s- and p-polarization transmission of the actual neutral density filter and the 12.5 $\mu$m Mylar beamsplitter at 1.5 THz and 45$^\circ$ incidence; if the measured extinction ratio differs from the model by more than about 1 dB, the corrected $-21.5$ dB integrated cross-polarization would need revision.

Watch

Extended reading notes

Core claim

The paper claims that a leaky lens-antenna coupled KID at 1.5 THz, measured in a full wide-field camera, has an integrated cross-polarization ratio of $-21.5$ dB (maximum $-20$ dB, spread $\pm0.9$ dB) over the pupil corresponding to $1\,f\lambda$ spatial sampling. Together with an NEP of $5\text{--}7\times10^{-20}\ \mathrm{W/\sqrt{Hz}}$, this meets the cross-polarization assumed in simulations of the PRIMA polarimetric imager, so lens-antenna KIDs can serve as the detectors of a polarimeter without a polarization modulator. The residual cross-polarization is traced to re-radiation from the superconducting CPW readout line rather than the antenna, and narrowing the CPW linewidth is identified as the route to further improvement.

Load-bearing premise

The load-bearing premise is that the $+4$ dB correction applied to the raw measured cross-polarization is correct, since if the modeled polarization-dependent transmission of the neutral density filter and beamsplitter is off by about 1 dB, the headline $-21.5$ dB could slip past the $-20$ dB mission requirement.

Editorial extensions

If this is right

  • The PRIMA polarimetric imager can be built with lens-antenna KIDs at three fixed angles and no rotating half-wave plate, because the measured cross-polarization stays below the $-20$ dB system requirement.
  • At the measured NEP of $5\text{--}7\times10^{-20}\ \mathrm{W/\sqrt{Hz}}$, these detectors are photon-noise limited at the roughly 35 aW absorbed power expected for PPI, so detector noise does not limit the polarimetric science.
  • Because cross-polarization is dominated by CPW re-radiation, reducing the CPW linewidth should improve polarization purity for the higher-frequency PPI bands.
  • The 1.5 THz phase/amplitude beam-mapping technique, with neutral density filtering, is available for characterizing other low-background arrays and can be extended up to about 4 THz.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the $+4$ dB correction is even approximate, the raw uncorrected level near $-25.5$ dB suggests the lens-antenna alone is very clean, so future design effort should concentrate on the readout line rather than the optics.
  • An independent bench measurement of the NDF and beamsplitter extinction ratios would convert the headline from a model-corrected value into a directly measured one and is the fastest way to stress-test the result.
  • The same photomixer-based complex beam mapping could become an end-to-end acceptance test for flight polarimetric arrays, measuring both phase and polarization leakage before integration.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper reports coherent complex beam-pattern measurements at 1.5 THz of lens-antenna coupled microwave kinetic inductance detectors mounted in a wide-field camera. From vertical- and horizontal-polarization near-field scans propagated to the far field and integrated over an effective pupil corresponding to 1 f-lambda spatial sampling for the PRIMA polarimetric imager (PPI), the authors derive a mean integrated cross-polarization ratio of -21.5 dB with a maximum of -20 dB, after applying a +4 dB correction for the polarization-dependent transmission of the neutral density filter and beamsplitter. They also report NEP = 5-7e-20 W/sqrt(Hz), compare the measured beams with in-transmission and in-reception simulations, and conclude that these detectors can meet the approximate -20 dB cross-polarization requirement assumed for PPI without a polarization modulator.

Significance. If the headline polarization result is robust, this is a valuable experimental contribution: it directly tests the polarimetric performance of a realistic lens-antenna KID array in a camera-like optical system and extends complex-field beam mapping to 1.5 THz. The paper is transparent about its data reduction, reports high signal-to-noise (>55 dB), and makes a reproduction package available on Zenodo. The main weakness is that the central cross-polarization number depends on a model-based +4 dB calibration correction for which no systematic uncertainty is stated; the stated margin to the -20 dB requirement is only 1.5 dB at the mean and zero at the maximum.

major comments (3)
  1. [Section IV and Appendix A] The headline integrated cross-polarization values (-21.5 dB mean, -20 dB maximum) are obtained after a +4 dB correction derived from Fresnel-model calculations for the NDF (+5 dB) and beamsplitter (-1 dB), with assumptions on thickness, refractive index, material properties, and plane-wave incidence. No systematic uncertainty is assigned to this correction. Since the margin to the PPI -20 dB requirement is 1.5 dB at the mean and zero at the maximum, a ~1 dB error in the modeled NDF ratio would move the worst pixel above the requirement. Please provide a propagated uncertainty (e.g., by varying n, thickness, and incidence angle, or by calibrating the NDF and beamsplitter directly) and report the corrected integrated cross-polarization with a confidence interval.
  2. [Footnote 2 and Section V] The independent polarizer verification quoted as within 1 dB applies to the full-beam -17 dB cross-polarization ratio, not to the 1 f-lambda integrated -21.5 dB value that is the paper's headline claim. Since the integrated quantity weights the far-field over a restricted pupil, the full-beam verifier does not directly bound the uncertainty of the headline number. The authors should either perform the polarizer check for the 1 f-lambda integrated aperture or state clearly how the full-beam calibration transfers to the restricted pupil.
  3. [Section V and Ref. [42]] The in-reception simulation used to attribute the excess cross-polarization to CPW radiation is described only through an unpublished companion paper [42]. This attribution is an important part of the paper's interpretation (and motivates the proposed mitigation of reducing CPW width), but the reader cannot currently verify the simulation independently. Please summarize the in-reception simulation setup and key parameters in the present paper, or explicitly mark this part of the interpretation as provisional pending publication of [42].
minor comments (6)
  1. [Section II-B] The text says the slot tapering angle 'creates the best comprise between aperture efficiency and cross-polarization level'; 'comprise' should be 'compromise'.
  2. [Section III-A, Eq. (1)] Equation (1) would be clearer if sigma_OPD and sigma_f are explicitly defined in the text; currently the sentence introducing them is grammatically incomplete.
  3. [Appendix A and Fig. 8] Please clarify the sign convention in Fig. 8: the caption says 'Extinction ratio (Ts/Tp)', but the text describes a +5 dB correction for the NDF with the co-polarization aligned to s-pol; stating whether Ts/Tp > 1 and how the plotted ratio maps to the applied correction would avoid ambiguity.
  4. [Section V, footnote 2] The phrase 'confirmed with a (small) polarizer within 1 dB' should be expanded to specify what was compared, how the polarizer test was performed, and whether the 1 dB is a repeatability, systematic, or fitting uncertainty.
  5. [Section IV and Fig. 6] The reported position dependence of the integrated cross-polarization is discussed only qualitatively; reporting an rms variation or a map of the spread would help support the histogram limits and the stated ±0.9 dB range.
  6. [References] Reference [42] is listed as 'in preparation'; if it is not available at the time of review, the authors should add a note about its status or include enough details in the present manuscript to make the comparison reproducible.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the headline cross-polarization value is a calibrated measurement, compared with rather than derived from simulations or fitted parameters.

full rationale

The paper's central claim is an experimentally measured integrated cross-polarization ratio of -21.5 dB for lens-antenna coupled KIDs at 1.5 THz, obtained from phase and amplitude beam pattern measurements. The measurement chain is self-contained: quasi-optical complex beam maps are propagated to the far field, the co- and cross-polarization components are separated, a numerical rotation is applied only to remove a known alignment offset, and the far-field intensity is integrated over an effective pupil matching the 1 f-lambda sampling planned for PPI. No parameter is fitted to force the headline value. The +4 dB calibration correction for the neutral density filter and beamsplitter is derived from independent Fresnel transmission models using external material data (Naylor et al. for Mylar and HIFI flight attenuator data for the NDF), and it is applied uniformly to all data rather than adjusted to match the -20 dB requirement. The simulations, both in-transmission (CST/GRASP) and in-reception (Fourier optics plus CST), are compared with the measurements after the fact and are used to explain the residual cross-polarization, not to generate the reported number. The only fitted quantity, the ~ -5 deg derotation angle, is a standard alignment calibration and is cross-checked by independent source alignment to better than 0.1 deg. The PPI requirement of about -20 dB comes from an external simulation [5], not from this paper. Several self-citations exist, including the unpublished companion paper [42] used for the in-reception simulation, but none is load-bearing for the main measurement: [42] supports a subsidiary simulation comparison, and the headline cross-polarization result stands on the calibrated beam-pattern data. The stated weakness of the paper is the unquantified uncertainty in the +4 dB modeled correction, which is a correctness/calibration risk, not evidence of circularity.

Assumptions & free parameters 1 free parameters · 6 assumptions · 0 invented entities

The central claim rests on standard measurement and simulation practice for THz detectors. The load-bearing assumptions are the polarization transmission corrections for the NDF and beamsplitter, the pure-spatial-filter treatment of the optics, and the decoupling of antenna and CPW radiation. No new physical entities are introduced, and no physics parameters are fitted to force the headline result.

free parameters (1)
  • derotation angle = approximately -5 degrees
    Numerically chosen to minimize the maximum cross-polarization during beam map analysis (Section III-C). This is an alignment calibration, not a physics parameter, but it affects the reported cross-polarization level.
assumptions (6)
  • domain assumption Mylar beamsplitter model: 12.5 micrometer thickness, n=1.72, Fresnel interference transmission.
    Appendix A uses this to compute the -1 dB beamsplitter correction; parameter values are taken from Naylor et al. [49], not measured in this setup.
  • domain assumption NDF transmission-line-matrix simulation with cryogenic metal impedance and dielectric constants from HIFI attenuator data [24].
    Appendix A uses this to compute the +5 dB NDF correction; input data come from earlier flight attenuator work, not from in-situ measurements here.
  • domain assumption Plane-wave incidence is sufficient for polarization transmission corrections over the +/-7 degree beam angle range.
    Stated explicitly in Appendix A as an approximation; angular dependence is deferred to future work.
  • domain assumption The camera optics act as a pure spatial filter of the lens-antenna far-field, so measured far-field can be compared with lens-antenna-only in-reception simulations.
    Section V uses this to justify comparing measurements with simulations that do not include the full camera optics; the alternative full in-reception calculation is described as computationally impractical.
  • domain assumption The antenna and CPW radiation problems can be decoupled because CPW re-radiation is small (1.1%).
    Section II-B treats the CPW separately from the antenna; the in-reception simulation is used to validate this decomposition, but the decomposition is assumed in the forward simulation.
  • standard math Ludwig-3 definition of cross-polarization.
    Standard antenna convention, cited as reference [16]; this defines what the reported cross-polarization means.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Demonstration of Ultra-Sensitive KIDs for Future THz Space Borne Polarimeters." pith.science (2026). https://pith.science/paper/FAKEXWJY

@misc{pith2026250103827,
  author       = {Pith},
  title        = {Pith review of: Demonstration of Ultra-Sensitive KIDs for Future THz Space Borne Polarimeters},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FAKEXWJY}},
  note         = {Machine review of arXiv:2501.03827}
}
abstract

We present measurements and simulations of the polarization purity of leaky lens-antenna coupled microwave Kinetic Inductance Detectors (KIDs) at 1.5 THz. We find the integrated cross-polarization level to be at -21.5 dB for 1 f\#$\lambda$ spatial sampling. The measurements agree well with the theoretical description which is based on a combination of in-transmission simulation of the antenna feed, and an in-reception analysis of the antenna-KID system. Combined with the measured noise equivalent power of 5--7$\times$10$^{-20}$ W/$\sqrt{\mathrm{Hz}}$, these detectors are excellent candidates for large scale and high performance imaging polarimetric instruments.

Figures

Figures reproduced from arXiv: 2501.03827 by the authors.

Figure 1
Figure 1. Panel (a) shows an illustration of an KID detector from the array under test. Panel (b) depicts a cross-sectional view of the lens-antenna assembly. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

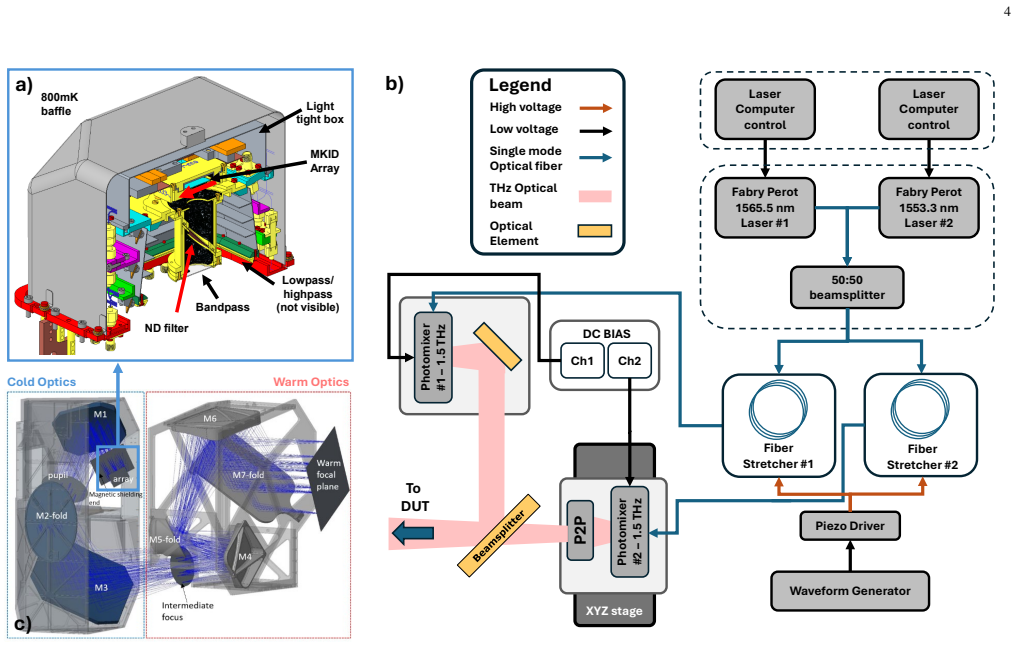

Figure 2. Overview of experimental setup: a) cross-section of KID thermal mechanical suspension, showing the array mounted inside a light tight box with the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Overview of data signal processing for one KID: a) time-stream (in [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (3 more)
Figure 7
Figure 7. Figure 7: Comparison of co- and cross-polarized beam patterns measured (solid [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 6
Figure 6. Figure 6: Position dependence (system magnification and rotation removed) and [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 8
Figure 8. Figure 8: Modeled ratio of s and p-polarization transmission components for [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
