Text Semantics to Flexible Design: A Residential Layout Generation Method Based on Stable Diffusion Model

T0 review · 4 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Text-conditioned, boundary-aware Stable Diffusion with LoRA fine-tuning generates residential layouts that satisfy multimodal constraints better than Pix2Pix and HouseDiffusion, even when room-area or connection details are missing.

desk verdict The prompt-template idea is genuinely useful, but the evaluation cannot support the 'better than SOTA' claim; with a corrected protocol and released artifacts this could be a solid application paper. read the letter →

arxiv 2501.09279 v1 pith:GWKWKP7U submitted 2025-01-16 cs.AI

Zijin Qiu , Jiepeng Liu , Yi Xia , Hongtuo Qi , Pengkun Liu This is my paper · ORCID
classification cs.AI
keywords ResidentialLayoutGenerationMultimodalGenerativeDesignNaturalLanguageProcessingStableDiffusionModelKnowledgeGraphLoRAfine-tuningControlNetFloorplan
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes a flexible floor-plan generator that accepts natural-language descriptions (room counts, room types, sizes, adjacencies) together with either a reference layout image or a boundary drawing, and returns a residential layout that follows both. Its goal is to lower the design threshold so that non-experts can specify a home in plain sentences instead of drawing bubble diagrams or building knowledge graphs. To do this, the paper maps seven residential design rules into a knowledge graph and then into standardized text prompts, and fine-tunes a Stable Diffusion model with Low-Rank Adaptation (LoRA) while using ControlNet to enforce boundary conditions. The reported experiments compare the LoRA-tuned model against Pix2Pix and HouseDiffusion on FID, PSNR, SSIM, and LPIPS, and the ablation studies show that when area or connectivity information is omitted, the model produces diverse layouts rather than failing outright.

What carries the argument

The load-bearing machinery is the pairing of three components. (1) A knowledge-graph-to-text mapping converts each floor plan's room nodes and connectivity edges into a standardized sentence sequence (room types and counts, room areas, then adjacency relations), making design rules available as natural-language conditioning. (2) Low-Rank Adaptation (LoRA) fine-tunes the frozen Stable Diffusion U-Net and text encoder on recolored, upsampled RPLAN data, so the pretrained model learns floor-plan style and rule-following behavior with a small trainable parameter set. (3) ControlNet, conditioned on Canny-edge boundary images, adjusts the U-Net features to keep the generated layout inside the user-supplied boundary, while CLIP embeds the text prompt into the same latent space as the images. The two pathways differ only in the image condition: a full reference layout for Path 1 versus a boundary sketch for Path 2.

What would settle it

Re-run the evaluation with the 8,000 comparison references drawn exclusively from a hold-out subset never used in LoRA fine-tuning, and report the four metrics separately for that unseen subset; if the LoRA-tuned model's advantage over HouseDiffusion and Pix2Pix shrinks substantially or reverses, the flexibility claim is falsified.

Watch

Extended reading notes

Core claim

The central claim is that a general-purpose text-to-image diffusion model can be specialized into a cross-modal residential layout generator that is more flexible than prior graph- or boundary-conditioned models. The paper implements this with two generation paths sharing the same text conditioning: Path 1 uses a natural-language prompt plus a reference floor plan image, and Path 2 uses the prompt plus a Canny-detected boundary image fed through ControlNet. Design knowledge is extracted from the RPLAN dataset into a knowledge graph whose nodes carry room type, position, and area and whose edges encode connectivity; this graph is then rendered as structured sentences such as 'bedroom_1 connect bathroom', which form the prompt. The paper reports that the LoRA-tuned model achieves FID of 22.1 (Path 1) and 28.5 (Path 2), versus 32.6 for HouseDiffusion and 142.6 for Pix2Pix, with higher PSNR and SSIM and lower LPIPS on both paths. The ablation experiments are used to argue that omitting room-area or room-connection information degrades strict compliance but leaves the model able to invent plausible layouts, which the paper presents as evidence of flexibility under incomplete semantic information.

Load-bearing premise

The evaluation's validity rests on the assumption that the 8,000 real floor plans used as references were not seen during training and that looking like those drawings is a good proxy for design quality; the paper states only that it randomly selected 8,000 pairs, with no train/test split or pairing protocol.

Editorial extensions

If this is right

  • If the method works as reported, a homeowner can state 'three bedrooms, one balcony, living room connects kitchen' and receive a plausible floor plan without preparing bubble diagrams, room masks, or a knowledge graph.
  • The shared text conditioning means the same fine-tuned model serves both the reference-image path and the boundary-only path, so a designer can begin with a rough boundary and later supply a preferred precedent layout without retraining.
  • The ablation results imply the generator can operate with partial constraints: missing area descriptions or missing connectivity edges lead to diverse completions rather than a refusal, which is useful in early design stages when the program is not fully fixed.
  • The reported metric gains would move the practical baseline for floor-plan generation from GAN-based image translation and vector diffusion toward fine-tuned latent diffusion with natural-language control.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: the reported metrics compare generated images to real RPLAN drawings at the pixel and feature level; they do not directly measure whether a generated plan contains exactly the requested number of rooms or the requested adjacencies, so a constraint-satisfaction metric would be a sharper test of the flexibility claim.
  • Editorial extension: the knowledge-graph-to-text recipe is specific to residential rules, but the same pipeline—extract a graph, render it as sentences, fine-tune a diffusion model with LoRA—could be ported to other layout problems such as office or hospital planning, provided the rule tables and vocabulary are rebuilt.
  • Editorial extension: the ablation figures show the model sometimes repairs missing constraints in plausible but unpredictable ways, such as connecting a balcony to the kitchen when the living-room connection was omitted; a deployed tool would likely pair the generator with a rule checker that flags such violations.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. This paper proposes a residential layout generation method based on a Stable Diffusion model fine-tuned with LoRA, combined with ControlNet for boundary conditioning and a knowledge-graph-to-natural-language scheme for encoding design rules. The method supports two generation pathways: one conditioned on text plus a reference floor-plan image, and one conditioned on text plus a boundary image processed by Canny edge detection. The authors evaluate their method on the RPLAN dataset against a non-fine-tuned SD1.5 baseline, Pix2Pix, and HouseDiffusion using FID, PSNR, SSIM, and LPIPS, and they present ablation experiments in which area, connectivity, or room-count information is omitted. The central claim is that the proposed method provides more flexible and controllable residential layout generation than state-of-the-art models, even when semantic information about room areas or connections is incomplete.

Significance. If the claimed results were supported, the paper would make a useful contribution to AI-based architectural layout design: it addresses a real limitation of prior work by accepting natural-language design constraints, it provides a concrete mapping from a knowledge graph to text prompts, and it demonstrates the feasibility of fine-tuning a large text-to-image model for a structured design task. The work also benefits from using an external public dataset (RPLAN) and from being transparent about failure modes, including the concession in §5.4 that area and connectivity control are still insufficient. The central quantitative claim, however, is not yet established because the evaluation protocol is underspecified and the reported metrics do not measure the claimed constraint-satisfaction and flexibility properties.

major comments (4)
  1. [§5.2.1, Table 5] The evaluation protocol cannot support the central claim of superiority over state-of-the-art methods. The text states only that "we randomly selected 8,000 pairs of generated and real images to evaluate specific metrics," but it does not state that the real images were held out from training, how pairs were matched, or whether the baselines were trained on the same data with the same prompts and boundary conditions. Because the RPLAN dataset is the training corpus, the high PSNR, SSIM, and LPIPS values in Table 5 could reflect memorization of training images rather than constraint satisfaction. FID is a distribution-level metric and is not defined for paired samples; a low FID could also reflect overlap with the training distribution. The abstract's claim that the method is "better than state-of-the-art models" is therefore not established by Table 5.
  2. [§5.2.2 and §5.1] The comparison against Pix2Pix and HouseDiffusion is not reproducible because no details are given about how these baselines were configured, trained, or evaluated. It is not stated whether they were retrained on the same RPLAN preprocessing, whether they received the same text and boundary inputs, or whether the same held-out prompts were used. Table 5 also reports single mean values without error bars, confidence intervals, or significance tests, so the statements in §5.2.1 about "minimal fluctuation and high stability" are unsupported. Without a matched evaluation protocol, the numerical gaps in Table 5 cannot be interpreted as evidence of the proposed method's superiority.
  3. [§5.3 and §5.4] No quantitative metric measures the properties at the core of the paper's claims: room-count accuracy, connectivity correctness, boundary adherence, or constraint satisfaction. The ablation figures themselves show failures, including generation cases with incorrect room connectivity (§5.3.1), balconies connected to the kitchen instead of the living room (§5.3.2), and uncontrolled connections when connection information is missing. Section 5.4 explicitly concedes that "current knowledge representations are still insufficient in terms of area and connectivity control." The qualitative figures cannot substitute for a constraint-satisfaction metric, and the claim that the method is flexible and controllable under incomplete semantic information is not quantitatively supported.
  4. [§4.2.2, Eq. (4)] The description of ControlNet in Eq. (4) as a dynamic per-layer weight update W' = W + α · ZeroConv(C(B)) does not match the standard ControlNet mechanism, in which a trainable copy of U-Net blocks is injected via zero convolutions and the original weights remain frozen. As written, the equation is not an implementable description of the method and prevents reproducibility. If the authors implemented a different mechanism, Eq. (4) and Fig. 7 must be corrected to state what was actually done; otherwise, the boundary-conditioning pathway is not reproducible.
minor comments (4)
  1. [§5.2.2] The descriptions of Path 1 and Path 2 in §5.2.2 appear to reverse the definitions given in §4.2: in §4.2 the first path uses text plus a preferred floor-plan image, while the second path uses text plus ControlNet-processed boundaries, but the experimental text says the first path employs a control net and the second path leverages real images. Please reconcile the notation.
  2. [§5.1, Eq. (8)] The FID formula in Eq. (8) is not written correctly: the first term should be the squared Euclidean norm of the mean difference, and the covariance terms should use the standard FID expression. The variables μ, μw, Σ, and Σw are also not fully defined in the text.
  3. [§4.2.3, Eq. (5)] In Eq. (5), the roles of r and r' are unclear: if r' denotes the rank of the low-rank matrices, the scaling factor r/r' is not the standard LoRA scaling (which is typically α/r with respect to the rank), so the meaning of each symbol should be clarified.
  4. [Fig. 10] Fig. 10 is difficult to read in grayscale, and the individual metric distributions are not legible; reporting the standard deviations or interquartile ranges alongside Table 5 would be more informative.

Circularity Check

0 steps flagged · score 0.0 of 10

No derivation-level circularity; the evaluation-protocol concern is a validity issue, not a circular reduction.

full rationale

This paper is an empirical application of Stable Diffusion fine-tuned with LoRA and guided by ControlNet to the RPLAN residential floor-plan dataset. There is no first-principles derivation whose output is equivalent to its input by construction: the generated layouts are not obtained by retrieving the metric reference images, no fitted parameter is relabeled as a prediction, and no uniqueness theorem or ansatz is smuggled in through self-citation. The closest concern is that prompts in Sec. 4.1.4 are generated from a knowledge graph extracted from the same RPLAN images that later serve as real-image references in Sec. 5.2.1, and no train/test split or pairing protocol is described. That is a legitimate external-validity and possible-memorization concern, but it does not make the claimed result equivalent to its inputs; the text conditions specify room counts, areas, and connectivity rather than the reference pixels, and the model still must synthesize a layout. The self-citations [4,19,20] appear only in the literature review and are not load-bearing for the Stable Diffusion pipeline. Accordingly, no circular step can be quoted, and the appropriate circularity score is 0.

Assumptions & free parameters 3 free parameters · 6 assumptions · 0 invented entities

The central claim rests on the RPLAN dataset, on a coarse bounding-box definition of room connectivity, on a hand-designed prompt template, and on image-similarity metrics used as proxies for design quality. The training hyperparameters are set without sensitivity analysis. No new physical or conceptual entities are introduced; the knowledge-graph-to-text mapping is a representation scheme, not an invented entity.

free parameters (3)
  • LoRA rank r' = 32
    Set to 32 in Section 5; controls how much the frozen Stable Diffusion model can adapt to floor plan style, with no sensitivity study reported.
  • Learning rate for U-Net and text encoder = 1e-4 and 1e-5
    Chosen in Section 5 with a cosine scheduler; no ablation shows how this affects layout quality.
  • Batch size and number of epochs = 14 and 10
    Selected in Section 5; the paper does not discuss the effect of these choices on generation performance.
assumptions (6)
  • standard math Standard diffusion, CLIP, and LoRA formulations (Eqs. 1-3, 5-6) are correct and applicable to floor plan images.
    Invoked in Section 4.2 without proof; these are background machine learning formulations.
  • domain assumption RPLAN images and the simplified 7-room color scheme define the target distribution for residential layouts.
    Section 4.1.1 merges 13 space types into 7; the paper assumes this simplification preserves the design rules needed for generation.
  • domain assumption Bounding-box intersection is a valid indicator of room connectivity.
    Section 4.1.3 states that rooms are connected if their bounding boxes intersect; this coarse proxy can mislabel actual adjacency and door placement.
  • domain assumption The natural-language prompt template fully conveys the knowledge graph constraints for room count, size, and connectivity.
    Section 4.1.4 constructs prompts from the knowledge graph, but no user study or parsing test verifies that the text preserves the graph semantics.
  • domain assumption FID, PSNR, SSIM, and LPIPS can measure residential layout quality and constraint satisfaction.
    Section 5.1 uses image-similarity metrics; no architectural validity metric such as room-count accuracy, connectivity error, or boundary adherence is reported.
  • domain assumption The 8,000 generated-real image pairs used in evaluation are independent of the training set and are correctly paired for the chosen metrics.
    Section 5.2.1 describes no train/test split and no pairing protocol, so the evaluation assumption is unverified.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Text Semantics to Flexible Design: A Residential Layout Generation Method Based on Stable Diffusion Model." pith.science (2026). https://pith.science/paper/GWKWKP7U

@misc{pith2026250109279,
  author       = {Pith},
  title        = {Pith review of: Text Semantics to Flexible Design: A Residential Layout Generation Method Based on Stable Diffusion Model},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GWKWKP7U}},
  note         = {Machine review of arXiv:2501.09279}
}
read the original abstract

Flexibility in the AI-based residential layout design remains a significant challenge, as traditional methods like rule-based heuristics and graph-based generation often lack flexibility and require substantial design knowledge from users. To address these limitations, we propose a cross-modal design approach based on the Stable Diffusion model for generating flexible residential layouts. The method offers multiple input types for learning objectives, allowing users to specify both boundaries and layouts. It incorporates natural language as design constraints and introduces ControlNet to enable stable layout generation through two distinct pathways. We also present a scheme that encapsulates design expertise within a knowledge graph and translates it into natural language, providing an interpretable representation of design knowledge. This comprehensibility and diversity of input options enable professionals and non-professionals to directly express design requirements, enhancing flexibility and controllability. Finally, experiments verify the flexibility of the proposed methods under multimodal constraints better than state-of-the-art models, even when specific semantic information about room areas or connections is incomplete.

Figures

Figures reproduced from arXiv: 2501.09279 by the authors.

Figure 2
Figure 2. Illustration of residential layouts' design rules and related nature languages 4. Methodology This study proposes an innovative approach to automate the design of floor plans for residential layouts. As illustrated in [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗
Figure 3
Figure 3. The residential layouts' design method [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4
Figure 4. Dataset preparation flowchart The preprocessing encompassed four distinct steps: the initial two steps involved generating the plan layout, recoloring, and upsampling the RPLAN dataset to improve image [PITH_FULL_IMAGE:figures/full_fig_p018_4.png] view at source ↗
Figures from the paper (11 more)
Figure 6
Figure 6. Figure 6: Diffusion process Diffusion models are conditional models that rely on prior information, typically in the form of text, images, or semantic maps. CLIP is employed to embed text or images into a latent vector T, shaping the final loss function, which also depends on th…
Figure 7
Figure 7. Figure 7: Control net module [PITH_FULL_IMAGE:figures/full_fig_p028_7.png]
Figure 10
Figure 10. Figure 10: Comparisons of Models' Performances in Evaluation Metrics 5.2.2 Method Comparisons To validate the effectiveness of the proposed program, this study selected eight cases for comparison. Utilizing the RPLAN dataset, four cases were chosen from each of the two primary c…
Figure 11
Figure 11. Figure 11: Examples of three-bedroom generations through two-path approaches [PITH_FULL_IMAGE:figures/full_fig_p037_11.png]
Figure 12

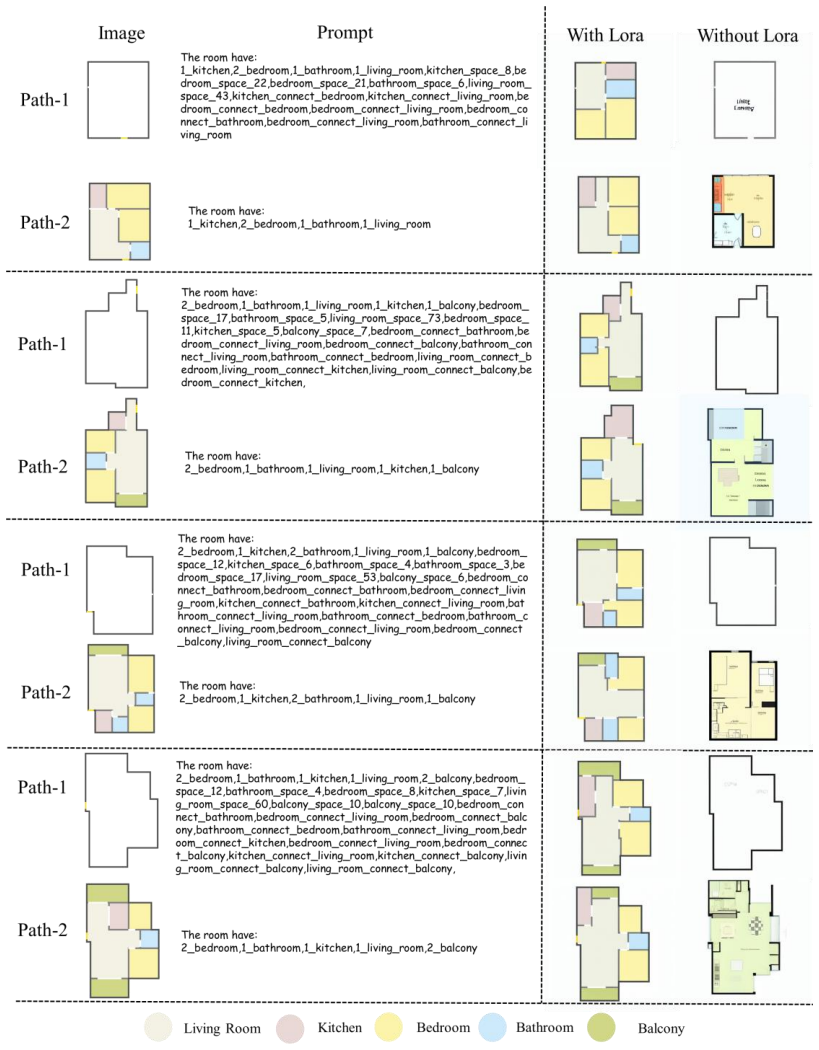

Figure 12. Figure 12: Examples of two-bedroom generation through two-path approaches [PITH_FULL_IMAGE:figures/full_fig_p038_12.png]
Figure 13
Figure 13. Figure 13: Comparative analysis of generational outcomes between the suggested approaches and Pix2Pix and House diffusion [PITH_FULL_IMAGE:figures/full_fig_p039_13.png]
Figure 14
Figure 14. Figure 14: Generation case of missing room area information 5.3.2 Experiments of Missing Room Connections Fig.15 investigates missing room connection information. The A group in [PITH_FULL_IMAGE:figures/full_fig_p041_14.png]
Figure 15
Figure 15. Figure 15: Generation results of missing room connecting information 5.3.3 Experiments of Missing Area Descriptions and Room Connections [PITH_FULL_IMAGE:figures/full_fig_p042_15.png]
Figure 16
Figure 16. Figure 16: Generation results on the number and type of rooms only In conclusion, experimental studies have shown that missing semantic information allows for more diverse model generation. Models can fully exploit the creativity of large models within the constraints of remaini…
Figure 17
Figure 17. Figure 17: Generation results for different room boundaries 5.3.5 Experiments of Missing Room Counts Path 2 utilizes the actual layout as a reference for the functional relationships between rooms and employs the number of rooms as a constraint to generate new building designs. …
Figure 18
Figure 18. Figure 18: Generation results for different room types 5.4 Experiment Discussions This study proposes an approach for building layout design using a LoRA fine-tuned SD generation model with the linguistic representation of design rules for optimization. Compared with traditional…
