Towards Robust and Realistic Human Pose Estimation via WiFi Signals
Pith reviewed 2026-05-23 05:39 UTC · model grok-4.3
The pith
WiFi-based pose estimation improves by first learning domain-consistent signal features through contrastive pretraining and then decoding them with explicit skeletal topology rules.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Reformulating WiFi human pose estimation as domain-consistent representation learning via temporal consistency contrastive learning with uniformity regularization inside self-supervised masked pretraining, followed by topology-constrained pose decoding in a hybrid architecture, closes the cross-domain gap caused by pose distribution shifts and the structural fidelity gap caused by missing spatial priors, leading to superior performance on 2D and 3D tasks across benchmarks.
What carries the argument

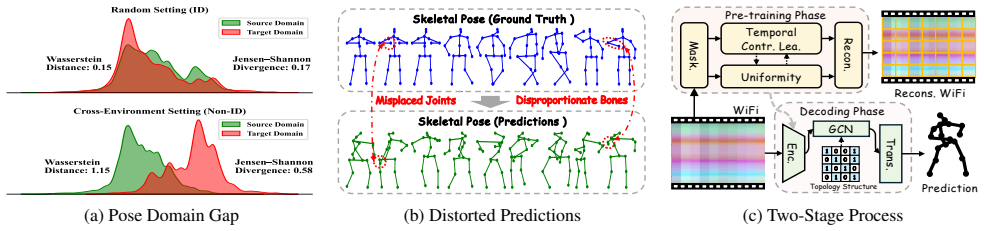

The DT-Pose two-phase framework: temporal consistency contrastive learning with uniformity regularization for domain-consistent WiFi representations, plus a hybrid decoder that adds explicit skeletal topology constraints on adjacent and overarching joint relationships.
If this is right
- Predicted skeletons maintain correct joint adjacency and overall body proportions even when WiFi signals are sparse.
- Representations learned in one environment transfer more reliably to new rooms or sensor placements.
- Both 2D and 3D pose outputs improve without needing additional labeled camera data at test time.
- Mode collapse during pretraining is reduced, preserving motion-discriminative information in the signal embeddings.
Where Pith is reading between the lines
- The same pretraining-plus-constrained-decoding pattern could be tested on other sparse sensing modalities such as millimeter-wave radar or acoustic signals for pose recovery.
- If the topology constraints prove effective, they might be added as a lightweight post-processing step to existing camera-based pose estimators when depth is noisy.
- Real-time applications such as fall detection in homes could become feasible once cross-domain robustness is confirmed on larger, more varied collections of WiFi recordings.
Load-bearing premise
The temporal consistency contrastive learning and skeletal topology constraints will close the identified gaps on data distributions and skeletal structures beyond the specific benchmark datasets used in the experiments.
What would settle it
A new WiFi dataset collected in an environment whose pose distribution differs markedly from the training sets, where the method produces no measurable gain in joint accuracy or bone-length realism compared with prior WiFi pose estimators.
Figures
read the original abstract
Robust WiFi-based human pose estimation (HPE) is a challenging task that bridges discrete and subtle WiFi signals to human skeletons. We revisit this problem and reveal two critical yet overlooked issues: 1) cross-domain gap, i.e., due to significant discrepancies in pose distributions between source and target domains; and 2) structural fidelity gap, i.e., predicted skeletal poses manifest distorted topology, usually with misplaced joints and disproportionate bone lengths. This paper fills these gaps by reformulating the task into a novel two-phase framework dubbed DT-Pose: Domain-consistent representation learning and Topology-constrained Pose decoding. Concretely, we first propose a temporal consistency contrastive learning strategy with uniformity regularization, integrated into a self-supervised masked pretraining paradigm. This design facilitates robust learning of domain-consistent and motion-discriminative WiFi representations while mitigating potential mode collapse caused by signal sparsity. Beyond this, we introduce an effective hybrid decoding architecture that incorporates explicit skeletal topology constraints. By compensating for the inherent absence of spatial priors in WiFi semantic vectors, the decoder enables structured modeling of both adjacent and overarching joint relationships, producing more realistic pose predictions. Extensive experiments conducted on various benchmark datasets highlight the superior performance of our method in tackling these fundamental challenges in 2D/3D WiFi-based HPE tasks. The associated code is released at https://github.com/cseeyangchen/DT-Pose.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes DT-Pose, a two-phase framework for WiFi-based 2D/3D human pose estimation that reformulates the task to address the cross-domain gap (via temporal consistency contrastive learning with uniformity regularization in self-supervised masked pretraining) and the structural fidelity gap (via a hybrid decoding architecture incorporating explicit skeletal topology constraints). It claims this yields superior performance on benchmark datasets and releases the associated code.
Significance. If the results hold with appropriate supporting evidence, the work could advance WiFi-based HPE by demonstrating mechanisms for domain-consistent representations and topologically constrained decoding; the public code release supports reproducibility and is a clear strength.
major comments (2)
- [§5 (Experiments)] §5 (Experiments): the central claim that the two-phase framework closes the cross-domain gap rests on performance improvements on benchmark datasets, but the evaluation provides no quantified domain-shift metrics (e.g., MMD or Fréchet distance between source/target representation distributions) or OOD skeletal error breakdowns to show the temporal consistency contrastive learning generalizes beyond the specific pose and signal distributions of the evaluated benchmarks.
- [§4.3 (Decoder architecture)] §4.3 (Decoder architecture): the assertion that the hybrid topology-constrained decoder resolves the structural fidelity gap would require an ablation isolating the effect of the explicit skeletal constraints on metrics such as bone-length ratio error or joint displacement; without this, it is unclear whether the reported gains are due to the topology terms or other decoder components.
minor comments (2)
- Abstract: the claim of 'superior performance' and 'extensive experiments' would be more informative if key quantitative results, baseline names, and dataset identifiers were included.
- Notation: the uniformity regularization weight and contrastive hyperparameters should be explicitly tabulated in the experimental protocol section for reproducibility.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of evaluation that can strengthen the presentation of our claims regarding domain-consistent representations and topology-constrained decoding. We address each major comment below and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [§5 (Experiments)] §5 (Experiments): the central claim that the two-phase framework closes the cross-domain gap rests on performance improvements on benchmark datasets, but the evaluation provides no quantified domain-shift metrics (e.g., MMD or Fréchet distance between source/target representation distributions) or OOD skeletal error breakdowns to show the temporal consistency contrastive learning generalizes beyond the specific pose and signal distributions of the evaluated benchmarks.
Authors: We acknowledge that explicit quantification of domain shift would provide stronger support for the generalization claims of the temporal consistency contrastive learning. Our current evaluation demonstrates consistent improvements across multiple benchmarks with varying pose and signal distributions, which indirectly supports the domain-consistency objective. In the revised version, we will compute and report MMD distances between source and target representation distributions before and after pretraining, along with OOD skeletal error breakdowns on held-out pose distributions where feasible. revision: yes
-
Referee: [§4.3 (Decoder architecture)] §4.3 (Decoder architecture): the assertion that the hybrid topology-constrained decoder resolves the structural fidelity gap would require an ablation isolating the effect of the explicit skeletal constraints on metrics such as bone-length ratio error or joint displacement; without this, it is unclear whether the reported gains are due to the topology terms or other decoder components.
Authors: We agree that an ablation isolating the skeletal topology constraints is necessary to clarify their contribution. The hybrid decoder combines multiple components, and while the overall gains are reported, we will add a targeted ablation that removes the explicit topology terms (both adjacent and overarching) and reports the impact on bone-length ratio error and joint displacement metrics in addition to standard pose errors. revision: yes
Circularity Check
No circularity: empirical framework with independent experimental validation.
full rationale
The DT-Pose framework is introduced as a two-phase empirical architecture (masked pretraining with temporal consistency contrastive learning plus uniformity regularization, followed by hybrid topology-constrained decoding). No equations or derivations are presented that reduce by construction to their own inputs, no fitted parameters are relabeled as predictions, and no load-bearing claims rest on self-citations or uniqueness theorems imported from the authors' prior work. The central claims rest on benchmark experiments and released code, which constitute external falsifiability rather than self-referential definition.
Axiom & Free-Parameter Ledger
free parameters (2)
- contrastive learning hyperparameters and uniformity regularization weight
- decoder architecture hyperparameters
axioms (2)
- domain assumption WiFi signals contain sufficient information about human joint positions and motion
- domain assumption Human skeletal topology provides useful explicit constraints for pose decoding
