arxiv: 2501.12281 · v2 · submitted 2025-01-21 · 💻 cs.LG

MoGERNN: An Inductive Traffic Predictor for Unobserved Locations

Qishen Zhou , Yifan Zhang , Michail A. Makridis , Anastasios Kouvelas , Yibing Wang , Simon Hu This is my paper

Pith reviewed 2026-05-23 04:46 UTC · model grok-4.3

classification 💻 cs.LG
keywords traffic predictiongraph neural networksinductive learningmixture of expertsspatio-temporal modelingroad networkssensor networks
0
0 comments X

The pith

MoGERNN uses a mixture of graph experts with sparse gating to predict traffic states at locations without any sensors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents MoGERNN as an inductive model that learns from a partially observed road network and forecasts traffic at completely unobserved nodes. A mixture-of-graph-experts component with sparse gating routes nodes to specialized aggregators that capture varied spatial dependencies, while an encoder-decoder handles the combined spatial-temporal patterns. The approach is designed to remain effective when sensors are added or removed, without requiring full retraining. Experiments on two real datasets show the model beats baselines at both observed and unobserved sites and tracks congestion evolution in unsensored areas. This addresses the practical reality that traffic sensor coverage is always incomplete and changes over time.

Core claim

MoGERNN is an inductive spatio-temporal graph model whose Mixture of Graph Experts (MoGE) with sparse gating learns heterogeneous spatial dependencies from the observed subgraph alone and generalizes those dependencies to predict traffic states at unobserved nodes, while an encoder-decoder architecture integrates spatial and temporal information for the full prediction task.

What carries the argument

Mixture of Graph Experts (MoGE) with sparse gating that dynamically routes nodes to specialized graph aggregators.

If this is right

  • Traffic managers can obtain congestion forecasts for roads that have never had sensors installed.
  • Adding or removing sensors does not force complete model retraining while performance stays competitive.
  • Prediction accuracy remains stable across different densities of available sensors.
  • Ablation tests confirm that both the mixture-of-experts routing and the encoder-decoder structure contribute to the reported gains.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same inductive routing mechanism could be tested on other networked prediction problems such as power-grid load or epidemic spread where only partial node observations exist.
  • If the learned experts correspond to distinct traffic regimes, the model might reveal interpretable clusters of road behavior that planners could use directly.
  • Extending the sparse gating to include temporal experts could allow the same architecture to handle non-stationary traffic patterns without extra modules.

Load-bearing premise

A sparse-gating mixture of graph experts can extract heterogeneous spatial dependencies from the observed part of the network and apply those same dependencies to nodes that have never been observed.

What would settle it

Run MoGERNN on a dataset where ground-truth traffic measurements exist at locations treated as unobserved during training; if the model's error at those locations is not lower than strong transductive baselines, the generalization claim fails.

Figures

Figures reproduced from arXiv: 2501.12281 by Anastasios Kouvelas, Michail A. Makridis, Qishen Zhou, Simon Hu, Yibing Wang, Yifan Zhang.

Figure 1

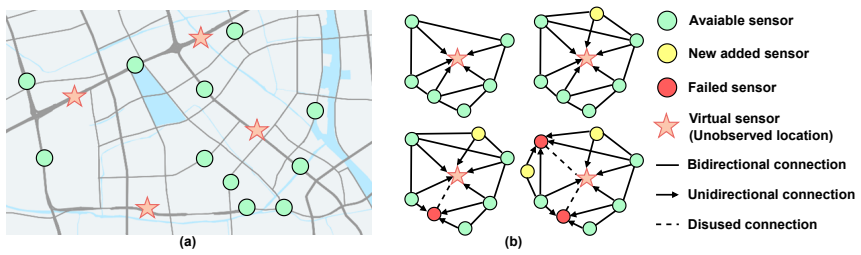

Figure 1. Figure 1: An illustration of forecasting unobserved nodes under a dynamic sensing network: (a) an example of sensor [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

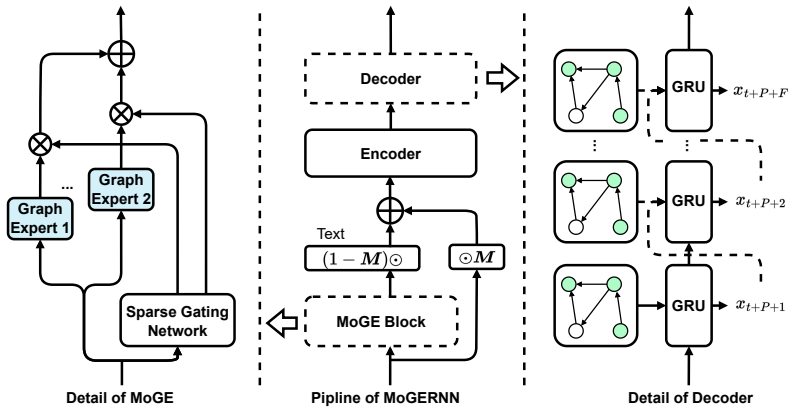

Figure 2. Figure 2: The overview of the proposed MoGERNN. • Distance-based weighted aggregator: 𝑋 (𝑙+1) 𝑗 = Í 𝑖:A𝑖 𝑗>0 𝑋 (𝑙) 𝑖 ·A𝑖 𝑗 Í 𝑖:A𝑖 𝑗>0 A𝑖 𝑗 • Mean aggregator: 𝑋 (𝑙+1) 𝑗 = mean𝑖:A𝑖 𝑗>0 𝑋 (𝑙) 𝑖 • Max pooling aggregator: 𝑋 (𝑙+1) 𝑗 = max𝑖:A𝑖 𝑗>0 𝑋 (𝑙) 𝑖 • Min pooling aggregator: 𝑋 (𝑙+1) 𝑗 = min𝑖:A𝑖 𝑗>0 𝑋 (𝑙) 𝑖 • Diffusion convolution aggregator: 𝑋 (𝑙+1) 𝑗 = Í𝐾−1 𝑘=0 ( Í 𝑖 (D−1 𝑂 A)𝑘 𝑖 𝑗 𝑋 (𝑙) 𝑖 W(𝑙) 𝑘,𝑂 + Í 𝑖 (D−1 𝐼 A⊤) … view at source ↗
Figure 3

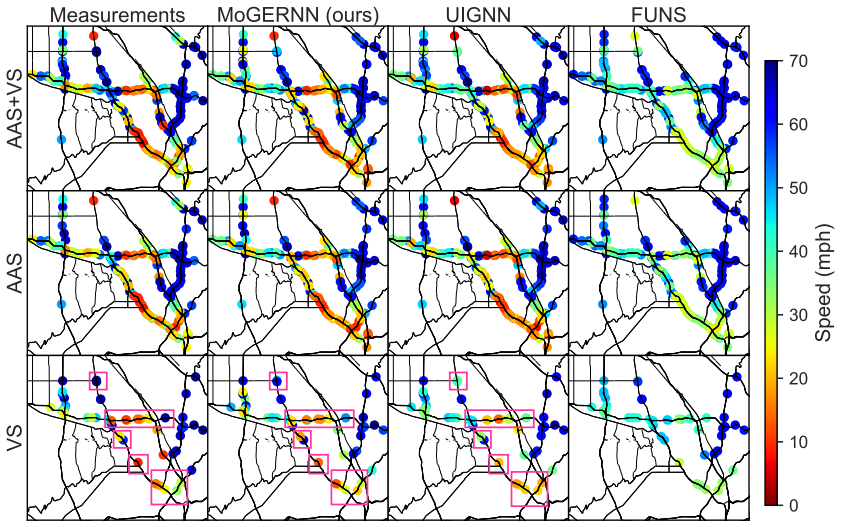

Figure 3. Figure 3: Map presentation of prediction performance in an evening-peak time point (2012-05-24 17:30) of METR-LA. [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4

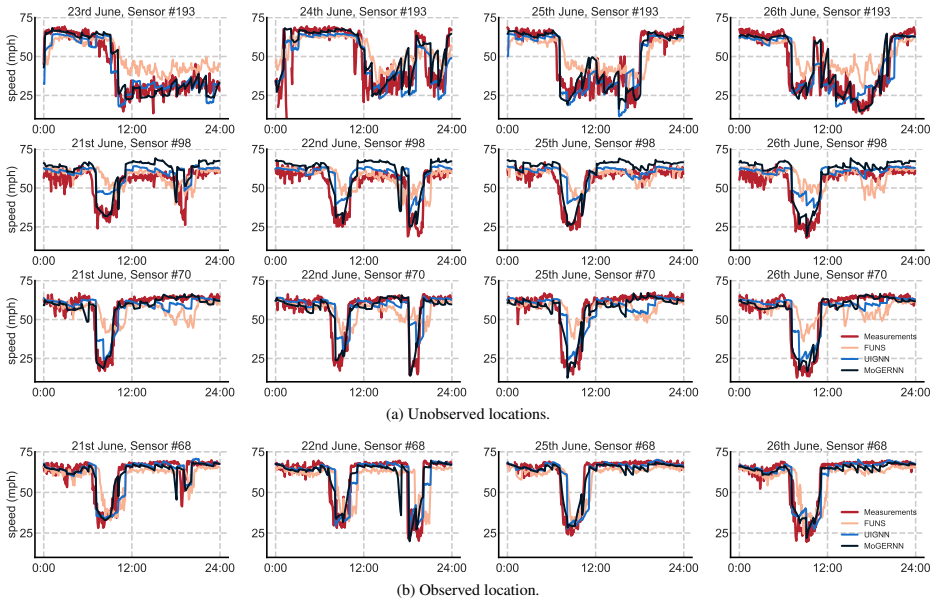

Figure 4. Figure 4: Predicting results for METR-LA. (a) show the results of unobserved locations, including three virtual sensors [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

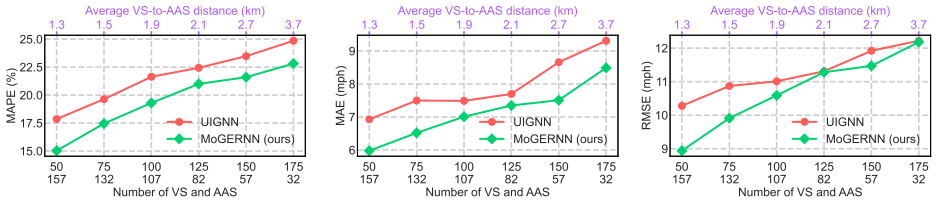

Figure 5. Figure 5: Model performance under different ratios of VS to AAS. The first row of x-ticks labels indicates the number of [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
read the original abstract

Given a partially observed road network, how can we predict the traffic state of interested unobserved locations? Traffic prediction is crucial for advanced traffic management systems, with deep learning approaches showing exceptional performance. However, most existing approaches assume sensors are deployed at all locations of interest, which is impractical due to financial constraints. Furthermore, these methods are typically fragile to structural changes in sensing networks, which require costly retraining even for minor changes in sensor configuration. To address these challenges, we propose MoGERNN, an inductive spatio-temporal graph model with two key components: (i) a Mixture of Graph Experts (MoGE) with sparse gating mechanisms that dynamically route nodes to specialized graph aggregators, capturing heterogeneous spatial dependencies efficiently; (ii) a graph encoder-decoder architecture that leverages these embeddings to capture both spatial and temporal dependencies for comprehensive traffic state prediction. Experiments on two real-world datasets show MoGERNN consistently outperforms baseline methods for both observed and unobserved locations. MoGERNN can accurately predict congestion evolution even in areas without sensors, offering valuable information for traffic management. Moreover, MoGERNN is adaptable to the changes of sensor network, maintaining competitive performance even compared to its retrained counterpart. Tests performed with different numbers of available sensors confirm its consistent superiority, and ablation studies validate the effectiveness of its key modules. The code of this work is publicly available at: https://github.com/ZJU-TSELab/MoGERNN.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper introduces MoGERNN, an inductive spatio-temporal graph neural network for traffic state prediction at unobserved locations in partially observed road networks. It uses a Mixture of Graph Experts (MoGE) module with sparse gating to route nodes to specialized aggregators for heterogeneous spatial dependencies, combined with a graph encoder-decoder to model spatio-temporal patterns. Experiments on two real-world datasets claim consistent outperformance over baselines for both observed and unobserved nodes, plus adaptability to sensor network changes without full retraining, supported by ablation studies and tests with varying sensor counts. Code is released publicly.

Significance. If the empirical claims hold under rigorous validation, the work addresses a practically important gap in traffic forecasting by enabling inductive generalization to unsensored locations and robustness to sensor reconfiguration. This could reduce deployment costs for traffic management systems. Public code release supports reproducibility and is a positive contribution.

minor comments (3)
  1. [Abstract] Abstract: the performance claims reference 'two real-world datasets' and 'baseline methods' without naming them or reporting key metrics (e.g., MAE, RMSE) or dataset sizes; this should be expanded for immediate clarity even if details appear later.
  2. The description of the sparse gating mechanism in the MoGE component would benefit from an explicit equation or pseudocode showing how the routing probabilities are computed and how sparsity is enforced.
  3. Figure captions and axis labels should be checked for completeness so that results for unobserved locations are immediately interpretable without reference to the main text.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive review and recommendation of minor revision. The summary accurately reflects the paper's focus on inductive prediction for unobserved locations and adaptability to sensor network changes. No major comments are listed in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces MoGERNN as a new inductive architecture (MoGE with sparse gating plus encoder-decoder) and supports its claims via experiments on two real-world datasets showing outperformance on observed and unobserved nodes. No equations, parameter-fitting steps, or derivation chain appear in the supplied text. The generalization claim rests on empirical results rather than any self-definitional mapping, fitted-input prediction, or self-citation reduction. This is the expected honest non-finding for an architecture-plus-experiments paper whose central assertions are externally falsifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, mathematical axioms, or invented entities beyond the high-level model name. No numerical constants, lemmas, or new physical quantities are mentioned.
