Scattering Insights into Shear-Induced Scission of Rod-like Micelles

T0 review · 3 major / 5 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read SANS shows shear flow fragments rod-like micelles, shortening them from 400 Å to 150 Å.

desk verdict Interesting and potentially important, but the extraction of the isotropic component rests on an axial-symmetry assumption that simple shear does not satisfy; the 400-to-150 Å length reduction should be treated as provisional until biaxiality is ruled out. read the letter →

arxiv 2501.13660 v1 pith:E5BUTOYO submitted 2025-01-23 cond-mat.soft

Guan-Rong Huang , Ryan P. Murphy , Lionel Porcar , Chi-Huan Tung , Changwoo Do , Wei-Ren Chen This is my paper · ORCID
classification cond-mat.soft
keywords shear-inducedmicellarscissionsmall-angleneutronscatteringrealsphericalharmonicexpansionrod-likemicellespolydisperserodmodelorientationaldistributionfunctionCTAB/NaNO3solutionWeissenbergnumber
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that shear flow physically cuts rod-like micelles into shorter pieces, and that small-angle neutron scattering (SANS) can observe this scission directly. By decomposing the two-dimensional scattering pattern into real spherical harmonics, the authors isolate the isotropic component $I_0^0(Q)$, which is invariant to how the rods are oriented and therefore reports only on rod length and cross-section. This component decreases steadily with shear rate, and model fits show the average micellar length falling from about 400 Å at rest to about 150 Å at a shear rate of $\dot{\gamma}=3000$ s$^{-1}$, while the length distribution narrows and the micelles align with the flow. If correct, the result is the first direct experimental evidence of shear-induced micellar scission and a quantitative bridge to simulation predictions.

What carries the argument

The central object is the real spherical harmonic expansion of the two-dimensional scattering intensity, $I(\mathbf{Q})=\sum_{l,m} I_l^m(Q) Y_l^m(\theta,\phi)$, applied to the flow–velocity-gradient (1-2) plane. Because the Couette flow restores axial symmetry, only the $m=0$ Legendre components survive; the isotropic component $I_0^0(Q)$ is the orientation-invariant projection that carries the length information, while the ratio $I_2^0(Q)/I_0^0(Q)$ encodes the orientational order parameter of the rods. The argument is carried by the numerical benchmark showing $I_0^0(Q)$ is unchanged when the orientational distribution width varies at fixed rod length, which turns the observed decrease of $I_0^0(Q)$ into a direct readout of length reduction. Quantification is done with a polydisperse rigid-cylinder form factor, Eq. (8), averaged over a Schulz length distribution, Eq. (9), with a central-moment correction for cross-section polydispersity, Eq. (10).

What would settle it

A control experiment on rigid, non-scissile rods of similar aspect ratio (for example, gold nanorods or fd-virus) under the same Couette flow and shear rates would settle the claim: if $I_0^0(Q)$ also decreases with shear rate for these rods, the spectral change is not a specific signature of micellar scission. Alternatively, re-fitting the same data with the cross-section radius allowed to vary freely at each shear rate while keeping the length distribution fixed would reveal whether a physically plausible change in $R$ alone can reproduce the low-$Q$ decrease; if it can, the 400-to-150 Å length reduction is not uniquely identified.

Watch

Extended reading notes

Core claim

The central discovery is that the isotropic component $I_0^0(Q)$ of the SANS intensity, extracted through real spherical harmonic decomposition of the two-dimensional pattern in the flow–velocity-gradient plane, is orientation-invariant and therefore isolates the length information from the scattering spectrum. Experimentally, $I_0^0(Q)$ decreases monotonically with increasing shear rate in the low-$Q$ region ($Q<0.02$ Å$^{-1}$), which the authors interpret as a direct, model-free signature of flow-induced scission. Fitting the data with a polydisperse rigid-rod model with a Schulz length distribution yields an average length that drops from 400 Å at rest to 150 Å at the highest shear rate, with the distribution becoming narrower and more symmetric. The normalized length reduction, plotted against the Weissenberg number, agrees quantitatively with dissipative particle dynamics simulations of scission, supporting the claim that the method captures the same physics as the simulations.

Load-bearing premise

The conclusion that shear causes scission rests entirely on the assumption that the observed decrease in the isotropic scattering component $I_0^0(Q)$ comes purely from a reduction in rod length, while the micellar cross-section, the scattering contrast, and the rod straightness all stay fixed under shear.

Editorial extensions

If this is right

  • Rheo-SANS can now be used as a quantitative probe of shear-induced scission, not just flow alignment, in rod-like and worm-like micellar systems.
  • The measured normalized length reduction as a function of Weissenberg number matches dissipative particle dynamics simulations (slope approximately $-0.23$ versus $-0.25$), suggesting the underlying scission kinetics may be universal across ionic and nonionic surfactant micelles.
  • The observed narrowing and symmetrization of the length distribution under shear indicates that scission preferentially removes the longest rods, which constrains kinetic models of flow-driven fragmentation.
  • The method extracts both the length distribution and the orientational distribution from a single two-dimensional SANS pattern, enabling simultaneous microstructural and rheological interpretation of flowing micellar fluids.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The quantitative lengths rest on treating the micelles as rigid rods with a fixed cross-section radius $R=21.5$ Å at every shear rate. If the micelles bend or change cross-section under strong flow, part of the low-$Q$ decrease attributed to scission could instead reflect flexibility effects; repeating the analysis with a semiflexible-cylinder form factor would test how much of the length reductio
  • The authors compare with simulations of nonionic surfactant micelles, but their experiments use ionic CTAB; extending the same measurement to other ionic strengths, temperatures, or surfactant architectures would test whether the $L/L_{\rm eq}$ versus Weissenberg number curve is a universal master curve or specific to this system.
  • The steady-state measurements cannot separate the rate of scission from the rate of reassembly; applying the same spherical-harmonic analysis to time-resolved (stop-flow or oscillatory) SANS would make the kinetic competition directly measurable.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript reports rheo-SANS experiments on aqueous CTAB/NaNO3 solutions in a Couette 1-2 shear cell. The authors decompose the measured 2D scattering into real spherical harmonics and isolate what they call the isotropic component I_0^0(Q). They observe a steady decrease of this component at low Q with increasing shear rate and, by fitting a Schulz-distributed polydisperse rigid-cylinder model, infer that the mean micellar length decreases from about 400 Å at rest to about 150 Å at 3000 s^-1. They also reconstruct the orientational distribution function from the anisotropic component I_2^0(Q) and compare the normalized length reduction with DPD simulations. The central claim is that this provides direct experimental evidence and quantitative characterization of shear-induced micellar scission.

Significance. If the interpretation is correct, the paper would be a valuable contribution: direct scattering evidence for shear-induced scission of rod-like micelles has been elusive, and the proposed spherical-harmonic framework could separate orientation effects from length changes in a systematic way. The raw decrease of the extracted isotropic component with shear is visible in the data, the experimental details are reported carefully, and the residual plots in Fig. 7 show that the fits are statistically reasonable. The comparison with DPD simulations is an appealing cross-validation. However, the quantitative 400-to-150 Å result rests on an axial-symmetry assumption in the decomposition and on a parametric model with several free parameters whose identifiability is not established; these issues are load-bearing for the central claim.

major comments (3)
  1. [Sec. 4.1, Eqs. (2)-(3)] The extraction of I_0^0(Q) from a single great-circle integral in the 1-2 plane is exact only if the full three-dimensional intensity is axisymmetric about the tilted axis. In simple shear, rod orientation distributions are generically biaxial, with different widths in the flow-gradient and flow-vorticity planes, so m≠0 spherical-harmonic components survive any rotation about the vorticity axis. The benchmark in Fig. 5 uses only uniaxial ODFs f(θ) and therefore does not test the relevant case. Please add a numerical test with a biaxial ODF, or a direct estimate of the I_2^2(Q) contribution, and show that the low-Q decrease in Eq. (3) is not contaminated by alignment; otherwise the 400-to-150 Å conclusion is not uniquely attributable to scission.
  2. [Sec. 4.3, Eqs. (7)-(10) and Fig. 7] The quantitative length distributions are obtained from a parametric fit with free parameters A, L_bar, z, and I_inc, with R and p_R fixed, and no parameter uncertainties or covariance are reported. The normalized residuals in Fig. 7(d-f) show good random scatter, but they do not establish that the low-Q decrease is caused by L_bar rather than by compensating changes in A, z, or I_inc. Please report confidence intervals, a parameter-identifiability study, and a discussion of how much of the observed I_0^0 decrease can be absorbed by the other free parameters. The benchmark in Fig. 5 cannot serve as independent validation because it uses the same rigid-rod form factor that later produces the fitted lengths.
  3. [Sec. 3 and Sec. 4.3] The assumption that the 34 mM CTAB/90 mM NaNO3 solution is dilute, with negligible inter-micellar correlations, is asserted rather than demonstrated. At the fitted mean length of 400 Å and radius 21.5 Å, the estimated micelle number density gives center-to-center separations comparable to or smaller than the rod length, so a structure factor or shear-induced concentration fluctuation could contribute to the low-Q response. Please provide evidence, for example concentration-dependent SANS or an estimate of the structure factor, that this contribution is negligible over the Q range used for the length fits.
minor comments (5)
  1. [Sec. 4.1 and Fig. 3 caption] The flow direction is called the x-axis in the text and the y-axis in the figure caption; please make the coordinate conventions consistent.
  2. [Sec. 4.1] The sentence stating that the observed asymmetry 'indicates that spherical harmonic basis functions with m = 0 ... suffice' is difficult to follow, because asymmetry in the 2D pattern generally implies nonzero m terms before rotation; please rephrase the logic.
  3. [Sec. 4.3, Fig. 8(c)] The comparison with DPD simulations is presented as 'strong quantitative agreement', but the experimental points have no error bars and the fitted slope is quoted without uncertainty; the paper's own admission that the agreement may be coincidence should temper the strength of the claim.
  4. [Secs. 1, 2, and 5] There are several typographical and grammatical errors, including 'demostrate' (Sec. 1), 'as-recieved' (Sec. 2), and 'that only computer simulation have so far eluded' (Sec. 5); please proofread the manuscript.
  5. [Sec. 4.4] The claims of being 'the first comprehensive and robust method' and establishing 'a new benchmark' are stronger than what the comparison with existing methods in the same section supports; please moderate these claims.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the reported 400-to-150 Å length reduction is a fitted quantity compared against independent DPD simulations, not a prediction built from the same input.

full rationale

The paper's central experimental claim is a model-independent observation: the projected isotropic scattering component I00(Q), extracted by spherical-harmonic decomposition (Eqs. 2–3), decreases steadily at low Q with increasing shear (Fig. 4). That decay is not generated by the model; it is input data. The quantitative length reduction is obtained by regression of Eq. (10) against this measured I00(Q), with Lbar as a free parameter of a Schulz distribution (Eq. 9). Fitting a parameter and then reporting its shear-rate dependence is not circular unless the model is constructed to force the outcome. The rigid-rod form factor (Eq. 8) and central-moment polydispersity correction (Eq. 10) are standard kernels; the fits are then checked against residuals (Figs. 7d–f). The comparison in Fig. 8(c) is an external benchmark: Koide and Goto's dissipative particle dynamics simulations [16] are not by the present authors, and the paper reports agreement in slope (−0.23 vs −0.25) and crossover (Wi≈1–10), rather than importing the simulation's output as a constraint. The benchmark in Fig. 5 uses the same rod form factor, but only as a control showing that I00 is insensitive to the uniaxial ODF and sensitive to length; it does not fix the fitted Lbar values. Self-citations to [45,47,48,53] supply the mathematical decomposition, the g00 representation, and the polydispersity expansion; these are published methodological results with assumptions (e.g., axial symmetry about the flow axis in [45]) that are stated and do not already contain the shear-scission conclusion. The skeptical concern that the 1–2-plane projection may mix in biaxial alignment is a physical correctness risk about the validity of the axial-symmetry assumption under simple shear, not a circularity: it does not make the length fit equal to its input by construction. Likewise, possible degeneracies among A, Lbar, z, and Iinc are model-uncertainty issues, not definitional circularity. Therefore no circular step can be exhibited under the required standard.

Assumptions & free parameters 8 free parameters · 6 assumptions · 0 invented entities

All quantitative results downstream of the length claim use the polydisperse rigid-rod fit (Eq. 10) with free parameters A, L_bar, z, R, p_R, and I_inc. The model-independent part is the decrease in I_0^0(Q) with shear, but the 400-to-150 Å numbers are fit outputs, not direct measurements. The assumptions of rigid cylinders, negligible inter-micellar correlations, uniaxial symmetry restored by a tilt angle, laminar flow without banding, and the maximum entropy ODF are all load-bearing. No new physical entities are introduced.

free parameters (8)
  • A (overall intensity scale)
    Free scale in Eqs. 7 and 10; can absorb changes in contrast, number density, or calibration, so fitted lengths depend on the scale treatment.
  • L_bar (mean micellar length) = 400 Å (quiescent) to 150 Å (3000 s^-1)
    Central parameter of the scission claim; reported without uncertainty.
  • z (Schulz distribution width)
    Controls polydispersity of the length distribution; fitted per shear rate but values are not tabulated.
  • R (cross-section radius) = 21.5 Å
    Fixed across fits; determines the form factor and the position of the first minimum.
  • p_R (radius polydispersity ratio) = 14.5 x 10^-2
    Used in the central moment expansion, Eq. 10, to smear the first minimum; treated as constant.
  • I_inc (incoherent background)
    Free additive constant in Eq. 10; not reported.
  • S2 (orientational order parameter) = 0 at rest to about -0.2 at 3000 s^-1
    Obtained as the average of -2 I_2^0/I_0^0 over the probed Q range; input to the maximum entropy reconstruction.
  • A0 and A0_2 (maximum entropy constants)
    Determined from normalization and S2 in Eq. 13; carry no independent physical content.
assumptions (6)
  • domain assumption A single tilt angle θt restores axial symmetry of the 2D scattering pattern in the 1-2 plane, so only m=0 spherical harmonics contribute to the expansion.
    Invoked in Sec. 4.1, Eqs. 2-3. If the alignment symmetry is not uniaxial or the tilt is inaccurate, the extracted I_0^0 mixes orientation and length effects.
  • domain assumption The micelles are rigid, uniform cylinders with a Schulz length distribution and no inter-micellar correlations in the dilute regime.
    Sec. 3 and Sec. 4.3, Eqs. 7-10. This is the model that converts I_0^0 into mean lengths; bending, cross-section changes, or interactions would bias the fitted L values.
  • domain assumption I_0^0(Q) is invariant under the orientation distribution for rigid rods, so a decrease in I_0^0 directly signals a decrease in rod length.
    Sec. 4.2 and Fig. 5. The benchmark uses the same rod model assumed later in the fit, so it checks the model's sensitivity but is not an independent confirmation of scission.
  • domain assumption The shear flow is laminar and free of shear banding, vorticity banding, and elastic instabilities in the scattering volume.
    Secs. 2-3, based on steady rheology and Re/Ta estimates. If banding occurs, the measured spectrum averages over multiple local shear rates and the fitted lengths are effective averages.
  • domain assumption The orientational distribution has the maximum entropy form f(θ) = A0 exp(A0_2 Y_2^0(θ)).
    Sec. 4.4, Eq. 12. Higher-order terms are neglected; the paper reports I_4^0/I_0^0 is small, which supports but does not prove this form.
  • standard math Spherical harmonic expansion and Legendre orthogonality on θ in [0,π] are valid for the reduced axisymmetric intensity.
    Sec. 4.1, Eqs. 1-3. Provides the mathematical basis for the decomposition.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Scattering Insights into Shear-Induced Scission of Rod-like Micelles." pith.science (2026). https://pith.science/paper/E5BUTOYO

@misc{pith2026250113660,
  author       = {Pith},
  title        = {Pith review of: Scattering Insights into Shear-Induced Scission of Rod-like Micelles},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/E5BUTOYO}},
  note         = {Machine review of arXiv:2501.13660}
}
read the original abstract

Hypothesis Understanding the scission of rod-like micelles under mechanical forces is crucial for optimizing their stability and behavior in industrial applications. This study investigates how micelle length, flexibility, and external forces interact, offering insights into the design of micellar systems in processes influenced by mechanical stress. Although significant, direct experimental observations of flow-induced micellar scission using scattering techniques remain scarce. Experiments and Simulations Small angle neutron scattering (SANS) is used to explore the shear response of aqueous cetyltrimethylammonium bromide (CTAB) solutions with sodium nitrate. Rheological tests show shear thinning with no shear banding, ensuring a uniform flow field for reliable interpretation of scattering data. As shear rate increases, the scattering spectra show angular distortion, which is analyzed using spherical harmonic decomposition to characterize flow-induced scission and micelle orientation under shear. Findings Two analysis steps are used: a model-independent spectral eigendecomposition reveals a decrease in micellar length, while regression analysis quantifies the evolution of the length distribution and mean length with shear rate. Additionally, micelle alignment increases with shear, quantified by the orientational distribution function. These findings provide experimental evidence for flow-induced alignment and scission, offering a new framework for understanding shear-induced phenomena in micellar systems

Figures

Figures reproduced from arXiv: 2501.13660 by the authors.

Figure 1
Figure 1. Steady-shear viscosity measurements as a function of [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Schematic of the SANS experiment conducted under Couette geometry. The directions of flow (v), velocity gradient (∇v), and vorticity (∇ × v) are indicated as 1, 2, and 3, respectively. Two-dimensional SANS spectra were acquired in the flow–velocity gradient plane (1−2 or ∇v−v). The SANS experiments were conducted using the D22 diffractometer at the Institut Laue-Langevin (ILL). The instrument provides an extensive d… view at source ↗
Figure 3
Figure 3. Panel (a) shows the 2D scattering intensity, [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (6 more)
Figure 4

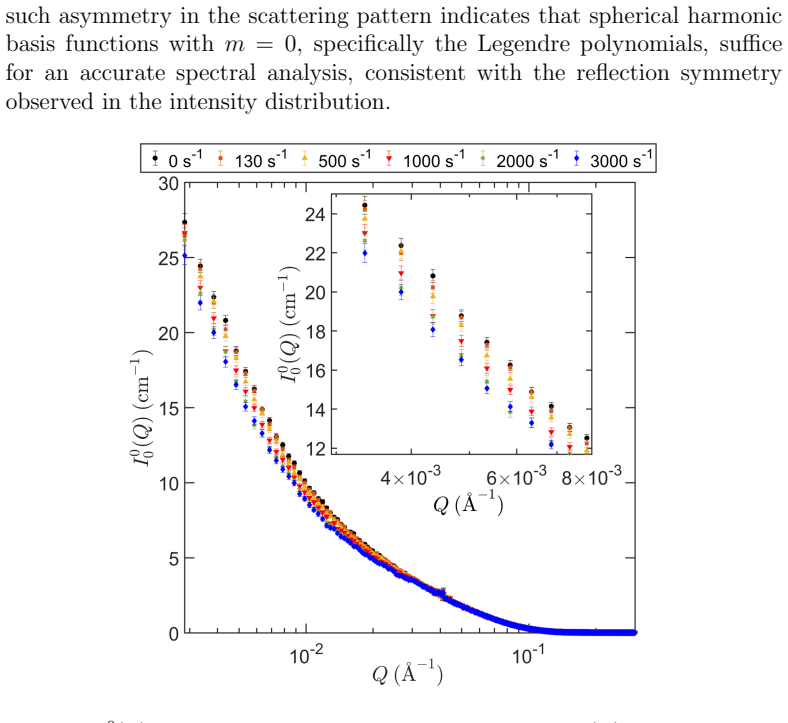

Figure 4. Figure 4: I 0 0 (Q), extracted from the experimentally measured Ixy(Q) through spherical harmonic decomposition, at varying shear rates ˙γ. As ˙γ increases from 0 to 3000 s−1 , a steady decrease in I 0 0 (Q) is observed [PITH_FULL_IMAGE:figures/full_fig_p012_4.png]
Figure 5
Figure 5. Figure 5: Computational benchmarks of a freely rotating rod model with varying ori [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 6
Figure 6. Figure 6: Bending rod plot of I 0 0 (Q) for the micellar system in its quiescent state (blue symbols) and for a rigid rod of the length 400 ˚A and cross-section radius 21.5 ˚A (red curve). In the range 0.01 ˚A −1 < Q < 0.1 ˚A −1 , the product QI(Q) exhibits a prominent peak. Whi…
Figure 7
Figure 7. Figure 7: Comparative analysis of the experimentally obtained [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8
Figure 8. Figure 8: Length distribution function f(L) and average micellar length L derived from model fitting analysis, illustrating the statistical distribution of micellar lengths. As the shear rate ˙γ increases from 0 to 3000 s−1 (a), both the width and skewness of f(L) decrease, indi…
Figure 9
Figure 9. Figure 9: The ratios: (a) I 0 2 (Q) I 0 0 (Q) and (b) I 0 4 (Q) I 0 0 (Q) at different shear rates are obtained using the real spherical harmonics decomposition of the experimentally measured scattering in￾tensity I(Q). Obviously, I 0 4 (Q) I 0 0 (Q) is approximately an order of…
