On Min-Max Robust Data-Driven Predictive Control Considering Non-Unique Solutions to Behavioral Representation
Pith reviewed 2026-05-23 04:26 UTC · model grok-4.3
The pith
A min-max robust DDPC framework uses an uncertainty set on output trajectories to guarantee performance under bounded additive noise.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Analyzing non-unique solutions to behavioral representation reveals an inherent lack of robustness in subspace predictive control. The authors therefore construct an uncertainty set that contains every admissible output trajectory deviating from nominal subspace predictions. The resulting min-max robust DDPC formulation endows chosen control sequences with explicit robustness against such deviations, admits tractable convex reformulations, and yields performance guarantees under bounded additive noise; an affine-feedback variant is introduced to reduce conservatism.
What carries the argument
The uncertainty set capturing all admissible output trajectories that deviate from nominal subspace predictions, which is used to formulate the min-max robust DDPC problem.
If this is right
- Theoretical performance guarantees hold for the closed-loop system when additive noise is bounded.
- The robust problem admits tractable convex reformulations that can be solved efficiently.
- An affine feedback policy further incorporated into the robust DDPC reduces design conservatism.
- Simulation results show that the method robustifies standard subspace predictive control and outperforms projection-based regularization.
Where Pith is reading between the lines
- The same uncertainty-set construction could be applied to other behavioral or subspace-based data-driven controllers.
- Online estimation of the uncertainty set from streaming data would allow the method to adapt when noise statistics drift.
- Links to set-membership identification techniques might tighten the uncertainty set without losing the coverage guarantee.
Load-bearing premise
The uncertainty set must contain every possible admissible output trajectory that can deviate from the nominal subspace predictions.
What would settle it
An experiment in which measured output trajectories lie outside the constructed uncertainty set while additive noise remains within the stated bound, causing the min-max controller to violate its claimed performance guarantees.

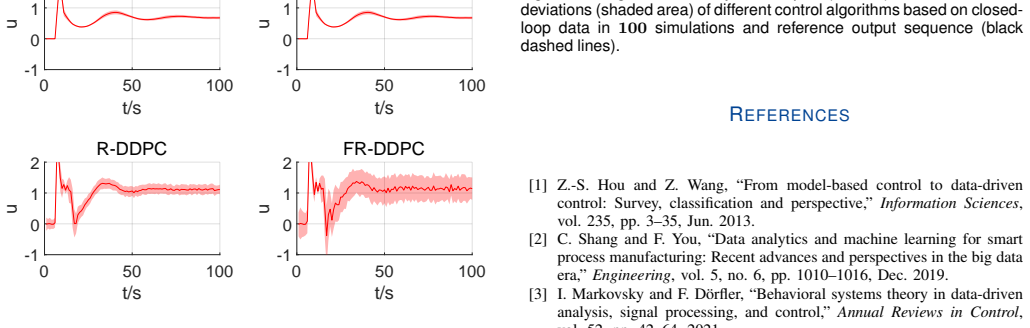

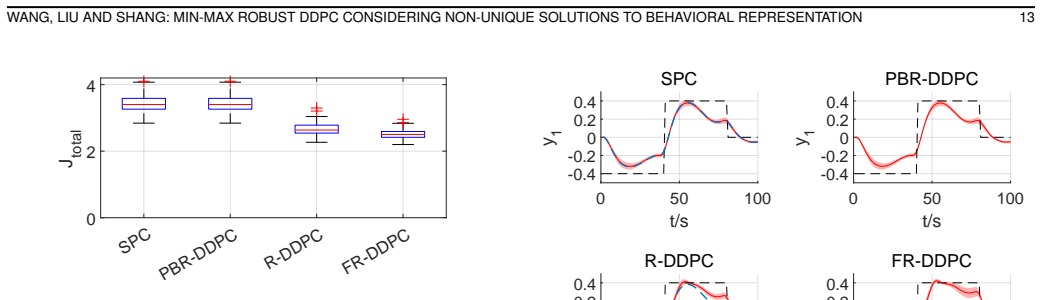

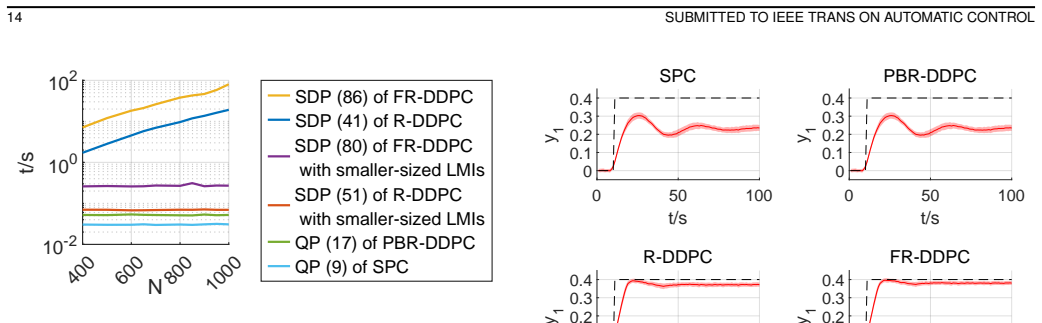

Figures

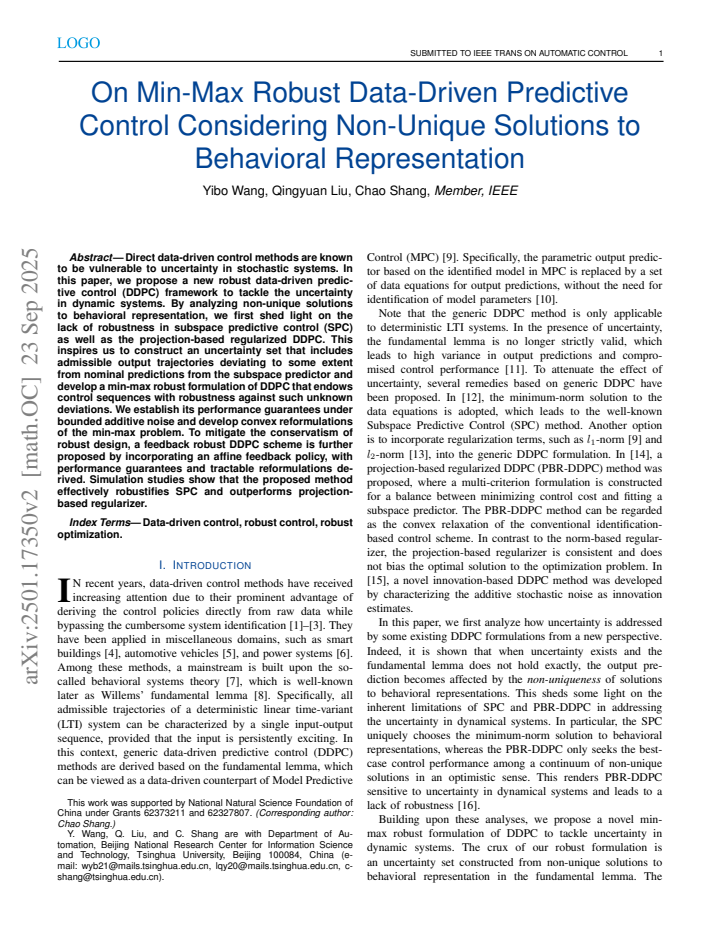

read the original abstract
Direct data-driven control methods are known to be vulnerable to uncertainty in stochastic systems. In this paper, we propose a new robust data-driven predictive control (DDPC) framework. By analyzing non-unique solutions to behavioral representation, we gain insight into the inherent lack of robustness in subspace predictive control (SPC) and its projection-based regularized variant. This stimulates us to construct an uncertainty set that captures all admissible output trajectories deviating from nominal subspace predictions, which results in a min-max robust formulation of DDPC that endows control sequences with robustness against such unknown deviations. We establish theoretical performance guarantees under bounded additive noise and develop tractable convex reformulations. To mitigate the conservatism of robust design, a feedback robust DDPC scheme is further proposed by incorporating an affine feedback policy. Simulation studies show that the proposed methods effectively robustify SPC and outperform the projection-based regularization.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a min-max robust data-driven predictive control (DDPC) framework that analyzes non-uniqueness in behavioral representations to construct an uncertainty set around nominal subspace predictions. This yields a robust formulation with theoretical performance guarantees under bounded additive noise, tractable convex reformulations, and an affine-feedback variant to reduce conservatism; simulations indicate improved robustness over standard SPC and projection-based regularization.
Significance. If the uncertainty set is shown to be both complete and tight, the work would provide a principled robustification of behavioral DDPC with explicit guarantees, which is a meaningful contribution to data-driven control under uncertainty. The convex reformulations and feedback extension are practical strengths.
major comments (2)
- [§3] §3 (Uncertainty set construction): The claim that the constructed set 'captures all admissible output trajectories deviating from nominal subspace predictions' is load-bearing for the min-max guarantees, yet the manuscript provides no explicit inclusion proof that every trajectory consistent with the data, the behavioral equation, and the bounded-noise assumption lies inside the set; if any admissible deviation is omitted, both the robustness claim and the subsequent convex reformulation fail.
- [§4] §4 (Performance guarantees): The theoretical bounds are stated to hold 'under bounded additive noise,' but they are derived directly from the uncertainty set; without a separate verification that the set is neither empty nor overly conservative relative to the true noise ball, the guarantees reduce to a tautology and do not establish robustness beyond the modeling assumption.
minor comments (2)
- [Simulation studies] The simulation section should report the precise system dimensions, noise bounds, and quantitative metrics (e.g., closed-loop cost or violation frequency) rather than qualitative statements.
- [Preliminaries] Notation for the behavioral matrix and the projection operator is introduced without a self-contained recap; a short table or paragraph would aid readers.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback, which highlights important aspects of the robustness claims. We address each major comment below and indicate planned revisions to strengthen the manuscript.
read point-by-point responses
-
Referee: [§3] §3 (Uncertainty set construction): The claim that the constructed set 'captures all admissible output trajectories deviating from nominal subspace predictions' is load-bearing for the min-max guarantees, yet the manuscript provides no explicit inclusion proof that every trajectory consistent with the data, the behavioral equation, and the bounded-noise assumption lies inside the set; if any admissible deviation is omitted, both the robustness claim and the subsequent convex reformulation fail.
Authors: We agree that an explicit inclusion proof is essential for rigor. While Section 3 derives the uncertainty set from the non-uniqueness of solutions to the behavioral equation under bounded noise, the manuscript does not contain a standalone proposition establishing that every admissible trajectory is contained in the set. In the revised manuscript we will add such a proof (as a new lemma), showing that any output sequence satisfying the data equation, the behavioral representation, and the noise bound can be expressed as a deviation within the constructed set around the nominal prediction. This will directly support the min-max formulation and convex reformulations. revision: yes
-
Referee: [§4] §4 (Performance guarantees): The theoretical bounds are stated to hold 'under bounded additive noise,' but they are derived directly from the uncertainty set; without a separate verification that the set is neither empty nor overly conservative relative to the true noise ball, the guarantees reduce to a tautology and do not establish robustness beyond the modeling assumption.
Authors: The performance guarantees in Section 4 are obtained by solving the min-max problem over the uncertainty set, which by construction is non-empty (it contains at least the nominal prediction). The set is not an arbitrary enlargement but is explicitly generated from the range of behavioral representations consistent with the data and noise bound; this provides a data-driven characterization rather than a purely modeling assumption. Nevertheless, we acknowledge that a dedicated verification step would improve clarity. In revision we will add a short corollary or remark confirming non-emptiness and relating the set's size to the noise bound, thereby making explicit that the guarantees follow from the set's completeness property rather than reducing to a tautology. revision: partial
Circularity Check
Derivation self-contained with independent uncertainty-set construction
full rationale
The paper constructs an uncertainty set by analyzing non-unique solutions to the behavioral representation under bounded additive noise, then forms a min-max robust DDPC and derives performance guarantees from that set. No quoted step reduces a prediction or guarantee to a fitted parameter defined by the same data, nor does any load-bearing claim rest on a self-citation chain or imported uniqueness theorem. The central claims therefore remain externally falsifiable and do not collapse by construction.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
non-unique solutions to behavioral representation... uncertainty set that captures all admissible output trajectories deviating from nominal subspace predictions... min-max robust formulation of DDPC
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Theorem 1... Λ chosen so that Ŷo covers Yo under bounded additive noise
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
From model-based control to data-driven control: Survey, classification and perspective,
Z.-S. Hou and Z. Wang, “From model-based control to data-driven control: Survey, classification and perspective,”Information Sciences, vol. 235, pp. 3–35, Jun. 2013
work page 2013
-
[2]
C. Shang and F. You, “Data analytics and machine learning for smart process manufacturing: Recent advances and perspectives in the big data era,”Engineering, vol. 5, no. 6, pp. 1010–1016, Dec. 2019
work page 2019
-
[3]
Behavioral systems theory in data-driven analysis, signal processing, and control,
I. Markovsky and F. D ¨orfler, “Behavioral systems theory in data-driven analysis, signal processing, and control,”Annual Reviews in Control, vol. 52, pp. 42–64, 2021
work page 2021
-
[4]
Data-driven methods for building control — a review and promising future directions,
E. T. Maddalena, Y . Lian, and C. N. Jones, “Data-driven methods for building control — a review and promising future directions,”Control Engineering Practice, vol. 95, p. 104211, Feb. 2020
work page 2020
-
[5]
Fast data- driven model predictive control strategy for connected and automated vehicles,
V . Bhattacharyya, A. F. Canosa, and B. HomChaudhuri, “Fast data- driven model predictive control strategy for connected and automated vehicles,”ASME Letters in Dynamic Systems and Control, vol. 1, no. 4, p. 041011, Apr. 2021
work page 2021
-
[6]
Data-driven predictive control with online adaption: Application to a fuel cell system,
L. Schmitt, J. Beerwerth, M. Bahr, and D. Abel, “Data-driven predictive control with online adaption: Application to a fuel cell system,”IEEE Transactions on Control Systems Technology, vol. 32, no. 1, pp. 61–72, Jan. 2024
work page 2024
-
[7]
J. C. Willems and J. W. Polderman,Introduction to Mathematical Systems Theory: A Behavioral Approach. Springer Science & Business Media, 1997, vol. 26
work page 1997
-
[8]
A note on persistency of excitation,
J. C. Willems, P. Rapisarda, I. Markovsky, and B. L. De Moor, “A note on persistency of excitation,”Systems & Control Letters, vol. 54, no. 4, pp. 325–329, Apr. 2005
work page 2005
-
[9]
Data-enabled predictive con- trol: In the shallows of the DeePC,
J. Coulson, J. Lygeros, and F. D ¨orfler, “Data-enabled predictive con- trol: In the shallows of the DeePC,” in2019 18th European Control Conference (ECC), IEEE. IEEE, Jun. 2019, pp. 307–312
work page 2019
-
[10]
Data-driven control based on the behavioral approach: From theory to applications in power systems,
I. Markovsky, L. Huang, and F. D ¨orfler, “Data-driven control based on the behavioral approach: From theory to applications in power systems,” IEEE Control Systems, vol. 43, no. 5, pp. 28–68, Oct. 2023
work page 2023
-
[11]
Maximum likelihood estimation in data-driven modeling and control,
M. Yin, A. Iannelli, and R. S. Smith, “Maximum likelihood estimation in data-driven modeling and control,”IEEE Transactions on Automatic Control, vol. 68, no. 1, pp. 317–328, Jan. 2023
work page 2023
-
[12]
SPC: Subspace predictive control,
W. Favoreel, B. D. Moor, and M. Gevers, “SPC: Subspace predictive control,”IFAC Proceedings Volumes, vol. 32, no. 2, pp. 4004–4009, Jul. 1999
work page 1999
-
[13]
Data-driven model predictive control with stability and robustness guarantees,
J. Berberich, J. K ¨ohler, M. A. M ¨uller, and F. Allg ¨ower, “Data-driven model predictive control with stability and robustness guarantees,”IEEE Transactions on Automatic Control, vol. 66, no. 4, pp. 1702–1717, Apr. 2021
work page 2021
-
[14]
Bridging direct and indirect data-driven control formulations via regularizations and relaxations,
F. D ¨orfler, J. Coulson, and I. Markovsky, “Bridging direct and indirect data-driven control formulations via regularizations and relaxations,” IEEE Transactions on Automatic Control, vol. 68, no. 2, pp. 883–897, Feb. 2023. WANG, LIU AND SHANG: MIN-MAX ROBUST DDPC CONSIDERING NON-UNIQUE SOLUTIONS TO BEHAVIORAL REPRESENTATION 15
work page 2023
-
[15]
Data-driven output predic- tion and control of stochastic systems: An innovation-based approach,
Y . Wang, K. You, D. Huang, and C. Shang, “Data-driven output predic- tion and control of stochastic systems: An innovation-based approach,” Automatica, vol. 171, p. 111897, Jan. 2025
work page 2025
-
[16]
Technical note—a data- driven approach to beating SAA out of sample,
J.-y. Gotoh, M. J. Kim, and A. E. B. Lim, “Technical note—a data- driven approach to beating SAA out of sample,”Operations Research, vol. 73, no. 2, pp. 829–841, Mar. 2025
work page 2025
-
[17]
From noisy data to feedback controllers: Nonconservative design via a matrix s-lemma,
H. J. van Waarde, M. K. Camlibel, and M. Mesbahi, “From noisy data to feedback controllers: Nonconservative design via a matrix s-lemma,” IEEE Transactions on Automatic Control, vol. 67, no. 1, pp. 162–175, Jan. 2022
work page 2022
-
[18]
Formulas for data-driven control: Stabilization, optimality, and robustness,
C. De Persis and P. Tesi, “Formulas for data-driven control: Stabilization, optimality, and robustness,”IEEE Transactions on Automatic Control, vol. 65, no. 3, pp. 909–924, Mar. 2020
work page 2020
-
[19]
Combining prior knowl- edge and data for robust controller design,
J. Berberich, C. W. Scherer, and F. Allg ¨ower, “Combining prior knowl- edge and data for robust controller design,”IEEE Transactions on Automatic Control, vol. 68, no. 8, pp. 4618–4633, Aug. 2023
work page 2023
-
[20]
Provably robust verification of dissipativity properties from data,
A. Koch, J. Berberich, and F. Allg ¨ower, “Provably robust verification of dissipativity properties from data,”IEEE Transactions on Automatic Control, vol. 67, no. 8, pp. 4248–4255, Aug. 2022
work page 2022
-
[21]
A behavioral approach to data-driven control with noisy input–output data,
H. J. van Waarde, J. Eising, M. K. Camlibel, and H. L. Trentelman, “A behavioral approach to data-driven control with noisy input–output data,”IEEE Transactions on Automatic Control, vol. 69, no. 2, pp. 813– 827, Feb. 2024
work page 2024
-
[22]
Data-driven min-max MPC for linear systems: Robustness and adaptation,
Y . Xie, J. Berberich, and F. Allg ¨ower, “Data-driven min-max MPC for linear systems: Robustness and adaptation,”arXiv preprint arXiv:2404.19096, 2024
-
[23]
Decentralized data- enabled predictive control for power system oscillation damping,
L. Huang, J. Coulson, J. Lygeros, and F. D ¨orfler, “Decentralized data- enabled predictive control for power system oscillation damping,”IEEE Transactions on Control Systems Technology, vol. 30, no. 3, pp. 1065– 1077, May 2022
work page 2022
-
[24]
Robust data-enabled predictive control: Tractable formulations and performance guarantees,
L. Huang, J. Zhen, J. Lygeros, and F. D ¨orfler, “Robust data-enabled predictive control: Tractable formulations and performance guarantees,” IEEE Transactions on Automatic Control, vol. 68, no. 5, pp. 3163–3170, May 2023
work page 2023
-
[25]
Robust and kernelized data- enabled predictive control for nonlinear systems,
L. Huang, J. Lygeros, and F. D ¨orfler, “Robust and kernelized data- enabled predictive control for nonlinear systems,”IEEE Transactions on Control Systems Technology, vol. 32, no. 2, pp. 611–624, Mar. 2024
work page 2024
-
[26]
Willems’ fundamental lemma for state-space systems and its extension to multiple datasets,
H. J. van Waarde, C. De Persis, M. K. Camlibel, and P. Tesi, “Willems’ fundamental lemma for state-space systems and its extension to multiple datasets,”IEEE Control Systems Letters, vol. 4, no. 3, pp. 602–607, Jul. 2020
work page 2020
-
[27]
Data-driven simulation and control,
I. Markovsky and P. Rapisarda, “Data-driven simulation and control,” International Journal of Control, vol. 81, no. 12, pp. 1946–1959, Dec. 2008
work page 1946
-
[28]
On the regularization in DeePC,
P. Mattsson and T. B. Sch ¨on, “On the regularization in DeePC,”IFAC- PapersOnLine, vol. 56, no. 2, pp. 625–631, 2023
work page 2023
-
[29]
B. Huang and R. Kadali,Dynamic Modeling, Predictive Control and Performance Monitoring: A Data-Driven Subspace Approach. Springer, 2008
work page 2008
-
[30]
On the perturbation of pseudo-inverses, projections and linear least squares problems,
G. W. Stewart, “On the perturbation of pseudo-inverses, projections and linear least squares problems,”SIAM Review, vol. 19, no. 4, pp. 634– 662, Oct. 1977
work page 1977
-
[31]
Robust solutions to least-squares problems with uncertain data,
L. El Ghaoui and H. Lebret, “Robust solutions to least-squares problems with uncertain data,”SIAM Journal on Matrix Analysis and Applications, vol. 18, no. 4, pp. 1035–1064, Oct. 1997
work page 1997
-
[32]
A robust MPC approach to the design of behavioural treatments,
K. Bekiroglu, C. Lagoa, S. A. Murphy, and S. T. Lanza, “A robust MPC approach to the design of behavioural treatments,” in52nd IEEE Conference on Decision and Control, IEEE. IEEE, Dec. 2013, pp. 3505–3510
work page 2013
-
[33]
A. Ben-Tal, L. El Ghaoui, and A. Nemirovski,Robust Optimization. Princeton University Press, Dec. 2009
work page 2009
-
[34]
Manifestations of the schur complement,
R. W. Cottle, “Manifestations of the schur complement,”Linear Algebra and its Applications, vol. 8, no. 3, pp. 189–211, Jun. 1974
work page 1974
-
[35]
Dimension reduction for efficient data-enabled predictive control,
K. Zhang, Y . Zheng, C. Shang, and Z. Li, “Dimension reduction for efficient data-enabled predictive control,”IEEE Control Systems Letters, vol. 7, pp. 3277–3282, 2023
work page 2023
-
[36]
ApS,The MOSEK optimization toolbox for MATLAB manual
M. ApS,The MOSEK optimization toolbox for MATLAB manual. Version 10.0., 2022. [Online]. Available: http://docs.mosek.com/9.0/ toolbox/index.html
work page 2022
-
[37]
Using sedumi 1.02, a matlab toolbox for optimization over symmetric cones,
J. F. Sturm, “Using sedumi 1.02, a matlab toolbox for optimization over symmetric cones,”Optimization Methods and Software, vol. 11, no. 1–4, pp. 625–653, Jan. 1999
work page 1999
-
[38]
Sdpt3 — a matlab soft- ware package for semidefinite programming, version 1.3,
K.-C. Toh, M. J. Todd, and R. H. T ¨ut¨unc¨u, “Sdpt3 — a matlab soft- ware package for semidefinite programming, version 1.3,”Optimization Methods and Software, vol. 11, no. 1–4, pp. 545–581, Jan. 1999
work page 1999
-
[39]
Conic formulation of a convex programming problem and duality,
Y . Nesterov and A. Nemirovsky, “Conic formulation of a convex programming problem and duality,”Optimization Methods and Software, vol. 1, no. 2, pp. 95–115, Jan. 1992
work page 1992
-
[40]
An algorithm for convex quadratic program- ming that requiresO(n 3.5L)arithmetic operations,
S. Mehrotra and J. Sun, “An algorithm for convex quadratic program- ming that requiresO(n 3.5L)arithmetic operations,”Mathematics of Operations Research, vol. 15, no. 2, pp. 342–363, May 1990
work page 1990
-
[41]
E. C. Kerrigan and J. M. Maciejowski, “Feedback min-max model predictive control using a single linear program: robust stability and the explicit solution,”International Journal of Robust and Nonlinear Control, vol. 14, no. 4, pp. 395–413, Jan. 2004
work page 2004
-
[42]
Approximations of closed-loop minimax MPC,
J. Lofberg, “Approximations of closed-loop minimax MPC,” in42nd IEEE International Conference on Decision and Control (IEEE Cat. No.03CH37475), ser. CDC-03, vol. 2, IEEE. IEEE, 2003, pp. 1438– 1442
work page 2003
-
[43]
The feedback robust MPC for LPV systems with bounded rates of parameter changes,
D. Li and Y . Xi, “The feedback robust MPC for LPV systems with bounded rates of parameter changes,”IEEE Transactions on Automatic Control, vol. 55, no. 2, pp. 503–507, Feb. 2010
work page 2010
-
[44]
Reducing conservativeness in predictive control of constrained systems with disturbances,
A. Bemporad, “Reducing conservativeness in predictive control of constrained systems with disturbances,” inProceedings of the 37th IEEE Conference on Decision and Control (Cat. No.98CH36171), ser. CDC- 98, vol. 2, IEEE. IEEE, 1998, pp. 1384–1389
work page 1998
-
[45]
Data-driven predictive control with improved performance using seg- mented trajectories,
E. O’Dwyer, E. C. Kerrigan, P. Falugi, M. Zagorowska, and N. Shah, “Data-driven predictive control with improved performance using seg- mented trajectories,”IEEE Transactions on Control Systems Technology, vol. 31, no. 3, pp. 1355–1365, May 2023
work page 2023
-
[46]
Y ALMIP: A toolbox for modeling and optimization in MATLAB,
J. Lofberg, “Y ALMIP: A toolbox for modeling and optimization in MATLAB,” in2004 IEEE international conference on robotics and automation (IEEE Cat. No. 04CH37508). IEEE, 2004, pp. 284–289
work page 2004
-
[47]
Data-driven predictive control in a stochastic setting: a unified framework,
V . Breschi, A. Chiuso, and S. Formentin, “Data-driven predictive control in a stochastic setting: a unified framework,”Automatica, vol. 152, p. 110961, Jun. 2023
work page 2023
-
[48]
Closed- loop aspects of data-enabled predictive control,
R. Dinkla, S. P. Mulders, J.-W. van Wingerden, and T. Oomen, “Closed- loop aspects of data-enabled predictive control,”IFAC-PapersOnLine, vol. 56, no. 2, pp. 1388–1393, 2023
work page 2023
-
[49]
Data-driven predictive control using closed-loop data: An instrumental variable approach,
Y . Wang, Y . Qiu, M. Sader, D. Huang, and C. Shang, “Data-driven predictive control using closed-loop data: An instrumental variable approach,”IEEE Control Systems Letters, vol. 7, pp. 3639–3644, 2023. Yibo Wangreceived the B.S degree in automa- tion from Tsinghua University, Beijing, China, in 2021, where he is currently pursuing the Ph.D. degree in con...
work page 2023
