Quantifying the creation of negatively charged boron vacancies in He-ion irradiated hexagonal boron nitride

T0 review · 4 major / 5 minor · reviewed 2026-08-09 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Helium-ion irradiation of hBN creates negatively charged boron vacancies at a rate of at least 0.2% of all vacancies.

desk verdict A useful but underdocumented background-charge correction sits between the data and the 0.2% yield number; the paper deserves review, but the headline number should not be taken on faith. read the letter →

arxiv 2501.18481 v3 pith:WTZLLNOY submitted 2025-01-30 cond-mat.mes-hall

Amedeo Carbone , Ilia D. Breev , Johannes Figueiredo , Silvan Kretschmer , Leonard Geilen , Amine Ben Mhenni , Johannes Arceri , Arkady V. Krasheninnikov
show 5 more authors
Martijn Wubs Alexander W. Holleitner Alexander Huck Christoph Kastl Nicolas Stenger
This is my paper · ORCID
classification cond-mat.mes-hall
keywords hexagonalboronnitridevacancyhelium-ionirradiationopticallydetectedmagneticresonancechargemodeldefectcreationyieldquantumsensing
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper asks how efficiently helium-ion irradiation converts ordinary lattice vacancies in hexagonal boron nitride (hBN) into negatively charged boron vacancies, the defect form that is useful for spin-based quantum sensing. The authors answer by combining optically detected magnetic resonance (ODMR) measurements of the defect's zero-field splitting with a microscopic charge model and atomistic simulations of ion damage. Their central result is a lower bound: about 0.2% of all boron vacancies produced by 30 keV helium ions end up in the optically active, negatively charged state, with the rest remaining optically inactive. If correct, this provides a protocol for measuring creation efficiency of these emitters, a step toward optimizing hBN as a host for photonic and sensing devices.

What carries the argument

The load-bearing object is the microscopic charge model of the $V_B^-$ ground state, in which a random distribution of equal numbers of positive and negative point charges in a surrounding shell creates a net in-plane electric field that mixes the $|m_s=\pm1\rangle$ spin sublevels and opens a splitting proportional to the perpendicular susceptibility $d_\perp$ in the ODMR spectrum. The paper's modification is to add a constant background charge density $0.0285\ \mathrm{nm}^{-3}$ to the total charge density, so that the $V_B^-$ contribution is the measured density minus the background. Atomistic molecular dynamics simulations of 30 keV helium impacts supply the total boron-vacancy density against which the extracted $V_B^-$ density is normalized.

What would settle it

Measure the ODMR splitting of pristine, unirradiated hBN from the same source crystal: if it does not match the splitting corresponding to a $0.0285\ \mathrm{nm}^{-3}$ background charge, the constant-background subtraction fails, and the inferred $V_B^-$ yield would change; a complementary check is to count $V_B^-$ spins directly by electron paramagnetic resonance at the same fluences.

Watch

Extended reading notes

Core claim

The paper establishes that the density of negatively charged boron vacancies created by focused 30 keV helium-ion irradiation can be extracted from the density-dependent ODMR splitting, provided the microscopic charge model is augmented by a constant background charge density. From the measured splittings, the authors infer a background charge of $0.0285(33)\,\mathrm{nm}^{-3}$ and, after subtracting it, attribute the remaining charge to $V_B^-$ defects. Comparing that density with the total boron-vacancy density computed by molecular dynamics gives a creation yield of about 0.2% across the fluences studied, stated as a lower bound because the simulations do not include room-temperature annealing of vacancies. The quantitative claim is that at least this fraction of all vacancies created by irradiation is in the optically active, negatively charged state.

Load-bearing premise

The result rests on treating the background charge density, set at 0.0285 per cubic nanometer, as a constant that is inferred from the same ODMR data rather than measured independently; if that background is actually smaller, depends on fluence, or is itself produced by the irradiation, the 0.2% yield estimate could change by a large factor.

Editorial extensions

If this is right

  • The inferred $V_B^-$ creation yield is roughly constant, near 0.2%, across fluences from $1.25\times10^{15}$ to $3.12\times10^{16}$ ions/cm$^2$.
  • At low fluences, an uncorrected charge model overestimates the $V_B^-$ density, so previous yield estimates that ignored the background charge are likely too high.
  • The same protocol can be applied to other hBN sources, irradiation species, and energies to benchmark defect creation efficiency.
  • Because the 0.2% number is a lower bound, the true yield could be higher once annealing and charge-transfer processes are taken into account.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable extension the paper leaves implicit: if the background charge is native to the crystal, pristine flakes from the same source should already show an ODMR splitting near the 0.0285 per cubic nanometer floor, and higher-quality crystals should yield systematically different inferred yields.
  • The same background-subtraction logic could transfer to other spin defects whose resonance shifts are read as local charge densities; without it, low-fluence creation yields will be overestimated in any host containing native charged impurities.
  • A direct microscopic check would be to image the local charge environment of pristine hBN with a scanning spin sensor; a near-zero pristine background would force the 0.2% yield estimate to be revisited.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper reports a protocol for quantifying the creation efficiency of negatively charged boron vacancies (V_B^-) in hBN irradiated by focused 30 keV He ions. From ODMR spectra measured at four irradiation fluences, the authors extract a fluence-dependent splitting, convert it to an effective local charge density using a microscopic charge model, and then subtract a fitted 'constant background charge' of 0.0285(33) nm^-3 to obtain V_B^- densities of 0.0002-0.0059 nm^-3. Comparing these to MD-simulated boron vacancy densities leads to the central claim of a lower bound of 0.2% for the fraction of all vacancies that are in the optically active, negatively charged state, with the yield claimed to be approximately constant across fluence.

Significance. If the result holds, the paper would provide a useful, site-selective protocol for quantifying V_B^- generation efficiency in hBN, a quantity directly relevant to quantum sensing and photonic integration. The work combines systematic ODMR measurements over two orders of magnitude in fluence, a microscopic charge model, and MD simulations, and the data are made openly available. However, the central quantitative claim depends on a background subtraction that is not documented in the manuscript, and the tabulated numbers do not reproduce the headline 0.2% value. These issues are load-bearing rather than cosmetic.

major comments (4)
  1. [Section III.B, Table I, Appendix A.5] The background charge density rho_bg = 0.0285(33) nm^-3 is introduced in Section III.B and subtracted from each measured rho_c to obtain the V_B^- densities in Table I, but the manuscript never states how rho_bg was estimated from the data. The caption of Figure 3c hints that the background comes from the intercept of a linear fit of the splitting versus fluence, yet no fitting form, objective function, constraints, goodness-of-fit statistics, or residuals are reported anywhere, including in Appendix A.5 and Figure A.7. With only four ODMR-derived charge densities (0.0286-0.0343 nm^-3), a model with a slope and a free intercept can absorb much of the variation, and without a documented procedure the central 0.2% claim cannot be evaluated. Please report the full fitting procedure, including whether rho_bg was a free parameter, any constraints used, the resulting residuals, and a sensitivity analysis (e.g., fixing rho_bg to an independently measured native-defect level or allowing a linear fluence dependence).
  2. [Table I and Abstract] The last column of Table I does not follow from the preceding columns. For row 1, 0.0059 nm^-3 divided by 7.67 nm^-3 is 0.077%, not 0.2%; rows 2 and 3 similarly give about 0.08%, and row 4 gives about 0.065%. The abstract and conclusions repeat the 0.2% value. This is a load-bearing numerical inconsistency: either the denominator is not the tabulated MD boron vacancy density (for instance, it may be the nitrogen vacancy density at a different reference fluence), or the headline number is incorrect. The authors must correct the table or the text so that the claimed yield is reproducible from the tabulated values.
  3. [Section III.C and Table I] The MD simulation section states that the reference fluence is 0.8 x 10^16 ions/cm^2 and gives a boron vacancy density of 2.46 nm^-3. However, row 1 of Table I lists 7.67 nm^-3 for a fluence of 3.12 x 10^16 ions/cm^2, which equals 2.46 x 3.12, i.e., scaling relative to 1 x 10^16 ions/cm^2 rather than 0.8 x 10^16. This inconsistency directly affects the denominator of the yield calculation. Please specify the exact reference fluence and scaling rule used to generate the V_B(MD) column in Table I.
  4. [Table I and Section IV] The V_B^- densities in Table I carry relative errors of order 50-100% or larger (e.g., 0.0002 +/- 0.0065 nm^-3 for the lowest fluence), yet the final yield column is quoted without uncertainties and the lower-bound claim is stated as a single number. As a result, the yield for at least the low-fluence points is statistically indistinguishable from zero. Moreover, the 'lower bound' framing is fragile: because rho_bg is not independently measured, a larger background would drive the low-fluence V_B^- densities below zero, while a smaller background would raise the yields by factors of 5-10 or more. The paper should provide a proper error propagation for the yields and state explicitly which assumptions are being used to justify the lower-bound interpretation.
minor comments (5)
  1. [Section IV] The sentence 'we cannot make a conclusively statement' should read 'a conclusive statement'.
  2. [Figure 3 caption] The axis label 'Negative Charge Density (nm 3)' should be 'nm^{-3}' with the superscript properly rendered.
  3. [Table I] The column header 'V–B/V(MD) B' is difficult to parse; define the denominator explicitly in the caption or in the text.
  4. [Appendix A.5] The charge model depends on the shell radius (10 nm) and the minimum exclusion distance (two inter-atomic distances); a short sensitivity check for these parameters would help the reader judge how much of the extracted charge density is model-dependent.
  5. [Table III] The entry 'Zabelotsky, Appl. Nan. Mat. 2023' should cite the full journal name, 'ACS Applied Nano Materials', and reference formatting should be checked for consistency (e.g., Ref. 17 lists two article numbers).

Circularity Check

1 steps flagged · score 6.0 of 10

The 0.2% VB− creation yield is the residual of a background fit to the same four ODMR charge-density points, making the central quantitative claim statistically forced rather than independently predicted.

  1. fitted input called prediction [Section III.B, 'Optically detected magnetic resonance and microscopic charge model', and Table I]
    "With these assumptions, we determine a background charge of 0.0285(33) nm−3. From that, we can find the corrected values for the V–B density as given in Table I."

    The background charge is not measured independently but is determined from the same four ODMR-derived charge densities from which it is later subtracted. Table I defines the V–B density as the residual ρc − 0.0285 nm−3 and the creation yield as that residual divided by the MD boron-vacancy density. With the assumed model ρc = ρ_bg + y·V_MD, determining ρ_bg from these data and then reporting y = (ρc − ρ_bg)/V_MD makes y the slope of a linear fit through the same points.

full rationale

Most of the analysis chain is externally anchored: the microscopic charge model follows Refs. 44, 54, and 55, the susceptibility d⊥ is taken from Ref. 44 without author overlap, and the MD vacancy densities are computed independently. The circularity is confined to the background correction that produces the paper's central number. The paper introduces a constant background charge, determines it from the same ODMR-derived charge densities, and then reports the residual as the VB− density and the residual divided by the MD vacancy density as the creation yield. Because the background is a fitted quantity extracted from the same four data points used to define the yield, the 0.2% lower bound is not an independent prediction but the slope of a two-parameter linear model applied to those points. The manuscript acknowledges the assumption but does not report the fitting statistic, the model form, or any independent measurement of the background, so the central quantitative claim reduces to the fitted residual. This warrants a partial circularity score of 6 rather than a higher score because the MD vacancy densities and the charge-model calibration are separate, non-circular inputs.

Assumptions & free parameters 3 free parameters · 6 assumptions · 1 invented entities

All quantities needed to convert the measured ODMR splitting into a VB- creation yield are listed above. The background charge is the most important fitted parameter; the shell radius and exclusion distance are modeling choices inherited from earlier work. The physical axioms are the charge-neutral random environment, the electric-field-only splitting mechanism, the PL-to-density proportionality, linear scaling with fluence, and MD vacancy counts as the denominator. The invented entity is the constant background charge, which has no independent evidence.

free parameters (3)
  • Background charge density rho_bg = 0.0285(33) nm^-3
    Fitted as the intercept (or base level) of the ODMR-derived charge density versus fluence, then subtracted to obtain VB- densities. Not independently measured.
  • Charge model shell radius = 10 nm
    Radius of the spherical shell around each VB- in which positive and negative charges are randomly placed. Chosen by hand from prior model practice; affects the splitting-to-density mapping.
  • Minimum charge exclusion distance = 2 times a = 0.2892 nm
    Charges closer than twice the inter-atomic distance a are excluded to avoid divergent fields and to neglect multi-vacancy complexes. This cutoff is a modeling choice.
assumptions (6)
  • domain assumption Overall charge neutrality with equal numbers of positive and negative charges (N+ = N-) in each shell
    Assumed in the microscopic charge model (Appendix A.5) to preserve neutrality; the background charge is also assumed to come in equal positive and negative parts.
  • domain assumption The ODMR splitting is caused only by in-plane electric-field mixing with out-of-plane susceptibility d_parallel = 0 by mirror symmetry
    Section III.B and Appendix A.5, following Refs. [44,55]. Strain and temperature are assumed to shift only the mean D, not the splitting.
  • domain assumption Photoluminescence intensity is proportional to the number of optically active VB- defects for constant lifetime and below saturation
    Used in Section III.B to infer the factor 10 increase in VB- density from PL, which motivates the background charge. This is stated but not independently calibrated.
  • ad hoc to paper VB- density scales linearly with ion fluence
    The linear fit of charge density versus fluence, whose intercept yields the background, assumes a constant creation yield per ion. The paper does not present a separate test of this linearity.
  • domain assumption MD simulation vacancy counts represent the total boron vacancies produced, without annealing
    LAMMPS MD with BN-ExTeP/ZBL gives 2.46 B-vacancies per nm^3 at the reference fluence. The paper treats this as the denominator and calls the yield a lower bound because annealing is not simulated.
  • domain assumption The perpendicular electric-field susceptibility d_perp = 40 Hz/(V cm) from Ref. [44] is correct
    This parameter converts the simulated electric field into a level splitting and is a key external input to the charge model.
invented entities (1)
  • Constant background charge density
    purpose: Explains why the ODMR splitting is nearly fluence-independent while PL increases 10x; subtracted from total charge density to obtain VB- density
    No direct measurement of this background is provided; it is inferred from the same ODMR dataset. Its value changes the central yield number.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Quantifying the creation of negatively charged boron vacancies in He-ion irradiated hexagonal boron nitride." pith.science (2026). https://pith.science/paper/WTZLLNOY

@misc{pith2026250118481,
  author       = {Pith},
  title        = {Pith review of: Quantifying the creation of negatively charged boron vacancies in He-ion irradiated hexagonal boron nitride},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WTZLLNOY}},
  note         = {Machine review of arXiv:2501.18481}
}
abstract

Hexagonal boron nitride (hBN) hosts luminescent defects possessing spin qualities compatible with quantum sensing protocols at room temperature. Vacancies, in particular, are readily obtained via exposure to high-energy ion beams. While the defect creation mechanism via such irradiation is well understood, the occurrence rate of optically active negatively charged vacancies ($V_B^-$) is an open question. In this work, we exploit focused helium ions to systematically generate optically active vacancy defects in hBN flakes at varying density. By comparing the density-dependent spin splitting measured by magnetic resonance to calculations based on a microscopic charge model, in which we introduce a correction term due to a constant background charge, we are able to quantify the number of $V_B^-$ defects generated by the ion irradiation. We find a lower bound for the fraction (0.2%) of all vacancies in the optically active, negatively charged state. Our results provide a protocol for measuring the generation efficiency of $V_B^-$, which is necessary for understanding and optimizing luminescent centers in hBN.

Figures

Figures reproduced from arXiv: 2501.18481 by the authors.

Figure 1

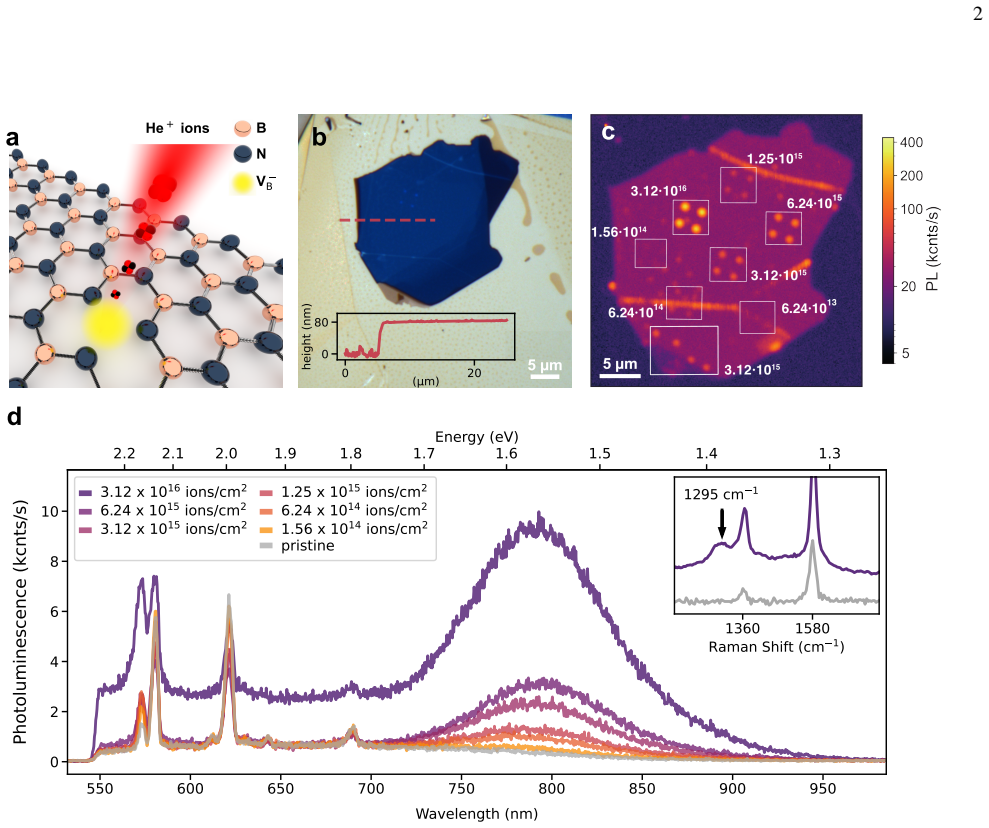

Figure 1. FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. d depicts the simulation results for a selected range of average charge densities, in which we fit the experimentally measured values for different ion fluences (orange data points) to the calculated values of ν+ and ν− as a function of charge density (solid lines). In the fitting procedure, we match only the splitting ν+ −ν− rather than the absolute values of ν+ and ν−, such that we eliminate strain effects affecti… view at source ↗
Figures from the paper (1 more)
Figure 4

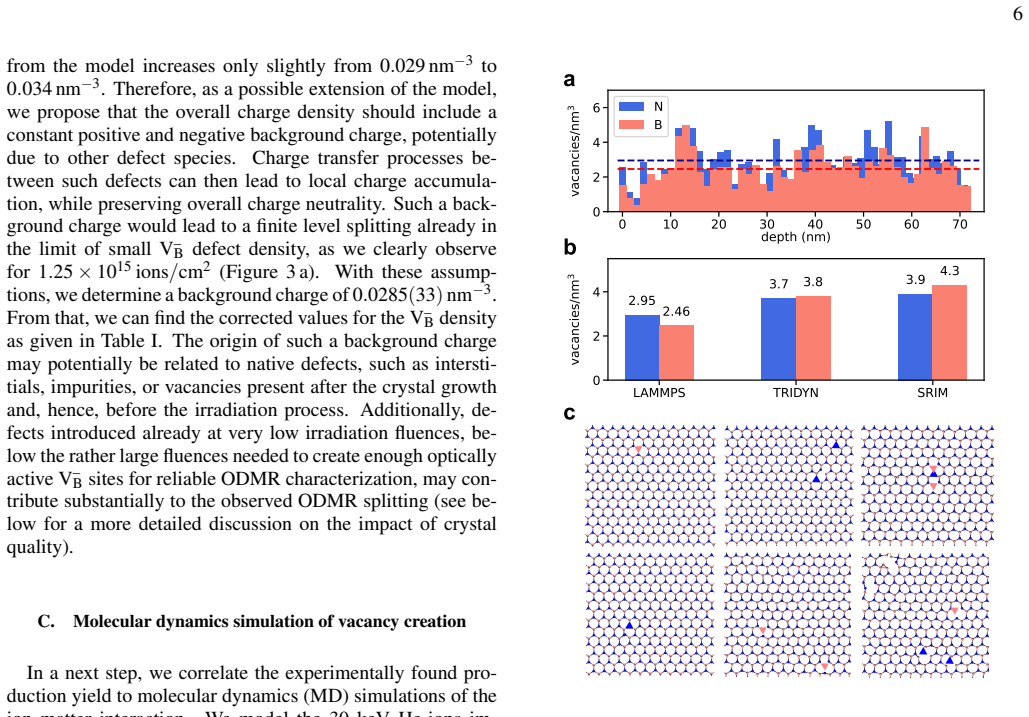

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
