arxiv: 2502.02208 · v1 · submitted 2025-02-04 · 🪐 quant-ph · cs.NI

Bayesian Optimization for Repeater Protocols

Lorenzo La Corte , Kenneth Goodenough , Ananda G. Maity , Siddhartha Santra , David Elkouss This is my paper

Pith reviewed 2026-05-23 03:43 UTC · model grok-4.3

classification 🪐 quant-ph cs.NI
keywords quantum repeatersBayesian optimizationsecret-key rateentanglement distributionquantum networksprotocol optimization
0
0 comments X

The pith

Bayesian optimization reliably identifies repeater protocols that maximize secret-key rates over long distances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Finding the best sequence of entanglement generation, swapping, and distillation steps in a quantum repeater chain is hard because the protocol space explodes with more nodes and because imperfections plus probabilistic operations make the secret-key rate hard to compute. The work extends an existing rate-calculation method so that it can handle heterogeneous chains of any length. It then uses Bayesian optimization to search that space and shows that the optimizer returns the same optimum found by exhaustive search in every case where both are feasible. The same framework also yields concrete design rules for different node counts and hardware qualities.

Core claim

The authors extend the Li et al. calculation machinery to compute secret-key rates for heterogeneous repeater chains with an arbitrary number of nodes, and demonstrate that a Bayesian optimization algorithm consistently returns the optimal protocol for maximizing the secret-key rate whenever brute-force validation is feasible.

What carries the argument

Bayesian optimization algorithm that searches the space of repeater protocols, paired with an extended numerical procedure that evaluates the secret-key rate for chains containing probabilistic operations and experimental imperfections.

If this is right

  • Optimal protocols can be located without exhaustive enumeration once the number of nodes grows beyond brute-force reach.
  • Design rules emerge for choosing how many distillation rounds or swapping steps to use under given hardware fidelities.
  • The same optimization loop can be rerun for any new set of experimental parameters without rewriting the search code.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same optimizer-plus-rate-evaluator combination could be applied to other quantum-network design tasks such as routing or resource allocation.
  • If the rate model is later refined with more realistic noise, the optimizer can be rerun without changing the search strategy.
  • Hardware teams could use the extracted design rules as targets when tuning individual node parameters.

Load-bearing premise

The extended calculation method accurately gives the secret-key rate for heterogeneous repeater chains of any length even when operations are probabilistic and imperfect.

What would settle it

A complete brute-force enumeration on a chain whose size is still small enough for exhaustive search but larger than any case already checked, or an experimental test that produces a higher rate than the optimizer predicts.

Figures

Figures reproduced from arXiv: 2502.02208 by Ananda G. Maity, David Elkouss, Kenneth Goodenough, Lorenzo La Corte, Siddhartha Santra.

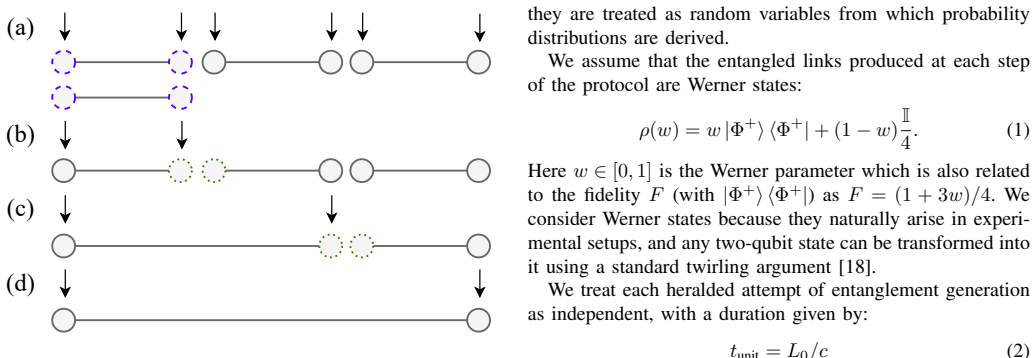

Figure 1
Figure 1. Figure 1: Visual representation of a repeater protocol involving entanglement [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

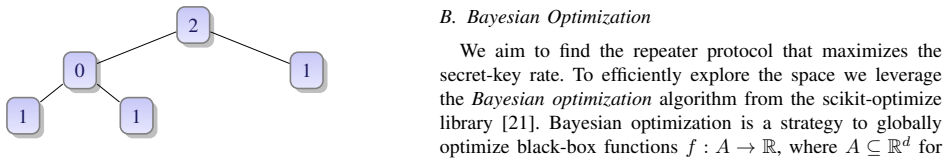

Figure 2
Figure 2. Figure 2: Visual representation of a single repeater protocol, for a chain of [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

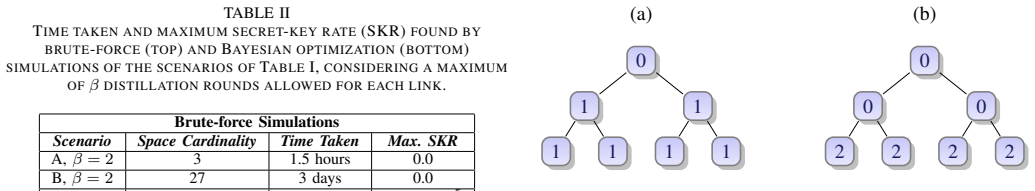

Figure 3
Figure 3. Figure 3: Optimal protocol found by the Bayesian optimization algorithm for [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

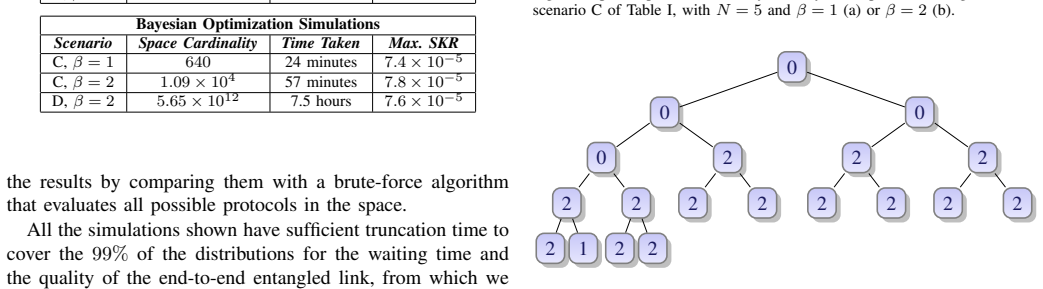

Figure 4
Figure 4. Figure 4: Optimal protocol found by the Bayesian optimization algorithm for [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

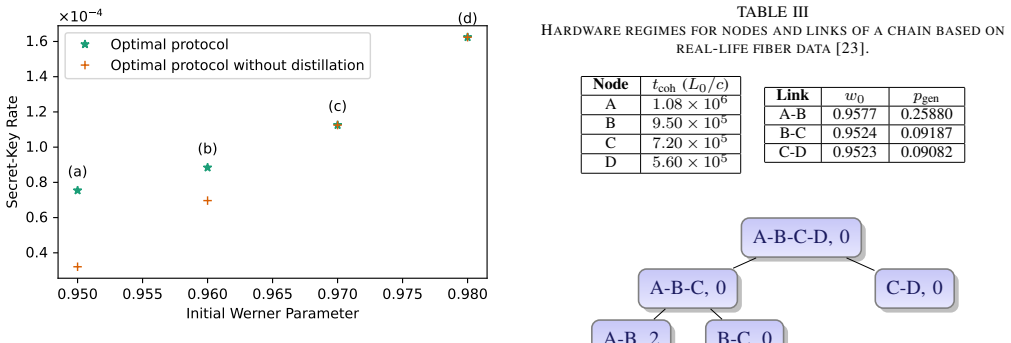

Figure 5
Figure 5. Figure 5: Performance of the optimal protocols found by the Bayesian [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

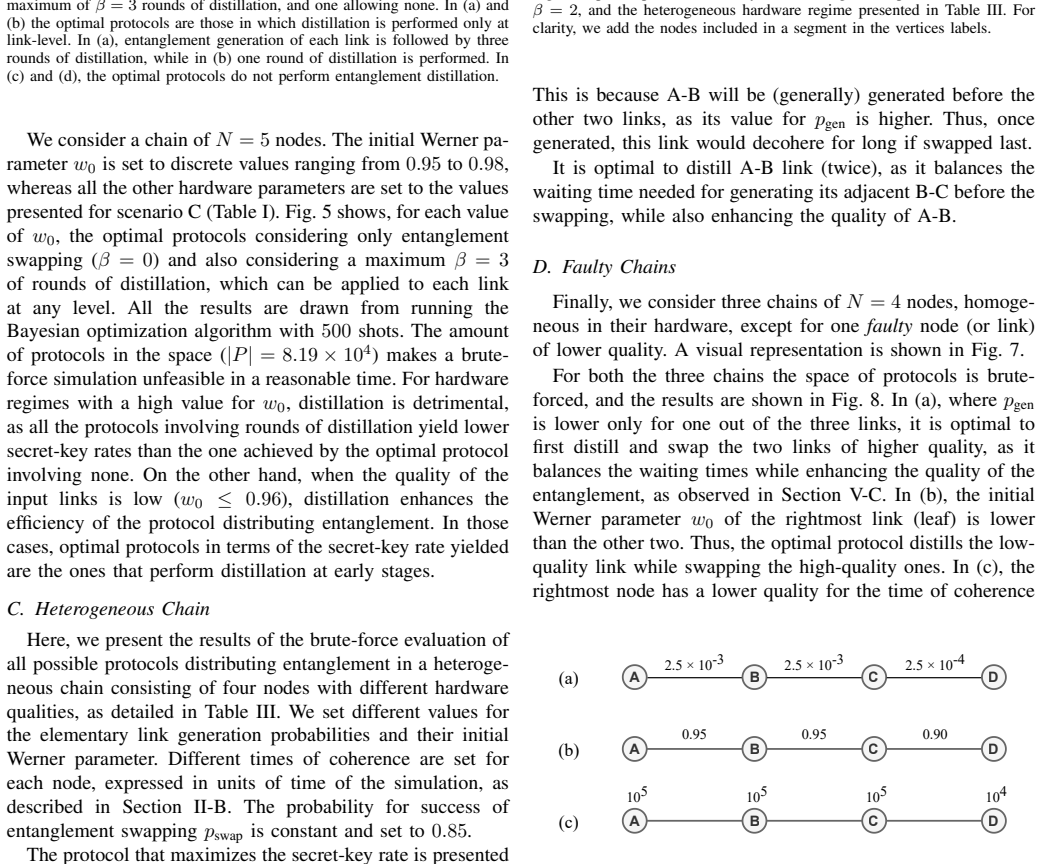

Figure 7
Figure 7. Figure 7: Visual representations of three faulty chains. In (a) and (b) respectively, [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

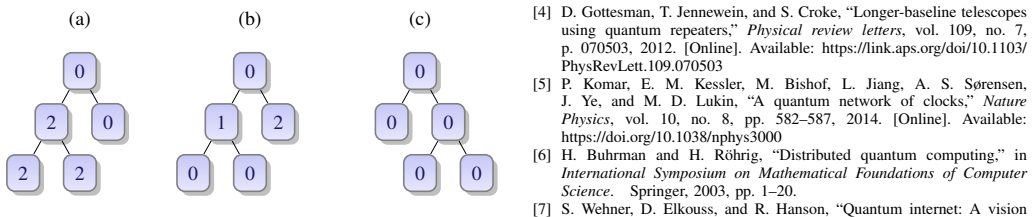

Figure 8
Figure 8. Figure 8: Results of the brute-force simulations on the chains shown in Fig. 7. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

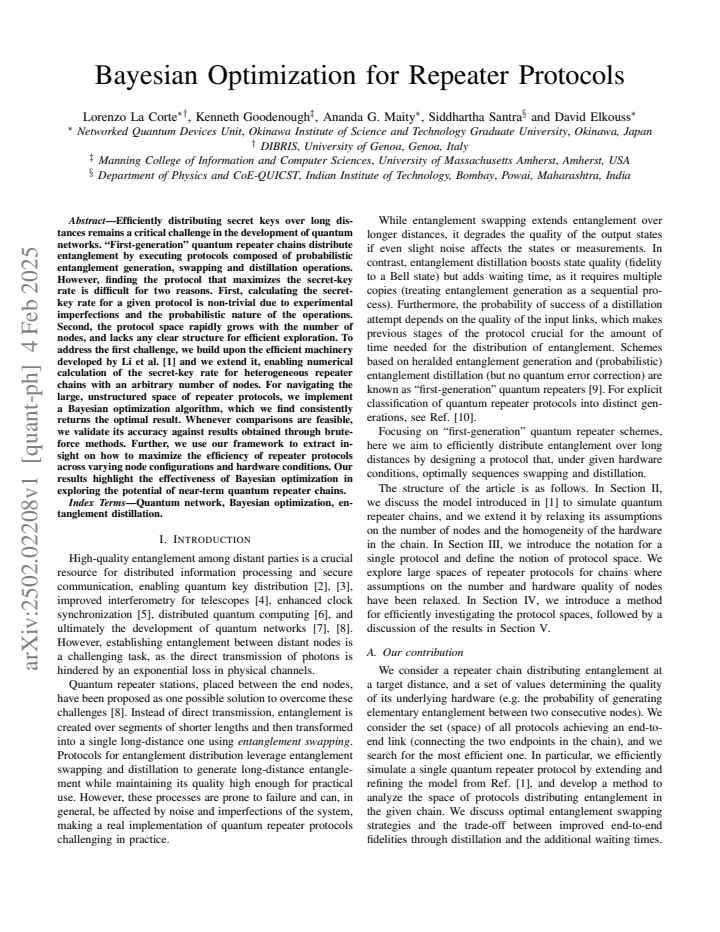

read the original abstract

Efficiently distributing secret keys over long distances remains a critical challenge in the development of quantum networks. "First-generation" quantum repeater chains distribute entanglement by executing protocols composed of probabilistic entanglement generation, swapping and distillation operations. However, finding the protocol that maximizes the secret-key rate is difficult for two reasons. First, calculating the secretkey rate for a given protocol is non-trivial due to experimental imperfections and the probabilistic nature of the operations. Second, the protocol space rapidly grows with the number of nodes, and lacks any clear structure for efficient exploration. To address the first challenge, we build upon the efficient machinery developed by Li et al. [1] and we extend it, enabling numerical calculation of the secret-key rate for heterogeneous repeater chains with an arbitrary number of nodes. For navigating the large, unstructured space of repeater protocols, we implement a Bayesian optimization algorithm, which we find consistently returns the optimal result. Whenever comparisons are feasible, we validate its accuracy against results obtained through brute-force methods. Further, we use our framework to extract insight on how to maximize the efficiency of repeater protocols across varying node configurations and hardware conditions. Our results highlight the effectiveness of Bayesian optimization in exploring the potential of near-term quantum repeater chains.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper extends Li et al.'s machinery to compute secret-key rates for heterogeneous first-generation quantum repeater chains of arbitrary length that incorporate experimental imperfections and probabilistic operations. It then deploys Bayesian optimization over the resulting unstructured protocol space and claims that the optimizer consistently recovers the optimal protocol (i.e., the one maximizing the secret-key rate) whenever brute-force enumeration is feasible; the framework is further used to extract design insights across node counts and hardware parameters.

Significance. If the rate-calculation extension is correct, the work supplies a practical, scalable method for protocol optimization in near-term repeater chains, a task whose combinatorial size has previously limited systematic exploration. The explicit validation against brute force on small instances and the extraction of hardware-dependent design rules are concrete strengths that would be useful to experimental groups.

major comments (1)
  1. [rate-calculation extension] The extension of the Li et al. rate-calculation procedure to heterogeneous chains of arbitrary length (the section describing the numerical implementation) is load-bearing for the central optimality claim. The manuscript validates the combined optimizer-plus-rate pipeline only against brute-force results on small instances; no independent cross-check (analytic limits for homogeneous chains, Monte-Carlo sampling, or comparison with an alternative rate formula) is reported for N>5 where brute force is infeasible. An undetected systematic error in the handling of mixed success probabilities or the asymptotic key-rate formula would therefore propagate directly into the reported optima for the regimes the method is intended to address.
minor comments (1)
  1. Notation for the heterogeneous success probabilities and the precise definition of the objective function passed to the Bayesian optimizer should be collected in a single table or equation block for clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We are grateful to the referee for their thorough review and insightful comments. The feedback highlights an important aspect of our validation strategy, which we address below.

read point-by-point responses

  1. Referee: [rate-calculation extension] The extension of the Li et al. rate-calculation procedure to heterogeneous chains of arbitrary length (the section describing the numerical implementation) is load-bearing for the central optimality claim. The manuscript validates the combined optimizer-plus-rate pipeline only against brute-force results on small instances; no independent cross-check (analytic limits for homogeneous chains, Monte-Carlo sampling, or comparison with an alternative rate formula) is reported for N>5 where brute force is infeasible. An undetected systematic error in the handling of mixed success probabilities or the asymptotic key-rate formula would therefore propagate directly into the reported optima for the regimes the method is intended to address.

    Authors: We agree with the referee that additional independent validations would enhance the robustness of our claims for larger N. In the revised manuscript, we will incorporate comparisons to analytic limits for homogeneous repeater chains, where such expressions exist in the literature for small node counts, and perform Monte-Carlo sampling to cross-verify the rate calculations for a selection of heterogeneous protocols with N > 5. These additions will help confirm the correctness of the extension to arbitrary lengths and mixed success probabilities. revision: yes

Circularity Check

0 steps flagged

No circularity: rate calculation treated as external black box and optimization validated externally

full rationale

The paper extends Li et al. [1] to compute secret-key rates for heterogeneous chains but presents this extension as an independent numerical tool whose output serves as the objective for Bayesian optimization. The central claim that the optimizer 'consistently returns the optimal result' is supported by direct comparison to brute-force enumeration on small instances where such comparison is feasible; no equation in the provided text defines the rate or the optimum in terms of the optimizer's own output or a fitted parameter. No self-citation load-bearing step, uniqueness theorem, or ansatz smuggling is present. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; the central claim rests on the unexamined accuracy of the extended rate calculation from prior work.

axioms (1)
  • domain assumption The secret-key rate calculation machinery of Li et al. can be extended to heterogeneous repeater chains with arbitrary nodes while remaining numerically tractable.
    The paper states it builds upon and extends this machinery.
