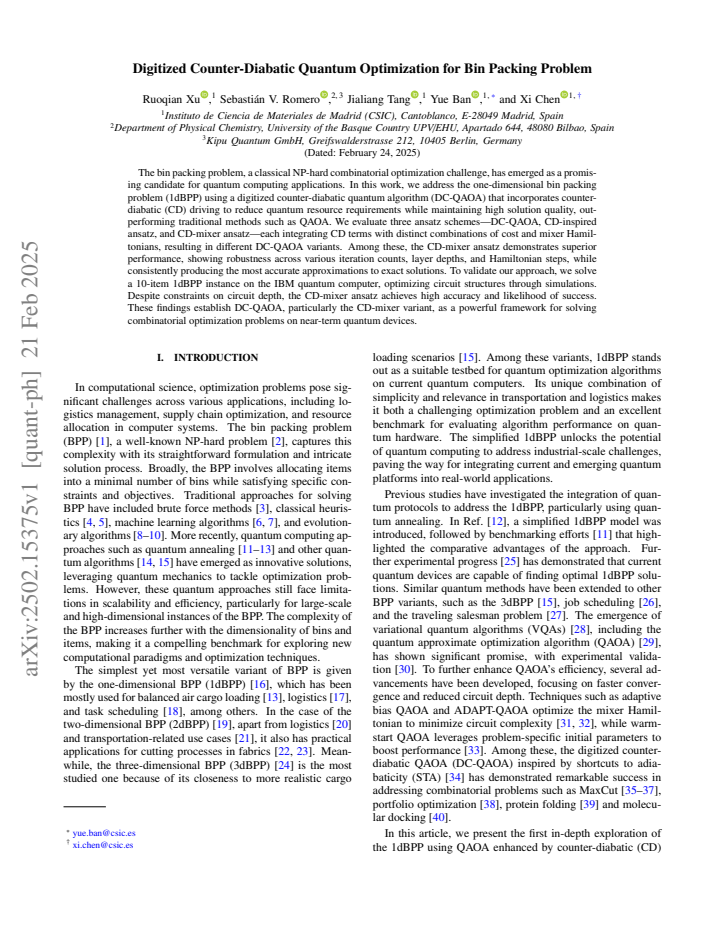

Digitized Counter-Diabatic Quantum Optimization for Bin Packing Problem
Pith reviewed 2026-05-23 02:47 UTC · model grok-4.3
The pith
The CD-mixer ansatz in digitized counter-diabatic QAOA delivers more accurate solutions to the one-dimensional bin packing problem than standard QAOA variants.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Among the DC-QAOA, CD-inspired, and CD-mixer ansatzes, the CD-mixer ansatz that incorporates counter-diabatic terms specifically into the mixer Hamiltonian yields the highest accuracy and success rate for a ten-item one-dimensional bin packing instance, both in simulation and when executed on IBM quantum hardware despite circuit-depth limits.
What carries the argument
The CD-mixer ansatz, which augments the digitized counter-diabatic QAOA circuit by adding counter-diabatic driving terms to the mixer Hamiltonian while keeping the cost Hamiltonian separate.
If this is right
- Fewer quantum resources are needed to reach a given solution quality for this NP-hard problem.
- The method remains stable when the number of iterations, layers, or Hamiltonian steps is varied.
- Near-term devices can produce usable approximations for small combinatorial instances.
Where Pith is reading between the lines
- The same ansatz construction could be tested on other packing or scheduling problems that share similar cost Hamiltonians.
- Circuit-depth reduction techniques beyond those used here might allow the approach to reach instances with fifteen or more items before noise dominates.
- Hybrid classical post-processing of the measured bit strings could further improve the reported success probability without changing the quantum circuit.
Load-bearing premise
The performance edge seen on one ten-item instance will persist for larger problems without hardware noise or circuit depth becoming dominant.
What would settle it
Execute the CD-mixer ansatz on a twenty-item bin-packing instance on the same hardware and measure whether solution accuracy falls below that of classical solvers or other QAOA variants.

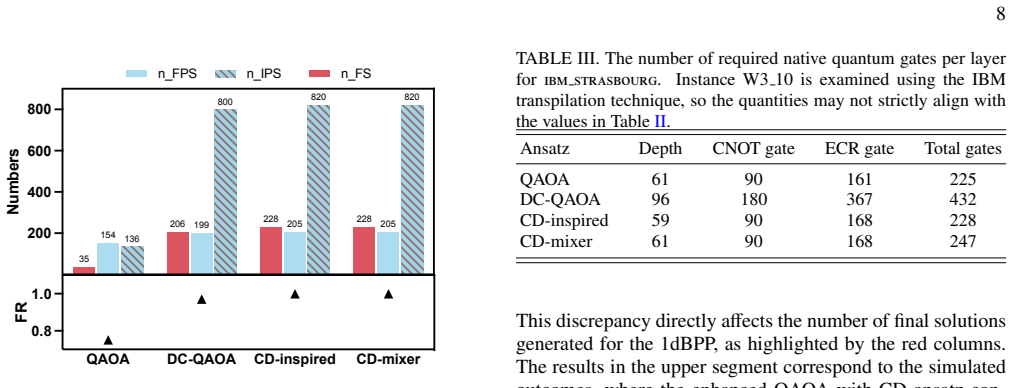

Figures
read the original abstract
The bin packing problem, a classical NP-hard combinatorial optimization challenge, has emerged as a promising candidate for quantum computing applications. In this work, we address the one-dimensional bin packing problem (1dBPP) using a digitized counter-diabatic quantum algorithm (DC-QAOA), which incorporates counter-diabatic (CD) driving to reduce quantum resource requirements while maintaining high solution quality, outperforming traditional methods such as QAOA. We evaluate three ansatz schemes-DC-QAOA, a CD-inspired ansatz, and a CD-mixer ansatz-each integrating CD terms with distinct combinations of cost and mixer Hamiltonians, resulting in different DC-QAOA variants. Among these, the CD-mixer ansatz demonstrates superior performance, showing robustness across various iteration counts, layer depths, and Hamiltonian steps, while consistently producing the most accurate approximations to exact solutions. To validate our approach, we solve a 10-item 1dBPP instance on an IBM quantum computer, optimizing circuit structures through simulations. Despite constraints on circuit depth, the CD-mixer ansatz achieves high accuracy and a high likelihood of success. These findings establish DC-QAOA, particularly the CD-mixer variant, as a powerful framework for solving combinatorial optimization problems on near-term quantum devices.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces digitized counter-diabatic QAOA (DC-QAOA) and three ansatz variants (DC-QAOA, CD-inspired ansatz, CD-mixer ansatz) for the one-dimensional bin packing problem. It claims the CD-mixer ansatz is robust and superior in simulations across iteration counts, layer depths and Hamiltonian steps, and that it achieves high accuracy with high success likelihood when a 10-item instance is executed on IBM hardware after simulation-based circuit optimization.
Significance. If the claimed advantages are confirmed with quantitative metrics, error bars and statistical controls, the incorporation of counter-diabatic terms into variational ansatze could reduce circuit depth requirements for combinatorial optimization on near-term devices; the hardware execution on a small instance supplies a concrete existence proof, though the work does not yet address scaling.
major comments (2)
- [Hardware experiment] Hardware experiment (final results section): the assertion that the CD-mixer ansatz 'achieves high accuracy and a high likelihood of success' on the 10-item 1dBPP instance rests on a single hardware execution whose shot count, success probability, variance and comparison to the other two ansatze are not reported; without these data the observed outcome cannot be distinguished from finite-shot noise or post-selection effects.
- [Numerical results] Numerical results (simulation section): the claim of consistent superiority and robustness across iteration counts, layer depths and Hamiltonian steps is stated without tabulated success probabilities, approximation ratios or direct head-to-head metrics against standard QAOA, so the performance ordering cannot be verified from the presented evidence.
minor comments (1)
- [Abstract] The abstract states that the method 'outperforms traditional methods such as QAOA' but supplies no numerical values or baseline definitions; moving the quantitative comparison into the abstract or adding a summary table would improve clarity.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. We address each major comment below and will revise the manuscript accordingly to improve the presentation of quantitative results.
read point-by-point responses
-
Referee: [Hardware experiment] Hardware experiment (final results section): the assertion that the CD-mixer ansatz 'achieves high accuracy and a high likelihood of success' on the 10-item 1dBPP instance rests on a single hardware execution whose shot count, success probability, variance and comparison to the other two ansatze are not reported; without these data the observed outcome cannot be distinguished from finite-shot noise or post-selection effects.
Authors: We agree that the hardware results would be strengthened by reporting the shot count, success probability, variance, and direct comparisons to the other ansatze. In the revised manuscript we will add these quantitative details from the 10-item execution to allow readers to assess the outcome against finite-shot statistics. revision: yes
-
Referee: [Numerical results] Numerical results (simulation section): the claim of consistent superiority and robustness across iteration counts, layer depths and Hamiltonian steps is stated without tabulated success probabilities, approximation ratios or direct head-to-head metrics against standard QAOA, so the performance ordering cannot be verified from the presented evidence.
Authors: The simulation comparisons are shown via figures, but we concur that tabulated success probabilities and approximation ratios would enable direct verification. We will add such tables with head-to-head metrics against QAOA in the revised manuscript. revision: yes
Circularity Check
No circularity: claims rest on simulations and hardware benchmarks, not self-referential derivations
full rationale
The paper proposes three DC-QAOA ansatz variants for the 1dBPP and reports their performance via numerical simulations across iteration counts, layer depths, and Hamiltonian steps, plus a single hardware execution on a 10-item instance. No equations, uniqueness theorems, or ansatze are derived from self-citations or fitted parameters that are then relabeled as predictions. The central claim of CD-mixer superiority is presented as an empirical outcome of the experiments rather than a mathematical reduction to prior inputs. No load-bearing self-citation chains, self-definitional constructions, or renamed known results appear in the abstract or described structure. The work is self-contained against external benchmarks (exact solutions for the small instance) and does not invoke external uniqueness results to force its conclusions.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
DC-QAOA To begin, we introduce the DC-QAOA, a hybrid quantum- classical algorithm that extends the standard QAOA by incor- porating CD terms into the quantum circuit, see Fig. 2(b). This modification facilitates faster convergence and enhances the quality of solutions for combinatorial optimization prob- lems [37]. The evolution operator U(α, β, γ) introd...
-
[2]
CD-inspired ansatz Rather than combining CD terms with the original QAOA, one can employ a simplified CD-only ansatz in Fig. 2(c), which reduces circuit complexity while retaining the ability to accelerate quantum evolution [39, 49–52]. The unitary evo- lution operator for this CD-inspired ansatz, which depends solely on the parameter set γ, is expressed ...
-
[3]
CD-mixer ansatz In addition to the standard DC-QAOA and CD-inspired variant, we also draw inspiration from the ADAPT- QAOA [32]. Our goal is to incorporate a simple mixer Hamil- tonian into the CD-inspired ansatz. This adjustment may al- low the CD-inspired ansatz to initiate the optimization process in a region closer to the global minimum without excess...
-
[4]
M. R. Garey and D. S. Johnson, Approximation algorithms for bin packing problems: A survey, in Analysis and Design of Al- gorithms in Combinatorial Optimization , edited by G. Ausiello and M. Lucertini (Springer Vienna, Vienna, 1981) pp. 147–172. 11
work page 1981
-
[5]
M. R. Garey and D. S. Johnson, Computers and Intractability; A Guide to the Theory of NP-Completeness (W. H. Freeman & Co., USA, 1990)
work page 1990
-
[6]
A. Levin, Comparing the costs of any fit algorithms for bin packing, Operations Research Letters 50, 646 (2022)
work page 2022
-
[7]
Vazirani, Approximation Algorithms (Springer Berlin Hei- delberg, 2013) p
V . Vazirani, Approximation Algorithms (Springer Berlin Hei- delberg, 2013) p. 74
work page 2013
-
[8]
D. Johnson, Near-optimal Bin Packing Algorithms , Mas- sachusetts Institute of Technology, project MAC (Mas- sachusetts Institute of Technology, 1973)
work page 1973
-
[9]
S. A. Murdivien and J. Um, Boxstacker: Deep reinforcement learning for 3d bin packing problem in virtual environment of logistics systems, Sensors 23, 6928 (2023)
work page 2023
-
[10]
A. Cardoso Silva and C. C. Hasenclever Borges, An improved heuristic based genetic algorithm for bin packing problem, in 2019 8th Brazilian Conference on Intelligent Systems (BRACIS) (2019) pp. 60–65
work page 2019
-
[11]
A. Layeb and S. R. Boussalia, A novel greedy quantum inspired cuckoo search algorithm for variable sized bin packing prob- lem, International Journal of Mathematics in Operational Re- search 6, 732 (2014)
work page 2014
- [12]
-
[13]
G. Zhang, Quantum-inspired evolutionary algorithms: a survey and empirical study, Journal of Heuristics 17, 303 (2011)
work page 2011
-
[14]
M. G. De Andoin, I. Oregi, E. Villar-Rodriguez, E. Osaba, and M. Sanz, Comparative benchmark of a quantum algorithm for the bin packing problem, in 2022 IEEE Symposium Series on Computational Intelligence (SSCI) (2022) pp. 930–937
work page 2022
-
[15]
M. G. de Andoin, E. Osaba, I. Oregi, E. Villar-Rodriguez, and M. Sanz, Hybrid quantum-classical heuristic for the bin packing problem, Proceedings of the Genetic and Evolutionary Compu- tation Conference Companion , 2214 (2022)
work page 2022
-
[16]
M. Mongeau and C. Bes, Optimization of aircraft container loading, IEEE Transactions on Aerospace and Electronic Sys- tems 39, 140 (2003)
work page 2003
-
[17]
S. V . Romero, E. Osaba, E. Villar-Rodriguez, and A. Asla, Solving logistic-oriented bin packing problems through a hy- brid quantum-classical approach, in 2023 IEEE 26th Interna- tional Conference on Intelligent Transportation Systems (ITSC) (2023) pp. 2239–2245
work page 2023
-
[18]
S. V . Romero, E. Osaba, E. Villar-Rodriguez, I. Oregi, and Y . Ban, Hybrid approach for solving real-world bin packing problem instances using quantum annealers, Scientific Reports 13, 11777 (2023)
work page 2023
-
[19]
C. Munien and A. E. Ezugwu, Metaheuristic algorithms for one-dimensional bin-packing problems: A survey of recent ad- vances and applications, Journal of Intelligent Systems 30, 636 (2021)
work page 2021
-
[20]
S. Anand and S. Guericke, A bin packing problem with mix- ing constraints for containerizing items for logistics service providers, in Computational Logistics, edited by E. Lalla-Ruiz, M. Mes, and S. V oß (Springer International Publishing, Cham,
-
[21]
M. Witteman, Q. Deng, and B. F. Santos, A bin packing approach to solve the aircraft maintenance task allocation problem, European Journal of Operational Research 294, 365 (2021)
work page 2021
-
[22]
A. Lodi, S. Martello, and D. Vigo, Recent advances on two- dimensional bin packing problems, Discrete Applied Mathe- matics 123, 379 (2002)
work page 2002
-
[23]
Y .-G. G and M.-K. Kang, A fast algorithm for two-dimensional pallet loading problems of large size, European Journal of Op- erational Research 134, 193 (2001)
work page 2001
-
[24]
S. C. Leung, X. Zhou, D. Zhang, and J. Zheng, Extended guided tabu search and a new packing algorithm for the two- dimensional loading vehicle routing problem, Computers & Operations Research 38, 205 (2011)
work page 2011
-
[25]
X. Hu, J. Li, and J. Cui, Greedy adaptive search: A new ap- proach for large-scale irregular packing problems in the fabric industry, IEEE Access 8, 91476 (2020)
work page 2020
-
[26]
F. Parre ˜no, M. Alonso, and R. Alvarez-Valdes, Solving a large cutting problem in the glass manufacturing industry, European Journal of Operational Research 287, 378 (2020)
work page 2020
-
[27]
S. Martello, D. Pisinger, and D. Vigo, The three-dimensional bin packing problem, Operations Research48, 256–267 (2000)
work page 2000
-
[28]
L. Cellini, A. Macaluso, and M. Lombardi, Qal-bp: an aug- mented lagrangian quantum approach for bin packing, Scien- tific Reports 14, 5142 (2024)
work page 2024
-
[29]
C. Carugno, M. F. Dacrema, and P. Cremonesi, Evaluating the job shop scheduling problem on a d-wave quantum annealer, Scientific Reports 12, 6539 (2022)
work page 2022
- [30]
- [31]
- [32]
-
[33]
G. Guerreschi and A. Matsuura, Qaoa for max-cut requires hun- dreds of qubits for quantum speed-up, Scientific Reports 9, 6903 (2019)
work page 2019
-
[34]
Y . Yu, C. Cao, C. Dewey, X.-B. Wang, N. Shannon, and R. Joynt, Quantum approximate optimization algorithm with adaptive bias fields, Phys. Rev. Res.4, 023249 (2022)
work page 2022
-
[35]
L. Zhu, H. L. Tang, G. S. Barron, F. A. Calderon-Vargas, N. J. Mayhall, E. Barnes, and S. E. Economou, Adaptive quantum approximate optimization algorithm for solving combinatorial problems on a quantum computer, Phys. Rev. Res. 4, 033029 (2022)
work page 2022
-
[36]
D. J. Egger, J. Mare ˇcek, and S. Woerner, Warm-starting quan- tum optimization, Quantum 5, 479 (2021)
work page 2021
-
[37]
N. N. Hegade, K. Paul, Y . Ding, M. Sanz, F. Albarr ´an- Arriagada, E. Solano, and X. Chen, Shortcuts to adiabaticity in digitized adiabatic quantum computing, Phys. Rev. Appl.15, 024038 (2021)
work page 2021
-
[38]
J. Wurtz and P. J. Love, Counterdiabaticity and the quantum approximate optimization algorithm, Quantum 6, 635 (2022)
work page 2022
-
[39]
P. Chandarana, P. S. Vieites, N. N. Hegade, E. Solano, Y . Ban, and X. Chen, Meta-learning digitized-counterdiabatic quan- tum optimization, Quantum Science and Technology8, 045007 (2023)
work page 2023
-
[40]
P. Chandarana, N. N. Hegade, K. Paul, F. Albarr ´an- Arriagada, E. Solano, A. del Campo, and X. Chen, Digitized- counterdiabatic quantum approximate optimization algorithm, Phys. Rev. Res. 4, 013141 (2022)
work page 2022
-
[41]
N. N. Hegade, P. Chandarana, K. Paul, X. Chen, F. Albarr ´an- Arriagada, and E. Solano, Portfolio optimization with digitized counterdiabatic quantum algorithms, Phys. Rev. Res.4, 043204 (2022)
work page 2022
-
[42]
P. Chandarana, N. N. Hegade, I. Montalban, E. Solano, and X. Chen, Digitized counterdiabatic quantum algorithm for pro- 12 tein folding, Phys. Rev. Appl. 20, 014024 (2023)
work page 2023
-
[43]
Q.-M. Ding, Y .-M. Huang, and X. Yuan, Molecular docking via quantum approximate optimization algorithm, Phys. Rev. Appl. 21, 034036 (2024)
work page 2024
-
[44]
E. G. Co ffman Jr., J. Csirik, G. Galambos, S. Martello, and D. Vigo, Bin packing approximation algorithms: Survey and classification, in Handbook of Combinatorial Optimization , edited by P. M. Pardalos, D.-Z. Du, and R. L. Graham (Springer New York, New York, NY , 2013) pp. 455–531
work page 2013
- [45]
- [46]
-
[47]
J. A. Monta ˜nez-Barrera, D. Willsch, A. Maldonado-Romo, and K. Michielsen, Unbalanced penalization: a new approach to en- code inequality constraints of combinatorial problems for quan- tum optimization algorithms, Quantum Science and Technol- ogy 9, 025022 (2024)
work page 2024
-
[48]
A Quantum Approximate Optimization Algorithm
E. Farhi, J. Goldstone, and S. Gutmann, A quantum approxi- mate optimization algorithm, arXiv:1411.4028 (2014)
work page internal anchor Pith review Pith/arXiv arXiv 2014
- [49]
-
[50]
P. W. Claeys, M. Pandey, D. Sels, and A. Polkovnikov, Floquet- engineering counterdiabatic protocols in quantum many-body systems, Phys. Rev. Lett. 123, 090602 (2019)
work page 2019
-
[51]
R. Xu, J. Tang, P. Chandarana, K. Paul, X. Xu, M. Yung, and X. Chen, Benchmarking hybrid digitized-counterdiabatic quan- tum optimization, Phys. Rev. Res. 6, 013147 (2024)
work page 2024
-
[52]
S. V . Romero, X. Chen, G. Platero, and Y . Ban, Optimizing edge-state transfer in a su-schrie ffer-heeger chain via hybrid analog-digital strategies, Phys. Rev. Appl. 21, 034033 (2024)
work page 2024
-
[53]
J. Tang, R. Xu, Y . Ding, X. Xu, Y . Ban, M.-H. Yung, A. P´erez- Obiol, G. Platero, and X. Chen, Exploring ground states of fermi-hubbard model on honeycomb lattices with counterdia- baticity, npj Quantum Materials 9, 87 (2024)
work page 2024
- [54]
- [55]
-
[56]
S. Elhedhli, F. Gzara, and B. Yildiz, Three-dimensional bin packing and mixed-case palletization, INFORMS Journal on Optimization 1, 323 (2019)
work page 2019
- [57]
-
[58]
X. Xu, J. Cui, Z. Cui, R. He, Q. Li, X. Li, Y . Lin, J. Liu, W. Liu, J. Lu, M. Luo, C. Lyu, S. Pan, M. Pavel, R. Shu, J. Tang, R. Xu, S. Xu, K. Yang, F. Yu, Q. Zeng, H. Zhao, Q. Zheng, J. Zhou, X. Zhou, Y . Zhu, Z. Zou, A. Bayat, X. Cao, W. Cui, Z. Li, G. Long, Z. Su, X. Wang, Z. Wang, S. Wei, R.-B. Wu, P. Zhang, and M.-H. Yung, Mindspore quantum: A user-...
-
[59]
IBM Quantum, https: //quantum.ibm.com/ (2025)
work page 2025
-
[60]
D. P. Kingma and J. Ba, Adam: A method for stochastic opti- mization, arXiv:1412.6980 (2017)
work page internal anchor Pith review Pith/arXiv arXiv 2017
- [61]
-
[62]
A. Usui, A. Sanpera, and M. Garc´ıa D´ıaz, Simplifying the simu- lation of local hamiltonian dynamics, Phys. Rev. Res.6, 023243 (2024)
work page 2024
- [63]
-
[64]
A. Kundu, Reinforcement learning-assisted quantum ar- chitecture search for variational quantum algorithms, arXiv:2402.13754 (2024)
-
[65]
M. Sciorilli, L. Borges, T. L. Patti, D. Garc ´ıa-Mart´ın, G. Camilo, A. Anandkumar, and L. Aolita, Towards large-scale quantum optimization solvers with few qubits, Nature Commu- nications 16, 476 (2025)
work page 2025
-
[66]
M. Shi, S. Wu, Y . Li, G. Yuan, C. Yao, and G. Chen, A quan- tum framework for combinatorial optimization problem over graphs, Data Science and Engineering , 1 (2025)
work page 2025
