arxiv: 2502.18816 · v2 · submitted 2025-02-26 · 💻 cs.CV

Grad-ECLIP: Gradient-based Visual and Textual Explanations for CLIP

Chenyang Zhao , Kun Wang , Janet H. Hsiao , Antoni B. Chan This is my paper

Pith reviewed 2026-05-23 02:18 UTC · model grok-4.3

classification 💻 cs.CV
keywords CLIPinterpretabilitygradient explanationheat mapsvision language modelfine-tuningattribution
0
0 comments X

The pith

Grad-ECLIP generates heat maps for CLIP by weighting token features with gradient-derived channel and spatial weights.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Grad-ECLIP to interpret CLIP's image-text matching decisions. It decomposes the encoders to connect similarity scores to intermediate features and applies gradient-based weights to produce heat maps for images and text. This differs from attention-map methods because CLIP's attention is sparse. Evaluations show it produces higher quality explanations than prior techniques. The maps also support analysis of CLIP and an application to improve fine-grained alignment during fine-tuning.

Core claim

By decomposing the architecture of the encoder and discovering the relationship between the matching similarity and intermediate spatial features, Grad-ECLIP produces effective heat maps that show the influence of image regions or words on the CLIP results by applying channel and spatial weights on token features.

What carries the argument

Gradient-derived channel and spatial weights applied to token features in CLIP encoders to generate visual and textual explanation heat maps.

If this is right

  • Reveals the working mechanism of image-text matching in CLIP.
  • Identifies strengths and limitations in CLIP's attribution identification.
  • Explores the relationship between a word's concreteness and its usage in CLIP.
  • Boosts fine-grained alignment in CLIP fine-tuning using text-specific saliency regions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar gradient weighting could improve explanations in other multimodal models.
  • The method might enable better debugging of vision-language models.
  • Explanations could be integrated into training to enforce better alignment automatically.

Load-bearing premise

That applying gradient-based channel and spatial weights to token features will yield more faithful and higher-quality explanations than attention maps despite their sparsity in CLIP.

What would settle it

If quantitative metrics like insertion or deletion scores or human agreement show no improvement over state-of-the-art attention-based methods on CLIP explanation tasks.

Figures

Figures reproduced from arXiv: 2502.18816 by Antoni B. Chan, Chenyang Zhao, Janet H. Hsiao, Kun Wang.

Figure 1
Figure 1. Figure 1: Visual and textual explanations of CLIP for the image with the [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

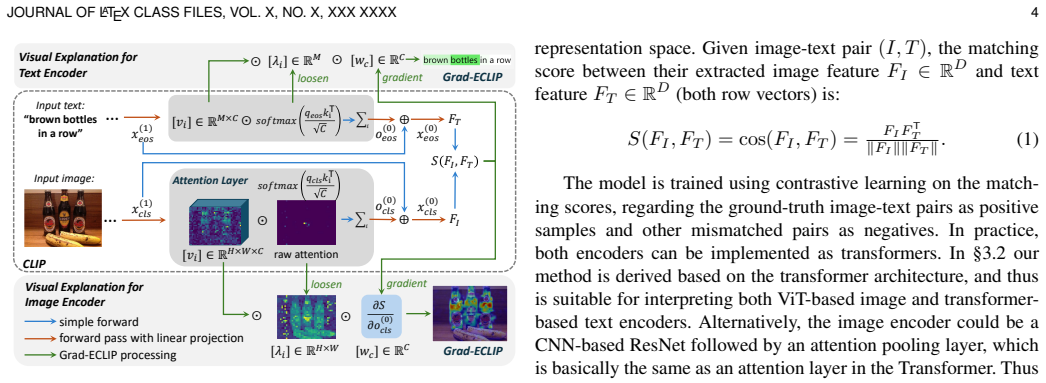

Figure 2. Figure 2: Illustration of Grad-ECLIP. An image-text pair specific visual [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

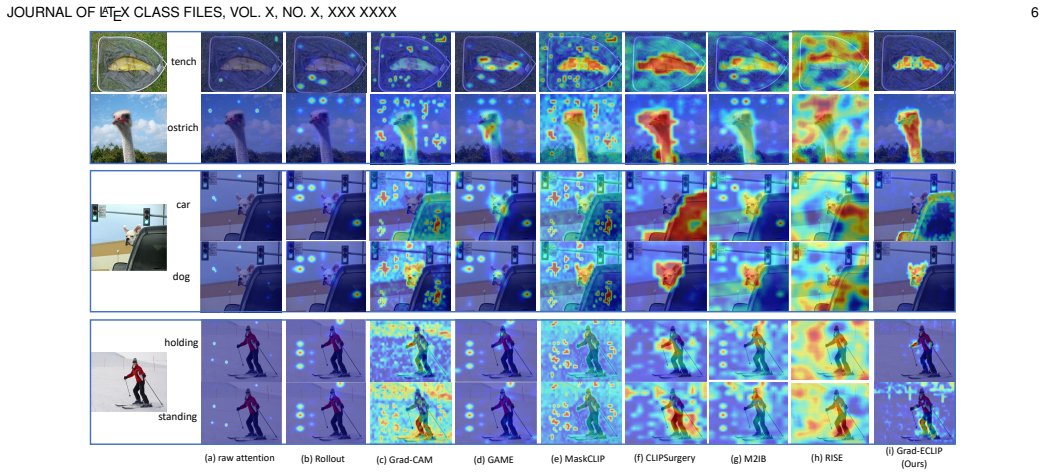

Figure 3. Figure 3: Comparison of heat maps from: (a) the raw self-attention map in the last ViT layer; (b) Rollout [14]; (c) Grad-CAM [20]; (d) GAME [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Explanations for image-text pairs from MS COCO using: by (a) raw self-attention; Transformer interpretation methods (b) Rollout, (c) [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of visual explanations for different methods on image samples from different image domains: natural images (ImageNet), [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Grad-ECLIP visual explanations of the ViT classifier and BLIP. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Visual explanations of the CNN-based CLIP with ResNet50 [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Classification accuracy at Top-1 vs. (a) Deletion steps [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: The image visual explanations generated when aggregating over N layers of the image transformer encoder. 𝑁𝑁= 1 𝑁𝑁= 2 𝑁𝑁= 4 𝑁𝑁= 6 𝑁𝑁= 8 𝑁𝑁= 12 𝑁𝑁= 10 [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 13
Figure 13. Figure 13: Visual explanation heat maps generated for single words and [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Visual explanations on image matching with different kinds [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: The average word importance (via Grad-ECLIP) vs. word [PITH_FULL_IMAGE:figures/full_fig_p013_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: The average word importance (via Grad-ECLIP) vs. the word frequency in the OpenWordText dataset for the top-1000 most frequent [PITH_FULL_IMAGE:figures/full_fig_p014_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Overview of the proposed fine-grained fine-tuning of CLIP [PITH_FULL_IMAGE:figures/full_fig_p014_17.png] view at source ↗
read the original abstract

Significant progress has been achieved on the improvement and downstream usages of the Contrastive Language-Image Pre-training (CLIP) vision-language model, while less attention is paid to the interpretation of CLIP. We propose a Gradient-based visual and textual Explanation method for CLIP (Grad-ECLIP), which interprets the matching result of CLIP for specific input image-text pair. By decomposing the architecture of the encoder and discovering the relationship between the matching similarity and intermediate spatial features, Grad-ECLIP produces effective heat maps that show the influence of image regions or words on the CLIP results. Different from the previous Transformer interpretation methods that focus on the utilization of self-attention maps, which are typically extremely sparse in CLIP, we produce high-quality visual explanations by applying channel and spatial weights on token features. Qualitative and quantitative evaluations verify the effectiveness and superiority of Grad-ECLIP compared with the state-of-the-art methods. Furthermore, a series of analysis are conducted based on our visual and textual explanation results, from which we explore the working mechanism of image-text matching, the strengths and limitations in attribution identification of CLIP, and the relationship between the concreteness/abstractness of a word and its usage in CLIP. Finally, based on the ability of explanation map that indicates text-specific saliency region of input image, we also propose an application with Grad-ECLIP, which is adopted to boost the fine-grained alignment in the CLIP fine-tuning. The code of Grad-ECLIP is available here: https://github.com/Cyang-Zhao/Grad-Eclip.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes Grad-ECLIP, a gradient-based method for generating visual and textual explanations of CLIP image-text matching scores. It decomposes the CLIP encoder to relate similarity to intermediate spatial features, then applies channel and spatial weights derived from gradients to token features (instead of relying on sparse self-attention maps) to produce heatmaps; qualitative/quantitative evaluations claim superiority over prior methods, followed by analyses of CLIP's attribution behavior and an application that uses the maps to improve fine-grained alignment during CLIP fine-tuning. Code is released.

Significance. If the heatmaps can be shown to be faithful, the work would address an important gap in VLM interpretability by providing an alternative to attention-based explanations and could support better understanding and fine-tuning of CLIP-like models; the open-source code is a positive contribution to reproducibility.

major comments (2)
  1. [§4] §4 (Quantitative Evaluation): The reported superiority over attention-based and other explanation methods rests on unspecified quantitative metrics; standard faithfulness protocols (insertion/deletion AUC, pointing game against human annotations, or controlled synthetic pairs) are not mentioned, leaving open whether the channel/spatial weighting isolates influential regions/words or produces artifacts.
  2. [§3] §3 (Method): The central claim that gradient-derived channel and spatial weights on token features yield higher-quality explanations than sparse attention maps requires an ablation isolating the contribution of the weighting scheme versus raw gradients or attention; without it, the advantage over prior Transformer interpretation methods is not load-bearing.
minor comments (2)
  1. [Abstract, §5] Abstract and §5: The application section claims the explanation maps boost fine-grained alignment, but the quantitative improvement (e.g., retrieval or alignment scores before/after) should be reported with error bars for clarity.
  2. [§3] Notation: The decomposition relating matching similarity to intermediate features would benefit from an explicit equation showing how the final similarity score is expressed in terms of the weighted token features.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We provide point-by-point responses to the major comments and indicate the revisions planned for the manuscript.

read point-by-point responses

  1. Referee: [§4] §4 (Quantitative Evaluation): The reported superiority over attention-based and other explanation methods rests on unspecified quantitative metrics; standard faithfulness protocols (insertion/deletion AUC, pointing game against human annotations, or controlled synthetic pairs) are not mentioned, leaving open whether the channel/spatial weighting isolates influential regions/words or produces artifacts.

    Authors: We agree that the quantitative metrics should be more explicitly described and that standard faithfulness protocols would strengthen the evaluation. In the revised manuscript, we will specify the metrics used in §4 and incorporate insertion/deletion AUC as well as pointing game evaluations against human annotations to better validate the faithfulness of the explanations. revision: yes

  2. Referee: [§3] §3 (Method): The central claim that gradient-derived channel and spatial weights on token features yield higher-quality explanations than sparse attention maps requires an ablation isolating the contribution of the weighting scheme versus raw gradients or attention; without it, the advantage over prior Transformer interpretation methods is not load-bearing.

    Authors: We recognize that an ablation study would help isolate the effect of the channel and spatial weighting. Although the current manuscript includes comparisons to attention-based methods, we will add a dedicated ablation in the revised version comparing Grad-ECLIP to variants using only raw gradients and only attention maps to substantiate the contribution of the weighting scheme. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation is self-contained gradient-based method

full rationale

The paper's core derivation decomposes the CLIP encoder to relate similarity scores to intermediate spatial features and applies gradient-derived channel/spatial weights to token features. This is a direct methodological construction presented as an alternative to sparse attention maps, with no self-citations invoked as uniqueness theorems, no parameters fitted to data then relabeled as predictions, and no equations that reduce to their own inputs by definition. Evaluations are claimed to verify effectiveness independently of the method's construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The method relies on standard gradient computation and feature weighting; no free parameters, axioms, or invented entities are introduced beyond the existing CLIP architecture and standard attribution techniques.
