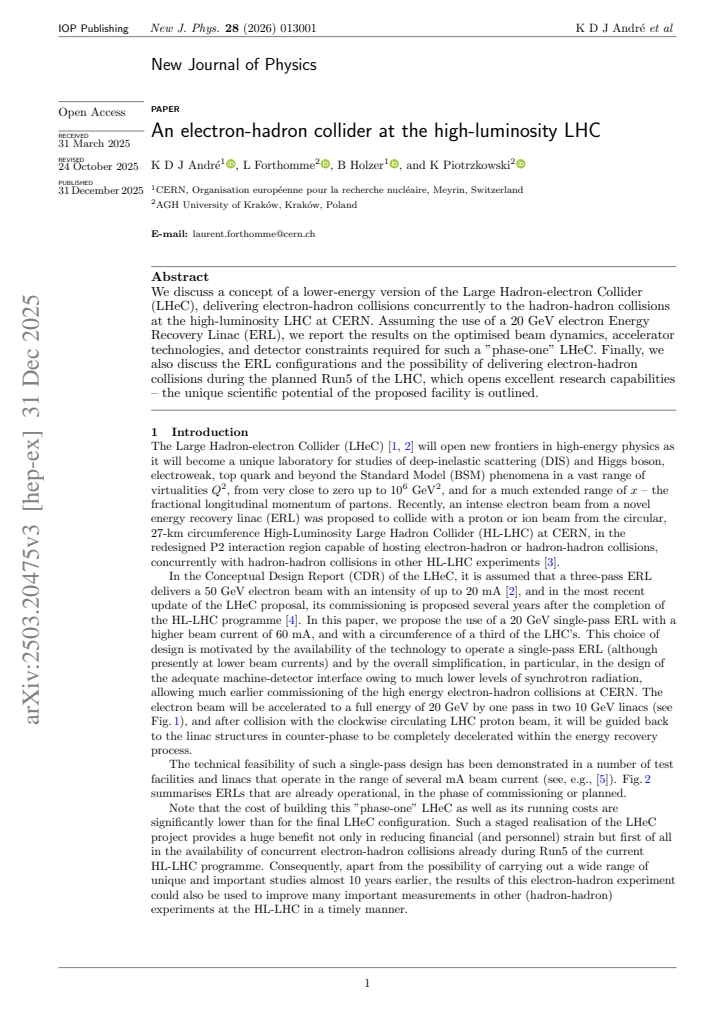

An electron-hadron collider at the high-luminosity LHC

Kevin David J Andr\'e , Laurent Forthomme , Bernhard Holzer , Krzysztof Piotrzkowski This is my paper

Pith reviewed 2026-05-22 22:44 UTC · model grok-4.3

classification ✦ hep-ex physics.acc-ph
keywords electron-hadron colliderLHeCHL-LHCenergy recovery linacRun5beam dynamicsconcurrent operationsdetector constraints
0
0 comments X

The pith

A 20 GeV electron energy recovery linac can deliver electron-hadron collisions concurrently with the high-luminosity LHC during Run5.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a concept for a lower-energy LHeC that uses a 20 GeV electron beam from an energy recovery linac to collide with the LHC proton beams. It reports optimizations of beam dynamics, accelerator technologies, and detector constraints needed to make this possible without stopping the main hadron-hadron program. The setup is framed as a phase-one facility that could operate during the planned Run5 period. A sympathetic reader would see this as a way to add electron-proton scattering capability to the existing LHC infrastructure with limited new construction. The work focuses on showing technical feasibility through concrete beam and detector studies.

Core claim

The paper claims that a 20 GeV ERL-based electron-hadron collider can be integrated with the HL-LHC for concurrent operations during Run5, with optimised beam dynamics, accelerator technologies, and detector constraints, thereby opening excellent research capabilities through the unique scientific potential of the proposed facility.

What carries the argument

The 20 GeV electron Energy Recovery Linac (ERL) and its beam optics integration with the HL-LHC ring for simultaneous electron-proton and proton-proton collisions.

If this is right

  • Electron-hadron collisions become available during the LHC Run5 period without halting the main hadron program.
  • Detector and beam constraints are shown to be manageable with current or near-term technologies.
  • The phase-one configuration provides a path to study electron-proton interactions at LHC energies.
  • ERL configurations are identified that fit within the planned LHC schedule and infrastructure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such a facility could enable precision measurements of parton distributions that complement existing LHC data.
  • If the ERL integration succeeds, it would reduce the need for a fully separate electron ring in early stages.
  • The approach might inform similar concurrent lepton-hadron additions at future hadron colliders.

Load-bearing premise

Existing or near-term ERL technology and beam optics can reach the needed luminosity and stability without unacceptable interference or downtime when running at the same time as the HL-LHC.

What would settle it

A beam dynamics simulation or prototype test that shows the required luminosity cannot be maintained or that concurrent operation forces unacceptable downtime or instability in the HL-LHC proton beams.

Figures

Figures reproduced from arXiv: 2503.20475 by Bernhard Holzer, Kevin David J Andr\'e, Krzysztof Piotrzkowski, Laurent Forthomme.

Figure 1
Figure 1. Figure 1: Schematics of the single-pass LHeC layout at the Interaction Point 2 (IP2); with the optional return arcs 3 − 6 (dashed lines). 2 The LHeC IR The fundamental principle of an ERL provides an ideal condition for a staged particle accelerator. Still, a number of items have to be followed up, as beam parameters scale with energy, so while keeping the general layout of the ERL and the geometry of linacs and ret… view at source ↗
Figure 2

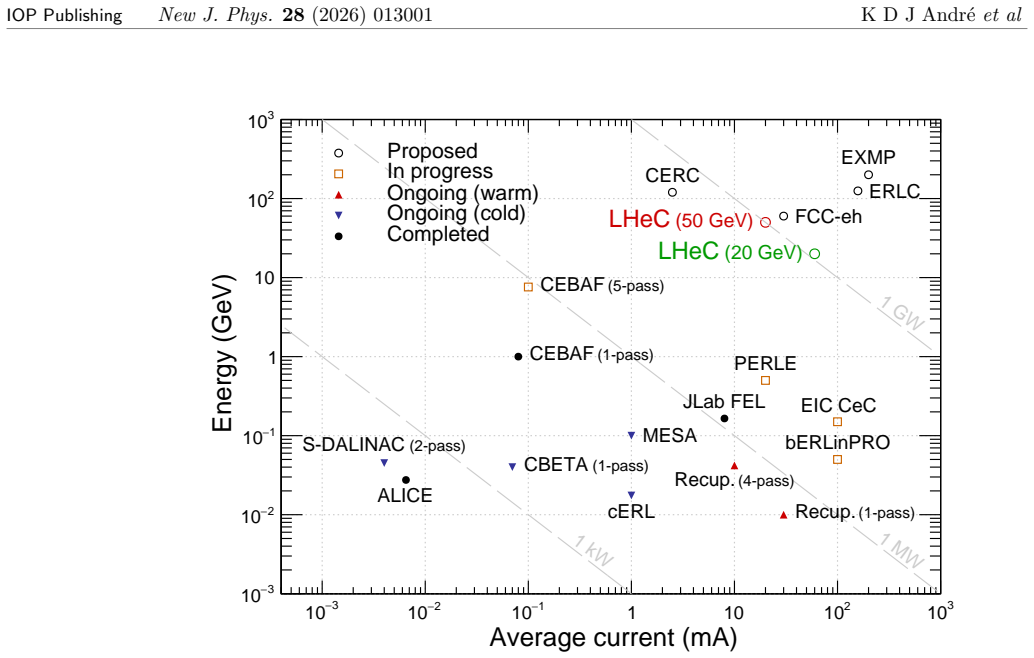

Figure 2. Figure 2: Different ERL projects worldwide that are already operational or in their commissioning / planning phase. The red and green markers indicate the baseline LHeC design and the ERL configuration described in this paper, respectively. Figure adapted from [5]. scheme explained here, head-on collisions between the proton and electron beam are foreseen, to avoid luminosity reduction because of the geometric loss … view at source ↗
Figure 3

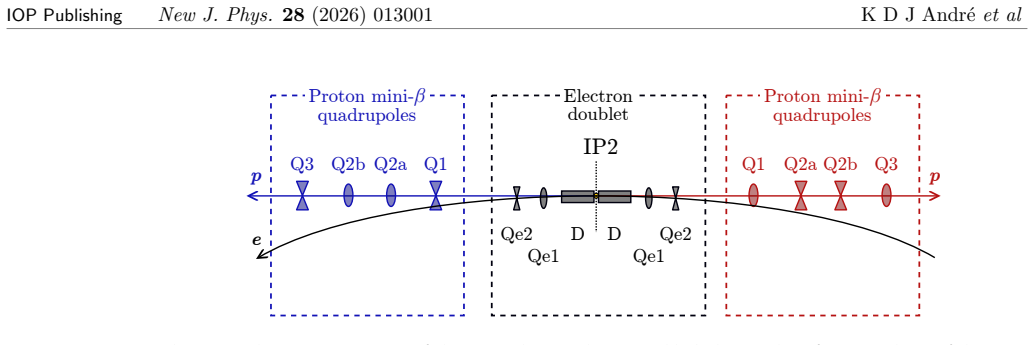

Figure 3. Figure 3: The interaction region of electron and proton beams: in black the mini-beta focusing scheme of the electrons is shown, including the detector dipole field that is part of the beam separation. Both are embedded within the free space of the HL-LHC proton inner triplet lattice, marked in blue and red. Figure adapted from [10]. 0 5000 10000 15000 20000 25000 Orbit S (m) 4 3 2 1 0 1 2 3 4 (%) ATLAS ALICE/LHeC C… view at source ↗
