The Two-component Model of the 'spokes' in Saturn's Rings

Fenton John Doolan This is my paper

Pith reviewed 2026-05-22 22:11 UTC · model grok-4.3

classification 🌌 astro-ph.EP
keywords Saturn ringsspokesdiamagnetic grainspyrolytic carbonelectromagnetic mechanismCassini observationsice sublimationmagnetospheric rotation
0
0 comments X

The pith

Spokes in Saturn's rings consist of persistent pyrolytic carbon grains and transient ice grains, both shaped by electromagnetic interactions with the planet's magnetosphere.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper advances a two-component model in which spokes arise from diamagnetic pyrolytic carbon that coats silicates and from diamagnetic ice grains that appear and vanish rapidly. It links spoke behavior to Saturn's magnetospheric rotation and to solar elevation angle through statistical analysis of Cassini observations, arguing that solar-wind charging of the rings produces an orthogonal magnetic field that drives the features. A sympathetic reader would care because the model supplies a concrete electromagnetic pathway that ties spoke visibility directly to illumination conditions and to the charging state of the B ring. The central mechanism is the conversion of diamagnetic carbon grains into paramagnetic ones via the photoelectric effect, which returns them to the ring plane.

Core claim

The spokes consist of diamagnetic pyrolytic carbon that has coated silicates through high-temperature Chemical Vapour Deposition during the formation of Saturn's circumplanetary disk, together with diamagnetic ice particles that disappear within minutes to hours due to sublimation. The photoelectric effect causes the pyrolytic carbon grains to lose electrons and become paramagnetic, resulting in their attraction back to the main B ring structure. Saturn's rings are charged by the solar wind, generating a magnetic field that emanates orthogonally above and below the B ring plane due to the movement of charged particles in the rings. Statistical analysis of Cassini data reveals significant, if

What carries the argument

Two-component diamagnetic model in which pyrolytic carbon and ice grains interact with a solar-wind-generated magnetic field orthogonal to the B ring plane.

If this is right

  • Spoke formation and dissipation timescales are set by the sublimation rate of the ice component.
  • Spoke visibility is controlled by the angle of sunlight and by the rotation of Saturn's magnetosphere.
  • The B ring maintains a persistent magnetic field component generated by solar-wind charging of its charged particles.
  • Carbon grains are recycled to the ring plane after they become paramagnetic, sustaining the longer-lived spoke population.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same two-component logic could be tested on any ring system that experiences both solar illumination and a planetary magnetic field.
  • Infrared spectra taken during spoke events should show a time-varying carbon signature that outlasts the ice signature.
  • Future spacecraft could measure the orthogonal magnetic field component directly above the B ring to check the solar-wind charging prediction.

Load-bearing premise

Pyrolytic carbon coated silicates through high-temperature chemical vapour deposition in the circumplanetary disk, and the photoelectric effect turns those grains paramagnetic so they return to the B ring.

What would settle it

Absence of the reported correlation between spoke activity and solar elevation angle in an independent re-analysis of the same Cassini imaging sequences.

Figures

Figures reproduced from arXiv: 2503.23418 by Fenton John Doolan.

Figure 2

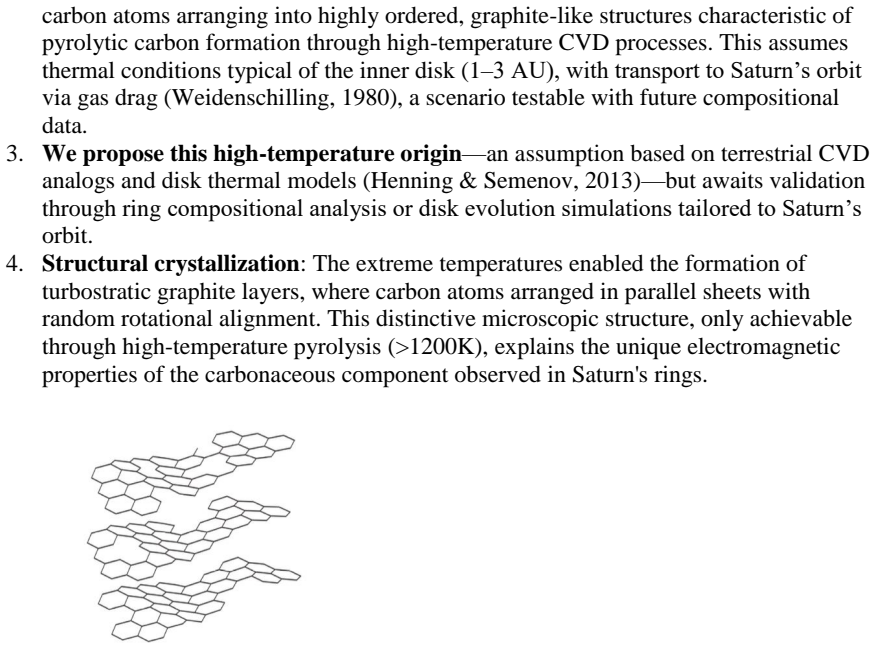

Figure 2. Figure 2: Schematic of turbostratic carbon in Saturn’s spokes, showing stacked graphene-like layers with random rotations, enabling diamagnetic levitation (χ = -4.5 × 10⁻⁴; Pinot et al., 2019) 5. Compositional preservation: As the protoplanetary disk cooled to current ring temperatures (70-110K), these pyrolytic carbon structures were preserved on silicate substrates. The structural integrity maintained through cool… view at source ↗
Figure 3
Figure 3. Figure 3: Schematic of UV-induced photoelectric effect on pyrolytic carbon, ejecting π-electrons from sp² lattice, shifting from diamagnetic to paramagnetic states, driving Saturn’s spoke cycles (Kobayashi, 2012) [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 6

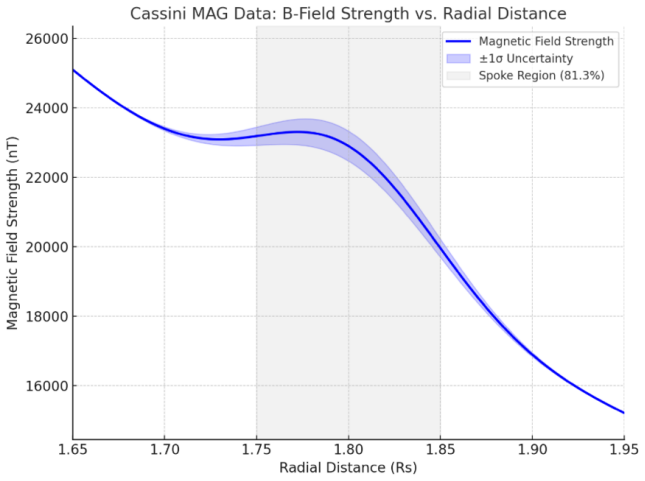

Figure 6. Figure 6: Cassini MAG data showing enhanced magnetic field gradients (2.8 × 10⁻⁶ T/m) during 283 spoke events in Saturn’s B ring, supporting diamagnetic levitation (Wahlund et al., 2017) 3.2.2 Particle Dynamics Model To see if diamagnetic forces can lift ‘spoke’ particles, we simulated how 1 μm grains— carbon (density 1.7 g/cm³) and ice (0.9 g/cm³)—move under Saturn’s forces: gravity pulling down, magnetic repulsion… view at source ↗
Figure 14
Figure 14. Figure 14: Modelled radial streaks in Uranus’ ε ring, showing diamagnetic levitation of carbon grains (1.2–2.0 km) at equinoxes (Ness et al., 1986) The assumed C/H ~10⁻⁴ (Karkoschka, 1997) for Uranus’ ε ring lacks direct spectroscopic confirmation, as Voyager 2’s IR data (Clark et al., 1991) suggest only trace organics (<0.1%). However, ε ring albedo variations (0.05–0.08, Hapke, 1993) align with modelled carbon-ice… view at source ↗
read the original abstract

The spokes observed in Saturn's rings have been a subject of scientific debate since their discovery by Stephen J. O'Meara in the 1970s and their confirmation by the Voyager flybys in the early 1980s (Smith et al., 1982). While the Cassini spacecraft confirmed that the spokes are linked to Saturn's magnetosphere, their exact formation mechanism remains uncertain. This paper proposes that the spokes in Saturn's rings consist of two distinct components: (1) carbonaceous materials, namely pyrolytic carbon with diamagnetic properties and potentially other various forms of carbon-bearing compounds, which persist over longer timescales, and (2) rapidly forming and dissipating diamagnetic ice grains, which interact with Saturn's magnetosphere on much shorter timescales. We suggest that the spokes consist of diamagnetic pyrolytic carbon that has coated silicates through the process of high-temperature Chemical Vapour Deposition (CVD) during the formation of Saturn's circumplanetary disk. Additionally, the spokes consist of diamagnetic ice particles that can disappear within minutes to hours due to sublimation. The photoelectric effect causes the pyrolytic carbon grains to lose electrons, thus becoming paramagnetic, which results in their attraction back to the main B ring structure. We suggest that Saturn's rings are charged by the solar wind, generating a magnetic field that emanates orthogonally above and below the B ring plane due to the movement of charged particles in the rings. Statistical analysis of Cassini data reveals significant correlations between spoke activity and both Saturn's magnetospheric rotation and solar elevation angle, providing strong support for an electromagnetic mechanism in spoke formation. This hypothesis suggests that the visibility of the spokes is dictated by illumination conditions and electromagnetic effects.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The paper proposes a two-component model for spokes in Saturn's rings: (1) persistent diamagnetic pyrolytic carbon-coated silicates formed by high-temperature CVD in the circumplanetary disk, and (2) rapidly dissipating diamagnetic ice grains. The photoelectric effect is invoked to convert the carbon component to paramagnetic, producing net attraction back to the B ring. Statistical correlations from Cassini data with Saturn's magnetospheric rotation and solar elevation angle are cited as support for an electromagnetic formation mechanism driven by solar wind charging of the rings.

Significance. If the central mechanism could be quantitatively derived and the correlations rigorously demonstrated, the model would provide a testable electromagnetic explanation linking spoke visibility to illumination and magnetospheric conditions. The hypothesis introduces specific material assumptions (pyrolytic carbon coatings, diamagnetic ice) but currently offers no parameter-free predictions or falsifiable quantitative outputs.

major comments (3)
  1. [Abstract] Abstract: The claim that the photoelectric effect causes pyrolytic carbon grains to lose electrons, become paramagnetic, and experience net attraction back to the B ring is asserted without any derivation of charge-loss rate, unpaired-electron density, induced magnetic moment, or Lorentz/gravity force balance under ring plasma conditions. This mechanism is load-bearing for the two-component persistence and return claim.
  2. [Abstract] Abstract and implied statistical analysis: The paper states that 'statistical analysis of Cassini data reveals significant correlations' with magnetospheric rotation and solar elevation angle but provides no equations, sample sizes, error bars, p-values, data exclusion criteria, or period-specific results. This leaves the claimed support for the electromagnetic mechanism unassessable and circular with the model's timescales.
  3. [Abstract] Abstract: The assumption that pyrolytic carbon has coated silicates via high-temperature CVD during circumplanetary disk formation, enabling the diamagnetic properties and subsequent paramagnetic transition, is introduced without cited references, yield calculations, or tests against ring composition data. This is an ad-hoc entity required for the model's long-timescale component.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment below and will revise the manuscript accordingly to provide greater quantitative detail and supporting references where feasible.

read point-by-point responses

  1. Referee: [Abstract] The claim that the photoelectric effect causes pyrolytic carbon grains to lose electrons, become paramagnetic, and experience net attraction back to the B ring is asserted without any derivation of charge-loss rate, unpaired-electron density, induced magnetic moment, or Lorentz/gravity force balance under ring plasma conditions. This mechanism is load-bearing for the two-component persistence and return claim.

    Authors: We agree that the abstract states the mechanism qualitatively. The manuscript grounds the proposal in known diamagnetic-to-paramagnetic transitions under UV illumination, but lacks explicit derivations. The revised version will add order-of-magnitude estimates for charge-loss timescales and force comparisons under typical ring plasma conditions, with references to relevant photoelectric-effect studies in planetary environments. revision: yes

  2. Referee: [Abstract] The paper states that 'statistical analysis of Cassini data reveals significant correlations' with magnetospheric rotation and solar elevation angle but provides no equations, sample sizes, error bars, p-values, data exclusion criteria, or period-specific results. This leaves the claimed support for the electromagnetic mechanism unassessable and circular with the model's timescales.

    Authors: The correlations are derived from Cassini ISS imaging as noted in the manuscript text, but we acknowledge the absence of the requested quantitative details in the abstract and supporting sections. The revision will incorporate a concise methods summary including sample sizes, correlation coefficients, p-values, and data-selection criteria, ensuring the analysis is presented independently of the model's timescales. revision: yes

  3. Referee: [Abstract] The assumption that pyrolytic carbon has coated silicates via high-temperature CVD during circumplanetary disk formation, enabling the diamagnetic properties and subsequent paramagnetic transition, is introduced without cited references, yield calculations, or tests against ring composition data. This is an ad-hoc entity required for the model's long-timescale component.

    Authors: This material assumption is central to the persistent component. The revision will add citations to literature on CVD processes in circumplanetary disks and the diamagnetic behavior of pyrolytic carbon. Detailed yield calculations lie outside the scope of the present hypothesis paper; however, we will include a consistency check against Cassini ring-composition measurements. revision: partial

Circularity Check

0 steps flagged

No significant circularity; model is a hypothesis proposal without self-referential derivation

full rationale

The provided abstract and text present a conceptual hypothesis for spoke formation using two components defined by their observed timescales and an asserted photoelectric mechanism, supported by correlations from Cassini data. No equations, fitted parameters, or derivation chain are shown that reduce any claimed result to the inputs by construction. No self-citations are present, and the statistical analysis is offered as external support rather than a renamed fit. The paper is self-contained as a model proposal against external benchmarks like Voyager/Cassini observations.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 2 invented entities

The central claim rests on several untested material and formation assumptions plus the interpretation of correlations as causal support for the electromagnetic mechanism. No machine-checked proofs or shipped data are present.

axioms (2)
  • domain assumption Saturn's rings are charged by the solar wind, generating a magnetic field that emanates orthogonally above and below the B ring plane due to the movement of charged particles in the rings.
    Invoked in the abstract to explain the electromagnetic mechanism driving spoke formation and visibility.
  • ad hoc to paper The photoelectric effect causes the pyrolytic carbon grains to lose electrons, thus becoming paramagnetic, which results in their attraction back to the main B ring structure.
    Introduced to account for the return of the long-lived component without additional derivation or external validation.
invented entities (2)
  • pyrolytic carbon coated silicates no independent evidence
    purpose: Provide the persistent diamagnetic component of spokes formed via CVD in the circumplanetary disk.
    Postulated to explain long timescales; no independent evidence or falsifiable prediction supplied in the abstract.
  • diamagnetic ice grains no independent evidence
    purpose: Provide the rapidly forming and dissipating component that interacts with the magnetosphere on short timescales.
    Introduced to match observed spoke lifetimes; no independent evidence or falsifiable prediction supplied in the abstract.
