CodingHomo: Bootstrapping Deep Homography With Video Coding

T0 review · 3 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Motion vectors already embedded in H.264 video, normally discarded at decode time, can be fused with image features through learned masks to give unsupervised homography its best reported accuracy: 0.31 on CA-unsup and 1.21 on GHOF.

desk verdict Solid niche advance using H.264 MVs for unsupervised homography; credible but needs a clearer GHOF training protocol and validation-based alpha. read the letter →

arxiv 2504.12165 v1 pith:EKVBD4PE submitted 2025-04-16 cs.CV

Yike Liu , Haipeng Li , Shuaicheng Liu , Bing Zeng This is my paper · ORCID
classification cs.CV
keywords homographyestimationunsupervisedlearningmotionvectorsH.264/AVCvideocodingpriormask-guidedfusiondominantplaneimagealignment
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Motion vectors computed by an H.264 encoder to compress video are usually thrown away after decoding; this paper argues that they are a free, reliable prior for estimating the homography between consecutive frames. CodingHomo is an unsupervised network that compares these blockwise motion vectors with the current homography flow, learns masks that mark which motion agrees with the dominant plane, and uses the masked information both to fuse motion into the estimator and to focus the training loss. If the argument is right, video-enabled devices get improved image alignment at no extra bitrate and without labels, exactly in the conditions where appearance-based methods struggle: low light, low texture, fog, rain, snow, and moving foreground objects. On CA-unsup the method reports the best average point-matching error among the compared learning-based methods, 0.31 versus 0.34 for the previous best, and on the unseen GHOF test set it reports 1.21 versus 1.72.

What carries the argument

The load-bearing mechanism is a pair of learned masks built by comparing two motion fields: the blockwise motion-vector flow $V^i_{ab}$ extracted from the H.264 bitstream and the current homography flow $H^i_{ab}$. In the Mask-Guided Fusion (MGF) module, a mask generator $G_m$ outputs a motion-rejection mask $M^i_m$ whose confidence values are modeled with conditionally independent Laplace distributions, and a fusion network predicts a residual homography added to $H^i_{ab}$. The Mask-Guided Homography Estimation (MGHE) module applies an adjusted mask $\hat{M}^{i-1}_m = M^{i-1}_m(1-\alpha)+\alpha$ to the warped source and target features before a Swin transformer refinement, so early noisy estimates cannot zero out the features. Finally, the Enhanced Motion Mask $M_e = G_c(F'_a,F_b)\cdot G_m(H_{ab},V_{ab})$ multiplies a coplanarity-aware feature mask with the motion-rejection mask and weights the unsupervised loss, trained with a negative log-likelihood term that keeps the mask from collapsing to all zeros.

What would settle it

Replace the H.264 motion-vector input with a scrambled or all-zero flow on the CA-unsup test set and compare average point-matching error: if it remains near 0.31 the motion prior is not load-bearing, and if it jumps toward the 0.36-0.46 range seen in the no-mask ablations, the prior is confirmed as the source of the gain.

Watch

Extended reading notes

Core claim

The paper's central claim is that motion vectors already present in coded video, which are ordinarily discarded after decoding, constitute an effective and entirely free prior for unsupervised homography estimation, and that a network can learn to use them by masking. CodingHomo predicts a homography from reconstructed H.264 frame pairs plus their motion-vector flows; the mask-guided fusion and mask-guided estimation modules suppress foreground and parallax motion while the enhanced motion mask concentrates the loss on the dominant plane. The paper reports that this reaches an average point-matching error of 0.31 on CA-unsup, a reduction from 0.34 for the previous best method, and 1.21 on GHOF, a reduction from 1.72, including generalization to fog, rain, and snow scenes not present in training.

Load-bearing premise

The masks only help if the codec's motion vectors and the current homography agree about the dominant plane; when the initial homography is far wrong or the true motion is larger than the codec's short search window, the prior stops being informative and the method has no backup signal.

Editorial extensions

If this is right

  • Because the motion vectors are extracted from the bitstream during normal decoding, the method adds no bitrate cost and no new labeling; any pipeline that already decodes H.264 video can obtain the prior for free.
  • The reported generalization to fog, rain, and snow on GHOF, categories absent from training, indicates that the MV prior transfers across appearance domains better than photometric or feature losses alone.
  • The ablation numbers attribute most of the gain to the learned masks: removing the motion-rejection mask raises CA-unsup error from 0.31 to 0.36, and removing the mask from the loss raises it to 0.46, so the mask mechanism, not the raw MVs, is what carries the improvement.
  • The coarse-to-fine estimator inherits a transformer pyramid, but the MGHE module lets the mask prune features before each refinement stage, which is what the paper credits for handling large foregrounds and multiple planes.
  • The approach is stated to extend naturally to HEVC/H.265 and VVC/H.266, since MV extraction is a standard decoding step; the H.264 choice is made because the CA-unsup dataset was encoded in that format.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: the same mask-guided fusion pattern could be applied to other decode-side priors, such as residual energy, block partition structure, or reference-frame indexes, to distinguish static background from dynamic objects; the paper does not explore these.
  • Editorial boundary: because H.264 motion search is typically capped around a 16-pixel window, the method is inherently a small-baseline estimator, and feature-based methods may remain necessary for large displacements unless codec search ranges are enlarged.
  • Editorial test: swapping the H.264 MVs for optical flow computed from the decoded frames would show whether the gain comes specifically from the codec prior or from any dense motion signal; the paper's mechanism does not logically require the MVs to originate from a codec.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents CodingHomo, an unsupervised deep homography estimation framework that augments image pairs with motion vectors extracted from H.264/AVC video bitstreams. The main technical contributions are a Mask-Guided Fusion (MGF) module that fuses a coarse homography with motion vectors under a learned motion-rejection mask, a Mask-Guided Homography Estimation (MGHE) module that uses the mask in coarse-to-fine refinement, and an Enhanced Motion Mask (EMM) that combines a coplanarity-aware mask with a motion-rejection mask for loss weighting, trained with a negative log-likelihood loss. Experiments on the CA-unsup dataset report state-of-the-art average point matching error (0.31 PME) and a generalization experiment on the GHOF dataset reports a larger improvement (1.21 PME), with qualitative results on fog, rain, and snow scenes. Code and dataset are promised publicly.

Significance. If the empirical results are reproducible, this is a novel and useful direction: it is the first unsupervised homography framework to exploit codec motion vectors as a prior, and the engineering is solid in several respects. The paper includes comparisons against feature-based, supervised, and unsupervised baselines on two datasets, per-component ablations, standard deviations, a t-test, robustness curves, and a public code/data commitment. These strengths make the central claim clearly testable. The main risks are protocol-level: the GHOF generalization experiment does not state whether GHOF training frames were used in any way, and the hyperparameter α is selected on the test set. Both are fixable with clarifications or additional experiments, so the paper is best treated as a major revision rather than a rejection.

major comments (3)
  1. [Section IV-C2 / Section IV-A] The GHOF generalization experiment lacks an explicit training protocol. The paper reports GHOF as a generalization test and emphasizes improvements on unseen fog, rain, and snow scenes, but Section IV-A states that GHOF includes a training set of approximately 10,000 frames, and Section IV-C2 only says "we added the corresponding MVs to the test set (GHOF)". It is never stated whether the network, the mask generators, or the hyperparameter α were trained or tuned on any GHOF frames. Since the largest reported relative gain (1.72 to 1.21, 29.65%) occurs on the GHOF categories, this omission leaves open the possibility that the improvement reflects learning GHOF-specific MV/homography statistics rather than a generalizable motion prior. Please state definitively which GHOF data were used for training, validation, and model selection; if none were used, say so explicitly.
  2. [Section IV-F / Table IV] The floor parameter α in Eq. (6) is selected on the CA-unsup test set. Table IV reports PME on the test set for α ∈ {1.0, 0.4, 0.2, 0.0}, and the final model uses α = 0.2 from that table. This is test-set model selection, so the PME values in Table I and the t-test against RealSH (t = 3.7102) are obtained from a model whose hyperparameter was tuned on the same test set, while the comparison methods were not afforded such tuning. Please introduce a validation split, select α on it, and report the corresponding test numbers, or report all α variants on a held-out validation set to establish that the SOTA claim is not an artifact of test-set tuning.
  3. [Section IV-C1] The statement "All learning-based methods are trained on the CA-sup dateset" is inconsistent with the rest of the manuscript, where CAHomo, BasesHomo, and HomoGAN are described as unsupervised methods trained on CA-unsup. If some comparison methods were trained on a different dataset (for example RealSH on CA-sup), the comparison in Tables I and II is not controlled; if the sentence is a typo, it should be corrected. Please specify the exact training data and protocol for every learning-based baseline, including RealSH and the unsupervised methods.
minor comments (5)
  1. [Section III-B] Please fix the typo "A VC/H.264" (should be "AVC/H.264") and the repeated "video video coding" in the same section.
  2. [Table I] The row labeled "I3×3" is not defined in the text or caption; please state explicitly that it is the identity-transform baseline.
  3. [Figure 2 caption] The caption says "Red block donates a dynamic vehicle"; "donates" should be "denotes".
  4. [Section IV-A / IV-C2] The encoder configuration used to generate the H.264 bitstreams and MVs for GHOF is not reported. The paper only says MVs were "added" to GHOF; without encoder settings (QP, search range, frame structure, minimum block size, reference-frame count), the motion-vector input is not reproducible.
  5. [Section III-D] The mask notation is inconsistent: "Mi−1m", "Mi m", and "fMi−1m" are used without a uniform convention. Please define the superscript/subscript placement clearly and use it consistently through Eqs. (5)–(7).

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claim is an empirical benchmark result evaluated on held-out ground truth, and the MVs and masks are internal inputs/training objectives rather than predictions that reproduce their own inputs.

full rationale

The paper's central claim is an empirical benchmark result: CodingHomo is trained with an unsupervised photometric/NLL objective on CA-unsup training pairs and evaluated by average L2 point-matching error against held-out ground-truth correspondences on the CA-unsup and GHOF test sets. The motion vectors are codec inputs extracted from the bitstream, not labels derived from the target homography; the learned masks are internal gating modules whose supervision (Eqs. 4, 8, 12) depends on the current estimate H_ab and the codec flow V_ab, but this is a training objective, not a prediction of the test metric. No equation defines the reported PME in terms of the training loss, and no fitted parameter is renamed as a prediction. The GHOF generalization experiment states that fog/rain scenes 'were not included in the training dataset (CA-unsup)' and that MVs were added only to the test set; whether that protocol was fully followed is a reproducibility question, not a circularity one. Self-citations to CAHomo, HomoGAN, RealSH, and GHOF are used as baselines, datasets, and borrowed backbone components; they are not invoked as uniqueness theorems or as the justification for the empirical improvement. The claimed derivation chain is therefore self-contained with respect to circularity.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central claim rests on the availability and informativeness of codec MVs. The most consequential free parameter is alpha, tuned on the test set via ablation. The main domain assumptions are about H.264 metadata availability and the small-baseline motion regime.

free parameters (3)
  • alpha (mask floor in MGHE) = 0.2
    Chosen via ablation on the CA-unsup test set (Table IV). Performance ranges from 0.31 (alpha=0.2) to 0.38 (alpha=0.0) and 0.34 (alpha=1.0); the claim of superiority depends on this choice.
  • BCE loss weight in plane loss = 0.05
    Fixed in Eq (14) without ablation; controls the all-zero-mask avoidance and affects mask quality.
  • Number of coarse-to-fine scale levels = 3
    Architectural choice reported in Implementation Details; no ablation shown.
assumptions (4)
  • domain assumption H.264 motion vectors can be extracted losslessly during decoding and represent inter-frame block motion.
    Sec III-B and Fig 4: the entire input signal V_ab depends on the codec metadata being available; for raw or differently coded video the method cannot be applied as described.
  • ad hoc to paper Motion vector flow and homography flow are commensurate representations, so their pixel-wise difference can be modeled by a Laplace distribution whose variance is the mask.
    Eq (4) in Sec III-C defines the likelihood used in the NLL training loss; this probabilistic link is a modeling choice, not derived from the codec or geometry.
  • domain assumption The dominant-plane homography is the transformation that aligns the largest image region, and MVs in that region are consistent with the homography.
    Assumed throughout Sec III-C to III-E; if the scene is dominated by a non-planar or non-rigid structure, the mask may reject the true alignment target.
  • domain assumption The MVs in the test videos have a bounded search range (around 16 pixels), so the method is only valid for small-baseline motions.
    Stated as a limitation in Sec V; for large baselines, MVs are uninformative and the method cannot improve over baselines.

how reviews work

0 comments
Cite this review

Pith. "Pith review of CodingHomo: Bootstrapping Deep Homography With Video Coding." pith.science (2026). https://pith.science/paper/EKVBD4PE

@misc{pith2026250412165,
  author       = {Pith},
  title        = {Pith review of: CodingHomo: Bootstrapping Deep Homography With Video Coding},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/EKVBD4PE}},
  note         = {Machine review of arXiv:2504.12165}
}
read the original abstract

Homography estimation is a fundamental task in computer vision with applications in diverse fields. Recent advances in deep learning have improved homography estimation, particularly with unsupervised learning approaches, offering increased robustness and generalizability. However, accurately predicting homography, especially in complex motions, remains a challenge. In response, this work introduces a novel method leveraging video coding, particularly by harnessing inherent motion vectors (MVs) present in videos. We present CodingHomo, an unsupervised framework for homography estimation. Our framework features a Mask-Guided Fusion (MGF) module that identifies and utilizes beneficial features among the MVs, thereby enhancing the accuracy of homography prediction. Additionally, the Mask-Guided Homography Estimation (MGHE) module is presented for eliminating undesired features in the coarse-to-fine homography refinement process. CodingHomo outperforms existing state-of-the-art unsupervised methods, delivering good robustness and generalizability. The code and dataset are available at: \href{github}{https://github.com/liuyike422/CodingHomo

Figures

Figures reproduced from arXiv: 2504.12165 by the authors.

Figure 1
Figure 1. The overview of our work. We extract MVs while decoding frames [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. An example of network input. (a) Reconstruct image pair. (b) MVs. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. The overall pipeline of CodingHomo. Our network architecture consists of three stages: 1) Feature extraction stage. A CNN module for projecting [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: Illustration of the extraction of MVs during the decoding process. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png]
Figure 5
Figure 5. Figure 5: The mask-guided fusion (MGF) module’s structure involves utilizing [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 7
Figure 7. Figure 7: The mask-guided homography estimation (MGHE) module. Adjust f [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: Qualitative results of our method and other existing learning-based methods on the CA-unsup [ [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: Qualitative results of feature-based methods and our method. For each feature-based method, we show its results with the best performed outlier [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10
Figure 10. Figure 10: Qualitative results of our method and other competitive methods on the GHOF [ [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
Figure 11

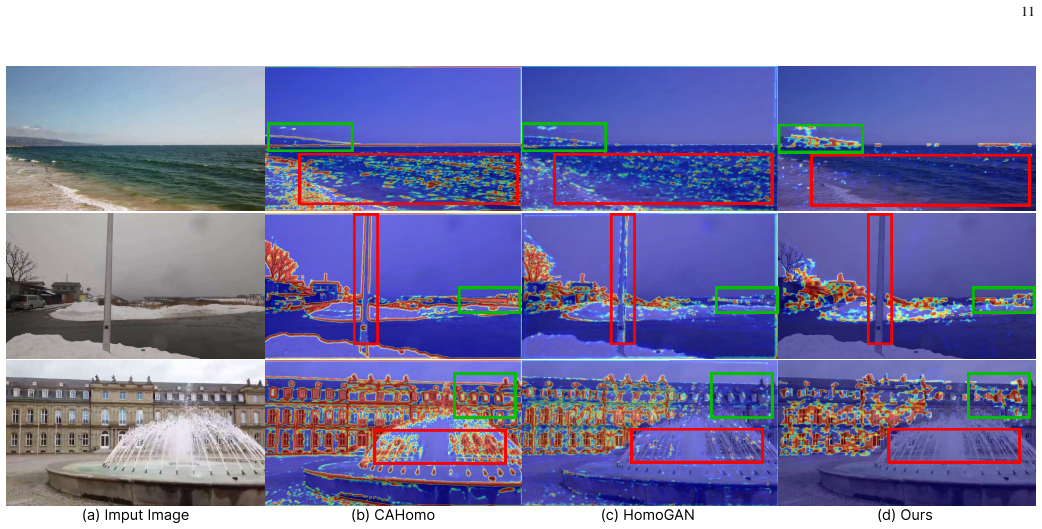

Figure 11. Figure 11: Visualization results of outlier rejection masks of our method and other competitive methods on the CA-unsup [ [PITH_FULL_IMAGE:figures/full_fig_p011_11.png]
Figure 12
Figure 12. Figure 12: The proportion of inliers of our method and all comparison methods under various thresholds. Inliers indicate points with errors under the threshold. [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: Illustration of masks. The yellow box indicates that an interrupted area is finally eliminated in the fused masks. [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 14
Figure 14. Figure 14: Illustration of the masks generated without/with NLL constraint. [PITH_FULL_IMAGE:figures/full_fig_p013_14.png]
